LED Shoebox Lights for Parking Lots, Roadways & Commercial Area Lighting
JCELighting LED shoebox lights are commercial outdoor area lights designed for parking lots,
roadways, commercial properties, building perimeters, industrial yards, car dealerships, campuses,
loading areas, and large exterior spaces. These LED shoebox area lights deliver high-output
illumination with available wattage-selectable models, CCT-adjustable options, IP65 protection,
dimmable operation, UL / DLC Premium options, photocell base options, and a 5-year warranty.
This collection includes LED shoebox area lights from 100W/120W/150W selectable models up to
high-output 300W/350W/400W/450W/500W models, with lumen packages up to 25,500 lm, 51,000 lm,
60,000 lm, and 80,000 lm. Choose AC120–277V models for standard commercial systems, AC277–480V
models for high-voltage applications, or AC100–347V options where project voltage requires it.
High-Lumen Parking Lot Lighting
JCELighting shoebox area lights provide up to 80,000 lumens for parking lots, roadways,
exterior commercial spaces, pole lighting, and high-output outdoor area lighting projects.
Selectable Wattage & CCT
Available models include selectable wattage and CCT options, helping contractors adjust
brightness and color temperature on site for different pole heights and outdoor layouts.
IP65 Outdoor-Rated Design
IP65-rated construction supports outdoor commercial use where fixtures must resist dust,
moisture, and changing weather conditions.
How to Choose the Right LED Shoebox Light
The best LED shoebox light depends on pole height, parking lot size, fixture spacing, voltage,
lumen output, CCT, photocell requirements, dimming controls, and whether the project is replacing
older metal halide or HID parking lot fixtures.
| Selection Factor |
What to Check |
JCELighting Recommendation |
| Wattage & Lumens |
Compare fixture brightness by lumens, not wattage alone. |
Use 100/120/150W models for smaller lots and lower poles; use 200/240/300W or higher-output models for larger outdoor areas. |
| Pole Height |
Measure the mounting height and spacing between poles. |
Higher poles and larger lots usually need higher lumen output or a photometric layout before ordering. |
| Voltage |
Confirm site voltage before selecting fixtures. |
Choose AC120–277V for standard commercial projects and AC277–480V or AC100–347V where the electrical system requires it. |
| CCT |
Choose the color temperature that matches the project environment. |
3000K is warmer, 4000K is neutral white, and 5000K or 6500K provides brighter daylight-style visibility for security and parking areas. |
| Photocell |
Check whether dusk-to-dawn automatic operation is needed. |
Select models with photocell base options when the light should turn on at dusk and off at dawn automatically. |
| Dimming |
Confirm whether the project needs 0–10V dimming or controls. |
Use dimmable shoebox fixtures where the project requires lighting controls, sensors, or energy-saving strategies. |
| Mounting |
Check existing pole, arm, bracket, and mounting condition. |
Confirm mounting compatibility before ordering. Some JCELighting models include photocell base or A&N type bracket options. |
| Certifications |
Check UL, DLC Premium, rebate, and project specification requirements. |
Choose UL Listed and DLC Premium models when commercial safety listings and utility rebate eligibility matter. |
Recommended Shoebox Light by Wattage and Lumen Output
Use this table as a general starting point. Final fixture quantity, pole spacing, distribution,
glare control, and light levels should be confirmed with a lighting layout for parking lots,
roadways, campuses, and large commercial projects.
| JCELighting Option |
Typical Light Output |
Voltage Options |
Best Applications |

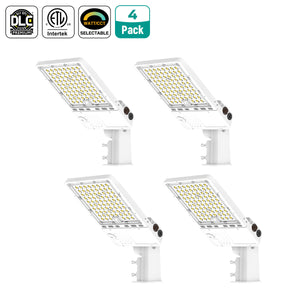

| 100W / 120W / 150W Selectable Shoebox Lights |
Up to 25,500 lumens |
AC120–277V or AC277–480V models |
Small parking lots, building perimeters, drive lanes, sidewalks, entrances, and lower pole heights. |
| 200W / 240W / 300W Selectable Shoebox Lights |
Up to 51,000 lumens |
AC120–277V, AC277–480V, or AC100–347V models |
Medium to large parking lots, commercial properties, roadways, campuses, and industrial yards. |
| 400W / 320W / 240W Selectable Shoebox Lights |
Up to 60,000 lumens |
100–277VAC models |
Larger outdoor areas, high pole applications, parking lot upgrades, and brighter security lighting projects. |
| 300W / 350W / 400W / 450W / 500W Selectable Shoebox Lights |
Up to 80,000 lumens |
AC120–277V models |
High-output commercial area lighting, large parking lots, roadways, dealerships, and expansive exterior spaces. |
Where to Use JCELighting LED Shoebox Area Lights
Parking Lots
Use LED shoebox lights to illuminate parking spaces, drive lanes, entrances, exits, and
pedestrian routes for commercial properties.
Roadways & Drive Lanes
Select higher-output shoebox area lights for private roads, access roads, commercial drive
lanes, and exterior circulation areas.
Commercial Properties
Improve exterior visibility around retail centers, office buildings, warehouses, schools,
campuses, hotels, and mixed-use properties.
Industrial Yards
Use IP65 shoebox fixtures in industrial yards, loading areas, storage lots, equipment areas,
and facility perimeters.
Car Dealerships
High-lumen LED shoebox lights help display vehicles clearly while supporting exterior security
and nighttime visibility.
Security Area Lighting
Dimmable models and photocell base options support dusk-to-dawn operation and exterior
security lighting needs.
LED Shoebox Lights vs Other Outdoor Fixtures
Shoebox area lights are designed for large outdoor spaces and pole-mounted area lighting. They
are different from wall packs, flood lights, canopy lights, and bollard lights.
| Fixture Type |
Best Application |
When to Choose It |
| LED Shoebox Lights |
Parking lots, roadways, commercial properties, campuses, dealerships, and large outdoor areas. |
Choose when you need pole-mounted or area-mounted lighting with broad outdoor coverage. |
| LED Flood Lights |
Building exteriors, yards, signs, loading areas, and adjustable directional lighting. |
Choose when the fixture needs to aim light toward a specific target or surface. |
| LED Wall Pack Lights |
Building entrances, walkways, loading docks, service doors, and perimeter walls. |
Choose when the fixture mounts directly to a building wall rather than a pole. |
| LED Canopy Lights |
Gas stations, parking garages, covered drive-throughs, and covered entry areas. |
Choose when lighting is mounted under a canopy or covered ceiling structure. |
| LED Bollard Lights |
Pathways, sidewalks, landscapes, courtyards, and pedestrian-scale exterior lighting. |
Choose when low-level pathway lighting is needed instead of high-output area lighting. |
Replacing Metal Halide Parking Lot Lights
LED shoebox lights are commonly used to replace older metal halide, HID, or high pressure sodium
parking lot fixtures. A full LED fixture upgrade can improve outdoor visibility, reduce maintenance,
remove lamp and ballast replacement, and provide instant-on lighting with selectable wattage and
photocell control options.
- Replace older HID, metal halide, or HPS parking lot fixtures.
- Use selectable wattage to fine-tune brightness after installation.
- Use CCT-selectable models to choose warm, neutral, or daylight-style outdoor lighting.
- Choose photocell base options for automatic dusk-to-dawn operation.
- Select AC277–480V models for compatible high-voltage commercial or industrial systems.
- Use IP65 outdoor-rated fixtures for parking lots, roadways, and exterior commercial spaces.
- Choose UL Listed and DLC Premium models when project specifications or rebate programs require them.
CCT Selection for Outdoor Area Lighting
| CCT Setting |
Light Appearance |
Recommended Use |
| 3000K |
Warm white |
Commercial properties, hospitality areas, pedestrian-friendly exterior spaces, and warmer architectural environments. |
| 4000K |
Neutral white |
General parking lot lighting, roadways, campuses, exterior commercial areas, and balanced visibility. |
| 5000K |
Bright white |
Parking lots, industrial yards, dealerships, security lighting, and high-visibility outdoor areas. |
| 6500K |
Cool daylight |
Projects that specifically require very cool daylight-style visibility from compatible CCT-selectable models. |

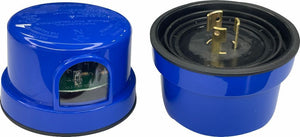

Photocell, Dimming & Controls
Many outdoor area lighting projects require automatic dusk-to-dawn operation, energy-saving controls,
or dimming compatibility. JCELighting LED shoebox lights include dimmable options and selected
models with photocell base options.
- Use photocell base options when the fixture should turn on at dusk and off at dawn automatically.
- Use dimmable models when the project requires lighting controls or staged light levels.
- Confirm control compatibility before connecting dimming leads, sensors, or building automation systems.
- For large parking lots, group controls by zones such as entrances, drive lanes, loading areas, and perimeter lighting.
Installation & Layout Notes
- Confirm pole height, pole spacing, fixture wattage, voltage, CCT, mounting method, and control requirements before ordering.
- Use AC120–277V, AC277–480V, or AC100–347V fixtures only on compatible electrical systems.
- Set wattage and CCT before final commissioning when using selectable models.
- Confirm whether the project requires a photocell base, dimming, or control system integration.
- Check existing poles, brackets, arms, and wiring before replacing older fixtures.
- Do not oversize lumen output without checking glare, spill light, and neighboring property impact.
- For parking lots and roadways, request a photometric layout to confirm light levels and fixture count.
- Always follow local electrical code and use a licensed electrician for commercial outdoor installations.
Need Help Choosing JCELighting LED Shoebox Lights?
Not sure whether your project needs 150W, 300W, 400W, or 500W LED shoebox lights, AC120–277V or
AC277–480V input, photocell base options, CCT-selectable fixtures, or a specific lumen package?
Contact JCELighting for product selection, bulk pricing, and commercial parking lot lighting support.
Call: +1 718-688-9188
Email: Contact@jcelighting.com
LED Shoebox Lights FAQ
What are LED shoebox lights?
LED shoebox lights are high-output outdoor area lights commonly used for parking lots, roadways,
commercial properties, campuses, industrial yards, and pole-mounted exterior lighting.
Where are JCELighting LED shoebox lights used?
JCELighting LED shoebox lights are used for parking lots, roadways, building exteriors,
commercial properties, car dealerships, industrial yards, campuses, drive lanes, and security area lighting.
What wattage LED shoebox light should I choose?
The correct wattage depends on pole height, fixture spacing, parking lot size, target light
levels, and lumen output. JCELighting offers selectable models from 100/120/150W up to
300/350/400/450/500W for different outdoor area lighting needs.
Do JCELighting shoebox lights have photocell options?
Yes. Selected JCELighting LED shoebox lights include photocell base options for automatic
dusk-to-dawn operation. Always check the specific product title and specifications before ordering.
Are JCELighting LED shoebox lights dimmable?
Many models in this collection are listed as dimmable. Confirm the product specification and
control compatibility before connecting dimmers, sensors, or lighting control systems.
What voltage options are available?
JCELighting LED shoebox lights include AC120–277V, AC277–480V, and AC100–347V options depending
on the model. Always verify site voltage before ordering and installation.
What does IP65 mean for LED shoebox lights?
IP65 means the fixture is designed to resist dust and water exposure for many outdoor commercial
environments. It is important for parking lots, roadways, and exterior commercial area lighting.
Can LED shoebox lights replace metal halide parking lot fixtures?
Yes. LED shoebox lights are commonly used to replace metal halide, HID, or HPS parking lot
lights. Confirm lumen output, voltage, mounting, pole height, controls, and layout before replacement.
What CCT should I choose for parking lot lighting?
4000K provides neutral white light for general exterior areas, while 5000K is commonly selected
for brighter parking lot, industrial yard, and security lighting. Some models also offer 3000K
or 6500K depending on the fixture.
Do DLC Premium shoebox lights qualify for rebates?
DLC Premium shoebox lights may qualify for certain utility rebate programs, but eligibility
depends on the utility provider, project location, model listing, and program requirements.
Always verify rebate eligibility before ordering.
Note: Final fixture quantity, pole spacing, mounting height, light distribution, voltage, controls,
glare control, and local code requirements should be confirmed by a qualified lighting designer
or licensed electrician based on photometric data and project conditions.
