LED Shoebox Area Light 300W/240W/200W 51000 Lumens UL, DLC Premium | 120-277V
LED Shoebox Area Light 300W/240W/200W 51000 Lumens UL, DLC Premium | 120-277V
Regular price
$129.99 USD
Bulk Savings
automatically applied on carts over $500 - Learn more
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert
Light Your Project with Confidence
Our commercial lighting solutions are built for reliable performance and easy installation. Unbox, mount, and upgrade your parking lot, warehouse, or outdoor space with high-efficiency illumination.
Certification Passed

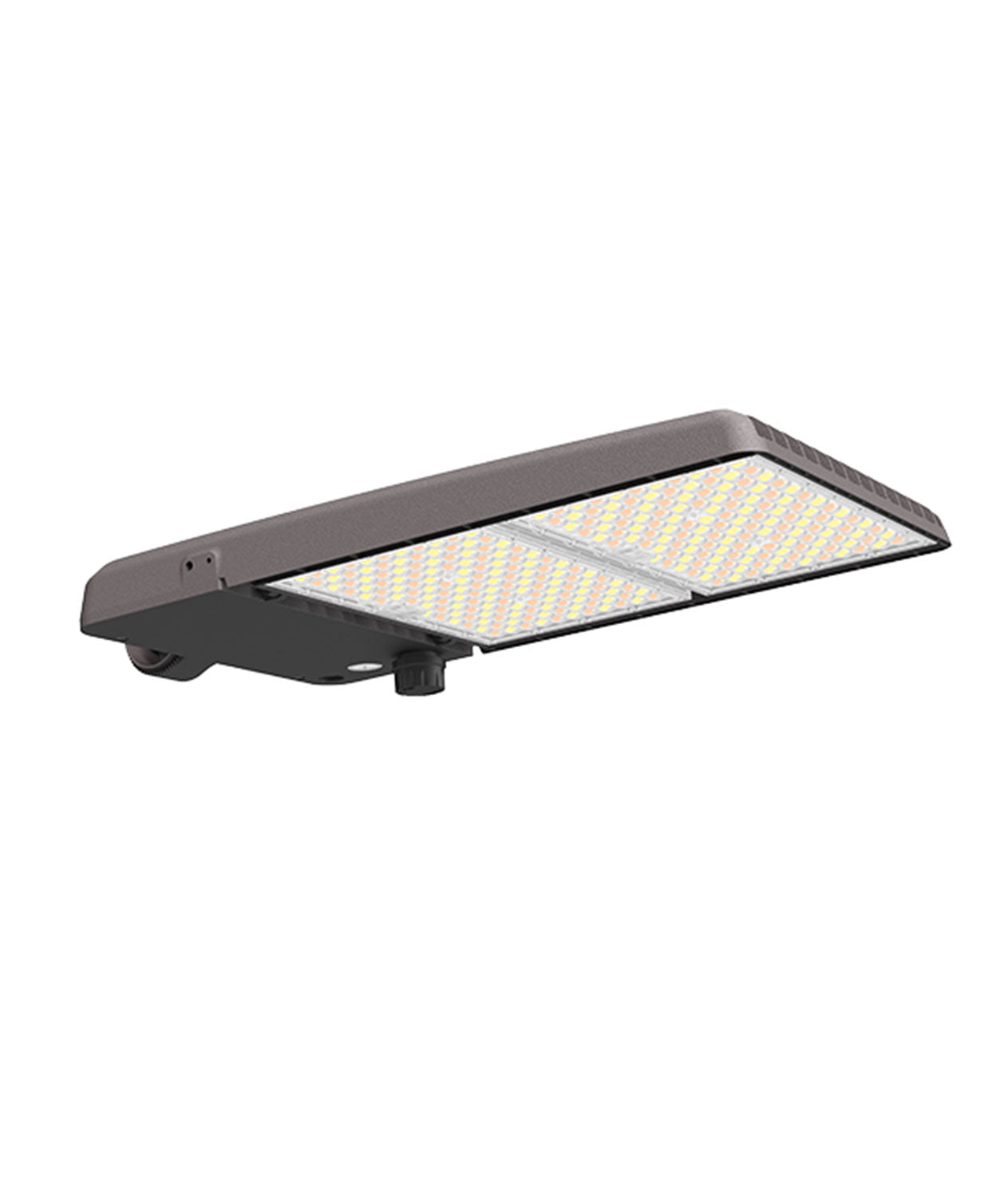

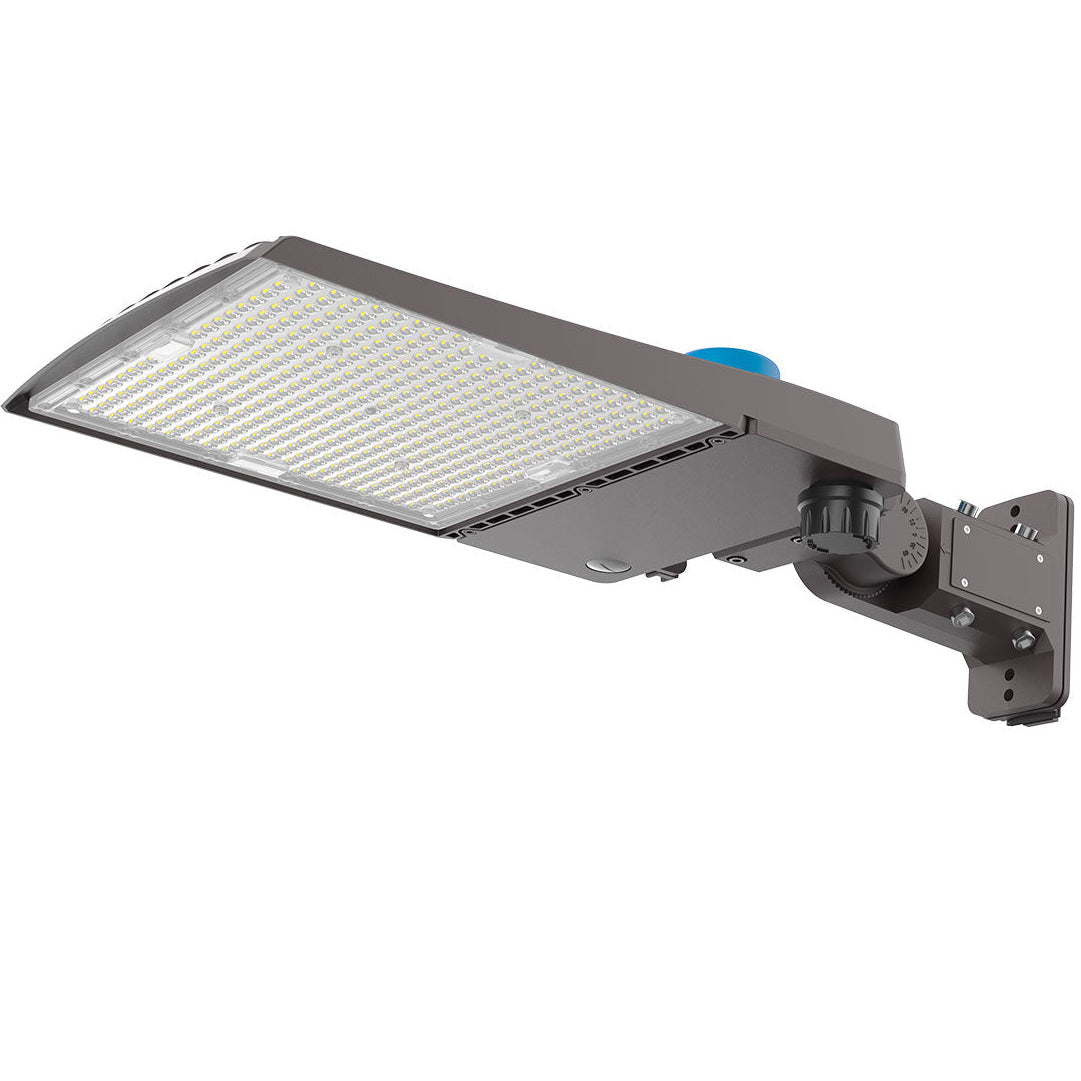

JCE AR09 LED Shoebox Area Light delivers up to 51,000 lumens with selectable wattage and CCT in one fixture. Designed for parking lots and roadway applications, this DLC Premium certified fixture offers high efficacy, Type III distribution, and long-term reliability.
Ā
Key Features
-
300W / 240W / 200W Wattage Selectable
-
3000K / 4000K / 5000K CCT Selectable
-
Max 51,000 Lumens
-
High Efficacy: 170 lm/W
-
Type III Light Distribution (T3)
-
0-10V Dimmable
-
AC120-277V
-
10KV Surge Protection
-
UL Listed
-
DLC Premium Qualified
-
IP65 Waterproof
-
5-Year Warranty
Ā Technical Specifications
| Specification | Details |
|---|---|
| Model | J-AR09-300/240/200W-L-PCX-3CCT-T3 |
| Voltage | 120-277V |
| Wattage | 200W / 240W / 300W |
| Lumens | 51,000 lm |
| Efficacy | 170 lm/W |
| CCT | 3000K / 4000K / 5000K |
| Distribution | Type III |
| CRI | >80 |
| Dimming | 0-10V |
| Surge Protection | 10KV |
| IP Rating | IP65 |
| Housing | Die-cast Aluminum |
| Lens | Polycarbonate |
| Operating Temp | -40Ā°C to 50Ā°C |
| Certification | UL + DLC Premium |
| Warranty | 5 Years |
Ā Applications
Ideal for:
-
Parking Lots
-
Roadways
-
Commercial Outdoor Areas
-
Industrial Facilities
-
Security Lighting
Mounting Options (Sold Separately)
-
Slip Fitter (SF)
-
Direct Mount (DI)
-
Trunnion Mount (TR)
Ā Optional Accessories
-
Photocell (Dusk to Dawn)
-
Glare Shield
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
Overview
Specifications
| Wattage | 300W/240W/200W |
| LPW | 170.0 |
| Certifications | UL Listed, DLC Premium |
| Lifetime | Designed for long service life |
| Luminous | Up to 51,000lm |
| Voltage | AC120ā277V |
| CRI | 80 |
| IP Rating | IP65 |
| Beam Angle | Type III |
| Color Temperature Range | 3000K / 4000K / 5000K (Selectable) |
| Mount type | "3 kinds of mounting brackets available (SF, DI, TR) Ā·Plug-in and Zhaga socket microwave motion sensor available (Factory) Photocell dusk to dawn function Optional" |
| Applications | Parking Lot Lighting Roadway Lighting Commercial Outdoor Lighting Security Lighting Perimeter Lighting Area Lighting |
| Efficacy per W | 170lm/w |
| Operating Temperature | -40Ā°C-50Ā°C |
| Dimming Details | 0-10V |
| Size | 20x11.8x2.0 |
| Warranty | 5 years warranty |
