T-Bar LED Frame Lights for Modern Drop Ceiling Lighting
JCE Lighting T-Bar LED frame lights are commercial ceiling fixtures designed for standard T-grid
drop ceiling applications in offices, schools, hospitals, retail spaces, conference rooms, corridors,
reception areas, and commercial buildings. Instead of filling the entire ceiling tile opening with
a flat luminous panel, LED frame lights create a clean illuminated perimeter around the ceiling tile,
giving the space a modern architectural look while delivering bright, uniform general illumination.
Available in 2x2 and 2x4 sizes, JCE T-Bar frame lights are ideal for commercial retrofit and
new-construction projects that need a cleaner ceiling appearance, selectable wattage, selectable
CCT, 120–277V commercial voltage, dimming compatibility, DLC Premium / ETL listed options, and
reliable 5-year warranty coverage.
Modern Perimeter Lighting
T-Bar LED frame lights create a slim illuminated frame around the ceiling tile, helping offices,
classrooms, retail spaces, and commercial interiors look cleaner and more architectural.
2x2 & 2x4 Drop Ceiling Sizes
Choose 2x2 LED frame lights for smaller rooms and tighter grid layouts, or 2x4 LED frame lights
for larger offices, classrooms, retail spaces, and open commercial areas.
Selectable Wattage & 5CCT
Field-selectable wattage and 3000K / 3500K / 4000K / 5000K / 6500K CCT options help contractors
adjust brightness and color temperature on site.
How to Choose the Right T-Bar LED Frame Light
The right LED frame light depends on ceiling grid size, lumen output, wattage setting, color
temperature, dimming requirements, ceiling design, room use, and whether the project is replacing
fluorescent fixtures, LED panels, or older troffers.
| Selection Factor |
What to Check |
JCE Lighting Recommendation |
| Ceiling Grid Size |
Confirm whether the ceiling opening is 2x2 ft or 2x4 ft. |
Use 2x2 LED frame lights for smaller rooms and 2x4 LED frame lights for larger commercial spaces. |
| Brightness / Lumens |
Match lumen output to room size, ceiling height, and task level. |
Use 5,000 lm frame lights for many 2x2 applications and 7,500 lm frame lights for brighter 2x4 layouts. |
| Wattage Setting |
Check whether the fixture supports selectable wattage. |
Use lower wattage settings for corridors and general areas; use higher settings for offices, classrooms, clinics, and retail spaces. |
| Color Temperature |
Choose CCT based on the visual mood and application. |
3000K–3500K for warmer interiors, 3500K–4000K for offices, and 4000K–5000K for schools, healthcare, retail, and task areas. |
| Dimming |
Confirm dimmer, sensor, and building control compatibility. |
Choose dimmable T-Bar frame lights for conference rooms, offices, classrooms, and multi-use commercial spaces. |
| Certifications |
Check ETL, DLC Premium, utility rebate, and project specification requirements. |
Select ETL and DLC Premium listed LED frame lights where safety, commercial specifications, or rebate eligibility matter. |
| Location Rating |
Confirm whether the space is dry, damp, dusty, wet, or exposed to wash-down conditions. |
Use IP40 frame lights for approved indoor commercial spaces; choose vapor tight fixtures for wet, dusty, or harsh locations. |
2x2 vs 2x4 LED Frame Lights
T-Bar LED frame lights are selected by ceiling grid size. The best choice usually depends on the
existing ceiling layout, the desired visual appearance, and the amount of light required in the room.
| Frame Light Size |
Best For |
Main Advantages |

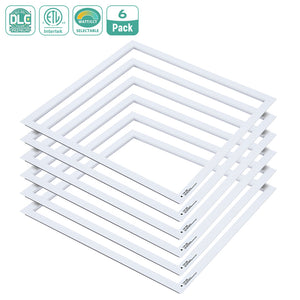

| 2x2 LED Frame Lights |
Small offices, clinics, meeting rooms, corridors, classrooms, reception areas, and tighter ceiling layouts. |
Flexible placement, clean square appearance, and strong fit for 2x2 T-grid ceilings. |

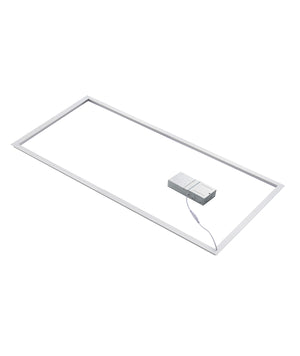

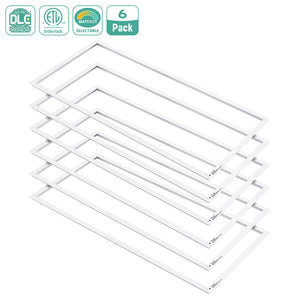

| 2x4 LED Frame Lights |
Large offices, classrooms, retail spaces, healthcare areas, open commercial rooms, and wider ceiling layouts. |
Higher lumen output, broader coverage, and fewer fixtures needed in many larger spaces. |
Where to Use T-Bar LED Frame Lights
Office Lighting
Use T-Bar LED frame lights in private offices, open office areas, conference rooms, reception
spaces, and administrative areas where a modern ceiling appearance is important.
School & Classroom Lighting
2x2 and 2x4 LED frame lights provide bright, uniform illumination for classrooms, libraries,
hallways, labs, and school office areas.
Healthcare & Clinic Lighting
Use LED frame lights in waiting rooms, exam rooms, corridors, offices, nurse stations, and
non-critical healthcare spaces that need clean, comfortable ceiling lighting.
Retail & Showroom Lighting
T-Bar frame lights create a modern grid ceiling look for retail stores, showrooms, fitting rooms,
service counters, and customer-facing commercial interiors.
Conference Rooms
Dimmable LED frame lights are a strong option for meeting rooms, training rooms, and presentation
areas where brightness may need to change throughout the day.
Commercial Retrofit Projects
Replace older fluorescent ceiling fixtures, outdated panels, or traditional troffers with LED
frame lights when the project needs a more modern architectural ceiling style.
T-Bar Frame Lights vs LED Panel Lights vs Troffer Lights
T-Bar frame lights, LED panel lights, and LED troffer lights can all be used in commercial drop
ceilings, but they create different visual effects and solve different project needs.
| Fixture Type |
Best Application |
When to Choose It |
| T-Bar LED Frame Lights |
Offices, schools, retail spaces, clinics, corridors, and modern commercial interiors. |
Choose when the project needs a perimeter-lit, architectural ceiling look while keeping the T-grid layout clean. |
| LED Panel Lights |
Offices, classrooms, healthcare spaces, retail stores, and commercial drop ceilings. |
Choose when the project needs a full luminous flat panel with broad, uniform illumination. |
| LED Troffer Lights |
Traditional recessed commercial ceiling lighting in offices, schools, hospitals, and labs. |
Choose when the project needs a deeper fixture body, lens, or center-basket style for controlled distribution. |
| LED Tube Retrofits |
Existing fluorescent fixtures where the housing is still in good condition. |
Choose when the goal is a lower-cost lamp replacement instead of changing the full ceiling fixture. |
Why Choose LED Grid Frame Lights?
LED grid frame lights are often selected when a project needs both functional ceiling illumination
and a modern design upgrade. The illuminated frame effect can make standard drop ceilings look more
intentional and architectural compared with older fluorescent troffers or plain utility fixtures.
- Creates a clean, modern perimeter-lit look in standard T-grid ceilings.
- Helps refresh offices, classrooms, clinics, retail spaces, and commercial interiors.
- Selectable wattage supports different brightness requirements from one fixture family.
- 5CCT selectable design supports warm, neutral, and cool white commercial lighting.
- 120–277V input supports common commercial electrical systems.
- Dimmable operation supports lighting controls, meeting rooms, and multi-use spaces.
- DLC Premium listed models may help eligible projects qualify for local utility rebates.
- ETL listed options support professional commercial installations.
- LED technology helps reduce maintenance compared with fluorescent lamps and ballasts.
Recommended CCT by Application
| CCT Setting |
Light Appearance |
Recommended Use |
| 3000K |
Warm white |
Reception areas, hospitality-style offices, waiting rooms, and warmer commercial interiors. |
| 3500K |
Soft neutral white |
Private offices, conference rooms, clinics, and professional spaces that need a comfortable look. |
| 4000K |
Neutral white |
General offices, schools, classrooms, healthcare spaces, and everyday commercial lighting. |
| 5000K |
Cool white |
Retail spaces, task areas, labs, utility rooms, and spaces where brighter white light is preferred. |
| 6500K |
Daylight white |
High-visibility task areas or projects that specifically require a very cool daylight appearance. |
Layout Tips for T-Bar LED Frame Lights
Fixture quantity and spacing should be based on ceiling height, room size, lumen output, work-plane
requirements, furniture layout, ceiling tile layout, and the desired architectural effect. For larger
commercial spaces, a photometric layout is recommended before ordering.
- Use 2x2 frame lights in smaller rooms, corridors, and tighter ceiling grids.
- Use 2x4 frame lights in larger rooms, open offices, classrooms, and retail spaces.
- Align fixtures with desks, tables, circulation paths, and ceiling design features where possible.
- Keep spacing consistent to avoid uneven light levels across the room.
- Use dimming in conference rooms, training rooms, classrooms, and multi-use commercial spaces.
- Confirm ceiling grid type, tile size, wiring access, and junction box location before installation.
- Use emergency lighting solutions where required by the project plan or local code.
Installation Notes for Contractors
- Confirm fixture size, ceiling grid size, input voltage, wattage setting, CCT setting, and control requirements before installation.
- Disconnect power before removing old fluorescent troffers, panels, or ceiling fixtures.
- Set the desired wattage and CCT before final installation when using selectable models.
- Use 120–277V wiring only when compatible with the selected fixture model.
- Connect dimming leads only to compatible commercial dimming systems.
- Confirm the fixture is properly supported by the T-grid ceiling system and installed according to the product instructions.
- Do not use IP40 indoor frame lights in wet, dusty, wash-down, or harsh environments unless the product is rated for that condition.
- Always follow local electrical code and use a licensed electrician for commercial installations.
Need Help Choosing T-Bar LED Frame Lights?
Not sure whether your project needs 2x2 or 2x4 LED frame lights, 5CCT selectable fixtures,
dimming controls, DLC Premium models, or a specific lumen package? Contact JCE Lighting for
product selection, bulk pricing, and commercial project support.
Call: +1 718-688-9188
Email: Contact@jcelighting.com
T-Bar LED Frame Lights FAQ
What is a T-Bar LED frame light?
A T-Bar LED frame light is a commercial ceiling fixture designed for T-grid drop ceilings. It
creates an illuminated frame or perimeter-lighting effect around the ceiling tile while providing
general illumination for the space below.
What is the difference between a T-Bar frame light and an LED panel light?
A T-Bar frame light creates a perimeter-lit frame effect around the ceiling tile, while an LED
panel light usually has a full luminous face across the entire panel. Frame lights are often
chosen for a more architectural ceiling appearance.
What is the difference between a T-Bar frame light and an LED troffer?
A T-Bar frame light has a slim frame-style appearance for modern drop ceilings. An LED troffer
usually has a deeper recessed body, lens, or center-basket design. Both can be used in commercial
ceiling applications, but the visual effect is different.
Where are LED grid frame lights commonly used?
LED grid frame lights are commonly used in offices, schools, classrooms, conference rooms,
hospitals, clinics, retail stores, showrooms, corridors, reception areas, and modern commercial
interiors with T-grid ceilings.
Should I choose 2x2 or 2x4 LED frame lights?
Choose 2x2 LED frame lights for smaller rooms, corridors, clinics, offices, and tighter ceiling
grids. Choose 2x4 LED frame lights for larger offices, classrooms, retail spaces, and open
commercial areas that need higher light output or wider coverage.
What color temperature should I choose?
3500K and 4000K are popular for offices, schools, and general commercial interiors. 3000K creates
a warmer look, while 5000K and 6500K provide cooler daylight-style illumination for task-focused
spaces.
Are T-Bar LED frame lights dimmable?
Many commercial T-Bar LED frame lights are dimmable. Always check the product specifications
and confirm compatibility with the dimmer, sensor, or building control system before installation.
Can T-Bar frame lights replace fluorescent troffers?
Yes. T-Bar LED frame lights can be used as a modern replacement option for older fluorescent
ceiling fixtures in compatible drop ceiling applications. Confirm size, voltage, wiring, mounting,
controls, and code requirements before installation.
Are T-Bar LED frame lights suitable for wet locations?
Most indoor T-Bar LED frame lights are intended for approved indoor commercial spaces. If the
project is wet, dusty, damp, or exposed to wash-down conditions, choose a fixture specifically
rated for that environment, such as a vapor tight light.
Do DLC Premium LED frame lights qualify for rebates?
DLC Premium LED frame lights may qualify for certain utility rebate programs, but rebate
requirements vary by state, utility provider, fixture model, and project type. Always check
your local utility rebate program before ordering.
Note: Final fixture quantity, layout, spacing, light levels, emergency lighting requirements, and
control strategy should be confirmed by a qualified lighting designer or licensed electrician based
on ceiling height, room size, photometric data, local electrical code, and required illumination levels.
