AR09 Shoebox Photocell (480V) ¨C JL-207F Dusk-to-Dawn Sensor

AR09 Shoebox Light Photocell Sensor – JL-207F High-Voltage Dusk-to-Dawn Control (AC 480V)

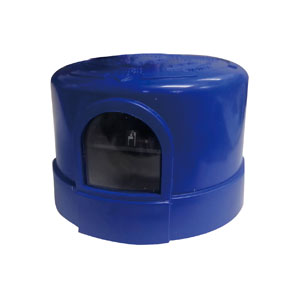

Engineered for automated energy management in high-voltage outdoor commercial and industrial lighting systems, the JL-207F High-Voltage Photocell Sensor delivers reliable dusk-to-dawn switching control for AR09 series LED shoebox lights, pole fixtures, and area luminaires. Operating on high-voltage 480V utility lines, this commercial-grade photocell automatically turns connected light fixtures ON at sunset and OFF at sunrise, eliminating manual switching, preventing daytime energy waste, and maximizing total fixture lifespan.

• 480V High-Voltage Compatibility: Specifically engineered for AC 480V commercial power systems commonly used in industrial parks, municipal parking lots, highway roadways, and large commercial perimeter spaces.

• Automated Dusk-to-Dawn Operation: Integrated cadmium sulfide (CdS) photo sensor automatically senses ambient light levels, switching fixtures ON when natural light falls below twilight thresholds and OFF as morning light returns.

• Standard 3-Pin Twist-Lock Receptacle (ANSI C136.10): Features an industry-standard twist-lock plug design for fast, tool-free installation and quick replacement on compatible AR09 shoebox light fixture housings.

• Built-in Time-Delay Function: Incorporates a short thermal or electronic time delay to prevent accidental ON/OFF cycling caused by brief light flashes, passing headlight beams, or lightning strikes.

• Rugged Weatherproof Construction: Built with an IP65/IP66 weather-sealed, UV-stabilized polycarbonate housing designed to withstand extreme outdoor conditions, including rain, snow, heat, and severe weather.

• Energy Savings & Safety Compliance: Slashes utility costs by ensuring lights operate only during dark hours while maintaining continuous nighttime security across parking lots and perimeter grounds; UL/cUL Listed for commercial safety compliance.

Key Features:

? 480V High Voltage Support ¨C Ideal for industrial and large-scale lighting systems
? Dusk-to-Dawn Operation ¨C Automatically turns lights ON at night and OFF during daylight
? ANSI Twist-Lock Design ¨C Standard NEMA locking system for easy installation
? Built-in Surge Protection (MOV) ¨C Protects against voltage spikes
? Time Delay Function (3¨C20s) ¨C Prevents false switching from lightning or headlights
? Fail-ON Safety Mode ¨C Keeps lights ON in case of sensor failure

Technical Specifications:

• Model: JL-207F (Based on JL-205 Series)
• Voltage: Up to 480V (High Voltage Application)
• Frequency: 50/60Hz
• Sensor Type: Photodiode
• Power Consumption: ¡Ü1.5VA
• On/Off Level:
  • ON: ~6 Lux
  • OFF: ~50 Lux
• Operating Temperature: -40¡ãC to +70¡ãC
• Humidity: Up to 99%
• Mounting Type: ANSI C136.10 Twist Lock
• Protection: Built-in surge arrester (MOV)

Installation Overview:

• Align the photocell with the NEMA receptacle (match NORTH direction)
• Insert and rotate clockwise to lock securely
• Ensure proper orientation for accurate light sensing

Applications:

Designed for high-power outdoor lighting systems:

• Shoebox / Area Lights (AR09 Series)
• Parking Lot Lighting
• Roadway & Street Lighting
• Industrial Facilities & Warehouses
• Campus & Public Infrastructure

Compatibility:

• Designed for AR09 Shoebox Lights
• Compatible with standard NEMA receptacles
• Suitable for high-voltage (480V) lighting systems

?? Compared to standard 120¨C277V photocells, this 480V version is specifically built for industrial-grade power systems, making it ideal for large-scale commercial lighting projects.
