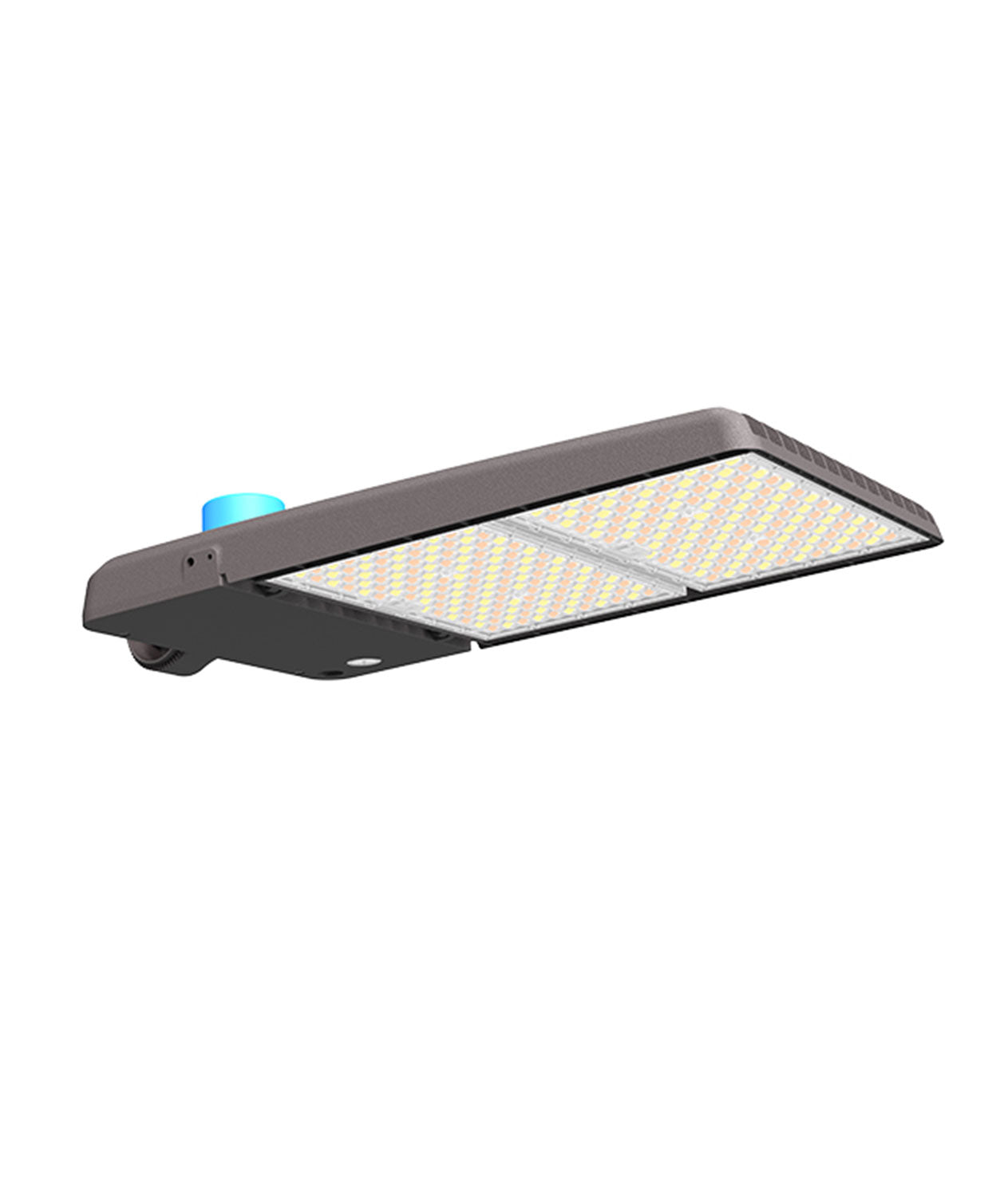

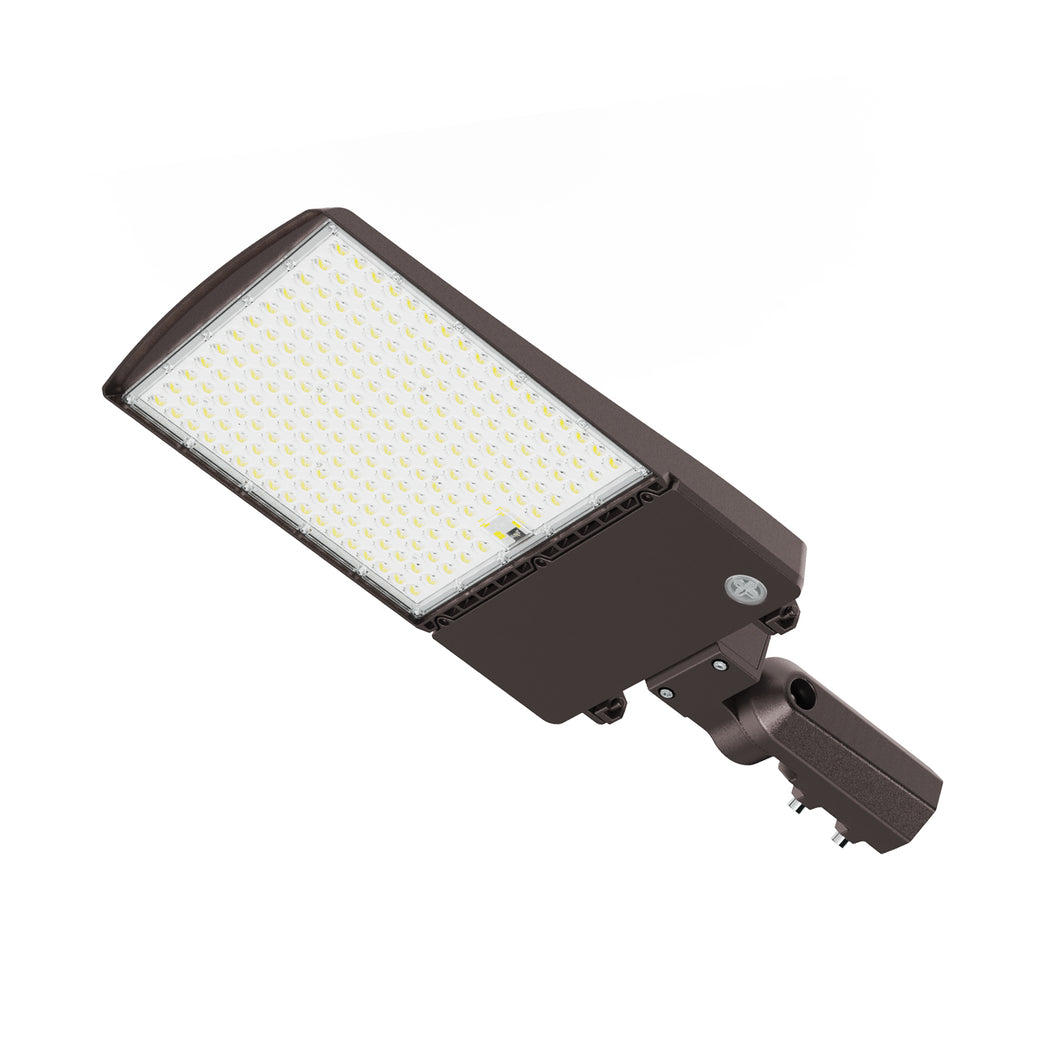

LED Shoebox Area Light 300W / 240W / 200W 51000 Lumens UL, DLC Premium | 277-480V with Photocell Base

LED Shoebox Area Light 300W / 240W / 200W

High Voltage 277-480V | Photocell Base | 3CCT & Wattage Selectable

Engineered for high-voltage industrial sites, commercial parking facilities, logistics yards, and municipal roadways, this 300W/240W/200W Wattage-Selectable LED Shoebox Area Light provides maximum operational versatility and light output. Generating up to 51,000 lumens at a high efficacy of 170 lm/W, this commercial-grade fixture replaces traditional 1,000W–1,500W metal halide or high-pressure sodium (HPS) luminaires while reducing energy consumption by up to 75%. Built to operate on 277–480V high-voltage systems and equipped with an integrated twist-lock photocell base, it enables automated dusk-to-dawn operation for hassle-free site security.

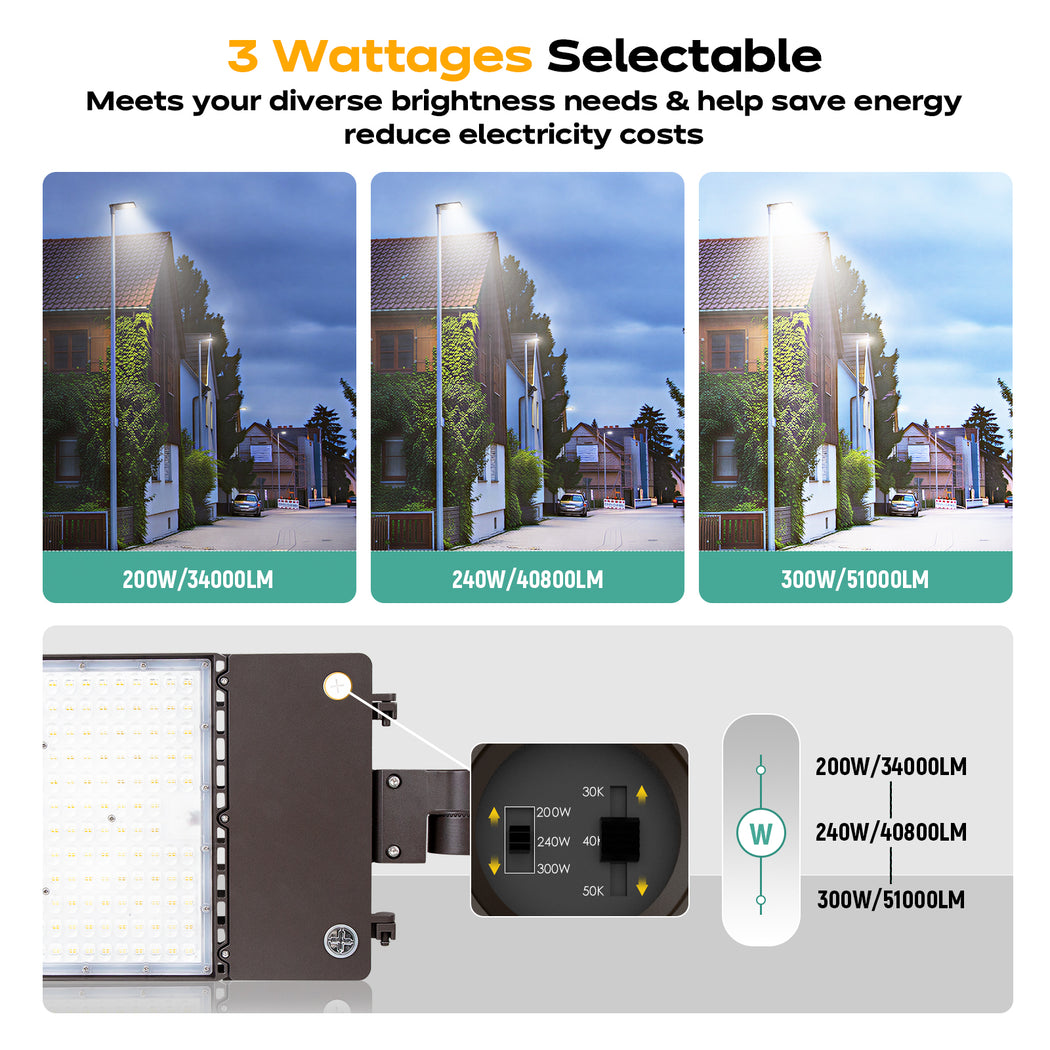

• Field-Selectable Wattage (300W / 240W / 200W): Easily adjust power consumption and lumen output on-site (up to 51,000 lumens) to meet specific lighting requirements and reduce inventory overhead.

• High-Voltage Commercial Driver (AC277–480V): Purpose-built for industrial 277V, 347V, and 480V power systems, equipped with built-in surge protection against line spikes.

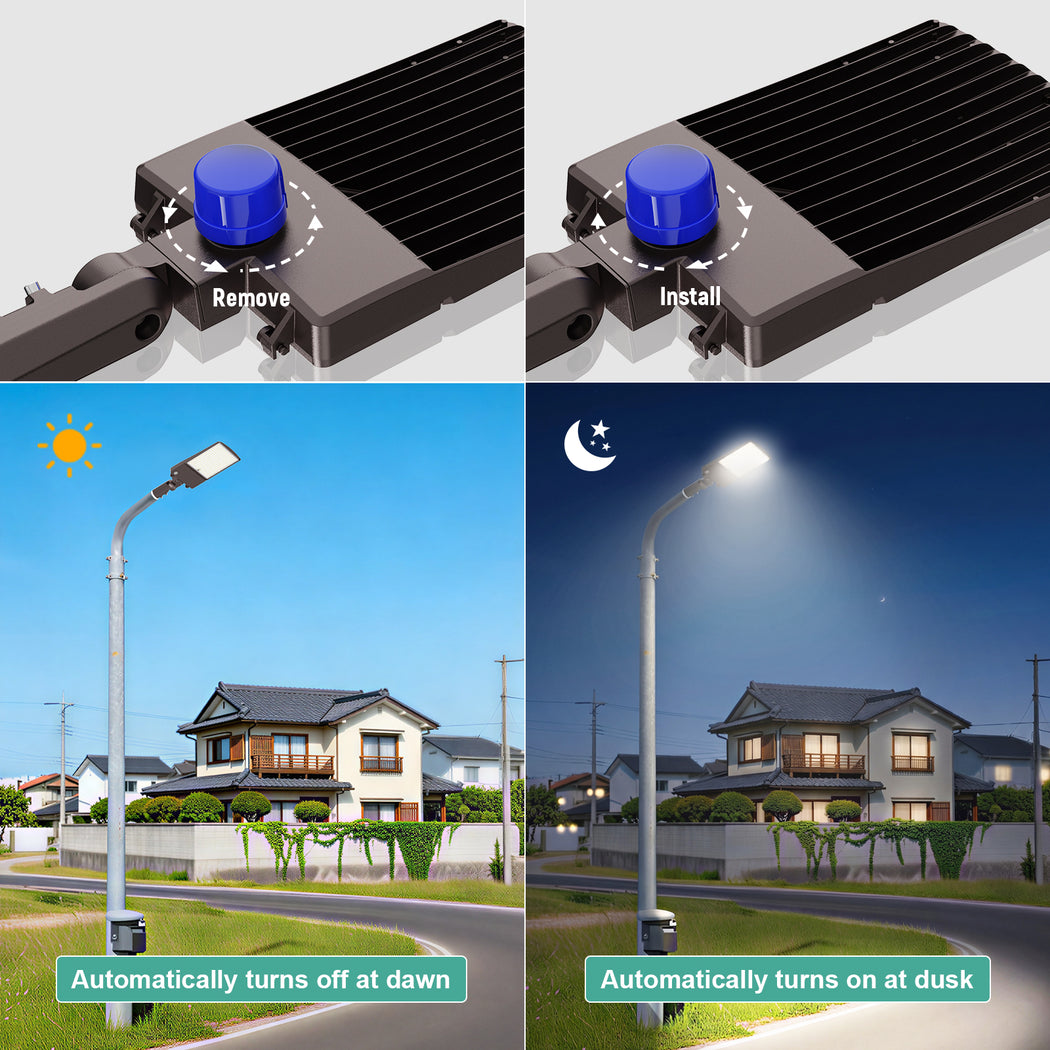

• Integrated Dusk-to-Dawn Photocell Base: Features a factory‑installed twist‑lock photocell receptacle. Photocell sensor sold separately to enable automatic nighttime turn‑on and daytime shutoff functionality.

• DLC Premium & UL Listed: Qualified for highest-tier commercial utility rebate incentives nationwide; UL listed for wet locations and outdoor industrial environments.

• IP65 Weatherproof & Rugged Construction: Die-cast aluminum housing with a durable powder-coated finish ensures optimal thermal management and protection against rain, snow, and dust.

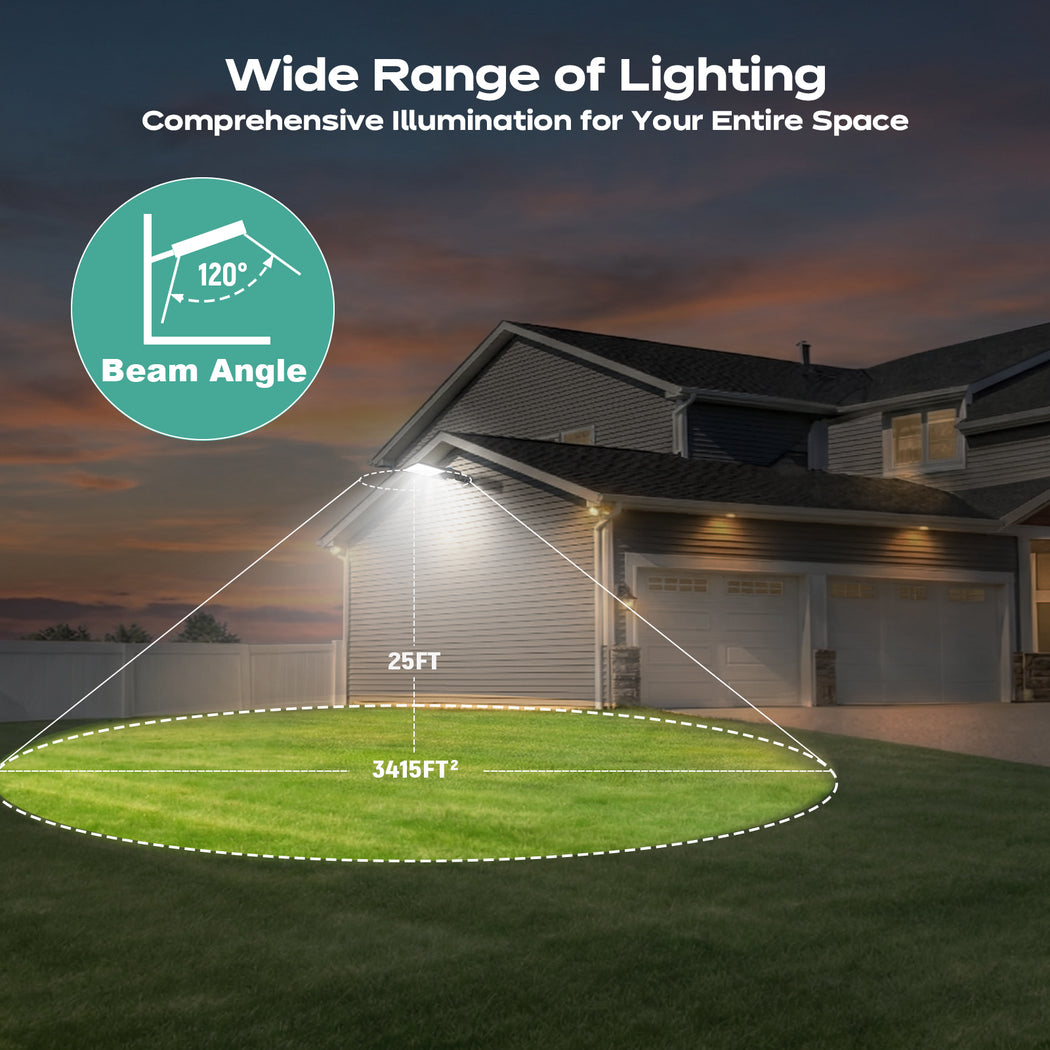

• Precision Type III Optical Distribution: Polycarbonate optics deliver wide, uniform light coverage optimized for parking lanes, roadways, and perimeter lighting.

• Continuous 0–10V Dimming: Compatible with 0–10V dimming controls for smart motion sensors or automated energy management systems.

• Modular Mounting Compatibility: Supports multiple mounting bracket options, including Slip Fitter, Arm Mount for square/round poles, or Direct Wall Mount.

✔ Key Features

• Wattage Selectable: 200W / 240W / 300W

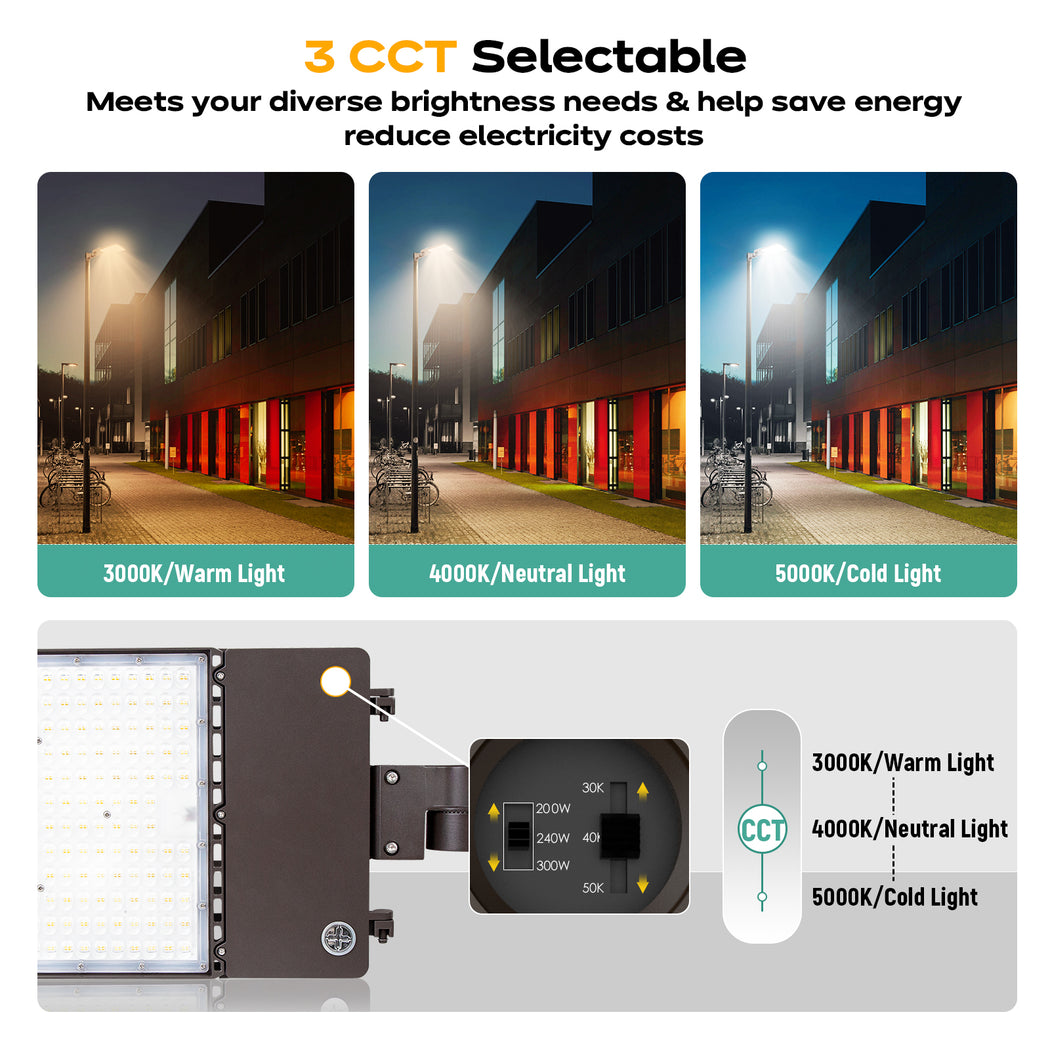

• CCT Selectable: 3000K / 4000K / 5000K

• Total Lumens: 51000 lm

• Voltage: AC277-480V (High Voltage)

• Photocell Base: Dusk-to-Dawn ready

• Light Distribution: Type III (T3)

• Efficacy: 170 lm/W

• CRI: >80

• IP Rating: IP65 Waterproof

• Dimming: 0-10V

• Surge Protection: 10KV

• Certification: UL Listed & DLC Premium

• Warranty: 5 Years

✔ Built for Outdoor Applications

Ideal for:

• Parking Lots

• Roadways

• Commercial Properties

• Industrial Facilities

✔ Durable Construction

• Die-cast aluminum housing for superior heat dissipation

• Polycarbonate lens

• Operating temperature: -40°C to 50°C

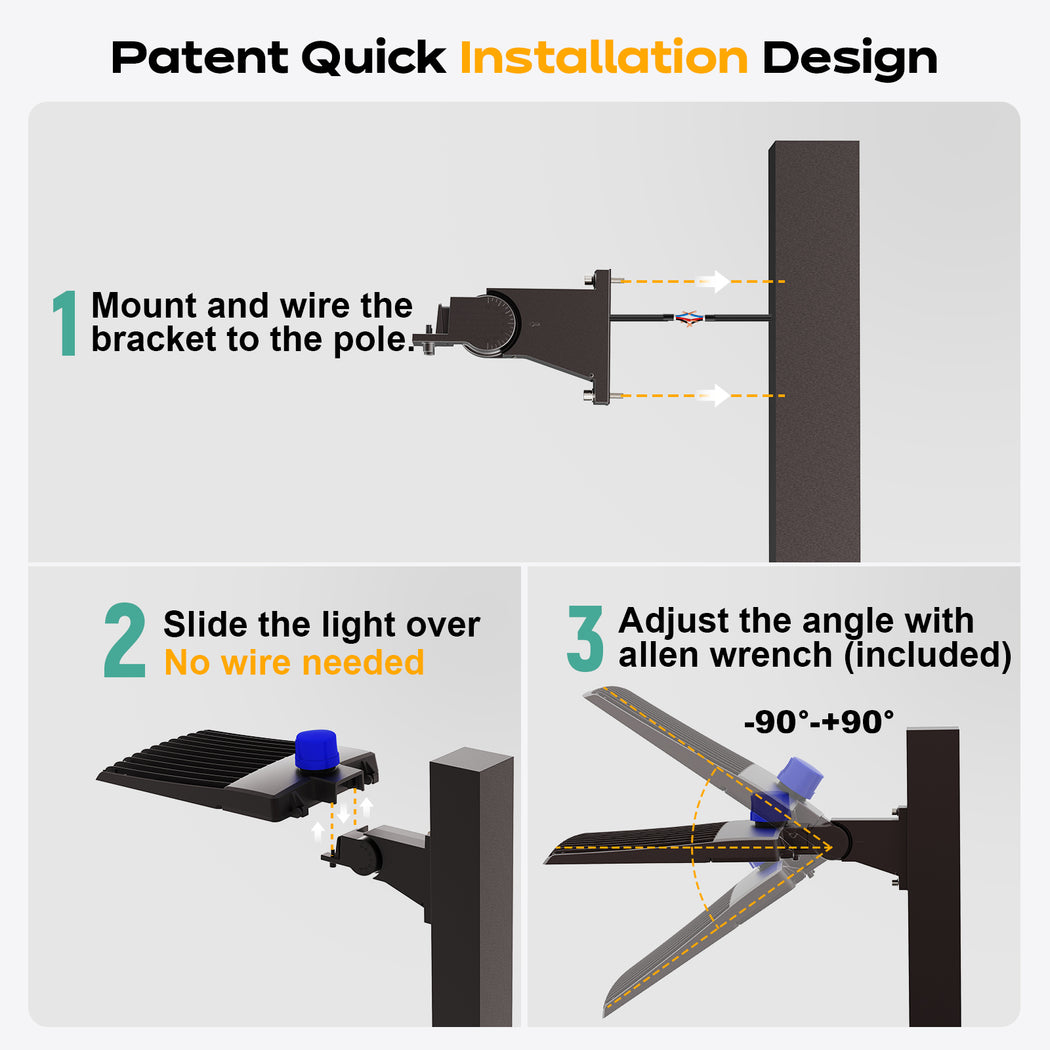

✔ Mounting Options (Sold Separately)

• Slip Fitter (SF)

• Direct Mount (DI)

• Trunnion Mount (TR)

✔ Packaging & Weight

• Carton Size: 22.3 × 14.3 × 4.5 inches

• Net Weight: 8.5 lbs

• Gross Weight: 10.1 lbs
