LED Area Light 500W 80000 Lumens UL, DLC Premium | 120-277V with Photocell Base

SKU: AR09-500W-120V-P
$169.99 USD

Bulk Savings

automatically applied on carts over $500  - Learn more

  • Lumens : Up to 80,000 lm
  • Voltage : AC120–277V
  • Wattage : 300W/350W/400W/450W/500W
  • Location: IP65
  • Dimming : Dimmable
  • Warranty : 5 years warranty
Read More
In stock
Usually ships within 24 hours
CCT Selectable

Got questions?

Feel free to get in touch

Ask an expert

Chat Email +1 (816) 2580438

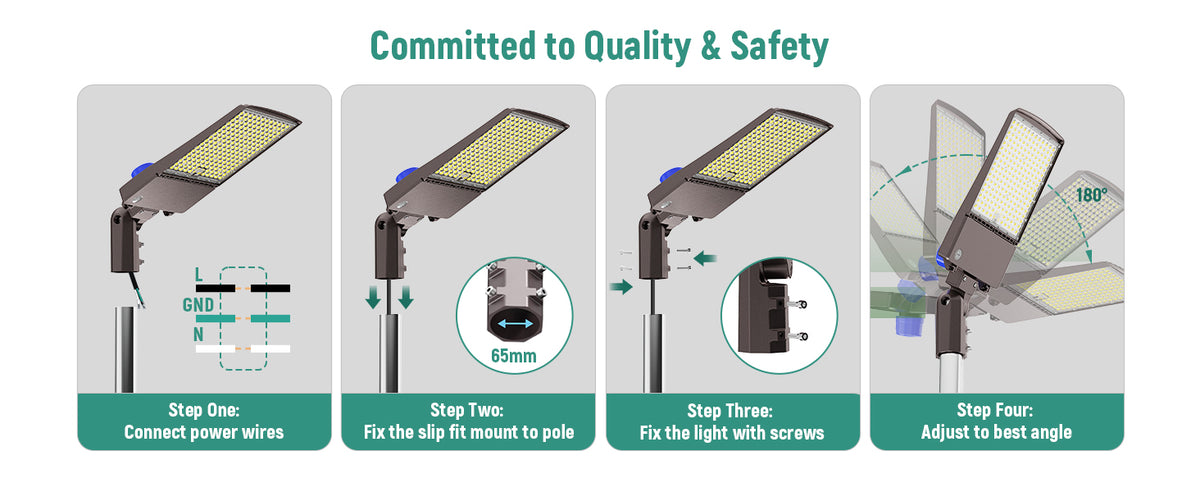

Illuminate your space effortlessly!

Our lighting solutions are delivered with everything you need to set up easily. Unbox, install, and transform your home with brilliant light and style!

J-AR09-500W-L-DW5C3T3

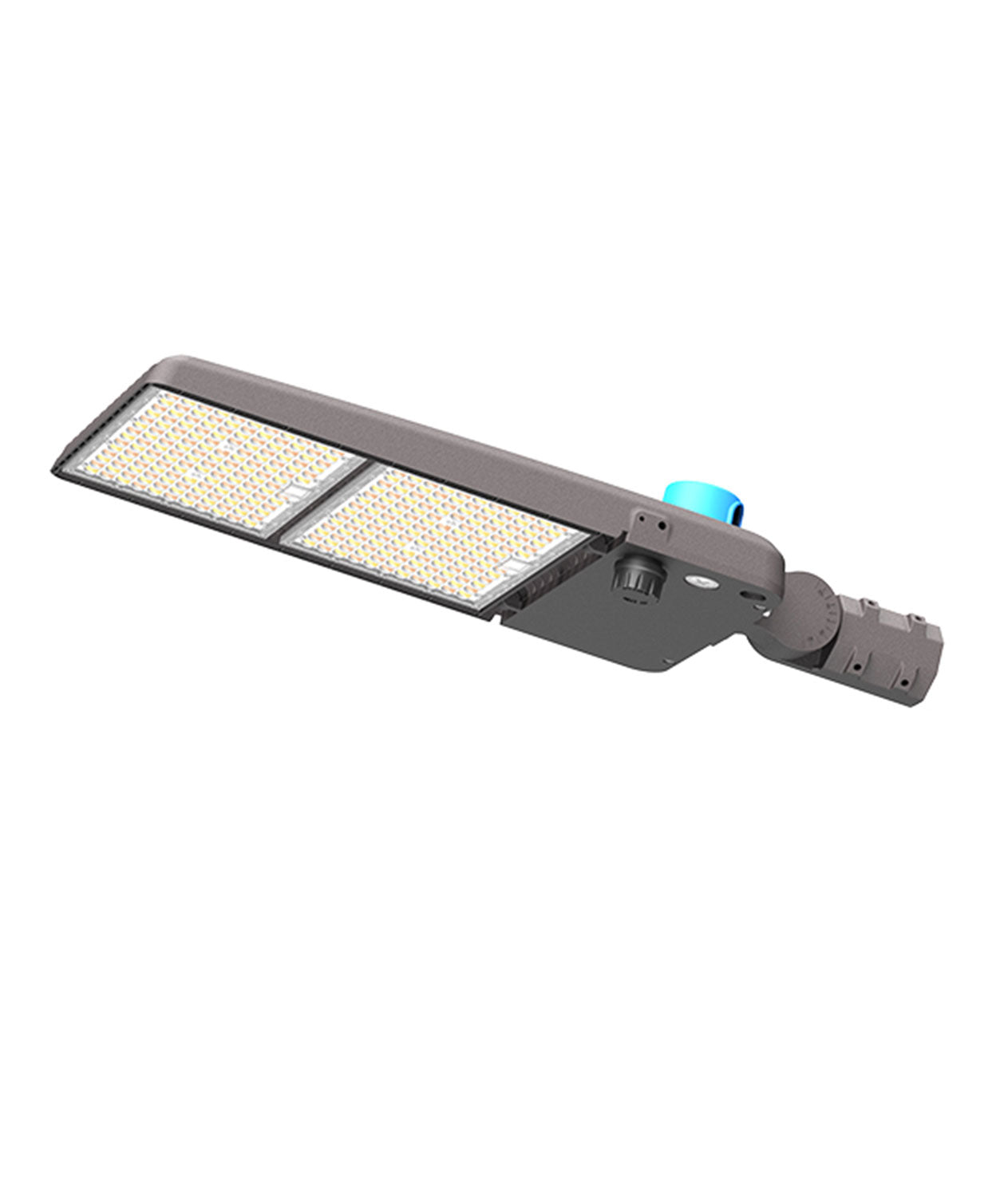

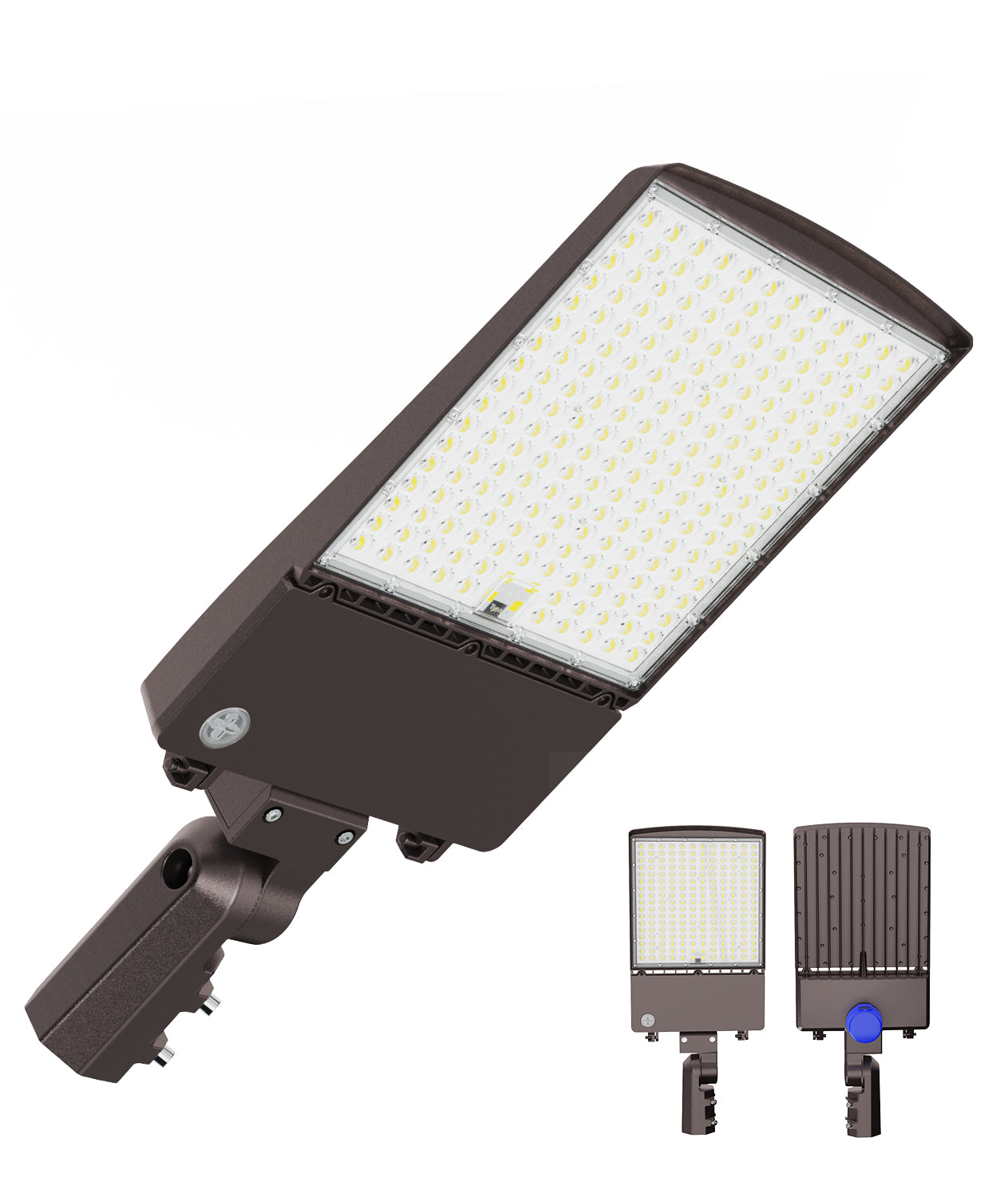

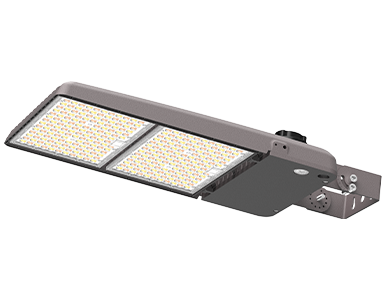

500W Wattage & 3CCT Adjustable LED Area Light with Photocell Base

The AR09 500W LED Area Light is designed for large parking lots, roadways, and commercial outdoor applications requiring high lumen output and field flexibility.

With 5-step wattage selectable (300W / 350W / 400W / 450W / 500W) and 3CCT tunable options (3000K / 4000K / 5000K), this fixture allows contractors to adjust output and color temperature directly on site.

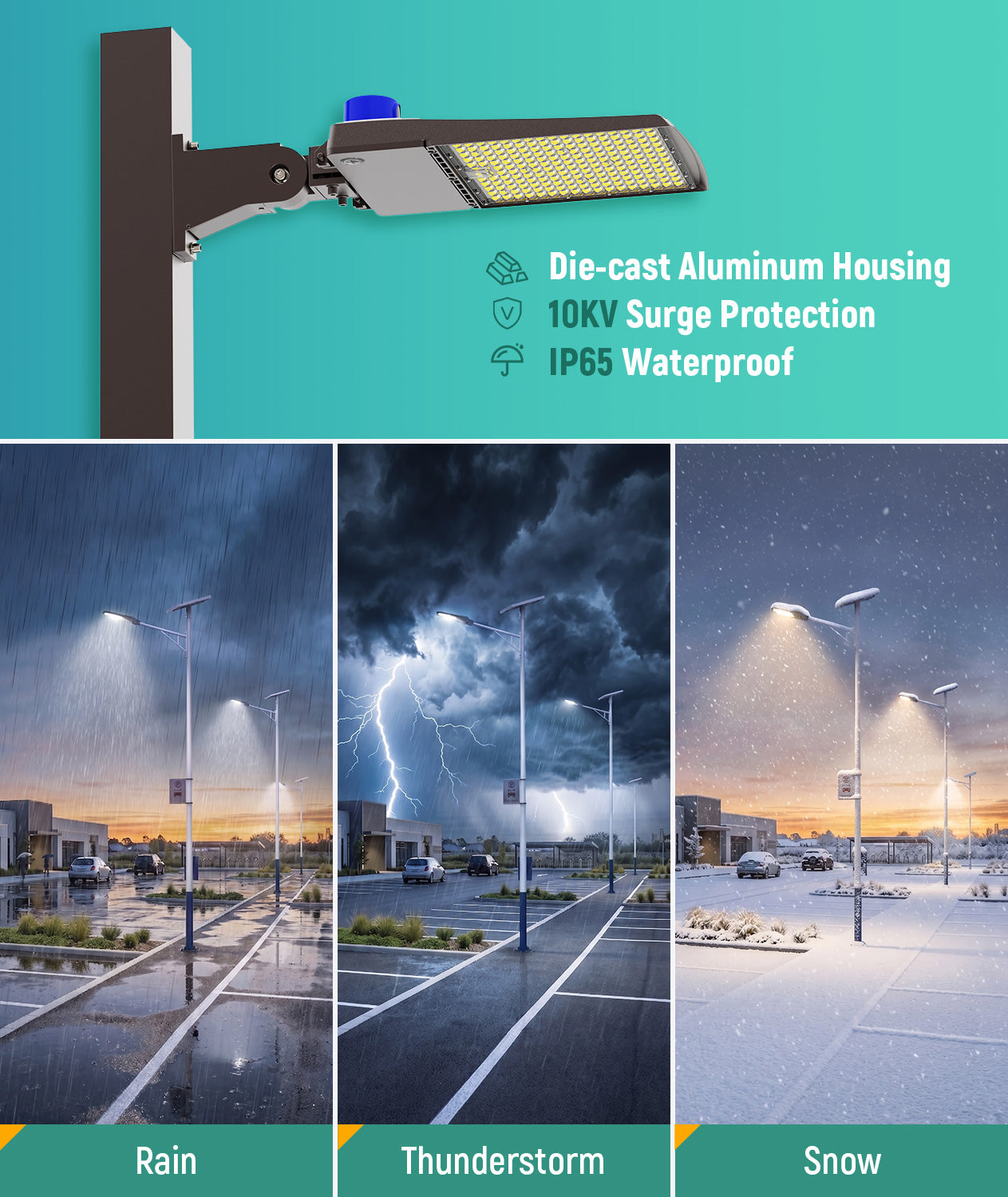

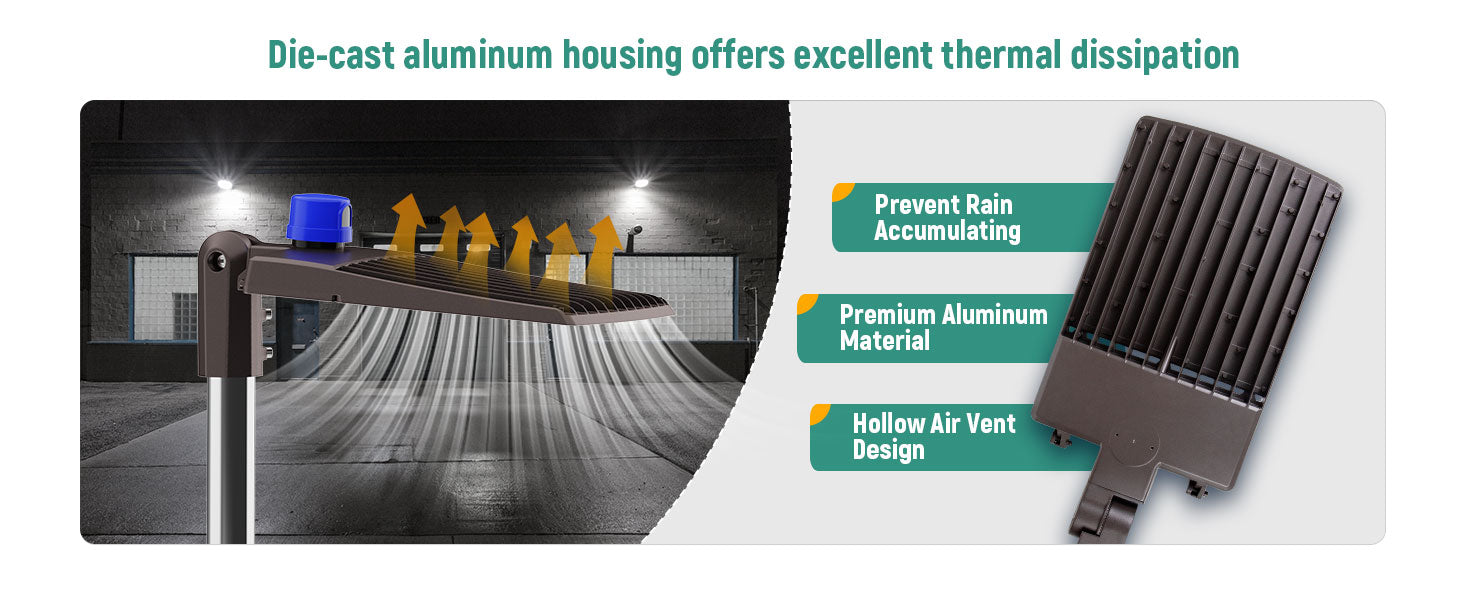

Built with die-cast aluminum housing and polycarbonate Type III lens, it delivers excellent heat dissipation and long-term durability in harsh outdoor environments.

Key Features

  • 300W / 350W / 400W / 450W / 500W wattage selectable

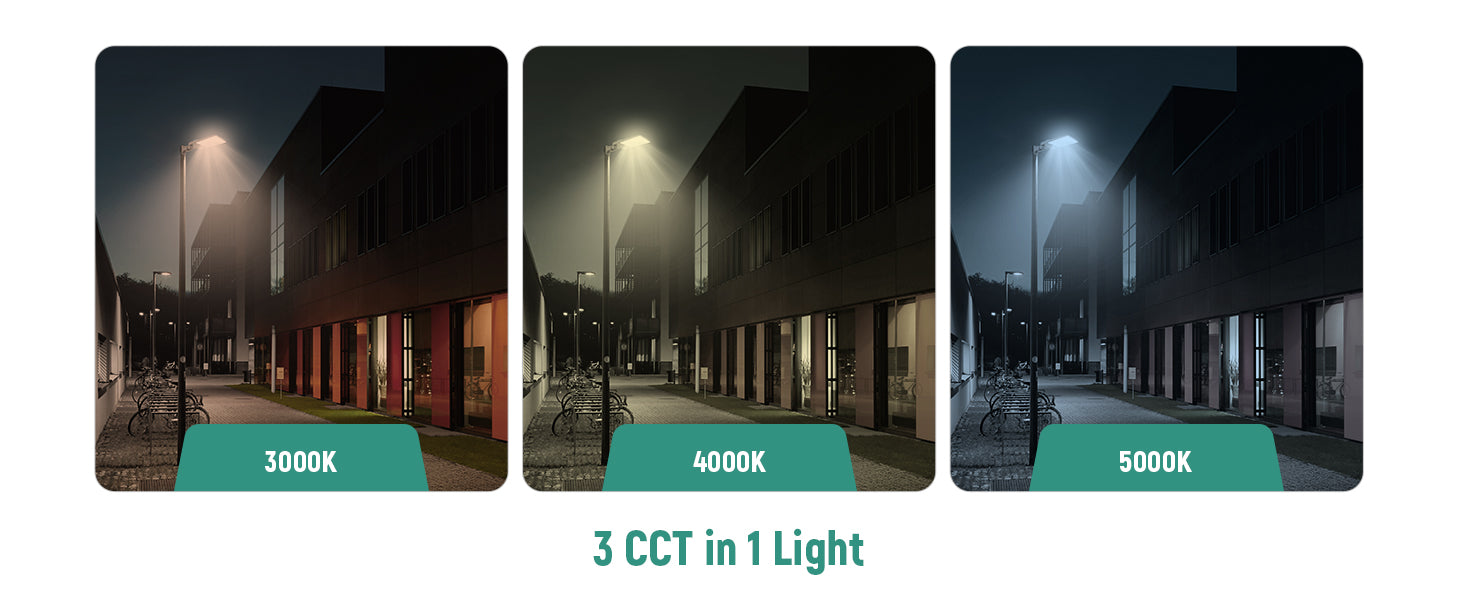

  • 3000K / 4000K / 5000K CCT selectable

  • 80000 lumens max output

  • 160LM/W high efficiency (500W)

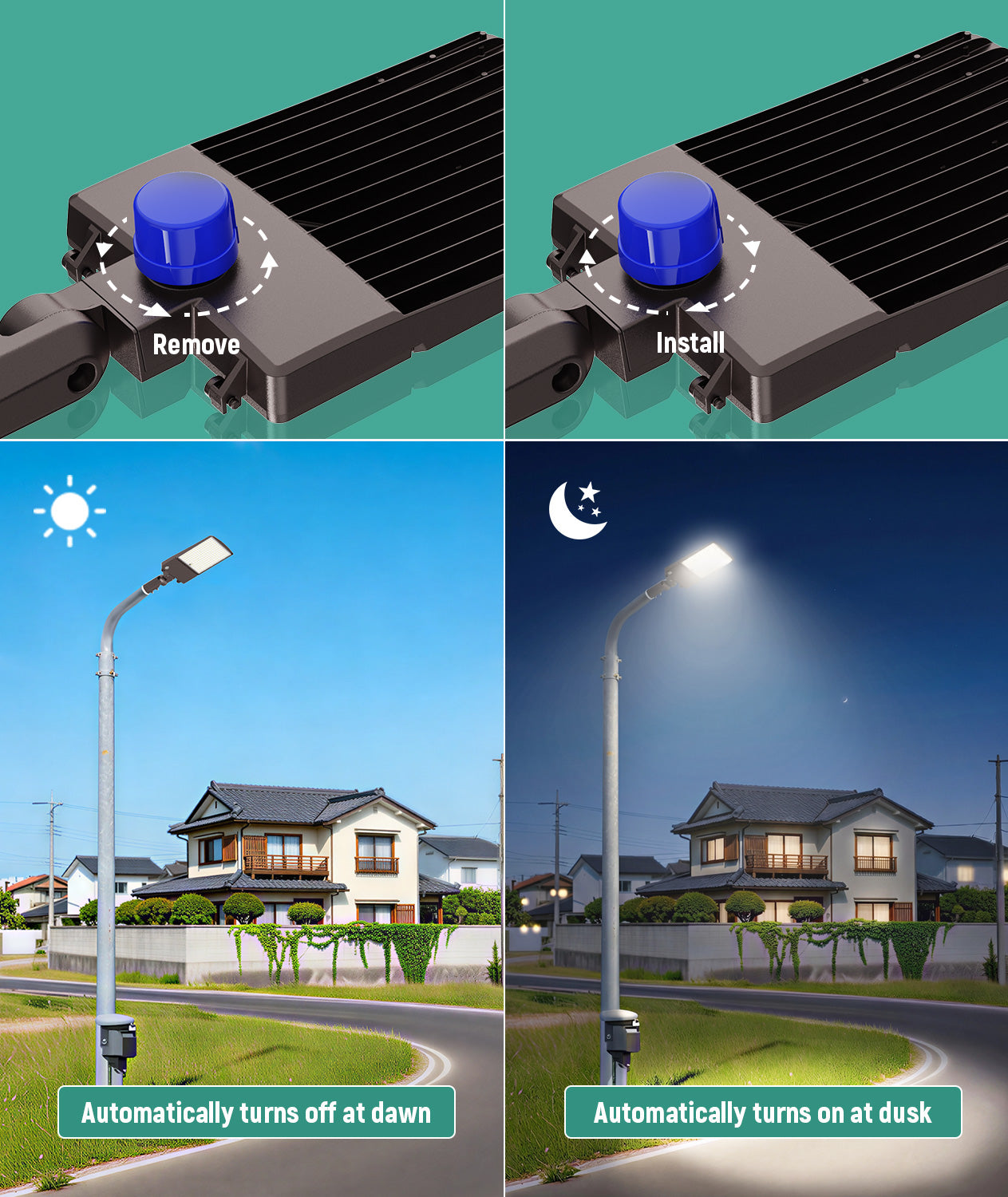

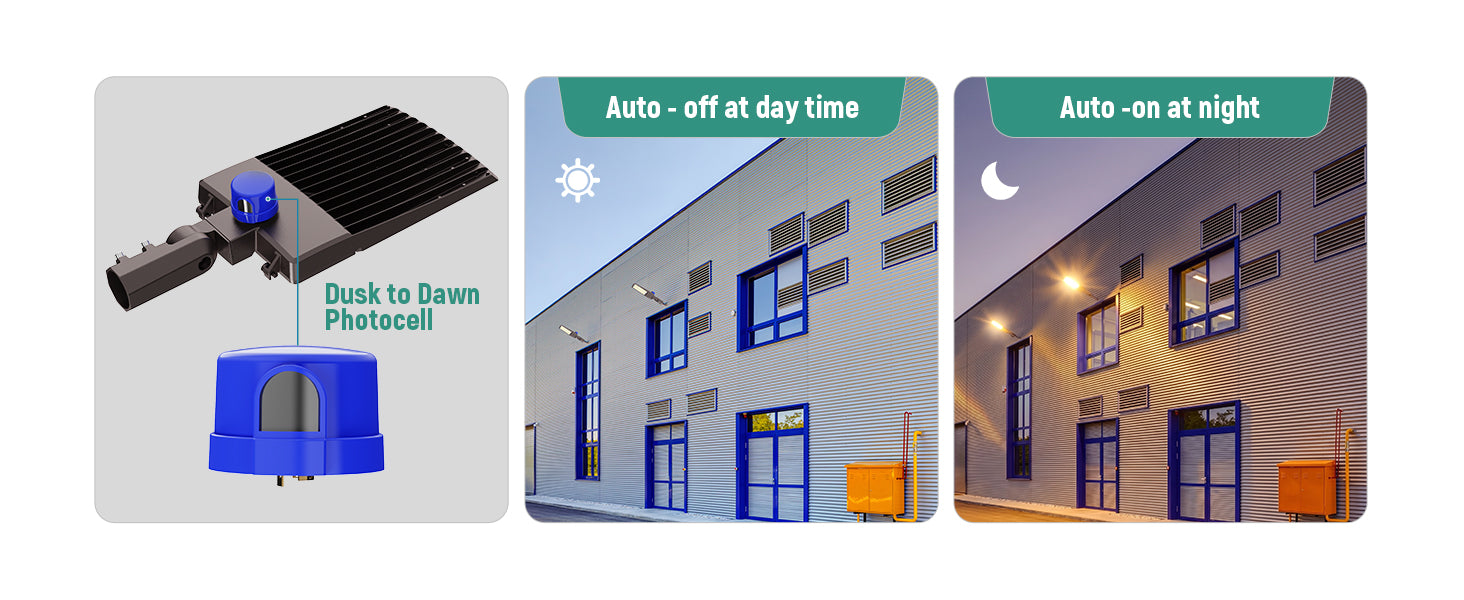

  • Integrated Photocell Base (Dusk to Dawn)

  • AC120-277V

  • 0-10V dimming

  • 10KV surge protection

  • Type III light distribution

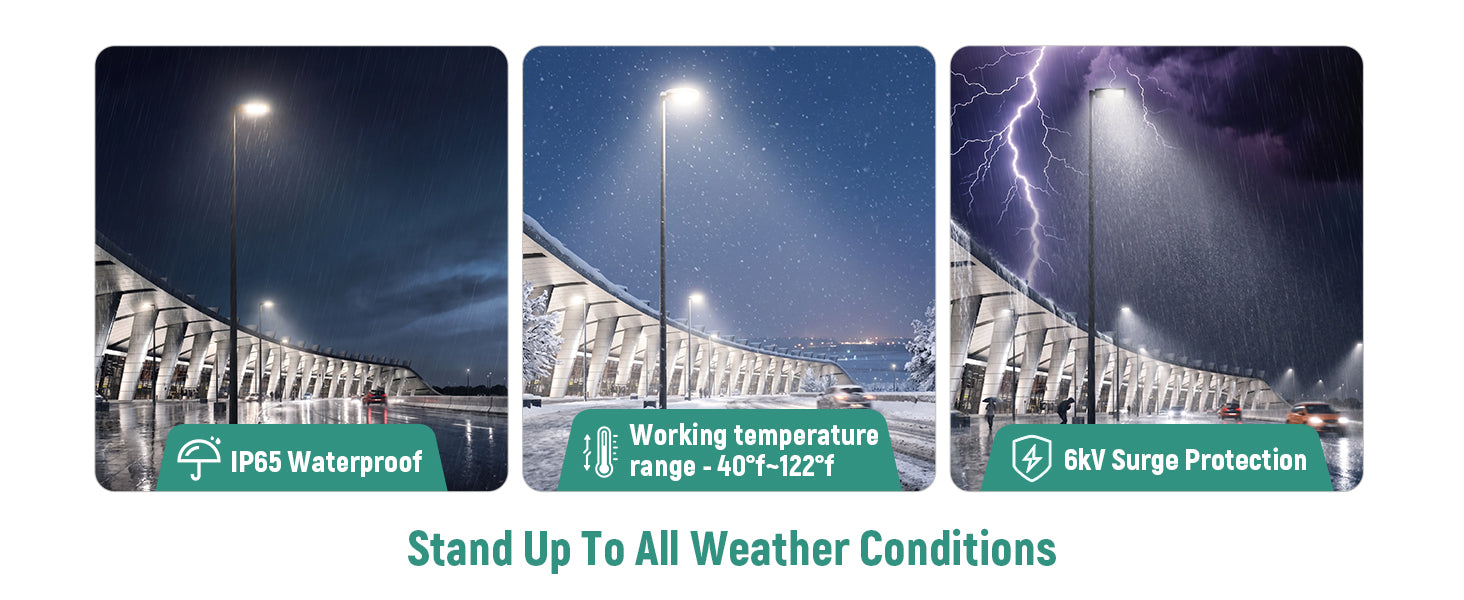

  • IP65 waterproof rated

  • UL Listed & DLC Premium

  • 5-Year Warranty

Specifications

  • Input Voltage: AC120-277V

  • Max Lumens: 80000lm

  • CRI: >80

  • Operating Temperature: -40°C to 50°C

  • Housing: Die-cast aluminum

  • Lens: Polycarbonate

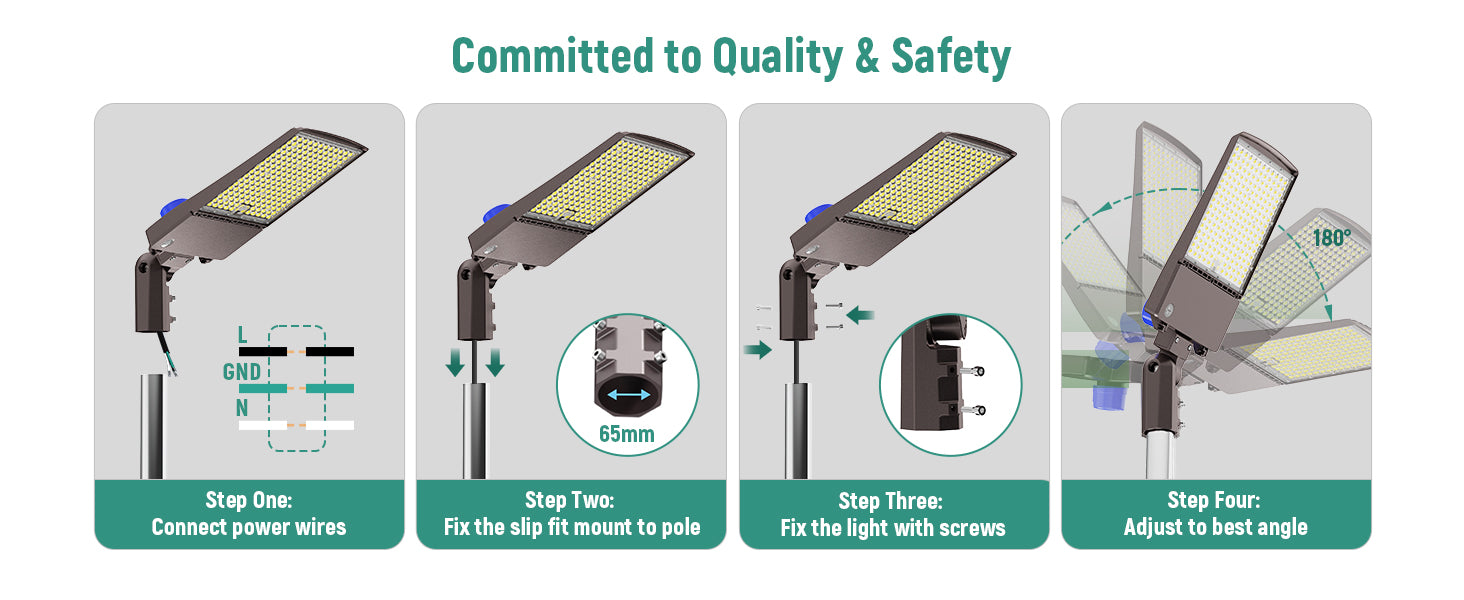

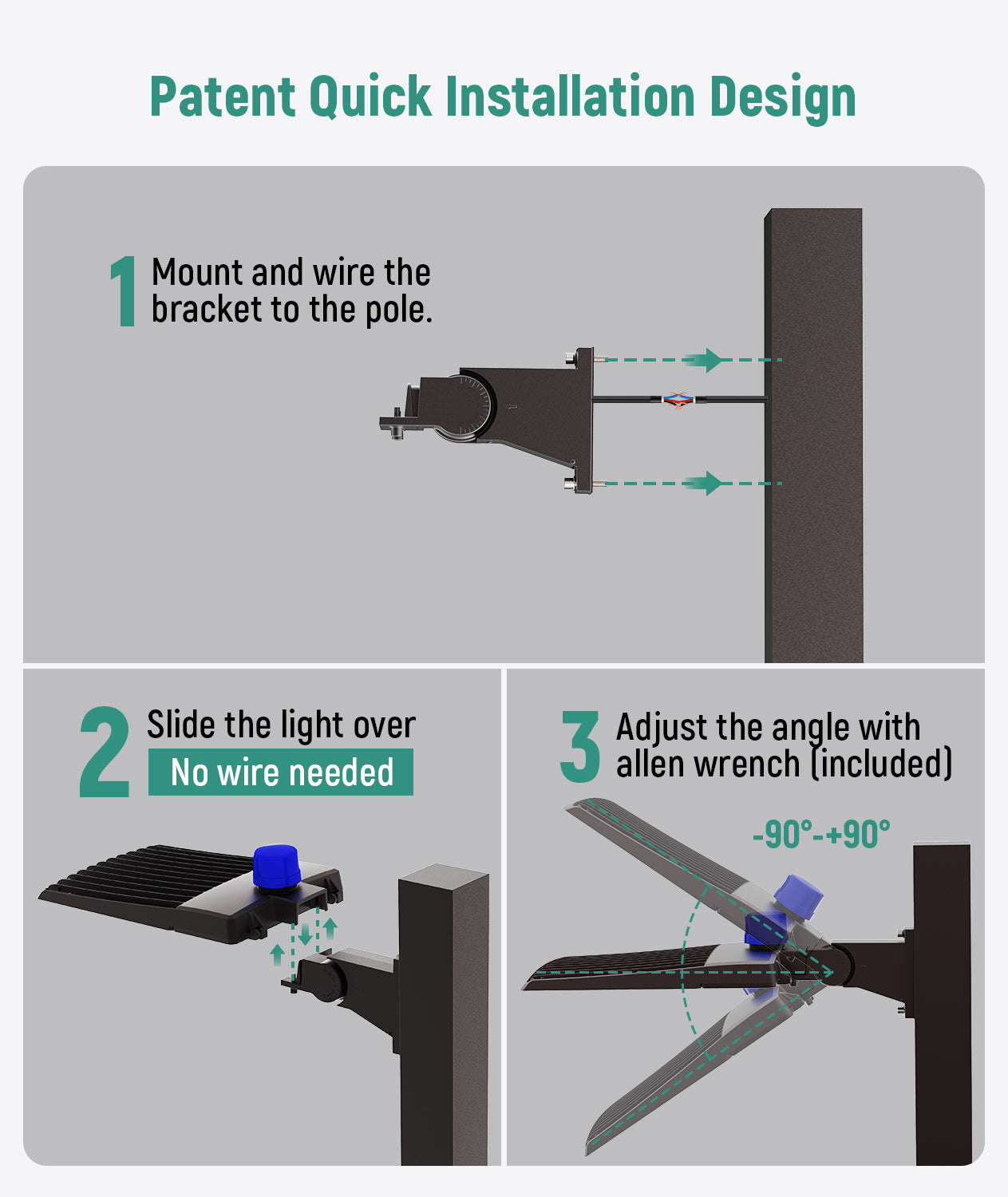

  • Mounting Options: Slip Fitter (SF), Direct Mount (DI), Trunnion Mount (TR)

  • Carton Size: 27.3" x 17.7" x 5.1"

  • Net Weight: 15.7 lbs

  • Gross Weight: 17.6 lbs

Ideal Applications

  • Commercial Parking Lots

  • Roadways

  • Industrial Facilities

  • Large Outdoor Areas

  • Municipal Projects

Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

Overview

Easy install with mount options for bright 21000lm area light. IP65 rated.



Specifications

Wattage 300W/350W/400W/450W/500W
LPW 160.0
Certifications UL Listed, DLC Premium
Lifetime Designed for long service life
Luminous Up to 80,000 lm
Voltage AC120–277V
CRI 80
IP Rating IP65
Beam Angle Type III
Color Temperature Range 3000K / 4000K / 5000K (Selectable)
Mount type "3 kinds of mounting brackets available (SF, DI, TR) ·Plug-in and Zhaga socket microwave motion sensor available (Factory) Photocell dusk to dawn function Optional"
Applications Parking lots, Roadways, Outdoor applications
Efficacy per W 160lm/w
Operating Temperature -40°C to 50°C
Dimming Details 0-10V
Size 24.3x13.5x2.5
Warranty 5 years warranty
