300W LED Linear High Bay Light 45000LM Commercial Warehouse Fixture UL DLC Sensor Ready

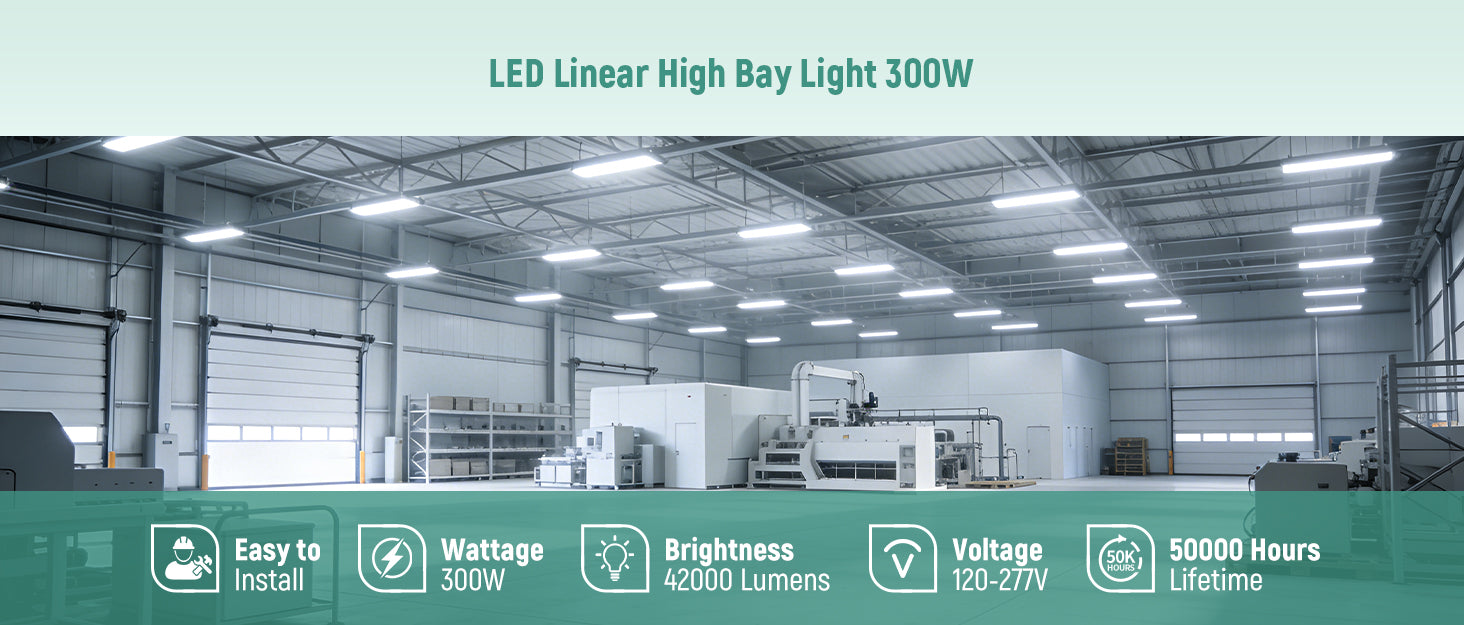

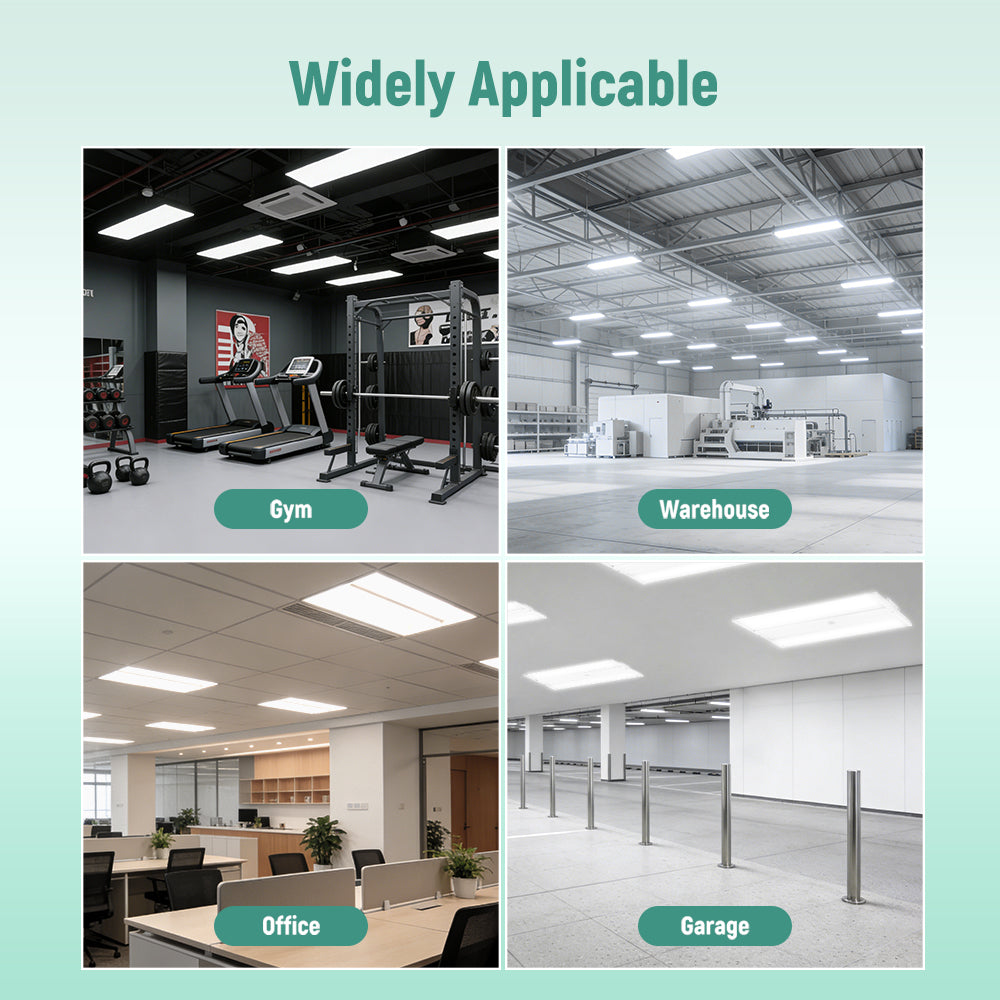

Engineered for high-ceiling commercial and industrial facilities, this 300W LED Linear High Bay Light provides high-output illumination to replace legacy 750W–1000W metal halide or multi-lamp T5HO fluorescent fixtures. Delivering 45,000 lumens at an energy-efficient efficacy of 150 lm/W, this heavy-duty high bay is built for warehouses, distribution centers, manufacturing plants, gymnasiums, and big-box retail spaces. Equipped with a sensor-ready design, it allows simple, tool-free integration of microwave or PIR motion and daylight harvesting sensors to maximize operational energy savings.

• 45,000 Lumens High-Efficacy Output (150 lm/W): Supplies powerful, high-bay light distribution consuming only 300W of electricity, cutting energy overhead while maximizing foot-candle levels on the work floor.

• Sensor-Ready Design: Features a built-in receptacle/port for quick twist-in or plug-and-play integration of smart motion and daylight harvesting sensors without rewiring.

• UL & DLC Listed: Qualified for commercial utility rebate incentives across North America and UL safety certified to meet strict building and electrical codes.

• Universal Voltage Compatibility (AC120–277V): Heavy-duty commercial driver operates seamlessly on standard 120V, 208V, 240V, and 277V power lines.

• Continuous 0–10V Dimming: Connects directly to standard 0–10V control systems, enabling smooth dimming down to 10% to adapt lighting to facility schedules and energy goals.

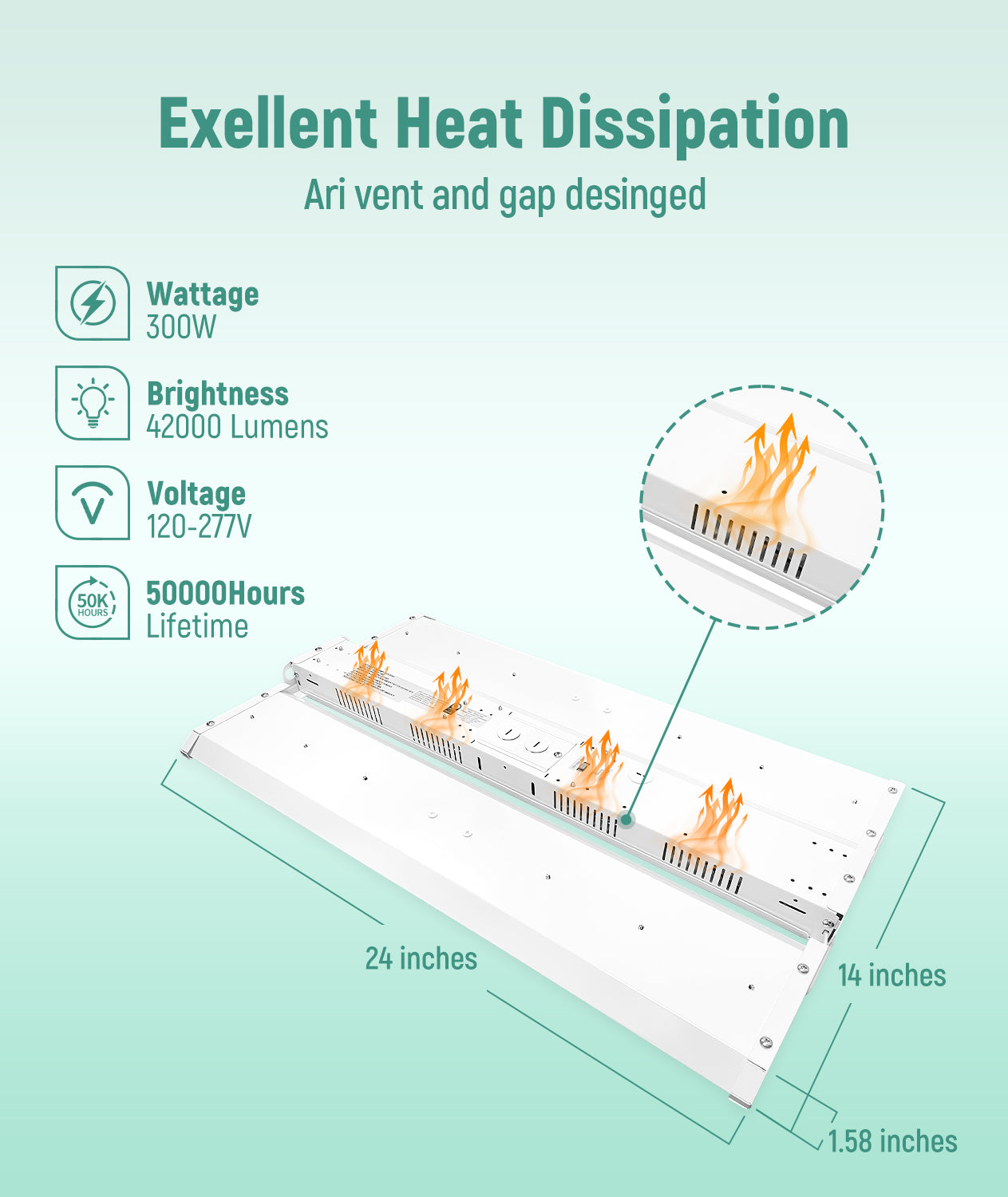

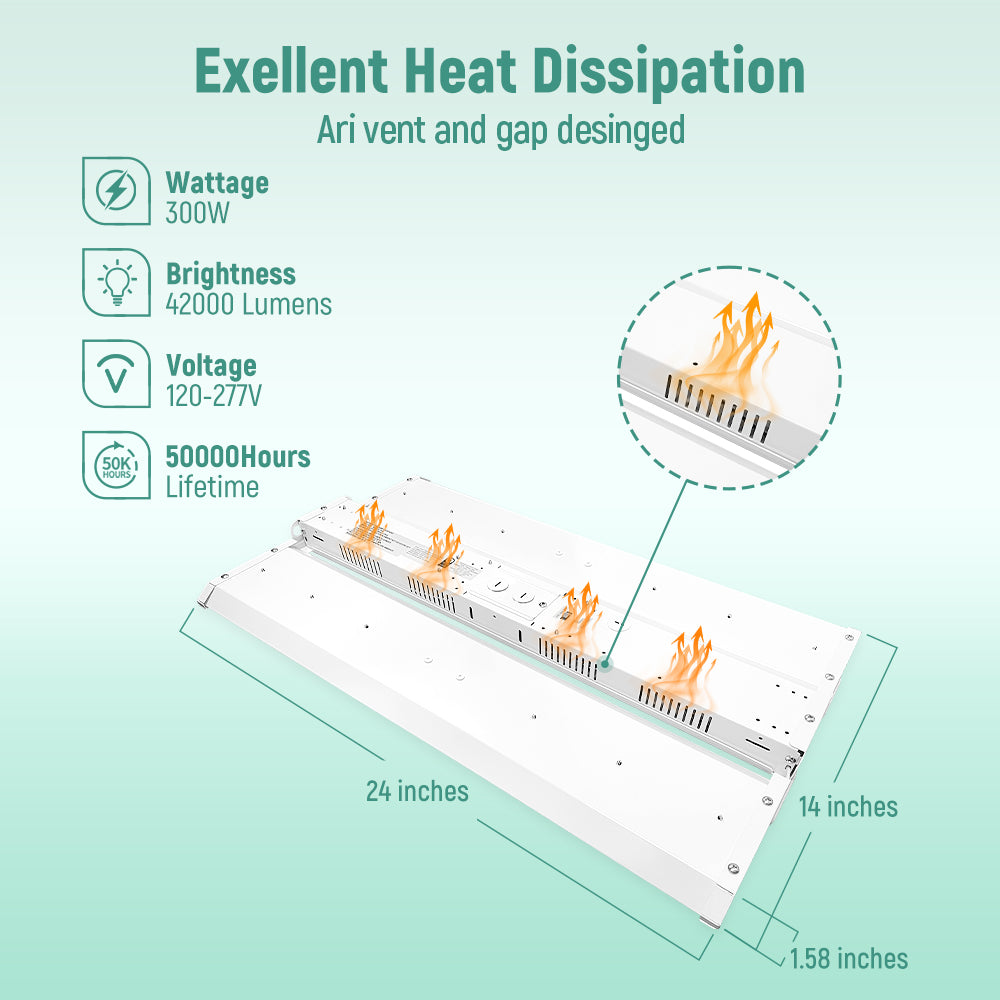

• Rugged Construction & Thermal Management: Durable, corrosion-resistant steel housing engineered with integrated heat-sink channels ensures low operating temperatures and an extended LED lifespan.

• Glare-Free Optical Lens: High-transmittance frosted diffuser optics produce soft, balanced light distribution, reducing glare and eye strain for warehouse equipment operators and staff.

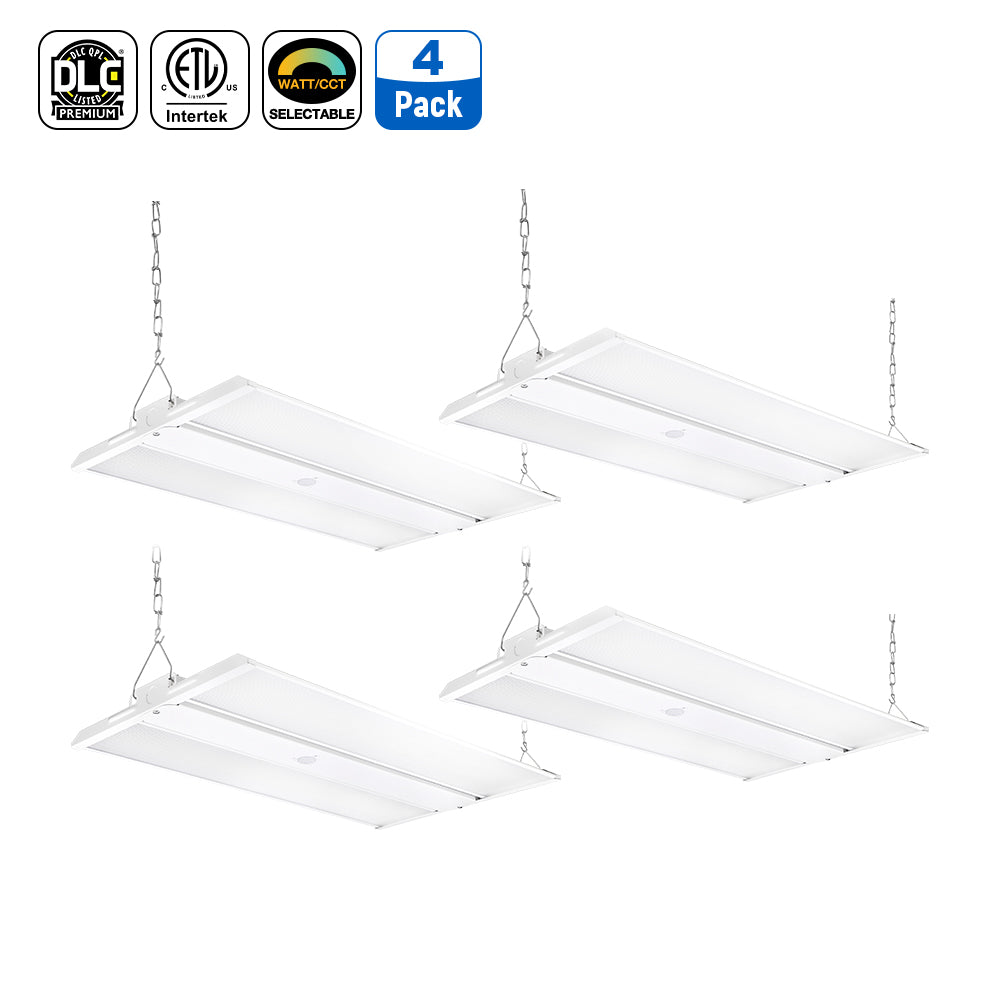

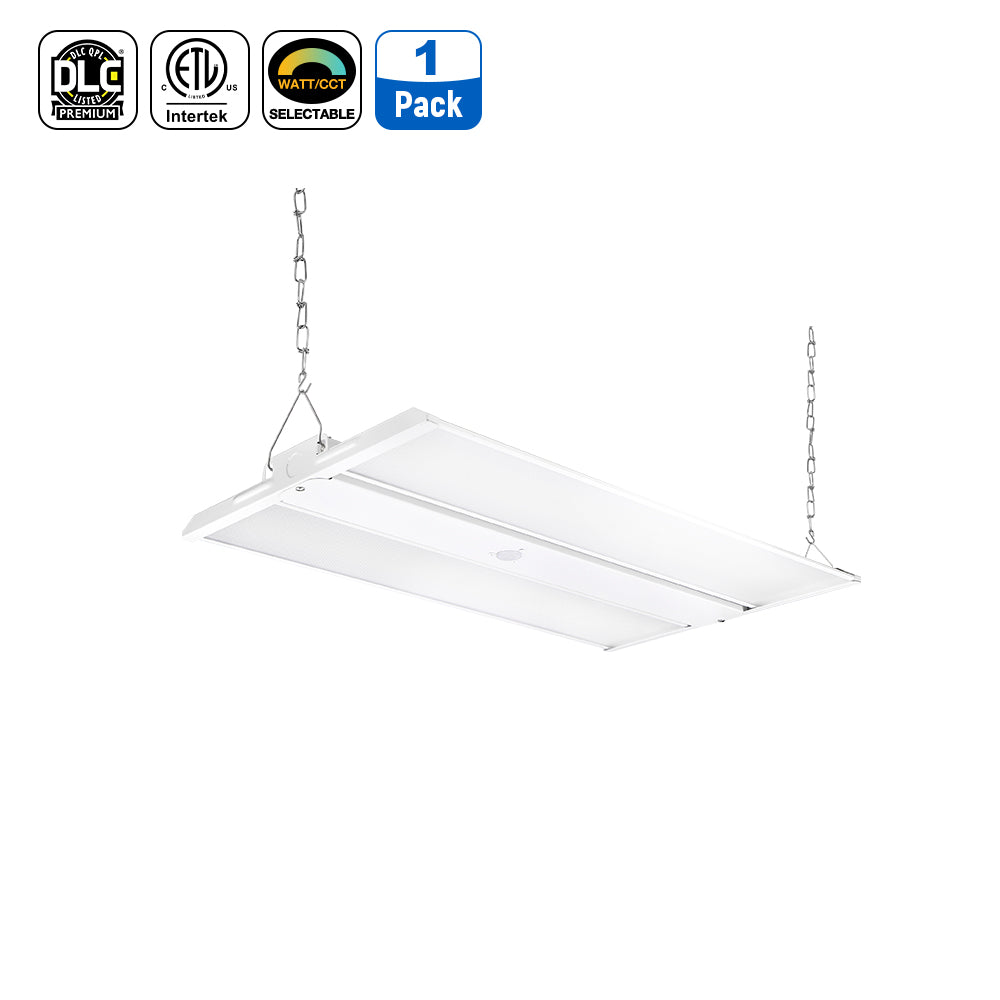

• Complete Suspension Hardware Included: Supplied with sturdy V-hooks and heavy-duty suspension chains for fast, contractor-friendly hanging installation in open-ceiling layouts.

Key Features

High Efficiency Output
Maximum output up to 45000 lumens with 150 lm/W high efficiency, providing bright and uniform illumination for large areas.

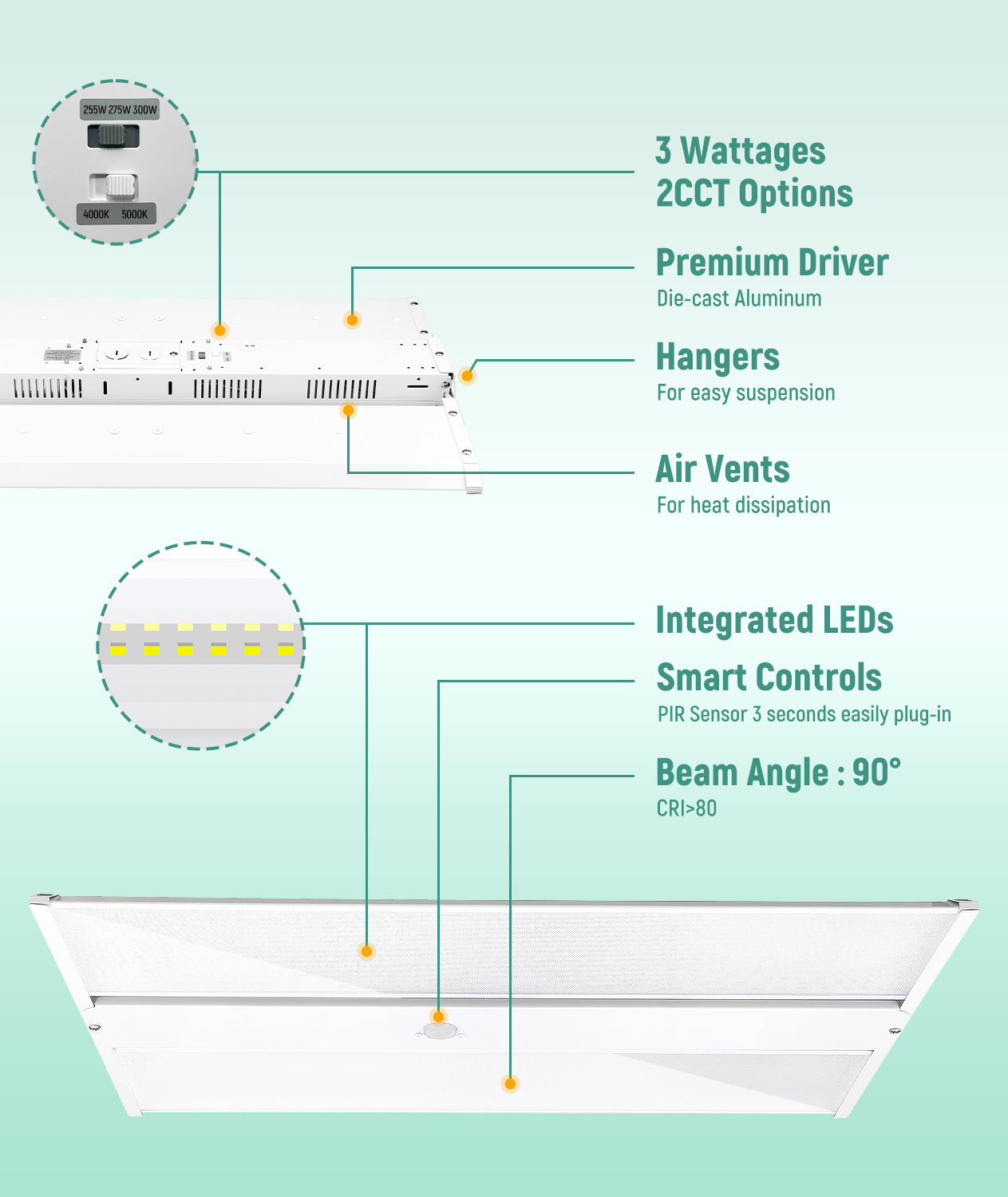

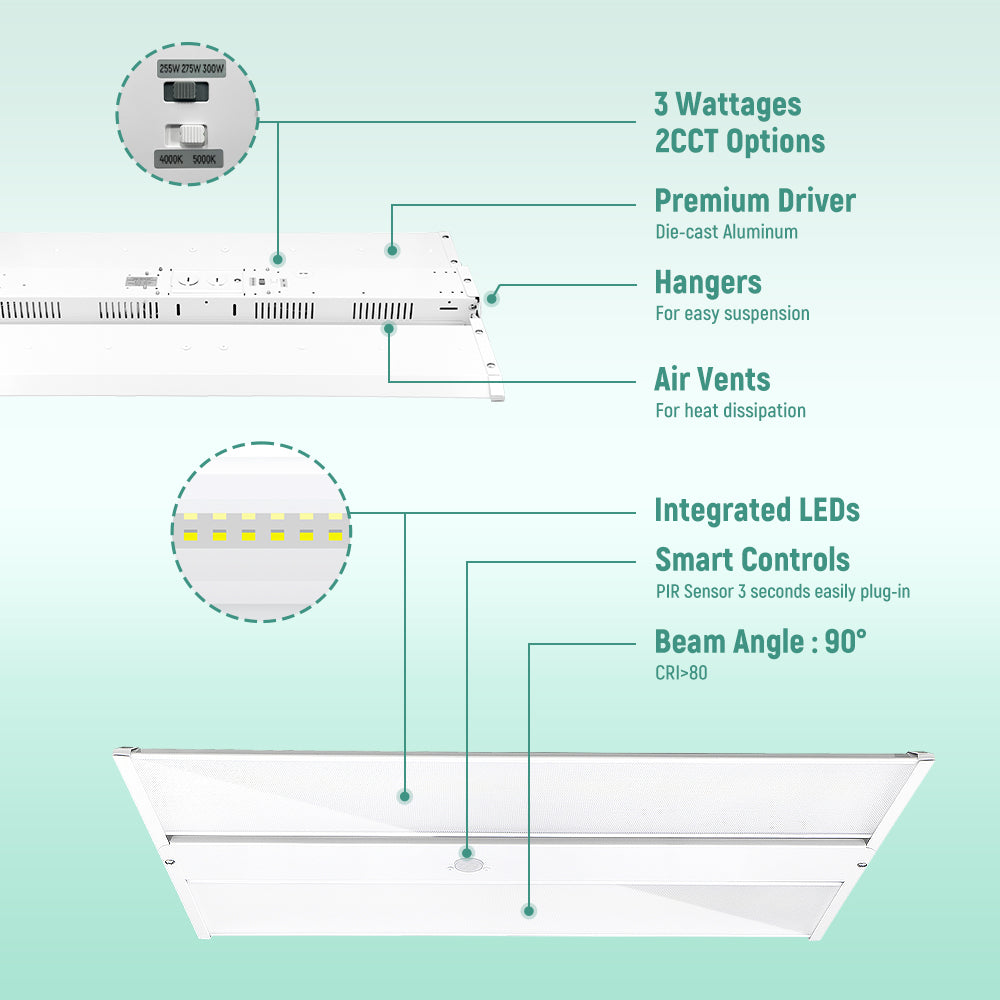

Wattage Selectable Design
Power adjustable between 300W / 275W / 255W, allowing users to optimize energy consumption based on lighting requirements.

Wide Voltage Range
Compatible with AC120-277V universal input, suitable for most commercial and industrial electrical systems.

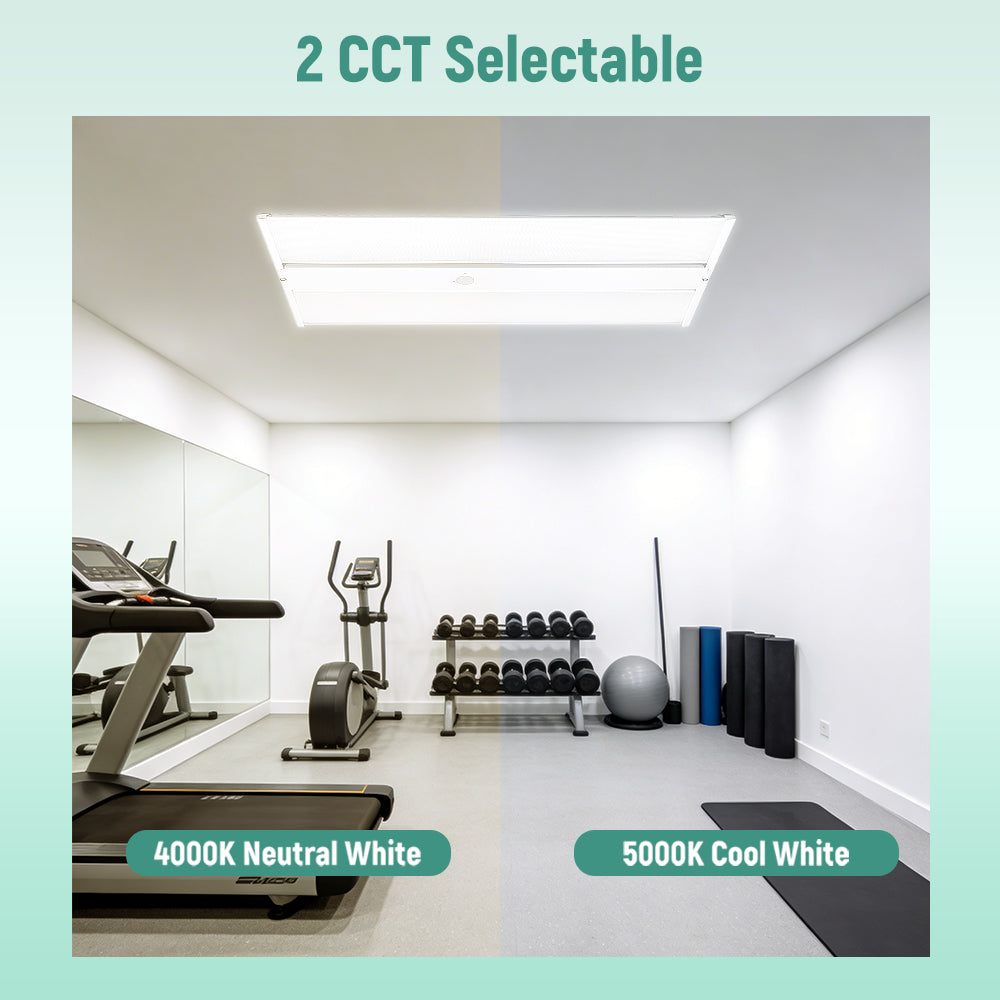

CCT Selectable Lighting
Color temperature is selectable between 4000K and 5000K, enabling flexible lighting design for different environments.

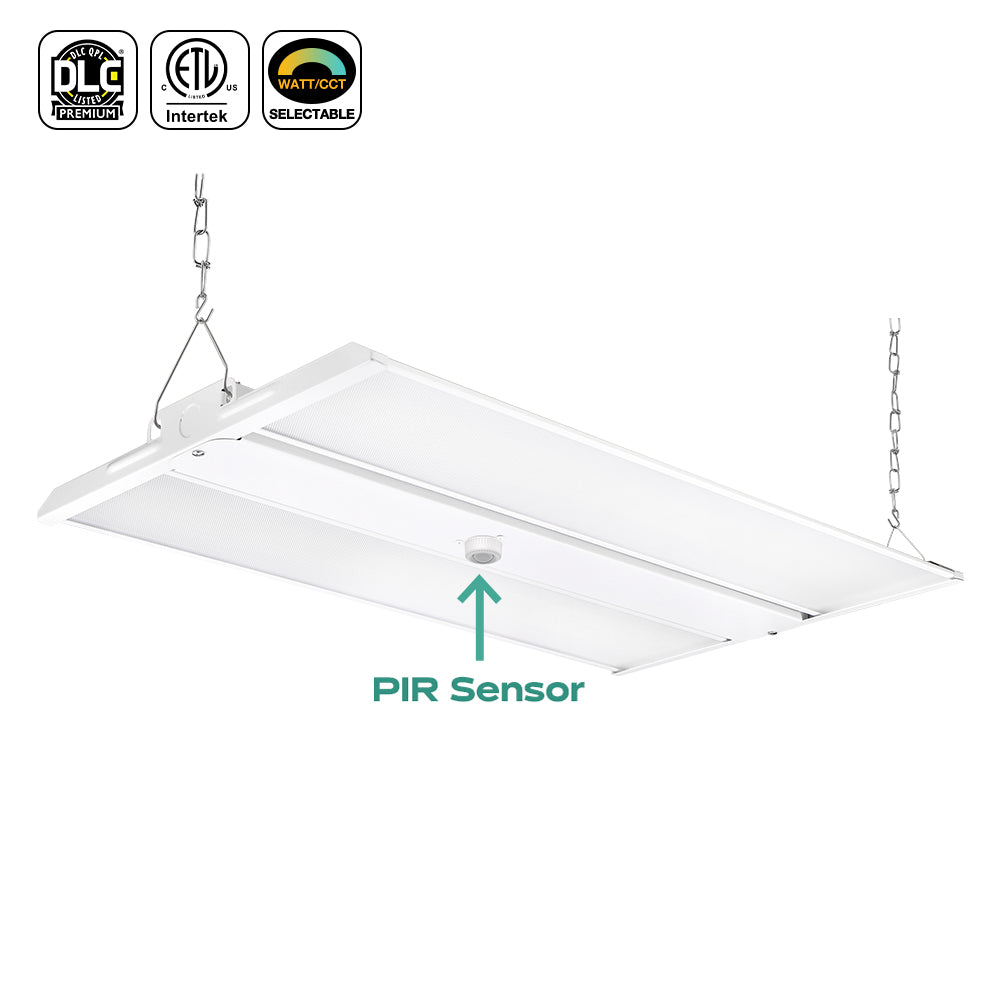

Sensor Ready Design
Equipped with a sensor base for easy installation of microwave or PIR sensors to enable motion-based energy saving control.

Durable Die-Cast Housing
Die-cast aluminum construction provides excellent heat dissipation and long-term reliability.

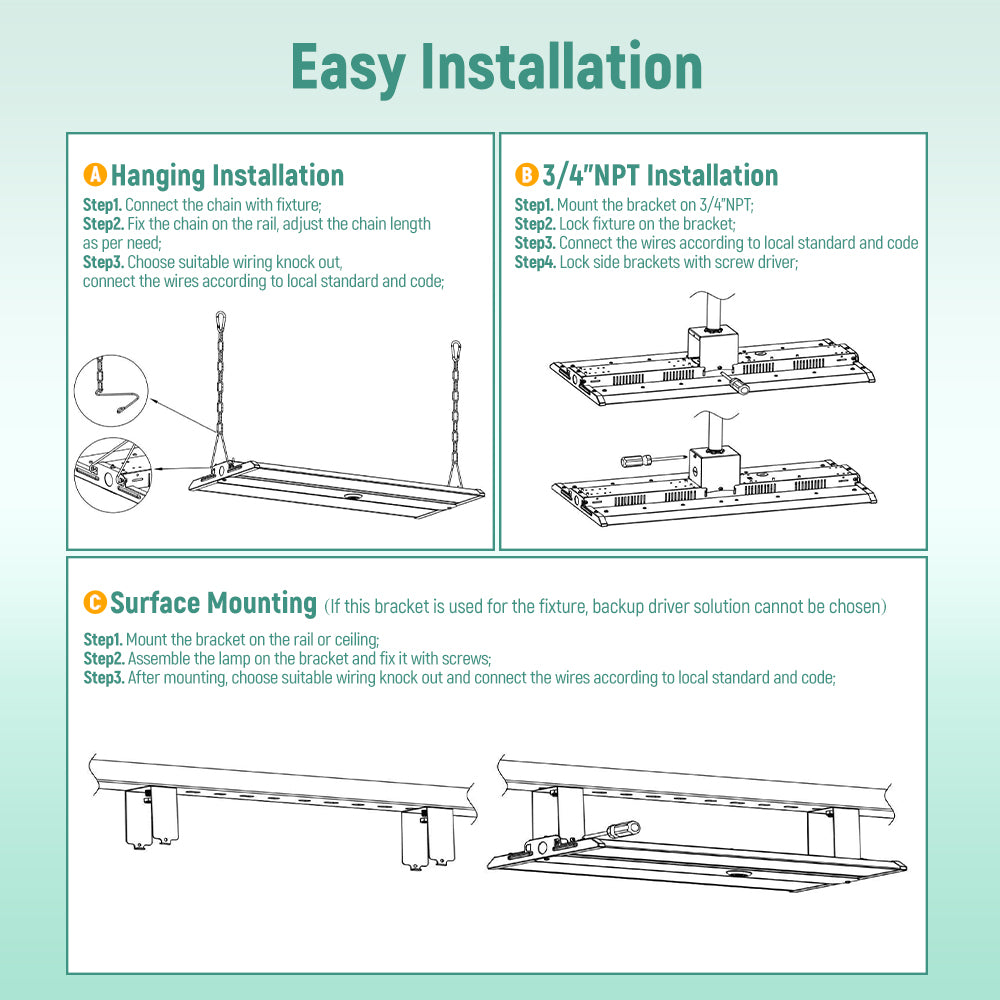

Flexible Installation Options

• Steel wire rope mounting (default)

• Surface mounting (optional)

• Conduit pendant mounting (optional)

Long Lifespan

• Rated lifespan: 50,000 hours

• 5-year warranty

Certifications

• UL Listed

• DLC Listed

• Damp location rated

Product Specifications

Input Voltage: AC120-277V
Power Consumption: 300W / 275W / 255W
Maximum Lumens: 45000LM
Luminous Efficiency: 150LM/W
Color Temperature: 4000K / 5000K
Sensor: Sensor Base
Installation: Chain Mount / Surface Mount / Pendant Mount
Operating Temperature: −30°C to 50°C
Lifespan: 50,000 Hours
