LED Linear High Bay Light-LHB09 120-277V 220W 33000 Lumens 1×2FT UL DLC with Sensor Base | 220W

LED Linear High Bay Light – J-LHB09 Series

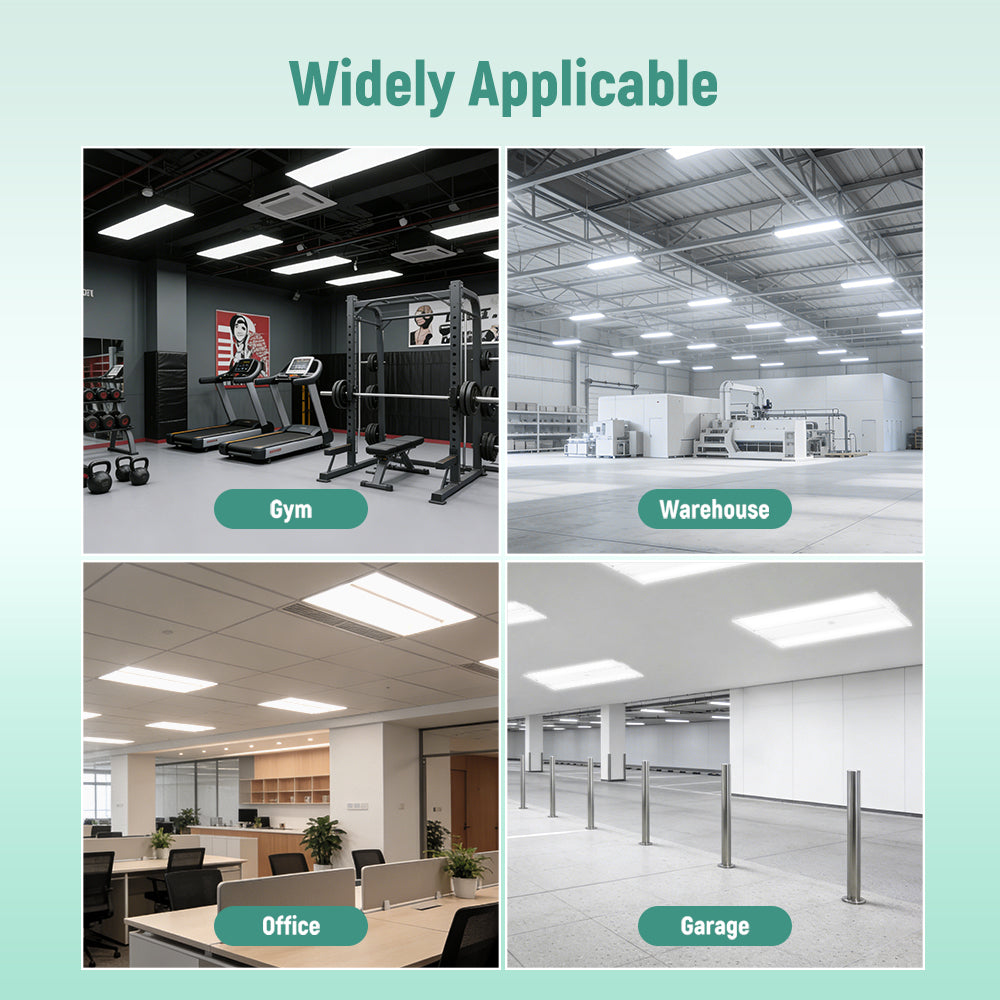

Engineered for high-efficiency commercial and industrial overhead lighting, the LHB09 1×2FT 220W LED Linear High Bay delivers high-lumen output to easily replace legacy 400W–600W metal halide or multi-lamp T5HO fluorescent fixtures. Producing an exceptional 33,000 lumens at an energy-saving efficacy of 150 lm/W, this compact 1x2-foot fixture is designed for mid-to-high ceiling applications such as warehouses, manufacturing plants, distribution centers, gymnasiums, and big-box retail spaces. Built with a pre-wired, plug-and-play center sensor base, it allows quick, tool-free field installation of PIR or microwave occupancy and daylight harvesting sensors without opening the electrical housing.

• 33,000 Lumens High-Efficacy Output (150 lm/W): Supplies powerful, crisp illumination while drawing only 220W of power, drastically lowering utility bills and operating expenses compared to HID systems.

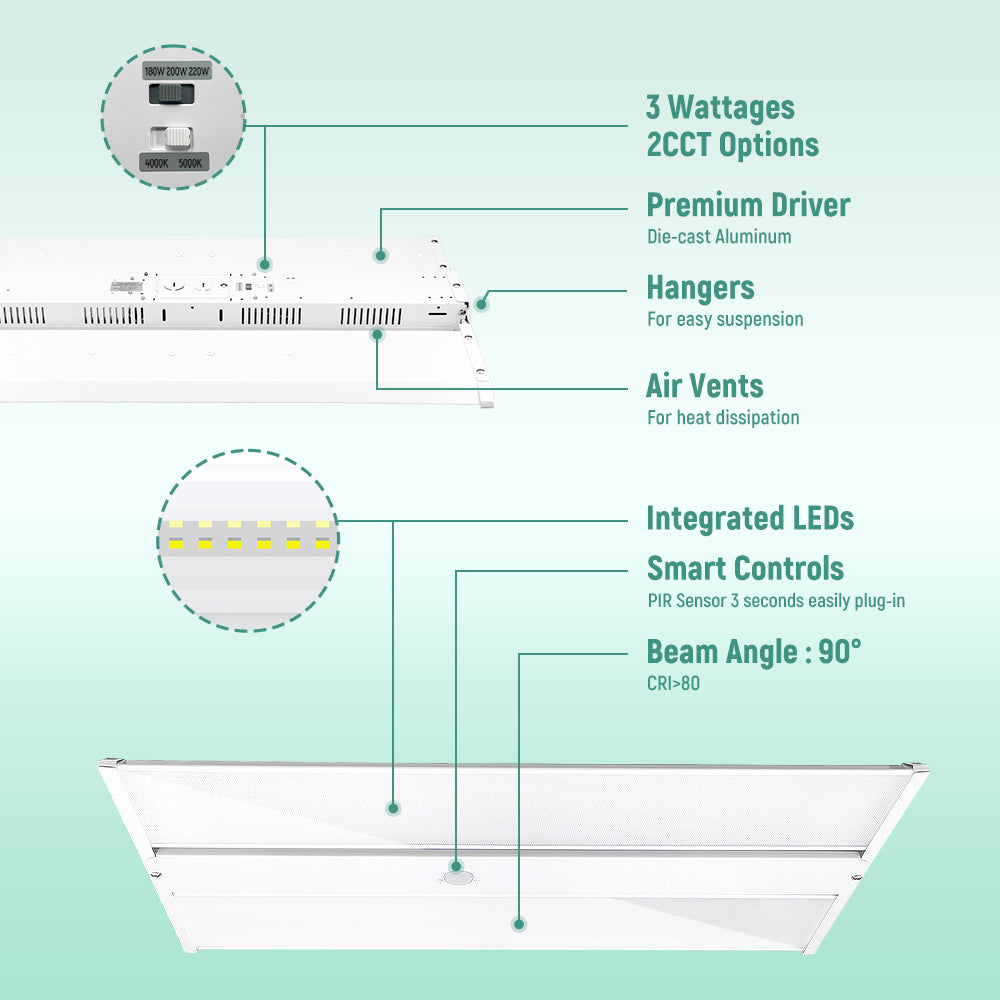

• Integrated Plug-and-Play Sensor Receptacle: Features a factory-installed center receptacle for rapid, twist-in mounting of occupancy and daylight harvesting sensors to automate energy management.

• UL & DLC Listed: Eligible for commercial utility rebate incentives nationwide; UL certified for safety, electrical performance, and building code compliance.

• Universal Input Voltage (AC120–277V): Industrial-grade driver operates reliably across standard 120V, 208V, 240V, and 277V commercial power circuits.

• Smooth 0–10V Continuous Dimming: Fully compatible with 0–10V dimming systems, enabling smooth light-level adjustments down to 10% for optimal energy control and task lighting.

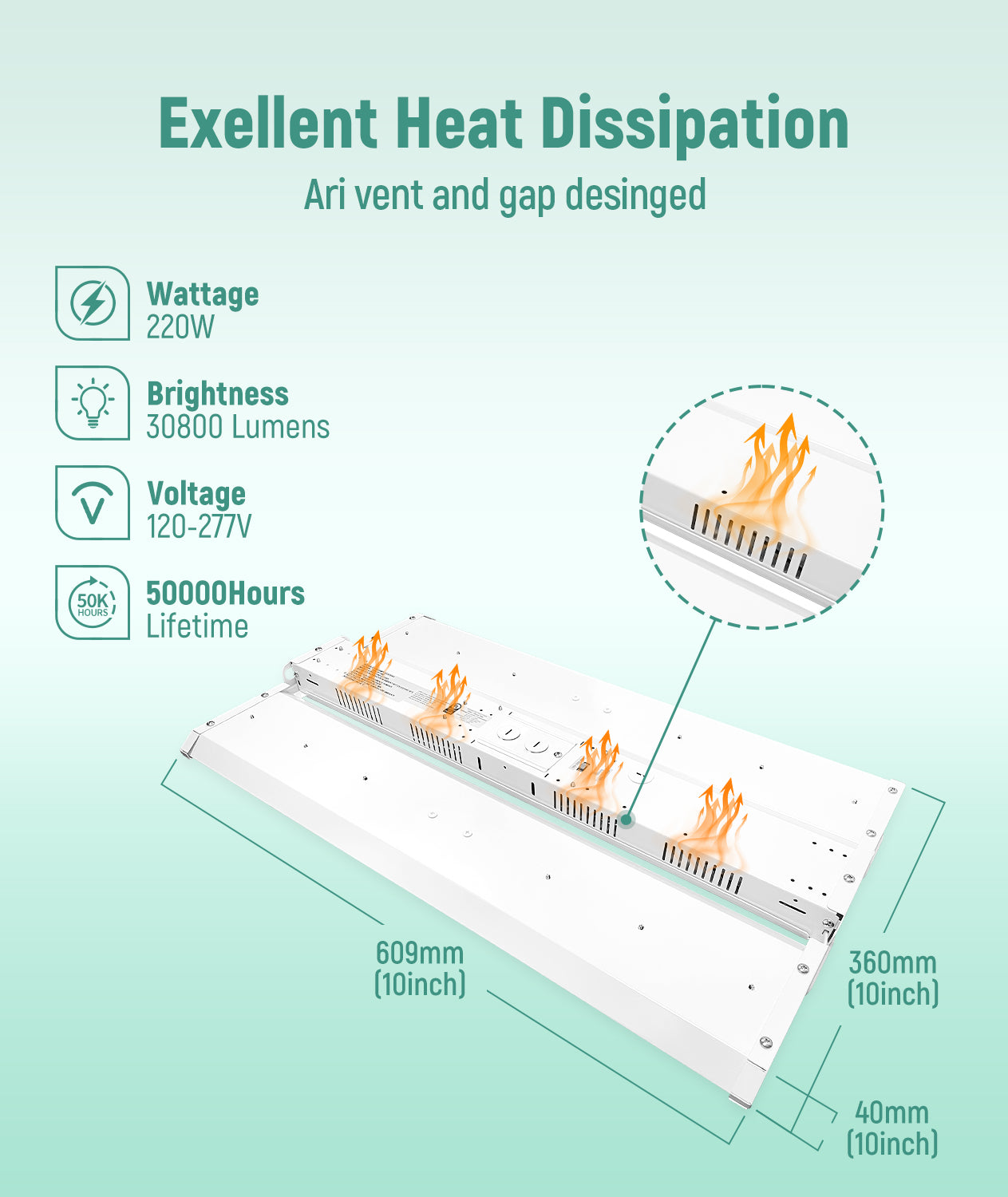

• Compact 1×2FT Heavy-Duty Housing: Durable cold-rolled steel construction with integrated thermal channel vents ensures efficient heat dissipation and a long LED lifespan in a space-saving fixture footprint.

• Glare-Free Optical Lens: High-transmittance frosted diffuser optics produce balanced, even light distribution across aisles and open work areas without harsh glare or hot spots.

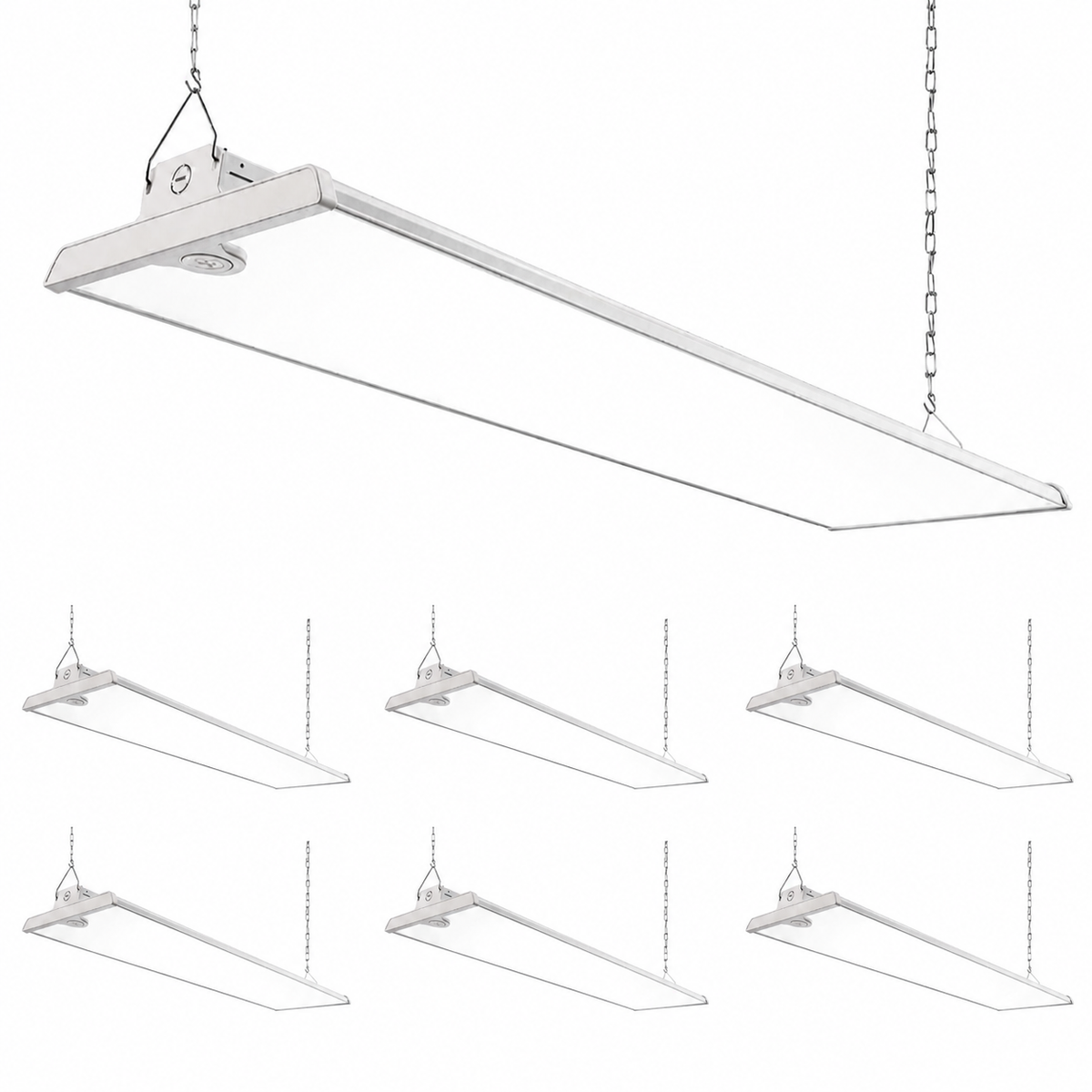

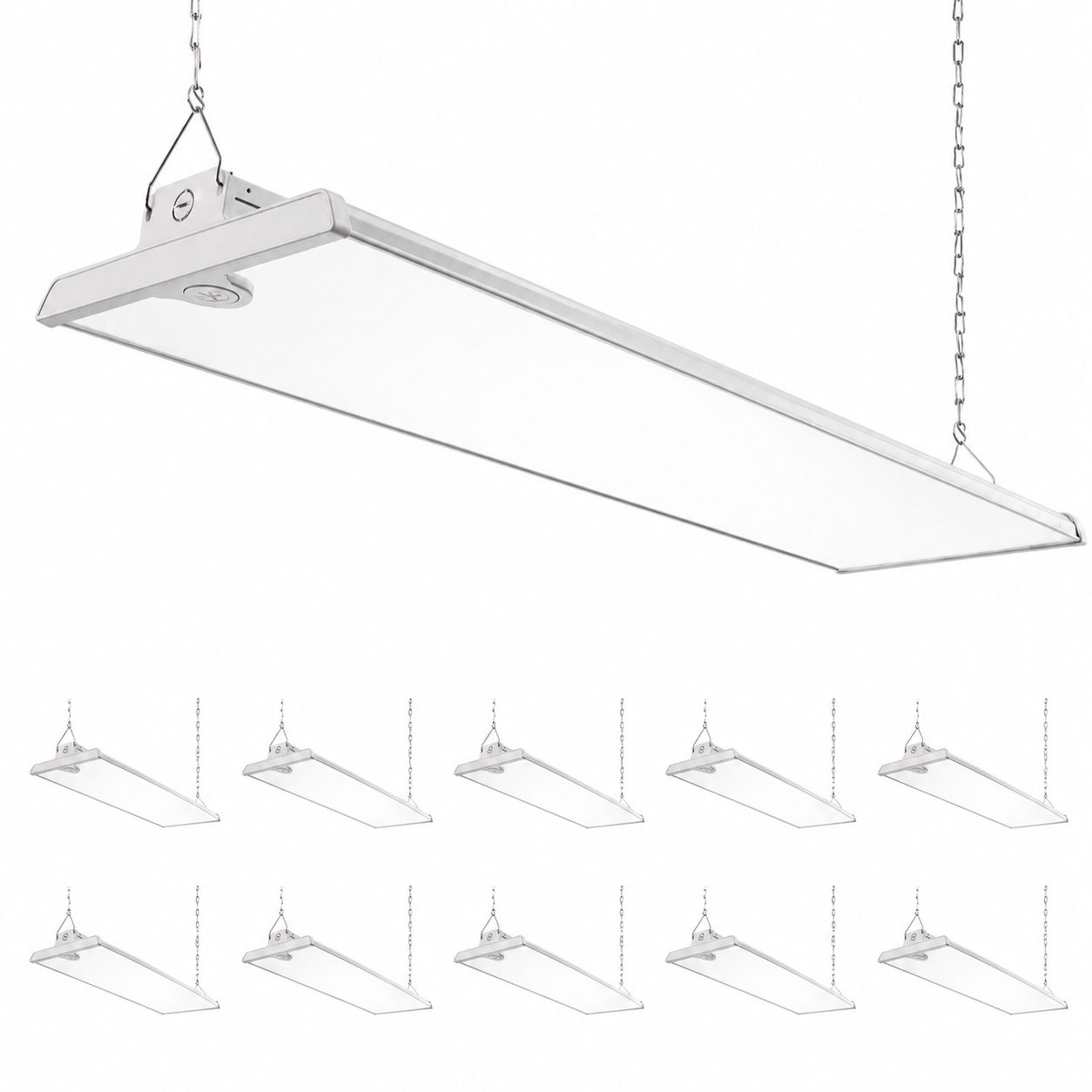

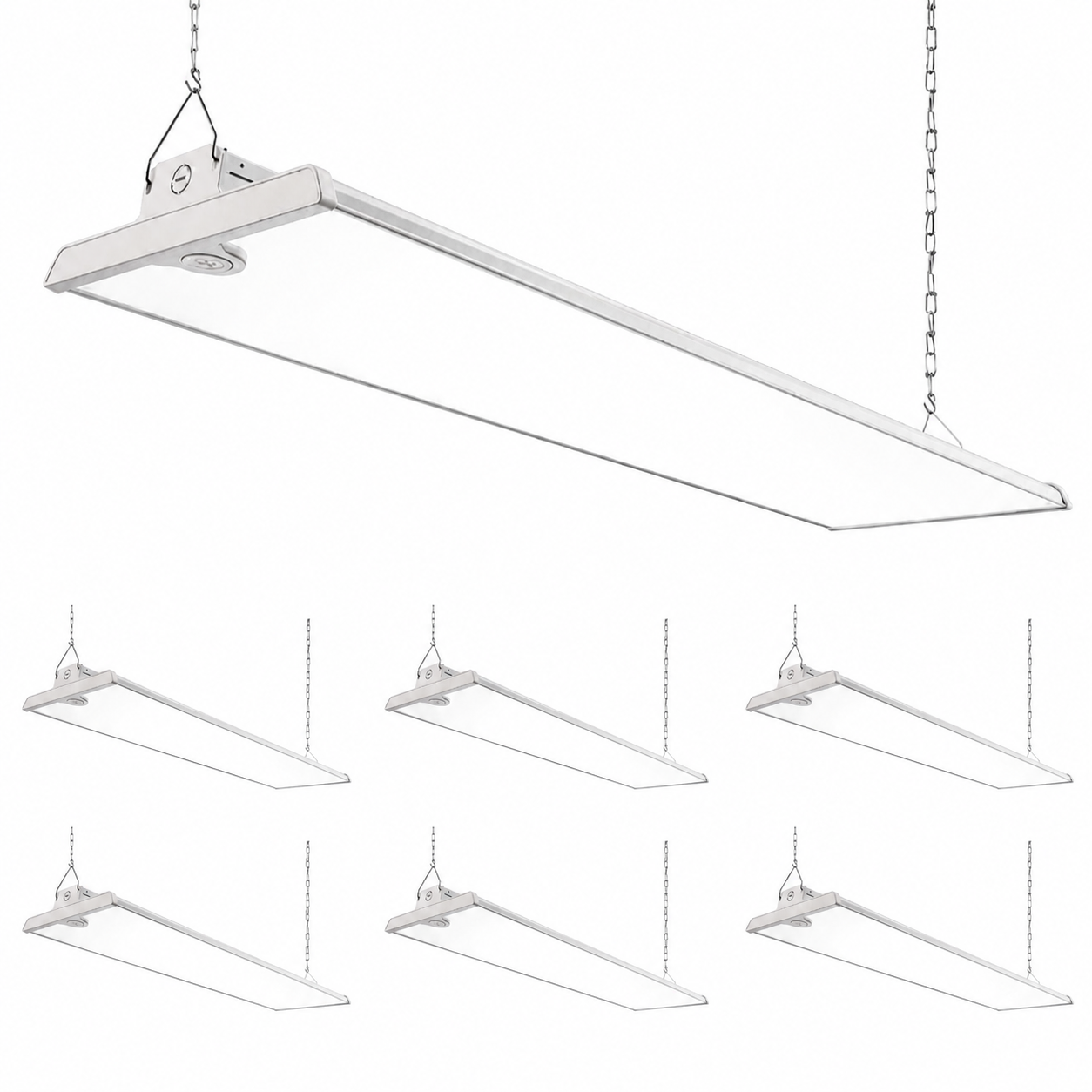

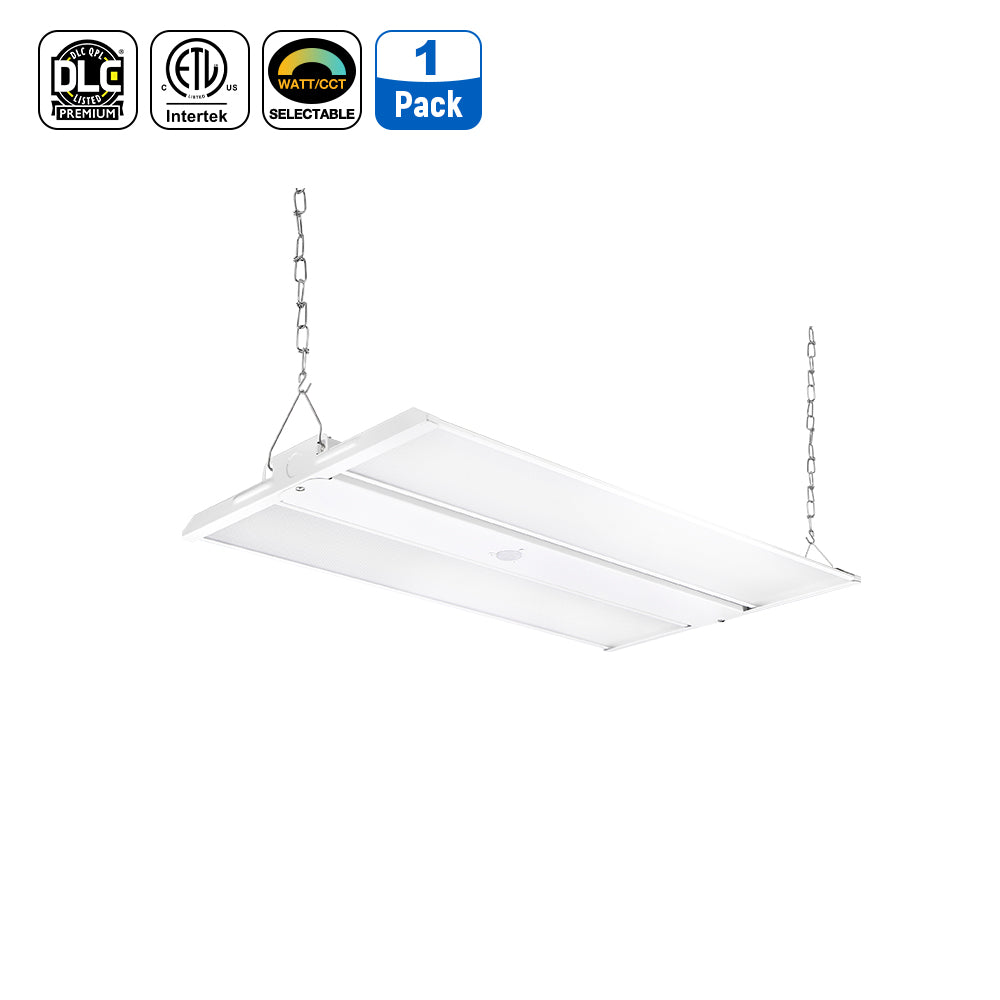

• Complete Suspension Kit Included: Comes supplied with rugged V-hook hangers and suspension chains for fast, contractor-friendly installation in open-ceiling structures.

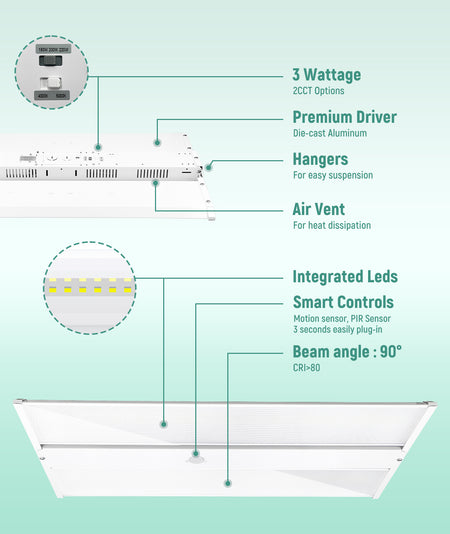

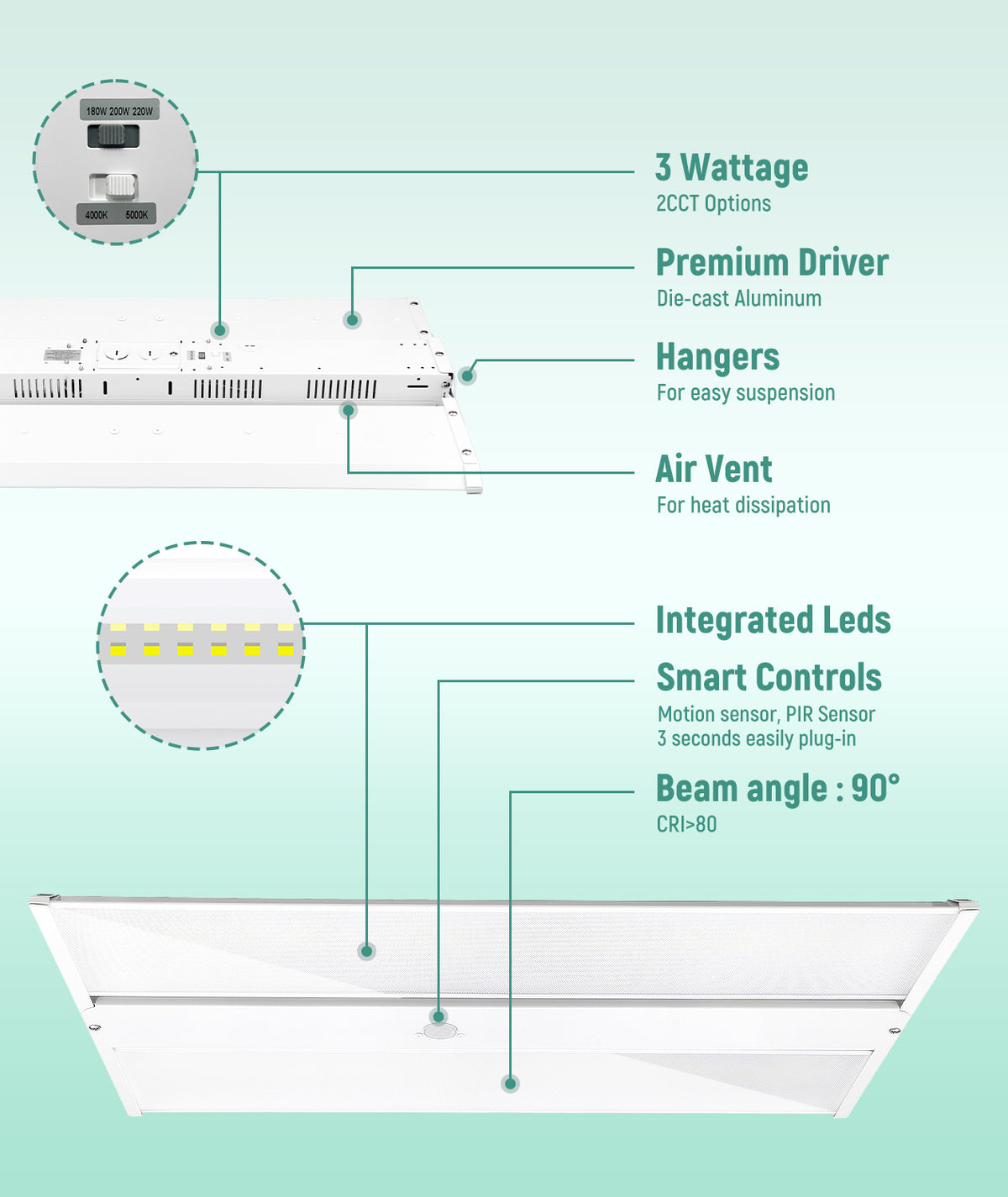

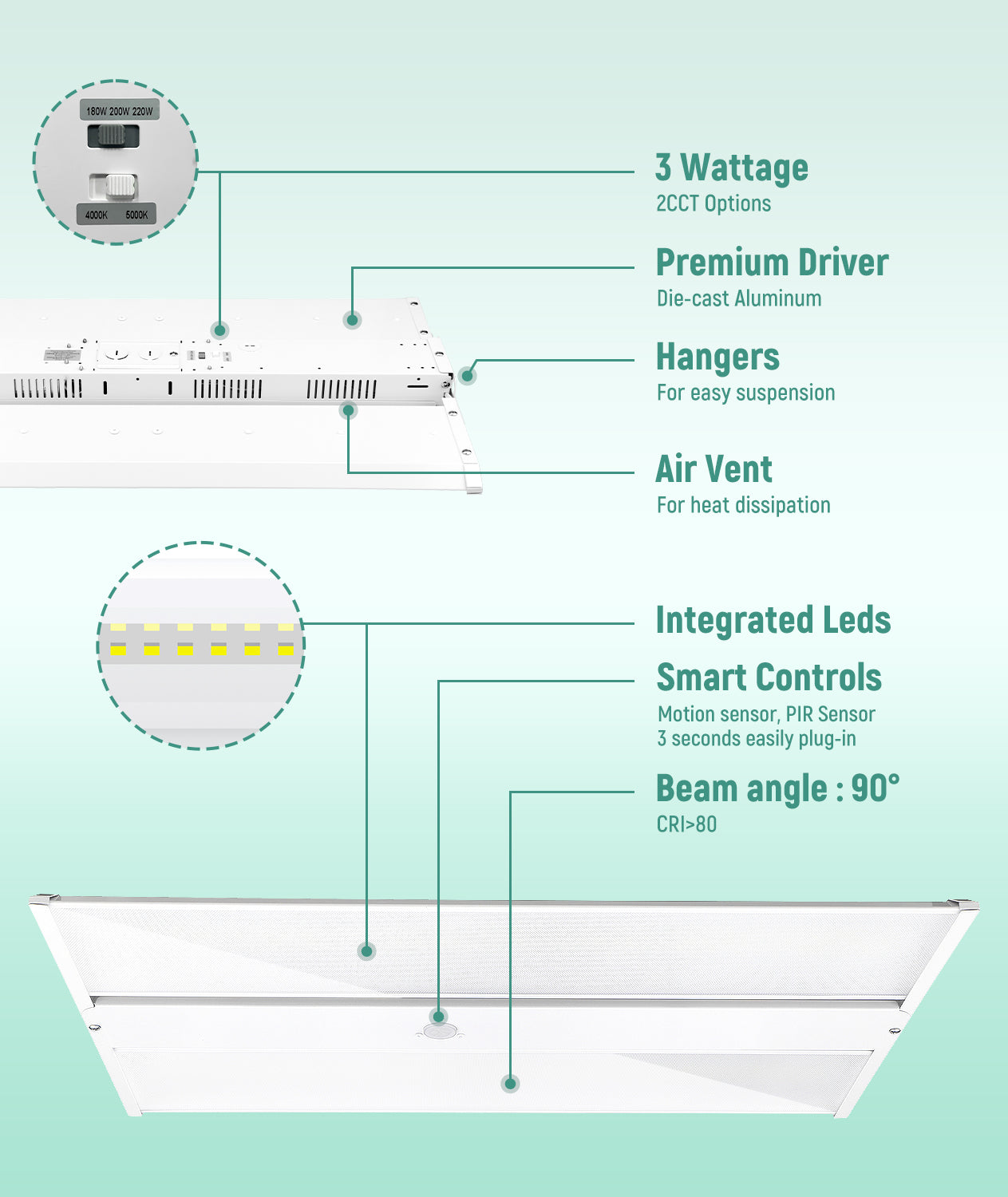

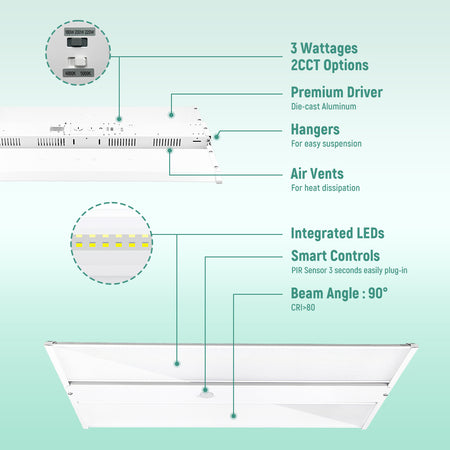

Key Features

High Luminous Efficiency
Delivering up to 33,000 lumens with 150 lm/W efficiency for bright and uniform lighting.

Wattage Adjustable
Selectable wattage settings of 220W / 200W / 180W allow installers to adjust brightness according to project requirements.

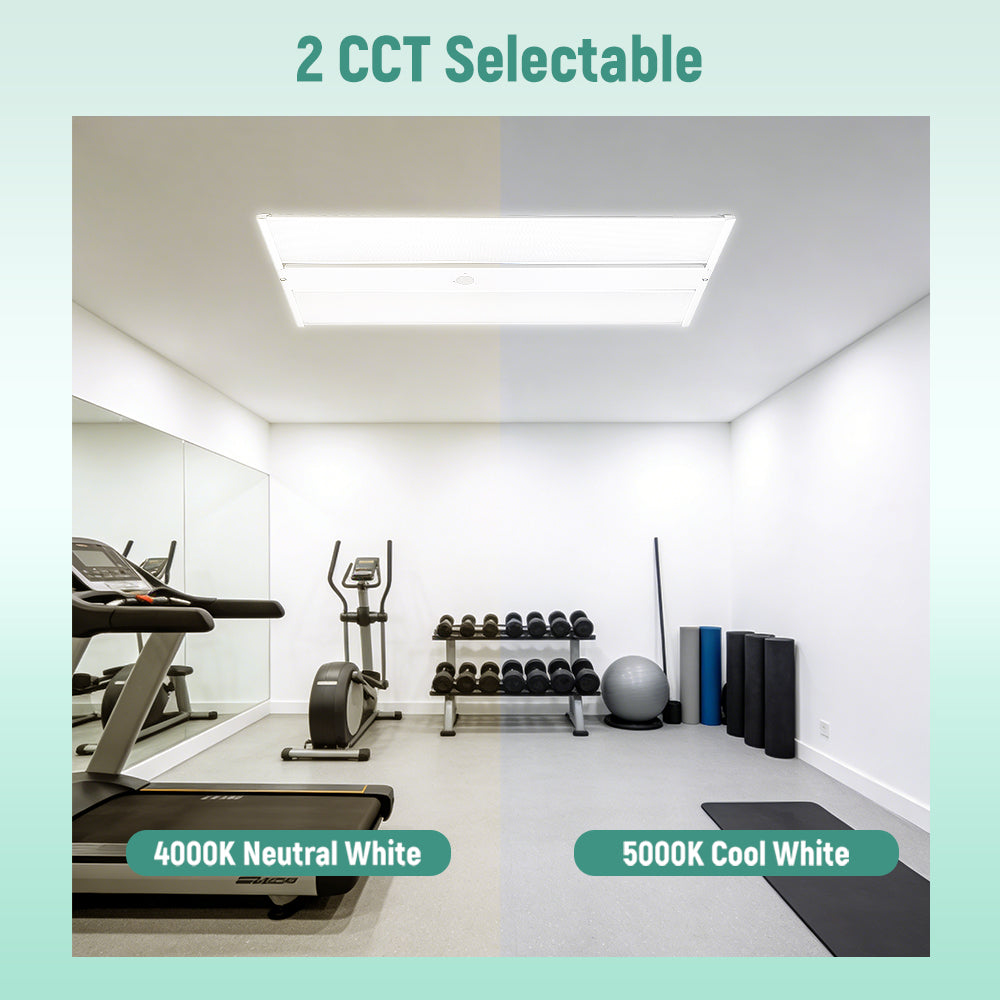

Color Temperature Selectable
Supports 4000K and 5000K, suitable for different commercial lighting environments.

Sensor Ready Design
Built-in sensor base allows quick installation of microwave or PIR sensors for motion-activated lighting control.

Durable Die-Cast Aluminum Housing
Solid construction ensures excellent heat dissipation and long-term reliability.

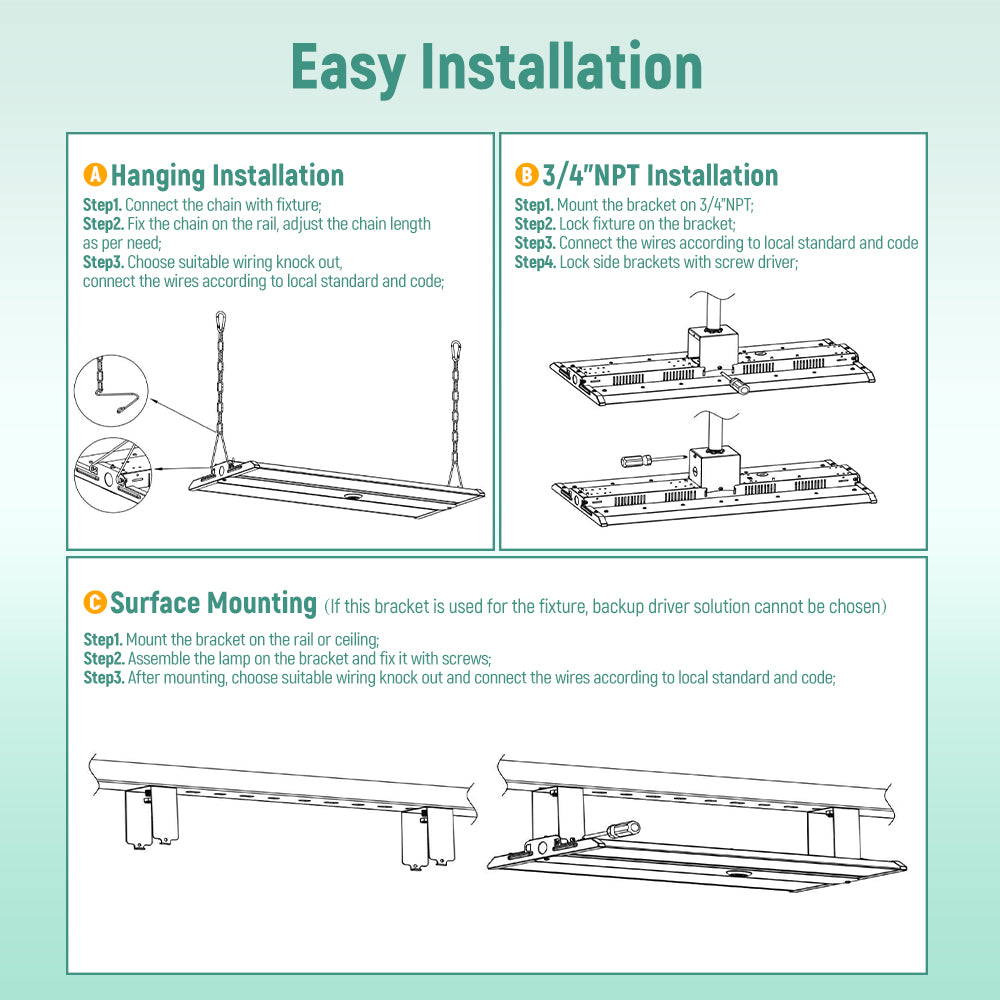

Flexible Installation Options
Compatible with chain mounting, surface mounting, or conduit pendant mounting.

Technical Specifications

Input Voltage: 120-277V
Power: 220W / 200W / 180W
Max Lumens: 33,000 lm
Luminous Efficiency: 150 lm/W
Color Temperature: 4000K / 5000K
Dimming: 0-10V dimming
Sensor: Sensor base (sensor optional)
Operating Temperature: −30°C to 50°C
Mounting: Chain mount (default), surface mount optional
Certifications: UL Listed, DLC Premium
Lifespan: 50,000 hours
Warranty: 5 Years
