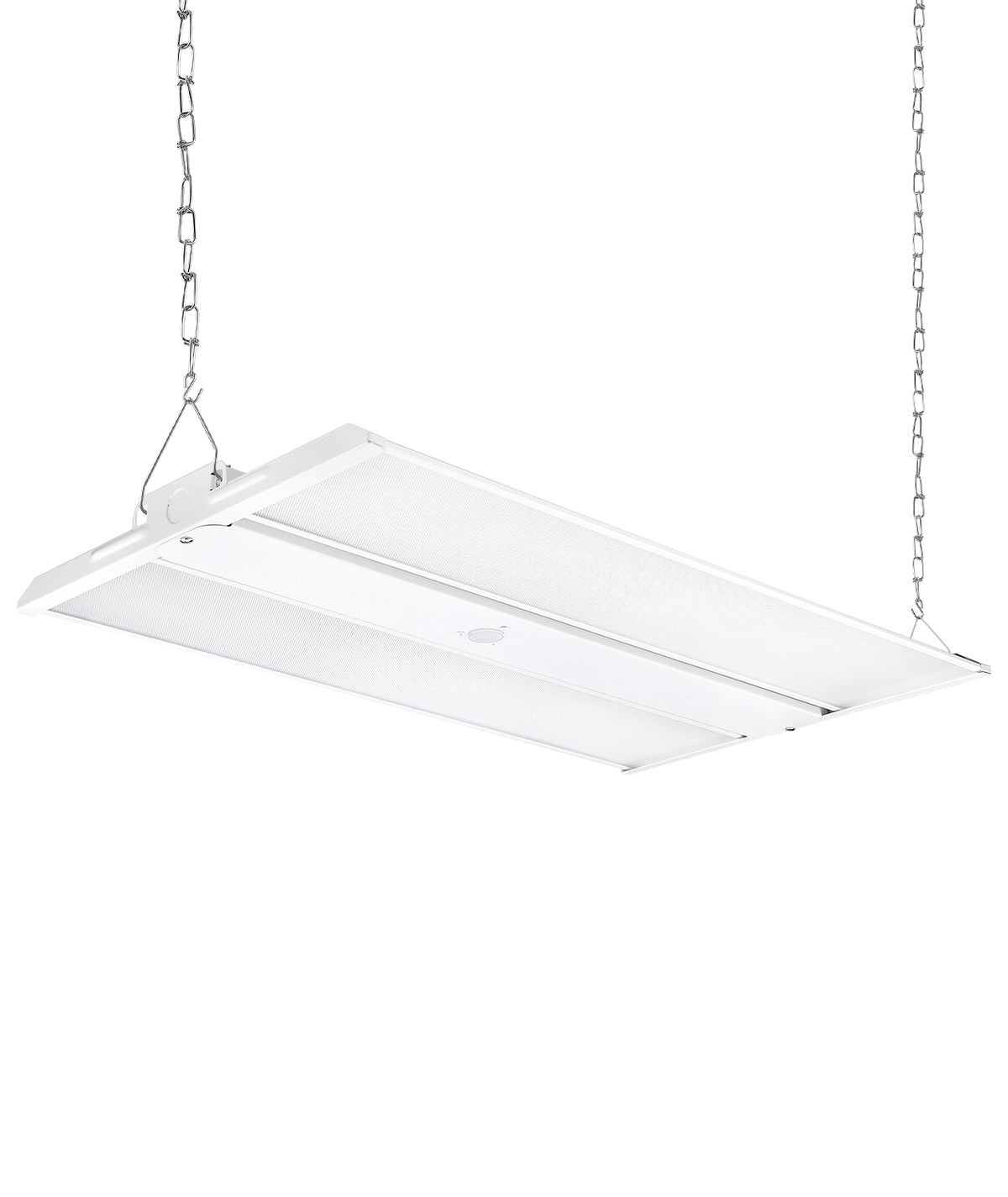

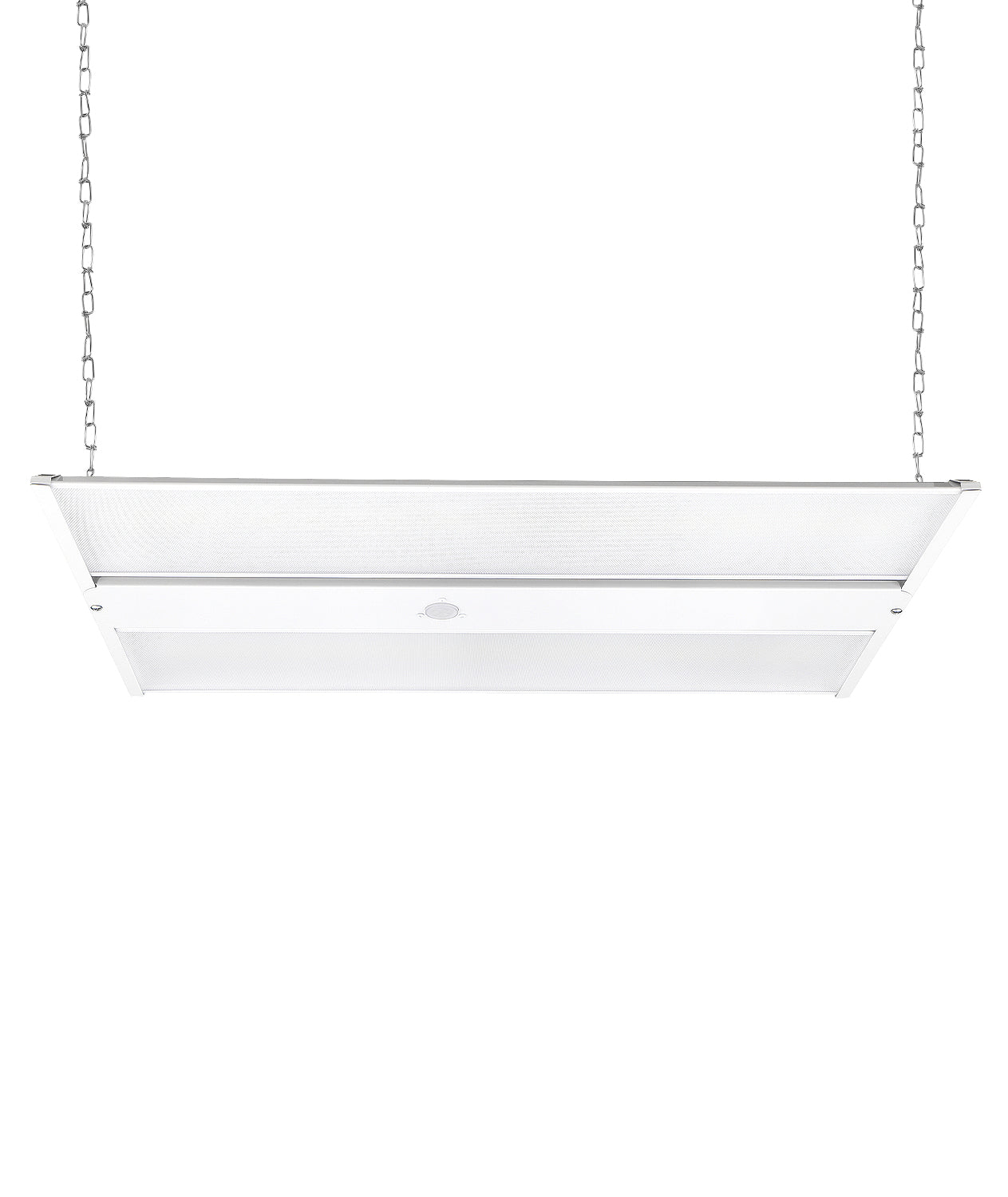

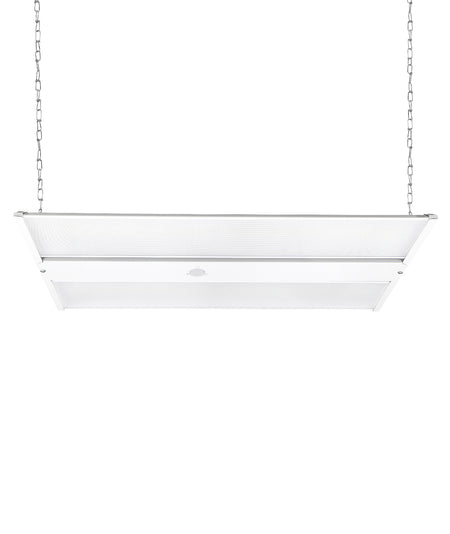

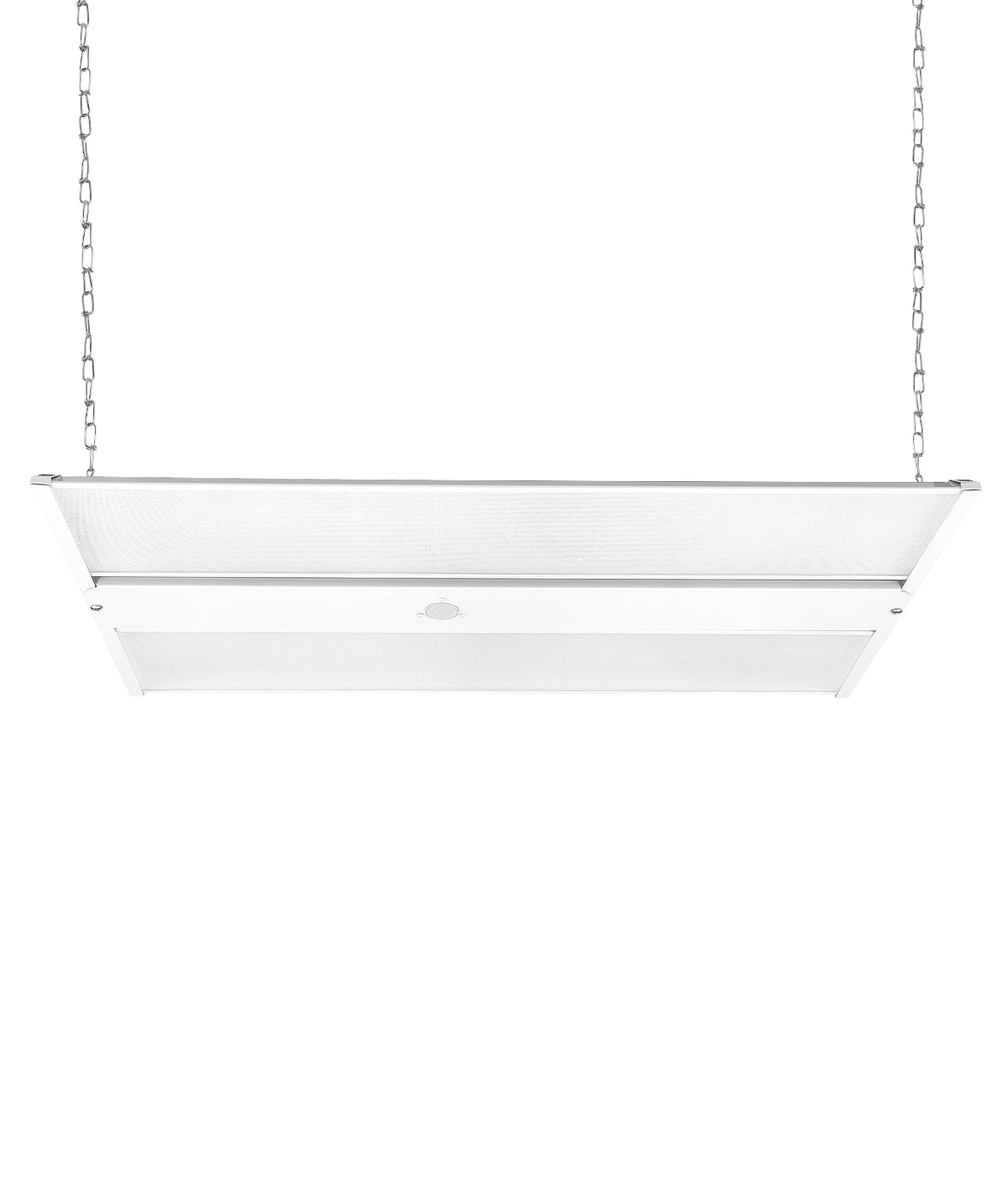

LED Linear High Bay Light-LHB09 120-277V 165W 24750LM 1×2FT UL DLC With Sensor Base | 165W

LED Linear High Bay Light – Wattage Selectable with Sensor Base

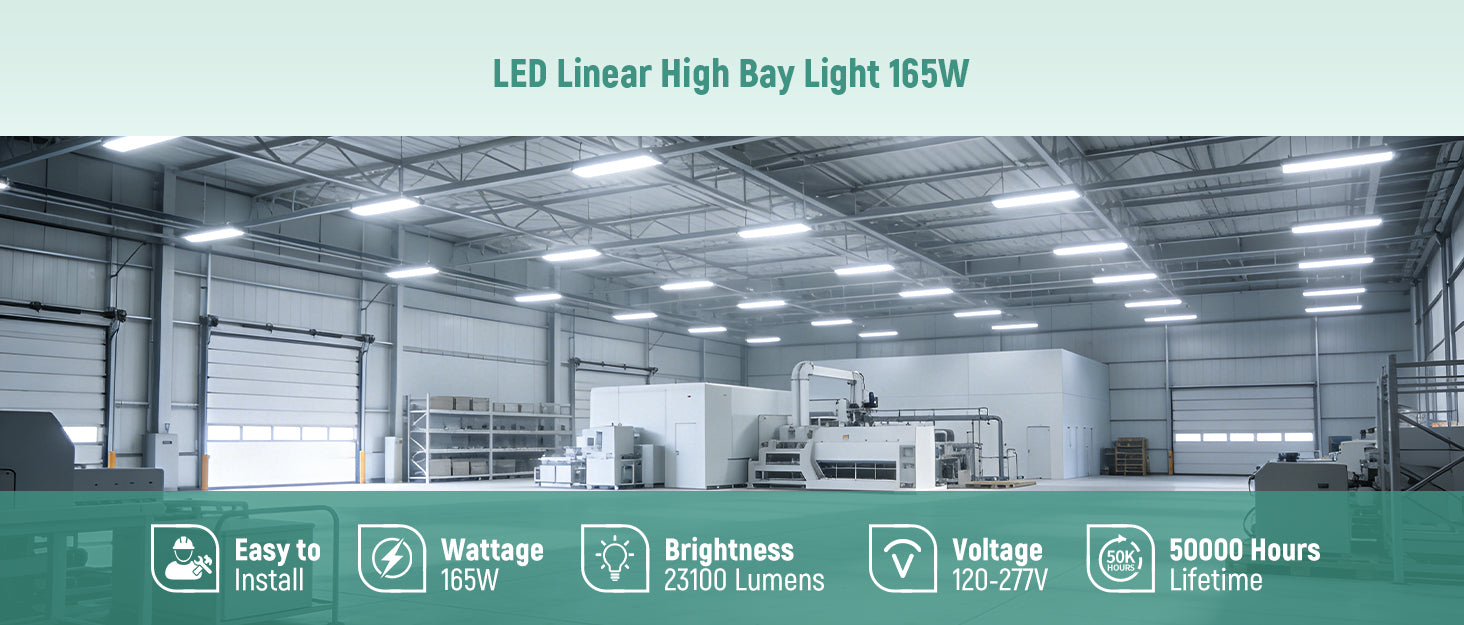

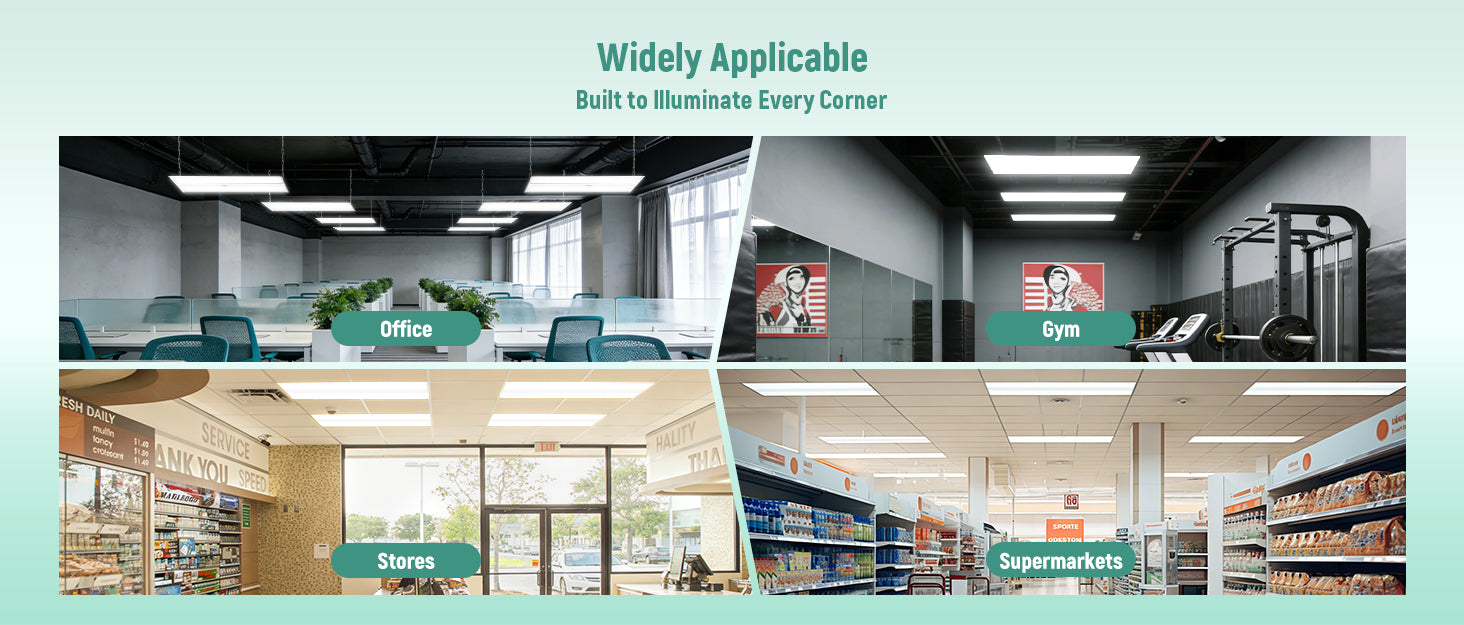

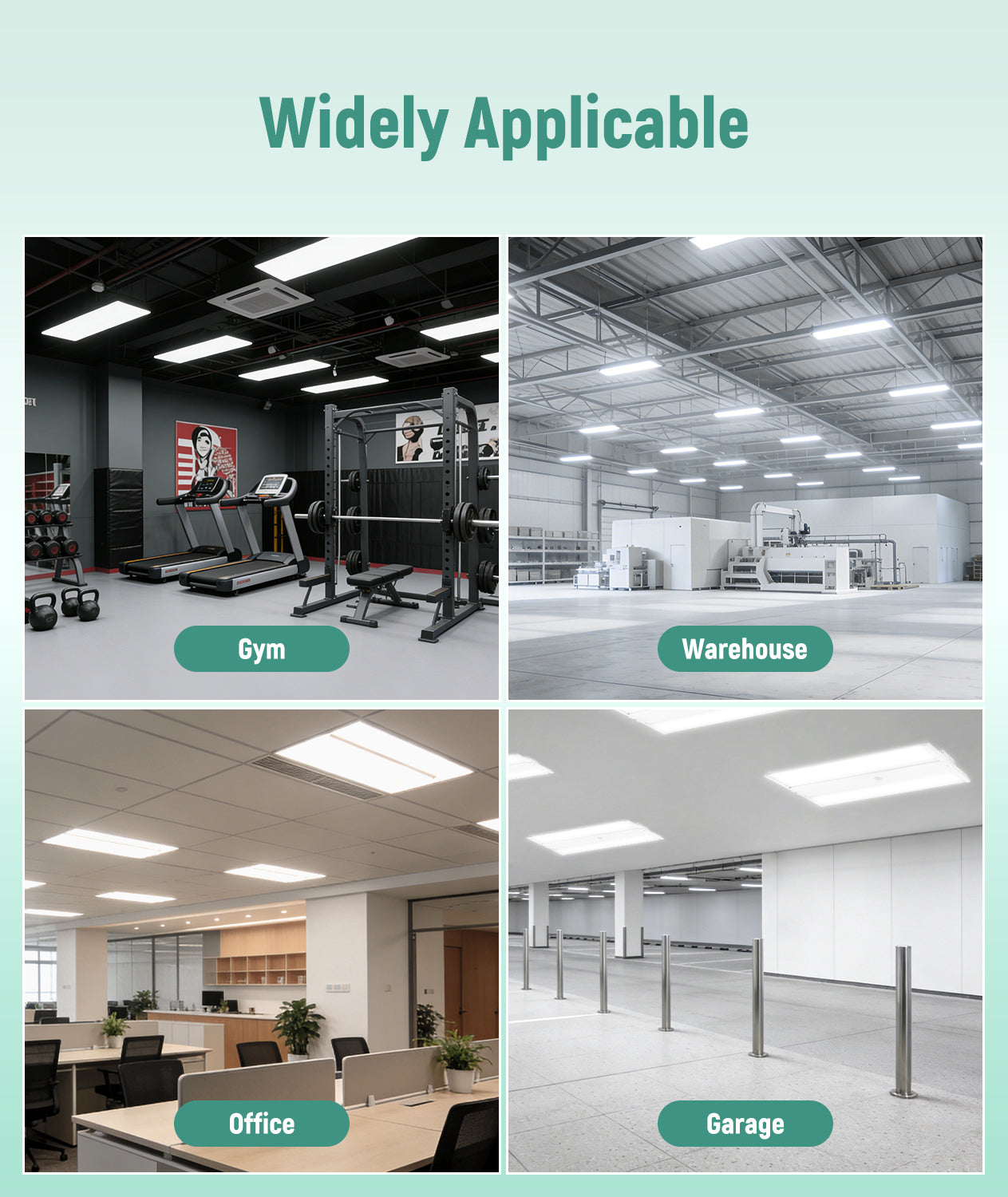

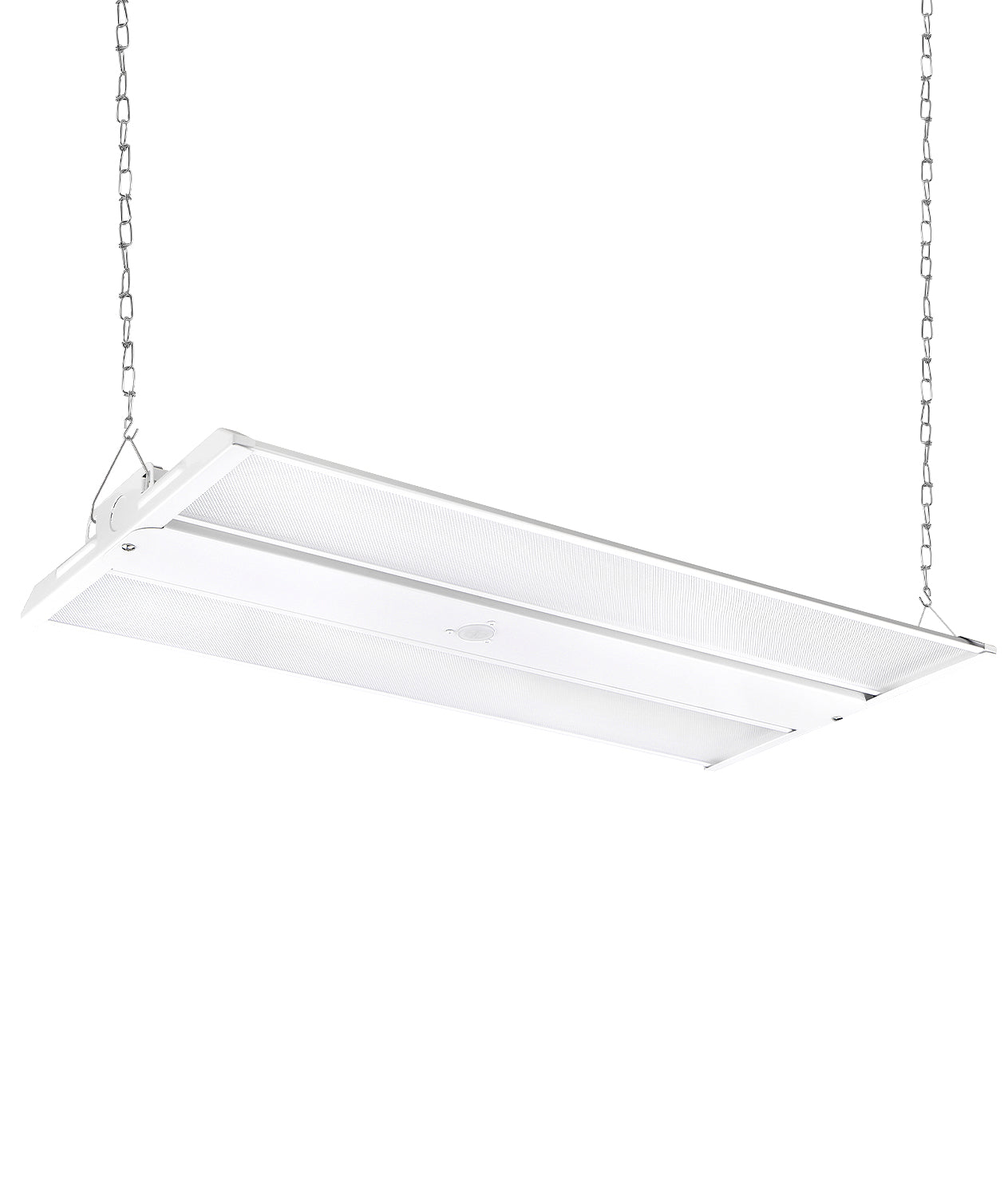

Engineered for high-efficiency commercial and industrial overhead lighting, the LHB09 1×2FT 165W LED Linear High Bay delivers high-lumen output to easily replace legacy 250W–400W metal halide or 4-lamp T5HO fluorescent fixtures. Producing 24,750 lumens at an impressive efficacy of 150 lm/W, this compact 1x2-foot luminaire is designed for medium-to-high ceiling applications such as warehouses, manufacturing facilities, distribution centers, gymnasiums, and commercial retail spaces. Built with a pre-wired, plug-and-play center sensor base, it allows quick, tool-free installation of PIR or microwave motion and daylight harvesting sensors without opening the electrical housing.

• 24,750 Lumens High-Efficacy Output (150 lm/W): Supplies powerful, crisp illumination while drawing only 165W of power, drastically lowering utility bills and operating expenses compared to traditional HID systems.

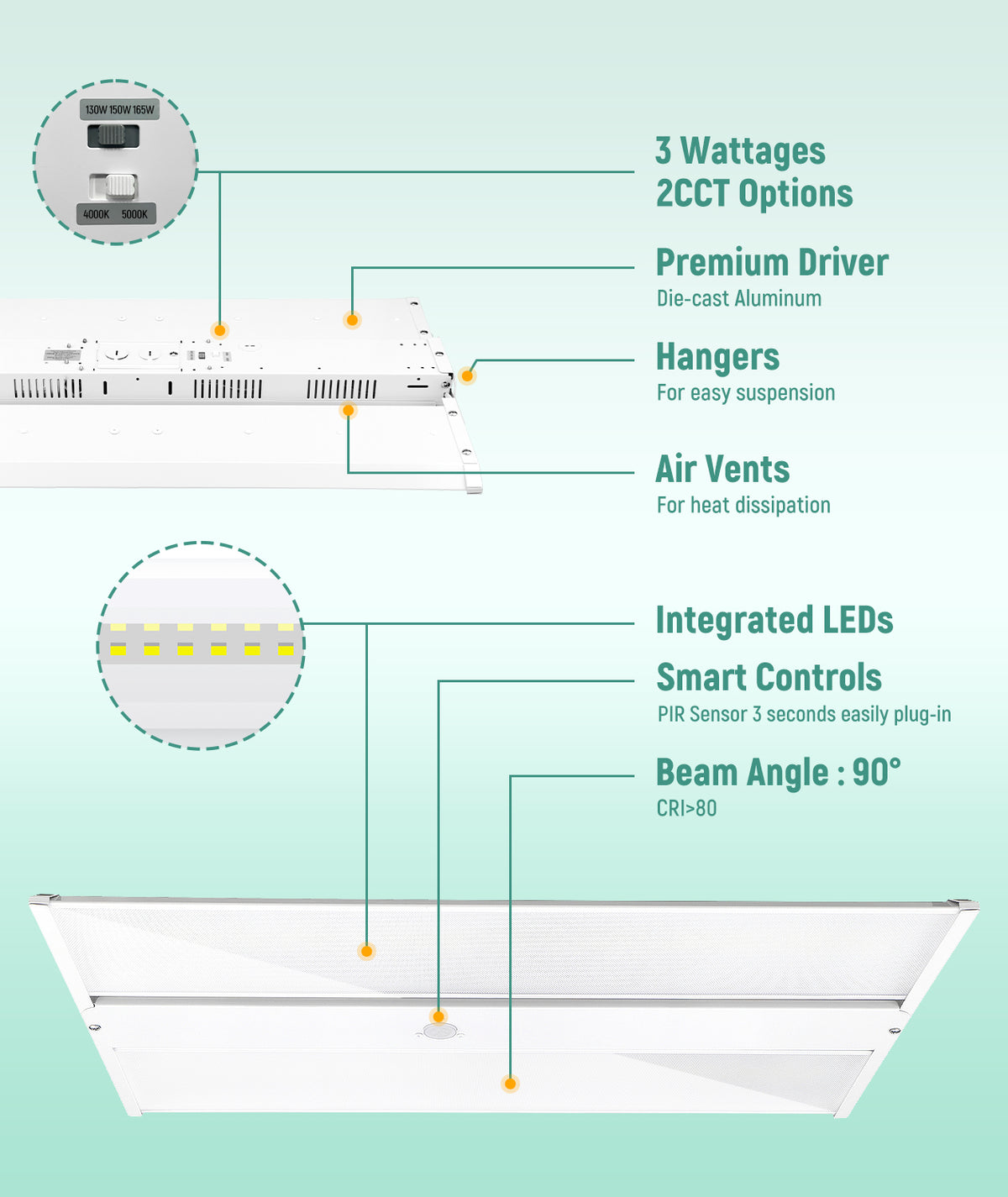

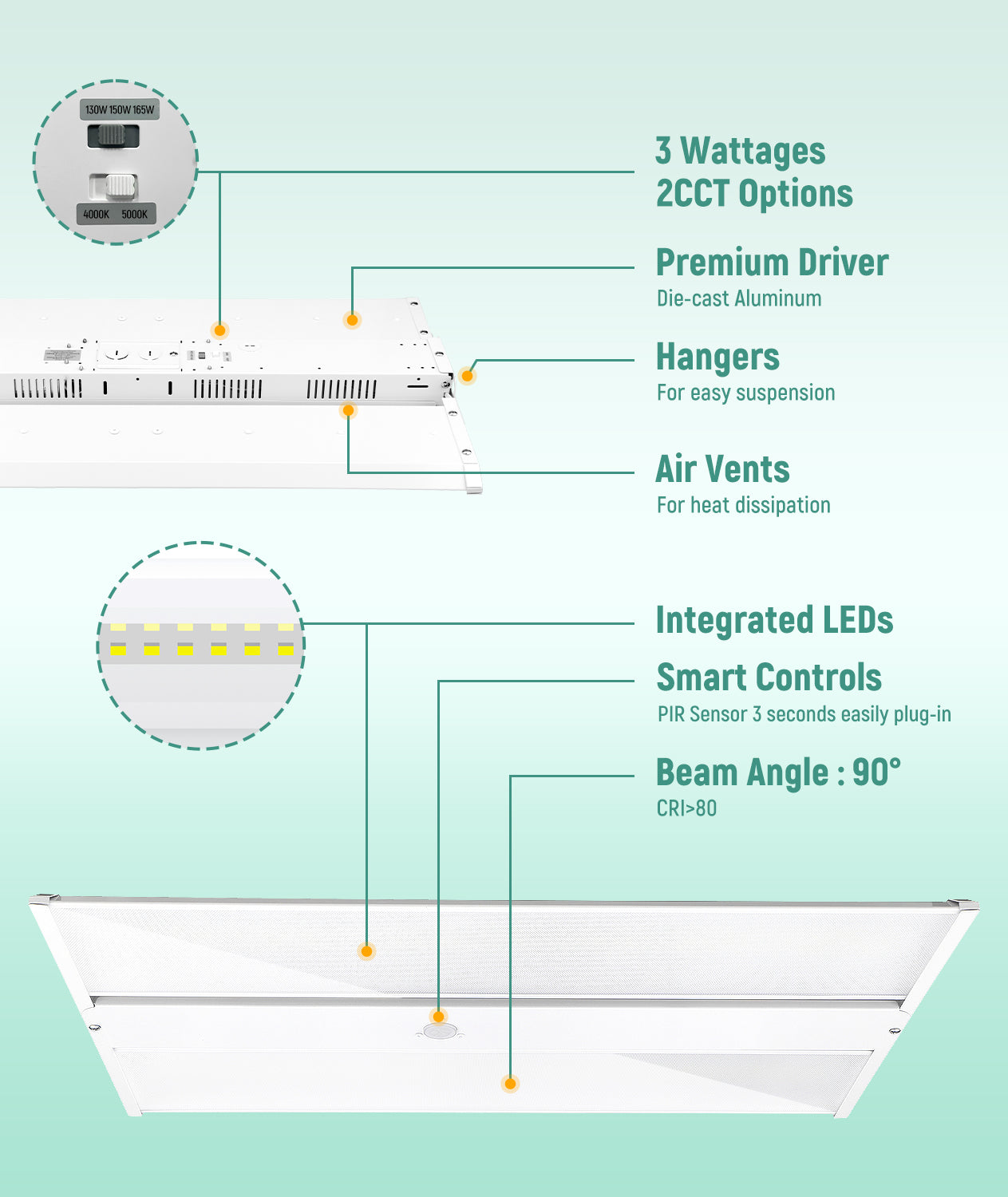

• Integrated Plug-and-Play Sensor Receptacle: Features a factory-installed center receptacle for rapid, twist-in mounting of occupancy and daylight harvesting sensors to automate energy management.

• UL & DLC Listed: Eligible for commercial utility rebate incentives nationwide; UL certified for safety, electrical performance, and building code compliance.

• Universal Input Voltage (AC120–277V): Industrial-grade driver operates reliably across standard 120V, 208V, 240V, and 277V commercial power circuits.

• Smooth 0–10V Continuous Dimming: Fully compatible with 0–10V dimming systems, enabling smooth light-level adjustments down to 10% for optimal energy control and task lighting.

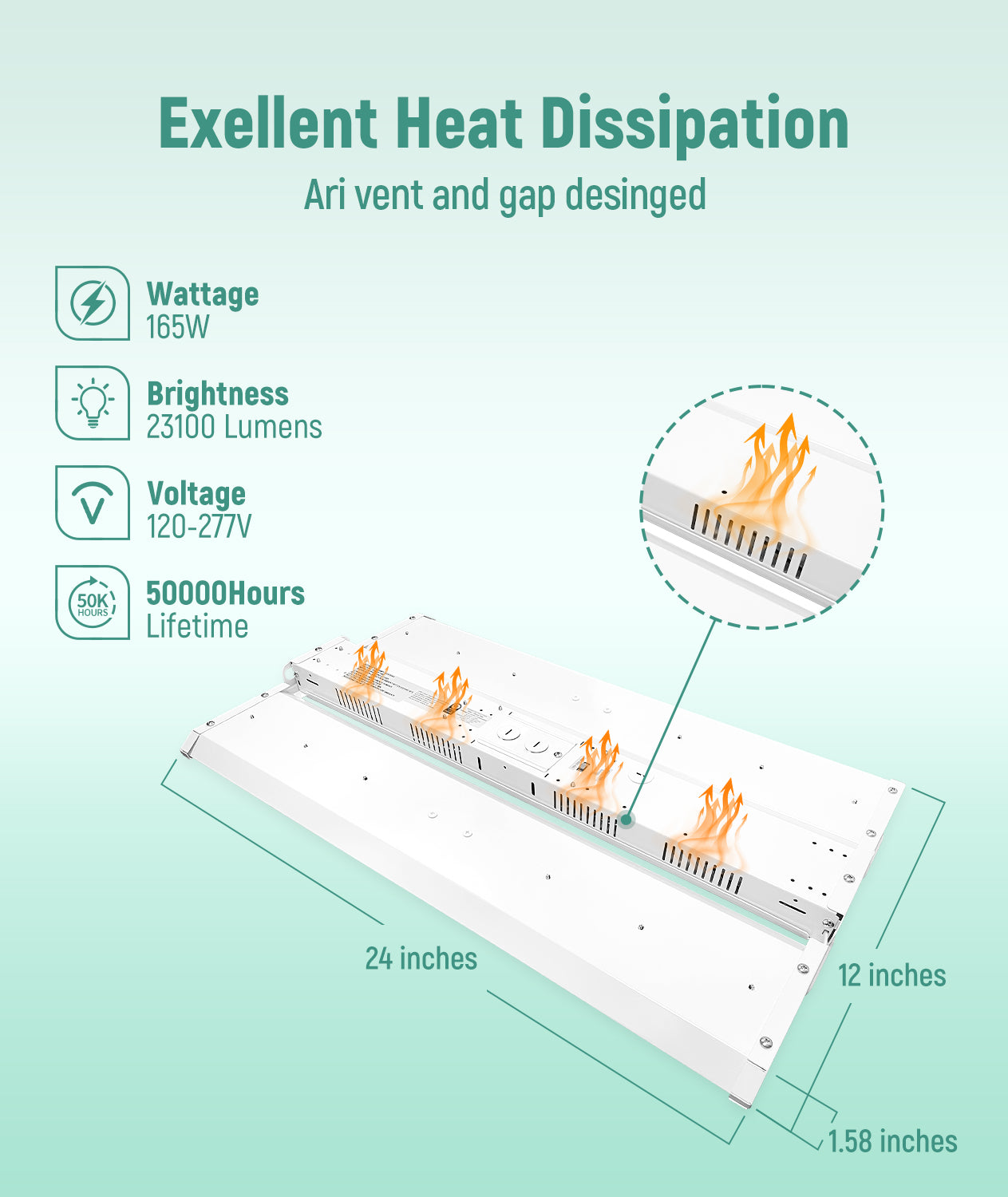

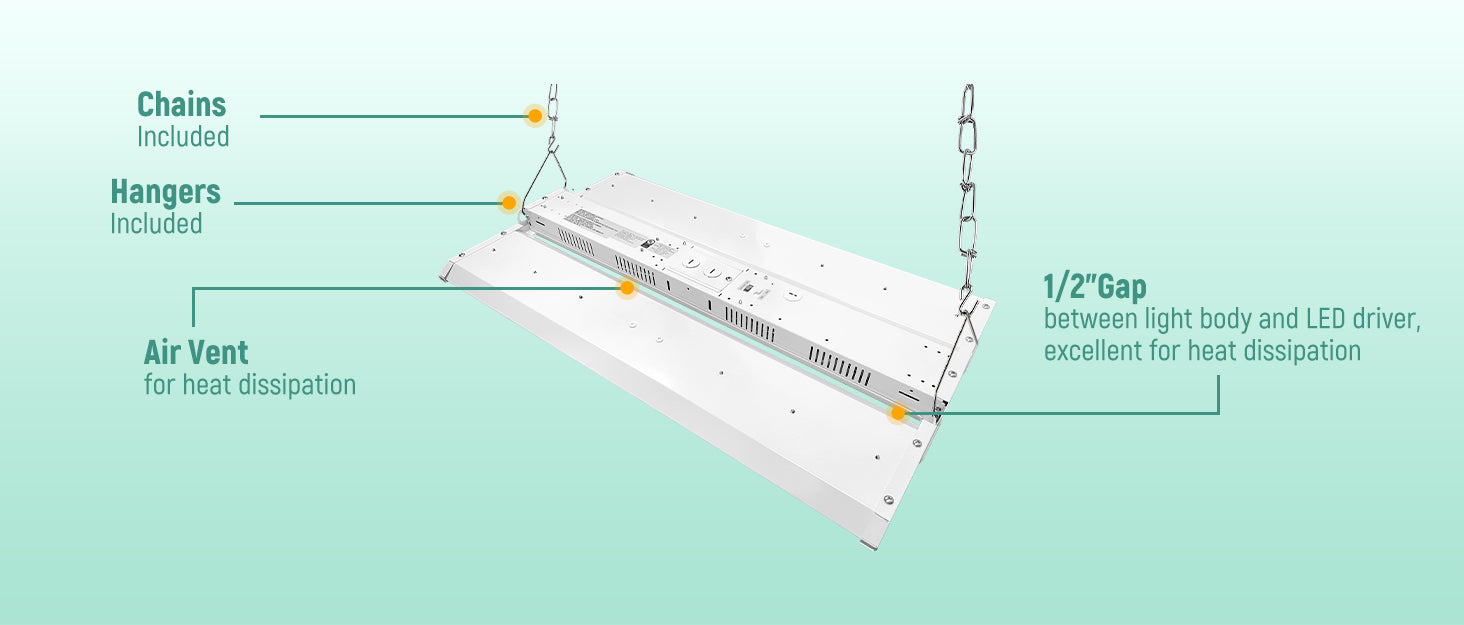

• Compact 1×2FT Heavy-Duty Housing: Durable cold-rolled steel construction with integrated thermal channel vents ensures efficient heat dissipation and a long LED lifespan in a space-saving fixture footprint.

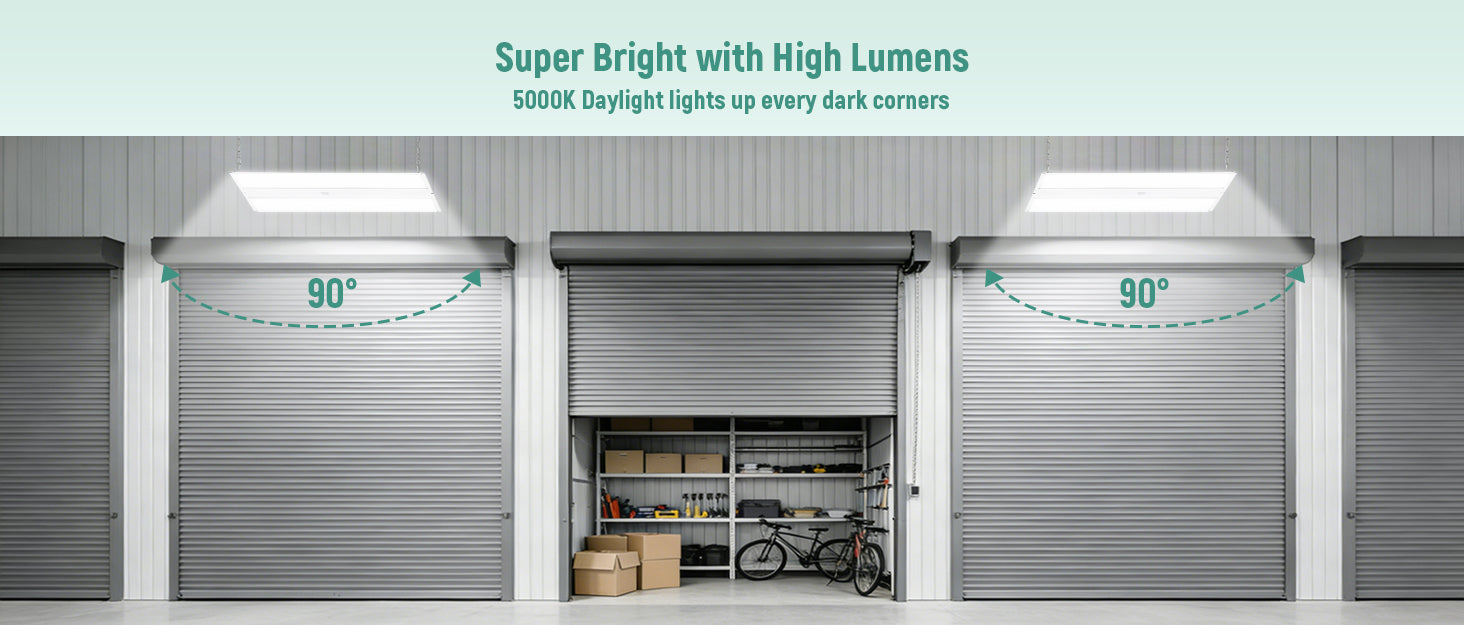

• Glare-Free Optical Lens: High-transmittance frosted diffuser optics produce balanced, even light distribution across aisles and open work areas without harsh glare or hot spots.

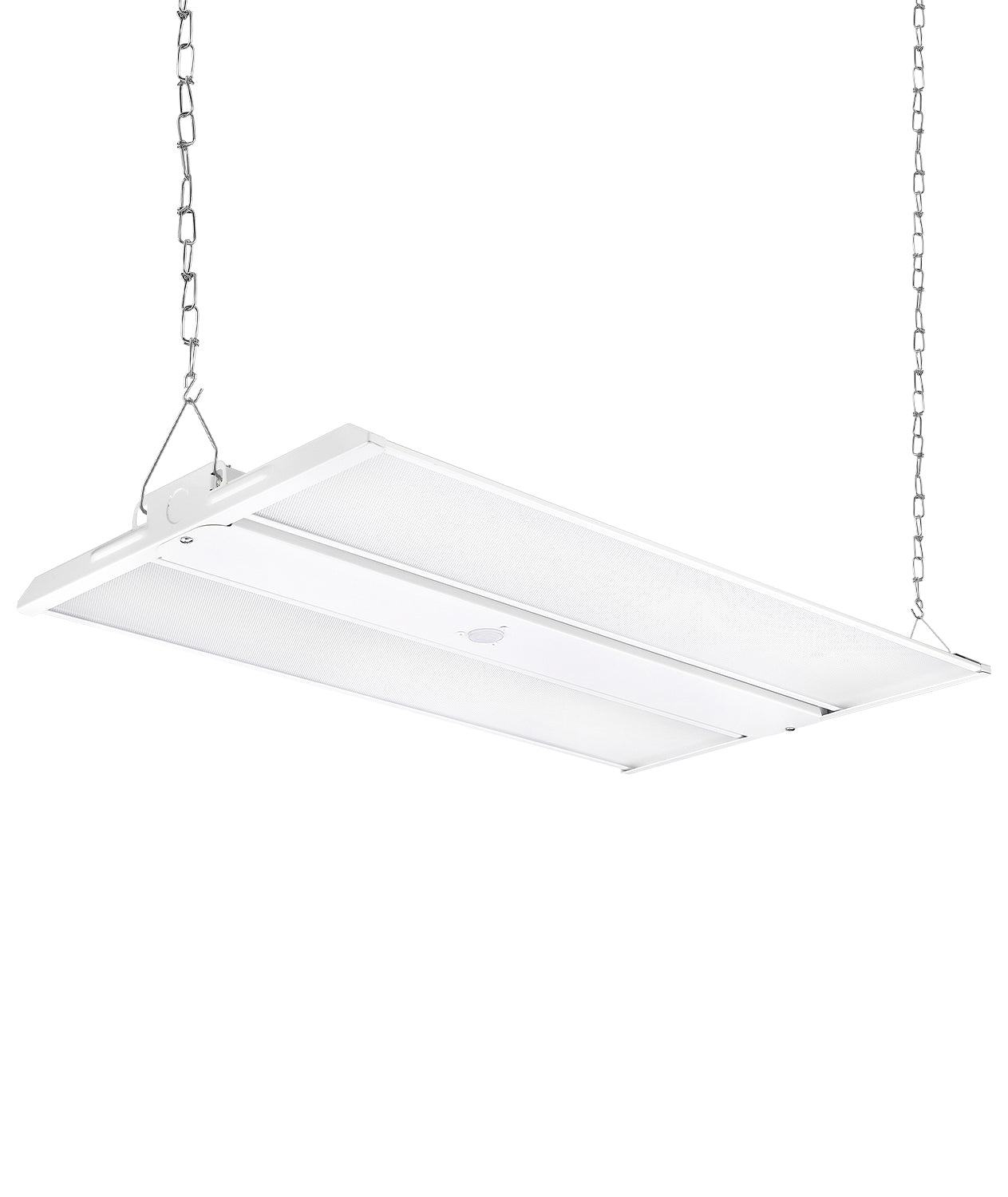

• Complete Suspension Kit Included: Comes supplied with rugged V-hook hangers and suspension chains for fast, contractor-friendly installation in open-ceiling structures.

Key Features

High Efficiency Output
Delivering up to 24,750 lumens with an efficacy of 150 lm/W, this linear high bay ensures bright and uniform lighting for industrial environments.

Selectable Wattage Design
The fixture supports 165W / 150W / 130W selectable power, allowing installers to adjust brightness according to ceiling height and lighting requirements.

Sensor Ready Design
Equipped with a sensor base, the fixture supports plug-in microwave or PIR motion sensors for energy-saving lighting control.

Reliable Industrial Construction
The die-cast aluminum housing provides excellent heat dissipation and long-term durability in demanding commercial applications.

Flexible Installation Options

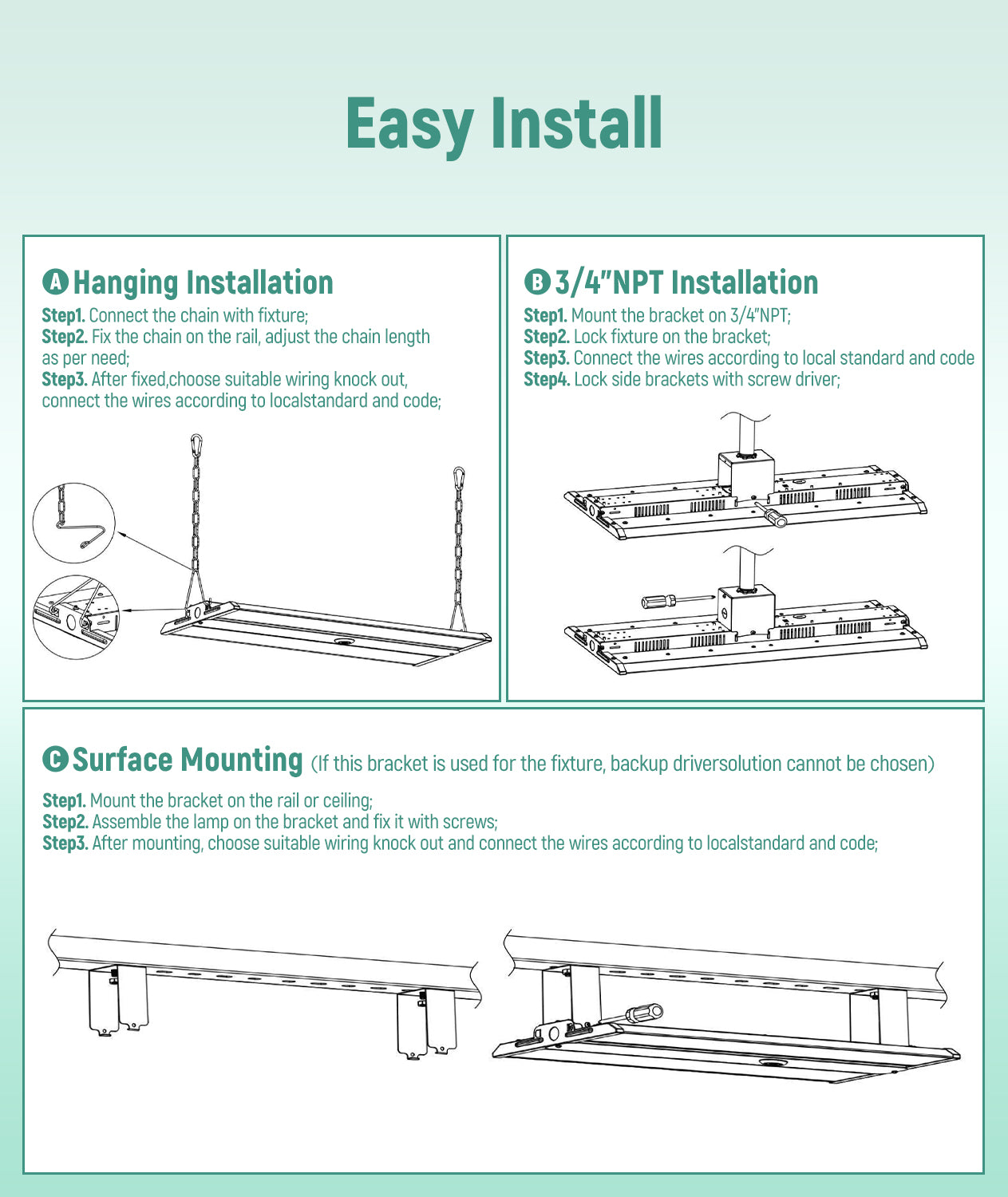

Supports multiple mounting methods including steel wire rope mounting (standard) and surface mounting (optional).

Long Lifespan
Rated for 50,000 hours of operation, reducing maintenance costs and replacement frequency.

Technical Specifications

Voltage: 120-277V
Wattage: 165W / 150W / 130W selectable
Max Lumens: 24,750 lm
Efficacy: 150 lm/W
CCT: 4000K / 5000K
Dimming: 0-10V dimmable
Certification: UL Listed, DLC Premium
Lifespan: 50,000 hours
Mounting: Chain mount / Surface mount
Sensor: Sensor base for motion sensor
