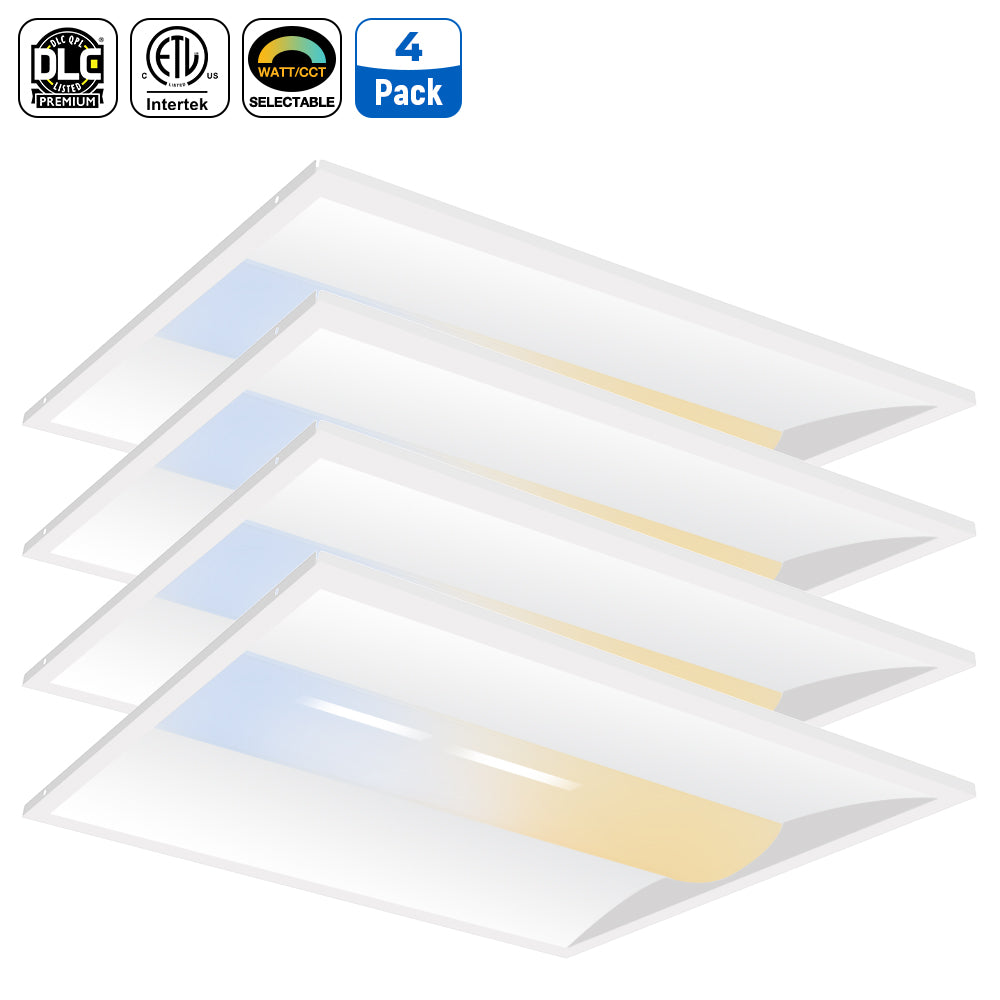

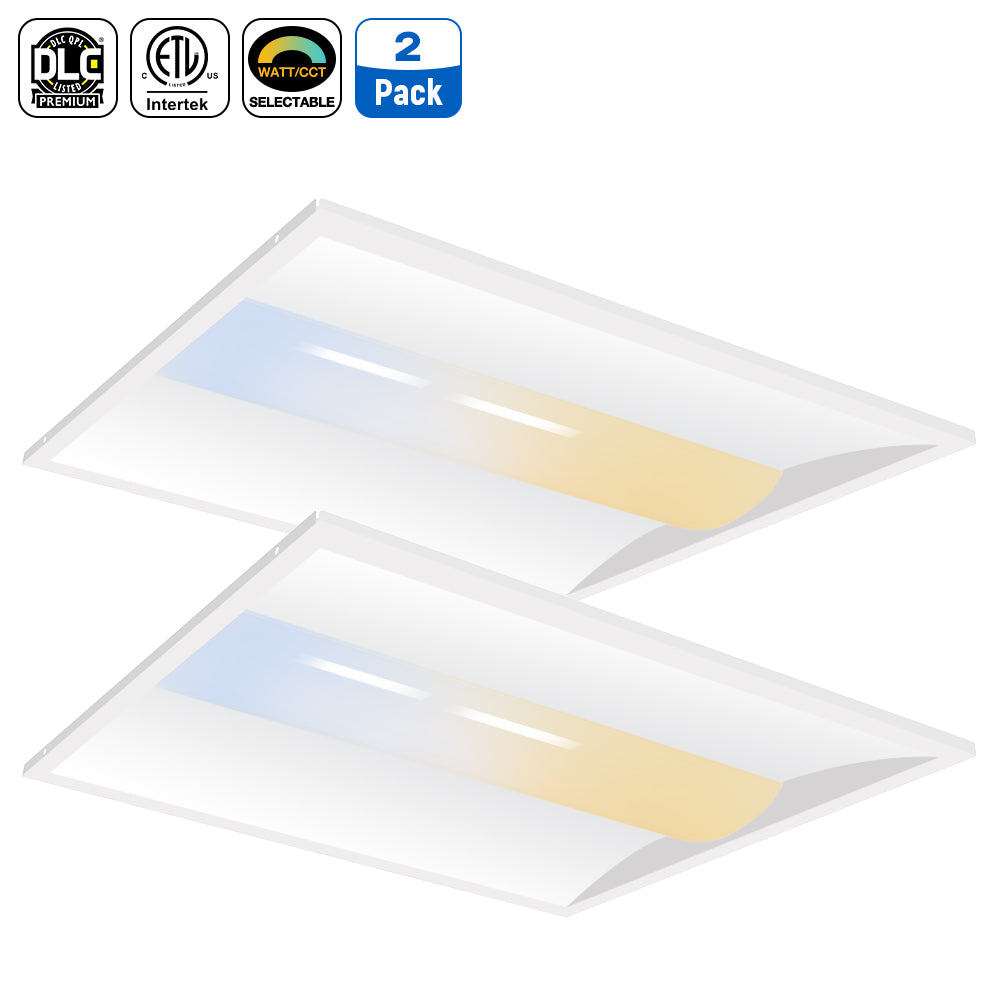

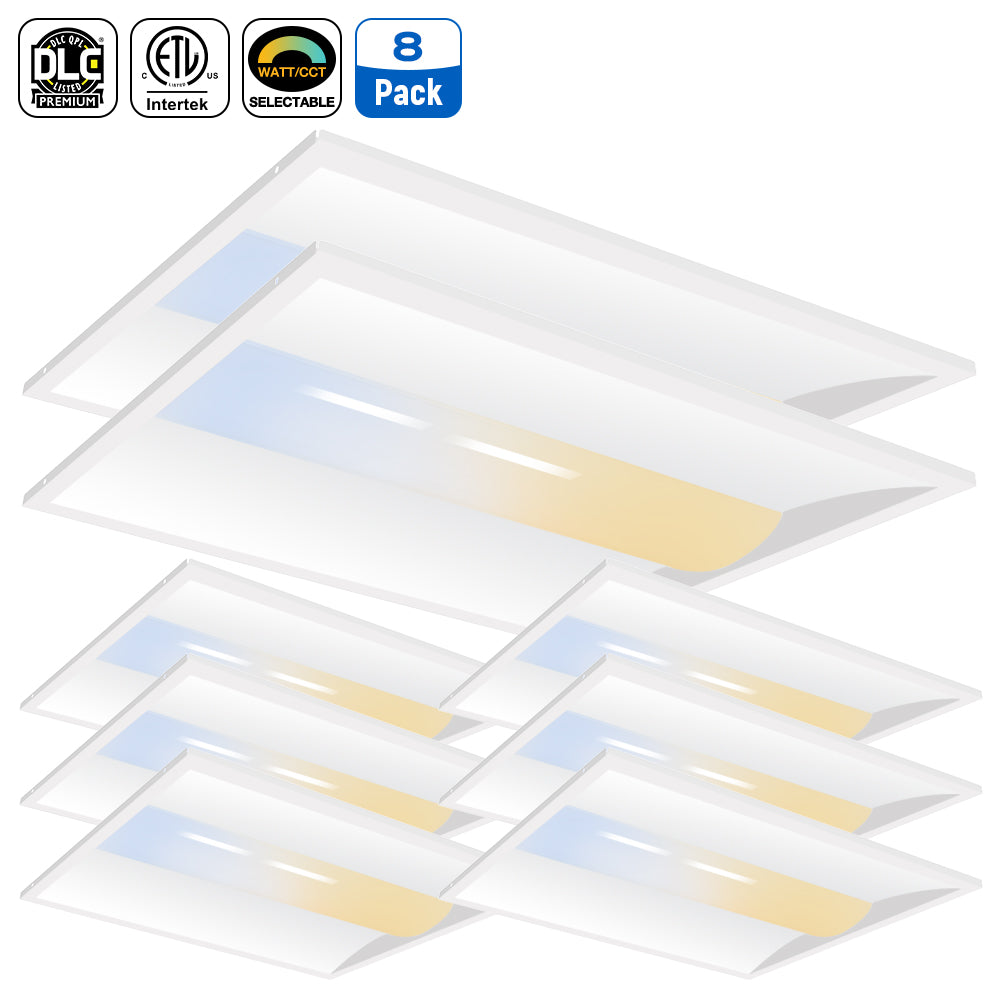

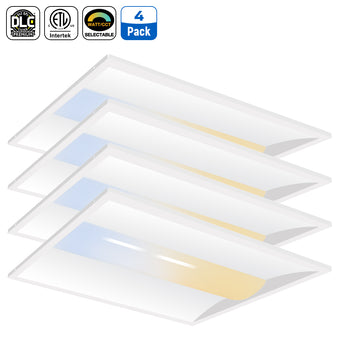

LED Troffer Light 120-277V 40W 5200 Lumens ETL DLC Premium | 2x2FT Emergency Backup Sensor Base

LED Troffer Light with Emergency Backup & Sensor Base

Engineered for high-efficiency commercial, educational, healthcare, and office interiors, this 2×2FT 40W Architectural LED Troffer Light provides high-output volumetric illumination with built-in emergency backup and smart control readiness. Delivering 5,200 lumens at an energy-saving efficacy of 130 lm/W, this center-basket recessed luminaire replaces legacy 2-lamp or 3-lamp U-bend and T8 fluorescent troffers. Complete with a factory-installed Emergency Battery Backup (EM) driver and an integrated plug-and-play sensor base, it satisfies strict building safety codes while maximizing energy savings and operational flexibility.

• 5,200 Lumens High-Efficacy Output (130 lm/W): Supplies bright, glare-free indirect lighting while consuming only 40W, reducing electricity consumption compared to legacy fluorescent fixtures.

• Factory-Installed Emergency Battery Backup (EM): Integrated emergency driver provides a minimum of 90 minutes of continuous backup lighting during power outages to satisfy life safety and emergency egress codes.

• Integrated Plug-and-Play Sensor Base: Features a pre-wired center receptacle for tool-free, field-installed PIR, microwave, or Bluetooth smart sensors without opening the electrical compartment.

• DLC Premium & ETL Listed: Qualified for top-tier utility rebate incentives nationwide; ETL certified to rigorous North American safety and electrical performance standards.

• Universal Voltage Driver (AC120–277V): Industrial-grade internal driver operates seamlessly across standard 120V, 208V, 240V, and 277V commercial power lines.

• Continuous 0–10V Dimming: Fully compatible with standard 0–10V control systems for smooth, flicker-free light level adjustment down to 10%.

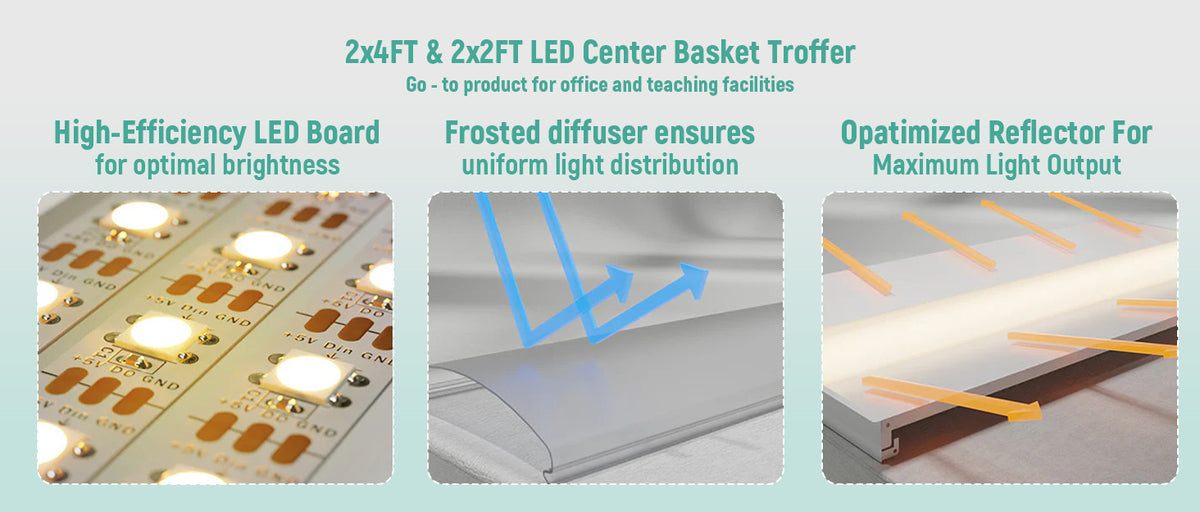

• Volumetric Center-Basket Diffuser: Curved frosted optical lens provides soft, uniform light distribution without harsh direct glare, shadows, or visible LED pixellation.

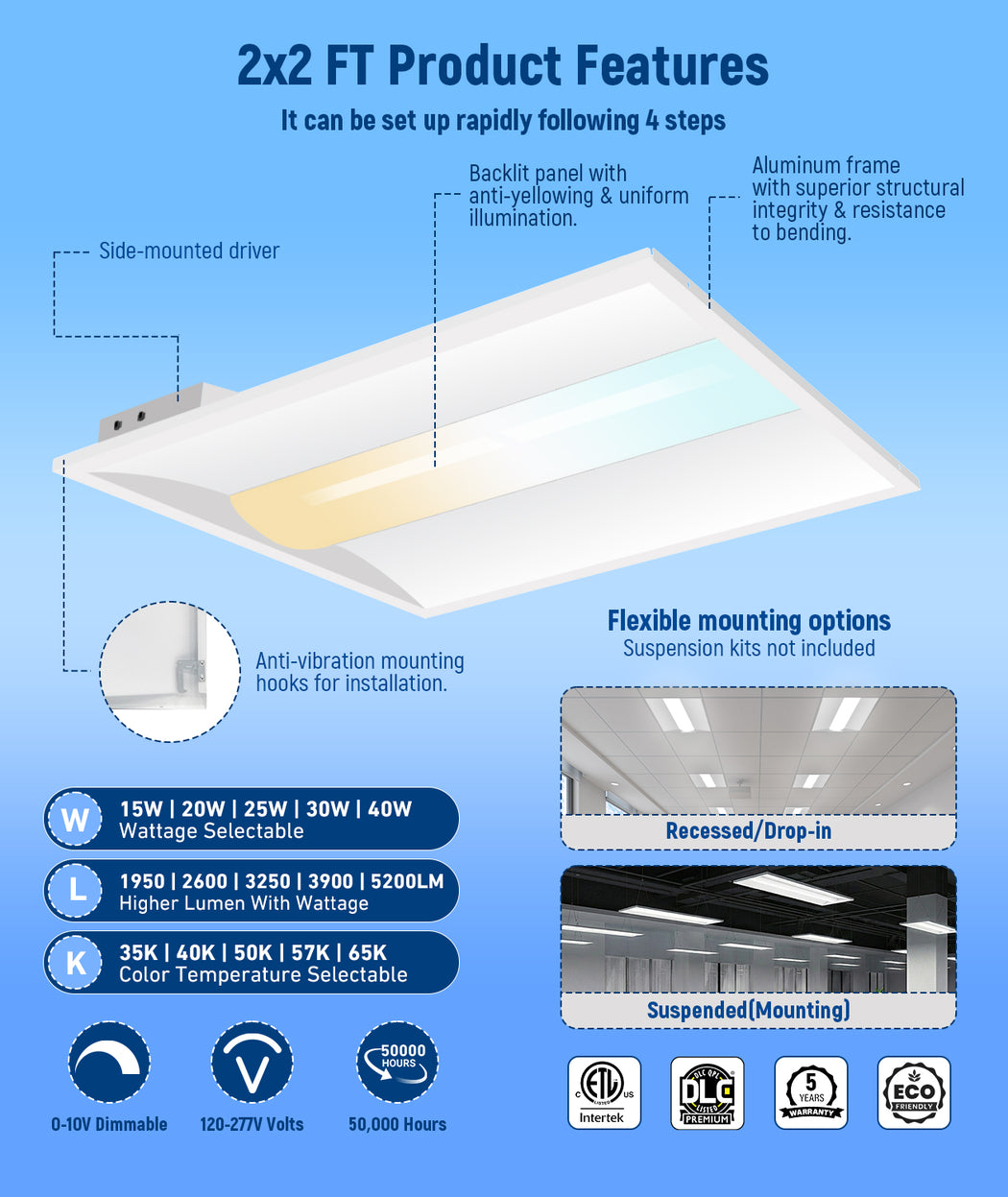

• Durable Low-Profile Housing: Constructed with cold-rolled steel and a powder-coated white finish for easy drop-in installation in standard 2×2 T-bar grid ceilings, equipped with integrated safety earthquake clips.

Key Features

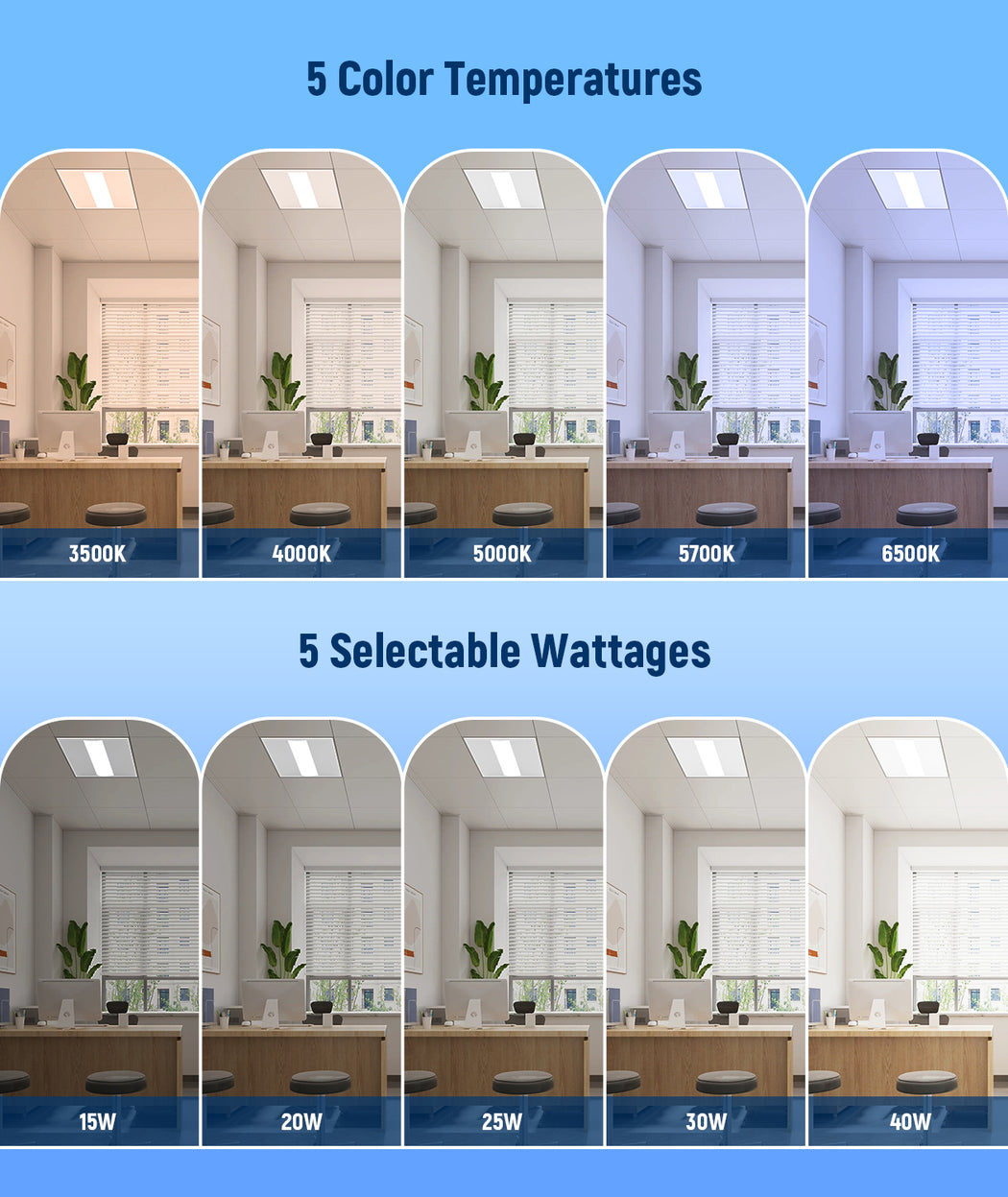

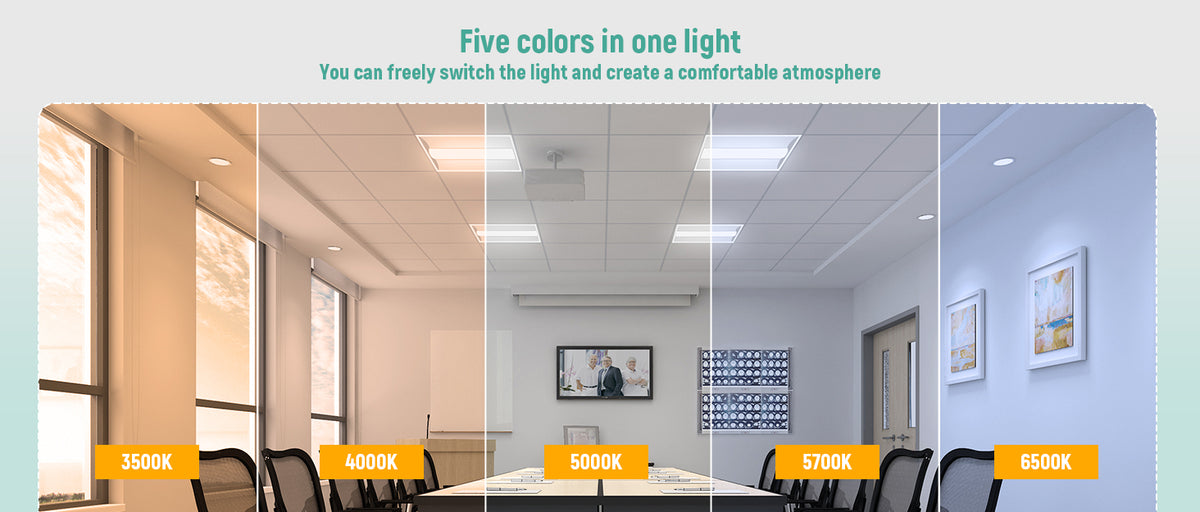

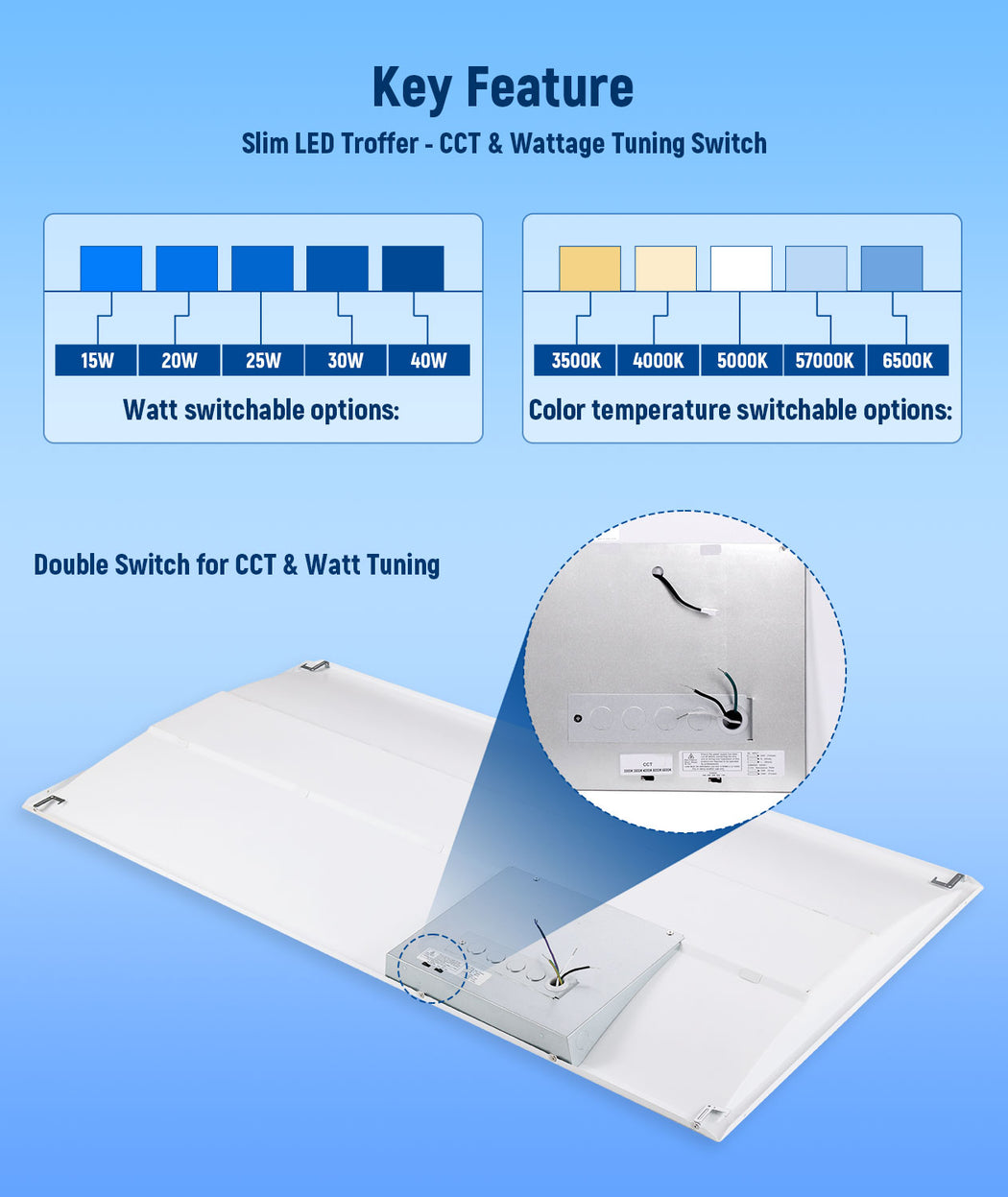

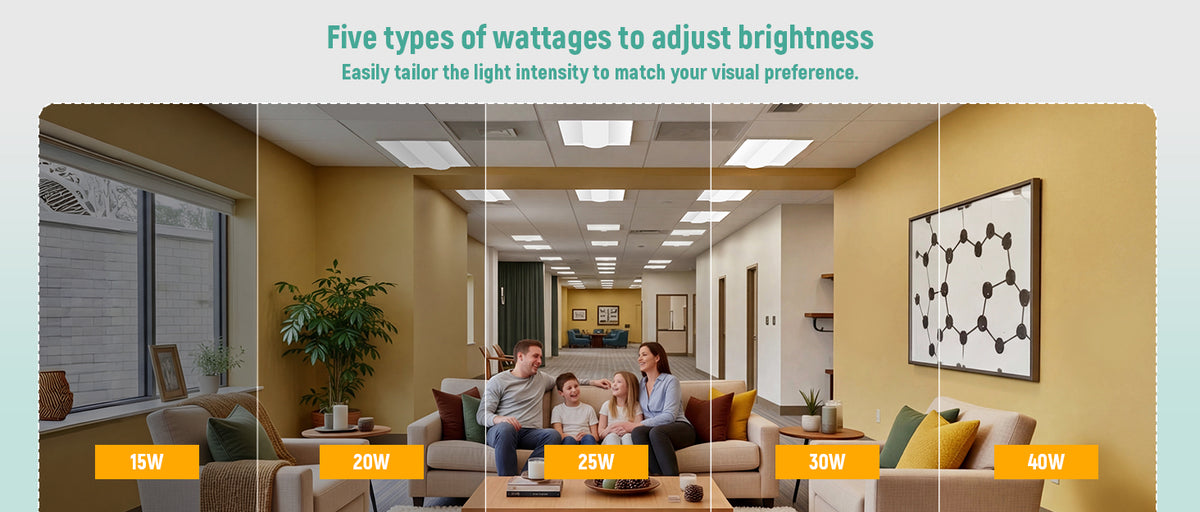

Selectable Wattage & CCT

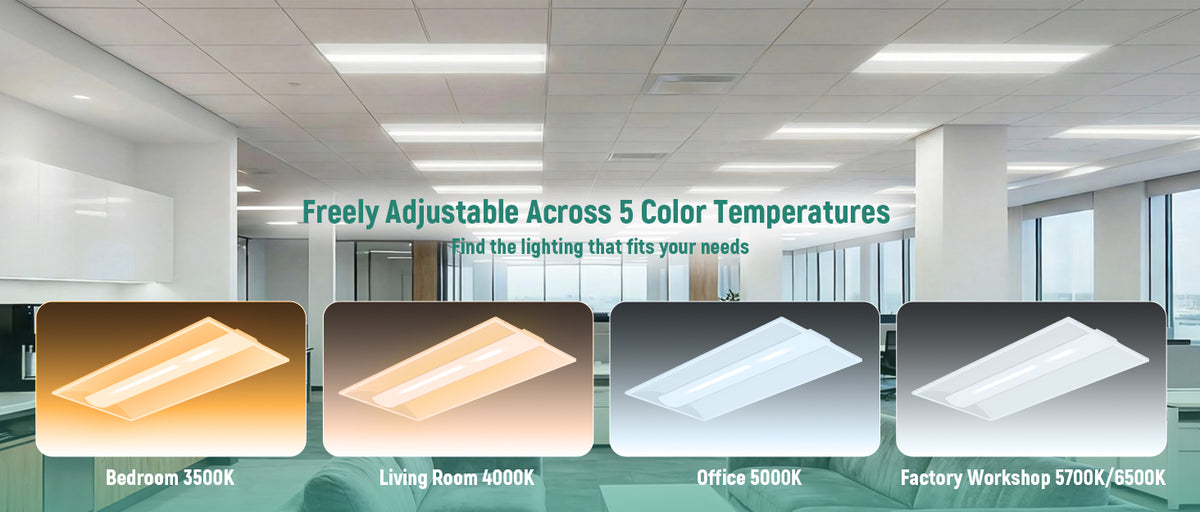

Adjustable wattage options 15W / 20W / 25W / 30W / 40W and 5 selectable color temperatures (3500K / 4000K / 5000K / 5700K / 6500K) allow easy configuration during installation.

High Efficiency LED Output
Delivers up to 5,000 lumens with high-efficiency LED technology, providing bright, uniform illumination for commercial spaces.

Emergency Backup Capability
Equipped with the EM (Emergency Backup) function to ensure lighting operation during power outages, improving safety and compliance.

Sensor Ready Design
Integrated 3.5mm sensor base allows quick installation of PIR or microwave sensors for motion-controlled lighting.

0-10V Dimming Control
Supports 0-10V dimming, enabling smooth brightness adjustment and energy savings.

Premium Certifications
Certified with ETL & DLC 5.1 Premium, ensuring safety, reliability, and eligibility for energy rebate programs.

Long Lifetime
Rated for 50,000 hours with a 5-year limited warranty, reducing maintenance and replacement costs

Technical Specifications

Size: 2 x 2 ft
Wattage: 15W / 20W / 25W / 30W / 40W (Selectable)
Maximum Lumens: 5000 lm
Efficiency: 125-130 lm/W
CCT: 3500K / 4000K / 5000K / 5700K / 6500K (Selectable)
CRI: ≥80
Voltage: 120-277V
Dimming: 0-10V
Sensor Base: 3.5mm Audio Jack
Certifications: ETL, DLC Premium
Lifetime: 50,000 hours
Warranty: 5 Years

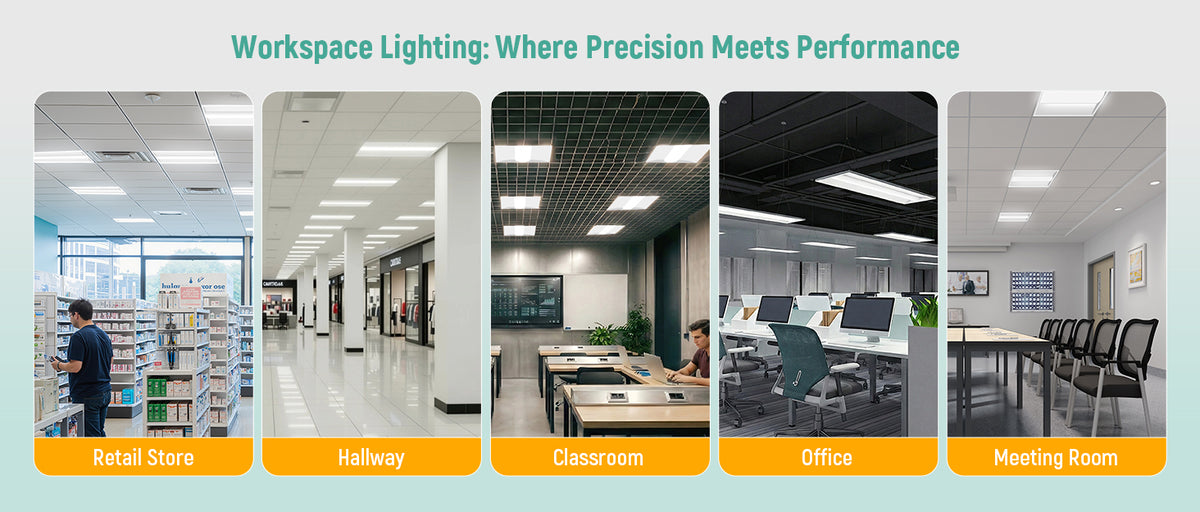

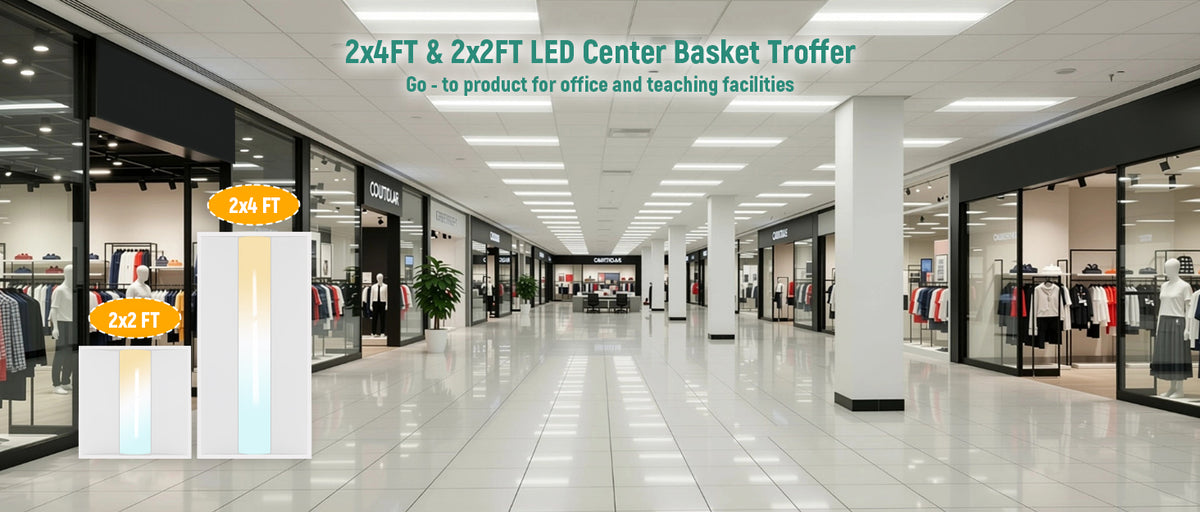

Applications

Commercial Offices
Schools & Educational Facilities
Retail Stores
Healthcare Facilities
Hospitality & Hotels
