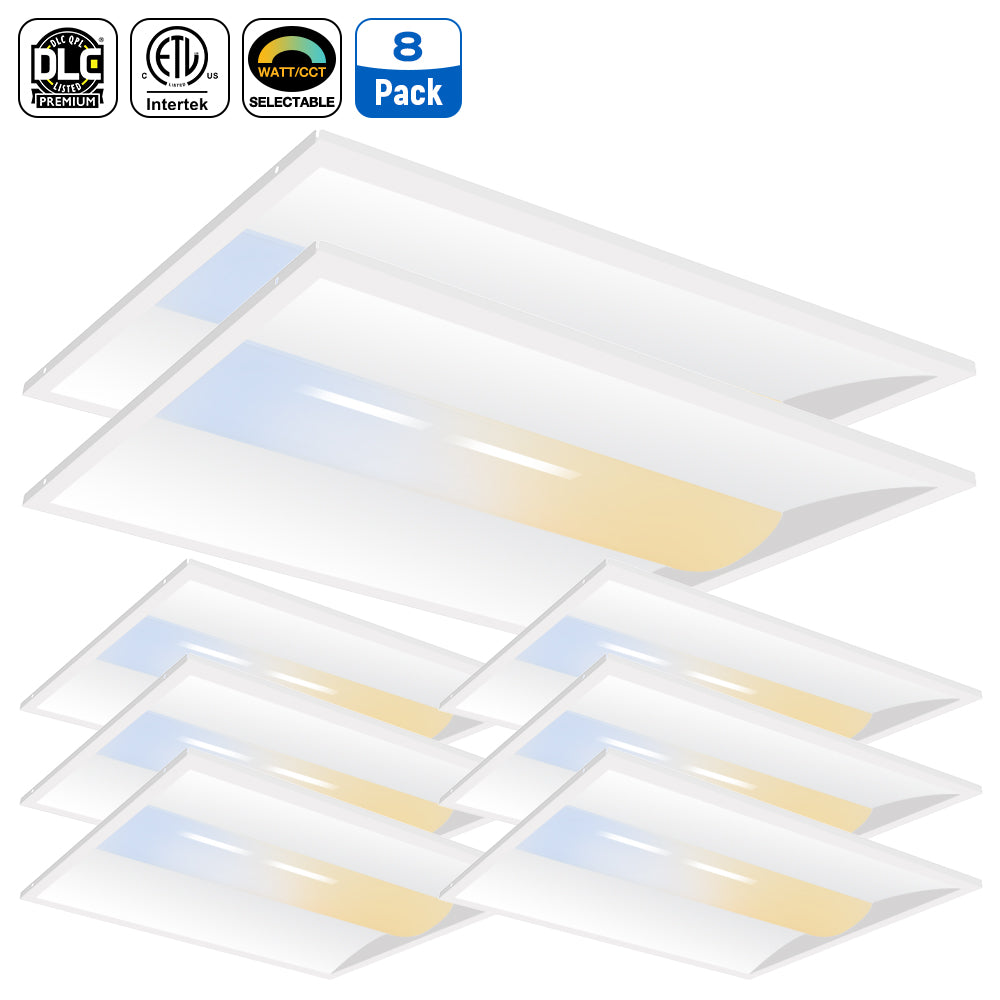

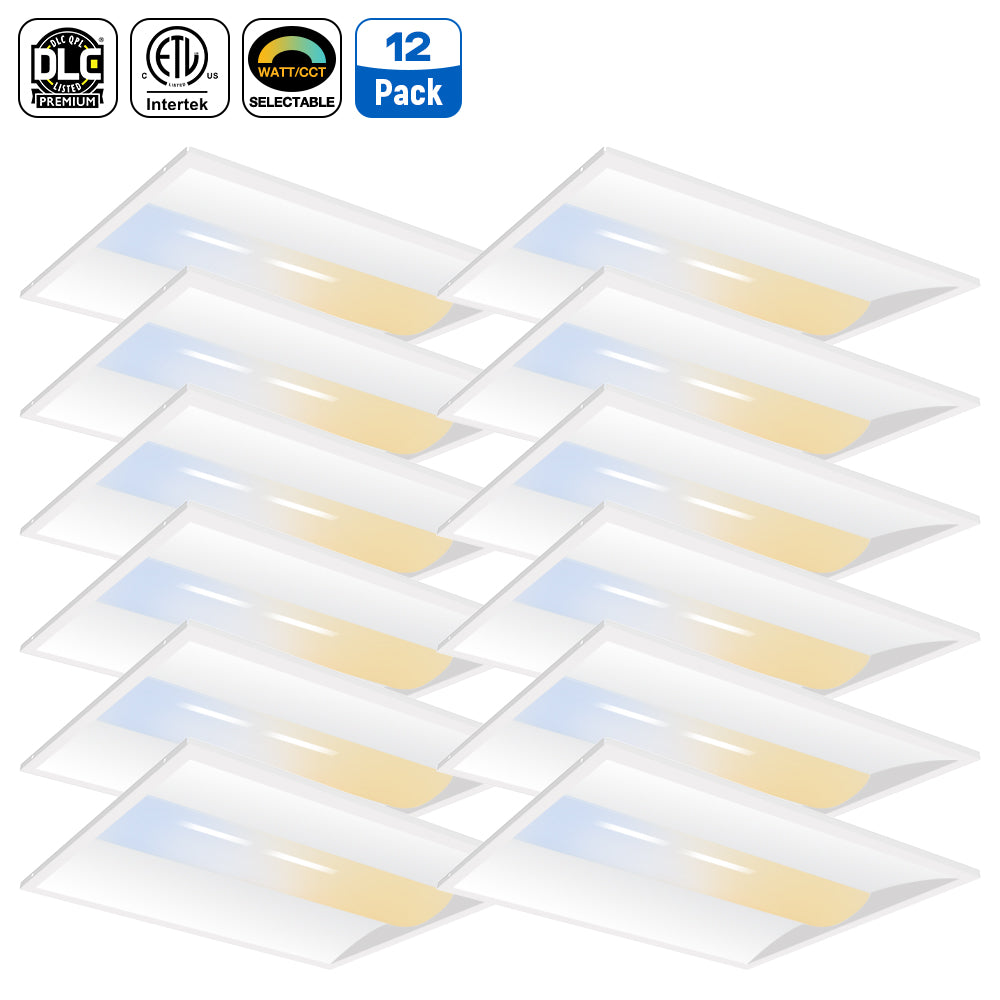

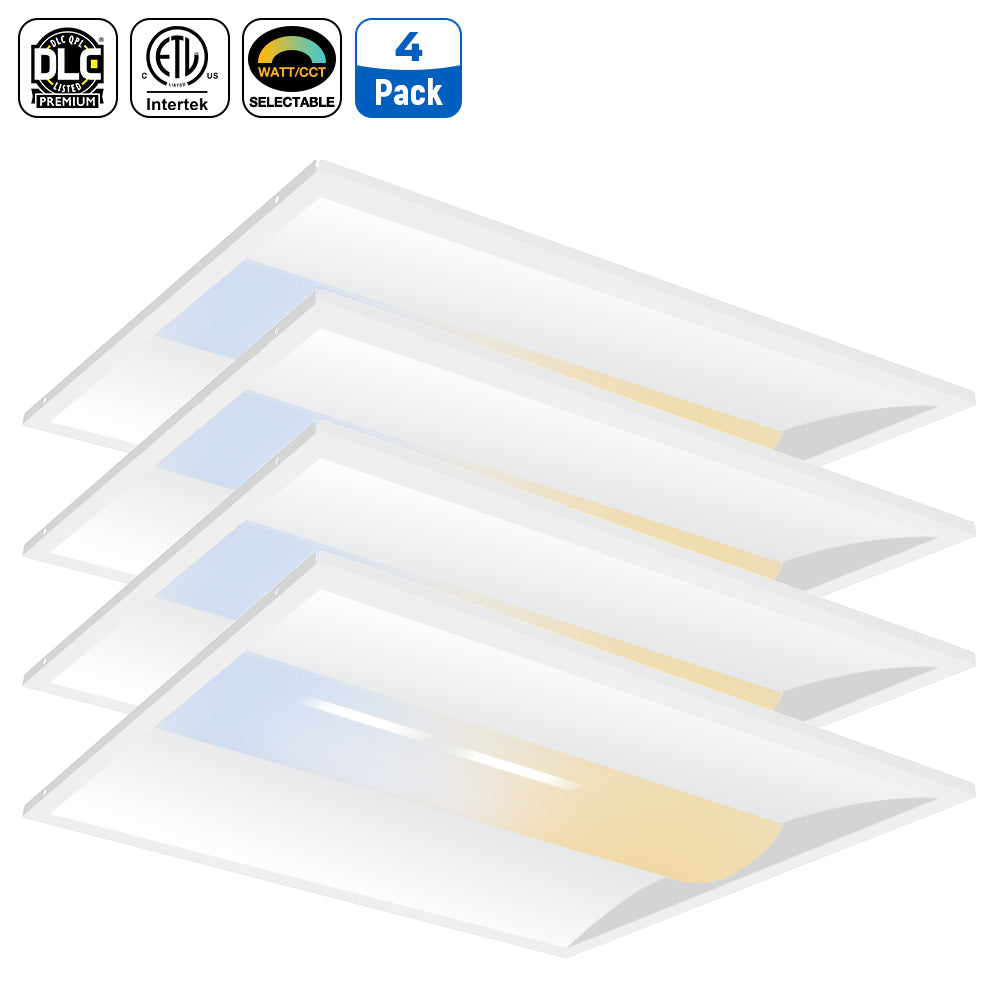

LED Troffer Light 120-277V 40W 5200 Lumens ETL DLC Premium | 2x2FT 3.5mm Sensor Base

LED Troffer Light 2x2 – Wattage Adjustable & Color Tunable

Engineered for modern commercial offices, classrooms, healthcare centers, and retail spaces, this 2×2FT 40W Architectural LED Troffer Light provides energy-efficient volumetric illumination with integrated smart control capabilities. Delivering 5,200 lumens at an efficacy of 130 lm/W, this center-basket recessed luminaire serves as an ideal direct replacement for multi-lamp U-bend or T8 fluorescent troffers. Built with an integrated 3.5mm AUX sensor base receptacle, it enables fast, tool-free field connection of PIR motion, daylight harvesting, or Bluetooth smart sensors to maximize utility savings and achieve full building code compliance.

• 5,200 Lumens High-Efficacy Output (130 lm/W): Supplies bright, glare-free indirect illumination while consuming only 40W, reducing energy usage by over 50% compared to traditional fluorescent fixtures.

• Integrated 3.5mm AUX Sensor Base: Features a pre-wired 3.5mm audio jack receptacle for instant, plug-and-play addition of motion, daylight, or wireless controls without opening the electrical housing.

• DLC Premium & ETL Listed: Verified for top-tier performance to qualify for maximum commercial utility rebates nationwide; ETL certified to strict safety standards.

• Universal Commercial Driver (AC120–277V): Industrial-grade driver operates smoothly across standard 120V, 208V, 240V, and 277V electrical systems.

• Smooth 0–10V Continuous Dimming: Fully compatible with 0–10V dimmers for flicker-free lighting adjustment down to 10%, optimizing visual comfort and efficiency.

• Volumetric Center-Basket Optics: Precision-molded frosted diffuser lens distributes light uniformly across the room, eliminating harsh glare, shadows, and visible LED hot spots.

• Low-Profile Steel Construction: Manufactured from heavy-gauge cold-rolled steel with a clean white powder-coated finish for fast drop-in placement in standard 2×2 T-bar ceiling grids.

• Integrated Safety Earthquake Clips: Includes heavy-duty built-in grid clips to secure the fixture directly to the T-bar grid in compliance with commercial seismic codes.

Key Features

• Wattage Selectable
15W / 20W / 25W / 30W / 40W selectable output

• 5 CCT Adjustable
3500K / 4000K / 5000K / 5700K / 6500K

• High Efficiency
Up to 125-130 lm/W performance

• 0-10V Dimming
Smooth dimming compatible with most commercial dimmers

• Sensor Ready
3.5mm audio jack sensor base allows quick installation of PIR or microwave sensors

• Commercial Certifications
ETL Listed & DLC Premium certified

• Long Lifespan
Rated for 50,000 hours of operation

• Universal Voltage
Compatible with 120-277V input

• Durable Construction
Precision-formed steel housing designed for safe handling and long-term reliability

Specifications

Installation

The troffer fixture installs easily into standard T-bar grid ceilings and supports both new construction and retrofit installations.

Optional accessories:

• Motion sensors

• Bluetooth sensor systems

• Emergency battery backup

• Surface mount kit

• Suspension cable kit
