August 23, 2026 jason Lee

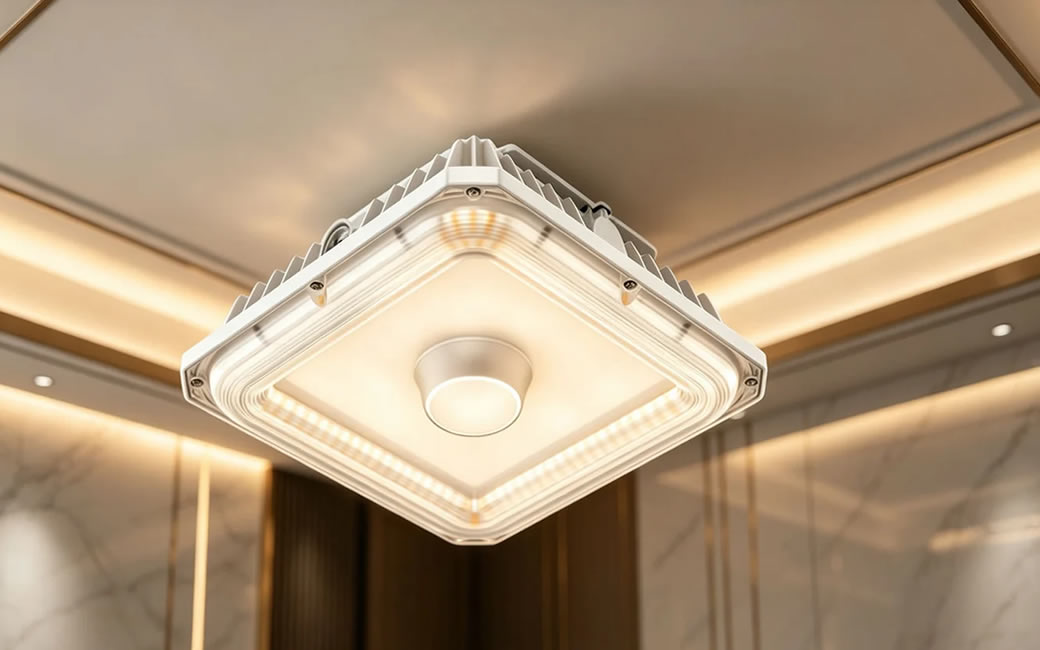

How To Choose LED Canopy Lights?

Advantages of LED Canopy Lights vs Traditional Lighting (MH, HPS, fluorescent)

Traditional canopy lights usually refer to metal halide (MH), high-pressure sodium (HPS), fluorescent lamps. LED canopy lights outperform them in multiple dimensions:

1. Higher Energy Efficiency & Lower Operating Cost

LEDs: ~100–140 lm/W
HPS / MH: Only 60–90 lm/W LEDs produce the same brightness with 30%–60% less power consumption, greatly cutting monthly electricity bills for gas stations, parking lots and toll canopies.

2. Longer Service Life

LED canopy lights: 50,000–100,000 hours
HPS / MH: 8,000–20,000 hours Fewer replacements, less labor cost for high-altitude maintenance on canopies.

3. Instant On & No Restrike Delay

LEDs turn on at full brightness immediately.
MH / HPS need several minutes to warm up; if power cuts off, they require a long cool-down period before restarting. Critical for safety lighting at gas stations and parking lots.

4. Better Light Quality & Visibility

Flexible color temperature: 4000K neutral white is widely used, clearer than the yellow light of HPS.
Higher CRI: Easier to recognize license plates, vehicle colors and product details.
Precise beam control, less light waste and light pollution.

5. Durable & Strong Resistance to Harsh Environments

Die-cast aluminum LED housing, solid-state light source (no fragile glass tube, no mercury).
Standard IP65 waterproof/dustproof; good shock and vibration resistance. Traditional gas-discharge lamps have fragile bulbs and are easier to break.

6. Environmentally Friendly

No mercury, no harmful gas inside the fixture.
Less light pollution, low UV radiation. Old HPS/MH lamps contain mercury and require special hazardous waste disposal.

7. Flexible Intelligent Control

LEDs support dimming, photocell sensors, motion sensors and centralized smart control easily. Most traditional HID lamps cannot be dimmed or work poorly with sensors, limiting energy-saving upgrades.

8. Lower Heat Output

LEDs convert most energy into light instead of heat. HID lamps run extremely hot, raising ambient temperature and increasing fire risk in confined canopy spaces.

9. Stable Light Output & Less Lumen Depreciation

Traditional HID lamps degrade quickly: brightness drops obviously after 1–2 years. High-quality LED canopy lights maintain over 70% lumen output after 50,000 hours, keeping consistent illumination for many years.

Simple Summary Table

Feature	LED Canopy Light	HPS / MH Traditional Canopy Light
Efficiency	High (100–140 lm/W)	Low (60–90 lm/W)
Lifespan	50,000+ hrs	8,000–20,000 hrs
Startup	Instant full brightness	Warm-up & cool-down delay
Mercury	None	Contains mercury
Smart control	Supports sensor, dimming	Not compatible
Maintenance	Rare replacement	Frequent bulb change

Typical Lumen Output of Standard Commercial LED Canopy Lights

Most mainstream commercial LED canopy lights run 100–140 lm/W; premium high-efficiency models reach 140–160 lm/W.

Common wattage vs typical lumen range (finished fixture, system lumens, not bare LED chip):

40W: 4,000 – 5,600 lm
50W: 5,000 – 7,000 lm
60W: 6,000 – 8,400 lm
80W: 8,000 – 11,200 lm
100W: 10,000 – 14,000 lm
150W: 15,000 – 21,000 lm
200W: 20,000 – 28,000 lm

Key Notes

Always check total system lumens (fixture output), not just LED chip lumens, because lenses, housing and drivers cause light loss.
Lumen output drops with higher CRI (CRI>80 usually means slightly lower lm).
DLC / ETL certified premium products tend to hit the higher end of the lumen range; cheap low-grade lights may be 20–30% lower.
For reference: A 150W LED canopy (~21,000 lm) commonly replaces old 400W metal halide canopy fixtures.

Factors Affecting Lumen Output of LED Canopy Lights

Many elements change the actual usable lumens (not just the rated value on spec sheets):

1. LED Chip Quality & Bin

Different brands (Cree, Osram, Samsung vs cheap no-brand chips) have different native luminous efficiency.
LED bin sorting: Chips binned for higher brightness produce more lumens at the same power.
Chip aging: Lumen depreciation happens gradually over operating hours.

2. Driver Performance & Actual Power Input

The constant-current driver supplies electric current to LEDs. If the driver under-drives the chips, lumen output drops.
Poor-quality drivers have low power factor and high loss, wasting power as heat instead of light.
Voltage fluctuation in the power grid will also slightly change brightness.

3. Thermal Management (Heat Dissipation)

This is one of the biggest factors for canopy lights.

When LEDs overheat, their luminous efficiency decreases immediately (thermal droop).
Thin aluminum housing, insufficient heat sink, or sealed poor ventilation causes high junction temperature → lower lumens and faster depreciation.

4. Optical Components (Lens / Cover)

Tempered glass, PC lens, diffuser all cause light transmission loss.
High-transmittance optics retain more lumens; low-quality yellowish PC reduces output.
Lens design also changes how much usable light reaches the working area (utilization factor).

5. Color Temperature (CCT) and CRI

Lower CCT (warm white 3000K) generally has lower lumens than neutral / cool white (4000K / 5000K) with the same chip.
Higher CRI (≥90) sacrifices some lumen output compared to CRI 70–80.

6. Environmental Working Conditions

High ambient temperature (summer under gas station canopies) raises LED junction temperature → temporary lumen drop.
Dust, oil vapor, dirt accumulation on the lens over time blocks light and reduces effective illuminance.
Humidity, salt spray in coastal areas may degrade optics or electronics long-term.

7. Manufacturing Tolerance & Testing Standard

Some suppliers list chip lumens, not fixture total output lumens, which overstates brightness.
Test conditions matter: Lumens measured at 25°C lab conditions will differ from real-site hot operating status.

8. Dimming & Smart Controls

0–10V dimming, photocells, motion sensors reduce drive current, directly lowering lumen output when dimmed.

9. Operating Lifespan (Lumen Maintenance)

All LEDs experience gradual lumen depreciation. Standard definition: L70 means the fixture still keeps ≥70% original lumens after rated life (e.g., 50,000 hours).
Poor-quality lights may drop below 70% much earlier.

Quick Tip for Buyers

Always ask for system lumens (fixture lumens at rated operating temperature), not chip lumens, and check L70 data in the photometric report.

How to Choose LED Canopy Lights

LED canopy lights are mainly used for gas stations, toll stations, parking canopies, warehouse entrances, and commercial overhangs. Below is a complete selection guide.

1. Confirm Core Application Scenarios

First clarify where the fixture will be installed, as this determines waterproof, anti-corrosion and explosion-proof requirements:

Gas station / fuel dispensing canopy: Must be explosion-proof LED canopy lights (Ex certification, avoid ignition risk from oil vapor)
Parking lot canopy, shopping mall overhang: Standard waterproof canopy lights are enough
Coastal / chemical factory area: Need anti-corrosion, salt-spray resistant housing

2. Key Technical Parameters to Check

Power & Brightness (Lumen)

Don’t only look at wattage; focus on lumens (lm) and luminous efficacy (lm/W):

Common power range: 50W, 80W, 100W, 150W, 200W
General rule: 100–130 lm/W is mainstream high efficiency
Reference layout:
- Low ceiling (≤4m): 80–100W
- 4–6m ceiling: 100–150W
- Above 6m: 150–200W

Color Temperature (CCT)

4000K (Neutral white): Most recommended for gas stations, parking lots — natural vision, good color rendering for license plates and goods
5000K / 5700K (Cool white): Brighter, suitable for high-security areas; may cause glare if not well-designed
3000K (Warm white): Rare for canopy use, mostly for decorative commercial canopies

CRI (Color Rendering Index)

Choose CRI ≥70 for regular parking lots; CRI ≥80 for gas stations and retail canopies, to recognize vehicle colors, logos and products accurately.

Waterproof & Dustproof Rating (IP)

Outdoor canopy lights must be at least IP65. IP65: Fully dust-tight, protected against water jet splash from all directions, fits rain, dew and humid environments. Avoid IP54 or lower for outdoor use.
