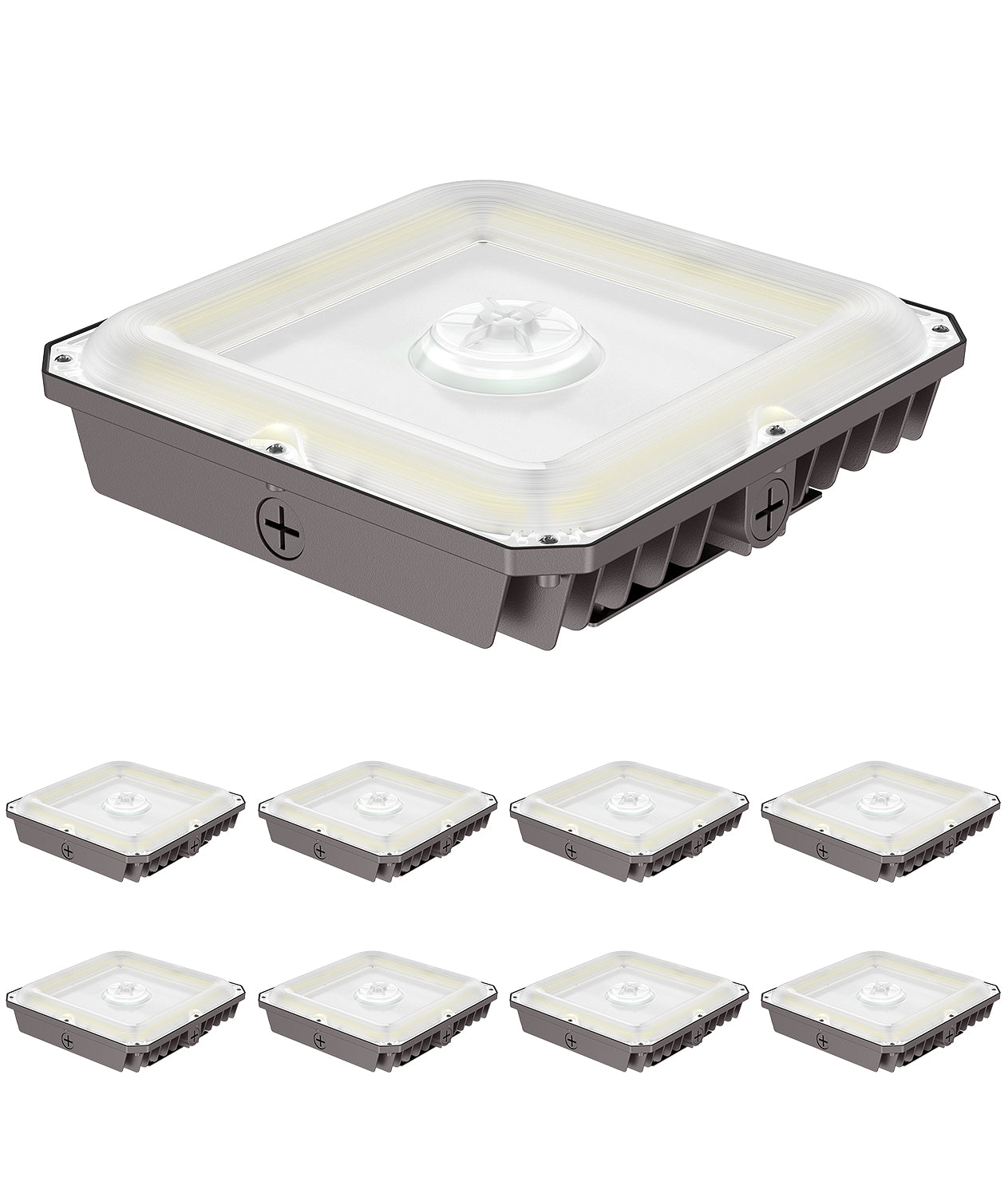

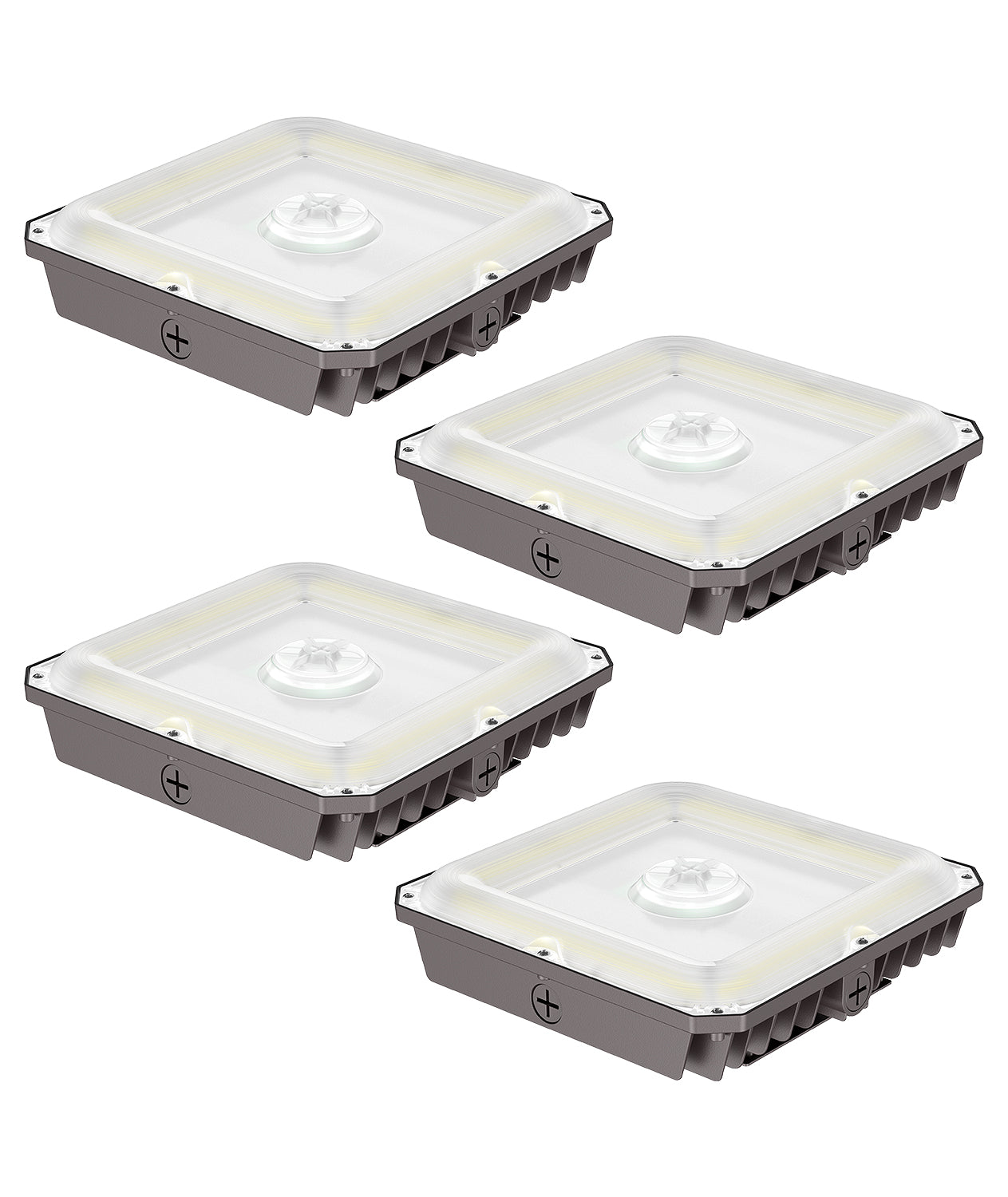

LED Garage Canopy Light CP02 75W/60W/40W, 3CCT Selectable, IP65, DLC Premium

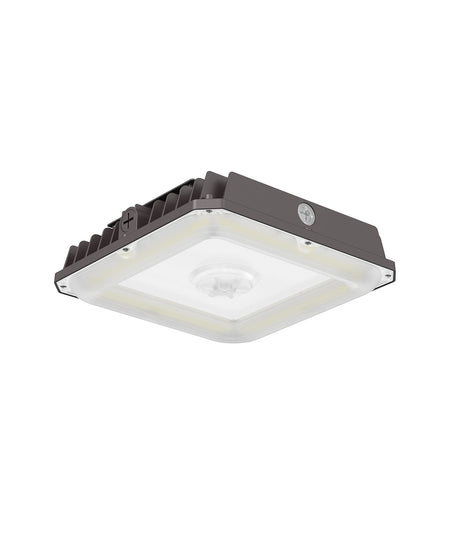

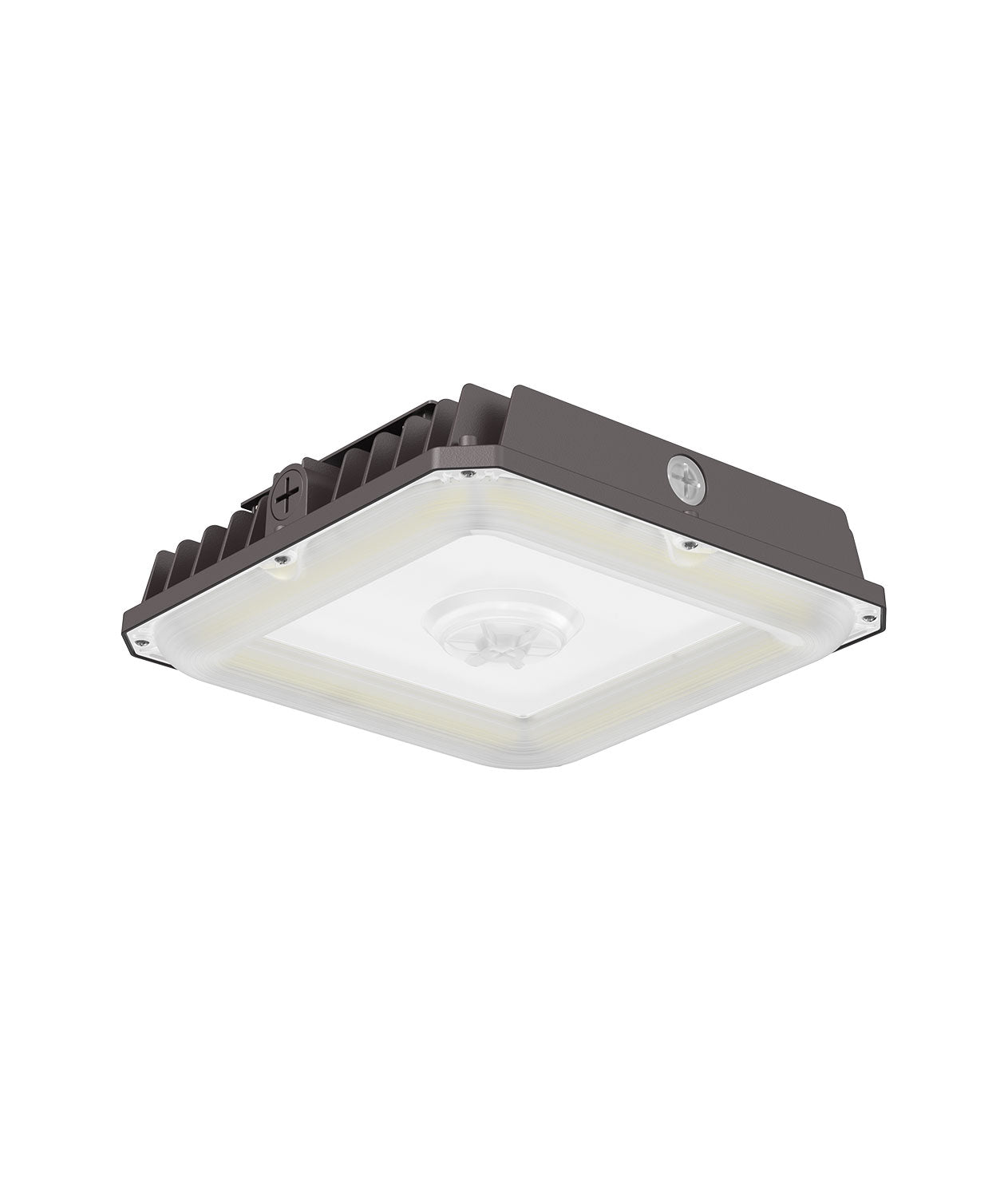

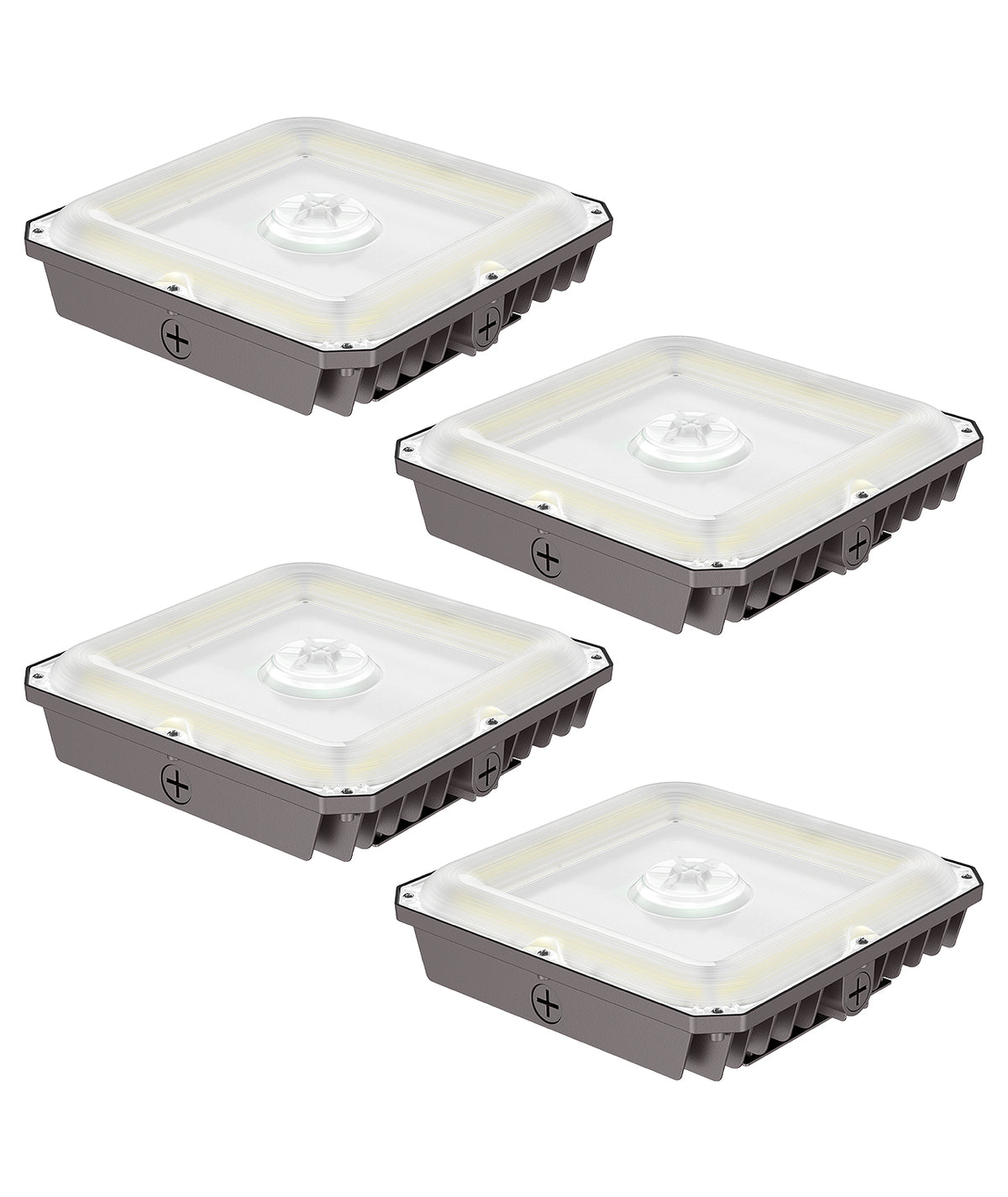

LED Garage Canopy Light – JEN-CP02

The JEN-CP02 LED Garage Canopy Light is a high-performance, wattage and color temperature selectable lighting solution designed for demanding commercial and industrial environments. Featuring durable die-cast aluminum housing and a high-transmittance polycarbonate lens, this fixture delivers reliable illumination with excellent energy efficiency.

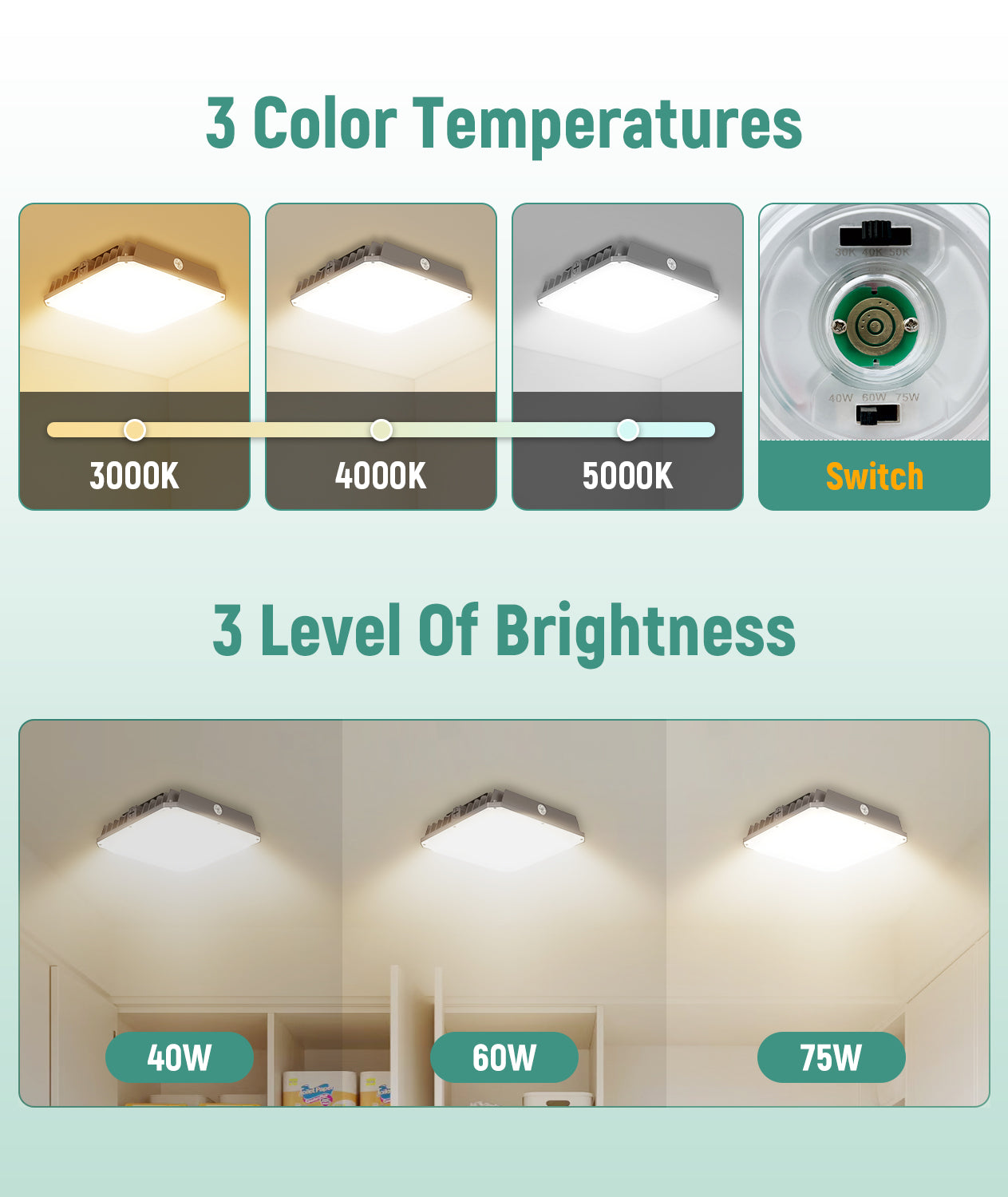

With selectable wattage and CCT via DIP switches, the JEN-CP02 provides flexible output options to meet different lighting requirements while simplifying inventory and installation.

Key Features

• Wattage Selectable: 75W / 60W / 40W

• CCT Selectable: 3000K / 4000K / 5000K

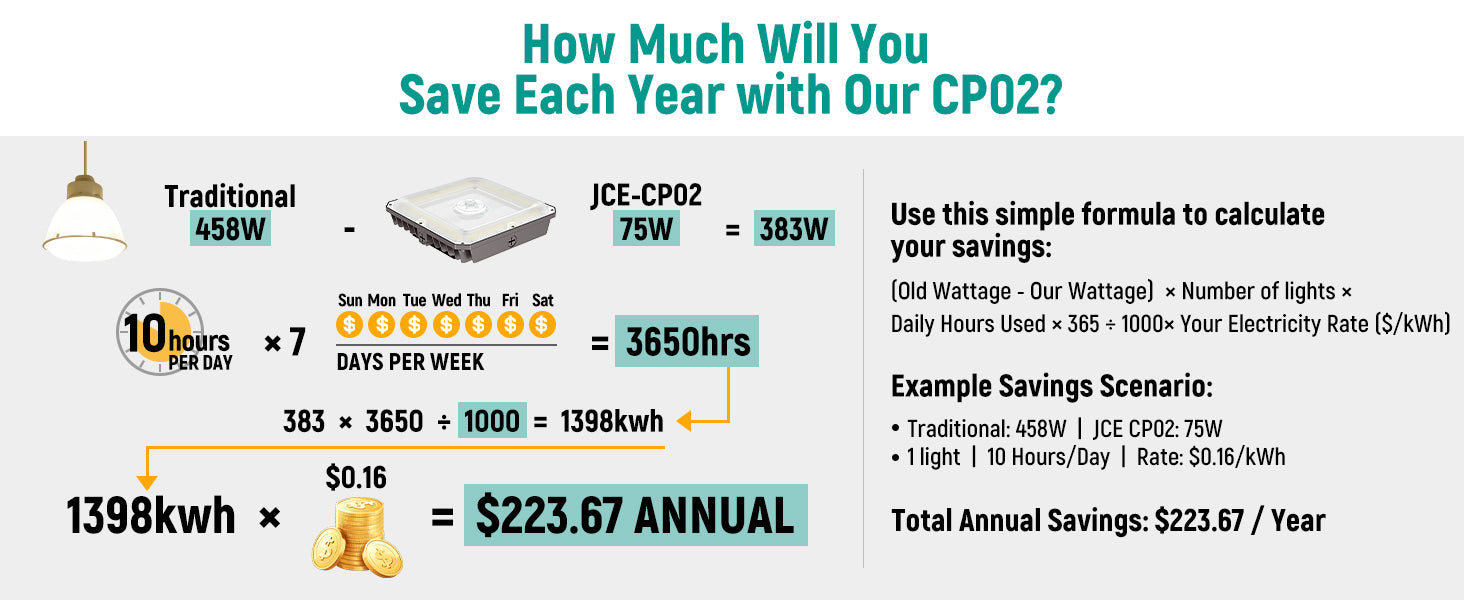

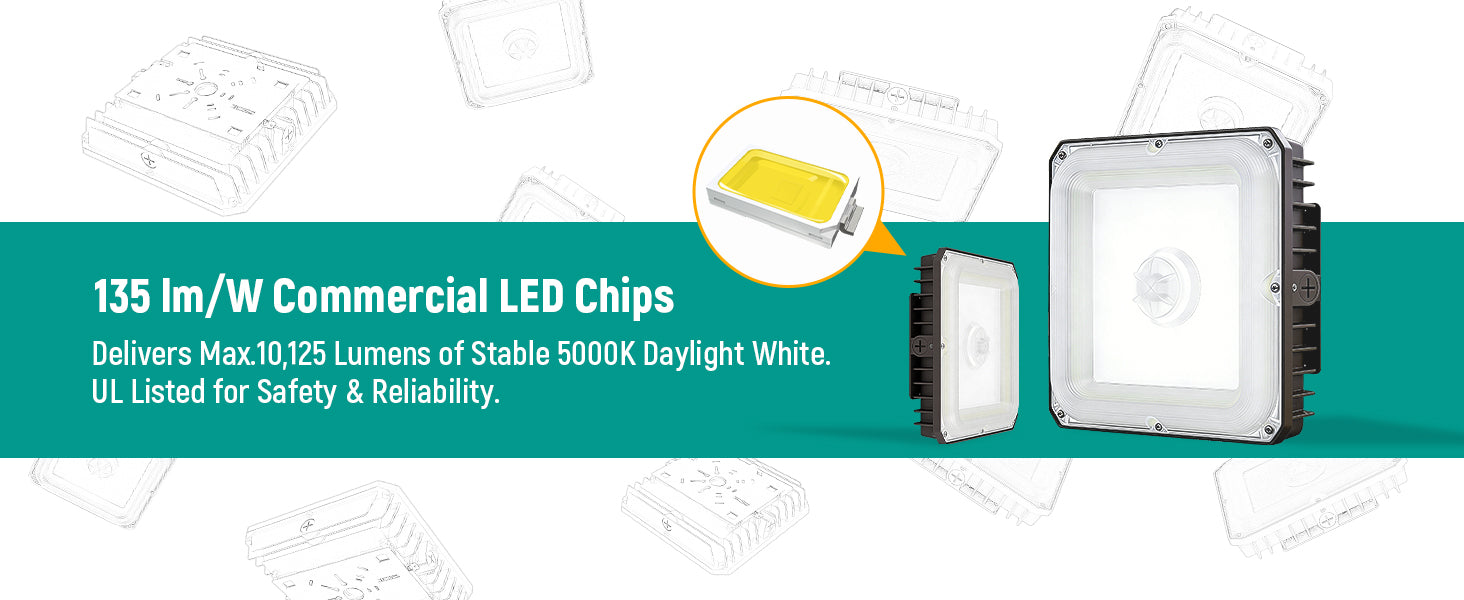

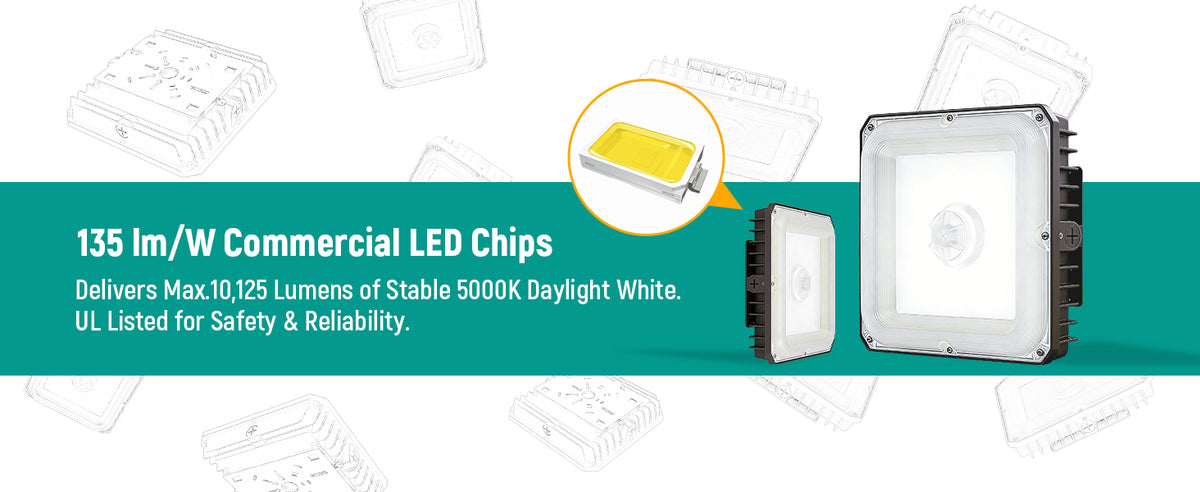

• High Efficacy: Up to 135 lm/W

• Lumen Output:

  • 75W: 10,125 lumens

  • 60W: 8,100 lumens

  • 40W: 5,400 lumens

• CRI: >80

• Input Voltage: 120–277V AC, 50/60Hz

• IP Rating: IP65

• Operating Temperature: −30°C to +50°C

• Lifetime: >50,000 hours

• Power Factor: ≥0.95

• THD: <20%

• Surge Protection:

  • Line-to-Ground: 5KV

  • Line-to-Neutral: 4KV

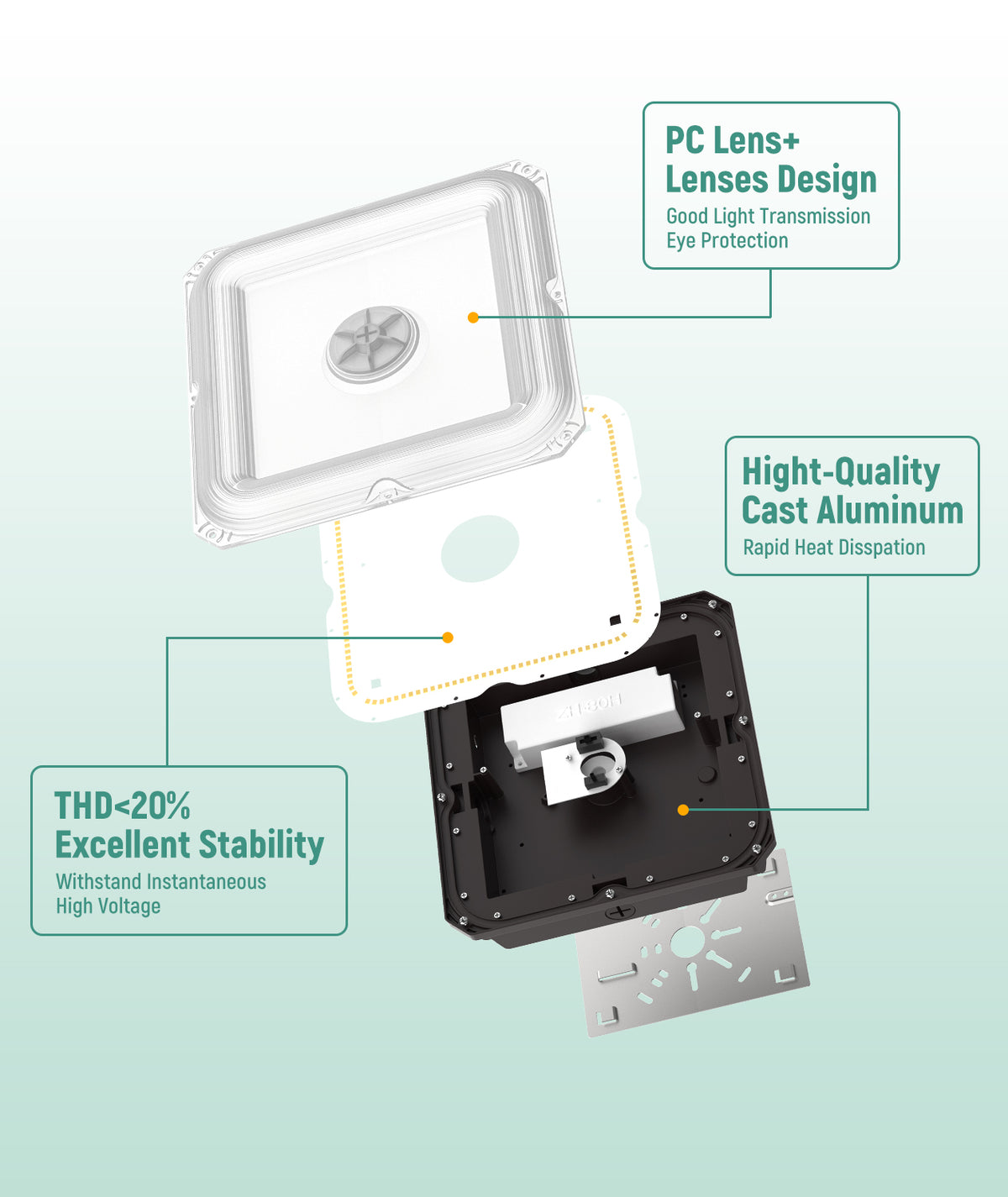

Construction & Design

• Die-cast aluminum housing

• Polycarbonate lens

• Finish colors: Black / White / Brown

• 145° wide beam angle

Controls & Accessories

• Plug-in microwave motion sensor (optional)

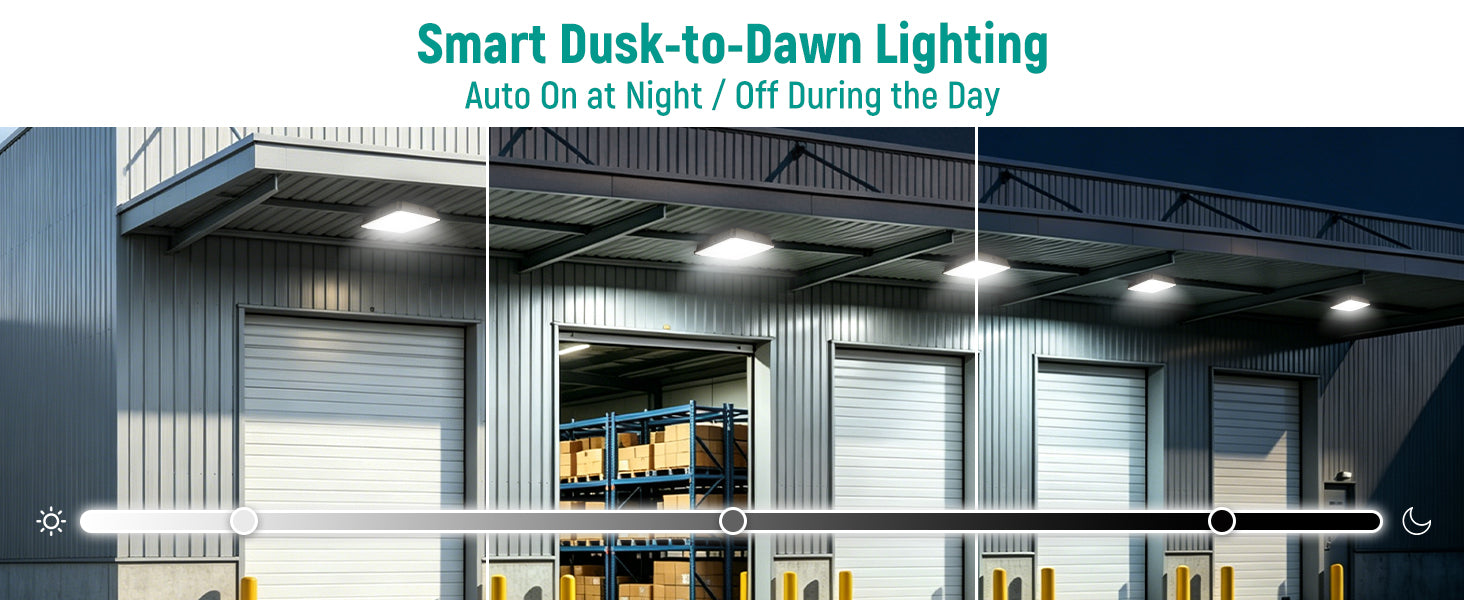

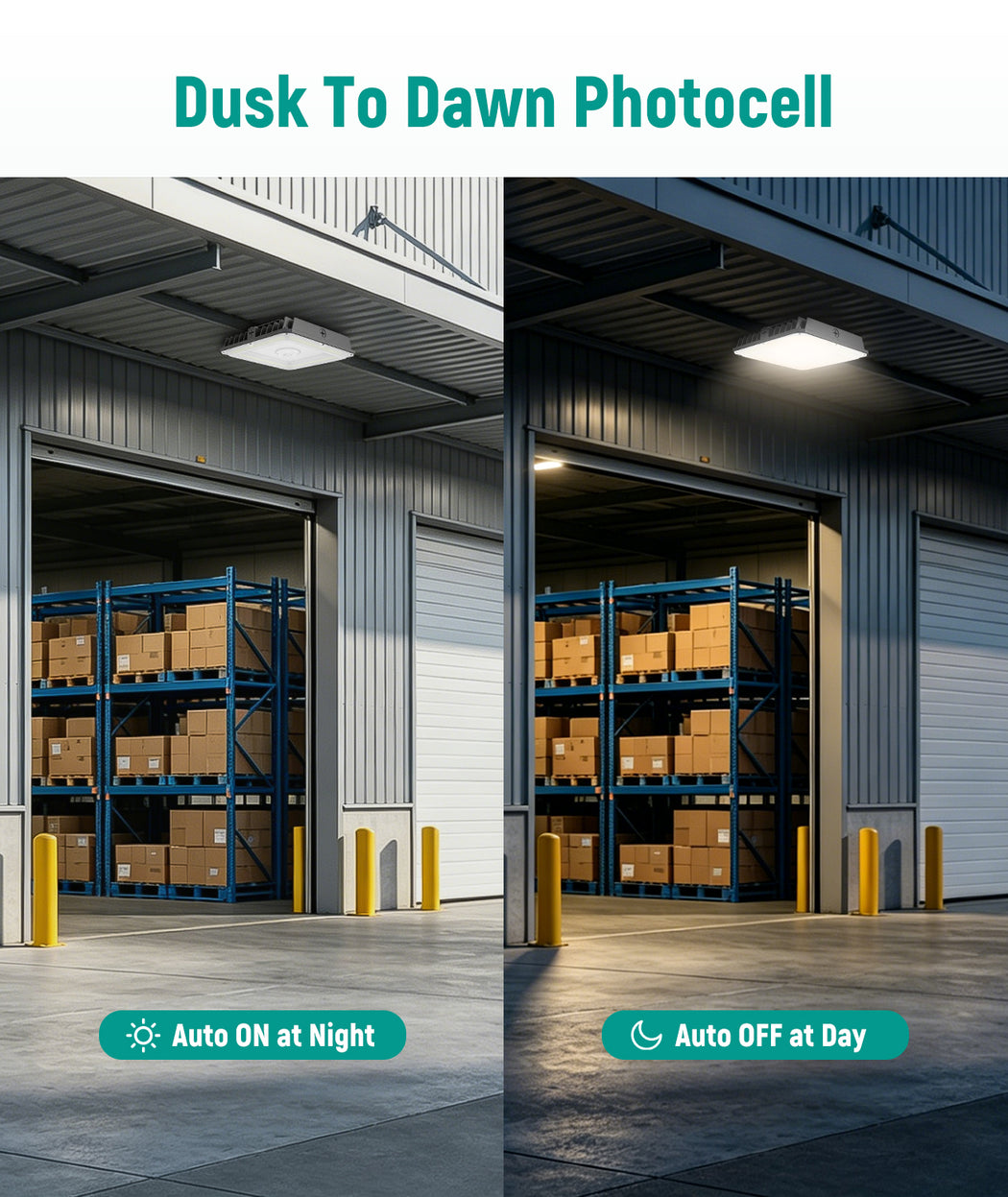

• Photocell available

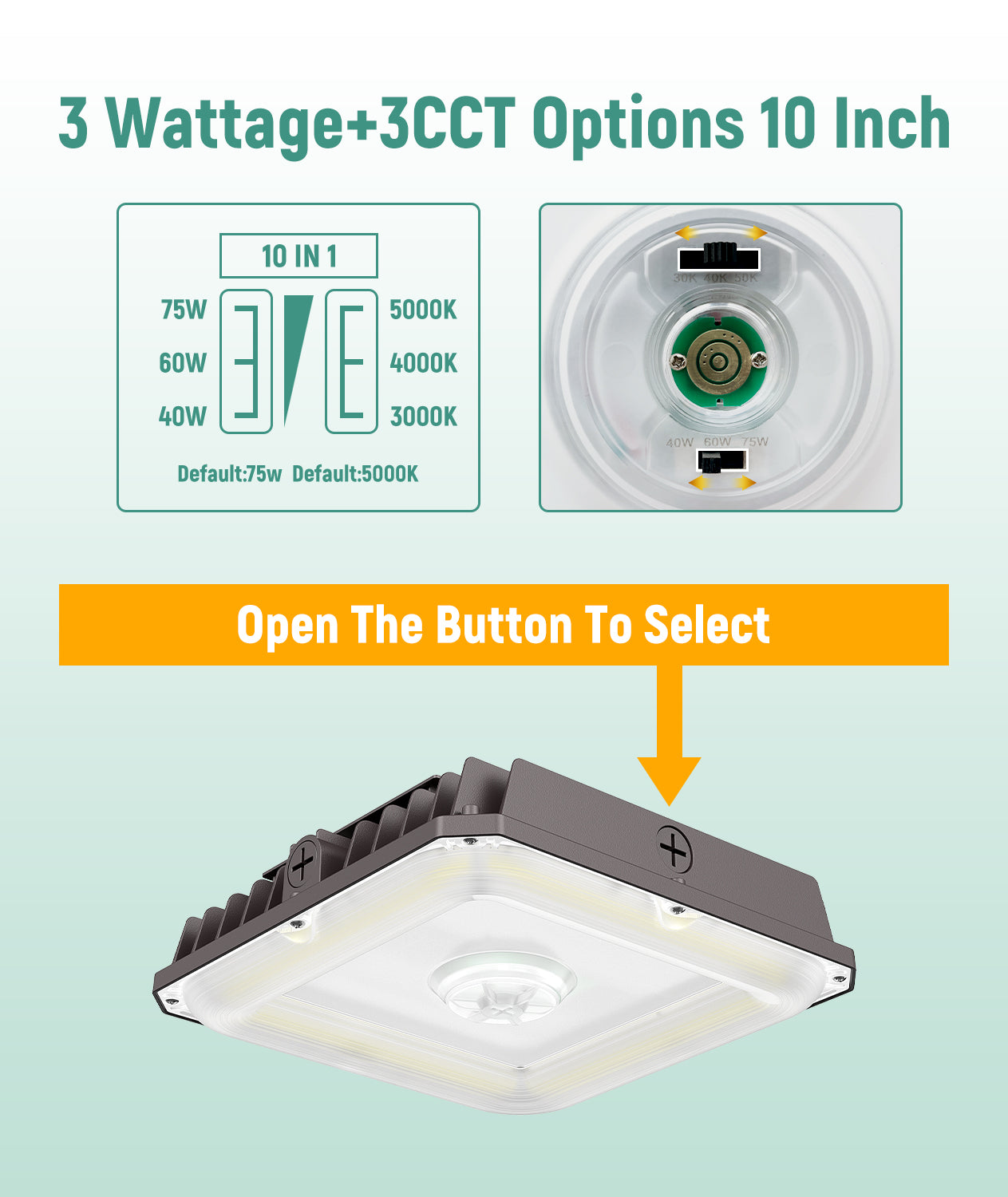

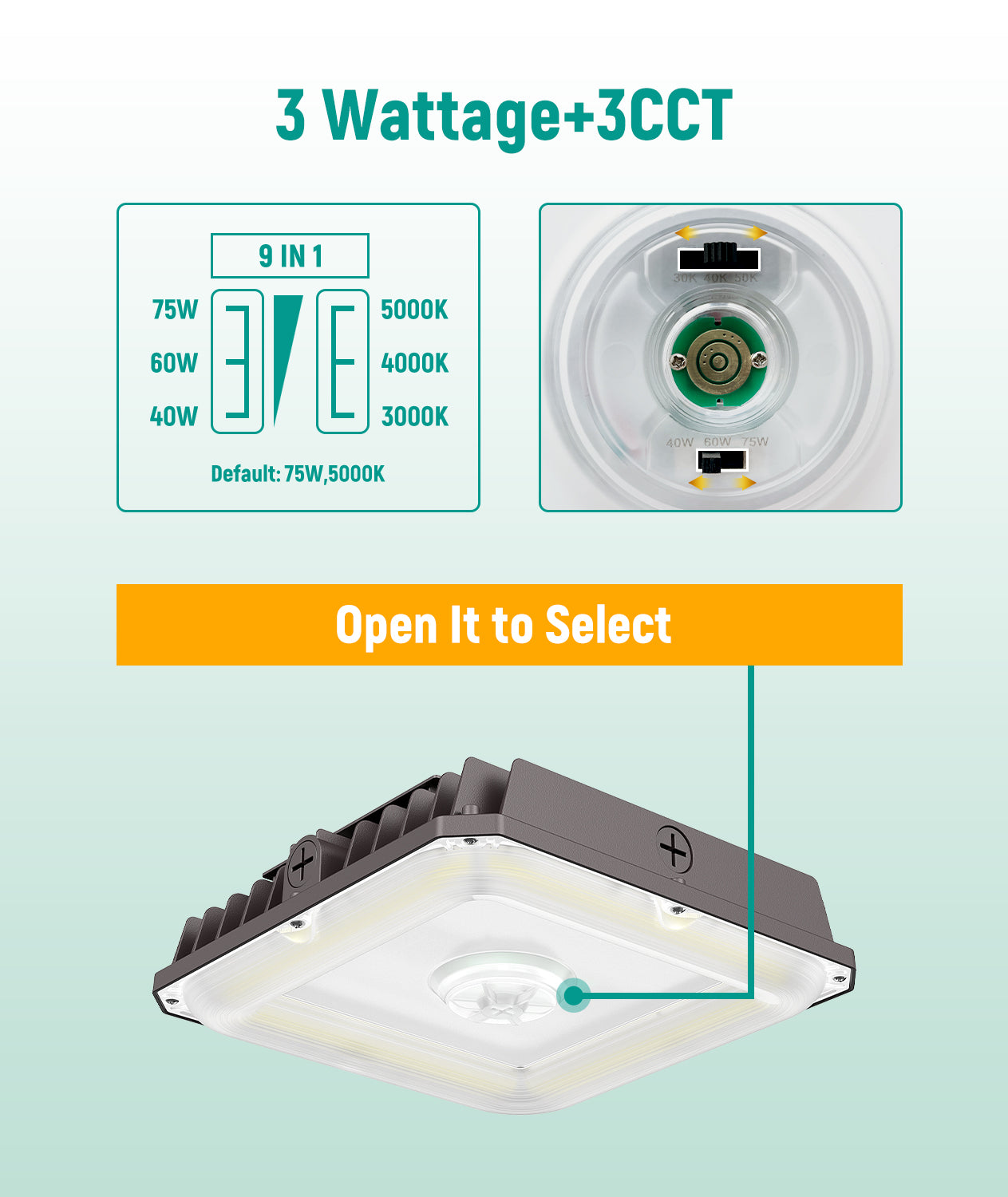

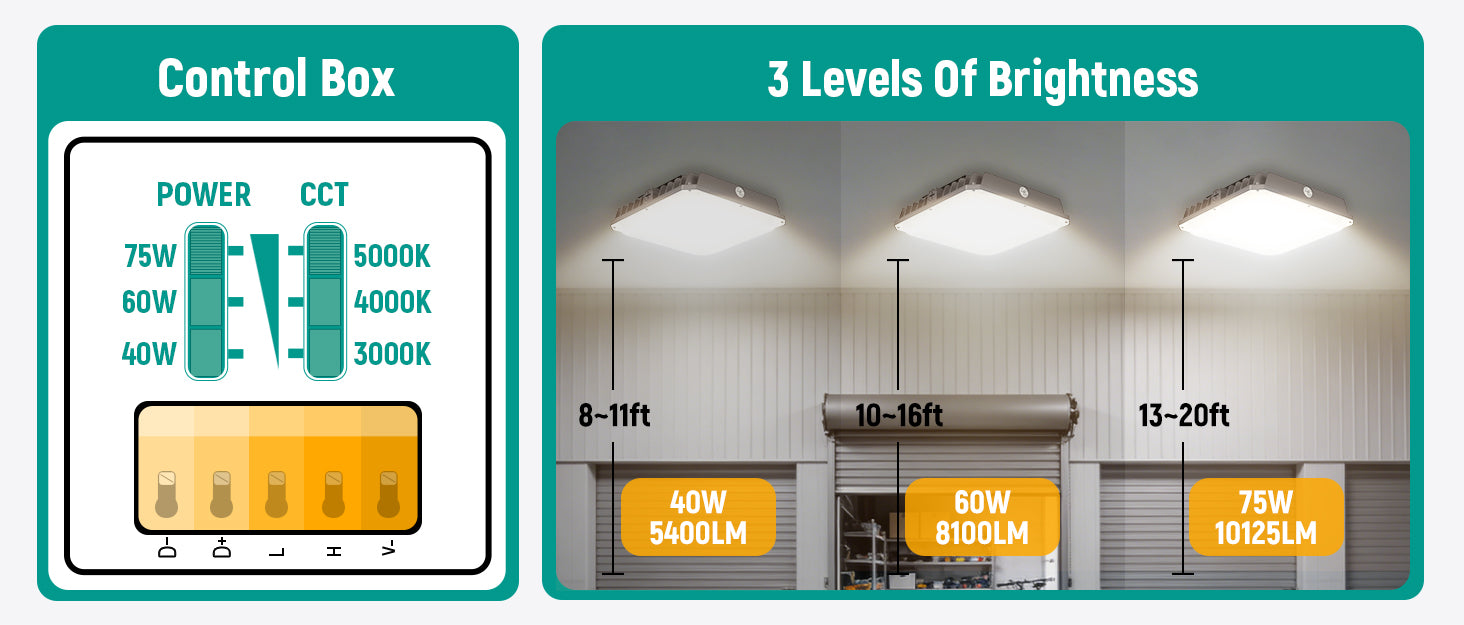

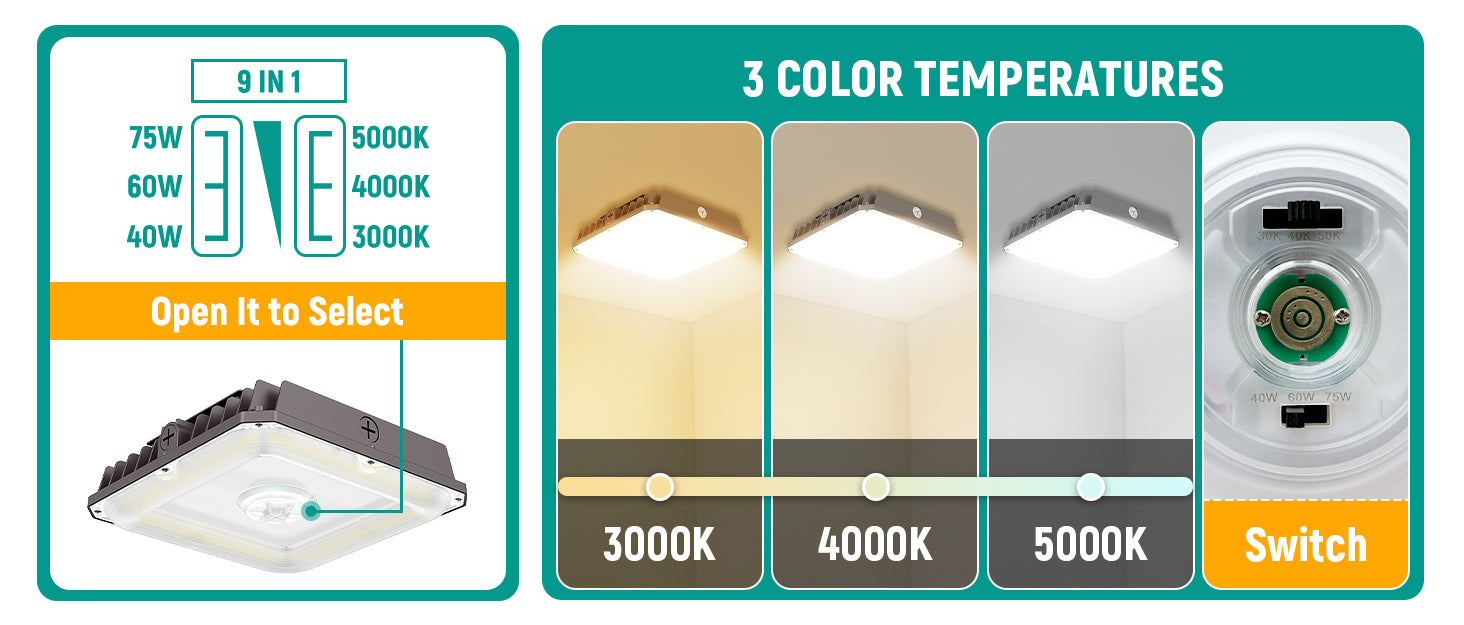

• DIP switches for wattage and CCT selection

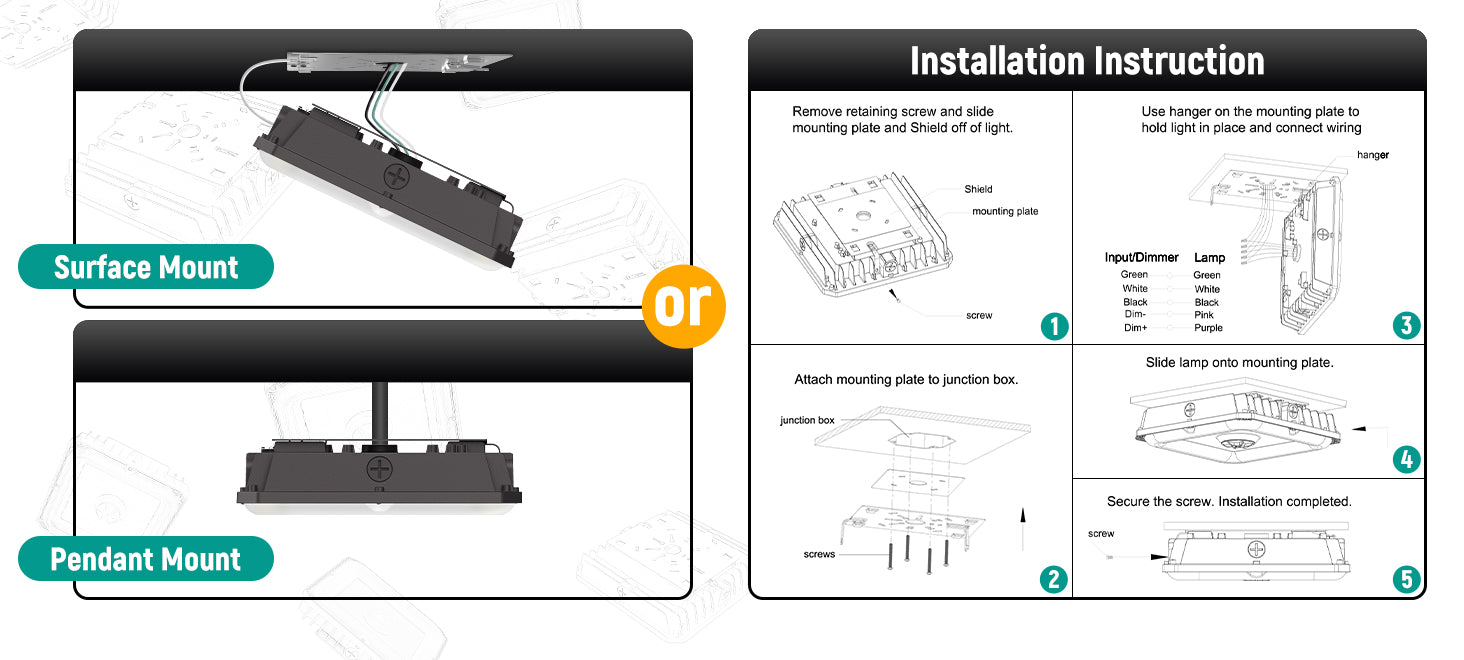

Installation

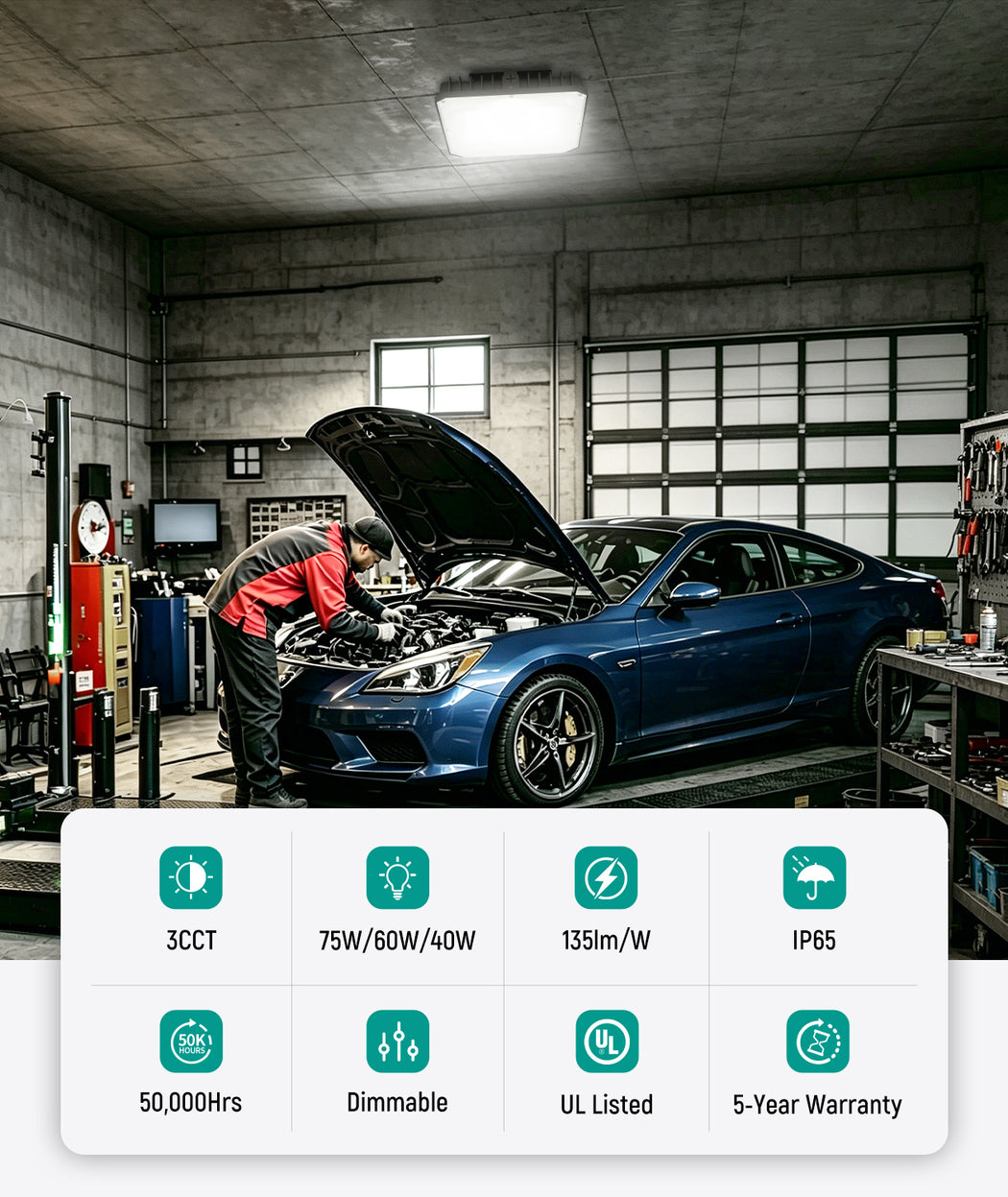

• Surface mounting

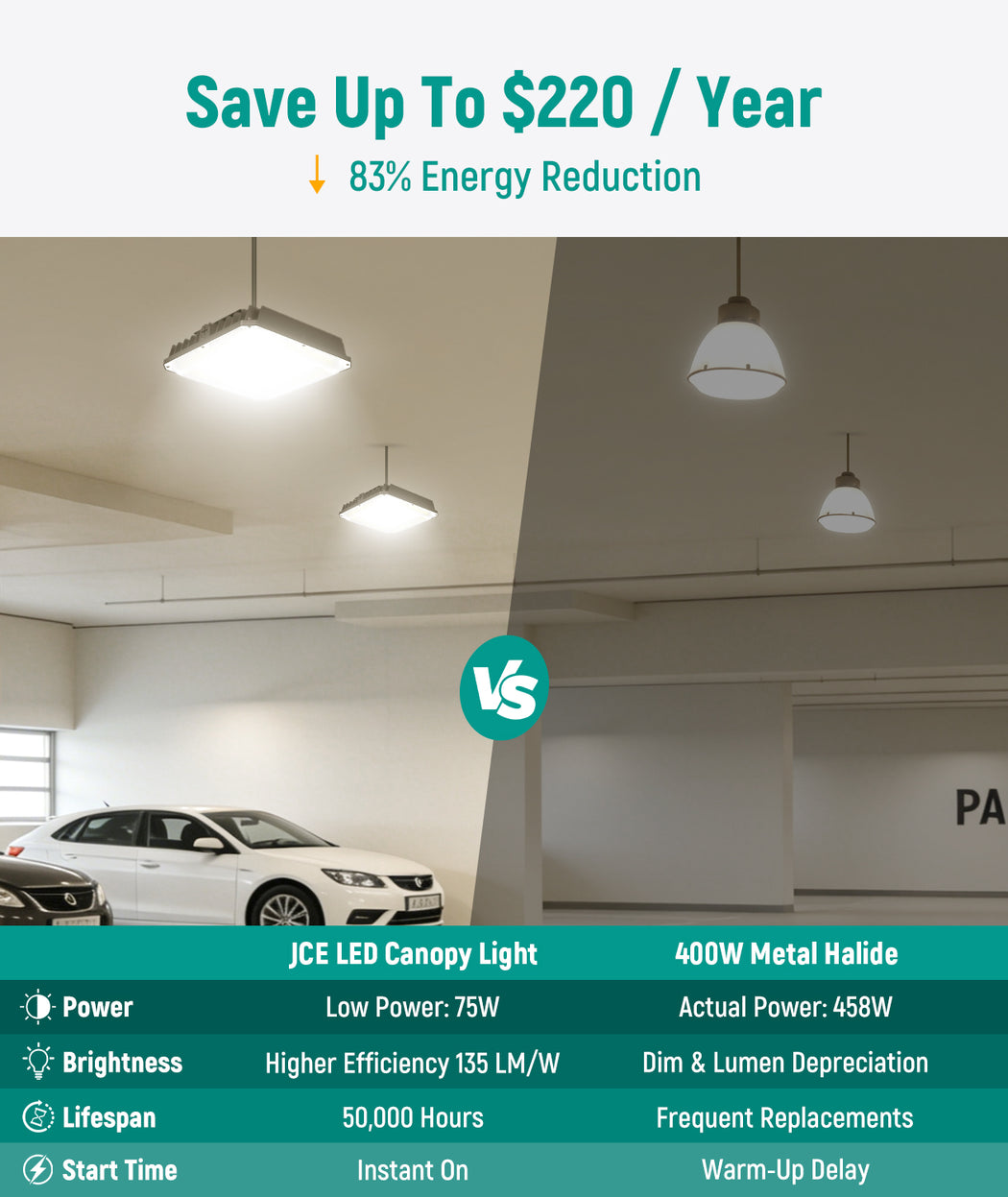

• Pendant mounting

Certifications & Warranty

• UL Listed

• DLC Premium (5.1)

• 5-Year Limited Warranty
