LED Suspended Linear Light–J-LS02 120-277V 4FT 50W 6500 Lumens UL DLC Premium | Suspended

Up Down LED Linear Light – Adjustable Wattage & Tunable CCT

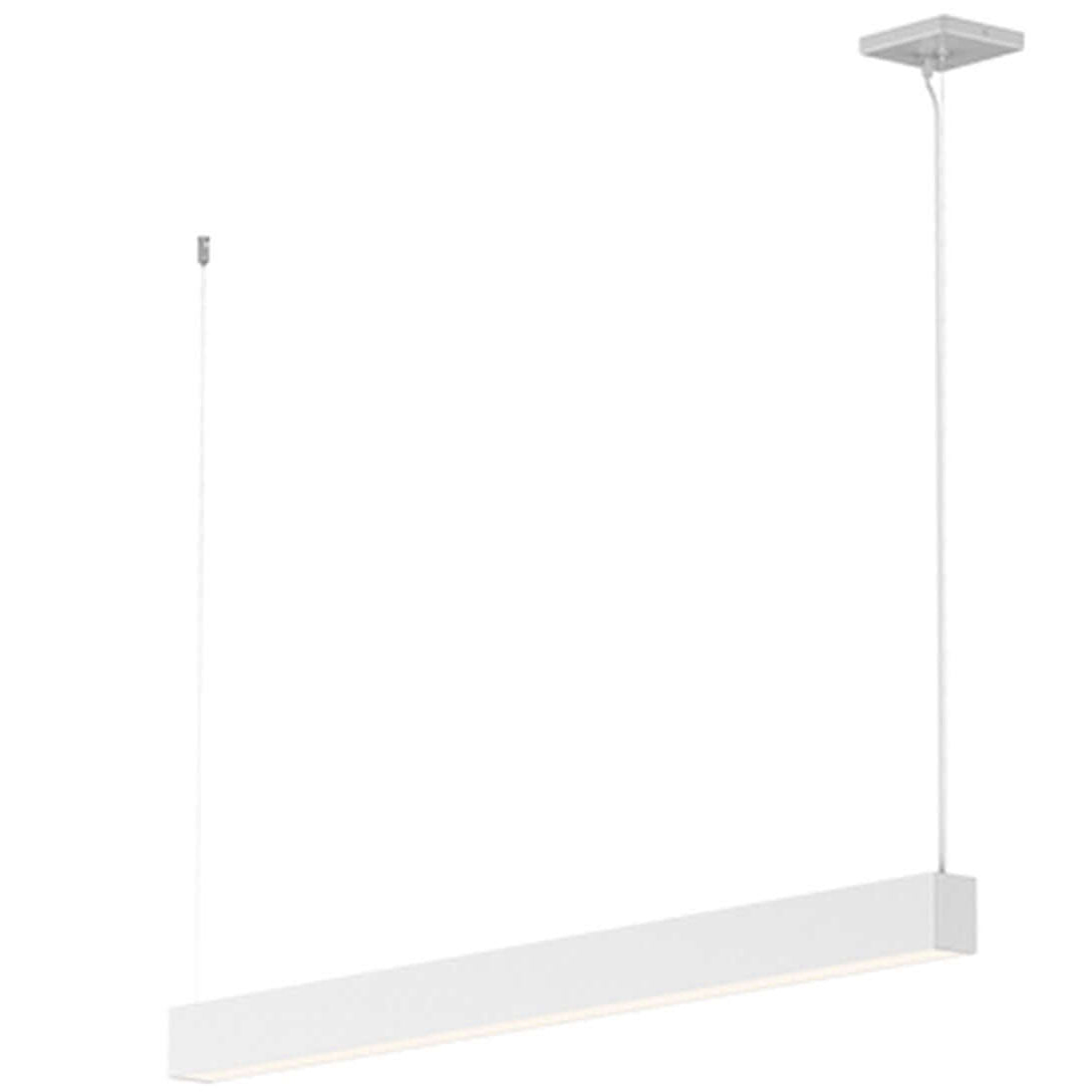

Engineered for modern commercial, architectural, and open-ceiling interiors, the J-LS02 4FT Suspended LED Linear Light delivers powerful, glare-free illumination with exceptional energy efficiency. Producing an impressive 6,500 lumens at just 50W (130 lm/W efficacy), this fixture is designed for suspended pendant mounting in open-plan offices, conference rooms, retail environments, educational facilities, and high-end corridors. Featuring a sleek extruded aluminum housing and an advanced frosted optical diffuser, it provides uniform light distribution, reducing eye strain while dramatically cutting operational utility costs.

• 6,500 Lumens High-Efficacy Output: Delivers bright, clear illumination consuming only 50W of power, achieving an energy-saving efficacy of 130 lumens per watt.

• DLC Premium & UL Listed: Qualified for maximum utility rebates across North America; UL certified for safety, electrical performance, and commercial building code compliance.

• Universal Voltage (AC120–277V): Standard commercial driver operates smoothly across standard 120V, 208V, 240V, and 277V power lines.

• Continuous 0–10V Dimming: Compatible with standard 0–10V dimmers for smooth, flicker-free light level adjustment from 100% down to 10%, optimizing occupant comfort and energy savings.

• Sleek Architectural Aluminum Housing: Constructed from heavy-duty extruded aluminum with a durable powder-coated finish for optimal thermal management, structural rigidity, and clean visual aesthetics.

• Glare-Free Frosted Optical Lens: Engineered optical diffuser ensures soft, even light distribution across workspaces without harsh glare, shadows, or visible hot spots.

• Complete Suspension Kit Included: Comes equipped with adjustable aircraft cable mounting hardware for rapid, contractor-friendly pendant installation and precise height alignment.

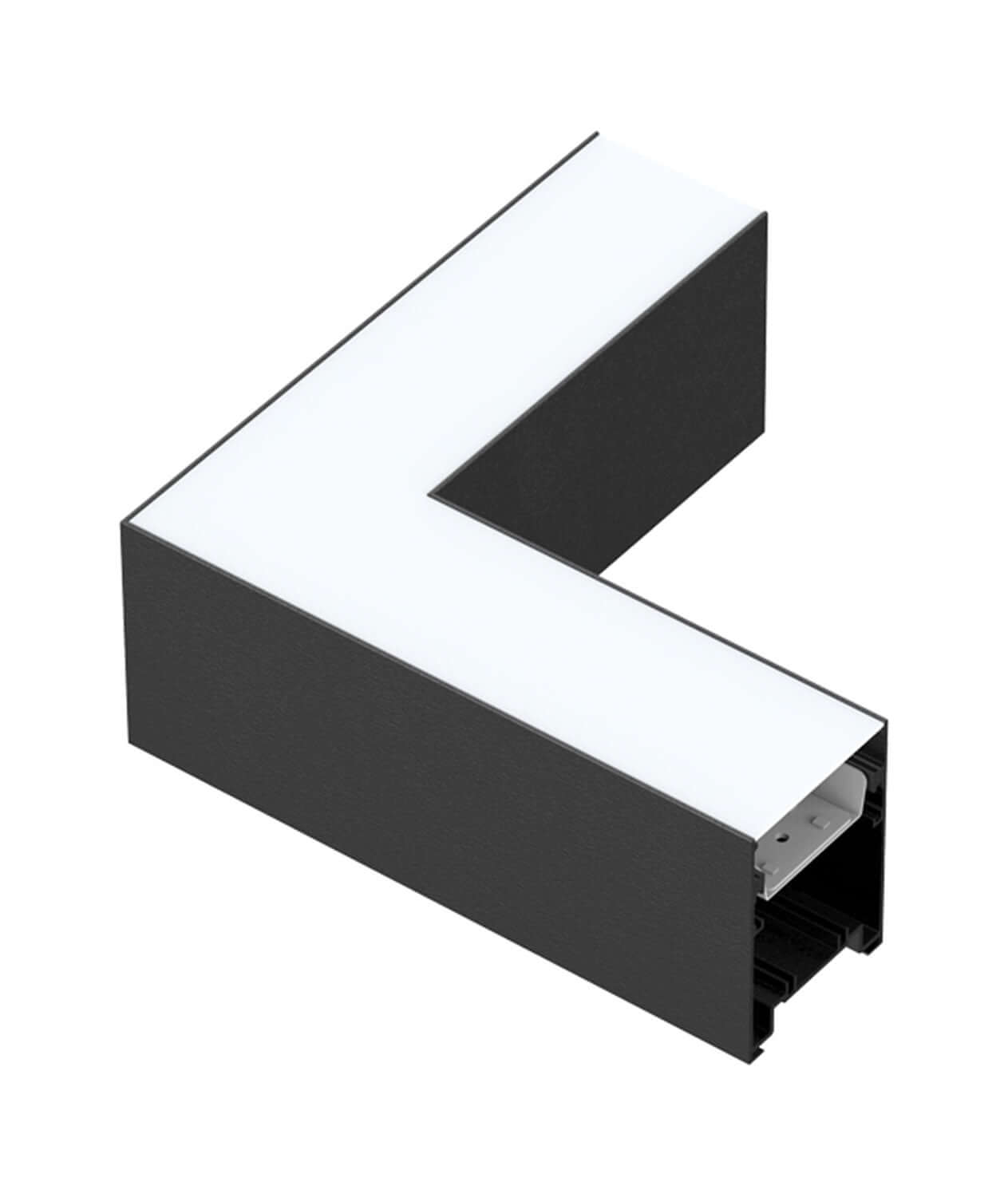

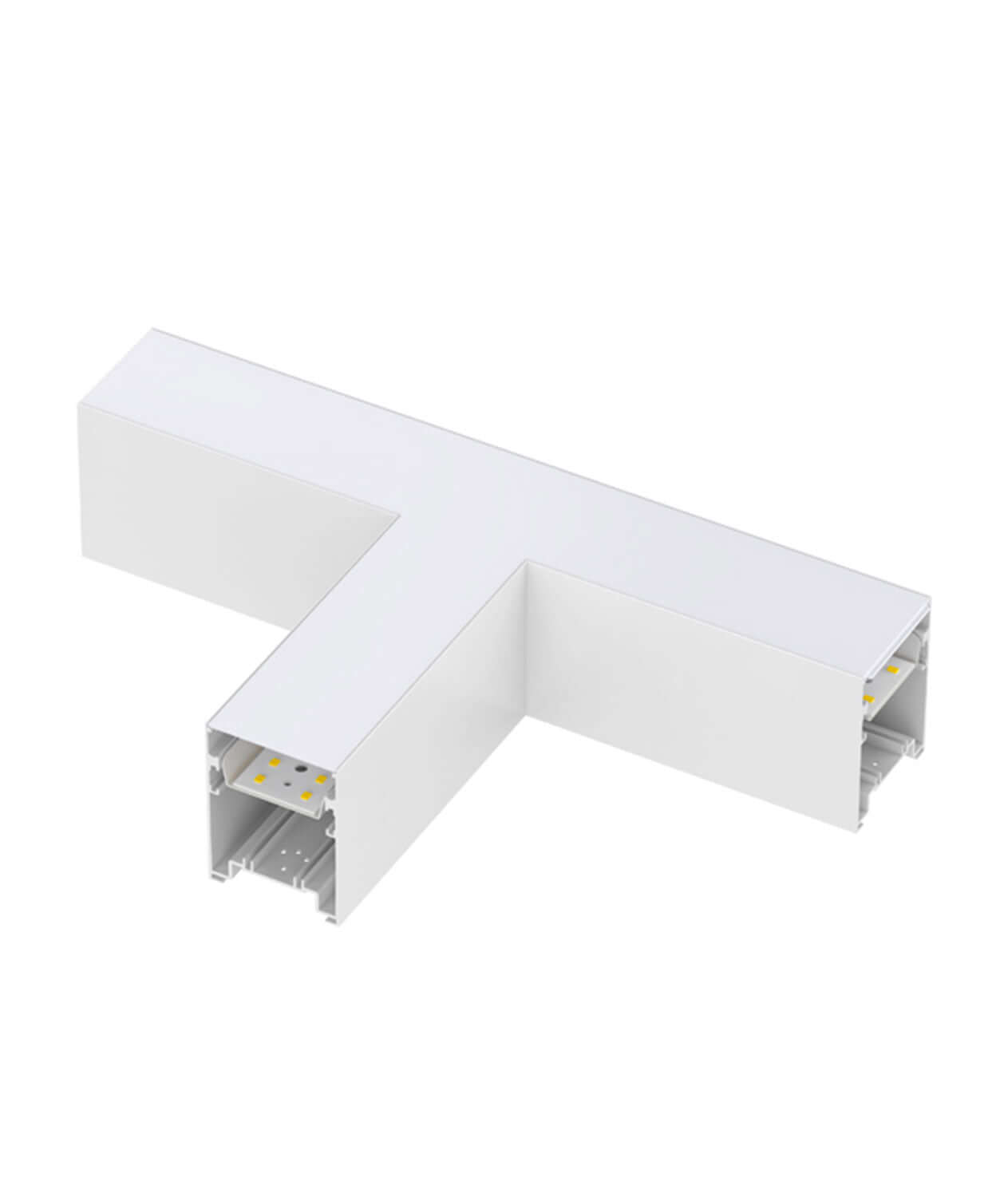

• Continuous Run Linkable Capability: Designed to pair seamlessly with internal linkable kits and geometric connectors (L, T, X shapes) for extended continuous lighting runs and custom ceiling patterns.

Key Features

• Selectable Up / Down Lighting
Choose Downlight only, Uplight only, or combined Up & Down lighting distribution.

• Adjustable Lighting Distribution
Five lighting modes available:
Up 100% + Down 0%
Up 70% + Down 30%
Up 50% + Down 50%
Up 30% + Down 70%
Up 0% + Down 100%

• 4 Wattage Selectable
50W / 35W / 25W / 15W field adjustable.

• 3 CCT Tunable
3500K / 4000K / 5000K selectable to match different commercial environments.

• High Efficiency Performance
Up to 130LM/W luminous efficacy with uniform light distribution.

• Flexible Installation Options
Pendant mounting, surface mounting, and wall mounting are supported.

• Linkable Architectural Lighting
Multiple fixtures can be seamlessly connected to create continuous lighting runs.

• Commercial Grade Reliability
UL-listed and DLC Premium certified with 5-year warranty.

Technical Specifications

Power Adjustable: 50W / 35W / 25W / 15W
Max Lumens: 6500 lm
Color Temperature: 3500K / 4000K / 5000K Tunable
CRI: >80
Efficacy: 130 lm/W
Input Voltage: AC120-277V
Dimming: 0-10V dimming
Operating Temperature: -20°C to 45°C
Certification: UL & DLC Premium
Size: 4FT
Warranty: 5 Years
