LED Backlit Panel Light 120-277V 40W 5000LM ETL DLC | 1x4FT Sensor Base
Regular price
$163.99 USD
Regular price
-14%
$189.99 USD
Sale price
$163.99 USD
Bulk Savings
automatically applied on carts over $500 - Learn more
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert
Light Your Project with Confidence
Our commercial lighting solutions are built for reliable performance and easy installation. Unbox, mount, and upgrade your parking lot, warehouse, or outdoor space with high-efficiency illumination.
Certification Passed

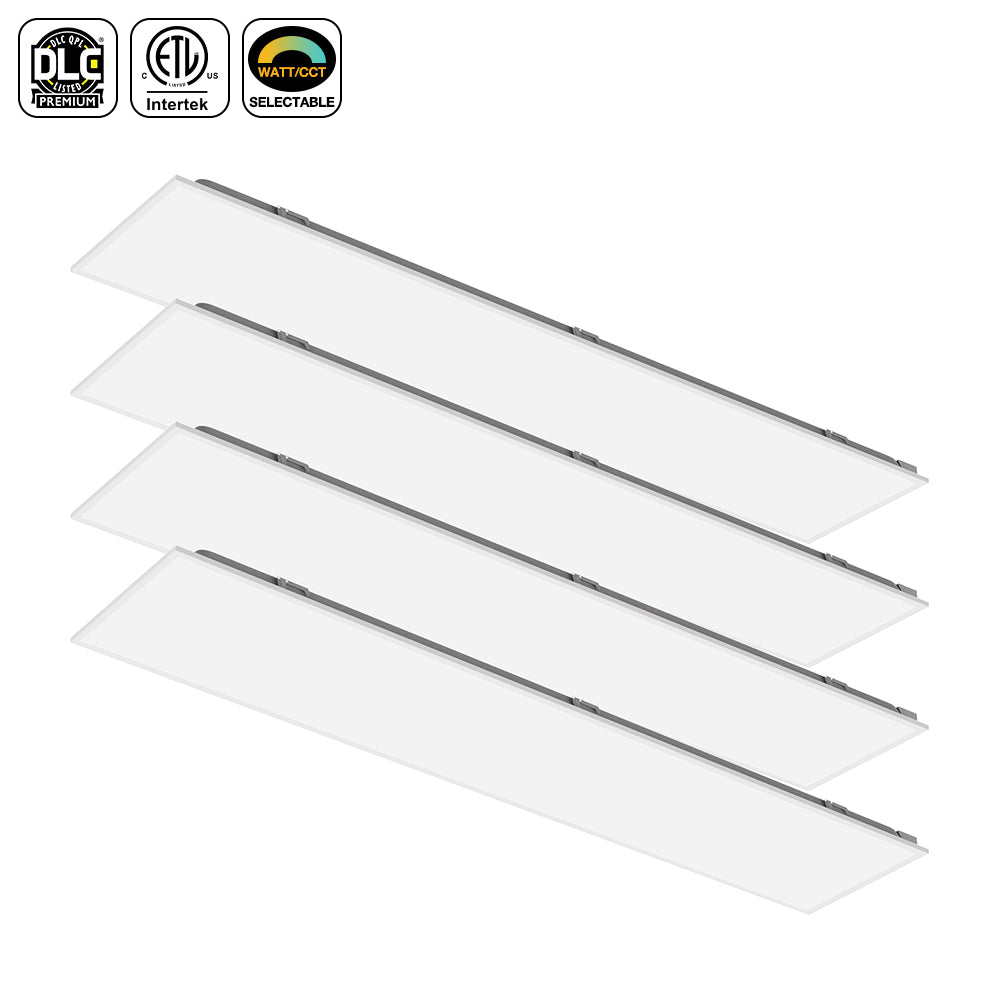

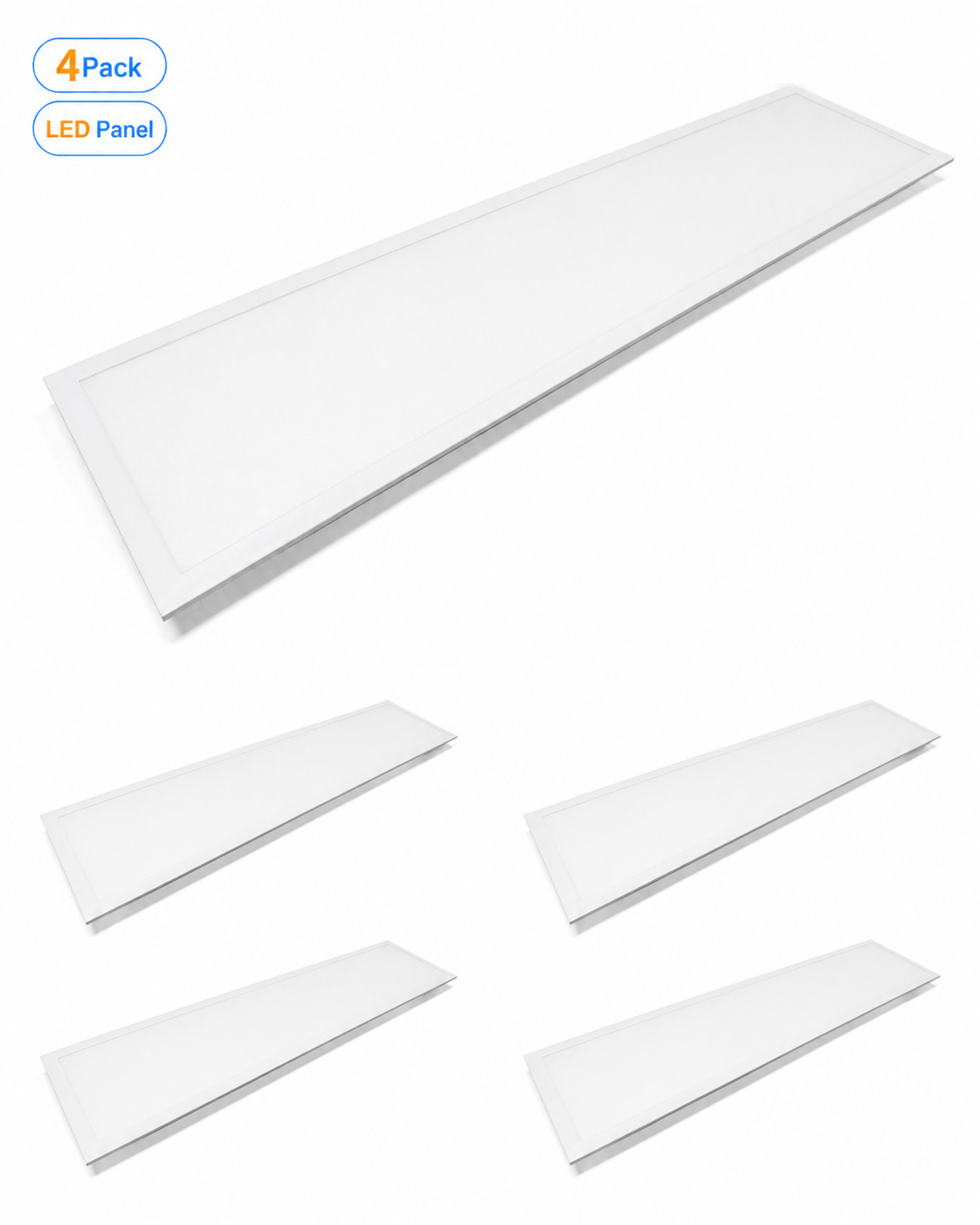

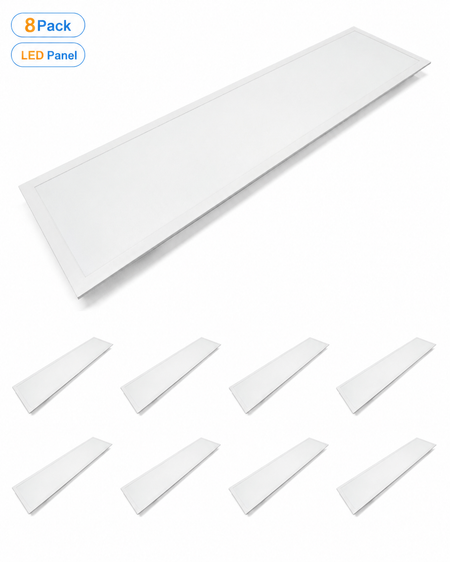

LED Backlit Panel Light 1x4ft – Wattage & CCT Selectable with Sensor Base
The JCE 1x4 LED Backlit Panel Light with 3.5mm sensor base is designed for commercial lighting applications requiring flexibility and high efficiency. With 5 selectable wattage levels and 5 CCT options, one fixture can replace multiple models, reducing inventory and simplifying project installation.

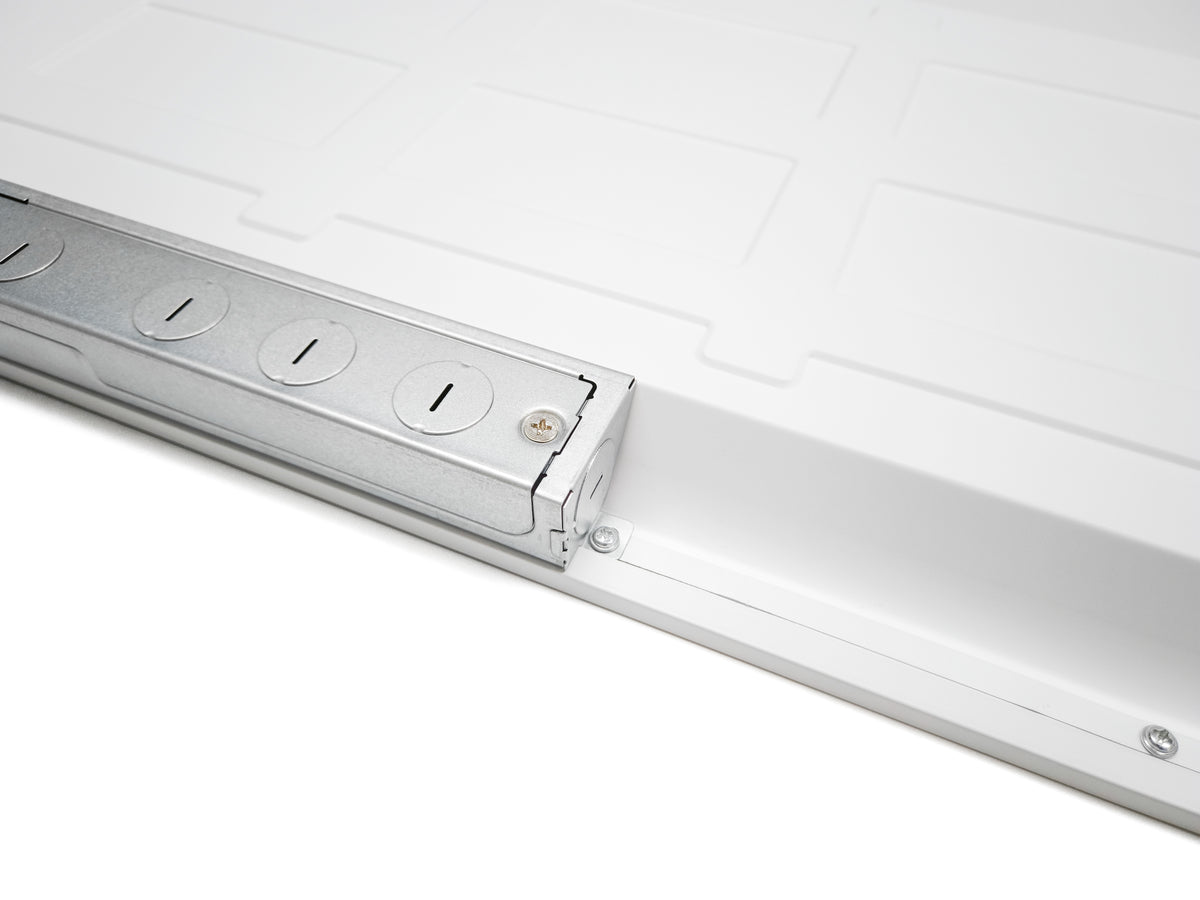

The integrated aluminum frame provides excellent durability while delivering uniform illumination with high efficiency.
Key Features

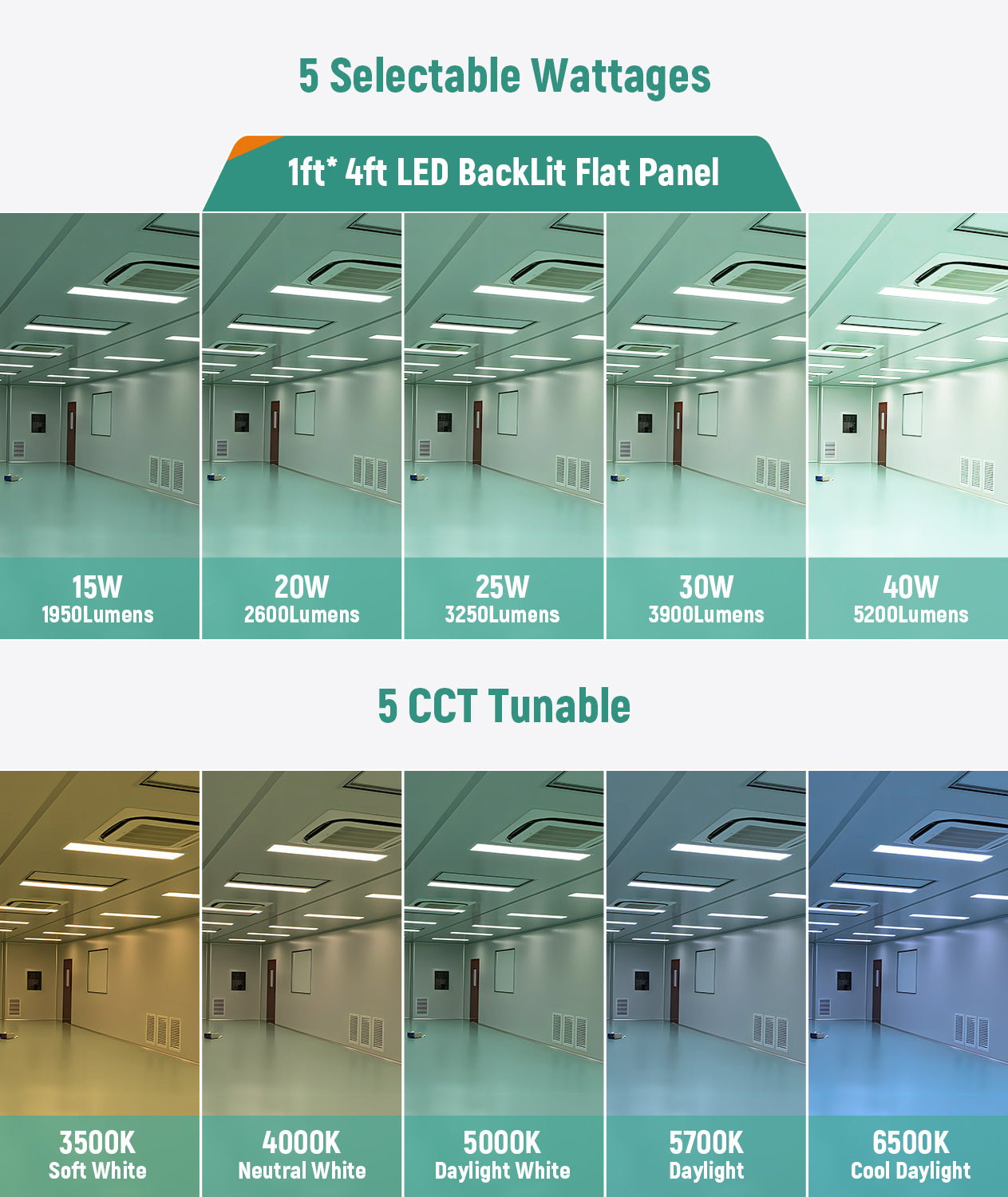

• 5 Wattage Selectable
15W / 20W / 25W / 30W / 40W adjustable power output
• 5 CCT Selectable
3500K / 4000K / 5000K / 5700K / 6500K
• High Luminous Efficiency
Up to 5000 lumens with up to 130 lm/W efficacy
• 3.5mm Sensor Base Design
Supports microwave or PIR sensor options for smart lighting control.
• 0-10V Dimming Compatible
Smooth dimming for commercial lighting control systems.
• Commercial Grade Construction
Durable aluminum frame with a long lifespan LED system.
• Wide Voltage Input
120-277VAC for commercial electrical systems.
Technical Specifications
Size: 1 ft x 4 ft
Power: 15W / 20W / 25W / 30W / 40W selectable
Lumen Output: 1,950 – 5,000 lumens
Color Temperature: 3500K / 4000K / 5000K / 5700K / 6500K
CRI: ≥80
Input Voltage: 120-277VAC
Dimming: 0-10V
Operating Temperature: -20°C to 45°C
Certification: ETL Listed, DLC Premium
Warranty: 5 Years

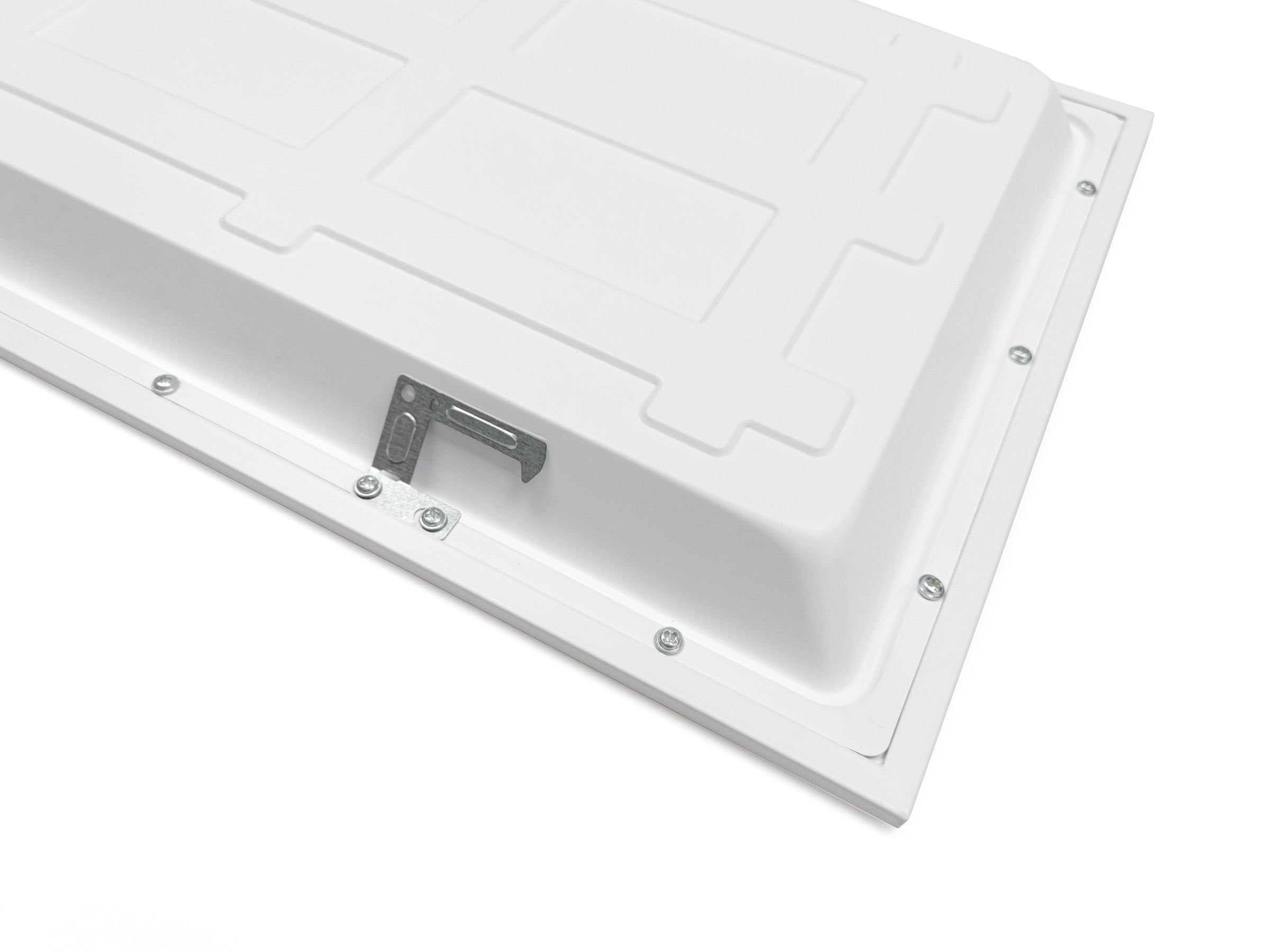

Installation Options
The fixture supports multiple installation methods:
• Recessed installation with T-grid ceilings
• Suspension mounting with optional cable kit
• Surface mounting with optional surface kit
These options make the panel ideal for retrofit and new construction lighting projects.

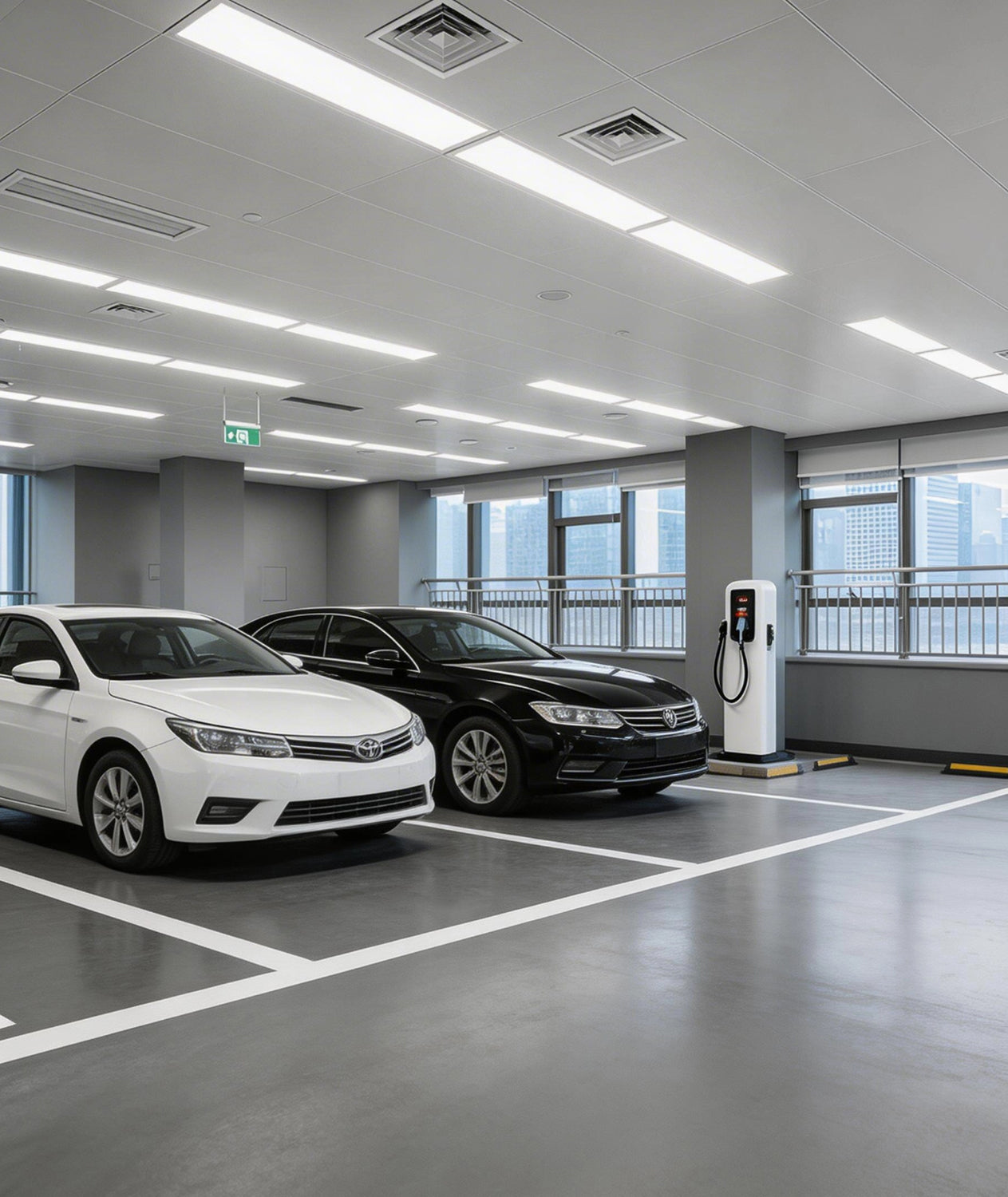

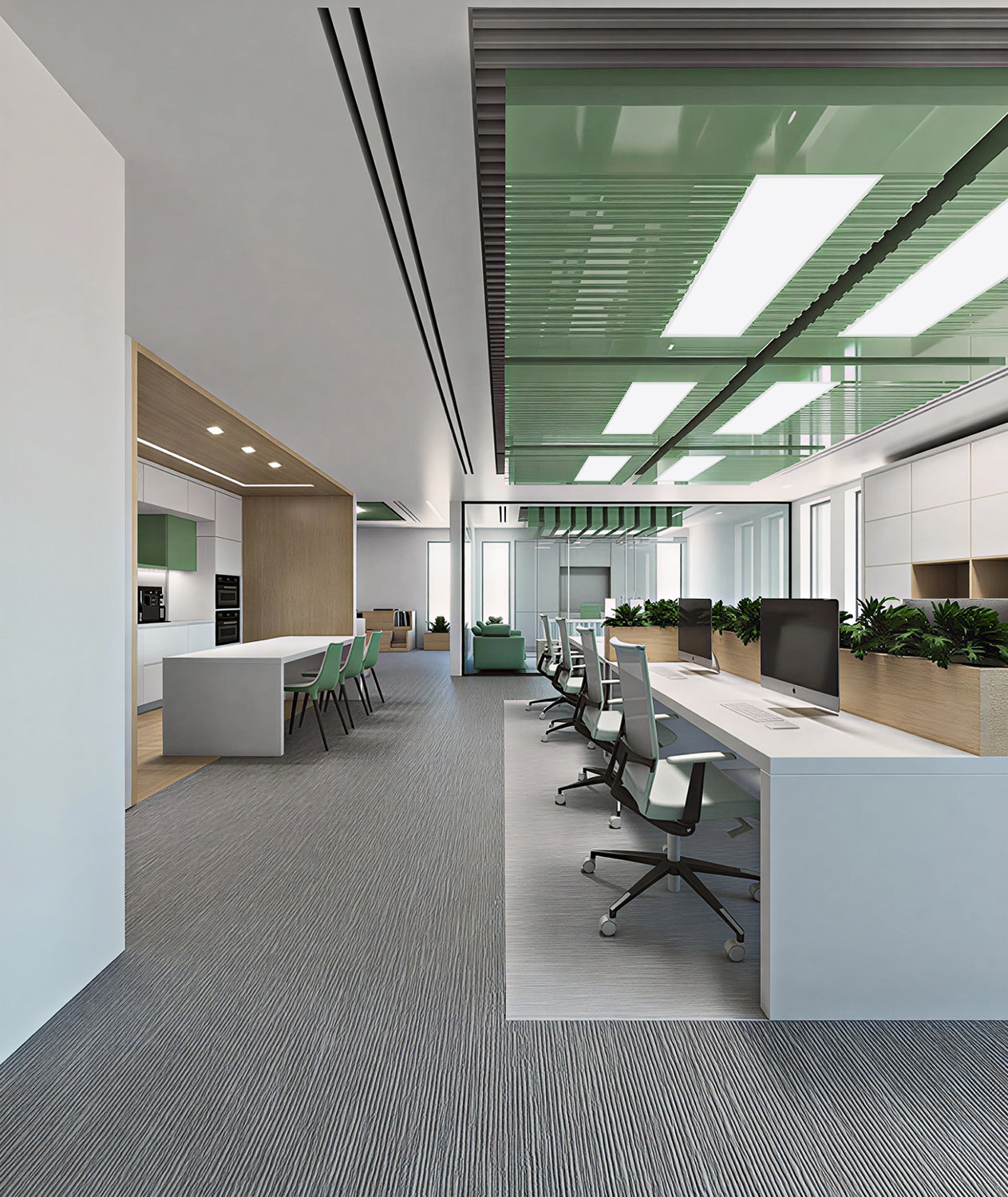

Typical Applications

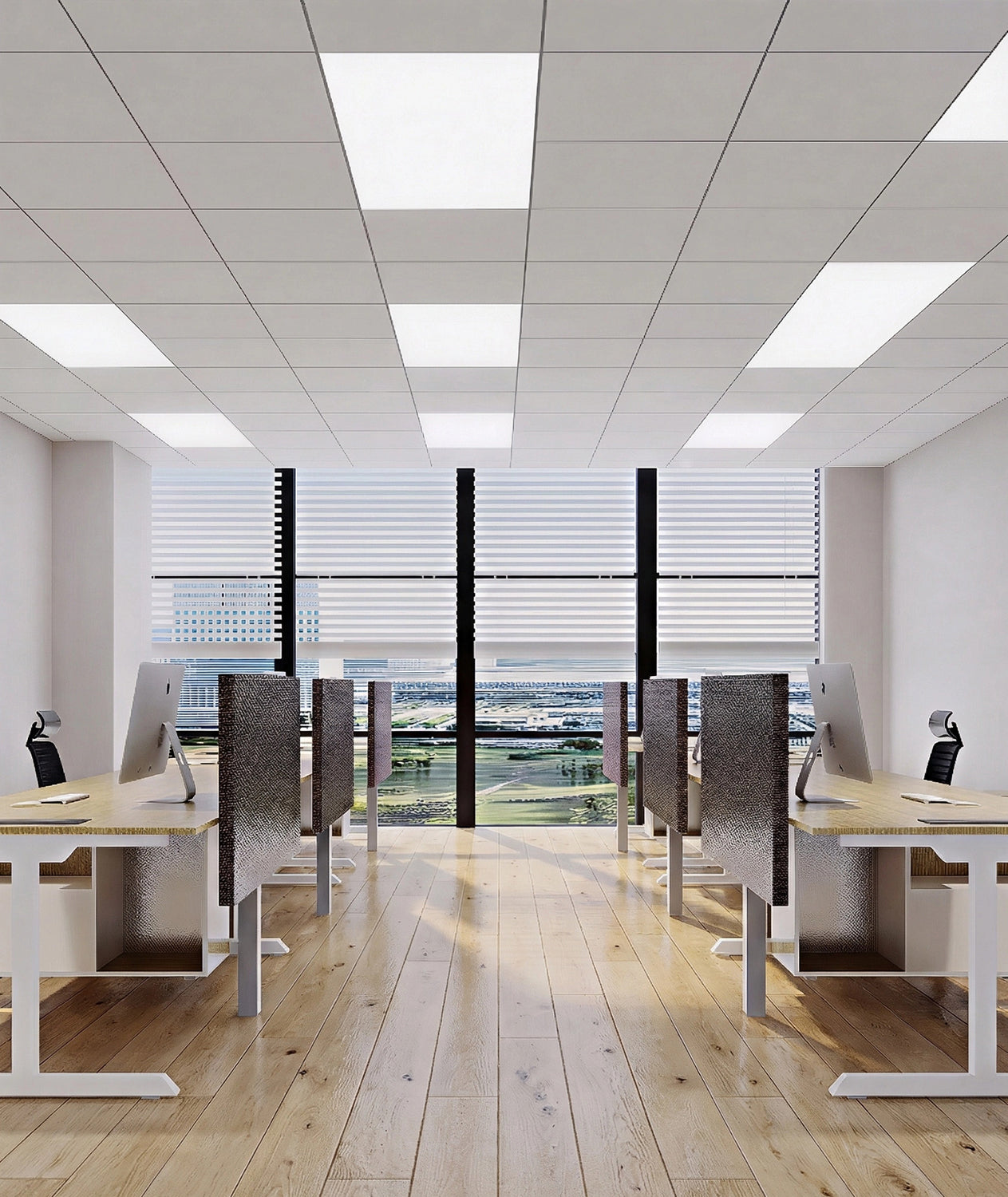

Commercial Offices
Retail Stores
Schools
Restaurants
Hospitality Buildings
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
Overview
Easy install with mount options for bright 21000lm area light. IP65 rated.
Specifications
| Wattage | 15W/20W/25W/30W/40W Selectable |
| LPW | 130.0 |
| Certifications | ETL, DLC 5.1 Premium |
| Lifetime | 50,000 Hours |
| Luminous | 1,950 – 5,000 lumens |
| Voltage | 120–277VAC, 50/60Hz |
| CRI | 80 |
| IP Rating | Damp Location Rated |
| Beam Angle | 120° |
| Color Temperature Range | 3500K/4000K/5000K/5700K/6500K |
| Mount type | "Fixture is suitable for recessed mounting with T-bar, and accessories for suspension and surface mounting are also available." |
| Applications | Offices , Retail, Schools, restaurants ,and residential applications. |
| Efficacy per W | 130lm/w |
| Operating Temperature | -20°C to 45°C |
| Dimming Details | 0-10V |
| Size | 1x4 |
| Warranty | 5-year limited warranty |
