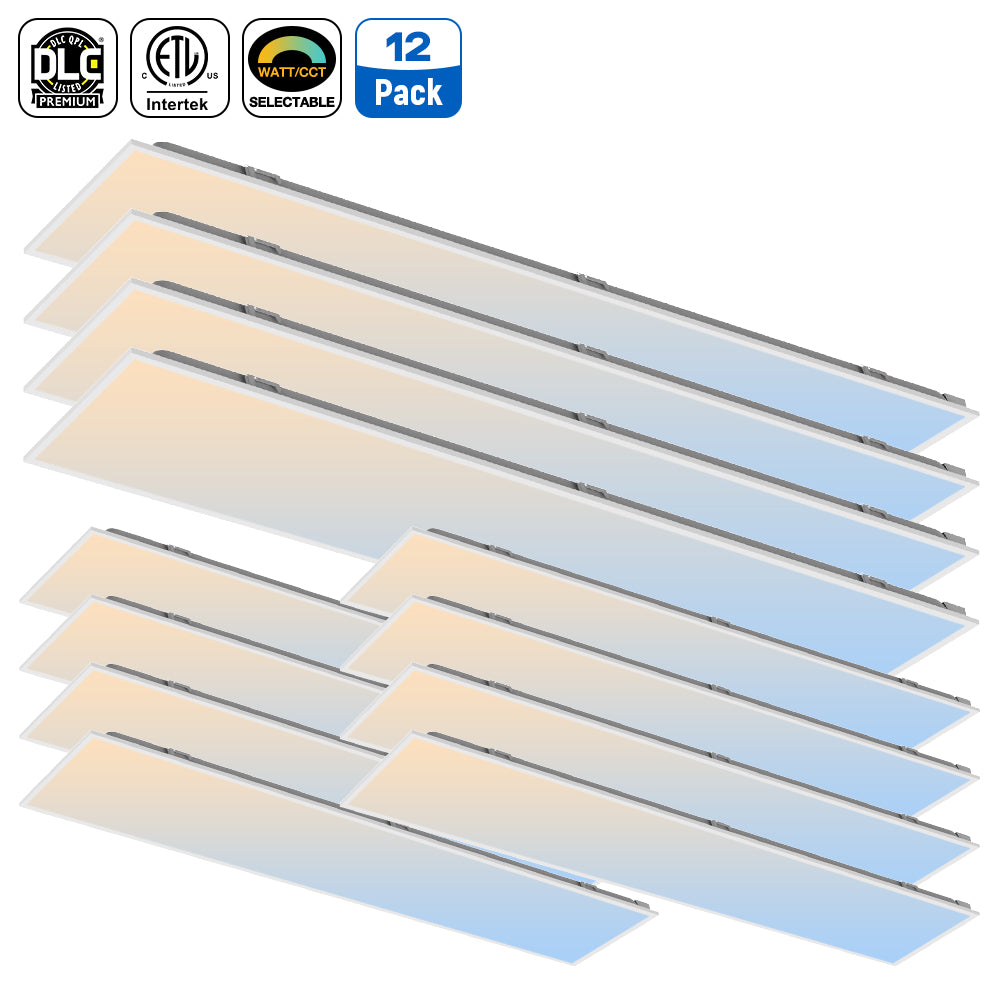

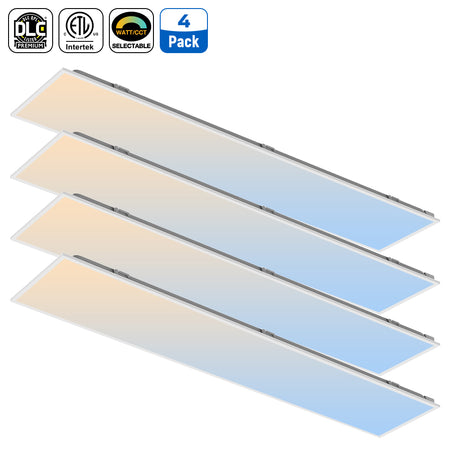

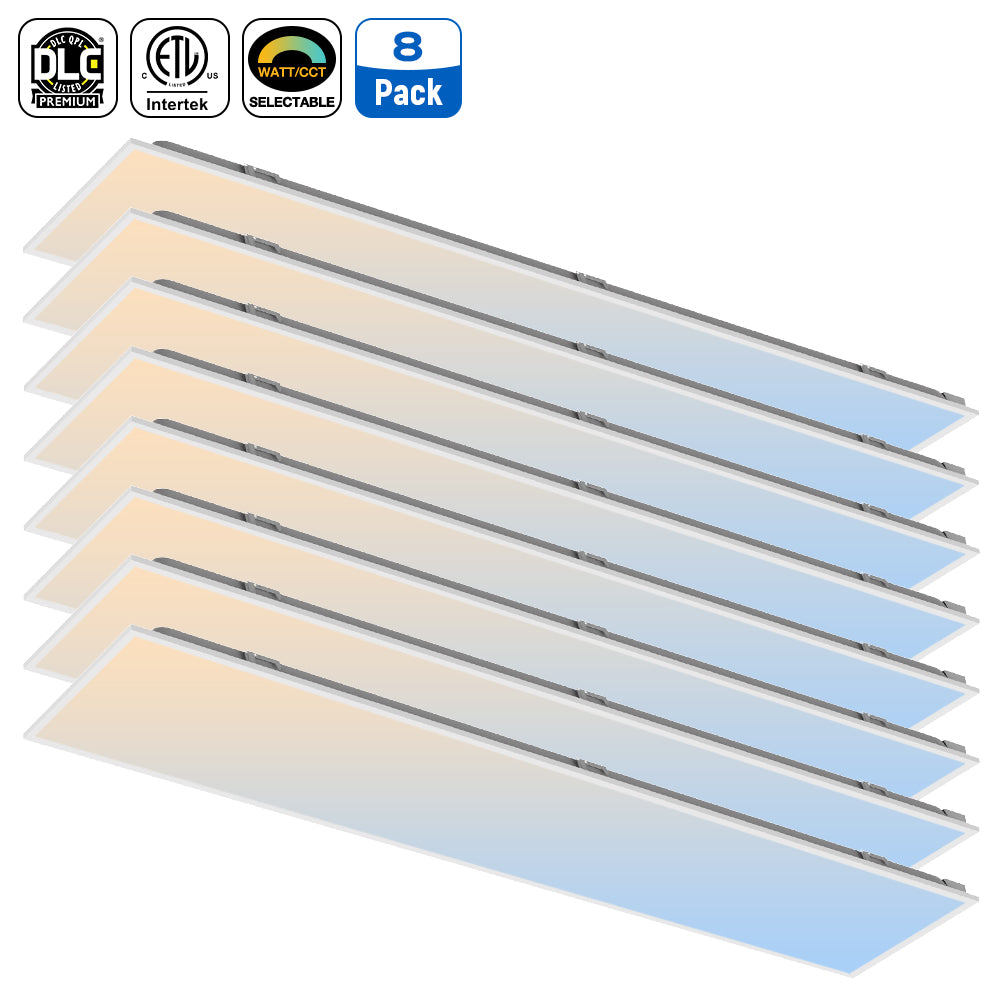

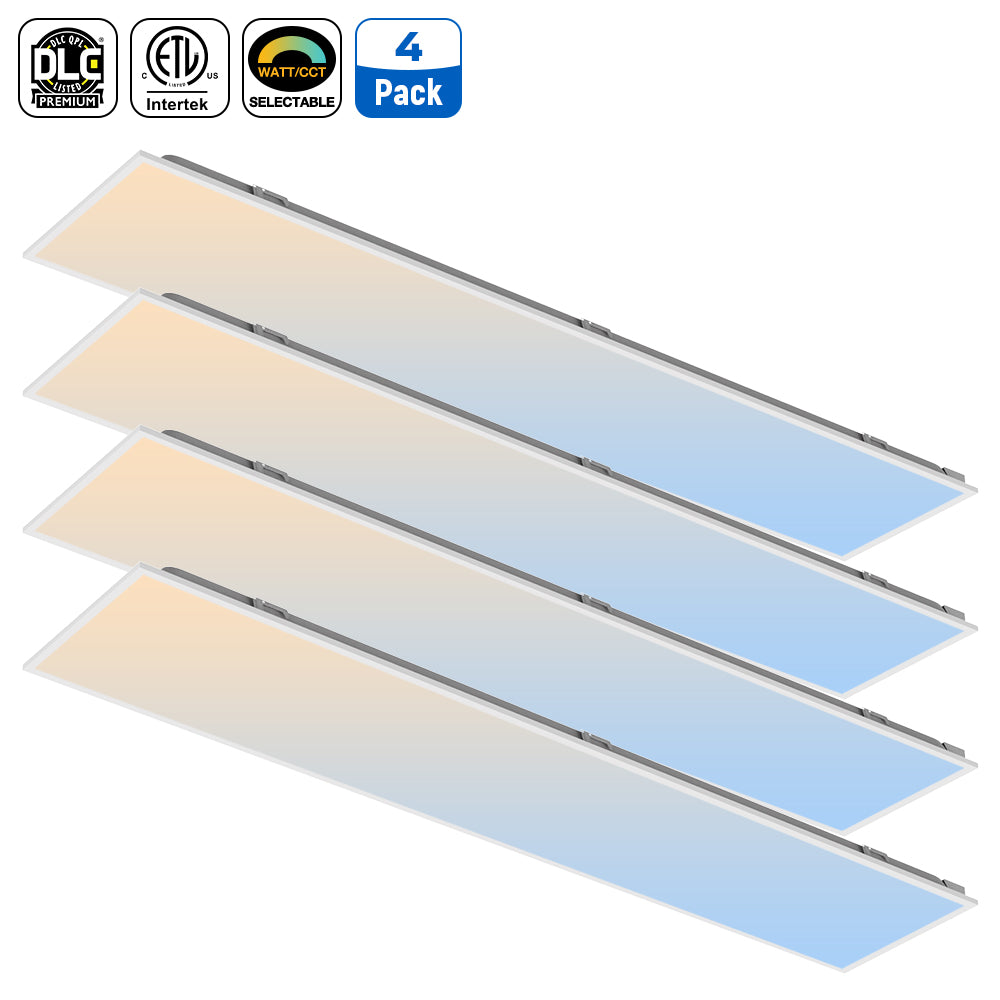

LED Backlit Panel Light 120-277V 40W 5000LM ETL DLC | 1x4FT Sensor Base

LED Backlit Panel Light 1x4ft – Wattage & CCT Selectable with Sensor Base

Engineered for modern commercial, educational, healthcare, and office interiors, this 1×4FT 40W LED Backlit Panel Light delivers high-efficiency, uniform illumination in a sleek, space-saving footprint. Producing 5,000 lumens at an energy-saving efficacy of 125 lm/W, this ultra-slim lay-in fixture serves as an ideal replacement for traditional 2-lamp 1×4 fluorescent troffers. Outfitted with an integrated plug-and-play sensor base receptacle, it enables fast, tool-free field attachment of PIR motion, daylight harvesting, or wireless smart sensors to maximize energy efficiency and satisfy local building codes.

• 5,000 Lumens High-Efficacy Output (125 lm/W): Delivers bright, continuous light while consuming only 40W, reducing electricity consumption by over 50% compared to legacy 1×4 fluorescent fixtures.

• Integrated Plug-and-Play Sensor Base: Features a pre-wired center receptacle for rapid, tool-free field attachment of motion, daylight, or smart control sensors without opening the electrical housing.

• Direct-Lit Backlit Optical Design: Utilizes direct-lit LED arrays paired with a durable, non-yellowing PMMA frosted diffuser to eliminate visual hotspots and deliver smooth, edge-to-edge light distribution.

• DLC Qualified & ETL Listed: Certified to North American safety and electrical performance standards while qualifying for commercial energy-efficiency utility rebate programs.

• Universal Commercial Driver (AC120–277V): Industrial-grade internal driver operates seamlessly across standard 120V, 208V, 240V, and 277V electrical systems.

• Smooth 0–10V Continuous Dimming: Fully compatible with standard 0–10V dimmers for flicker-free brightness tuning down to 10%, enhancing occupant comfort.

• Slim 1×4FT Architectural Frame: Constructed from high-strength aluminum with a white powder-coated finish, engineered for quick drop-in placement in narrow 1×4 T-bar ceiling grids.

• Built-In Safety Seismic Clips: Equipped with heavy-duty integrated grid clips to lock the fixture securely to the ceiling T-bar grid in compliance with commercial safety codes.

Key Features

• 5 Wattage Selectable
15W / 20W / 25W / 30W / 40W adjustable power output

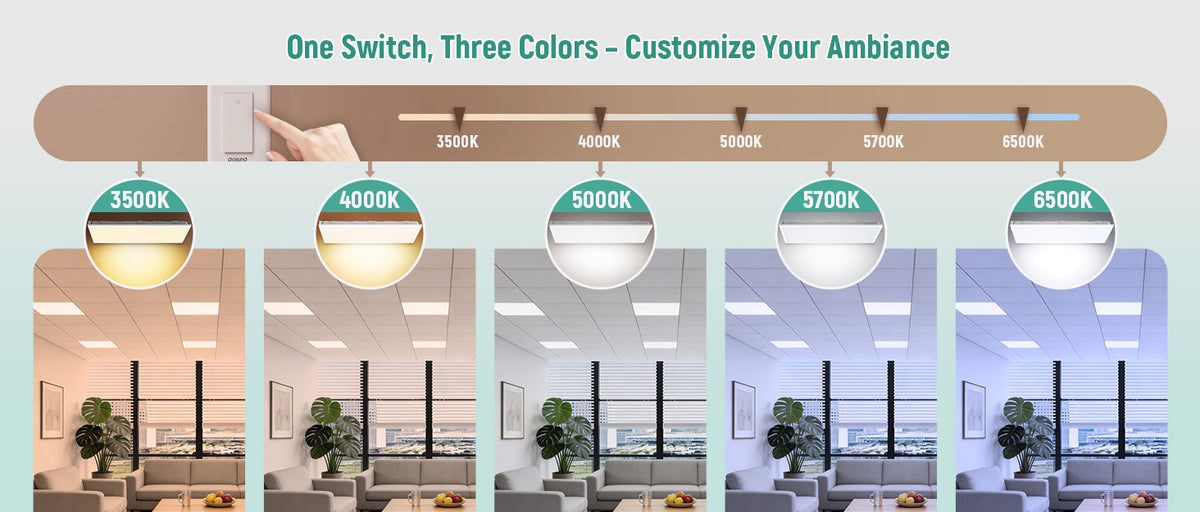

• 5 CCT Selectable
3500K / 4000K / 5000K / 5700K / 6500K

• High Luminous Efficiency
Up to 5000 lumens with up to 130 lm/W efficacy

• 3.5mm Sensor Base Design
Supports microwave or PIR sensor options for smart lighting control.

• 0-10V Dimming Compatible
Smooth dimming for commercial lighting control systems.

• Commercial Grade Construction
Durable aluminum frame with a long lifespan LED system.

• Wide Voltage Input
120-277VAC for commercial electrical systems.

Technical Specifications

Size: 1 ft x 4 ft
Power: 15W / 20W / 25W / 30W / 40W selectable
Lumen Output: 1,950 – 5,000 lumens
Color Temperature: 3500K / 4000K / 5000K / 5700K / 6500K
CRI: ≥80
Input Voltage: 120-277VAC
Dimming: 0-10V
Operating Temperature: -20°C to 45°C

Certification: ETL Listed, DLC Premium
Warranty: 5 Years

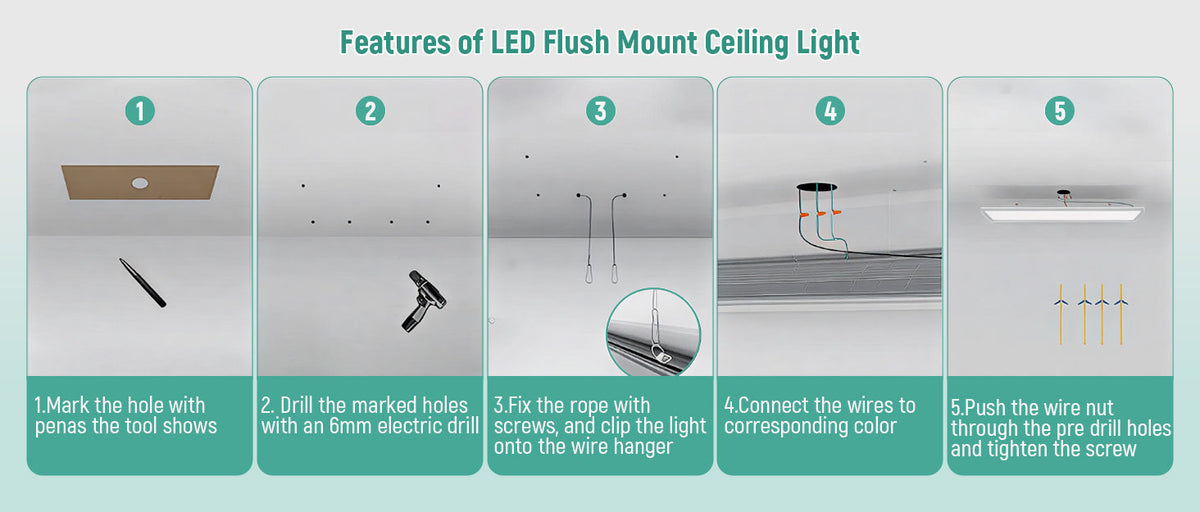

Installation Options

The fixture supports multiple installation methods:

• Recessed installation with T-grid ceilings
• Suspension mounting with optional cable kit
• Surface mounting with optional surface kit

These options make the panel ideal for retrofit and new construction lighting projects.

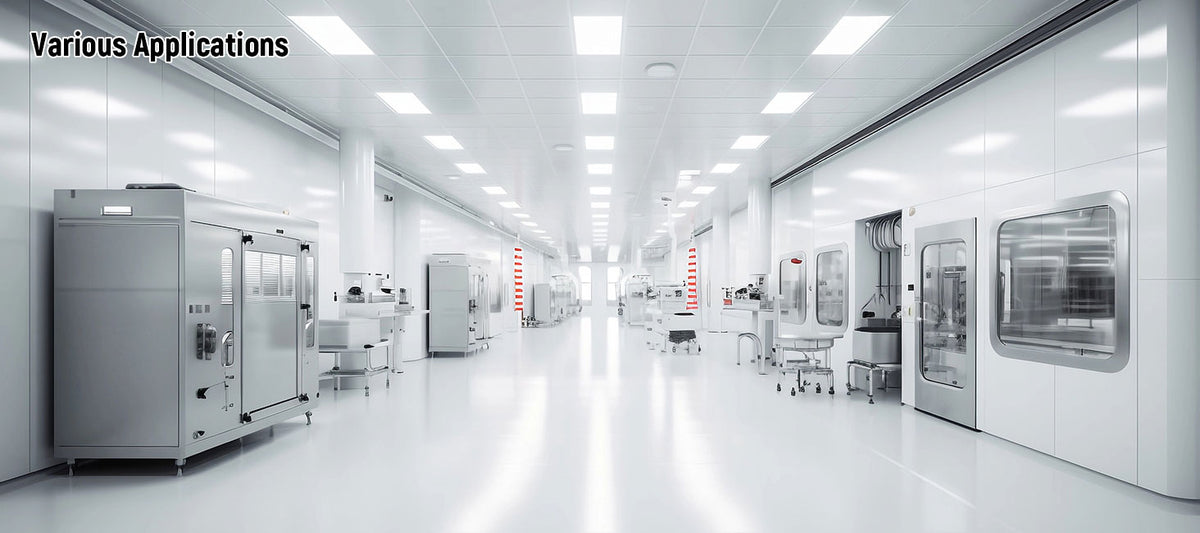

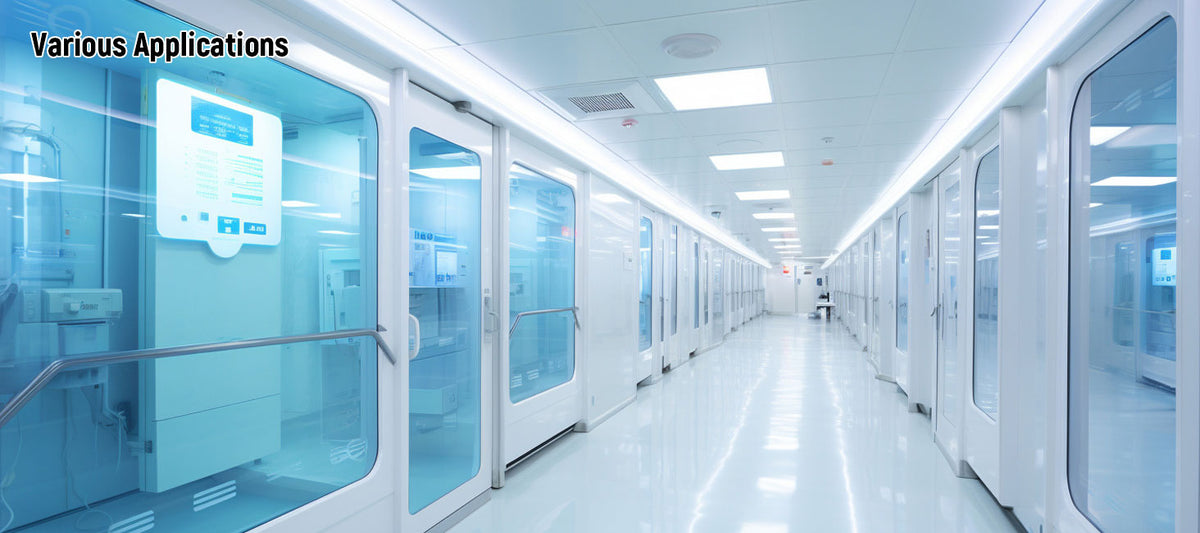

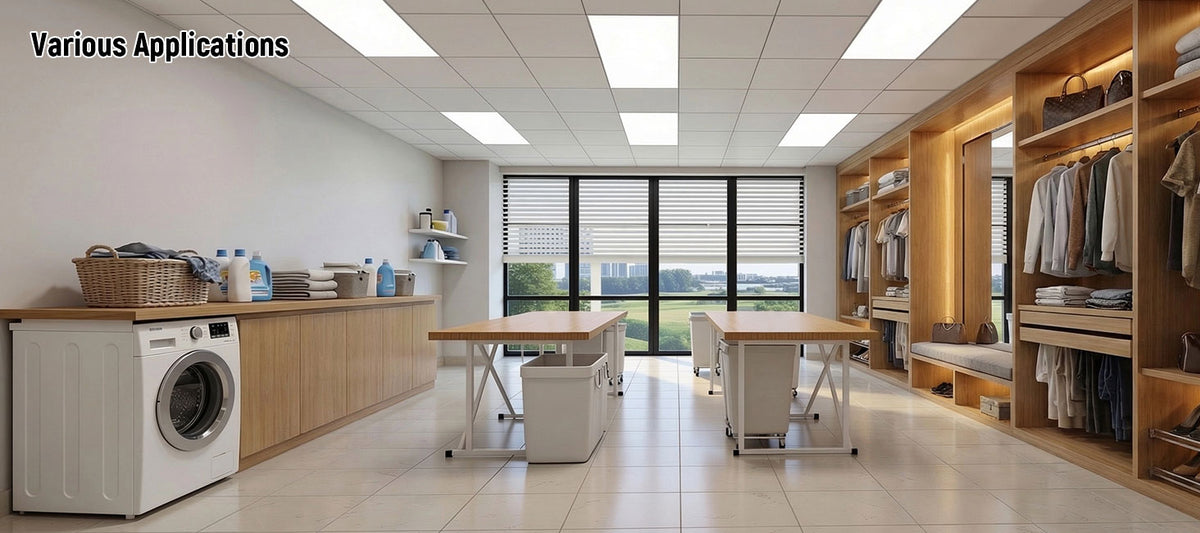

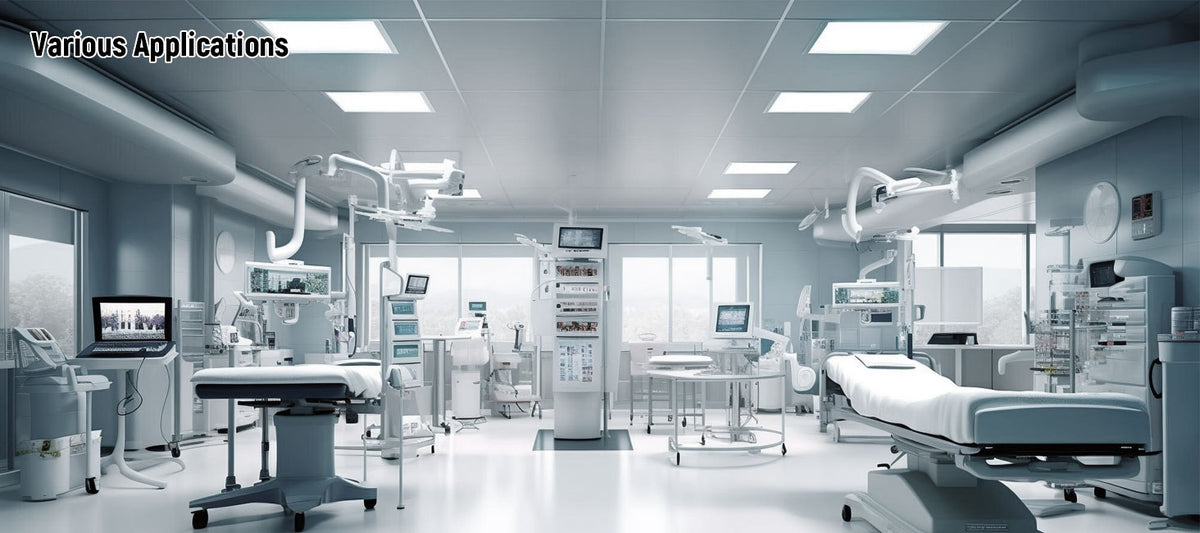

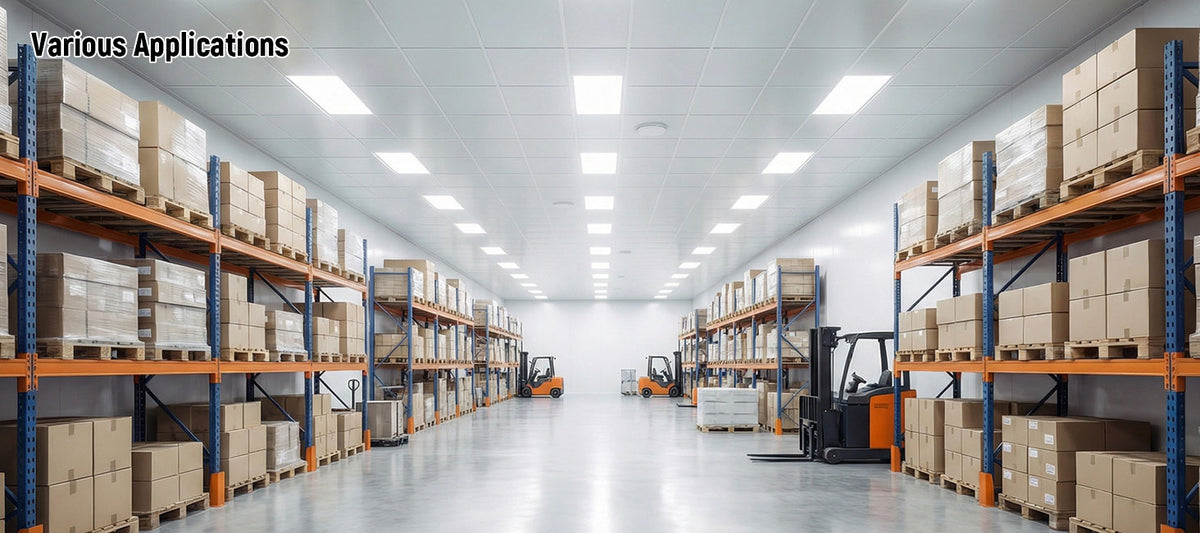

Typical Applications

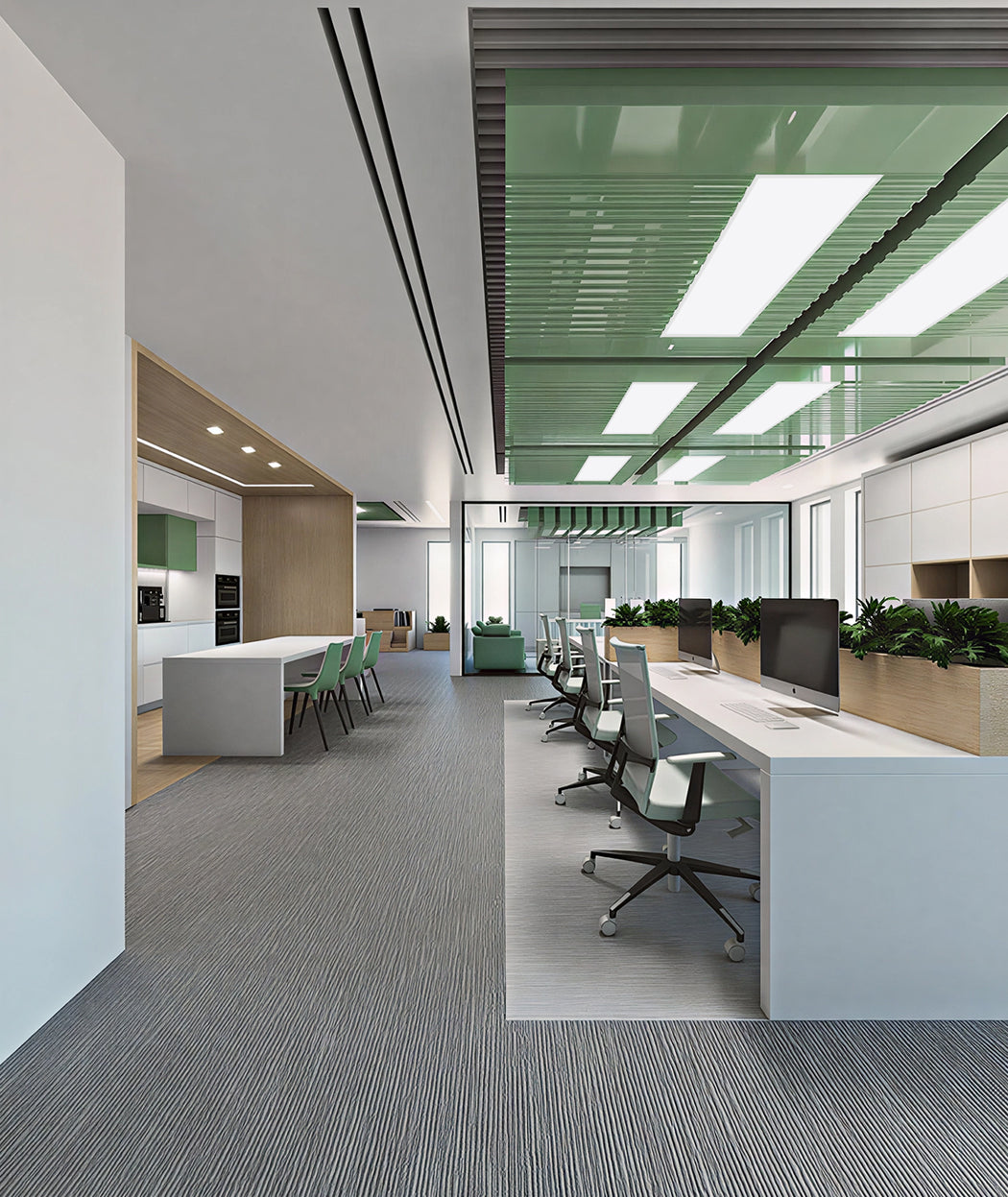

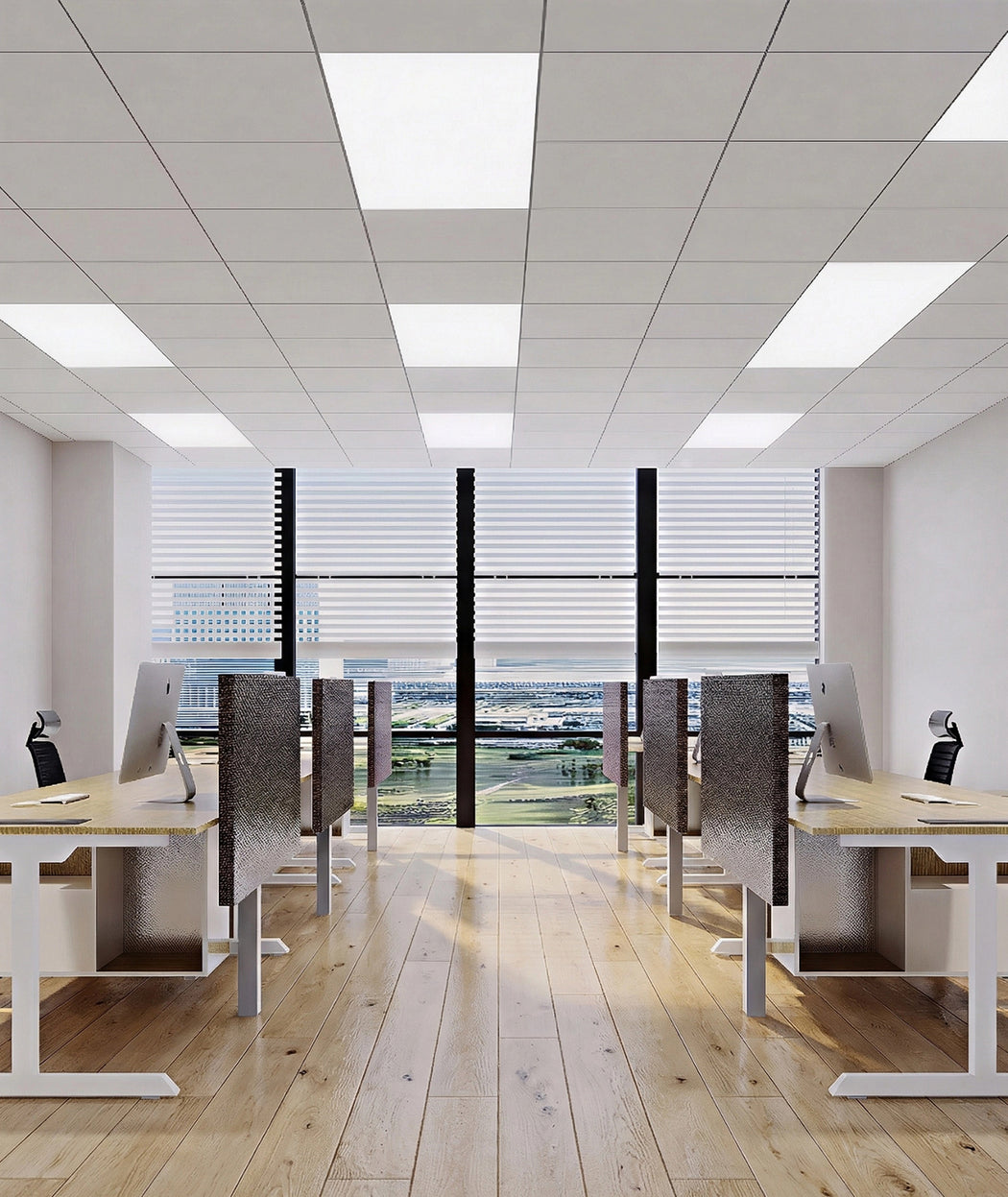

Commercial Offices
Retail Stores
Schools
Restaurants
Hospitality Buildings
