4-Inch 20W Selectable LED Outdoor Cylinder Wall Light - 3CCT | 4 Inch

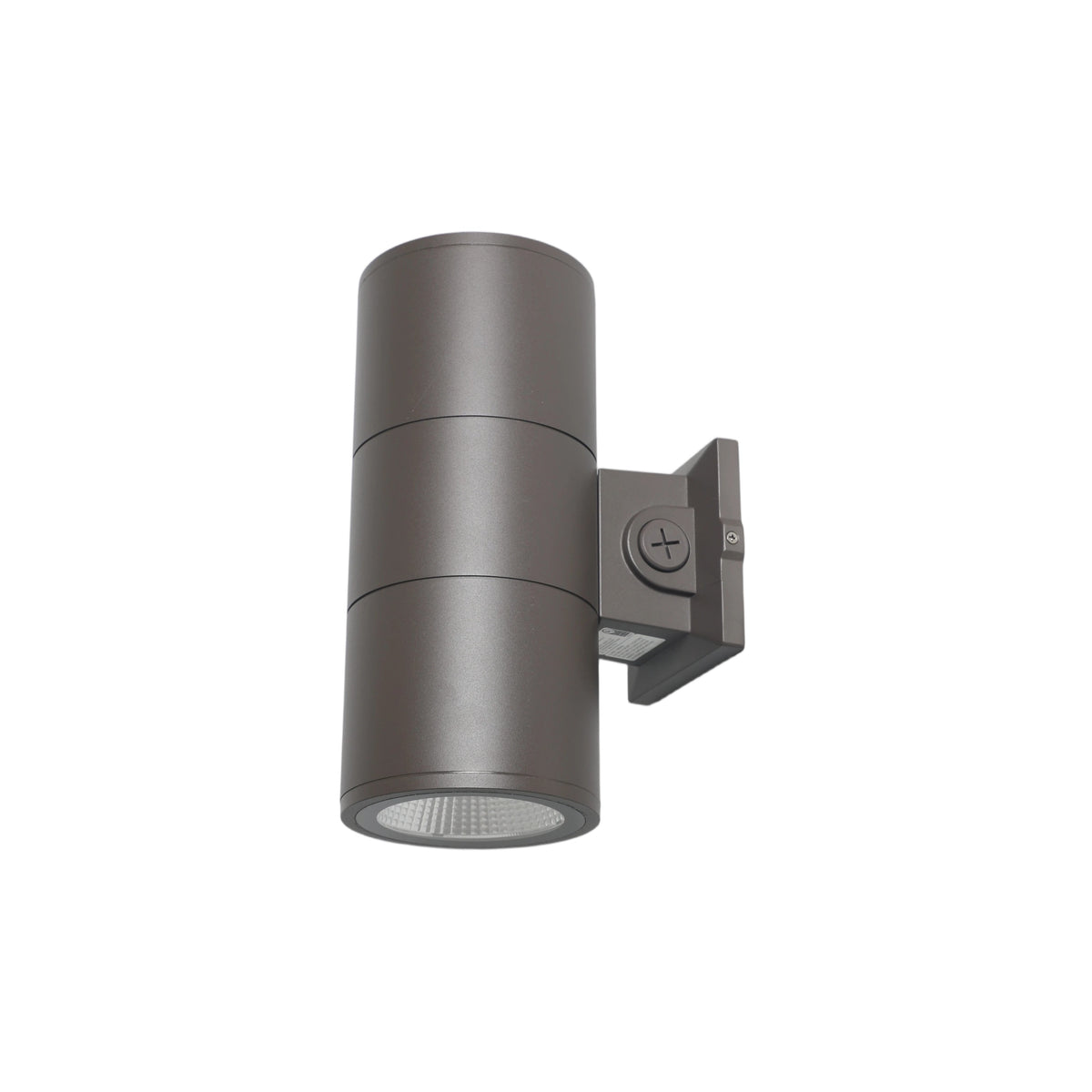

Compact architectural lighting with job-site flexibility. The JCE Lighting 4-Inch Outdoor LED Cylinder Wall Light combines a modern bronze cylinder design with selectable wattage, selectable color temperature and three light-direction settings. It is an adaptable solution for commercial entrances, storefronts, patios, walkways and building facades.

Built for Flexible Outdoor Lighting Projects

• Selectable wattage: Choose 12W, 16W or 20W to produce 624, 832 or 1,040 lumens.
• Selectable color temperature: Choose warm 3000K, neutral 4000K or daylight 5000K during installation.
• Three light-direction modes: Select up-only, down-only or full up/down illumination.
• Dusk-to-dawn control: The integrated photocell can be switched on or off to suit the application.
• Commercial electrical compatibility: 120-277V input and 0-10V dimming support common commercial lighting systems.
• Outdoor-ready construction: IP65 rated and UL Listed for wet locations.

Focused Architectural Illumination

The fixture's 40-degree distribution creates controlled light for accenting exterior walls, columns, entrances and architectural details. Select downlight for functional pathway illumination, uplight for highlighting facade features, or full up/down light for a balanced architectural effect.

Durable Bronze Construction

A die-cast aluminum housing with a bronze finish delivers a clean commercial appearance while supporting dependable outdoor performance. High-transmittance glass lenses provide consistent illumination, and the fixture is rated for operation from -40°C to 45°C (-40°F to 113°F).

Technical Specifications

Recommended Applications

• Commercial and residential entrances
• Storefronts and exterior facades
• Patios, decks and balconies
• Walkways, corridors and stairways
• Columns and architectural details
• Perimeter and security lighting

Frequently Asked Questions

Can the wattage and color temperature be changed in the field?

Yes. The fixture provides three wattage settings and three CCT settings. Turn off power before opening the fixture or changing any internal setting.

Can the photocell be disabled?

Yes. The integrated photocell has an internal On/Off selector, allowing either automatic dusk-to-dawn operation or control through the building's lighting system.

Does the fixture provide both uplight and downlight?

Yes. It can be configured for up-only, down-only or full up/down illumination.

Is this fixture suitable for exposed outdoor locations?

Yes. It is IP65 rated and UL Listed for wet locations. Installation should be completed by a qualified electrician in accordance with applicable electrical codes.

Ordering for a larger project? Standard quantities can be purchased online. Contact JCE Lighting for contractor, distributor or high-volume project pricing.

Need higher output? View the 6-Inch 35W Outdoor LED Cylinder Wall Light.
