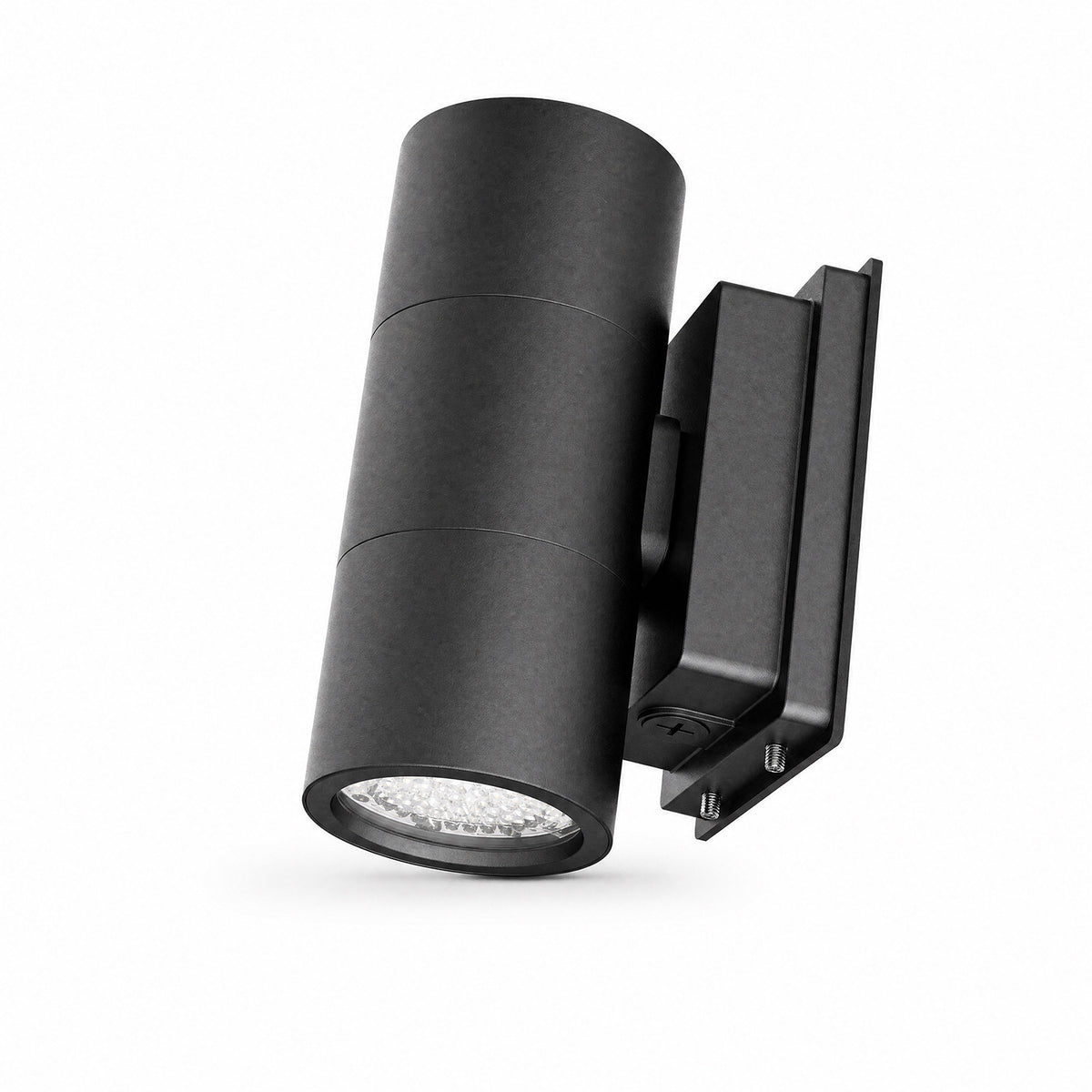

3-Inch Black LED Outdoor Wall Sconce with Selectable Up/Down Lighting
Add architectural accent lighting to entrances, corridors and smaller facade details with the JCE Lighting 3-inch LED outdoor wall sconce. Its compact black cylinder delivers up to 3,200 lumens while keeping a restrained profile on the wall.
Set the light distribution to downlight, uplight or both. Adjust the color temperature and beam angle on site, and use the included photocell for dusk-to-dawn control when enabled. A 120-347V AC input and 0-10V dimming support commercial lighting projects.
Key Features
- Four wattage settings: 24W / 19W / 15W / 10W in one fixture.
- Up to 3,200 lumens: Maximum output at 24W, 4000K and a 60° beam angle in Full mode.
- Three selectable color temperatures: Choose 3000K warm white, 4000K neutral white or 5000K daylight.
- Adjustable beam angles: Select 50°, 60° or 70° for the upper and lower beams to shape the architectural lighting effect.

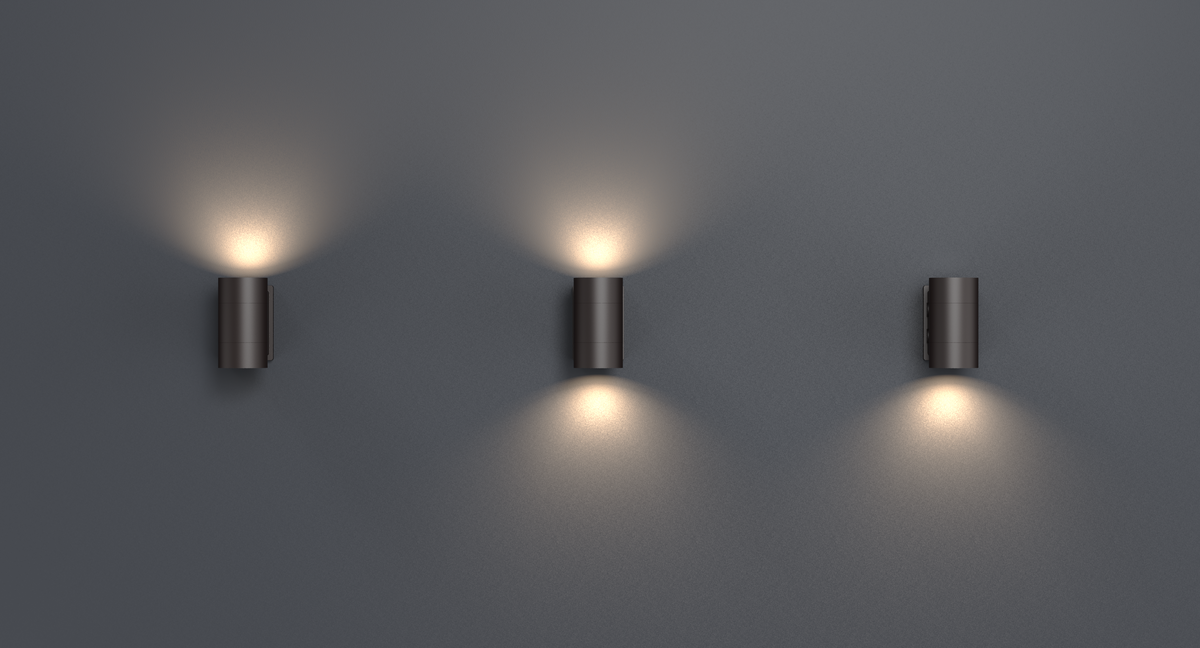

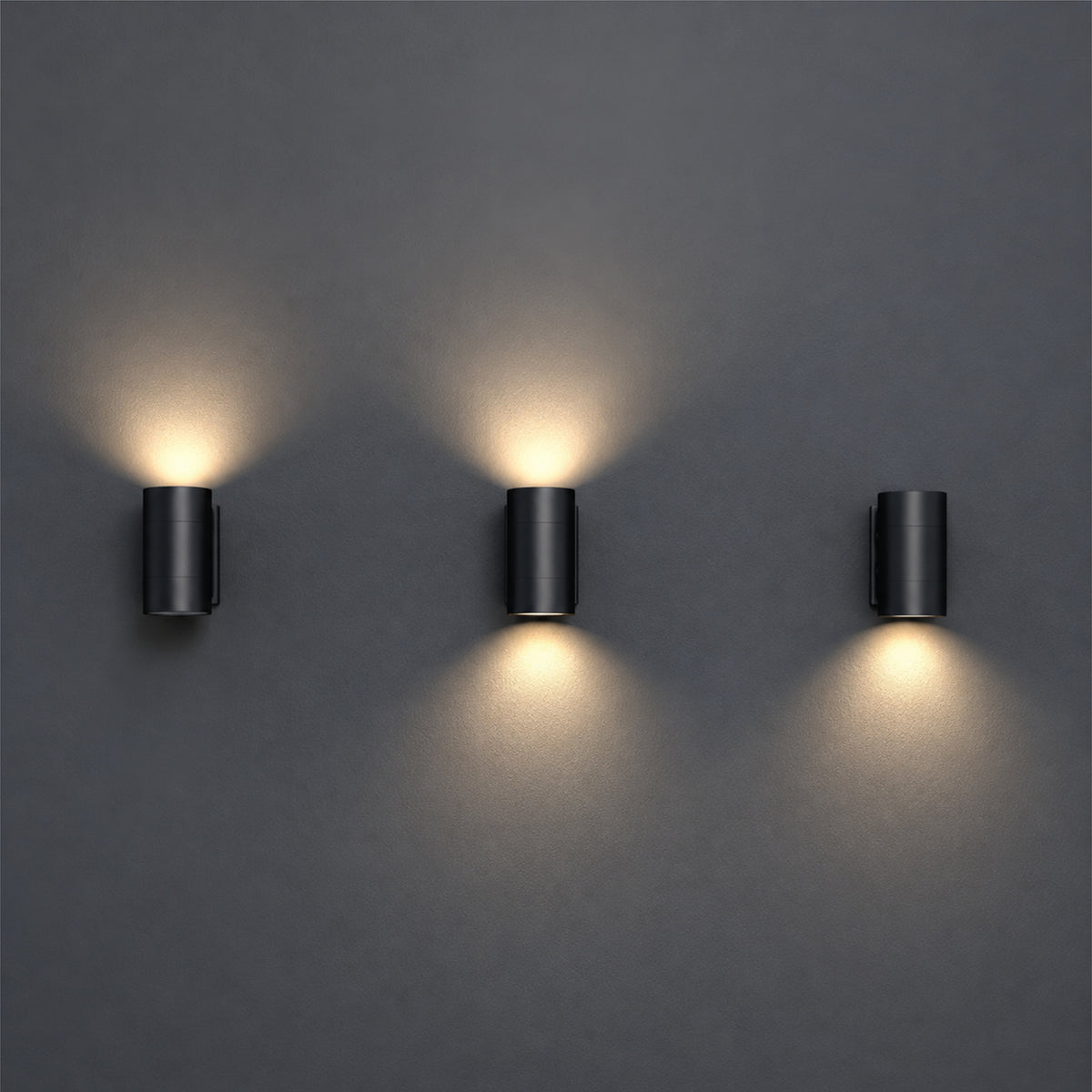

- Three lighting modes: Choose uplight, downlight or combined up/down illumination.
- Photocell included: Enable dusk-to-dawn operation or disable the photocell as needed.
- 0-10V dimming: Adjust output from 10% to 100% with a compatible control.
- Outdoor construction: Black powder-coated cast aluminum housing; UL and cUL listed for wet locations.
- 5-year limited warranty: Supported by an estimated 50,000-hour LED lifespan.
Specifications
| Brand | JCE Lighting |
|---|---|
| Series | MCL03 |
| Nominal cylinder size | 3 inch |
| Selectable wattage | 24W / 19W / 15W / 10W |
| Maximum light output | Up to 3,200 lumens* |
| Selectable color temperature | 3000K / 4000K / 5000K |
| Input voltage | 120-277V AC |
| Light distribution | Downlight / Uplight / Up & Down |
| Selectable beam angles | 50° / 60° / 70° |
| Dimming | 0-10V; 10%-100% dimming range |
| Photocell | Included; enable/disable capability |
| Color rendering index | 80 |
| Housing / Finish | Cast aluminum / Black polyester powder coating |
| Location rating / Listing | Wet locations / UL and cUL listed |
| Actual cylinder diameter | 3.1 in (78 mm) |
| Fixture height | 8.7 in (220 mm) |
| Projection from wall | 5.0 in (127.2 mm) |
| Operating temperature | -40°F to 122°F (-40°C to 50°C) |
| Estimated LED lifespan | 50,000 hours |
| Warranty | 5-year limited warranty |
*Maximum lumen output is specified at 24W, 4000K, 60° and Full mode. Light output varies with wattage, color temperature, beam angle and lighting mode. The maximum listed output is for the fixture, not each beam.
Applications and Selection
A compact choice for door surrounds, hotel corridors, residential-style entrances and smaller architectural details. Select a lower wattage when the design calls for less light output.
Use 3000K for a warmer architectural appearance, 4000K for a neutral tone or 5000K where a daylight appearance is preferred. Select the beam angle to suit the intended wall pattern. Final coverage depends on mounting position and the surrounding surfaces.
Frequently Asked Questions
Does the 3-inch size refer to the height?
No. 3 inches is the nominal cylinder size. The actual cylinder diameter is 3.1 in (78 mm), the fixture height is 8.7 in (220 mm), and the projection from the wall is 5.0 in (127.2 mm).
Do I need to order separate wattages or color temperatures?
No. This fixture includes 24W / 19W / 15W / 10W settings and selectable 3000K, 4000K and 5000K color temperatures. These are settings on the fixture, not separate bulbs.
Can this wall sconce provide only downward light?
Yes. Select downlight only, uplight only or combined up/down lighting. The selectable beam angles are 50°, 60° and 70°.
Does it include a photocell and support dimming?
Yes. This configuration includes a photocell for dusk-to-dawn control, with enable/disable capability. It also supports 0-10V dimming from 10% to 100% using a compatible control.
Can it be installed outdoors?
Yes. The fixture is UL and cUL listed for wet locations and has a powder-coated cast aluminum housing. Install it according to the product installation instructions.
What warranty is included?
This LED wall sconce comes with a 5-year limited warranty.
