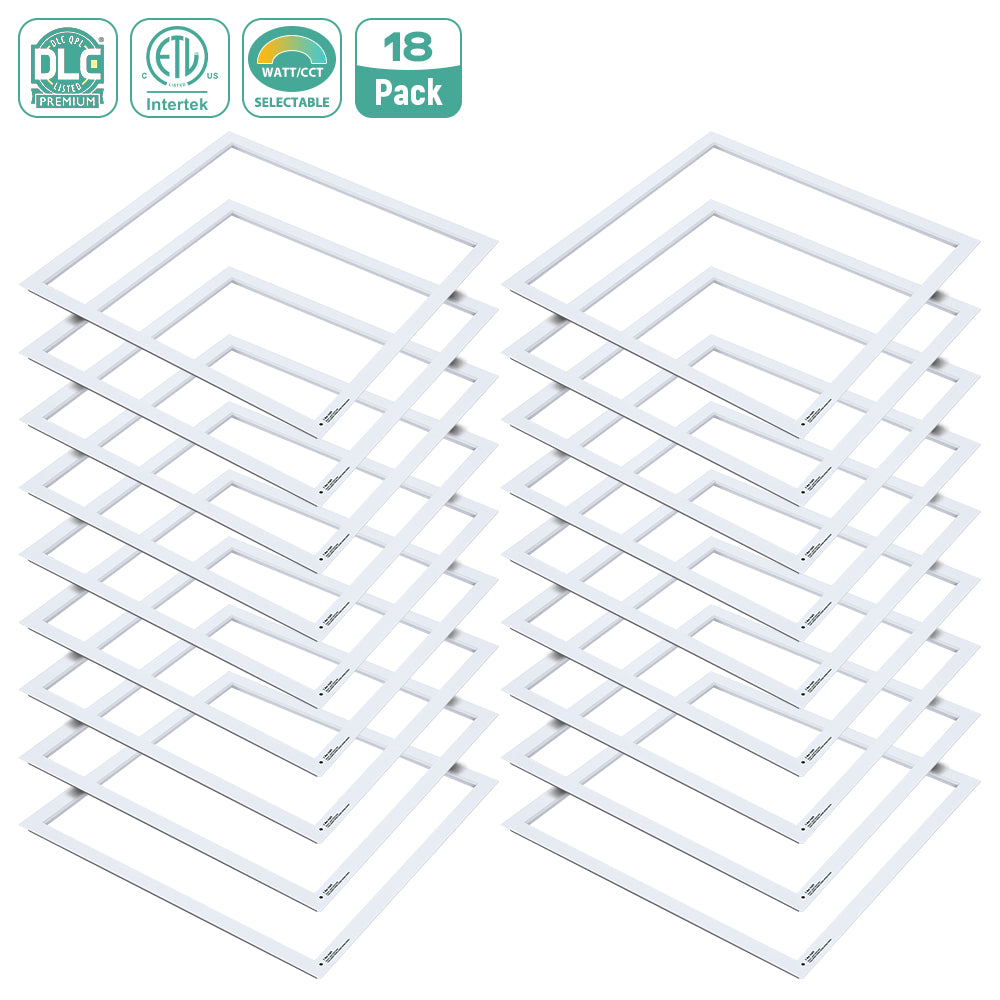

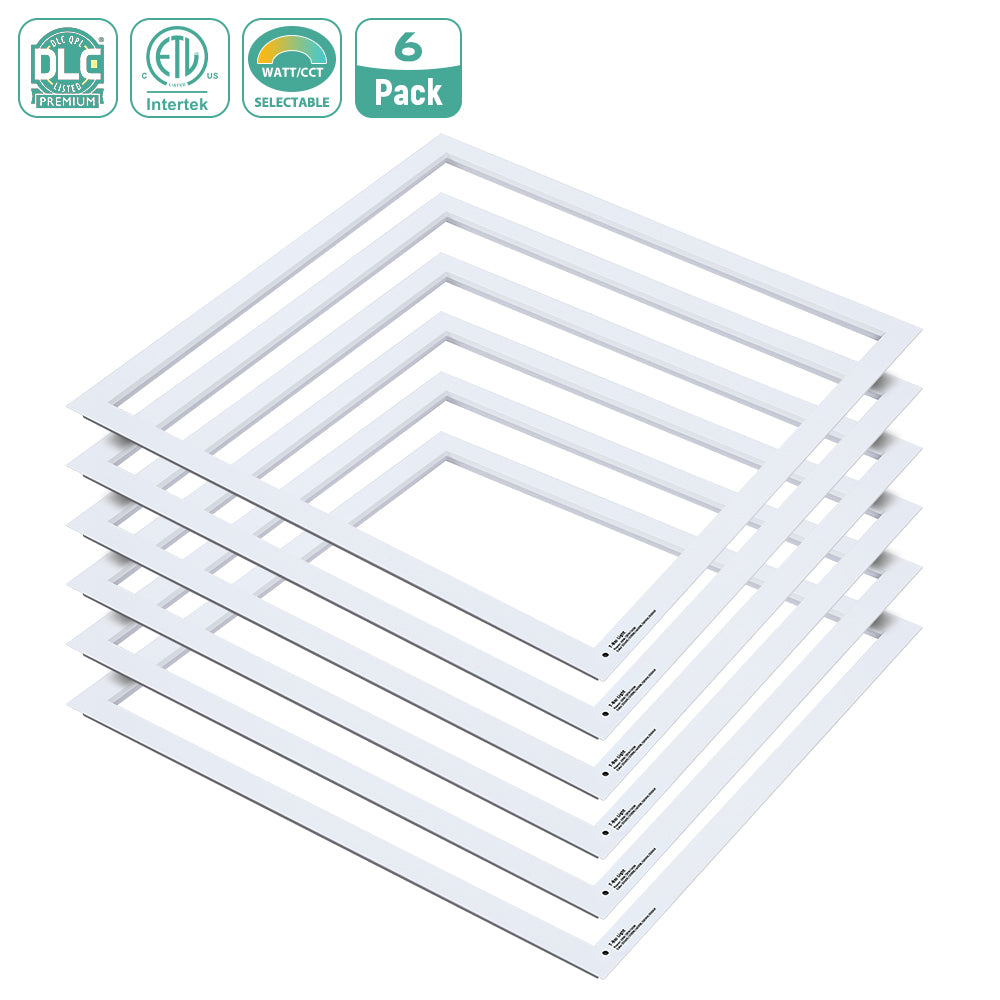

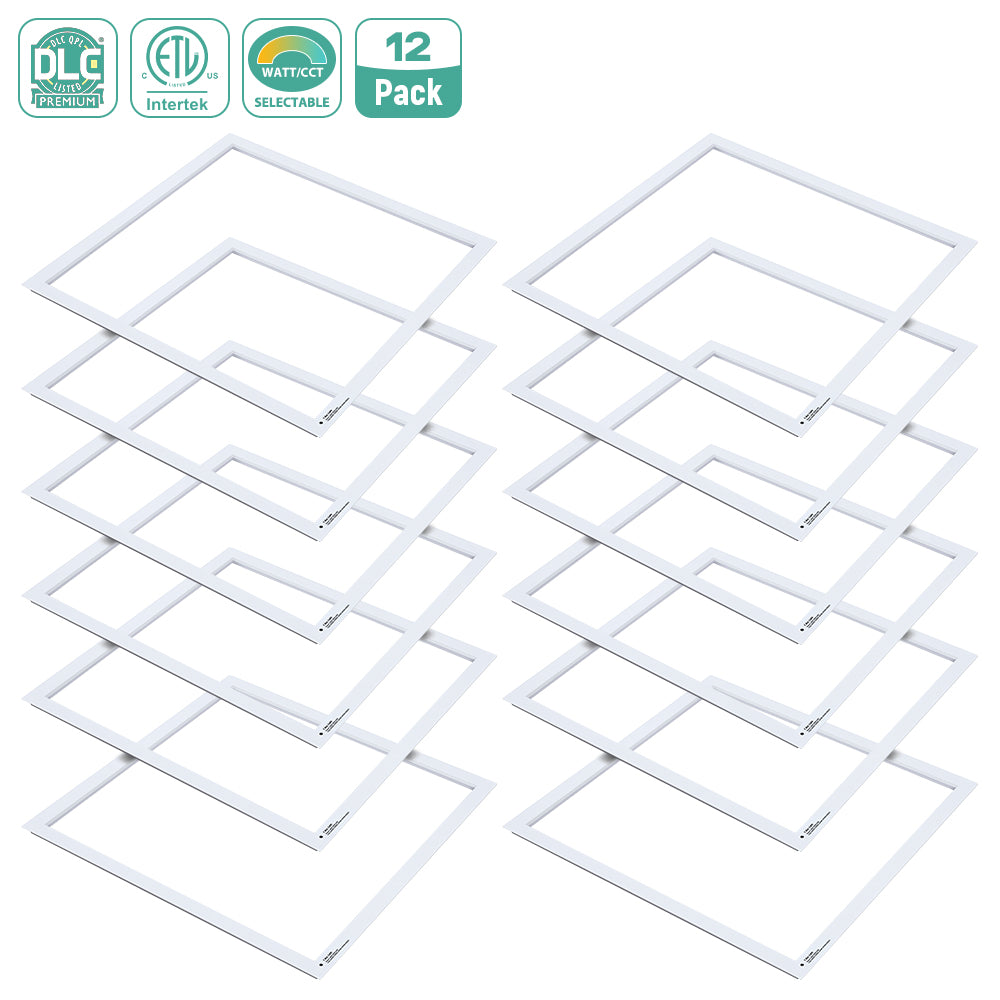

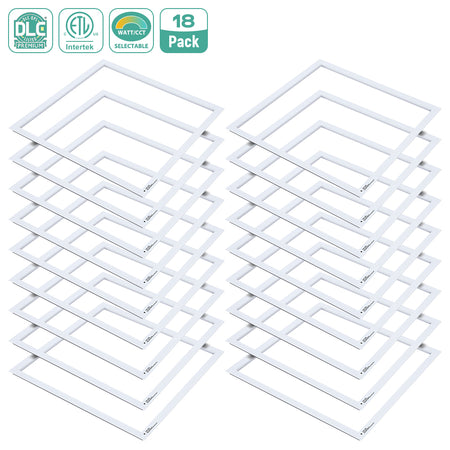

LED Frame Light 120-277V 5000 Lumens ETL DLC Premium | 40W 2x2FT

LED Frame Light 2x2FT – Wattage Adjustable & Color Tunable

Engineered for modern offices, commercial interiors, healthcare facilities, educational spaces, and retail environments, the 2×2FT 40W LED Frame Light provides ultra-sleek, energy-efficient architectural lighting. Featuring a distinctive hollow perimeter frame design, this fixture drops seamlessly into standard T-bar ceiling grids, allowing ceiling tiles to sit cleanly inside or creating an ultra-modern aesthetic. Delivering 5,000 lumens at an energy-saving efficacy of 125 lm/W, it serves as an ideal upgrade from traditional 2x2 fluorescent troffers, providing smooth, glare-free illumination while drastically reducing utility costs.

• 5,000 Lumens High-Efficacy Output (125 lm/W): Delivers bright, clean illumination consuming only 40W of electricity, replacing power-hungry fluorescent troffer fixtures.

• Architectural Perimeter Frame Design: Hollow edge-lit frame structure retains ceiling tiles while creating a clean, high-end visual appearance in modern commercial spaces.

• DLC Premium & ETL Listed: Verified for high efficiency to qualify for maximum utility rebates nationwide; ETL certified to strict safety and performance standards.

• Universal Voltage Driver (AC120–277V): Commercial-grade driver operates seamlessly across standard power systems (120V, 208V, 240V, and 277V).

• Smooth 0–10V Continuous Dimming: Fully compatible with standard 0–10V dimming controls for flicker-free light level adjustment down to 10%.

• Uniform Glare-Free Optics: Engineered with edge-lit LED technology and high-transmittance optical diffusers to eliminate harsh glare, flickering, and dark spots.

• Lightweight & Durable Aluminum Body: Robust aluminum housing ensures efficient heat management, corrosion resistance, and structural stability.

• Easy Drop-Grid Installation: Fits directly into standard 2×2 T-bar suspended ceiling grids, featuring built-in safety earthquake clips for rapid, contractor-friendly setup.

Key Features

• Selectable Wattage: 20W / 30W / 40W

• Selectable Color Temperature: 3000K / 3500K / 4000K / 5000K / 6500K

• Maximum Output: 5000 Lumens

• High Efficiency: up to 125 lm/W

• Voltage: 120-277V universal input

• 0-10V Dimming compatible

• Beam Angle: 120° wide distribution

• CRI: >80 for accurate color rendering

• Power Factor: >0.95

• THD: <10%

• IP Rating: IP40

• Operating Temperature: −20°C to 45°C

Certifications

• ETL Listed

• DLC Premium

• Suitable for damp locations

Installation Options

• Recessed mounting with T-bar ceiling

• Suspended mounting

Applications

Ideal for commercial and residential environments such as offices, retail stores, schools, restaurants, and other indoor spaces.

Warranty

5-Year Limited Warranty.
