Types of Dimming Systems for Industrial & Warehouse LED Lighting
Below is a clear breakdown of the most common dimming technologies, their working principles, pros, cons and ideal warehouse/industrial use cases.
1. 0–10V Analog Dimming (Most Popular for Warehouses)
Working principle: A low-voltage control signal (0–10V DC) sends brightness commands to dimmable LED drivers.
- 10 V = 100% brightness; 0 V = minimum dim level (usually 5–10%, not fully off)
- Requires separate low-voltage control wiring alongside power cables.
Advantages
- Low component cost, simple installation; widely supported by industrial high bay lights
- Easily pairs with microwave motion sensors, daylight harvesting sensors
- Straightforward for zone-based control in medium/large warehouses
Limitations
- Analog signal: all lights on the same control wire dim uniformly (no individual light control)
- Signal susceptible to interference in heavy industrial environments without proper cabling
Best for: Standard warehouse aisles, loading docks, retrofitting existing facilities.
2. DALI Digital Dimming (Digital Addressable Lighting Interface)
Working principle: Bidirectional digital communication protocol. Every DALI driver has a unique address.
Individual lights or custom groups can be controlled independently. Supports feedback (lamp fault status, power monitoring).
Advantages
- Individual fixture control, flexible zoning and lighting scenes
- Compatible with central touch panels, remote software, BMS building management systems
- Suitable for complex distribution centres with mixed storage, picking and manufacturing zones
Limitations
- Higher upfront equipment cost; requires professional commissioning
- Needs trained technicians for system setup
Best for: Large automated warehouses, smart factories, facilities requiring remote monitoring and fault alerts.
3. DALI-2
Updated certified version of DALI with improved sensor compatibility, better interoperability. Preferred for new premium smart industrial projects.
4. Wireless Dimming Systems (No Control Wiring Required)
Ideal when running extra control cables is expensive or impractical in large warehouses.
4.1 Bluetooth Mesh
- Low cost; control via mobile phone/tablet APP
- Short to medium communication range
- Easy commissioning for small-to-medium warehouses
⚠ Limitation: Signal penetration can be blocked by racking, metal structures.
4. Zigbee Mesh
- Stable self-forming mesh network
- Supports sensors, scheduling, group control
- Better anti-interference than basic Bluetooth
4.2 LoRaWAN
- Long-distance wireless communication (hundreds of metres)
- Excellent for sprawling industrial parks, multi-building warehouses
- Low data rate, designed for remote monitoring and scheduled dimming
4.3 Wi-Fi
Simple web/app access, but not recommended for heavy industry. Prone to interference from forklifts, motors and welding equipment.
Important note: All wireless solutions require wireless-enabled LED drivers or external wireless control modules.
5. DMX512
Primarily for stage lighting. Not recommended for general warehouse & industrial lighting. Overly complex and unnecessary cost.
Systems to Avoid for Industrial High Bay LED Lighting
TRIAC / Phase-cut dimming
Designed for old incandescent lamps. Causes flickering, unstable output and premature driver failure on high-power industrial LEDs. Almost never used for high bay lights.
Comparison Table for Quick Reference
| Dimming System | Control Type | Individual Light Control | Wiring | Typical Use Case |
|---|---|---|---|---|
| 0–10V | Analog | No (zone only) | Separate control wire | Standard warehouses, retrofits |
| DALI / DALI-2 | Digital | Yes | DALI bus cable | Large smart warehouses, BMS integration |
| Bluetooth Mesh | Wireless | Yes | No control wiring | Small & medium warehouses |
| Zigbee Mesh | Wireless | Yes | No control wiring | Medium warehouses with sensor automation |
| LoRaWAN | Wireless | Yes | No control wiring | Large industrial campuses, long-distance sites |
Practical Selection Guidance for Customers
- Budget-friendly basic automation with motion sensors → 0–10V
- Large warehouse, independent aisle control, remote monitoring, BMS integration → DALI-2
- New warehouse where installing control cables is costly → Bluetooth Mesh or Zigbee
- Wide-spread industrial site across multiple buildings → LoRaWAN
Short summary (ready for proposals)
Industrial LED lighting mainly uses 0–10V analog dimming for cost-effective zone control and DALI/DALI-2 digital dimming for advanced, addressable smart systems. Wireless options including Bluetooth Mesh, Zigbee and LoRaWAN eliminate control wiring. TRIAC phase dimming is unsuitable for high-power warehouse LED high bay fixtures.

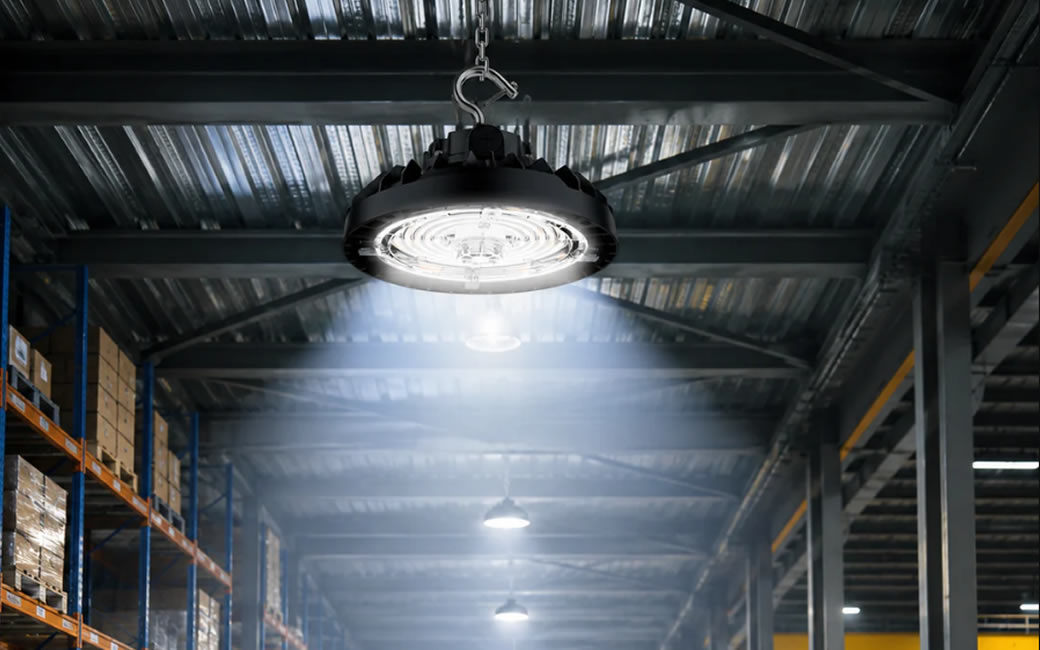

Advantages of Dimmable LED Lighting for Warehouses & Industrial Facilities
1. Significant Energy & Operating Cost Savings
- Reduce power consumption when full brightness is unnecessary: vacant aisles, off-shift hours, or areas with natural daylight.
- Combined with microwave occupancy sensors, lights can dim to a low standby level instead of switching fully off.
- Typical energy savings range from 30% to 60% compared to fixed-brightness LED lighting.
- Lower electricity bills also reduce heat output from fixtures, easing building cooling loads.
2. Extend LED Fixture Service Life
- Running LEDs at reduced brightness lowers operating current and temperature of LED chips and drivers.
- Slows light depreciation (L70 decay) and reduces thermal stress on the driver — the most common failure component.
- Longer service intervals cut labour costs for maintenance and lamp replacement.
3. Flexible Lighting Levels for Variable Working Zones
Warehouses have diverse lighting requirements in one facility:
- High brightness for picking, packaging and quality inspection areas
- Reduced brightness for static bulk storage aisles
- Adjustable light levels for loading docks based on daytime outdoor light
No need for separate lighting circuits; dimming dynamically matches illuminance to activity.
4. Improved Workplace Safety & Visual Comfort
- Avoid excessive glare from over-illumination, which causes eye strain for forklift operators and staff working long shifts.
- Smooth, gradual dimming prevents sudden light changes that can distract workers or affect machine vision.
- Maintains low background light in unused zones instead of total darkness, eliminating hidden safety hazards.
5. Support Smart Automated Lighting Strategies
Dimmable LEDs enable complete intelligent control systems:
- Daylight harvesting: auto-dim as natural skylight increases
- Motion-linked dimming: dim standby / ramp up to full brightness on detection
- Time scheduling for day/night shift lighting profiles
- Zone grouping and remote adjustment via DALI, 0–10V or wireless control systems
6. Better Compatibility with Building Management Systems (BMS)
Dimmable drivers allow lighting to be integrated into central facility automation.
Facility managers can remotely adjust brightness, monitor power use and receive fault alerts, supporting modern smart factory and warehouse management.
7. Environmental & Sustainability Benefits
- Lower carbon emissions from reduced power draw.
- Many energy utility rebate programmes require controllable/dimmable lighting to qualify for incentives.
Short Summary Version (for brochures / quotation documents)
Dimmable industrial LED lighting delivers substantial energy savings by matching brightness to actual operational needs. It extends fixture lifespan by lowering thermal load, enables smart automation with motion and daylight sensors, offers flexible illumination for different warehouse zones, improves worker visual comfort and safety, and supports integration with central building management systems.
