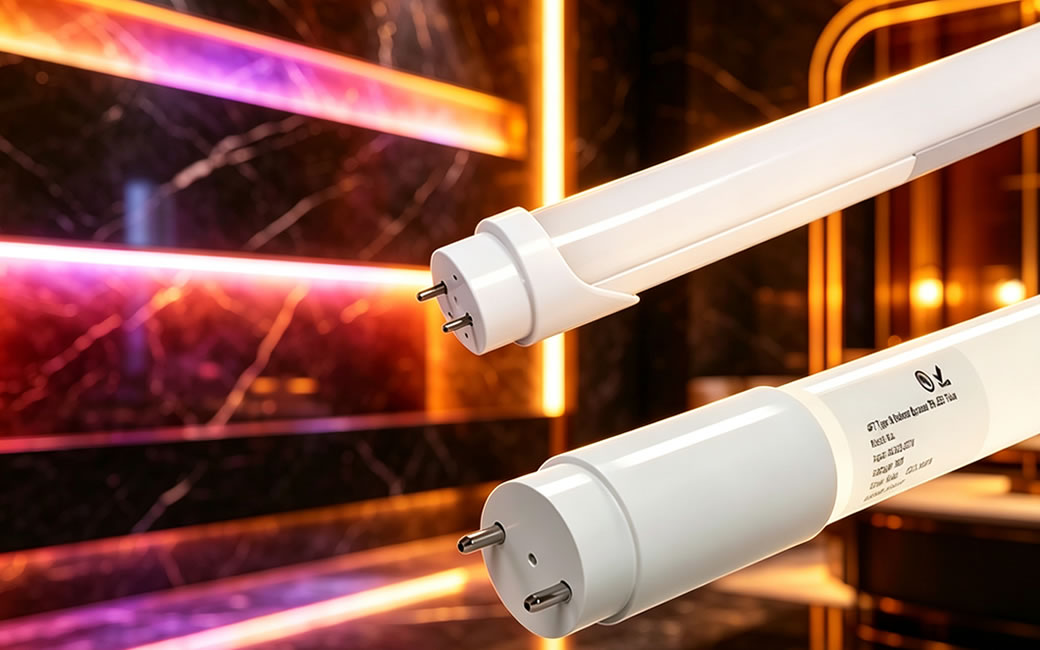

Which One Is Better LED T5 Tube vs LED T8 Tube？

There is no universal "better". The choice depends on your existing fixture, installation budget, space layout and usage environment.

Basic Definition

T5: Diameter = 5/8 inch ≈ 16 mm (slim tube)
T8: Diameter = 1 inch ≈ 25.4 mm (thicker, standard size)

Important: LED T5 / T8 cannot physically swap — pin size and fixture housing are different.

LED T5 Tube vs LED T8 Tube – Which One Is Better?

Side-by-Side Comparison

Item	LED T5 Tube	LED T8 Tube
Size & Shape	Slim, compact; suitable for narrow batten housings	Thicker, bigger body; more internal space for driver & heat sink
Heat Dissipation	Smaller aluminum body → worse heat dissipation	Larger surface area → better thermal performance; longer real service life under long-hour operation
Light Efficiency	High lumen per watt (good for dense layout)	High total lumen output; light distribution more even
Fixture Compatibility	Fits only dedicated T5 brackets / integrated T5 battens	Industry mainstream: huge stock of old T8 fluorescent fixtures worldwide; most common for retrofit projects
Cost & Availability	Integrated T5 fixtures often sold as whole sets; spare tubes less universal	Widely available, lower unit cost, many single-end / double-end bypass types for retrofitting
Typical Application Strength	New-build cabinet lighting, shelf lighting, suspended dense linear lighting, small office partitions	Warehouse, factory, supermarket, school, home garage, direct replacement for old fluorescent T8
Installation Note	Most T5 LED comes as integrated batten (tube + housing together)	Two types: standalone replacement tube OR integrated batten

Advantages of LED T5

Slim profile, cleaner visual look for modern interior design
Works well when you need multiple tubes installed closely together
Ideal for display racks, under-cabinet lighting, narrow ceiling channels
Lower weight for suspended light systems

Disadvantages of T5
Cannot reuse existing T8 light housings
Smaller body makes heat management harder; risk of faster light decay in 24/7 industrial use
Less flexible for retrofits; usually you have to replace the whole fixture

Advantages of LED T8

Best choice for renovation / retrofit: billions of old T8 fluorescent fixtures globally
Larger tube body = better cooling; more stable for continuous operation (factory, logistics, retail)
Huge product selection: glass / PC cover, ballast-compatible or ballast-bypass versions
Easier to source replacement tubes in all regions

Disadvantages of T8
Bulkier, not suitable for narrow hidden installation spaces

WHY Choose LED T5 if:

You are doing new installation (no existing lights to reuse)
You need slim, neat linear lighting: shelves, cabinets, shop display, narrow ceiling cove
Design requires closely arranged multiple linear lights

Choose LED T8 if:

You want to upgrade old T8 fluorescent lights (retrofit project)
Long-hour continuous use: factory, warehouse, supermarket, school, parking lot
You prioritize easy maintenance, widely available spare parts
Budget favors simple, universal lighting solution

Quick Summary

Retrofit old fluorescent lighting → T8 is better
New construction, slim aesthetic / display lighting → T5 is better

If you tell me your scenario (home / factory / shop; new install or replacing old lights), I can give you a definite recommendation with suggested wattage.

Can I use LED T5 Tube instead of LED T8 Tube？

Normally NO, you cannot directly plug an LED T5 tube into a T8 fixture, and vice versa.
There are physical, dimensional and fixture differences stopping simple swapping.

1. Key physical barriers

Tube diameter
T5: ~16 mm | T8: ~25.4 mm
A T5 tube is much thinner; it will rattle loosely inside a T8 lamp housing.
Pin distance (critical!)
- Standard T8 tube: end pins spacing = 26 mm
- Standard T5 tube: end pins spacing = 13 mm
  The two end caps have pins set at different distances. The tube simply cannot lock into the T8 lampholders.

2. Two common scenarios explained

Scenario A: You have existing T8 batten/fixture

You want to install LED T5 tubes to replace LED T8 tubes
Possible only if you do ALL of the following modifications:

Replace original T8 lampholders with T5 lampholders
Check if the fixture housing has enough internal width to fit T5 tubes
Rewire power accordingly

This is extra labor & parts cost. Usually not worth it.

Scenario B: Confusion between “T5 integrated batten” vs separate tubes

Many people mix up:

Integrated T5 LED batten: light + housing as one complete unit
Plug-in replacement T5 / T8 tubes (meant to go into existing fluorescent fittings)
You cannot take a standalone T5 tube and put it into a separate T8 fixture without changing sockets.

3. Exception reminder

There is NO universal adapter to convert T8 sockets to accept T5 tubes.

Practical Advice

Retrofit existing T8 fittings: Stick with LED T8 tubes (simplest, no modification)
If you prefer slim T5 lighting: Purchase complete T5 integrated battens and replace the whole light unit
Do NOT force-fit tubes — loose contacts cause overheating and safety hazards.

Summary

You cannot just swap the tubes directly.
To use T5 in a T8 fixture: must change lampholders and check housing space. For most projects, it’s cheaper and easier to keep T8 or buy full T5 light sets.
