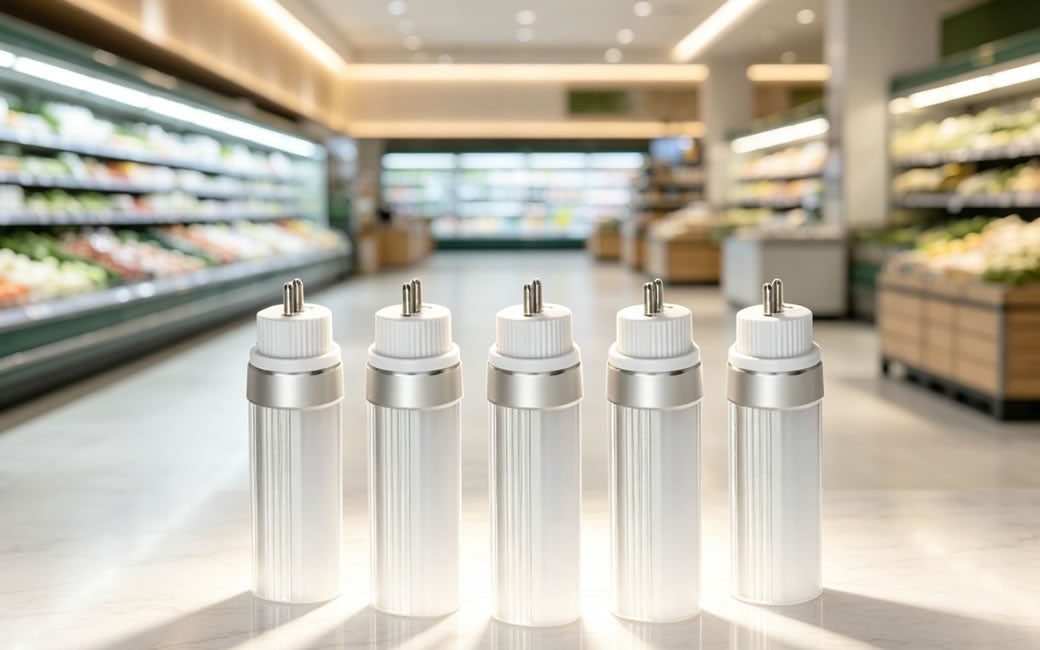

How To Install LED T5 Tube Light for Supermarkets Step By Step?

How To Install LED T5 Tube Light for Supermarkets Step By Step?

1. Power & Length (Match Installation Space)

• 300 mm (1 ft): 6–9 W → Small refrigerated cabinets, mini shelf layers
• 600 mm (2 ft): 10–14 W → Fruit/vegetable cold cabinets, middle shelf lighting
• 900 mm (3 ft): 14–18 W → Medium-height commodity shelves
• 1200 mm (4 ft): 18–24 W → Main aisle overhead lighting, tall shelves

Key tips:

• Shelf lighting: Prioritize low-power anti-glare models; avoid overly bright light causing glare on packaging.
• Cold display cabinets: Select low heatLED T5; high-power tubes will raise cabinet energy consumption.

2. Power Supply Type: Single-ended VS Double-ended

Double-ended power (widely recommended for supermarket retrofit)

• Live wire connects one end, neutral wire connects the other end
• Safe for bulk renovation, compatible with most old T5 lamp holders

Single-ended power

• L and N both wired on one terminal end
• Suitable for new integrated T5 brackets
   Important reminder: Confirm wiring method before purchasing; mismatched type leads to no light or short circuit.
  All supermarket LED T5 tubes should be Ballast Bypass (Type B). Do not use tubes designed to work with original fluorescent ballasts.

3. Color Temperature (CCT) – Critical for Merchandising

4. CRI (Color Rendering Index)

• General shelves / storage: CRI >80 (minimum standard)
• Fruit, vegetable, meat, seafood counters: CRI >90 (High CRI)
  High CRI ensures food looks bright and fresh; low CRI makes food look dull and unattractive.

5. Flicker Standard

• Flickering light causes eye fatigue for shoppers and staff
• Camera capture: Many supermarkets use surveillance cameras; flickering tubes create rolling black bands on CCTV footage.

6. Housing & IP Rating

1. Ordinary dry shelves / aisles: IP20 standard aluminum + PC diffuser
2. Refrigerated display cabinets, fresh food wet zones: Choose IP44 minimum
   Resist water vapor, condensation and extend service life in cold cabinets.

Diffuser option: Frosted PC cover for anti-glare; transparent cover for maximum brightness.

7. Voltage

8. Installation Form: Split Tube VS Integrated T5 Fixture

1. Retrofit project (original T5 fluorescent brackets): Separate G5 pin LED T5 tubes
2. New shelf / cold cabinet construction: Integrated T5 LED light (tube + aluminum housing)
   Easier daisy chain connection, neat wiring for mass shelf installation.

9. Extra Commercial Requirements for Supermarket Projects

1. Lifespan: ≥30,000 hours to reduce frequent replacement labor cost
2. Certification: CE, RoHS; if local market requires, add ETL / FCC
3. Dimmable option: For premium fresh food supermarkets; non-dimmable for regular stores to save cost
4. Low heat LED chips: For inside glass door refrigerators, avoid increasing refrigerator load

Quick Selection Checklist for Buyer

1. Confirm length & power based on mounting position
2. Confirm single-ended / double-ended power according to wiring plan
3. Match CCT and CRI by zone (fresh food needs high CRI)
4. Check IP rating if used in cold cabinets or wet zones
5. Require flicker-free wide voltage design
6. Decide retrofit (separate tube) or new build (integrated bracket)

1. Retrofit: Replace old T5 fluorescent tubes in existing supermarket fixtures (most widely used)
2. New installation: Mount brand-new integrated T5 LED light brackets for shelves, fresh food cabinets, ceiling lighting

 Critical pre-notice for supermarket projects:
Most commercial LED T5 tubes are Type B (Ballast Bypass / Direct Mains). Do NOT keep the original electronic ballast, it will burn out LED tubes and cause flickering. Installation should be completed by a qualified electrician.

Part 1: Pre-install Preparation

Tools

Confirm LED tube specification first

• Base: G5 bi-pin (standard T5 interface)
• Check tube label: Single-ended power / Double-ended powerSingle-ended: L & N connect to the same end of the tubeDouble-ended: Live (L) connects to one end, Neutral (N) to the opposite end
• Voltage: AC 100–265V for global supermarket use
• CCT selection for supermarket:Fresh meat: 3000K warm whiteFruit & vegetable: 4000K–4500K natural whiteAisle, checkout, storage: 5000K–6000K daylight

Part 2: Safety Rules (Mandatory for Supermarket)

1. Turn off power at the circuit breaker, not only wall switches. Lock out/tag out during installation.
2. Test with voltage tester to confirm zero voltage inside fixtures.
3. Dispose waste fluorescent tubes properly (contain mercury).
4. After rewiring, stick warning label inside fixture:

“This luminaire has been modified for LED tubes. Do not reinstall fluorescent lamps.”

5. Keep all wiring terminals insulated; avoid exposed wires near refrigerators, wet fresh food zones.

Part 3: Retrofit Installation (Replace Old Fluorescent Fixtures)

Step 1: Dismantle old components

1. Remove diffuser cover (if fitted).
2. Take out original T5 fluorescent tube.
3. Remove starter (if magnetic ballast type).
4. Open wiring compartment, cut all wires connected to the electronic/magnetic ballast, then remove the ballast completely.

Step 2: Rewire lamp holders (Ballast Bypass)

Option A: Double-ended powered LED T5 (most common for supermarket shelf light)

• Connect AC Live (L) wires to one end lamp holder
• Connect AC Neutral (N) wires to the opposite end lamp holder
• Cap and insulate all unused leftover wires from old ballast.

Option B: Single-ended powered LED T5

• Connect both Live (L) and Neutral (N) to only one lamp holder end (marked L/N on tube cap).
• Leave the other end lamp holder with no power connection (only for fixing).

Step 3: Mount LED tube

1. Align G5 pins into both lamp holders.
2. Rotate tube 90° to lock firmly.
3. Make sure the light-emitting surface faces goods/aisles.
4. Refit diffuser cover.

Step 4: Test power

Part 4: New Installation – Integrated T5 LED Bracket (Popular for Produce Cabinets)

1. Mark mounting positions on cabinet/shelf; drill holes.
2. Fix brackets with self-tapping screws.
3. Daisy-chain multiple T5 tubes via end-to-end connecting cables.
4. Connect the first tube’s power cord to AC mains.
5. Test lighting.

Tip for supermarkets: Use short 300mm / 600mm T5 for refrigerated display cabinets; 1200mm for overhead aisle lighting.

Part 5: Common Mistakes to Avoid

1. Leave original electronic ballast connected → LED damage, overheat risk
2. Mix single-ended tube with double-ended wiring → short circuit / no light
3. Install tubes backwards for single-ended models → no illumination
4. Poor insulation in wet fresh food sections → electric hazard
5. Overload one circuit when daisy-chaining dozens of shelf T5 lights

Part 6: Supermarket Operation Suggestion

• Install anti-glare diffusers for checkout and fresh food zones to improve shopping experience.
• Choose flicker-free high-CRI LED T5 for fruit, seafood and meat displays to make food look fresher.
• Schedule installation during off-business hours to avoid disrupting customers.
