What tools are needed to install LED panel lights?
Tools & Materials Needed for Installing LED Panel Lights
Basic Hand Tools (Necessary for all installation styles)
- Measuring tape: Measure panel size, mark ceiling hole positions and mounting spots.
- Pencil / marker: Draw cutting lines and screw positioning marks on ceilings.
- Screwdriver set (flathead + Phillips head): Tighten terminal screws, mounting screws, driver cover screws.
- Wire strippers: Strip plastic insulation off electrical wires safely without cutting copper cores.
- Voltage tester / multimeter: Confirm power is completely cut off before wiring (critical for safety).
- Electrical tape + wire nuts / terminal blocks: Fasten wire joints and insulate exposed wiring.
- Cable ties: Neatly bundle excess wires and fix the LED driver out of the way.
Power Drilling & Cutting Tools (Depends on ceiling type)
-
Corded/cordless electric drill + assorted drill bits
- Concrete drill bits: For solid concrete ceilings (surface-mounted panels).
- Wood drill bits: For wooden joist ceilings.
- Drywall cutter / utility knife: Cut holes in gypsum drywall for recessed embedded panels.
- Hole saw (optional): For neat circular cutouts if using round LED panels.
| Installation Type | Extra Hardware Required |
|---|---|
| Recessed LED panel | Matching LED driver, built-in spring clips (usually pre-attached on light) |
| Surface-mounted panel | Mounting bracket/base, plastic expansion wall plugs, long mounting screws |
| Suspended grid ceiling | Steel hanging wires, screw hooks to anchor to upper ceiling beams |
Other helpful supplies
- Work gloves: Prevent cuts from sharp metal panel frames and drywall edges.
- Safety goggles: Block drywall dust and debris during ceiling cutting/drilling.
- Ladder / step stool: Reach high ceilings safely.
Reminder
All LED panels come with their dedicated driver power supply. Never wire mains electricity directly to the panel. If installing in damp areas (bathroom, kitchen), prepare waterproof junction boxes additionally.
Complete Guide to Installing LED Panel Lights
LED panel lights are mostly recessed ceiling lights (for suspended drywall ceilings) or surface-mounted lights (for solid concrete ceilings). Below are step-by-step installation tutorials for the two most common types, plus safety prep.
Pre-Installation Safety & Tools
Critical Safety Rules
- Cut off power completely: Turn off the circuit breaker for the ceiling lighting circuit. Use a voltage tester to confirm no electricity remains. Never wire with power on.
- If you have no electrical experience, hire a licensed electrician.
- Do not install in damp bathrooms/kitchens unless using IP44+ waterproof LED panels.
Required Tools & Materials
- Screwdriver, wire stripper, voltage tester
- Drill + drill bits, measuring tape, pencil
- Recessed type: ceiling hole saw/cutting knife; surface mount: expansion bolts
- Wire nuts/terminal blocks, electrical tape
- LED panel light, matching driver power supply (included with most panels)
Type 1: Recessed LED Panel (Drop Ceiling / Drywall Ceiling, Most Common)
Used for office, home suspended gypsum board ceilings.
Step 1: Measure and cut ceiling opening
- Measure the outer frame size of your LED panel (e.g., 300×300mm, 600×600mm).
- Mark the cutting outline on the ceiling. The cut hole should be 2~3mm larger than the panel’s embedded size for easy fitting.
- Cut the gypsum board along the line with a drywall cutter. Clear away debris.
Step 2: Run wiring & connect the driver
- Feed household AC wires (live L, neutral N, ground PE) through the ceiling hole.
- Open the LED driver box:
- Input side: Connect home AC live wire to L port, neutral wire to N port, ground wire to ground symbol. Secure wires with wire nuts/terminals and wrap with electrical tape.
- Output side: Connect the low-voltage DC wires from the LED panel to the driver’s DC output terminals (match positive/negative marks).
Note: The driver converts high AC voltage to safe low DC voltage for the panel; never connect mains power directly to the LED panel.
Step 3: Mount the panel spring clips
Most recessed panels have built-in metal spring clips on four sides. Pull the clips upward flat against the panel frame.
Step 4: Push panel into ceiling hole
- Tuck all wires and the driver fully into the ceiling cavity (no pinched wires).
- Push the whole panel into the cut hole. The spring clips pop open inside the ceiling and clamp tightly against the top side of drywall to lock the panel in place.
- Press the panel edge to ensure it sits flush with the ceiling surface, no gaps or wobble.
Step 5: Test power
Restore the circuit breaker, flip the light switch. The panel should light evenly. If not, shut power off and recheck wire connections.
Type 2: Surface-Mounted LED Panel (Concrete Ceiling / No Ceiling Cut Needed)
Ideal for solid concrete, brick ceilings where cutting holes is impossible. Comes with a square/rectangular mounting frame.
- Locate mounting points: Place the surface mounting base against the ceiling, mark screw hole positions with a pencil.
- Drill holes into concrete ceiling, insert plastic expansion tubes. Fix the base firmly to the ceiling with screws.
- Wire the driver: Same wiring rule as recessed lights (AC input from wall power, DC output to LED panel). Secure the driver to the ceiling with tape or cable ties.
- Attach the LED panel to the mounted base: Most designs use snap locks or side screws to fasten the panel onto the base.
- Organize loose wires with cable ties, turn on power to test.

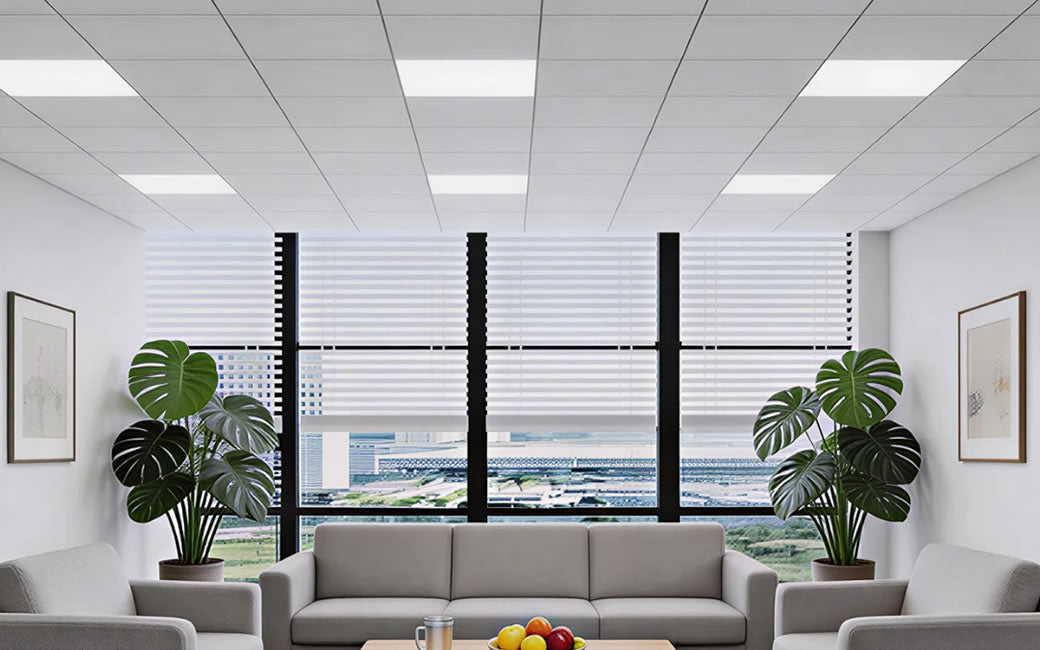

Type 3: Suspended LED Panel (Office Grid Ceiling)
For standard aluminum grid drop ceilings (600×600mm ceiling tiles):
- Remove one original ceiling mineral fiber tile from the metal grid frame.
- Hang the LED panel with suspension wires/hooks attached to the ceiling joists above the grid. Adjust wire length to make the panel level.
- Wire the driver as instructed, hide wires above the ceiling grid.
- Fit the panel inside the grid opening; reinstall surrounding tiles.
Troubleshooting Common Issues
-
Panel flickers or does not light up
- Power not fully on; tripped breaker.
- Loose wires at driver terminals; positive/negative reversed on DC side.
- Faulty LED driver (replace driver).
-
Panel falls loose
- Recessed: Spring clips broken or ceiling hole cut too big.
- Surface mount: Expansion screws not anchored deep enough into concrete.
-
Uneven brightness
Damaged LED chip inside panel; replace the whole panel.
Extra Tips
- Keep the LED driver away from insulation, plastic, and flammable materials to avoid overheating.
- For dimmable LED panels, buy a compatible dimmable driver and matching dimmer switch.
- Kitchen/bath installation must choose waterproof LED panels and route wires through waterproof junction boxes.
Step-by-Step Guide to Cutting Ceiling Holes for Recessed LED Panel Lights
This applies mainly to gypsum drywall/suspended plasterboard ceilings. Concrete ceilings cannot be cut; use surface-mounted panels instead.
Important Preparations
-
Safety first
Turn off ceiling light circuit power. Wear safety goggles, dust mask, work gloves, long sleeves. Set up a ladder steadily. Have a trash bag ready for drywall scraps.
-
Confirm no hidden hazards inside the ceiling
Before cutting, double-check the ceiling cavity has no buried electrical cables, water pipes, gas lines, or wooden joists right under your marked area. If pipes/wires are present, shift your hole position.
-
Confirm exact panel size
Measure the panel’s recess cut dimension (not outer frame). The hole needs to be 2–3 mm bigger on all four sides for easy insertion of spring clips and panel fitting. Common sizes: 300×300 mm, 600×600 mm.
Tools for Cutting Drywall Ceiling
- Tape measure, pencil
- Straight ruler/long level
- Utility knife (drywall knife)
- Small jab saw / drywall keyhole saw (best for straight square cuts)
- Optional: electric drywall cutter
Step 1: Mark precise cutting lines
- Hold the panel up to the ceiling and trace its required cut size lightly with a pencil.
- Use a level and straightedge to redraw clean, perfectly square lines. Double-check all side lengths to make sure it is a true rectangle/square (no lopsided shape).
- Mark small cross marks at the four corners for reference.
Step 2: Start cutting the hole
- Puncture a small starter hole inside one corner of the marked square with the tip of the utility knife. Big enough to fit the front end of the jab saw.
- Insert the jab saw blade through the starter hole. Cut slowly along the pencil line following the edge.
- Cut gently; do not force the saw. Too much pressure cracks surrounding drywall.
- Keep the blade perpendicular to the ceiling surface for clean vertical cuts.
- Repeat cutting along all four sides until the square piece of drywall is fully loose.
Step 3: Remove drywall piece & trim rough edges
- Catch the falling drywall chunk with one hand to stop it crashing down. Pull it out carefully.
- Use the utility knife to shave off uneven paper edges, loose gypsum crumbs around the hole perimeter.
- Test-fit the LED panel: slide the panel into the opening. If it is too tight, trim a tiny amount off the inner edge. If excessively large, the spring clips cannot grip firmly—you will need to patch part of the ceiling.
Special Cases
1. Round LED panels
Use a hole saw attached to an electric drill. Drill slowly to avoid splitting drywall. Mark the center and draw the circle outline first.
2. Metal grid drop ceiling (600×600 office ceiling)
No cutting needed: Simply remove the existing matching-size mineral fiber ceiling tile from the metal grid. Place the LED panel directly into the grid frame. No ceiling cutting required.
Common Mistakes to Avoid
- Cutting the hole too large: Spring clips fail to clamp the panel, causing sagging or falling.
- Cutting into ceiling joists/wires/pipes: Risk electric shock, water leaks. Always check the cavity first.
- Tilted cuts: The panel will sit crooked on the ceiling. Keep cuts straight and vertical.
- Rushing cutting: Creates big cracks spreading outward across the ceiling. Cut slowly.
Post-cut Check
Clear all drywall dust and debris from the ceiling void above. Make sure no sharp drywall points can scratch the LED driver or wiring. Then proceed to wire and install the panel.
