How to Ensure LED Panel Lights Match the Installation Environment

1. Match waterproof and dustproof grades (IP rating) with humidity and splashing conditions

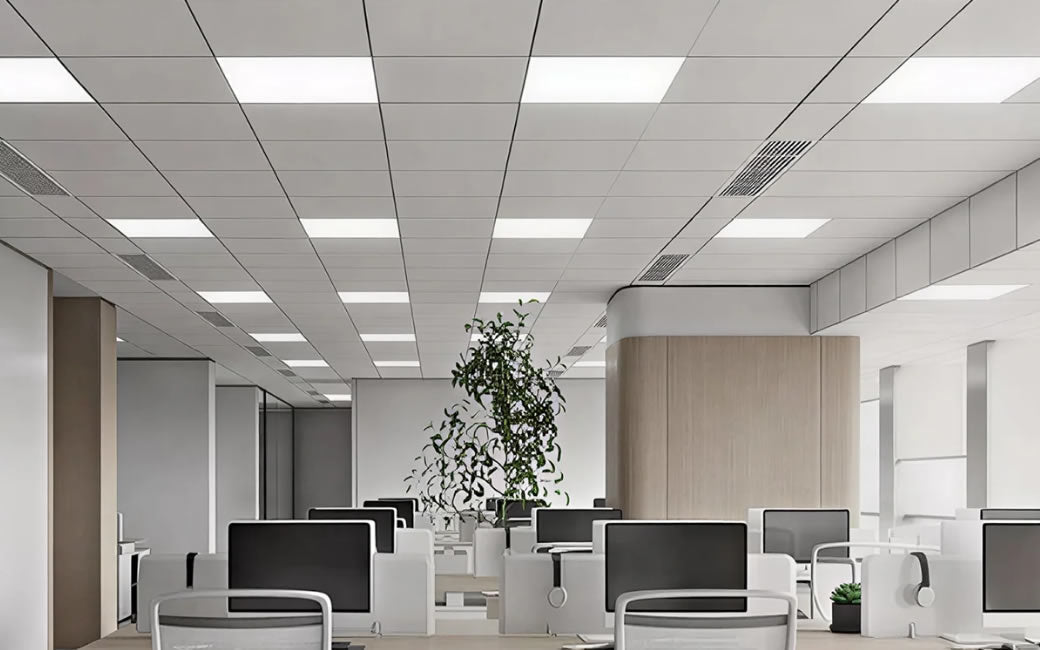

Dry indoor areas (bedroom, study, office, hallway, meeting room)

• Matching requirement: IP20 standard LED panel lights. These block large solid dust and fingers, and meet fully dry indoor needs.
• Installation notes: No liquid splashing risk; only prevent large amounts of construction dust from entering during ceiling construction. Cover lamp surfaces temporarily before final ceiling closure.

Humid areas (toilet, bathroom, laundry room)

• Minimum requirement: IP44 or higher. IP44 blocks splashing water from all directions and resists daily water vapor. Avoid ordinary IP20 lamps here.
• Additional environmental installation rules:
  1. Mount lamps at least 60 cm away from showerheads, bathtub edges to avoid direct water jet impact.
  2. Match with bathroom ventilation fans. Regular ventilation lowers long-term humidity, preventing internal metal rust and circuit corrosion.
  3. Seal frame assembly gaps with waterproof silicone if the bathroom is poorly ventilated.

Ultra-humid environments (open-air balcony, outdoor eaves)

2. Oil smoke environment matching (kitchen)

1. Select dedicated oil-proof, moisture-proof panel lights (IP44 minimum) with sealed frames and anti-oil diffuser panels.
2. Location restriction: Do not install directly above gas cooktops or induction cookers. High heat plus heavy oil fumes will quickly yellow the light guide plate, block light, and corrode internal circuits. Install to the side of cooking zones instead.
3. Must use range hoods to reduce oil accumulation on lamp surfaces. Avoid installing panels in corners where oil smoke stagnates.
4. Wipeable smooth surface design is preferred; textured surfaces trap grease and are hard to clean.

3. Ambient temperature matching

Acceptable operating temperature range for qualified panel lights: -20°C ~ +40°C

• Do not install above ovens, warm air ducts, heating pipes, hot water pipes, heat exhaust outlets. The local temperature often exceeds 45°C.
• If installation must be near heat sources: Reserve 15 cm+ spacing between the lamp and heat source; add heat insulation baffles.
• Cold environments (unheated garages, north-facing unheated balconies): Ordinary lamps work normally above minus 20°C. For extremely cold areas below -20°C, select low-temperature-resistant customized drivers and lamp beads to prevent startup failure.
• Attic/closed ceiling with poor air circulation: Ensure drivers hang freely with airflow. Do not bury drivers inside thermal insulation cotton, which traps heat and raises ambient temperature around components.

4. Dust-heavy environment matching (garage, workshop, storage room, renovation space)

1. Choose IP40 and above fully sealed panel lights to stop fine dust from infiltrating. Dust inside causes dark spots, uneven light and short circuits.
2. Check frame splicing gaps during installation. If assembly gaps are wide, fill with dustproof sealing strips.
3. For construction sites with large amounts of cement dust: Cover lamps completely during decoration; remove protective films only after all wall/ceiling work finishes.

5. Anti-electromagnetic interference matching (avoid flicker caused by surrounding equipment)

1. Keep panel light wiring and lamp bodies at least 50 cm away from high-power interference sources: air conditioner outdoor units, water pump motors, high-voltage lines, wireless signal amplifiers, inverter equipment.
2. Do not share the same electrical circuit with motors, compressors. Lead the panel lights onto an independent lighting circuit.
3. If interference cannot be avoided, select panel lights with isolated drivers, which have stronger anti-interference performance than cheap non-isolated drivers.

6. Ceiling space matching (space environment above ceiling)

1. Recessed installation: The vertical height above the ceiling must be ≥8 cm. Too little height traps hot air, continuously heating the driver and lamp back shell.
2. Ceiling with thick thermal insulation cotton: Do not wrap drivers with insulation material. Suspend drivers with gaps for air convection.
3. Suspended ceilings with enclosed, airtight cavities: Drill small heat dissipation holes on the ceiling keel area (not the lamp itself) to improve air flow.

7. Corrosive air matching (shops near the sea, chemical storage rooms)

1. Use anti-corrosion aluminum frames with oxidation treatment, plus fully sealed IP54 panel lights. Ordinary aluminum will corrode and rust quickly.
2. Increase regular ventilation frequency; avoid installing lamps in enclosed spaces where salt air or chemical gas accumulates.

8. Step-by-step on-site environmental checking workflow before installation

1. Survey the location: Confirm humidity, water splashing possibility, oil smoke, nearby heat sources, dust level, surrounding electrical equipment.
2. Match lamp IP rating, material and driver type according to the survey results. Reuse dry-room IP20 lamps only in completely dry spaces.
3. Measure ceiling cavity height, distance to heat sources/interference equipment to confirm installation spacing.
4. Adjust installation position if the original planned spot has poor environmental conditions (too hot, too steamy, too close to motors).
5. After installation, do a 30-minute power-on test: check heating degree, flicker, to verify if the environment causes abnormal operation.

9. Key forbidden environmental collocations

• IP20 indoor panel lights in bathrooms/kitchens → water/oil ingress failure
• Lamps installed wrapped inside insulation cotton → high-temperature burnout
• Panel lights right above stoves → oil yellowing + overheating
• Lamps tightly attached to heating pipes → rapid light decay
• Lights close to high-power motors → persistent flicker from electromagnetic interference

How to Match LED Panel Lights with Ambient Temperature During Installation

1. Clarify the standard operating temperature range of qualified LED panel lights

• Normal working range: -20°C ~ +40°C
• Long-term stable working temperature recommendation: 0°C to 35°C
• Any space with long-term ambient temperature exceeding 40°C or lower than -20°C requires special customized lamps; conventional panel lights cannot be used.

Temperature hazards beyond the rated range

1. Persistent temperature＞40°C: Driver capacitors age rapidly; LED chips decay fast; diffuser and light guide plates oxidize and turn yellow.
2. Persistent temperature＜-20°C: The electrolytic capacitors inside the driver lose capacity, causing difficulty powering on, flickering, or total no light.

2. Measure and evaluate the actual ambient temperature of the installation site

Step 1: Check static ambient temperature

• Above kitchens, stoves, range hood exhaust outlets
• Near hot water pipes, heating radiators, floor heating outlets, air conditioner air vents
• Closed attic ceilings, fully enclosed ceiling cavities wrapped in thermal insulation cotton
• Indoor spaces with long-term high heat, such as laundries with multiple dryers

Step 2: Measure the accumulated temperature inside the ceiling cavity (critical for recessed lamps)

• For recessed ceiling installation: Measure the temperature of the upper ceiling space. If the closed cavity stays above 40°C in summer, the environment is overheated.
• Sun-facing top-floor ceilings easily gather heat; roof sunlight raises ceiling cavity temperature by 5–10°C higher than indoor temperature.

3. Matching rules for high-temperature environments (ambient temperature often above 35°C)

Scenario 1: Locations near heat sources (water pipes, heaters, cooking equipment)

1. Minimum safe distance rule


   Keep LED panel lights at least 15 cm away from hot water pipes, heating equipment, warm air outlets. Never attach lamps directly to heat-generating surfaces.
2. Relocate if possible


   Avoid installing panel lights directly above gas stoves, induction cookers, ovens, and exhaust vents. These areas can reach 50°C+ locally. Install lamps on side walls or non-cooking ceiling areas instead.
3. Add thermal isolation


   If relocation is impossible, install a high-temperature resistant heat insulation baffle between the lamp and heat sources to block radiant heat.

Scenario 2: Closed, poorly ventilated ceiling cavities (top floor, insulated ceilings)

1. Reserve sufficient vertical clearance above the ceiling: ≥8 cm height for airflow convection. Less space means heat stagnation.
2. The driver cannot be wrapped or covered with thermal insulation cotton. Suspend the driver 3–5 cm below the ceiling board with screws to let air flow around it. Wrapping drivers with insulation causes severe overheating damage.
3. Properly open small ventilation gaps on ceiling keels (do not drill holes on the lamp itself) to allow hot air to escape the ceiling interlayer.
4. Select high-temperature resistant panel lights: drivers with high-temperature electrolytic capacitors, thickened aluminum heat sinks. Ordinary low-cost lamps cannot adapt here.

Scenario 3: Constantly hot spaces (commercial kitchens, bakeries)

4. Matching solutions for low-temperature environments (ambient temperature below 0°C, down to -20°C)

1. Confirm the lamp label clearly supports -20°C low-temperature operation. Do not use cheap generic lamps with ordinary capacitors; they fail to start in cold weather.
2. Avoid exposing panel lights to outdoor wind and frost directly. Use enclosed eaves installation instead of fully open outdoor mounting.
3. For areas frequently colder than -20°C in winter: Purchase special low-temperature panel lights equipped with wide-temperature drivers and anti-freeze LED chips.

5. Prevent temperature rise caused by improper installation practices

1. Do not squeeze the lamp frame tightly with ceiling boards. Extrusion deforms the aluminum shell, damages heat conduction, and traps heat inside the lamp. Keep a 2–3 mm gap around the lamp frame.
2. Do not stack cables, leftover construction materials above the lamp inside the ceiling. Debris blocks air circulation and accumulates heat.
3. Never install multiple high-power panel lights clustered in one small closed ceiling area. Concentrated heat raises the local ambient temperature. Distribute lamps evenly.
4. Keep all wiring tidy; avoid tangled wires covering the driver and lamp back cover, which hinders heat dissipation.

6. Post-installation temperature verification test (necessary acceptance step)

1. Touch the aluminum frame of the panel light and the driver shell. Slight warmth is normal; if the surface is too hot to touch comfortably, the ambient temperature is too high or heat dissipation is poor.
2. Measure the surface temperature of the driver with a thermometer. If higher than 60°C, the ambient heat load exceeds the lamp’s tolerance; adjust the installation position or improve ventilation.
3. Check for abnormal light dimming, flickering or humming under high temperature, which proves temperature mismatch.

7. Clear forbidden temperature matching combinations

1. Conventional IP20 panel lights installed in closed high-temperature kitchen ceilings → yellowing, driver burnout.
2. Drivers buried inside thermal insulation cotton → local temperature surges far beyond 40°C.
3. Ordinary household lamps installed in permanently cold outdoor spaces below -20°C → cold-start failure.
4. Panel lights closely attached to heating pipes or cooking equipment → long-term overheating and premature scrapping.
