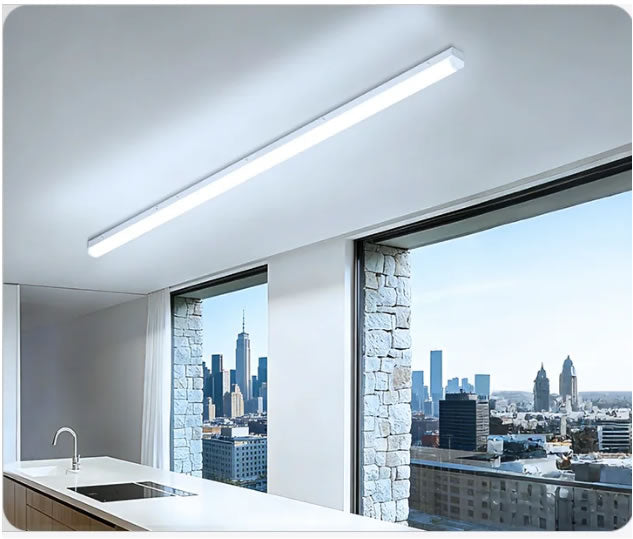

How To Choose Correct Power Supplier Linear Strip Lights?

Selecting the right power supply for LED strips comes down to matching voltage, calculating total wattage with a safety margin, and choosing the correct type for your environment. A mismatch in any of these can cause flickering, overheating, or premature failure.

Step 1: Match the Voltage

First, check the specifications of your LED strip. Most strips run on 12V DC or 24V DC . The power supply's output voltage must match exactly. Never connect a 12V strip to a 24V supply, as this will destroy the LEDs.

Step 2: Calculate Required Power (Wattage)

You need to determine the total power draw of your strip and then add a safety buffer.

The Formula:
Total Power (W) = Strip Length (m) × Power per Meter (W/m)

Add a Safety Margin:
It is critical to add a 20% to 30% buffer to prevent the power supply from running at 100% capacity, which causes overheating and shortens its lifespan . Some sources recommend a 50% buffer if the lights will run continuously for long periods .

Example:
If you have a 5-meter strip rated at 14.4 W/m:

• Base Load: 5m × 14.4 W/m = 72 W

• With 20% Buffer: 72 W × 1.20 = 86.4 W

• Selection: Choose a power supply rated for at least 90W at 12V or 24V.

Driver Compatibility Quick Reference (12V Strips):

Step 3: Choose Constant Voltage (CV) vs. Constant Current (CC)

For standard LED strips, you almost always need a Constant Voltage (CV) power supply .

• Constant Voltage (CV): Provides a fixed voltage (e.g., 12V). LED strips have built-in resistors to regulate current. This is the standard for flexible strips .

• Constant Current (CC): Provides a fixed current. Used for high-power LEDs or COB arrays without built-in resistors. Do not use a CC driver on a standard strip unless specified .

 Step 4: Select the Right IP Rating (Environment)

The Ingress Protection (IP) rating determines where the power supply can be safely installed .

• IP20: Open frame or enclosed plastic. For dry, indoor locations only (e.g., inside a cabinet). Requires ventilation space .

• IP65: Splash-resistant. Suitable for kitchens, bathrooms, or covered outdoor areas.

• IP67: Waterproof (submersible up to 1m for 30 mins). Required for outdoor signage, gardens, or wet locations .

Step 5: Check for Quality Features

• Ripple/Noise: Low-quality supplies have high ripple (AC noise) which causes visible flickering, especially noticeable on camera. Premium supplies have ripple below 20 mV .

• Protections: Ensure the unit has built-in Overload, Short Circuit, and Overvoltage protection .

• Efficiency: Switching power supplies (85–92% efficient) are standard. Higher efficiency means less heat generated .

Installation Tip: Avoid Voltage Drop

If you are running a single long strip (especially 12V), the LEDs at the far end may be dimmer due to voltage drop. To avoid this:

• Use 24V: 24V strips allow for longer runs (up to 10m) before noticeable drop compared to 12V (max ~5m) .

• Power from Both Ends: Run a wire from the power supply to both the beginning and end of the strip .

• Multiple Runs: If you have a long total length, wire each 5m section back to the power supply separately instead of daisy-chaining them.
