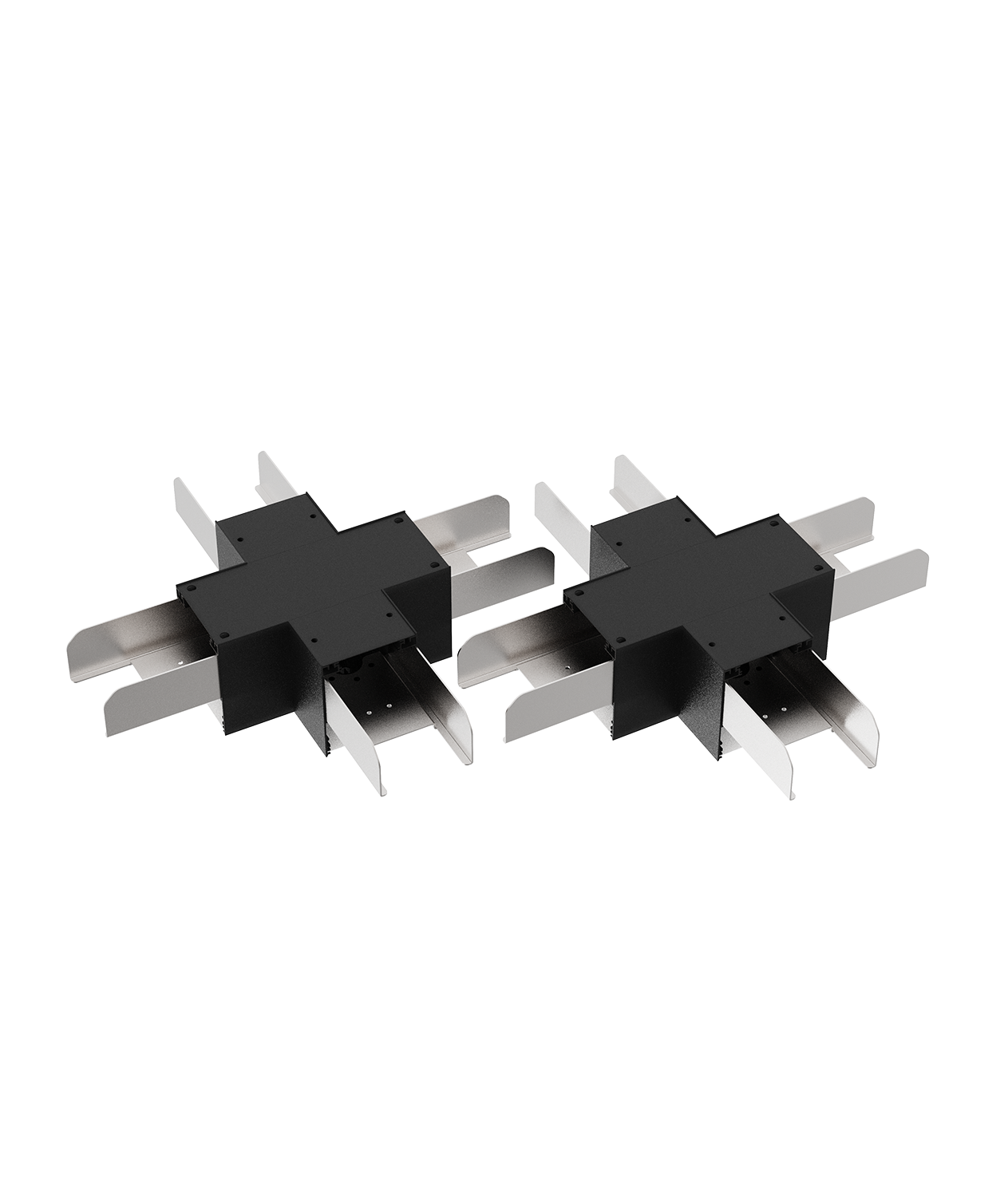

X-Shape Connector for Architectural Linear Fixture

X-Shape Connector for Architectural Linear Fixture

Engineered to create striking 4-way geometric layouts, this X-Shape Connector for Architectural Linear Fixtures allows four linear LED pendants, surface-mount, or recessed fixtures to intersect at precise 90-degree angles. Ideal for modern commercial interiors, tech hubs, open-plan offices, lobbies, and retail environments, this architectural corner module provides seamless structural alignment and continuous light distribution across all four joining paths. Designed with internal wiring pass-throughs and flush-fitting mechanical joints, it eliminates dark shadows at the cross-section, enabling designers to build bold, custom ceiling grids and interconnected lighting patterns.

• 4-Way 90-Degree Geometric Intersect: Seamlessly connects four linear fixture runs into a clean, symmetrical "X" configuration, opening up complex architectural ceiling designs and continuous grid patterns.

• Shadow-Free Continuous Illumination: Integrated optical lens and LED module layout ensure smooth, uninterrupted light output directly through the center intersection, preventing dark spots, shadows, or light leaks.

• Heavy-Duty Structural Alignment Brackets: High-strength steel internal joiners lock adjacent fixture housings rigid and perfectly square, ensuring long-term alignment without sagging or seam gaps.

• Plug-and-Play Internal Quick-Connects: Equipped with internal quick-connect wiring harnesses for fast, tool-free pass-through of AC power, 0–10V dimming lines, and auxiliary control wiring between all connected fixture runs.

• Versatile Mounting Compatibility: Engineered to integrate with suspended cable (pendant), direct surface-mount, and recessed architectural linear LED series.

• Architectural Powder-Coated Finish: Precision-matched to standard fixture housing colors (Matte White, Architectural Black, or Silver) for a cohesive, professional appearance across the entire ceiling installation.

• Contractor-Friendly Installation: Complete with locking screws, internal alignment pins, and flush joint hardware for rapid, precise field assembly without complex job-site modifications.

Key Features

4-Way Cross Connection
Connects four fixtures to form an X-shaped (cross) layout for versatile designs.

Seamless Continuous Lighting
Ensures smooth alignment and uniform illumination in all directions.

Stable Electrical Performance
Provides reliable power transmission across all connected fixtures.

Easy Installation
Plug-and-play design for quick and efficient setup.

Durable Construction
Built with high-quality materials for long-lasting use.

Compatible Fixtures

Architectural Linear Fixtures
Linkable Linear Light Systems

Applications

Office lighting
Commercial interiors
Retail environments
Open office ceilings
Large public areas
Architectural feature lighting

Specifications

Connector Type: X-Shape (4-way connector)
Installation: Plug-in / Linkable connection
Material: Durable engineered housing
Compatibility: Architectural linear lighting fixtures
Function: Multi-directional cross connection for continuous lighting systems
