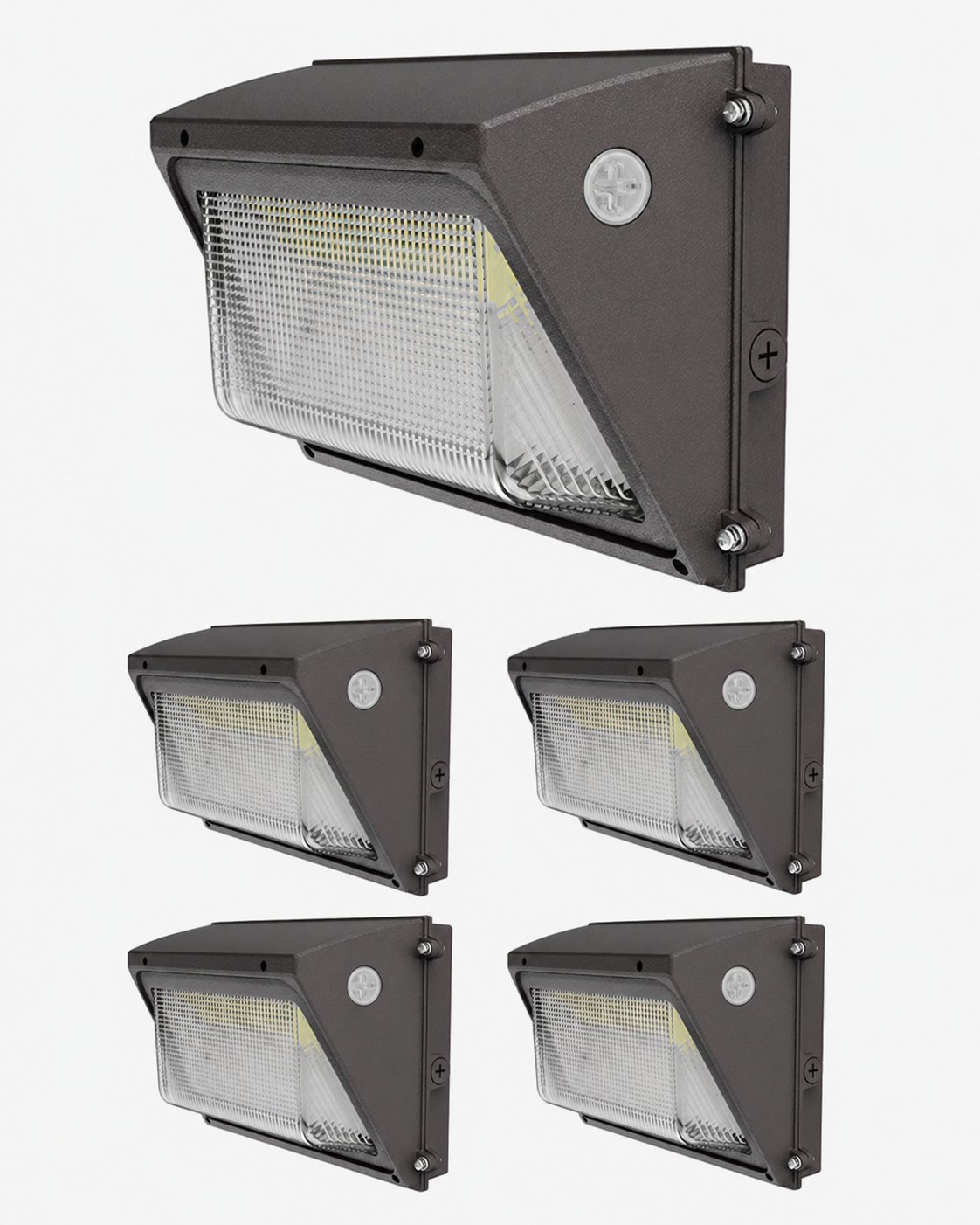

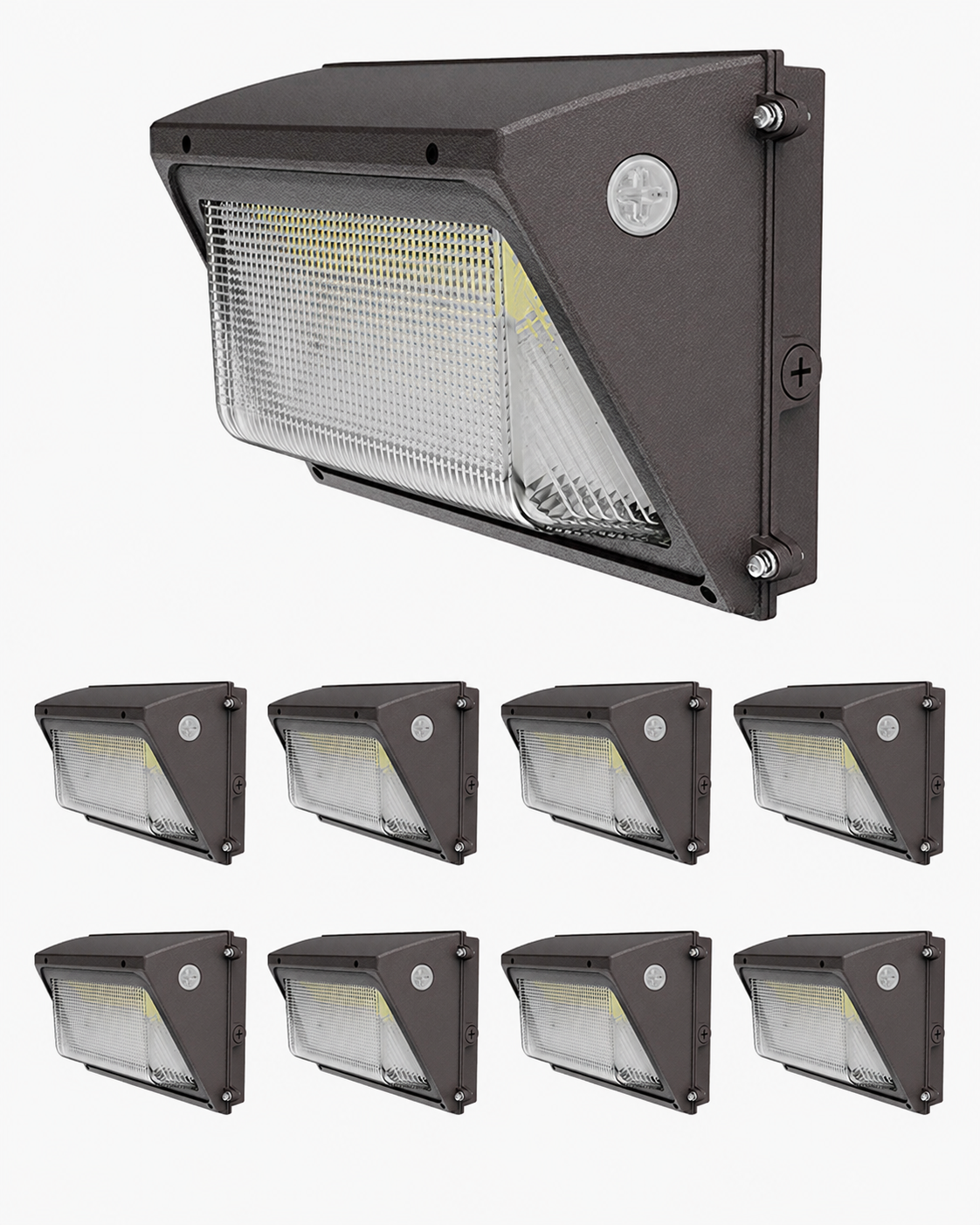

WP09 Semi-Cutoff LED Wall Pack Light

Engineered for heavy-duty commercial, industrial, and institutional exterior security, this WP09 Series Semi-Cutoff LED Wall Pack Light delivers controlled, forward-throw illumination with maximum energy efficiency. Generating up to 16,800 lumens at a high efficacy of 140 lm/W, this robust fixture features field-selectable wattage options (120W / 100W / 80W / 60W) to effortlessly replace legacy 250W–400W metal halide or high-pressure sodium (HPS) wall packs. Designed with a semi-cutoff optical housing, it minimizes light pollution and glare while casting a wide, bright perimeter safety footprint along building exteriors, loading docks, pathways, and parking zones.

• Field-Selectable Wattage (120W / 100W / 80W / 60W): Conveniently adjust power levels and lumen output on-site (up to 16,800 lumens) to meet specific mounting height requirements and energy targets.

• Semi-Cutoff Optical Design: Features an angled housing with a forward-throw lens that directs light downward and outward, controlling sky-glow spill light while maximizing perimeter security visibility.

• DLC Premium Qualified & UL Listed: Certified to top-tier commercial performance standards to qualify for maximum utility rebate incentives across North America.

• Universal Commercial Voltage (AC120–277V): Heavy-duty internal driver operates seamlessly across standard 120V, 208V, 240V, and 277V electrical systems with integrated surge protection.

• Heavy-Duty IP65 Weatherproof Housing: Built with rugged die-cast aluminum, high-grade sealing gaskets, and a corrosion-resistant powder-coated finish for full protection against extreme weather, rain, and dust.

• Impact-Resistant Borosilicate Glass Lens: Thermal shock and impact-resistant glass lens prevents yellowing, hazing, and degradation under intense UV exposure over time.

• Smooth 0–10V Continuous Dimming: Fully compatible with 0–10V dimmers, dusk-to-dawn photocell controls, and microwave motion sensors for advanced energy management.

• Effortless Surface Mounting: Designed with a hinged backplate and standard J-box knockouts to ensure rapid, hassle-free installation for contractors and field technicians.

Key Features

• 4 Wattages Selectable: 60W / 90W / 100W / 120W

• 3 CCT Selectable: 3000K / 4000K / 5000K

• High Efficiency: Up to 150 lm/W, delivering 9,000–18,000 lumens

• Semi-Cutoff Optics: Type IV beam distribution for controlled outdoor lighting

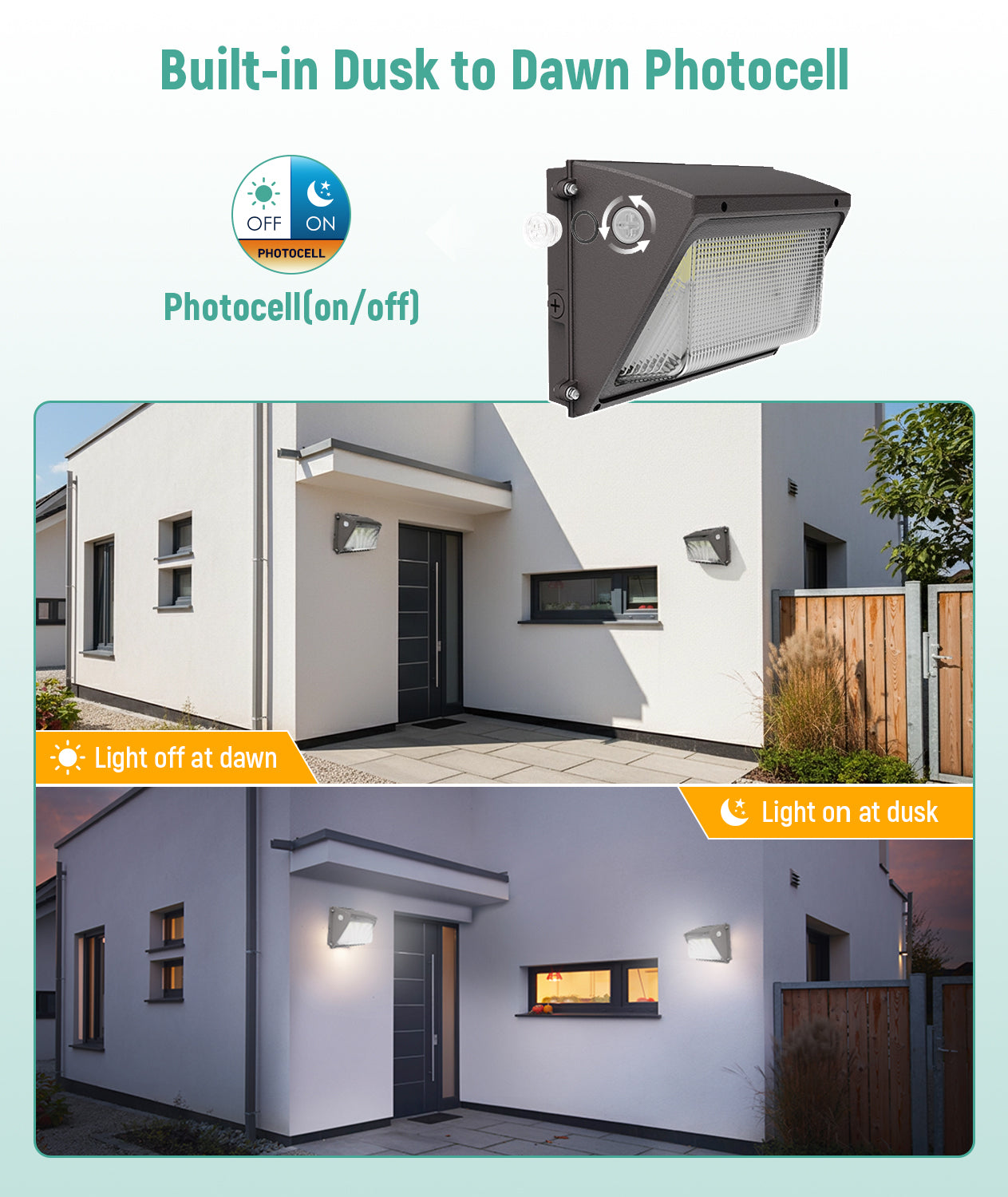

• Dusk-to-Dawn Photocell: Built-in photocell with ON/OFF option

• Wide Voltage Input: 120-277VAC, 50/60Hz

• 0-10V Dimmable: Compatible with standard dimming systems

Durable Outdoor Construction

• Die-cast aluminum housing with dark bronze powder-coat finish

• UV-resistant polycarbonate or borosilicate prismatic glass lens

• IP65 rated – completely waterproof and dustproof

• Operating temperature: -104°F to 113°F

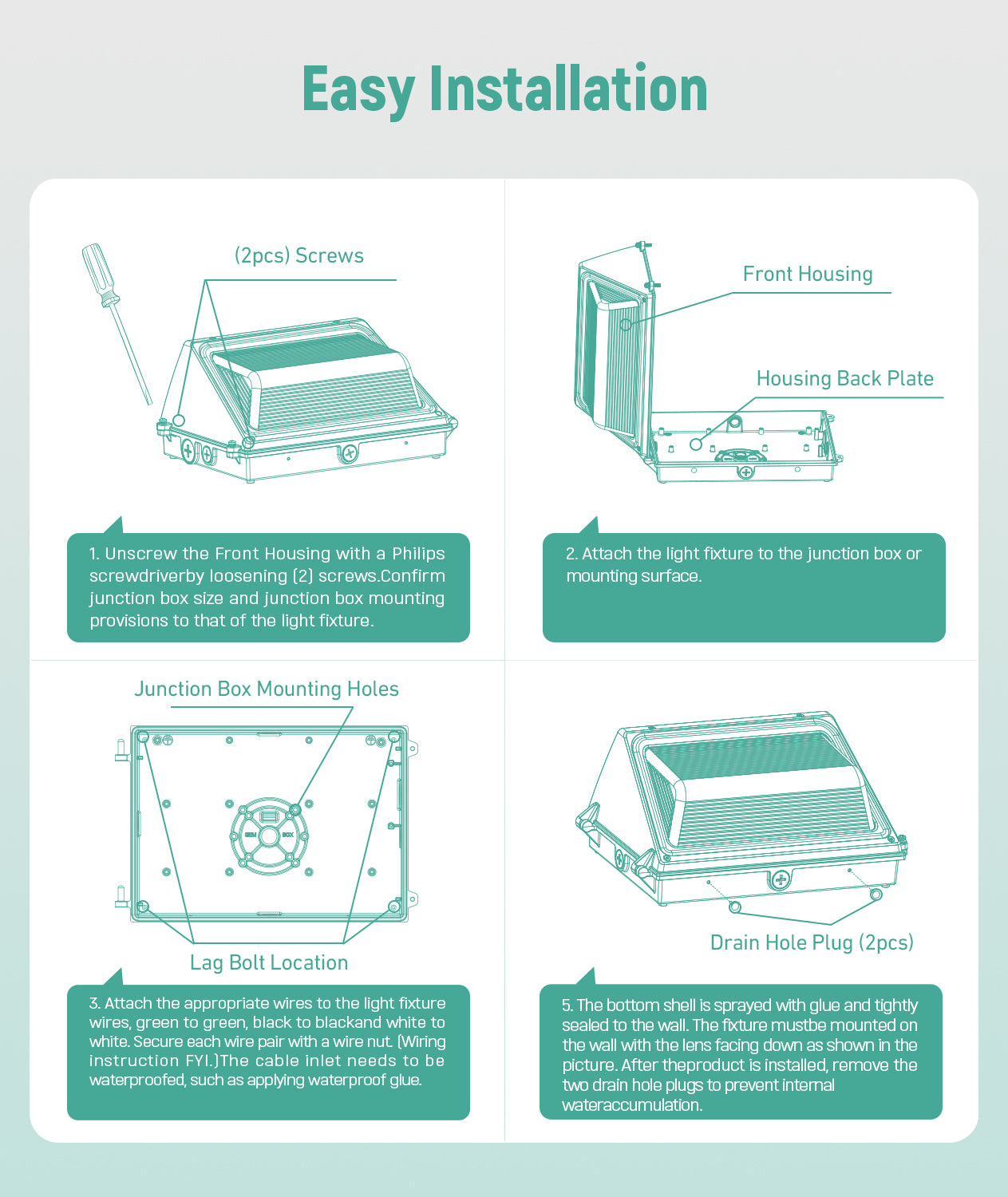

Installation

• Wall-mounted design

• Direct J-box mounting or surface conduit entry on all four sides

• Hinged housing for easy installation and maintenance

Certifications & Warranty

• UL Listed

• DLC 5.1 Premium

• 5-Year Limited Warranty

This semi-cutoff LED wall pack is ideal for long-term outdoor lighting applications requiring energy efficiency, durability, and flexible configuration.
