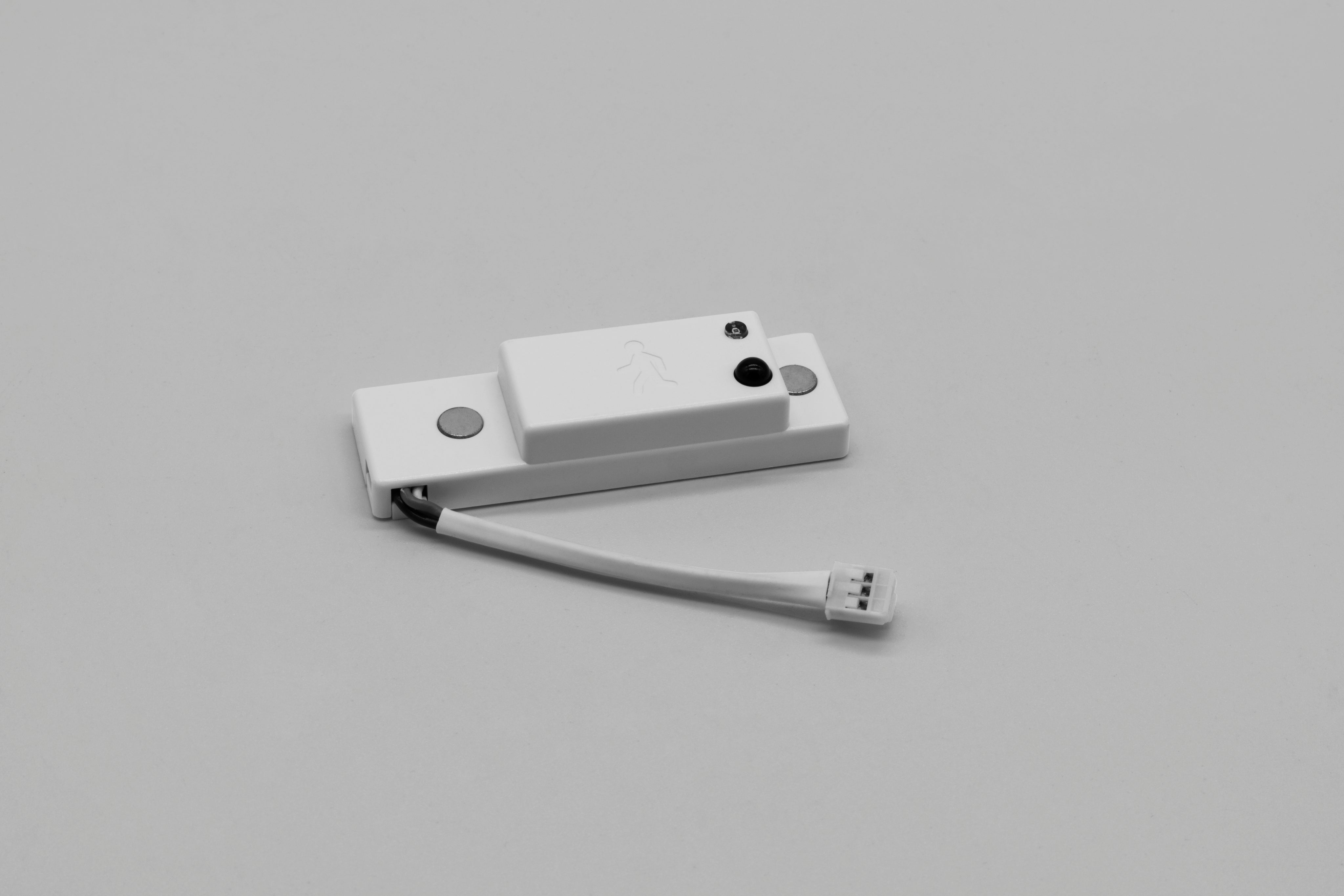

US002-02VR-2 Microwave Sensor ¨C Smart Motion Control with 20% Standby Dimming

Engineered for intelligent, high-efficiency energy management in commercial and industrial fixtures, the US002-02VR-2 Microwave Motion Sensor provides automated multi-level light control based on motion detection and ambient daylight levels. Operating on high-frequency microwave Doppler technology, this compact sensor penetrates plastic, glass, and non-metallic fixture covers to detect movement across 360 degrees. Featuring an automatic 20% standby dimming mode, it reduces energy consumption during vacant periods while maintaining safe, low-level security illumination across warehouses, parking garages, stairwells, corridors, and industrial facilities.

• Advanced High-Frequency Microwave Detection: Utilizes 5.8GHz microwave Doppler radar technology to deliver precise 360-degree motion detection across large areas, unaffected by ambient temperature swings, dust, or airflow.

• Smart 20% Standby Dimming Control: Automatically dims connected LED fixtures down to a continuous 20% background output when no motion is detected during the hold-time period, restoring 100% full brightness instantly upon detecting movement.

• 0–10V Continuous Dimming Port: Integrates smoothly with standard 0–10V dimmable commercial LED drivers to deliver flicker-free brightness transitions between full power, standby levels, and shut-off.

• Integrated Daylight Sensor (Photocell Function): Built-in adjustable daylight sensor prevents the light from turning ON when sufficient natural sunlight is present, maximizing energy savings during daylight hours.

• Field-Adjustable Settings: Allows customizable configuration of detection range/sensitivity, hold time (full brightness duration), standby dimming period, and daylight threshold to match specific site requirements.

• Compact / Internal Fixture Integration: Low-profile design fits neatly inside vapor-tight fixtures, high bays, wall packs, and linear shop lights without compromising IP ratings or clean exterior fixture aesthetics.

• Commercial Energy & Code Compliance: Helps commercial facilities satisfy strict ASHRAE 90.1, Title 24, and IECC occupancy sensing and daylight harvesting codes; ETL/cETL Listed and RoHS compliant.

?? Key Features

• Full Detection Coverage (100%)
  Ensures maximum motion detection across the entire area, providing reliable and consistent lighting control.
• 10-Minute Hold Time
  Keeps lights at full brightness for 10 minutes after motion is detected, reducing frequent switching and improving user experience.
• 10-Minute Standby Period
  After hold time, lights remain in standby mode before turning off, offering a smooth transition and added convenience.
• 20% Standby Dimming Level
  Maintains a low-level illumination instead of complete darkness, enhancing safety and visibility in low-traffic periods.
• Daylight Sensor Disabled
  Operates purely based on motion detection, ensuring stable performance regardless of ambient light conditions.
• 0-10V Dimming Control
  Compatible with dimmable LED drivers for smooth lighting adjustment and energy-efficient operation .
• Remote Control Configuration
  Easily adjust settings such as hold time, standby period, and dimming level via remote control .
• Compact & Easy Integration
  Small form factor ideal for installation in ceiling lights, troffers, linear fixtures, and LED tubes .

?? Ideal Applications

Perfect for energy-saving and safety-focused environments:

• Parking garages
• Corridors & stairwells
• Warehouses
• Offices & commercial spaces
• Basement & underpass lighting

?? Specifications (Default Settings)

• Detection Area: 100%
• Hold Time: 10 Minutes
• Daylight Threshold: Disable
• Standby Period: 10 Minutes
• Standby Dimming Level: 20%
• Dimming: 0-10V Compatible

? Why Choose US002-02VR-2?

This sensor is designed for smart, energy-efficient lighting control, combining long hold time and smooth dimming transition to reduce energy consumption without sacrificing comfort or safety. With reliable microwave detection and flexible settings, it¡¯s an ideal solution for modern commercial lighting systems.
