Type D ¨C 09 Series Trunnion Mount for LED Fixtures

Type D – 09 Series Trunnion Mount Bracket for LED Fixtures (Heavy-Duty Yoke Mount for Area & Flood Lights)

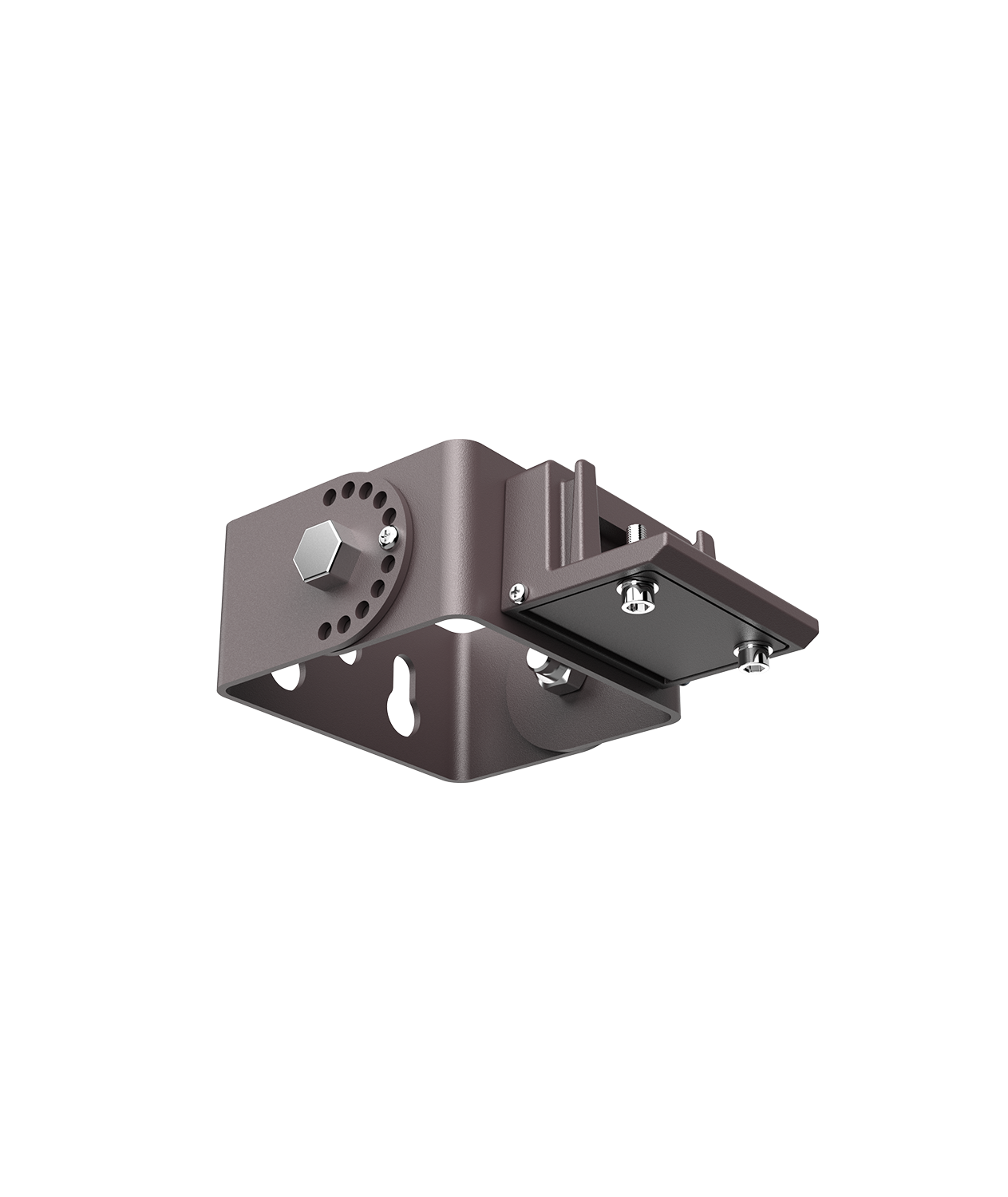

Engineered for rugged, precise surface-mounting of commercial outdoor LED area lights, shoebox fixtures, and floodlights, the Type D 09-Series Trunnion Mount Bracket provides exceptional mechanical stability and flexible beam aiming. Designed to attach directly to building walls, flat architectural surfaces, structural steel I-beams, or wood posts, this heavy-duty yoke-style bracket allows installers to tilt and secure the fixture at the exact angle needed to maximize ground coverage across parking lots, building facades, walkways, and storage yards.

• Heavy-Duty Steel Construction: Stamped from high-strength, structural-grade steel and finished with a durable, weather-resistant powder coating to protect against rust, corrosion, and extreme outdoor weathering.

• Precise Multi-Angle Tilting & Locking: Features integrated side angle alignment notches with locking bolts, enabling full rotational adjustment and rigid lock-in angling for targeted perimeter and flood illumination.

• 09-Series Custom Compatibility: Precision-engineered bolt-pattern slots designed specifically to mate seamlessly with the chassis housing of 09-Series LED area lights, shoebox fixtures, and floodlights.

• Surface, Wall & Structure Mountable: Converts pole-mount area lights into versatile wall-mounted or surface-mounted floodlights, making it ideal for installations where mounting poles are unavailable or unnecessary.

• High Wind & Vibration Resistance: Provides a rigid, fixed mechanical connection that eliminates fixture movement, sway, or aiming shift caused by high winds, storm gusts, or nearby machinery vibration.

• Simple & Secure Installation: Pre-drilled mounting holes allow fast, straightforward attachment using standard anchor bolts, lag screws, or mounting hardware.

Key Features:

? Trunnion Mount Design ¨C Ideal for adjustable surface or pole mounting
? Flexible Angle Adjustment ¨C Easily tilt and position the fixture as needed
? Heavy-Duty Construction ¨C Built to withstand harsh outdoor conditions
? Secure Fixing System ¨C Ensures stable and long-lasting installation
? Versatile Installation ¨C Suitable for wall, ceiling, or pole mounting

Installation Overview:

• Drill mounting holes on the installation surface or pole
• Attach the trunnion bracket to the fixture and secure it with screws
• Mount the fixture onto the surface and tighten all fasteners
• Complete proper wiring connections to ensure safe operation

Applications:

Ideal for a wide range of lighting applications:

• Building facades
• Billboard & signage lighting
• Parking areas
• Industrial and commercial facilities

Compatibility:

• Designed for 09 Series LED Area Lights
• Suitable for multiple mounting surfaces including walls and poles
