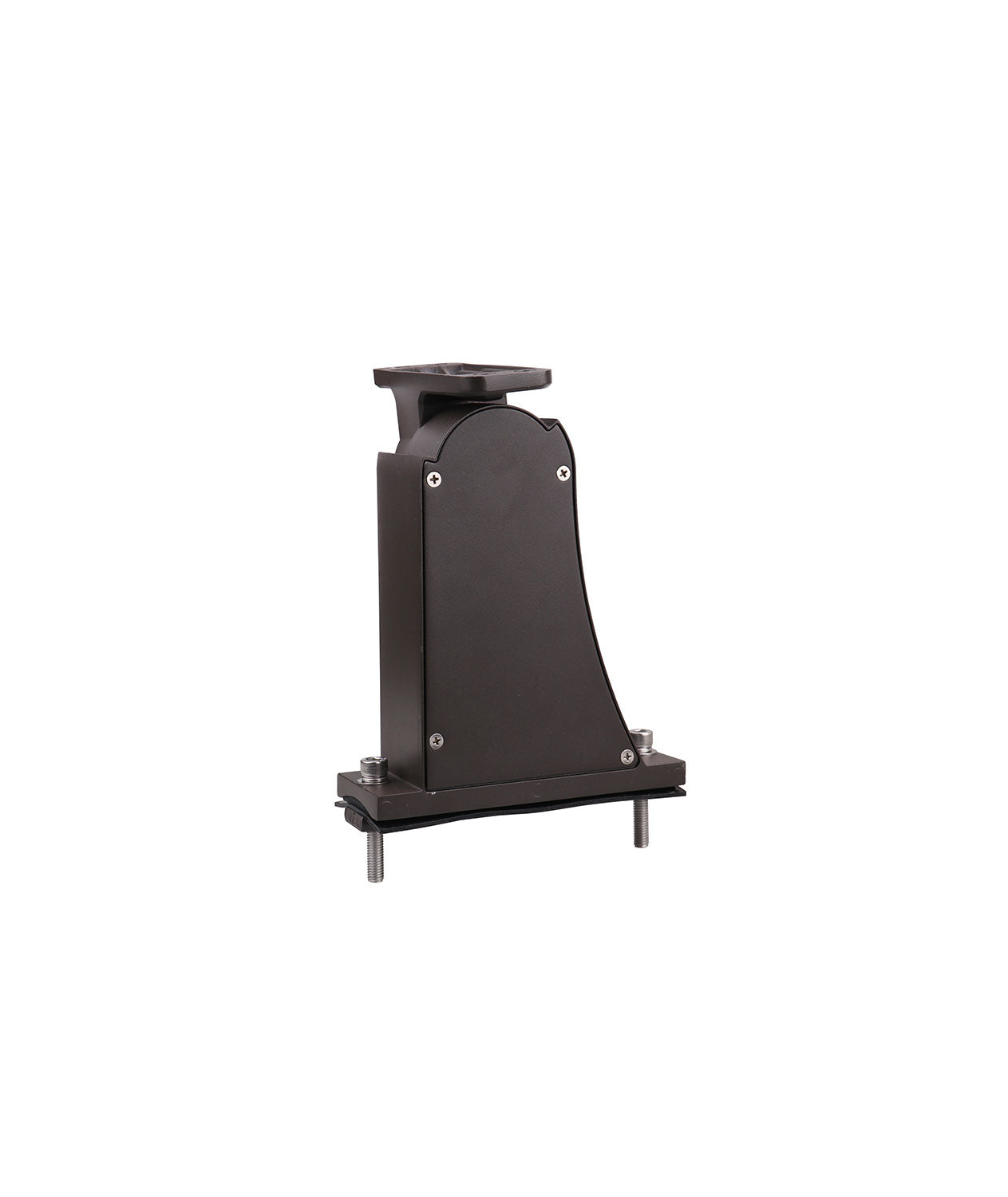

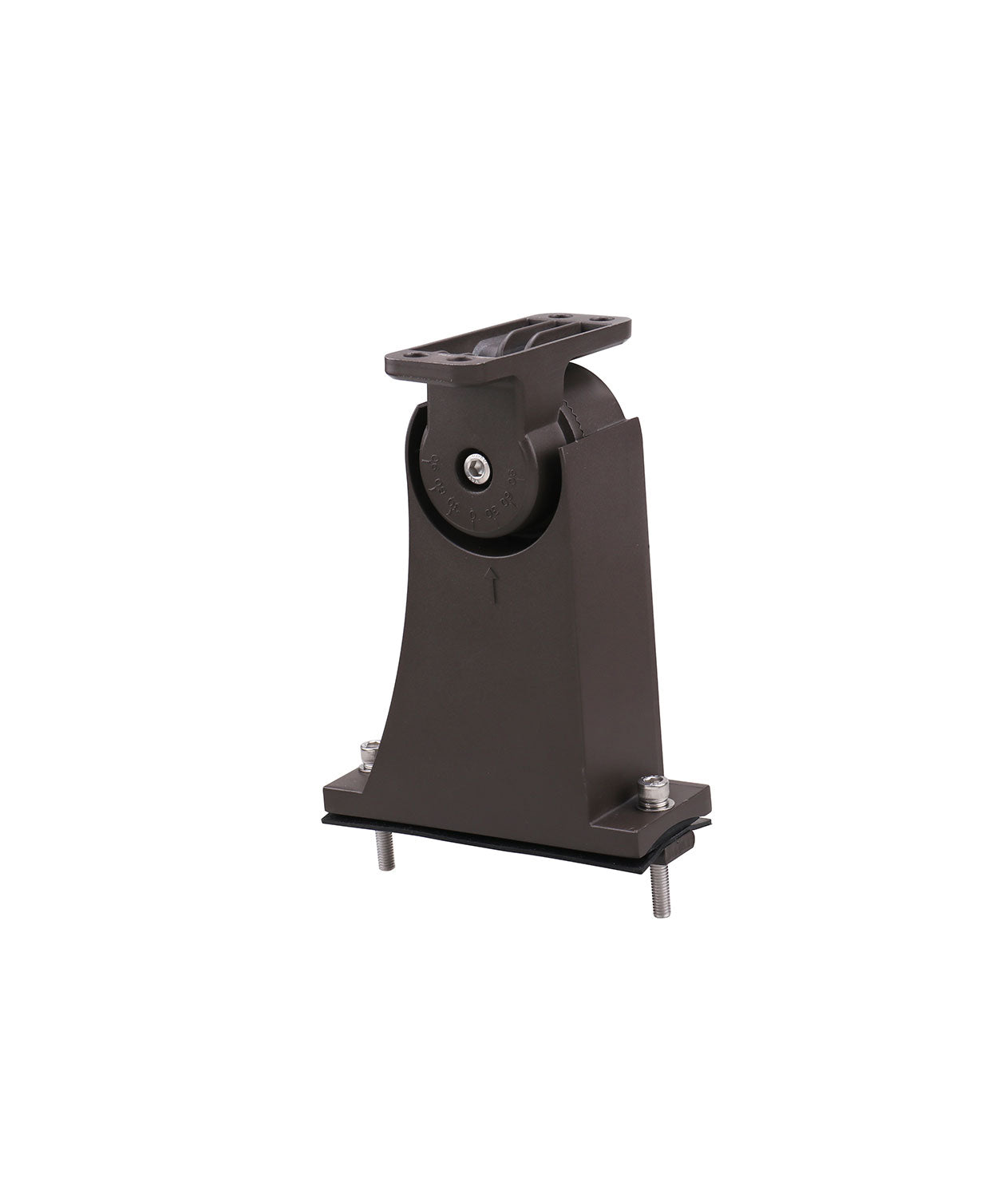

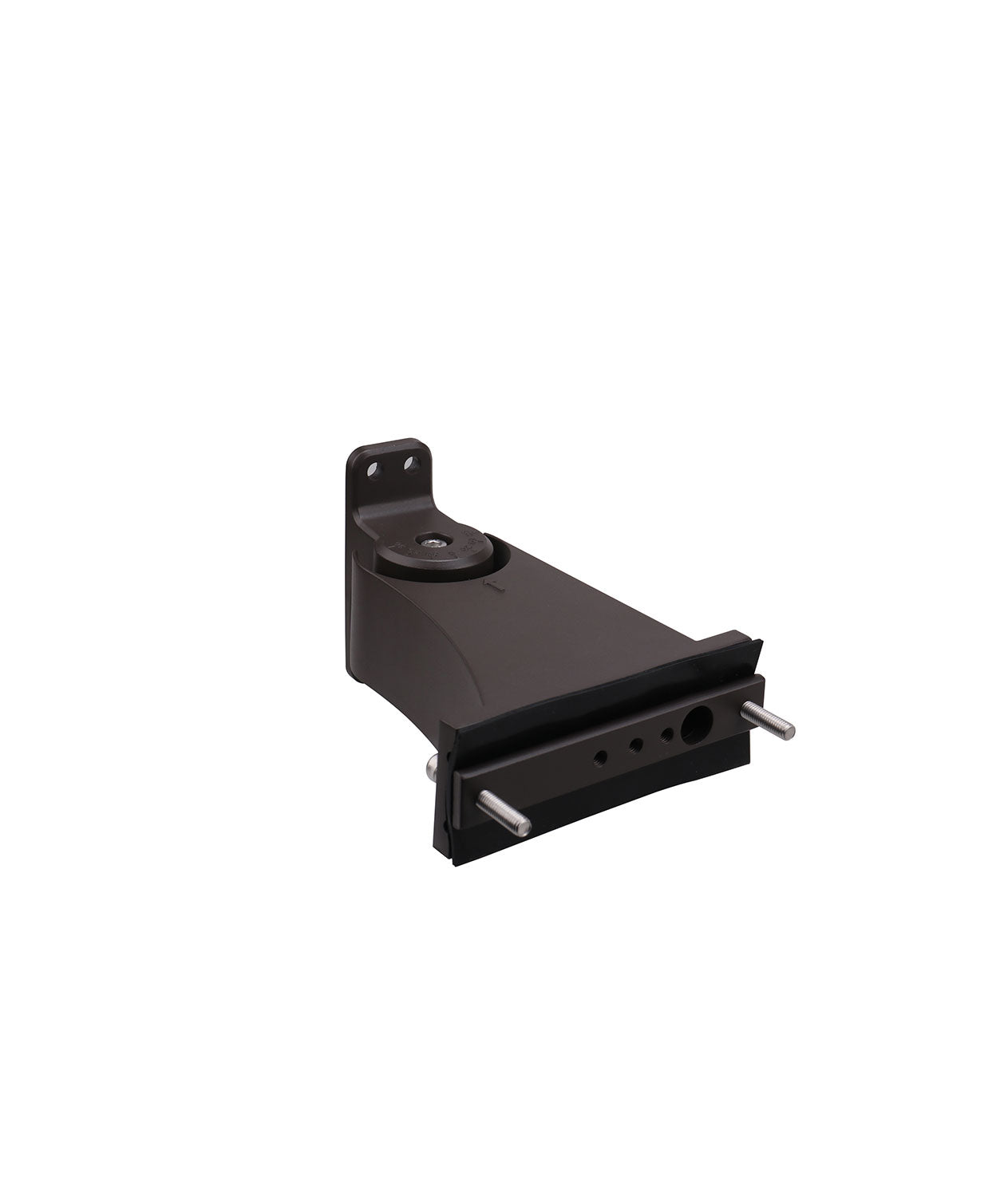

Type B ¨C 09 Series Arm Mount for LED Fixtures (Square/Round Pole)

Engineered for secure, clean-line pole mounting of commercial outdoor LED area lights, shoebox fixtures, and site luminaires, the Type B 09-Series Straight Arm Mount Bracket provides exceptional mechanical support and a streamlined appearance. Designed to mount directly to square metal poles or round wood/steel poles (using an optional curved adapter pad), this heavy-duty aluminum arm positions the fixture extended outward from the pole body, ensuring optimal light distribution across parking lots, commercial driveways, roadways, and building perimeters.

• Heavy-Duty Die-Cast Aluminum Construction: Precision-molded from high-strength aluminum alloy and finished in a UV-stabilized architectural bronze powder coat to resist rust, salt spray, chipping, and harsh outdoor weathering.

• Square & Round Pole Versatility: Designed with a flat mounting plate for direct attachment to standard square steel or aluminum poles, with built-in or adaptable contouring to fit round pole profiles seamlessly.

• Integrated Internal Wiring Channel: Features an enclosed wire pass-through channel that routes electrical leads safely inside the arm housing directly into the pole, protecting power connections against rain, UV exposure, and physical damage.

• 09-Series Custom Compatibility: Engineered with precision mounting slots designed specifically to mate flush with the chassis housing of 09-Series LED area lights, shoebox fixtures, and site luminaires.

• High Wind Rating (EPA-Tested Stability): Low-profile aerodynamic design minimizes Effective Projected Area (EPA) wind resistance, providing rock-solid structural stability that prevents fixture sway during high-wind storms and gusts.

• Fast & Contractor-Friendly Installation: Pre-drilled bolt-hole patterns and accessible terminal compartments allow single-installer mounting and quick wire splicing without disassembling the main fixture body.

Key Features:

? Arm Mount Design ¨C Ideal for direct pole mounting applications
? Square & Round Pole Compatible ¨C Flexible installation for various pole types
? Heavy-Duty Construction ¨C Built for outdoor durability and harsh environments
? Secure Bolt Fixing System ¨C Ensures stable and firm mounting
? Clean Wiring Integration ¨C Internal routing for a neat installation

Installation Overview:

• Attach the arm mount bracket to the fixture and route wires through the mount
• Fix the bracket securely onto the square or round pole
• Pull wiring into the junction box and complete proper electrical connections
• Close and tighten the bracket cover for a secure finish

Applications:

Perfect for outdoor lighting installations such as:

• Parking lot lighting
• Roadway & street lighting
• Commercial building exteriors
• Industrial facilities

Compatibility:

• Designed for 09 Series LED Area Lights
• Suitable for both square and round poles
