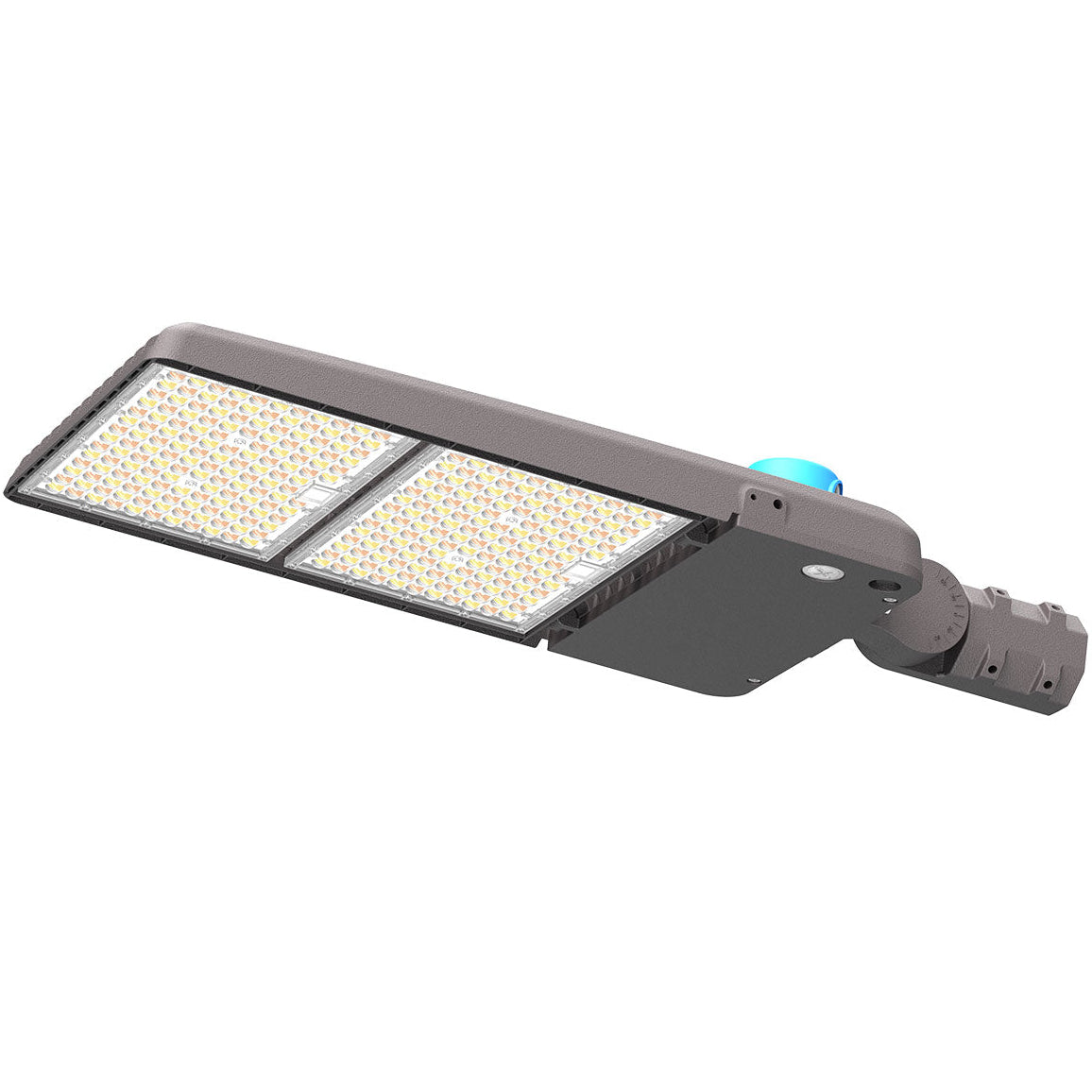

Type A Slip Fitter for AR09 500W ¨C Adjustable Pole Mount Bracket

Engineered specifically to support high-wattage, high-lumen commercial area fixtures, this Heavy-Duty Type A Slip Fitter Mount Bracket provides rock-solid mechanical attachment and precise beam positioning for the high-output AR09 500W LED Shoebox Light. Designed to slip over standard 2-3/8" (60mm) outer-diameter round tenons, bullhorn adapters, and pole tops, this rugged bracket features a reinforced knuckled joint to handle the extra weight and wind load of 500W class fixtures. It allows installers to easily tilt and lock the luminaire at the ideal angle for uniform, high-efficiency illumination across expansive parking facilities, logistics yards, highway interchanges, and commercial grounds.

• High-Load Heavy-Duty Construction: Cast from high-strength structural aluminum alloy with a weather-resistant, UV-stabilized powder-coated finish engineered to support the weight and torque of large-chassis 500W fixtures.

• Standard 2-3/8" Tenon Compatibility: Precision-engineered to fit smoothly onto standard 2-3/8" (60mm O.D.) round tenons, vertical pipe tops, and multi-light bullhorn mounting arms.

• Full-Angle Adjustable Locking Knuckle: Features a heavy-duty rotary joint with laser-etched angle markings and high-torque locking bolts, enabling precise, slip-free vertical angle adjustments up to 90 degrees for optimized beam direction.

• Sealed Internal Wiring Chamber: Includes a spacious internal wire pass-through channel that routes power cables directly through the bracket into the mounting pole, shielding wiring splices from rain, moisture, UV breakdown, and physical wear.

• Custom AR09 500W Mating Interface: Precision-drilled bolt-hole pattern specifically tailored to mate flush with the heavy-duty chassis housing of 500W AR09 Series LED area luminaires.

• High Wind & Extreme Storm Load Resistance: Engineered and EPA-tested to withstand heavy wind forces and storm gusts without loosening, slipping, or shifting target light distribution.

• Multi-Point Locking Hardware: Equipped with stainless steel clamping set screws and locking bolts that secure the mount tightly against the tenon pipe for fast, single-installer mounting and lasting stability.

Key Features:

? Compatible with AR09 500W LED Area Light
? Adjustable Mounting Angle ¨C Easily align the fixture to the desired lighting direction
? Heavy-Duty Construction ¨C Built for outdoor durability and long-term performance
? Secure Pole Installation ¨C Locking bolts ensure firm attachment to pole
? Easy Installation Design ¨C Simplified wiring and mounting process

Installation Highlights:

• Pass fixture wires through the slip fitter bracket and mount onto the fixture
• Secure the slip fitter to the pole using locking bolts
• Adjust the fixture angle as needed, then tighten all fixing bolts for stability

Applications:

Ideal for a wide range of outdoor lighting scenarios, including:

• Parking lots
• Roadways & streets
• Commercial areas
• Industrial facilities
