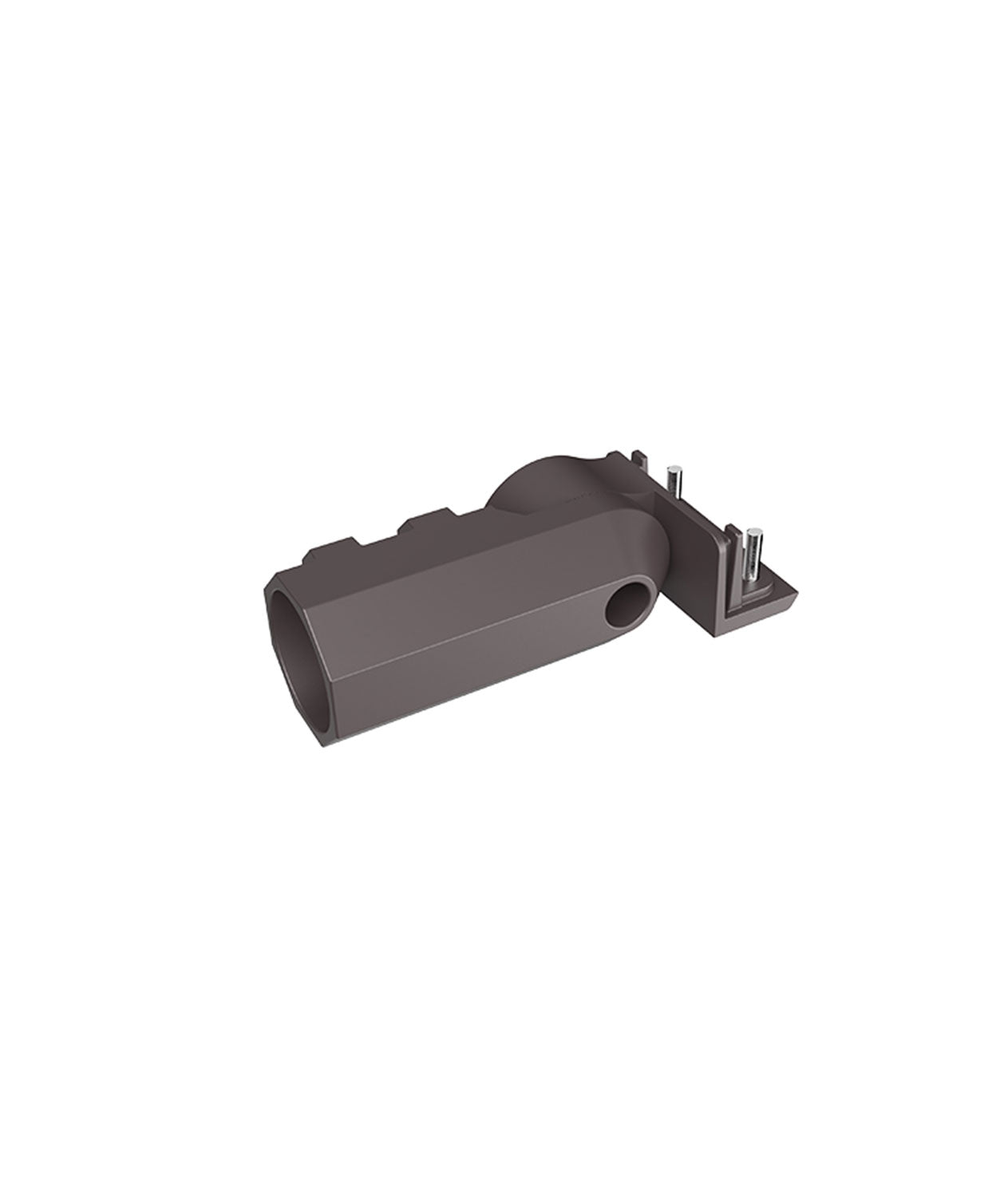

Type A ¨C 09 Series Slip Fitter Mount for LED Fixturesa

Engineered for versatile pole-top and tenon mounting of commercial outdoor LED area lights, shoebox fixtures, and site luminaires, the Type A 09-Series Slip Fitter Mount Bracket delivers exceptional positioning flexibility and high structural stability. Designed to slip directly over standard 2-3/8" (60mm) outer-diameter round tenons or bullhorn brackets, this heavy-duty mount features an adjustable knuckled joint. This allows installers to tilt and secure the fixture at the exact angle required to achieve uniform, high-efficiency light distribution across parking lots, commercial driveways, roadways, and building perimeters.

• Heavy-Duty Die-Cast Aluminum Construction: Precision-molded from high-strength aluminum alloy with a UV-stabilized, weather-resistant powder-coated finish designed to withstand harsh outdoor exposure, rust, and salt spray.

• Standard 2-3/8" Tenon Fit: Engineered to slip smoothly over standard 2-3/8" (60mm O.D.) horizontal or vertical pipe tenons, bullhorn arms, and pole adapters.

• Full-Angle Adjustable Knuckle Joint: Features a heavy-duty rotary joint with laser-etched angle markings and a locking bolt, enabling precise tilting up to 90 degrees for custom beam angling and perimeter flood alignment.

• Integrated Internal Wiring Pass-Through: Designed with an enclosed internal wiring chamber that feeds electrical leads directly through the mount into the tenon arm, shielding power connections against rain, UV degradation, and physical wear.

• 09-Series Custom Compatibility: Precision-drilled bolt pattern designed specifically to mate flush with the chassis housing of 09-Series LED area lights, shoebox fixtures, and floodlights.

• High Wind & EPA Compliance: Aerodynamic low-profile geometry reduces Effective Projected Area (EPA) wind drag, ensuring high wind load resistance and preventing fixture shift during severe storms and high-wind gusts.

• Fast & Secure Installation: Equipped with multiple heavy-duty stainless steel set screws that clamp firmly onto the tenon, securing the fixture in place during installation and maintenance.

Key Features:

? Slip Fitter Mount Design ¨C Ideal for pole-mounted LED fixtures
? Adjustable Angle Positioning ¨C Easily align lighting direction as needed
? Strong & Durable Construction ¨C Suitable for outdoor and harsh environments
? Secure Locking System ¨C Tight fastening between fixture and pole
? Easy Installation ¨C Designed for quick setup and wiring access

Installation Overview:

• Attach the slip fitter bracket to the fixture and route wiring through the mount
• Secure the mount onto the pole using locking bolts
• Adjust the fixture angle and tighten all bolts to ensure stability

Applications:

Perfect for a wide range of outdoor lighting projects, including:

• Parking lot lighting
• Street & roadway lighting
• Commercial exterior lighting
• Industrial facilities

Compatibility:

• Designed for 09 Series LED Area Lights
• Suitable for round or square pole installations
