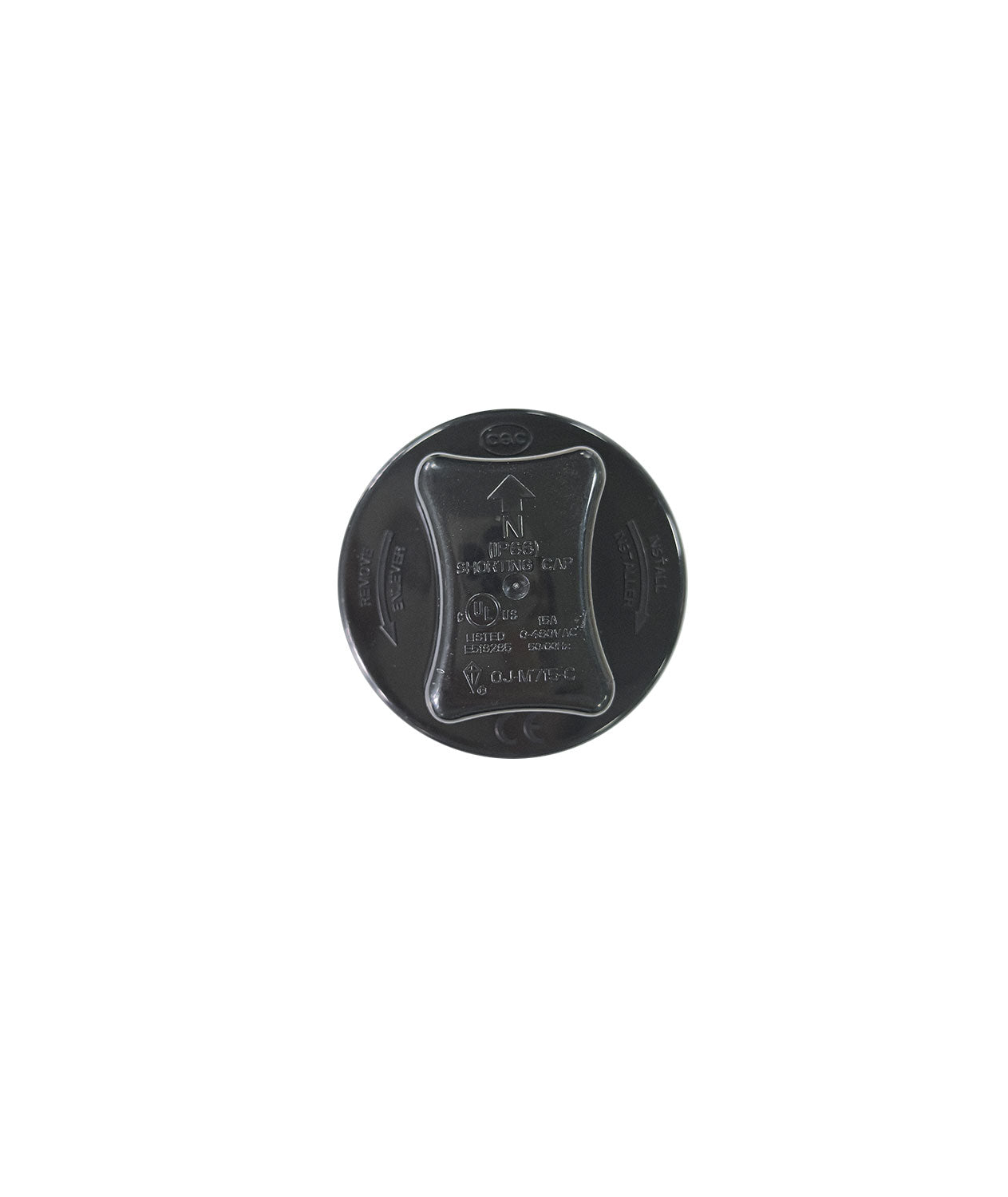

Shorting Cap for Area Light

Engineered for continuous power operation and line maintenance in outdoor commercial and industrial lighting systems, this Shorting Cap completes the electrical circuit across 3-pin NEMA twist-lock receptacles on area lights, shoebox fixtures, wall packs, and roadway luminaires. By bypassing the automated photocell sensor, it keeps connected light fixtures permanently energized ("ON") whenever main power is supplied to the circuit—making it an essential accessory for manual switch control, daytime testing, initial installation commissioning, and system troubleshooting.

• Continuous "Always-On" Circuit Completion: Connects line and load terminals within the receptacle to deliver uninterrupted power flow to the LED fixture driver, bypassing dusk-to-dawn sensor automation.

• Standard 3-Pin NEMA Twist-Lock Design: Built to ANSI C136.10 specifications with standard brass prongs for fast, tool-free twist-and-lock attachment onto compatible area light control sockets.

• Universal Voltage Operation: Fully compatible across standard and high-voltage AC lines (AC120V–480V, 50/60Hz), ensuring seamless fit across commercial, industrial, and municipal utility lines.

• Essential Maintenance & Commissioning Tool: Enables electrical contractors and facility managers to perform immediate daytime lighting audits, line testing, and driver verification without waiting for nightfall or using light-blocking covers.

• Rugged Weatherproof & UV-Resistant Housing: Constructed with an IP65/IP66 weather-sealed, UV-stabilized polycarbonate shell that protects internal contacts against rain, snow, dust, heat, and extreme outdoor environments.

• Safety & Code Compliance: Features durable brass contact blades for low resistance and high conductivity; UL/cUL Listed and RoHS compliant for commercial electrical installations.

Key Features:

? NEMA Shorting Cap Design ¨C Compatible with standard NEMA sockets
? Ensures Continuous Power ¨C Allows fixture operation without photocell
? IP65 Waterproof Rating ¨C Suitable for outdoor and harsh environments
? Durable PBT Housing ¨C High heat resistance and long service life
? Certified Quality ¨C Meets UL / CE / CB / TUV standards

Technical Specifications:

• Model: JR-208
• Input Voltage: 0¨C480VAC
• Frequency: 50/60Hz
• Operating Temperature: -40¡ãC to +70¡ãC
• Housing Material: PBT
• Ingress Protection: IP65
• Certifications: UL / CB / TUV

Installation Overview:

• Turn off power before installation
• Align the pins with the NEMA socket and insert the shorting cap
• Rotate clockwise (approx. 30¡ã) until securely locked in place

Applications:

Ideal for use in:

• LED Area Lights
• Parking Lot Lighting
• Street & Roadway Lighting
• Industrial & Commercial Outdoor Lighting

Compatibility:

• Designed for fixtures with standard NEMA receptacle
• Suitable for area lights, shoebox lights, and street lights
