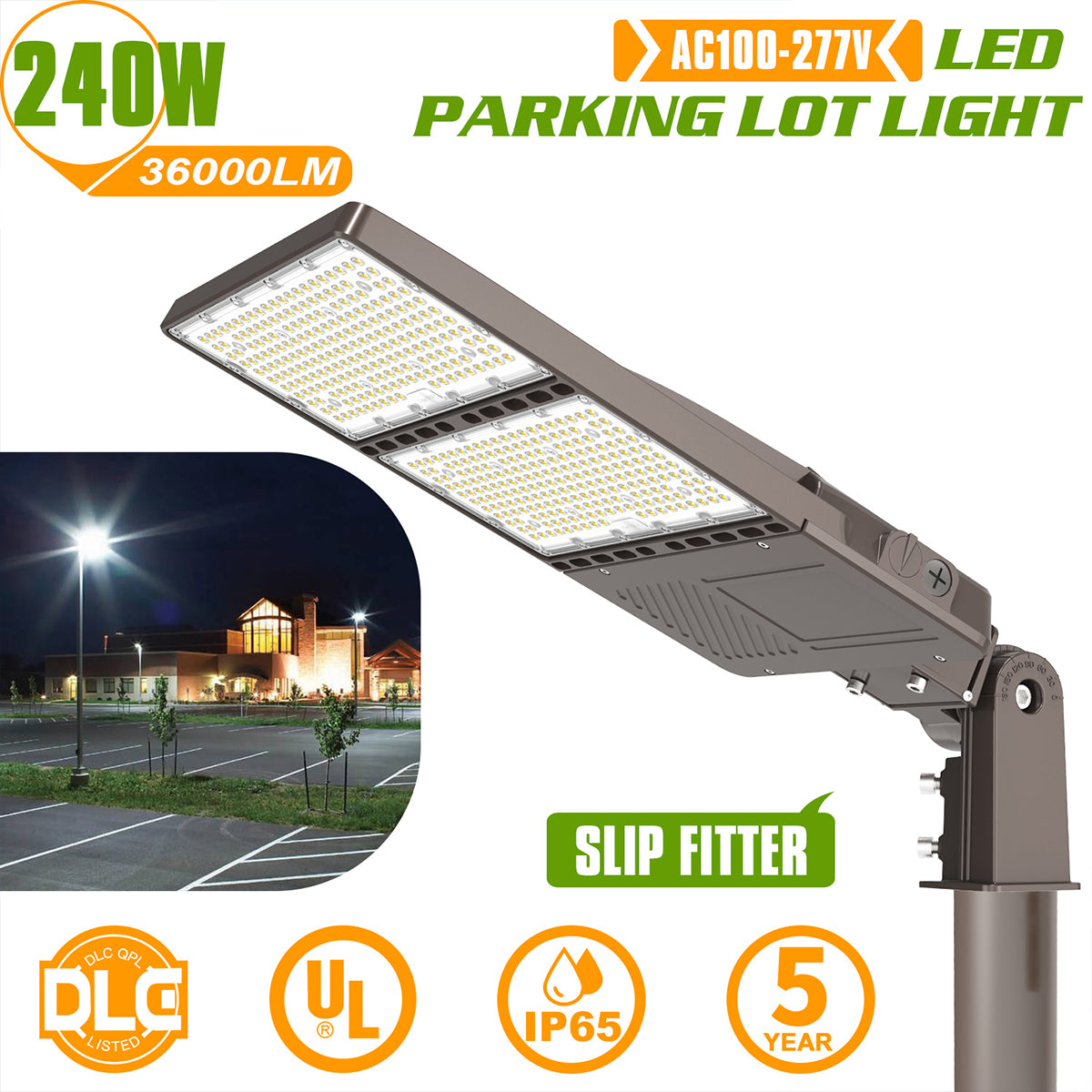

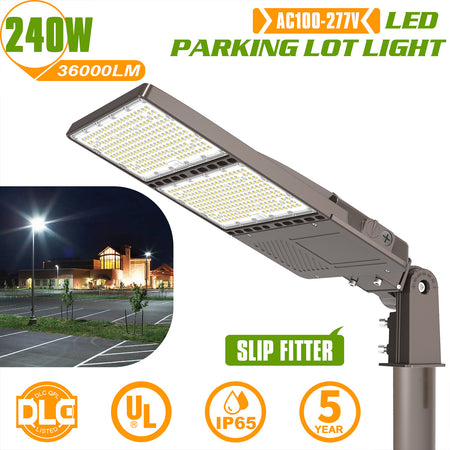

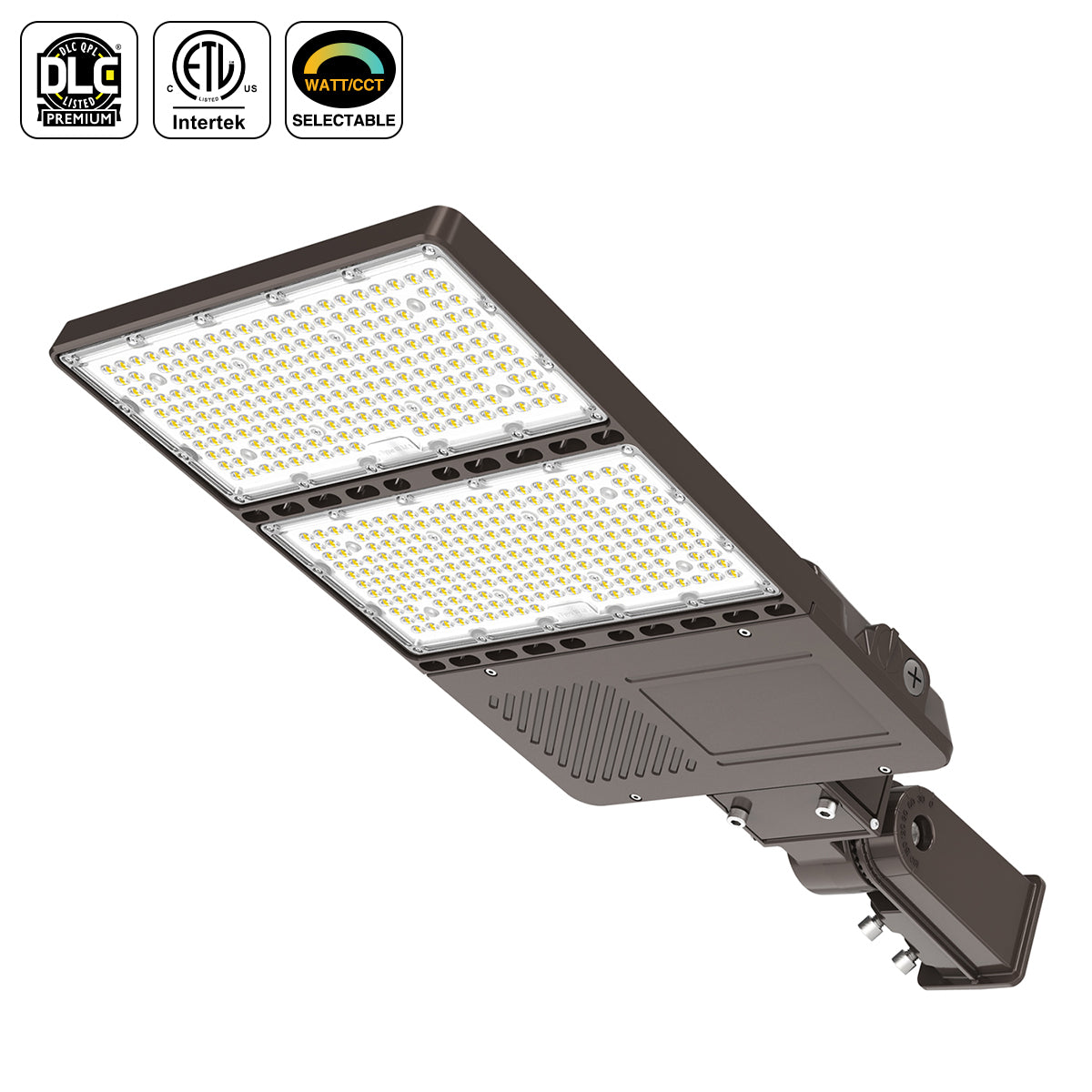

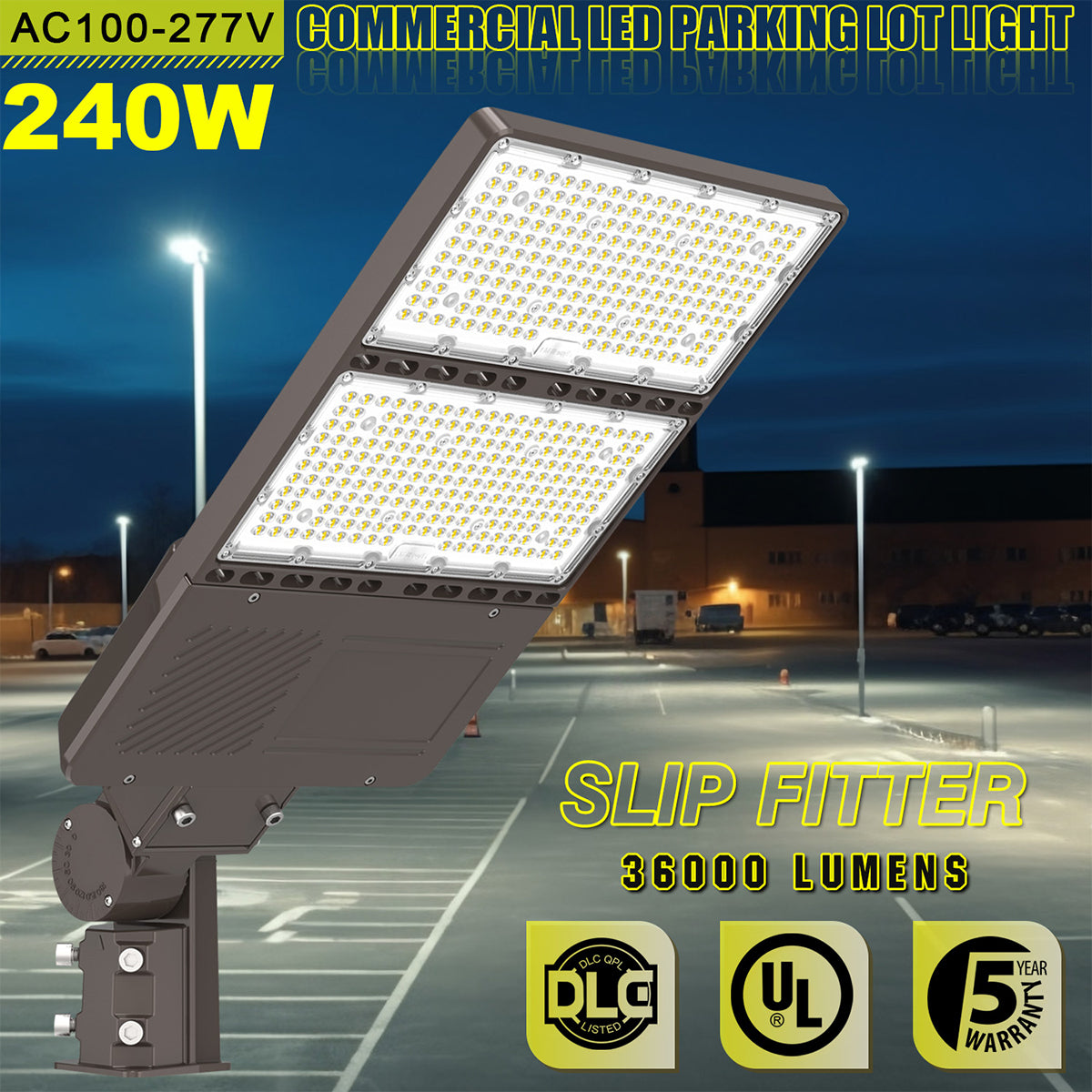

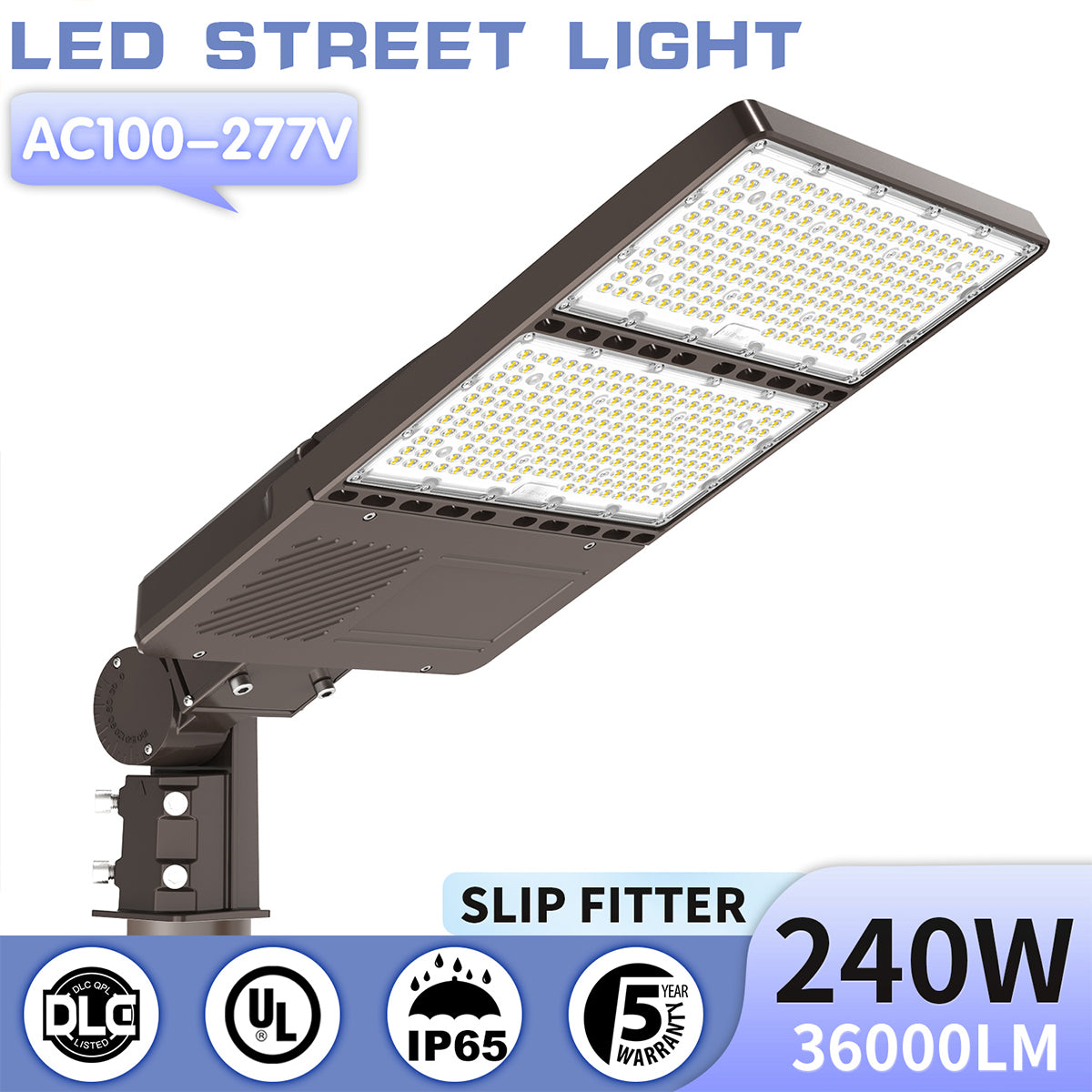

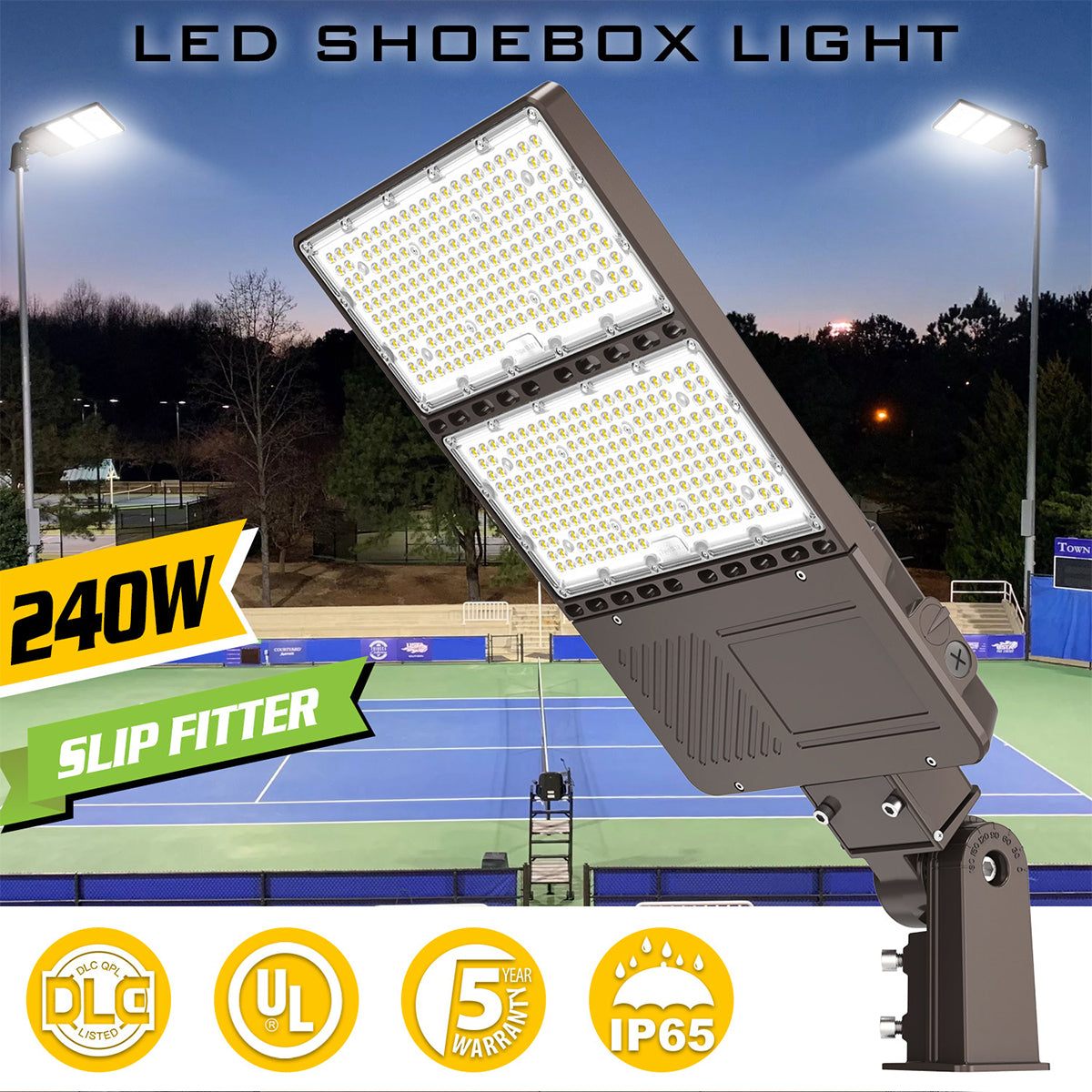

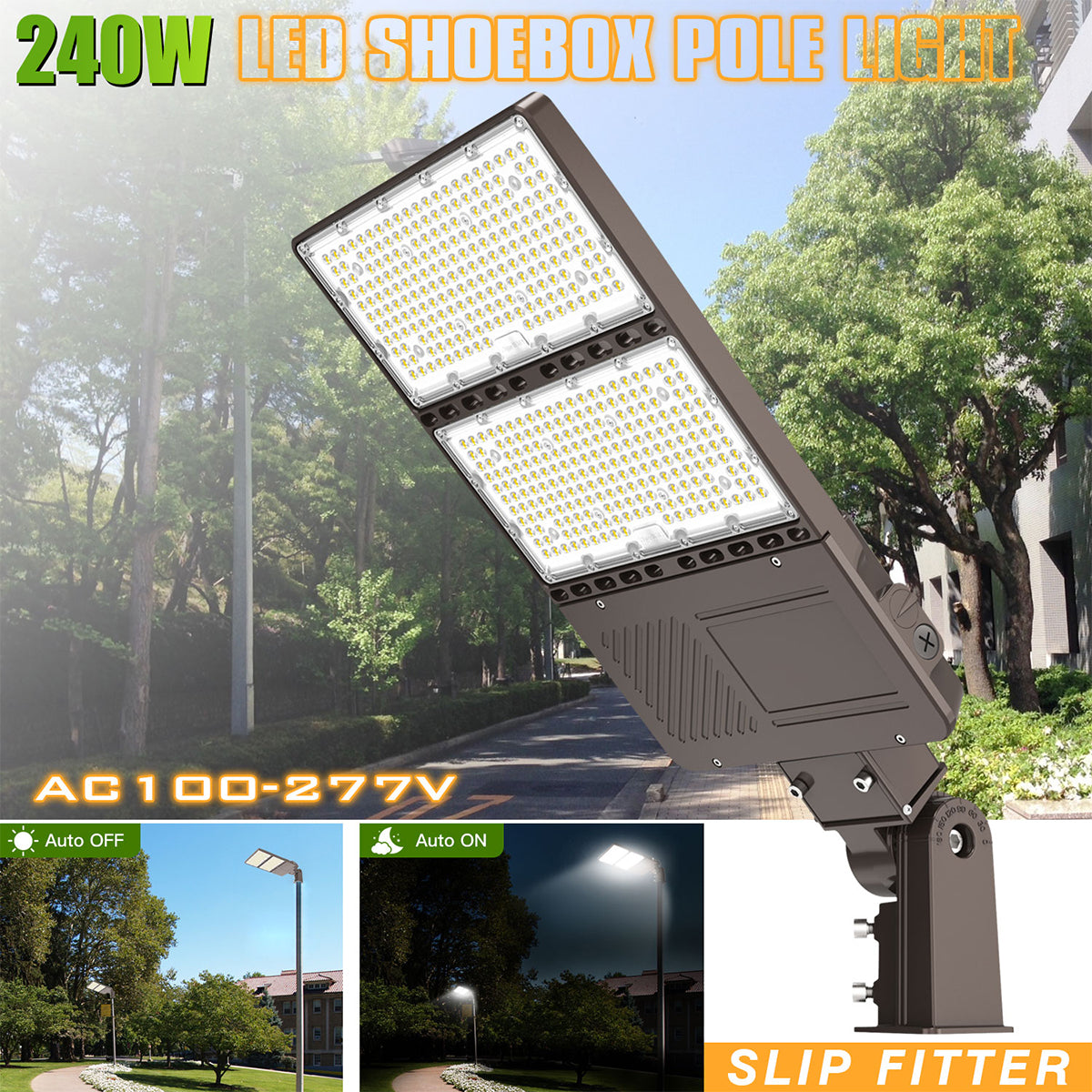

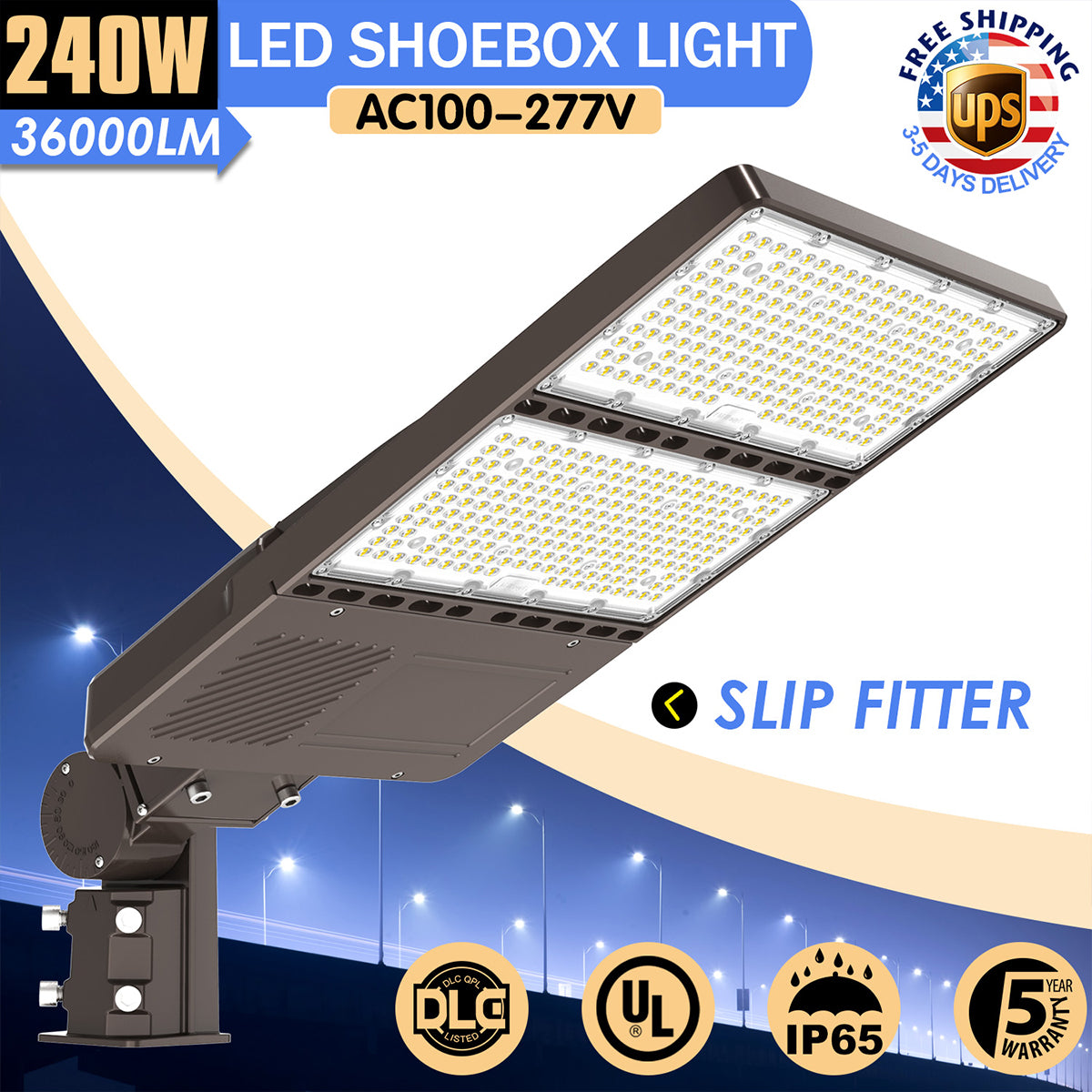

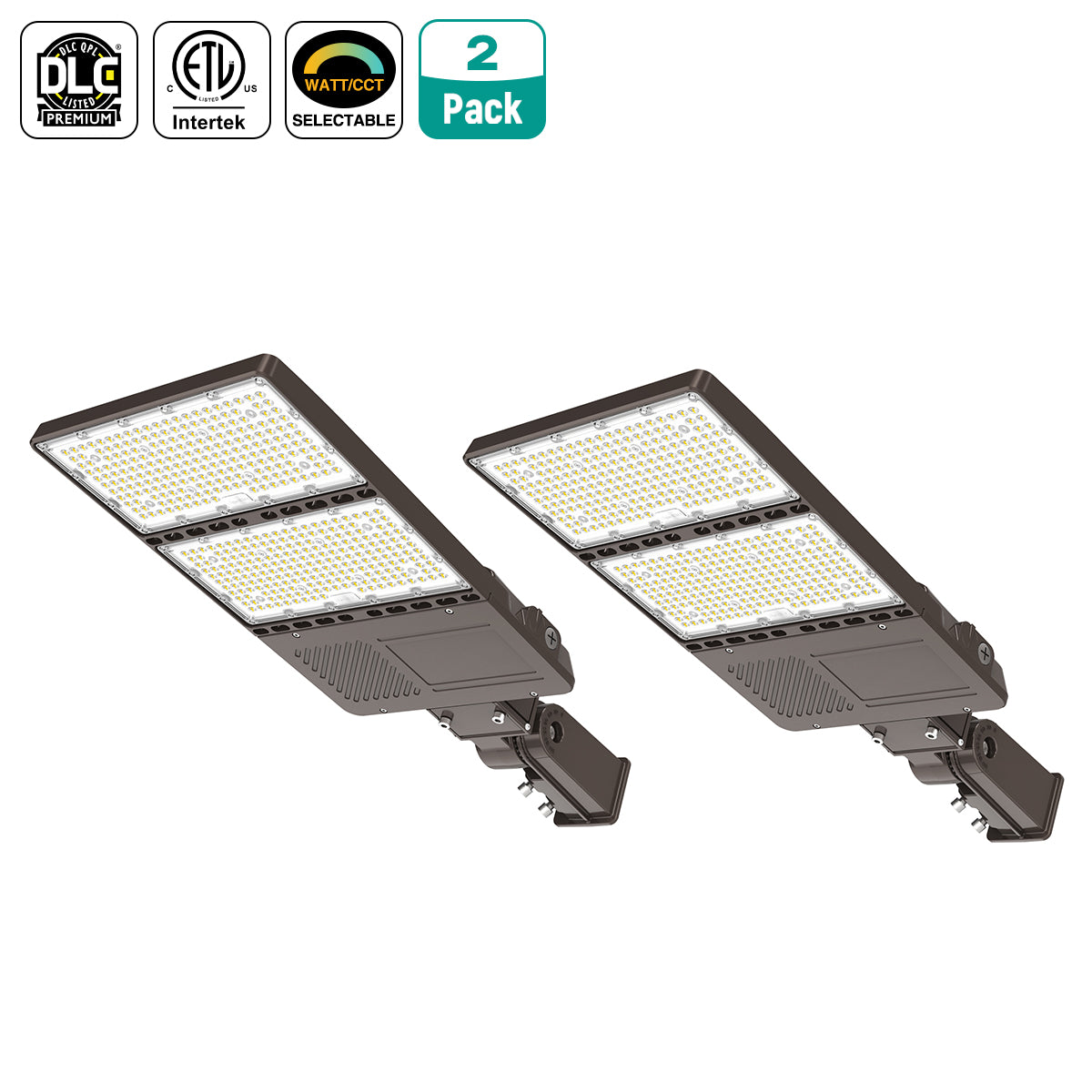

240W LED Parking Lot Shoebox Light 36,000LM 5000K AC100-277V with Built-In Photocell

LED Parking Lot Light is designed for high-performance commercial and industrial outdoor lighting applications, including parking lots, auto dealerships, distribution centers, loading areas, commercial campuses, roadways, and industrial perimeters.

This SKU is configured at 240W with 5000K color temperature, operates on AC100-277V, and includes a built-in photocell for automatic dusk-to-dawn operation. Based on the NG-PL series performance data, the 240W configuration delivers up to approximately 36,000 lumens with efficacy up to 150 lm/W, providing powerful site illumination while helping reduce energy consumption compared with traditional HID, metal halide, and HPS fixtures.

The fixture features a rugged die-cast aluminum housing with a weather-resistant powder-coated finish for excellent heat dissipation and corrosion resistance. Its IP65 construction provides reliable protection against dust and water for demanding outdoor environments.

The NG-PL series also supports field-adjustable power levels and multiple optical distributions, including Type II, Type III, and Type V, allowing the fixture platform to accommodate different pole spacing, mounting heights, and site layouts. A high-transmittance protective lens and SMD3030 LED technology provide efficient, uniform illumination across large outdoor areas.

Key Features

• Configured Power: 240W
• Light Output: Up to 36,000 lumens
• High Efficiency: Up to 150 lm/W
• Configured CCT: 5000K
• Input Voltage: AC100-277V

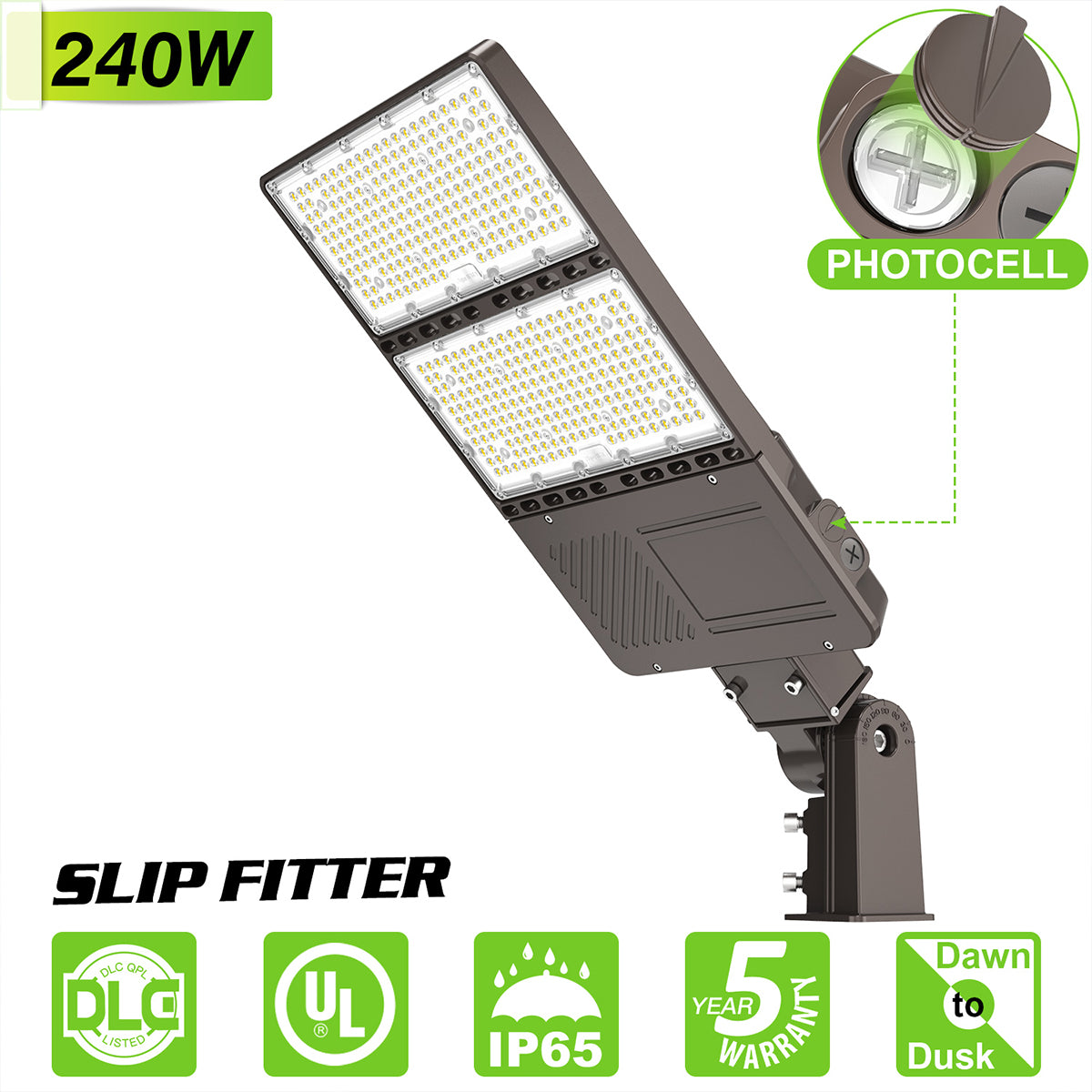

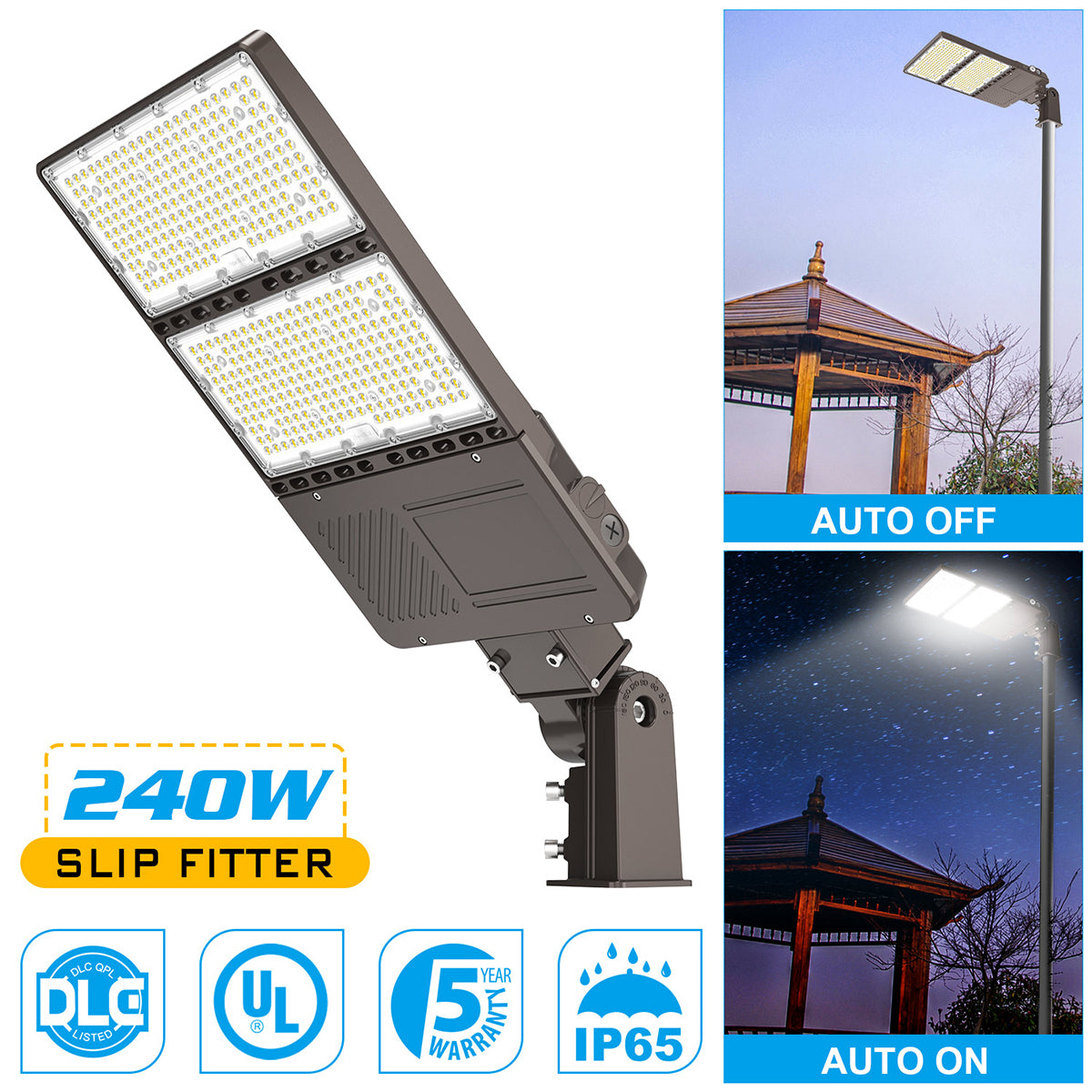

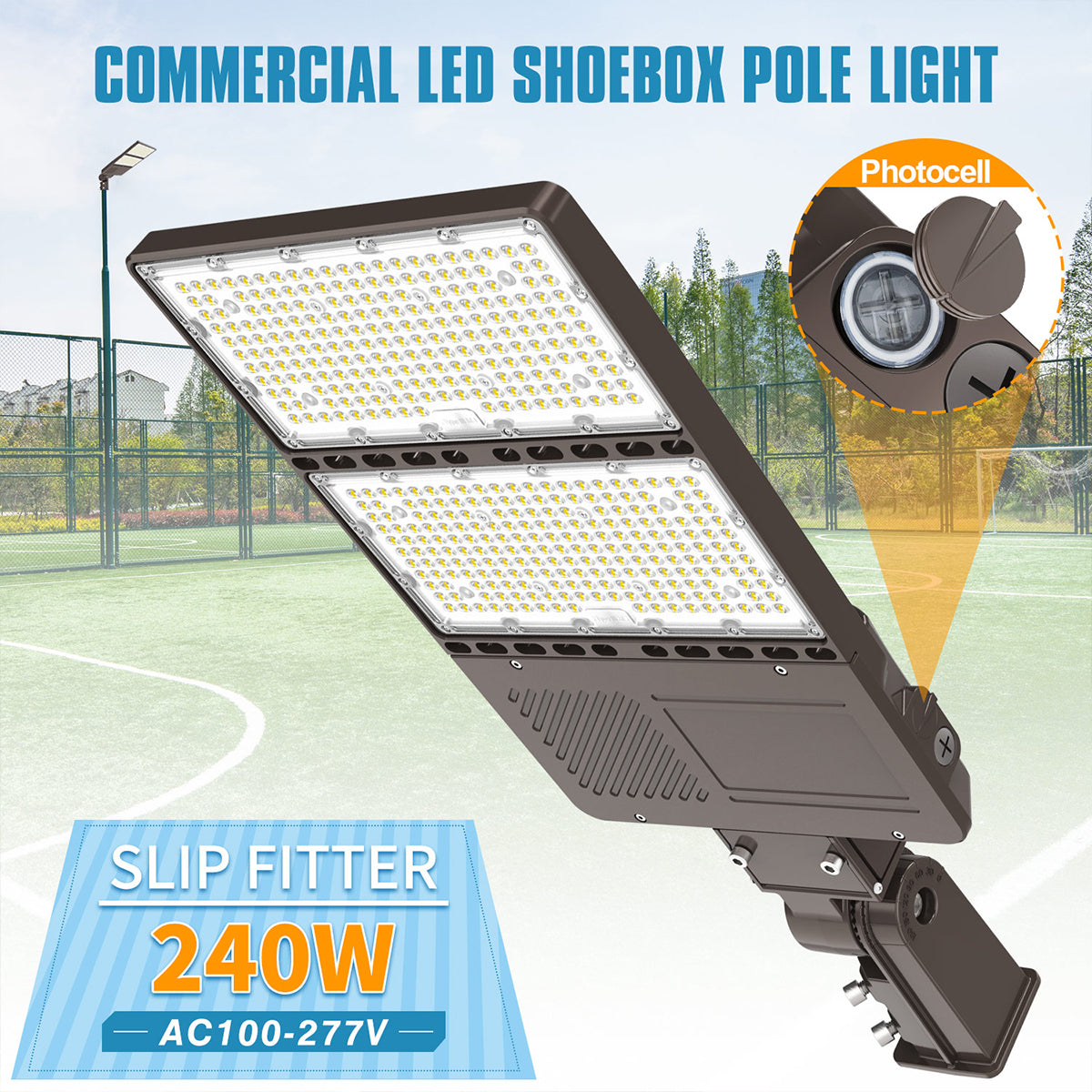

• Built-In Photocell: Automatic dusk-to-dawn control
• LED Type: SMD3030
• CRI: >80
• Optical Distribution Options: Type II / Type III / Type V
• IP65 Rated: Dustproof and waterproof
• 6KV Surge Protection
• Die-Cast Aluminum Housing
• Weather-Resistant Powder-Coated Finish
• 50,000-Hour Rated Life
• Operating Temperature: -40°C to 45°C
• No Mounting Bracket Included with This SKU
• Commercial Certifications: UL / cUL / DLC / ETL / cETL / CE

The NG-PL series supports multiple mounting systems such as slip fitter, trunnion, all-in-one round/square, universal, and square-round brackets, although this specific SKU is listed as No Bracket.

Applications

• Parking Lots
• Auto Dealerships
• Commercial Campuses
• Distribution Centers
• Loading Docks
• Industrial Facilities
• Roadways
• Building Perimeters
• Outdoor Security Lighting
• Large Commercial Areas
