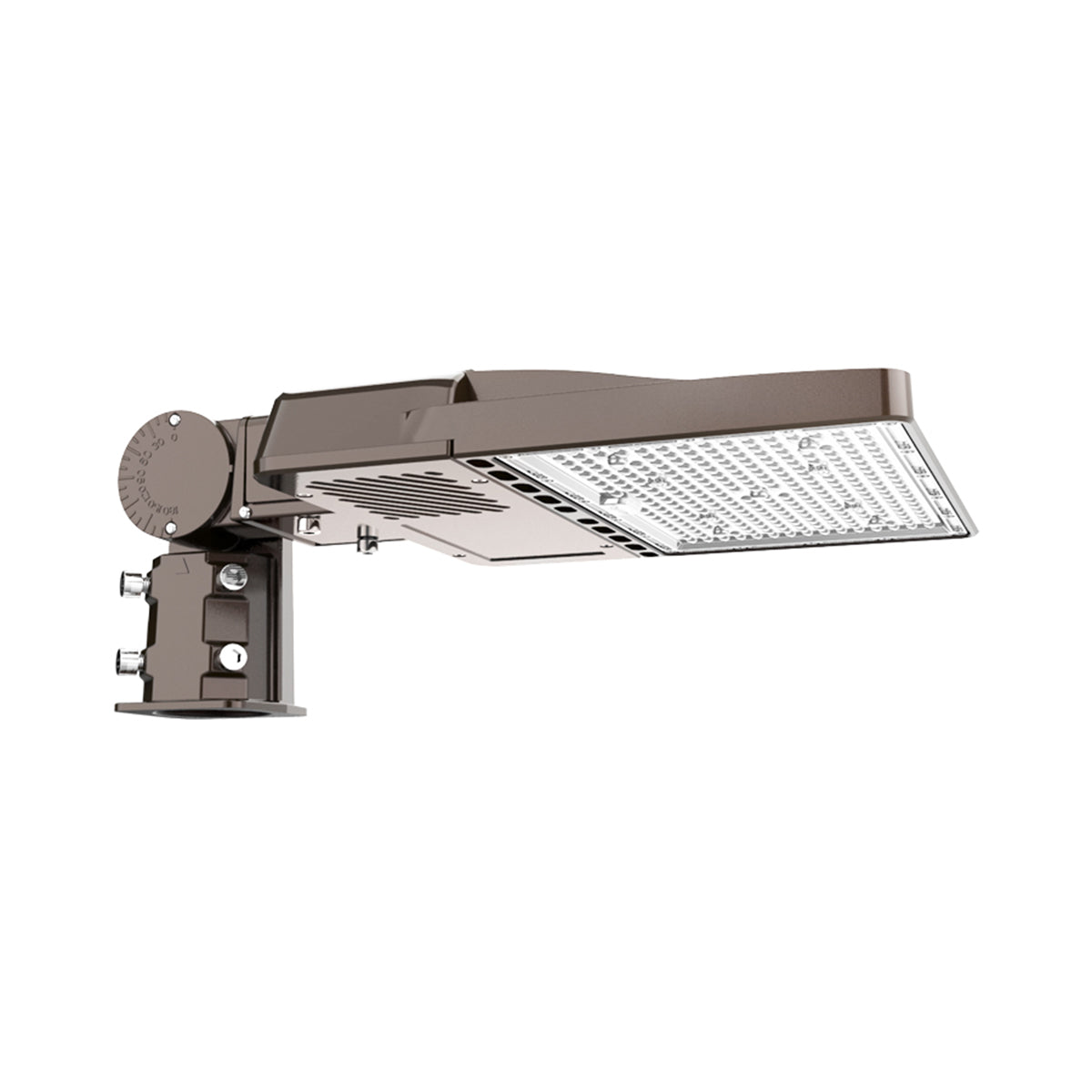

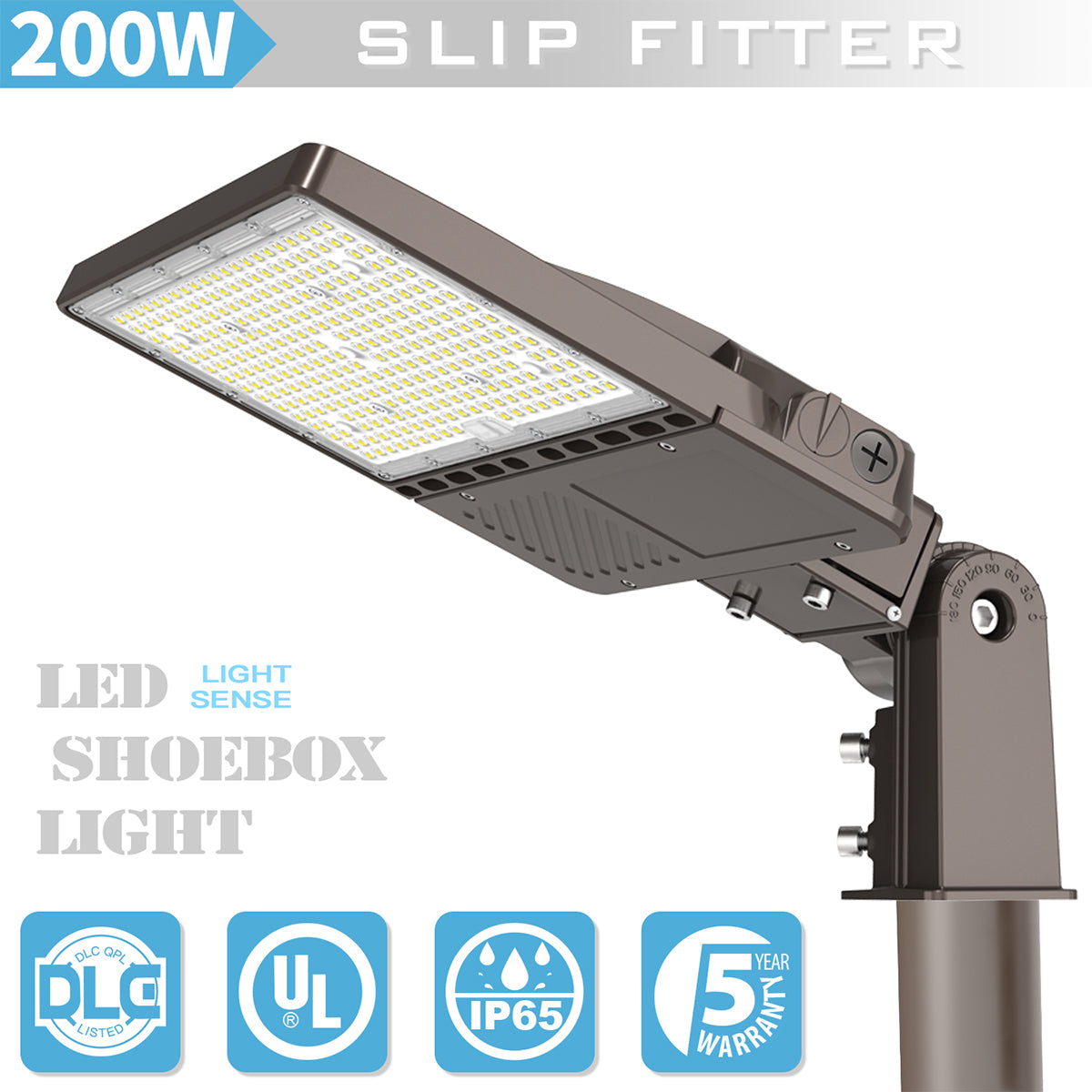

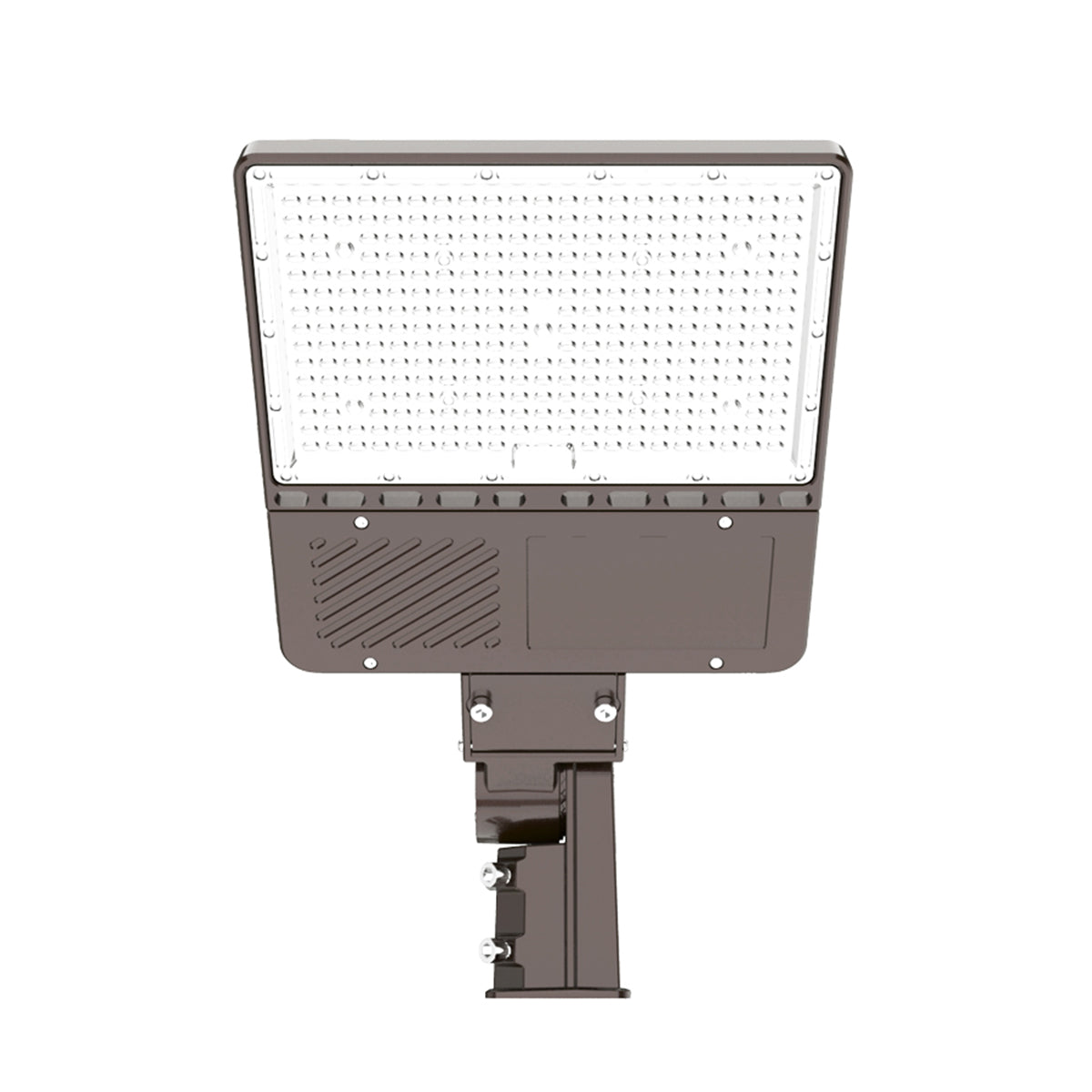

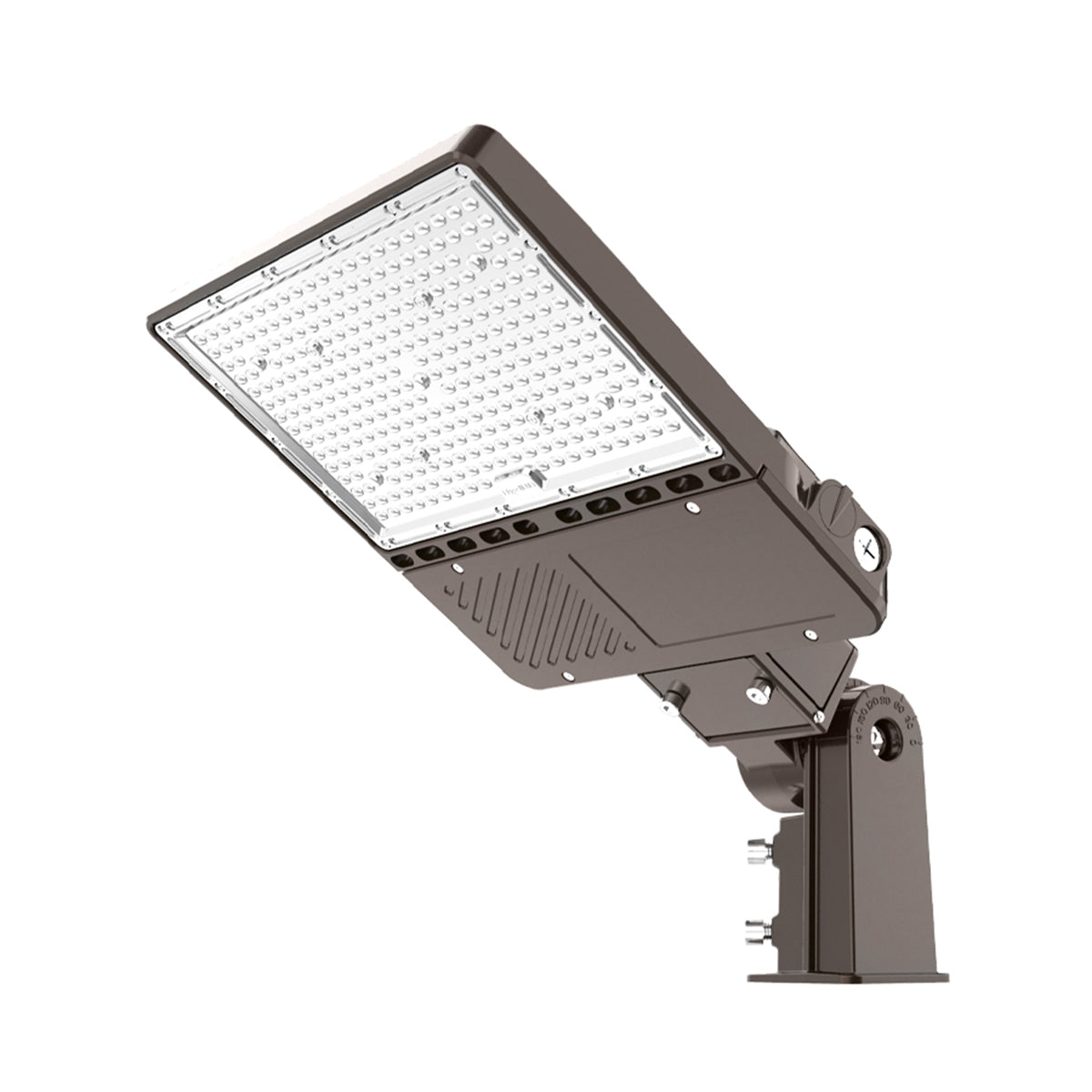

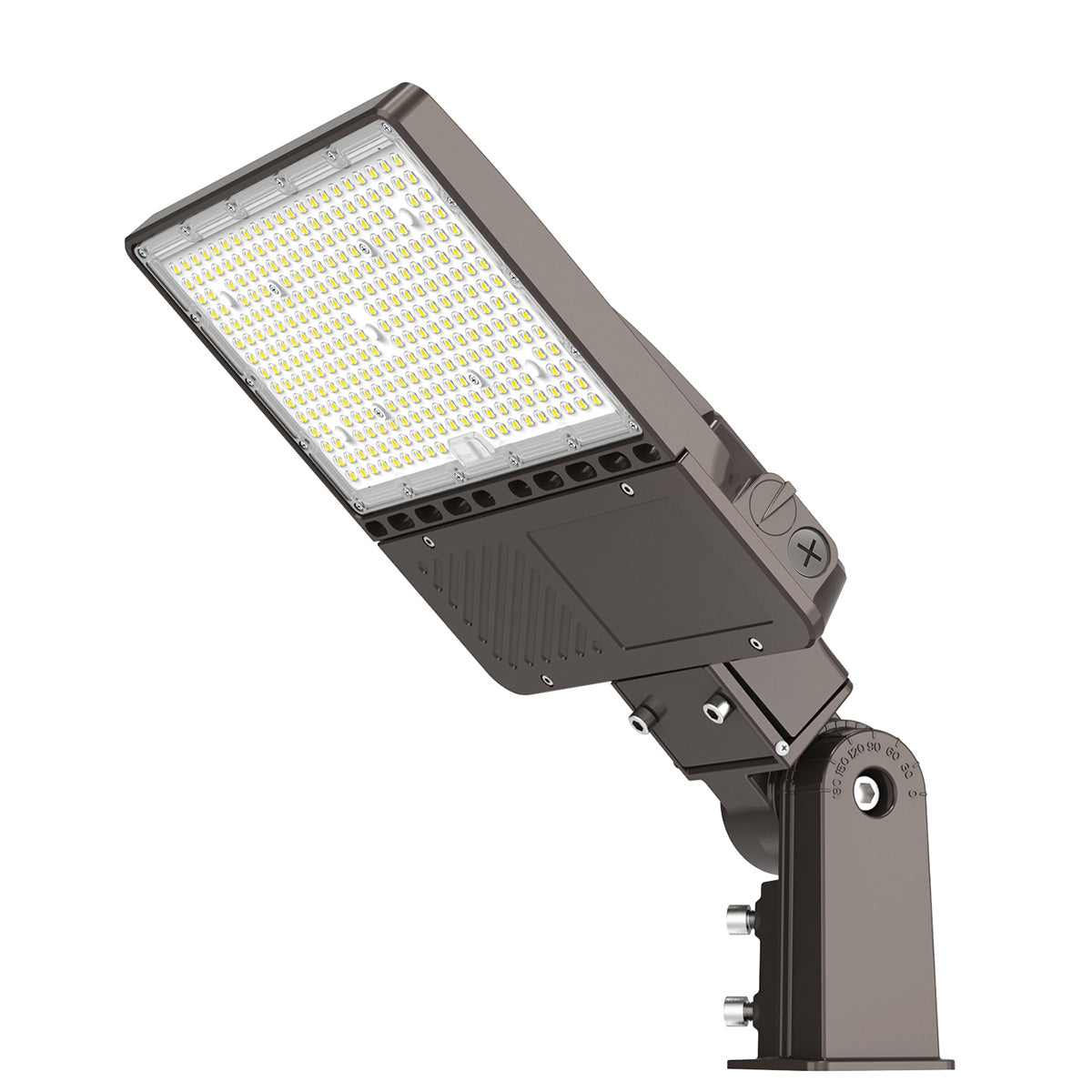

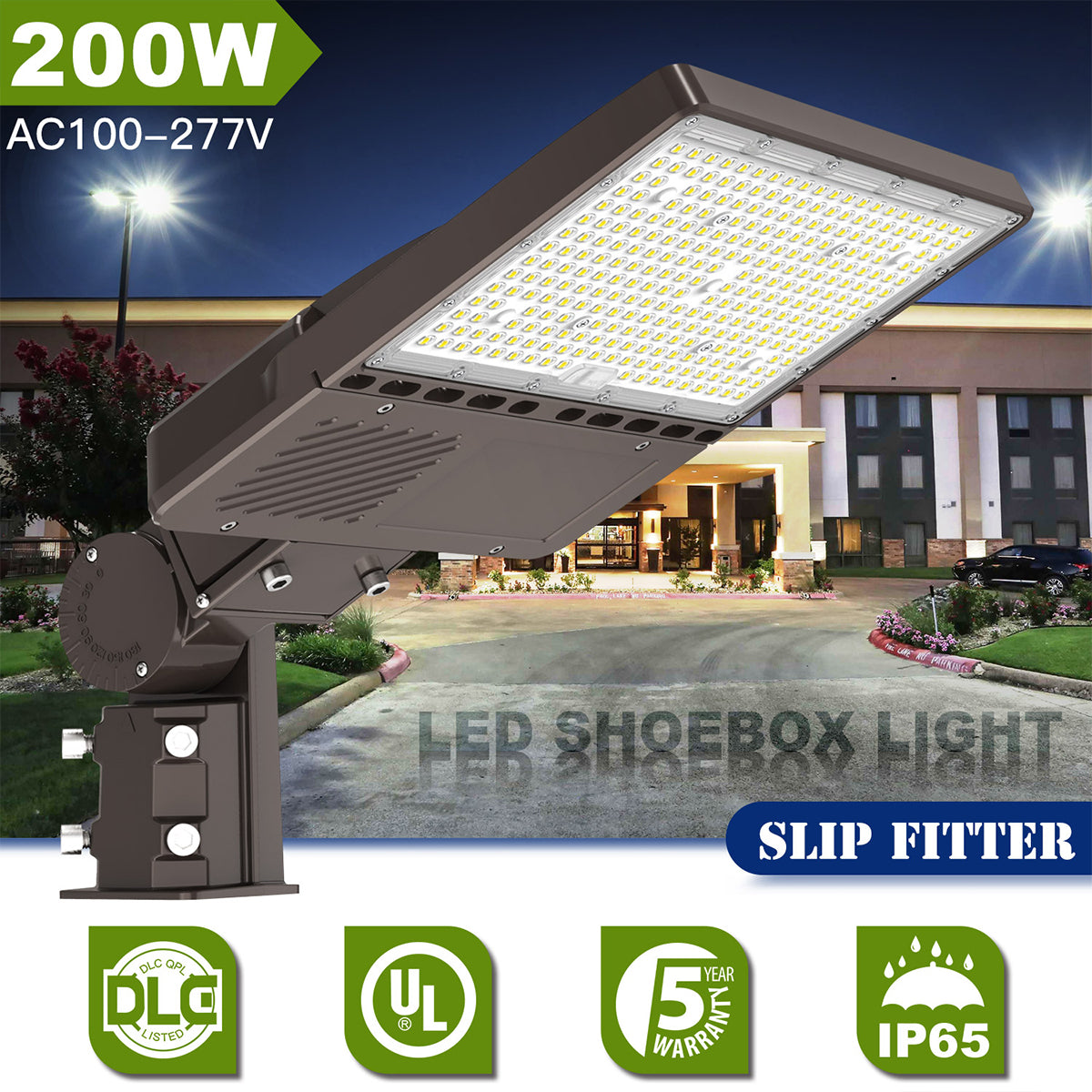

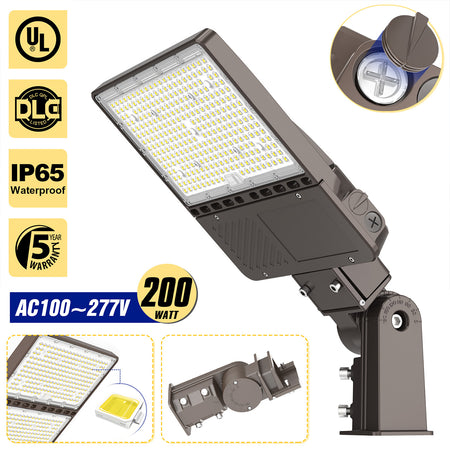

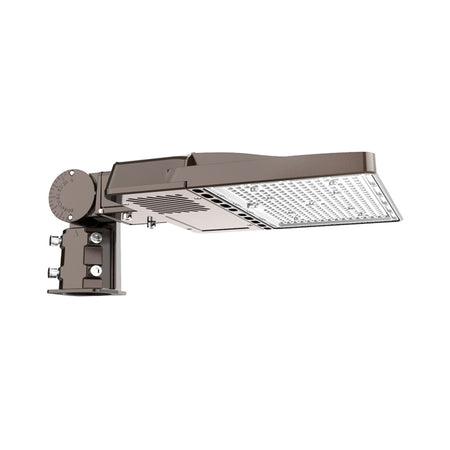

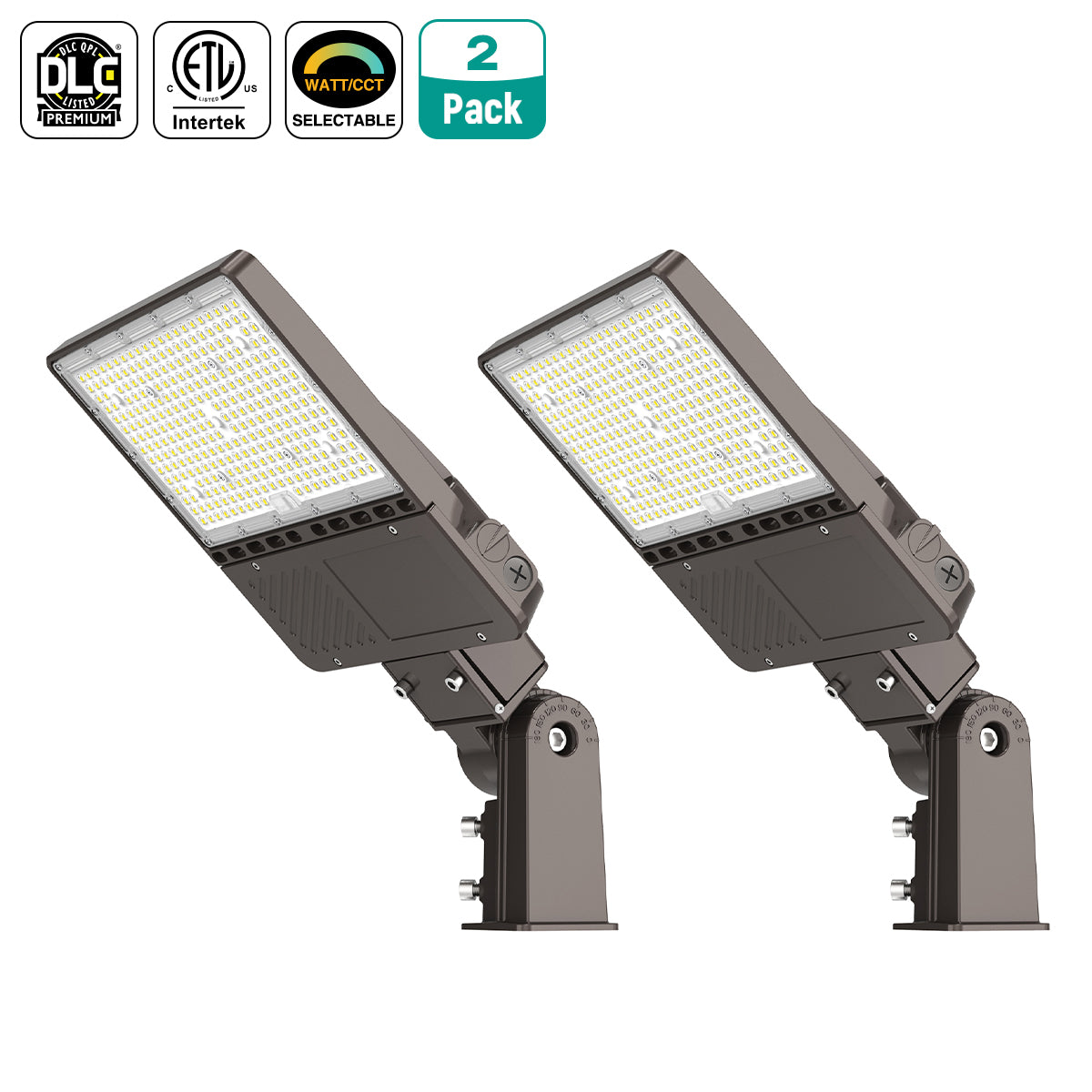

LED Parking Lot Shoebox Light 120W/160W/200W Selectable 4500K/5000K/5700K with Photocell

LED Parking Lot Light is a versatile commercial and industrial outdoor lighting solution designed for parking lots, roadways, auto dealerships, distribution centers, loading docks, commercial campuses, and other large exterior areas.

With a maximum output of 200W and field-selectable power settings, the fixture allows installers to adjust light output based on pole height, fixture spacing, and project illumination requirements. The NG-PL series supports 60%, 80%, and 100% power settings, providing approximately 120W, 160W, and 200W output from a single fixture.

At full power, the 200W configuration delivers up to approximately 30,000 lumens with luminous efficacy up to 150 lm/W, providing bright and energy-efficient area illumination while helping reduce operating costs compared with traditional metal halide and high-pressure sodium fixtures.

This 458S configuration features three selectable color temperatures: 4500K, 5000K, and 5700K. Installers can select the preferred CCT in the field to match different parking lot, roadway, security, and commercial site-lighting requirements.

A built-in photocell enables automatic dusk-to-dawn operation, allowing the fixture to turn on at night and switch off during daylight hours for convenient and energy-efficient lighting control.

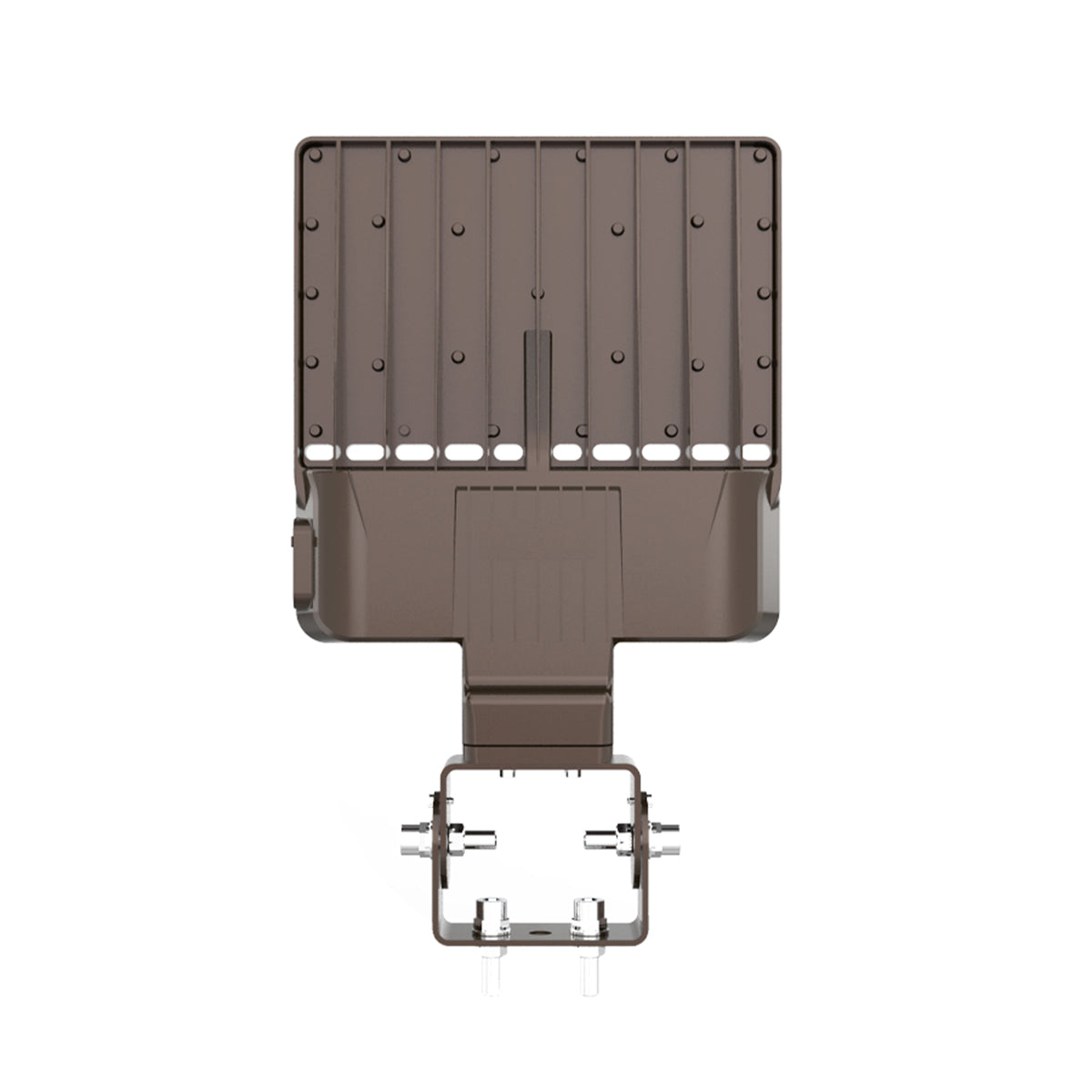

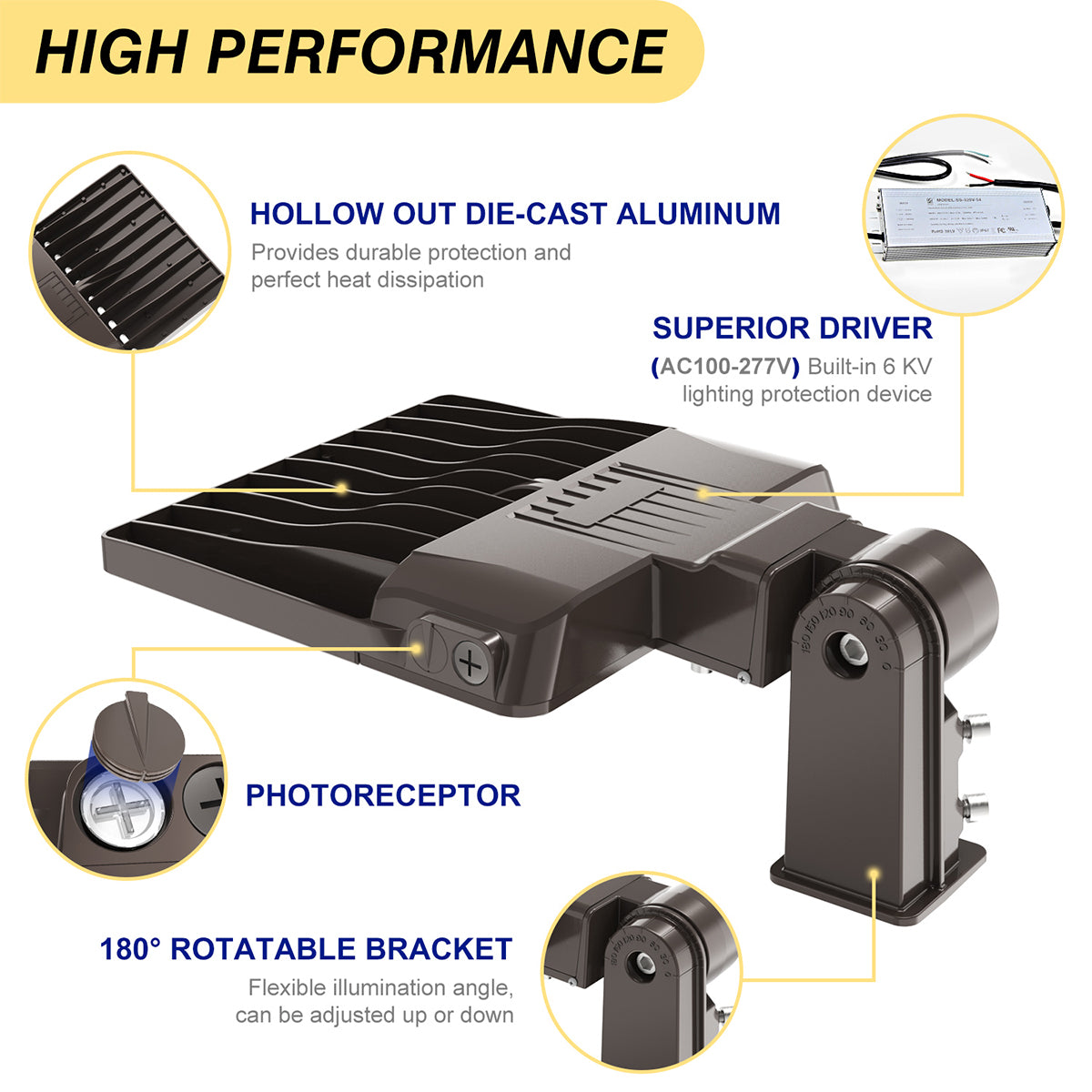

The fixture is constructed with a durable die-cast aluminum housing and a weather-resistant powder-coated finish for excellent heat dissipation and corrosion resistance. Its IP65-rated construction provides reliable protection against dust and water in demanding outdoor environments.

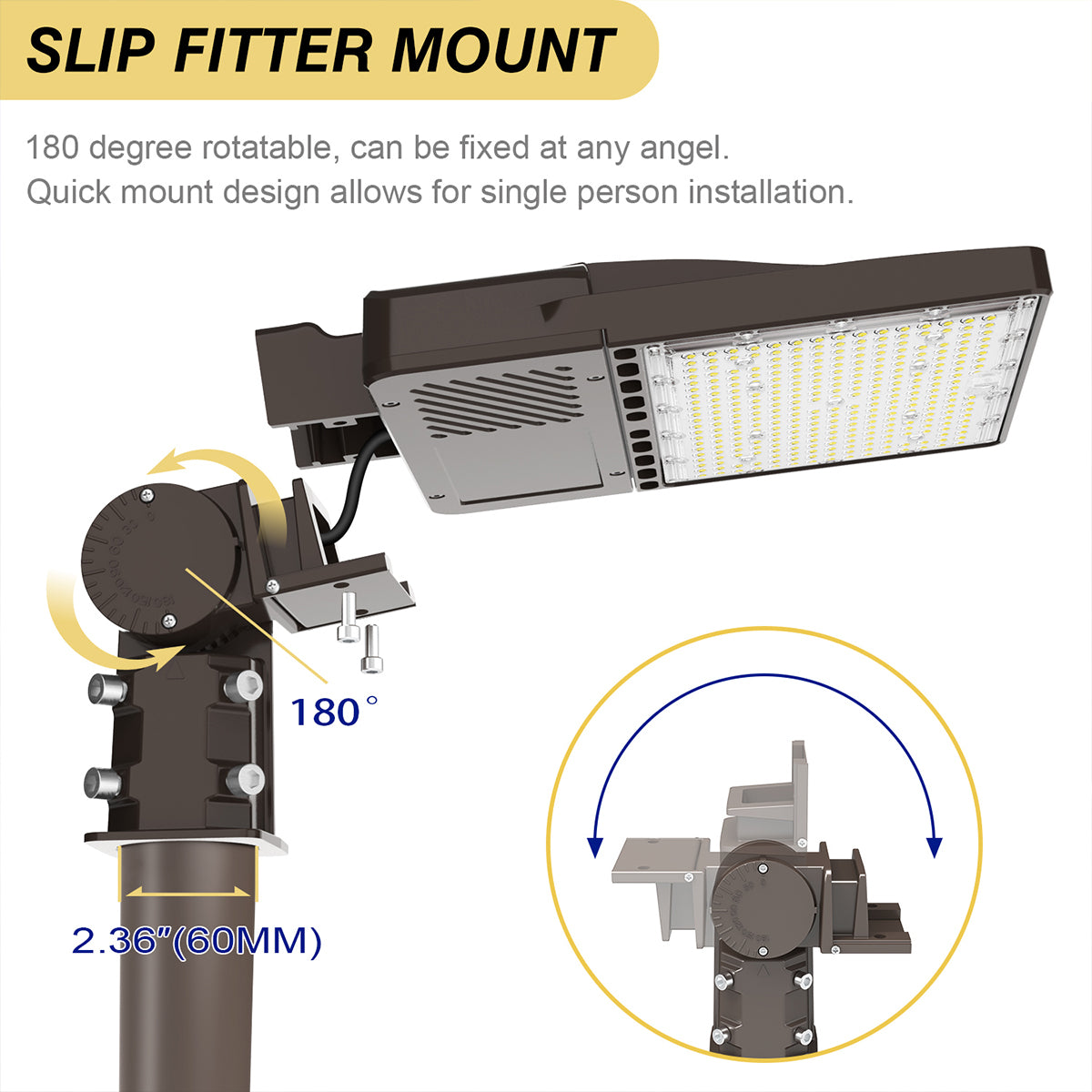

The NG-PL platform uses high-performance SMD3030 LEDs and offers Type II, Type III, and Type V optical distributions for different site layouts. This specific SKU is supplied without a mounting bracket, allowing the appropriate mounting accessory to be selected separately based on project requirements.

Key Features

• Maximum Wattage: 200W
• Power Selectable: 60% / 80% / 100%
• Approx. Wattage Settings: 120W / 160W / 200W
• Maximum Light Output: Up to 30,000 lumens
• High Efficiency: Up to 150 lm/W
• 3CCT Selectable: 4500K / 5000K / 5700K

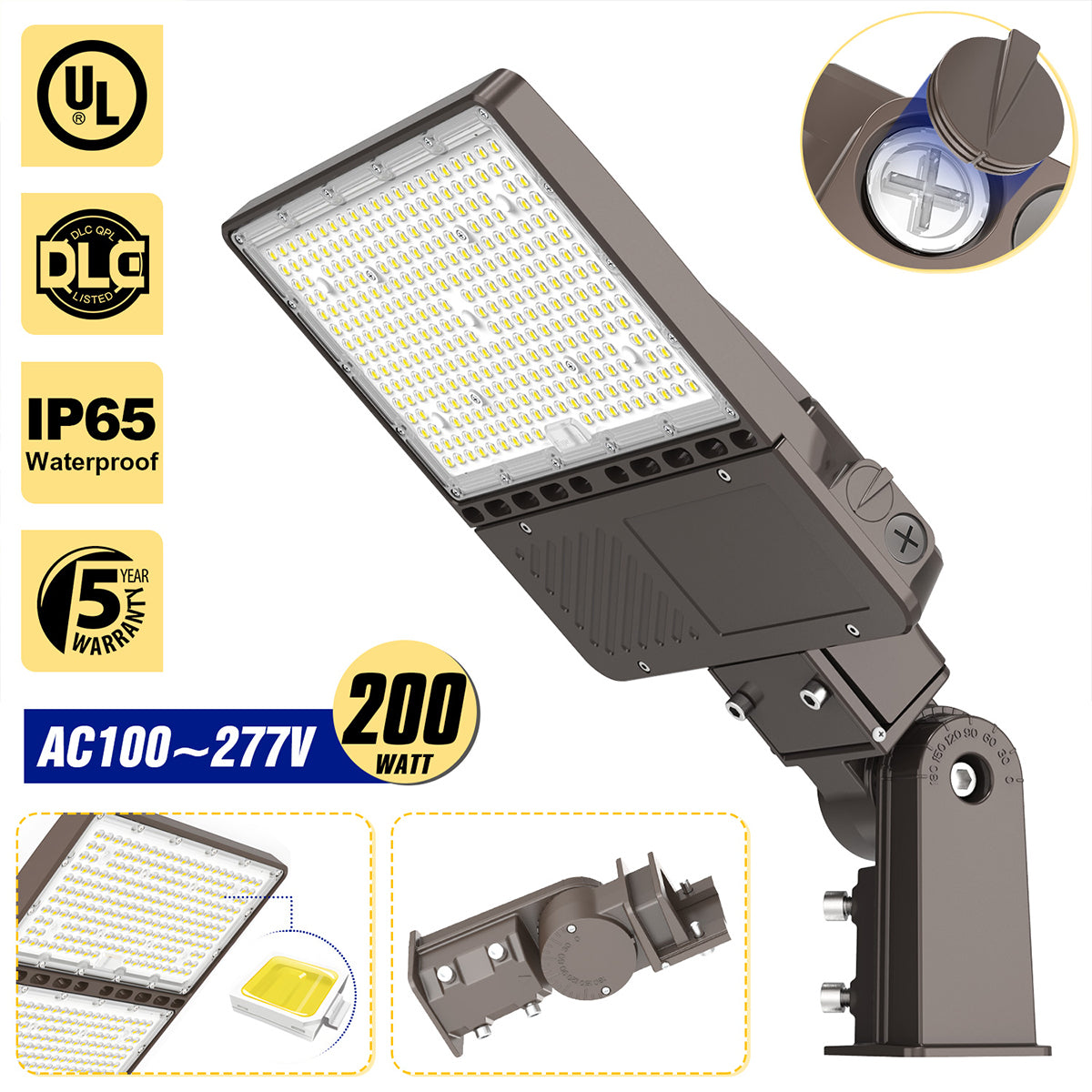

• Input Voltage: AC100-277V

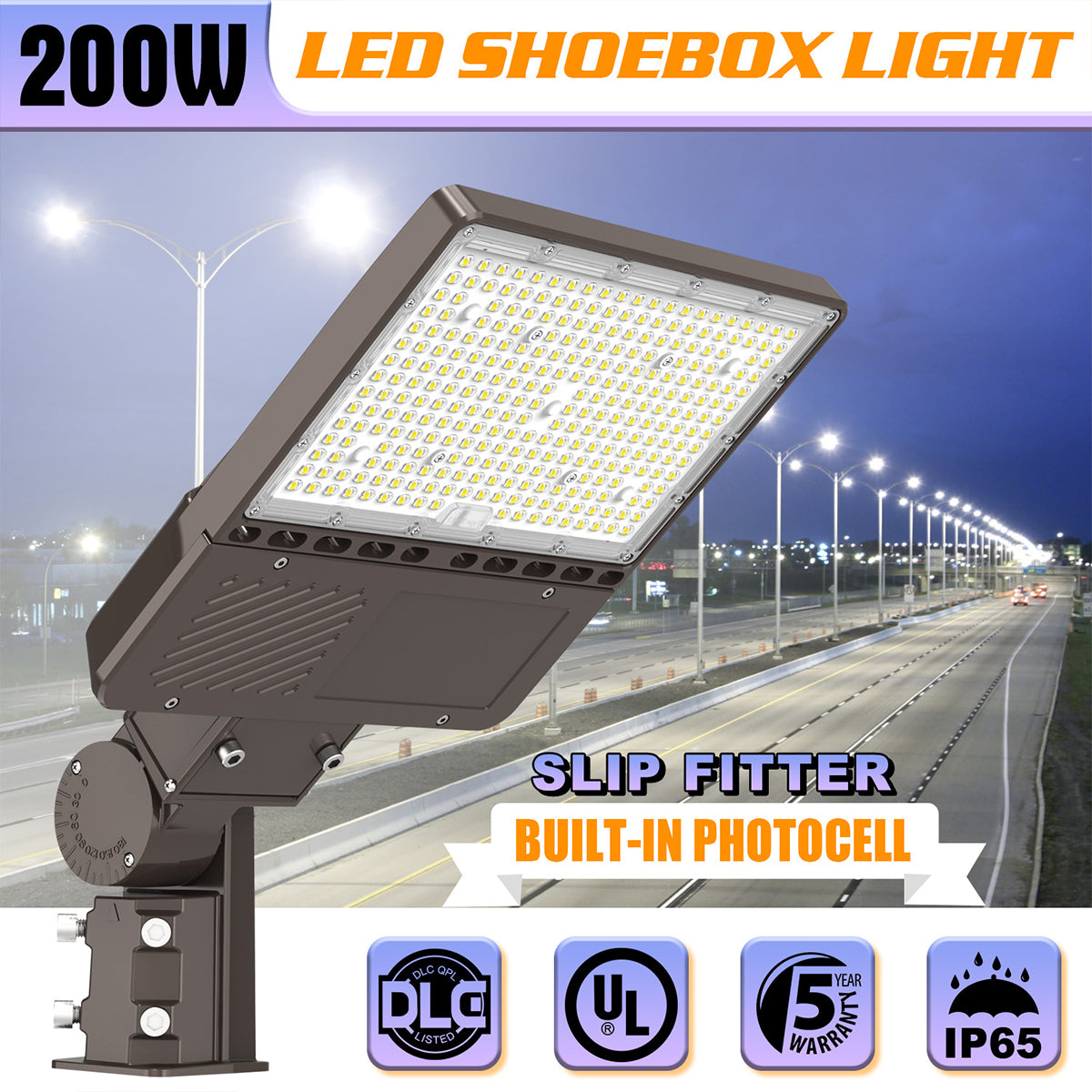

• Built-In Photocell: Automatic dusk-to-dawn operation
• Bracket: Not Included
• LED Type: SMD3030
• CRI: >80

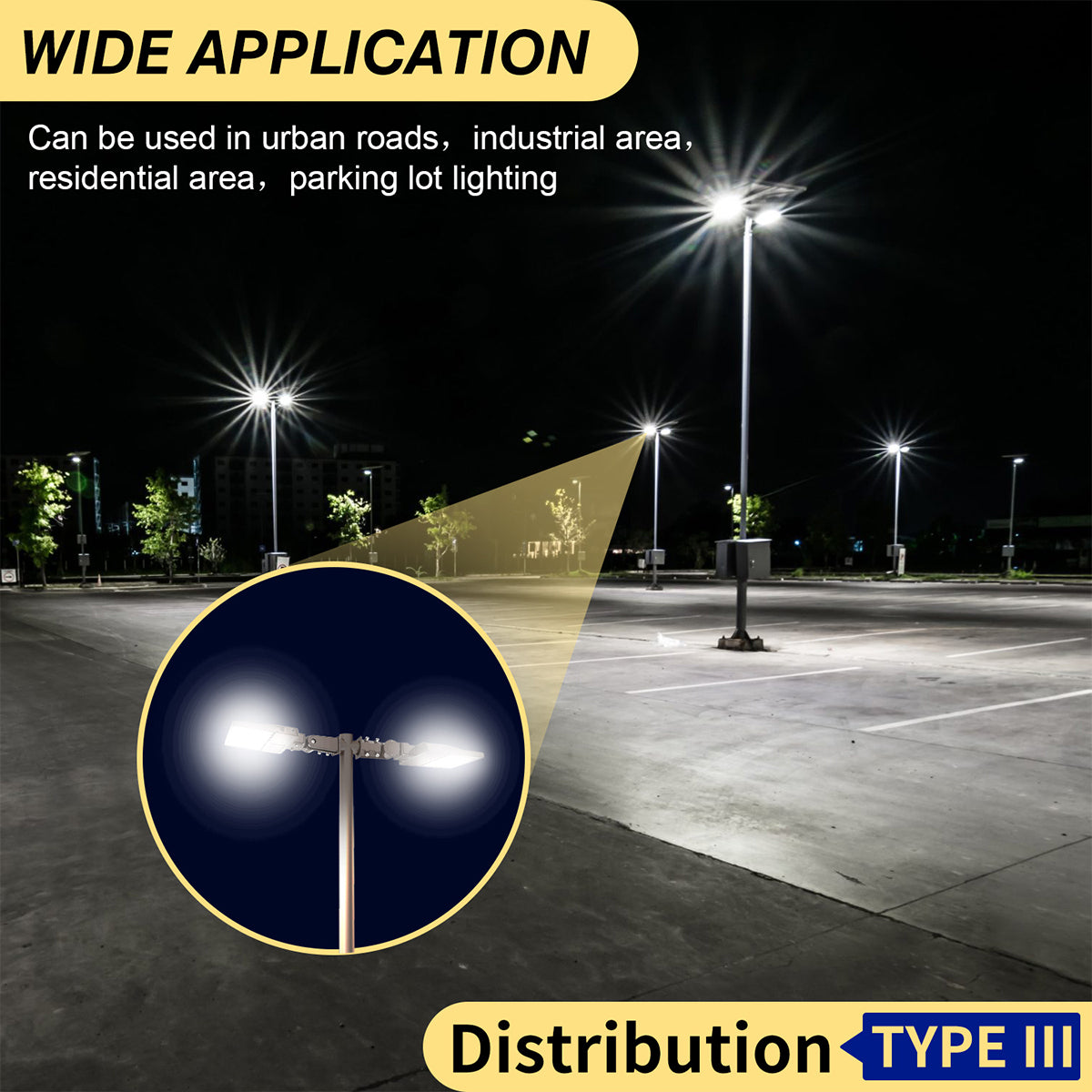

• Optical Distribution Options: Type II / Type III / Type V
• IP65 Rated
• 6KV Surge Protection

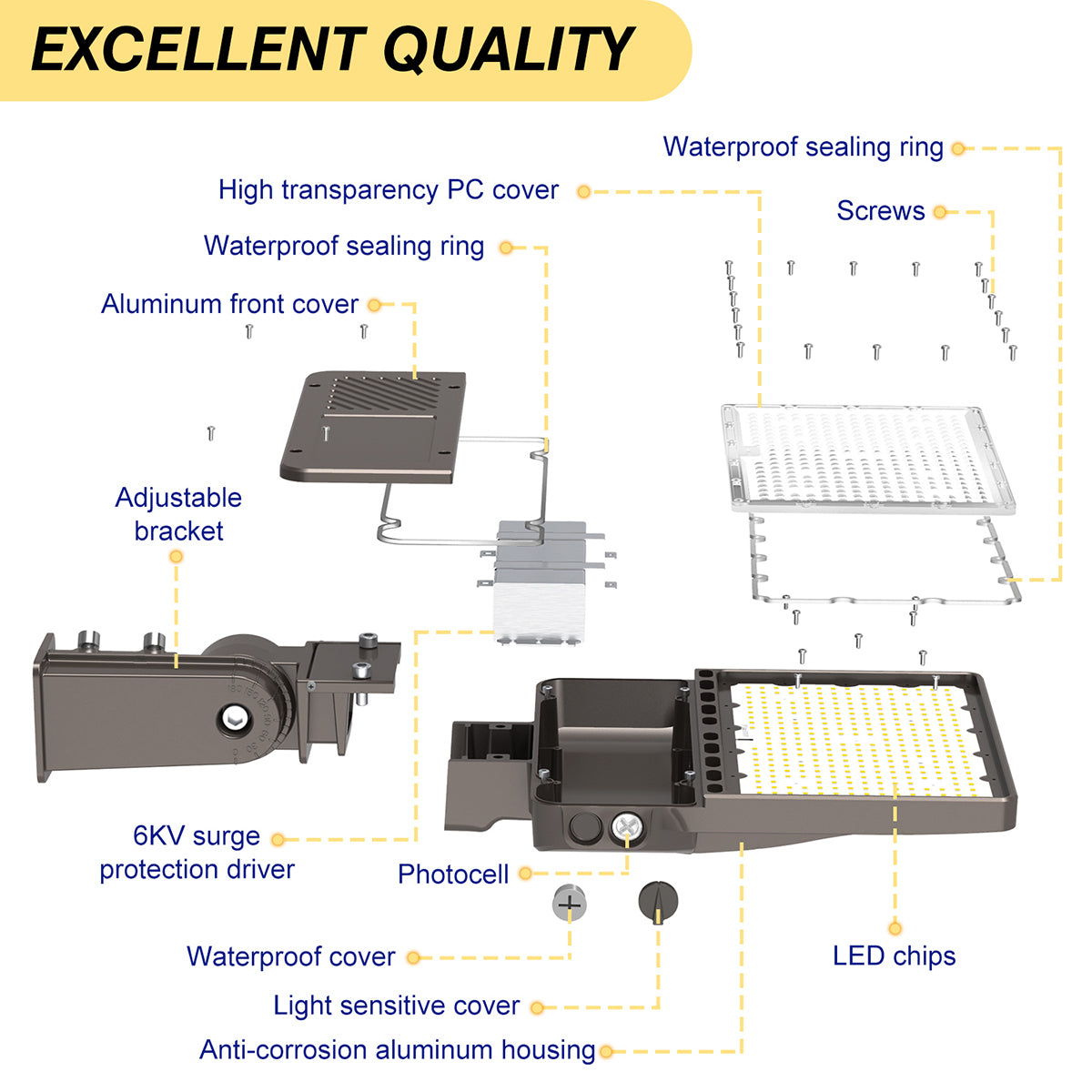

• Die-Cast Aluminum Housing
• Weather-Resistant Powder-Coated Finish
• 50,000-Hour Rated Life
• Operating Temperature: -40°C to 45°C

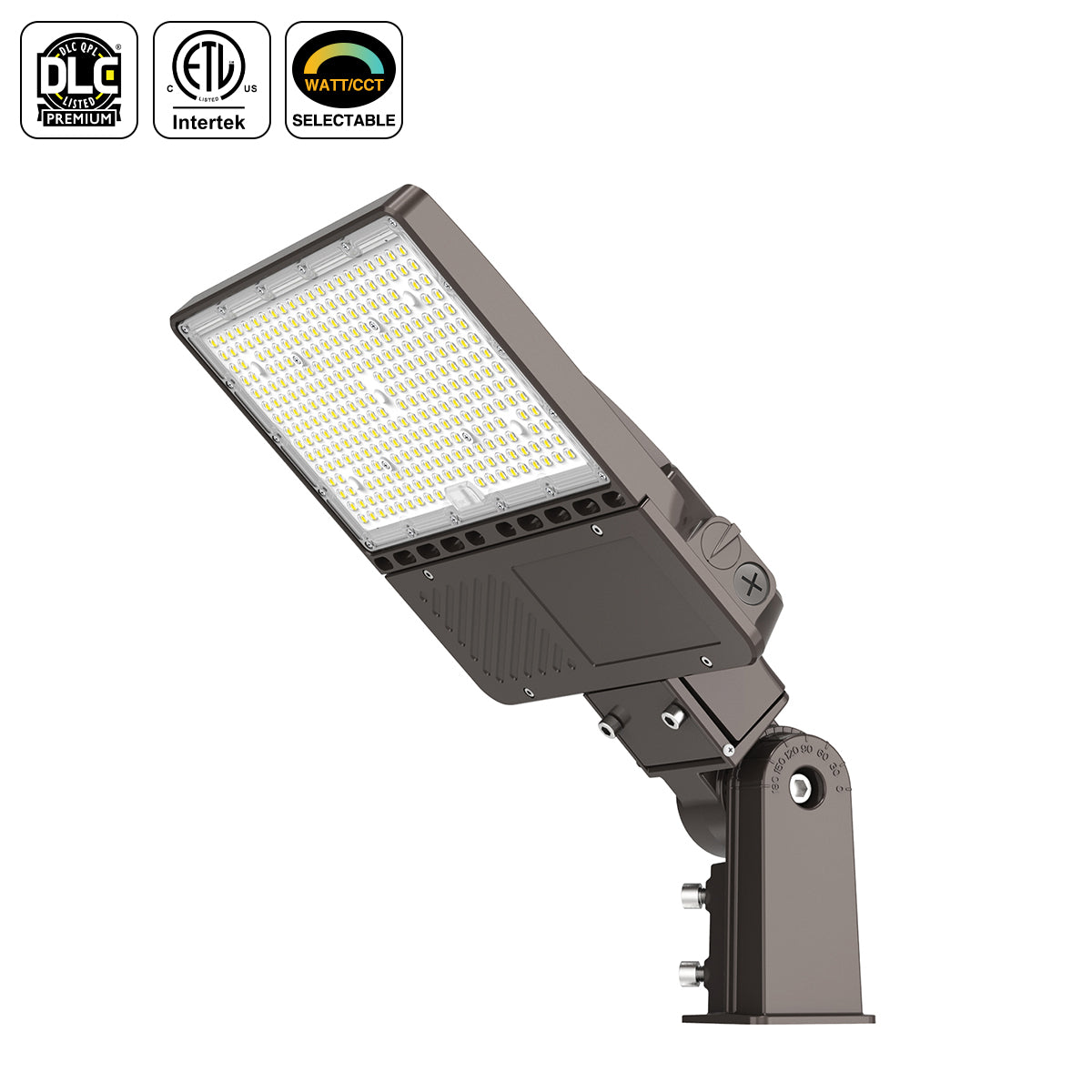

• Commercial Certifications: UL / cUL / DLC / ETL / cETL / CE

Applications

• Parking Lots
• Auto Dealerships
• Commercial Areas
• Roadways
• Logistics Centers
• Distribution Centers
• Loading Docks
• Industrial Facilities
• Building Perimeters
• Outdoor Security Lighting

Technical Specifications
