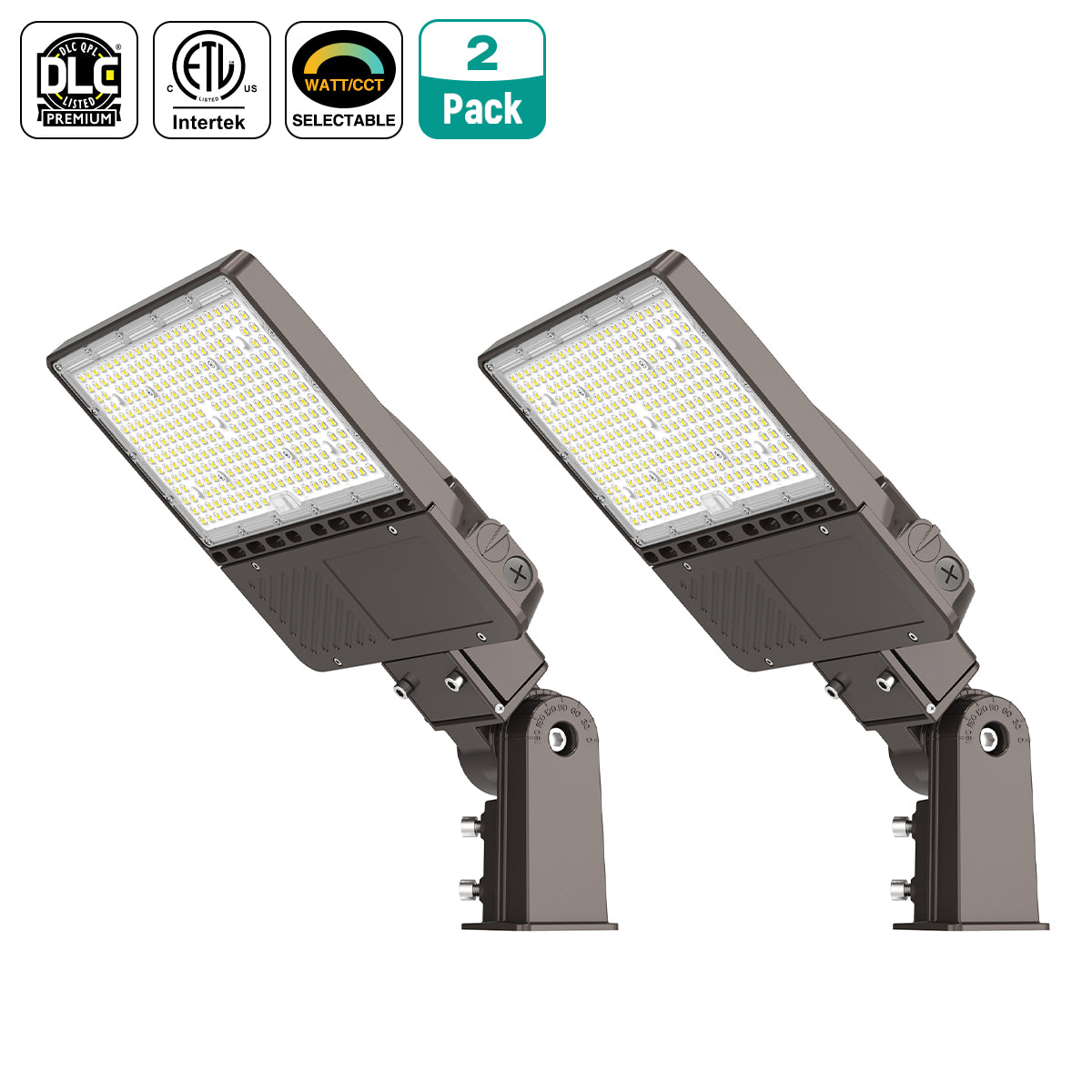

150W LED Parking Lot Shoebox Light 90W/120W/150W Selectable 5000K 100-277V with Photocell

LED Parking Lot Light is a versatile commercial outdoor lighting fixture designed for parking lots, retail centers, commercial properties, walkways, loading areas, schools, roadways, and other exterior site-lighting applications.

With a maximum output of 150W, the fixture supports field-adjustable power at 60%, 80%, and 100%, providing approximately 90W, 120W, and 150W settings. This allows installers to adjust light output based on pole height, spacing, site layout, and project illumination requirements without changing fixtures.

At full power, the 150W configuration delivers up to approximately 22,500 lumens with luminous efficacy up to 150 lm/W, providing bright and energy-efficient illumination while helping reduce operating and maintenance costs compared with traditional metal halide and high-pressure sodium area lights.

This 508S configuration is supplied in 5000K, providing crisp daylight-style illumination suitable for parking lots, commercial sites, security areas, roadways, and industrial properties.

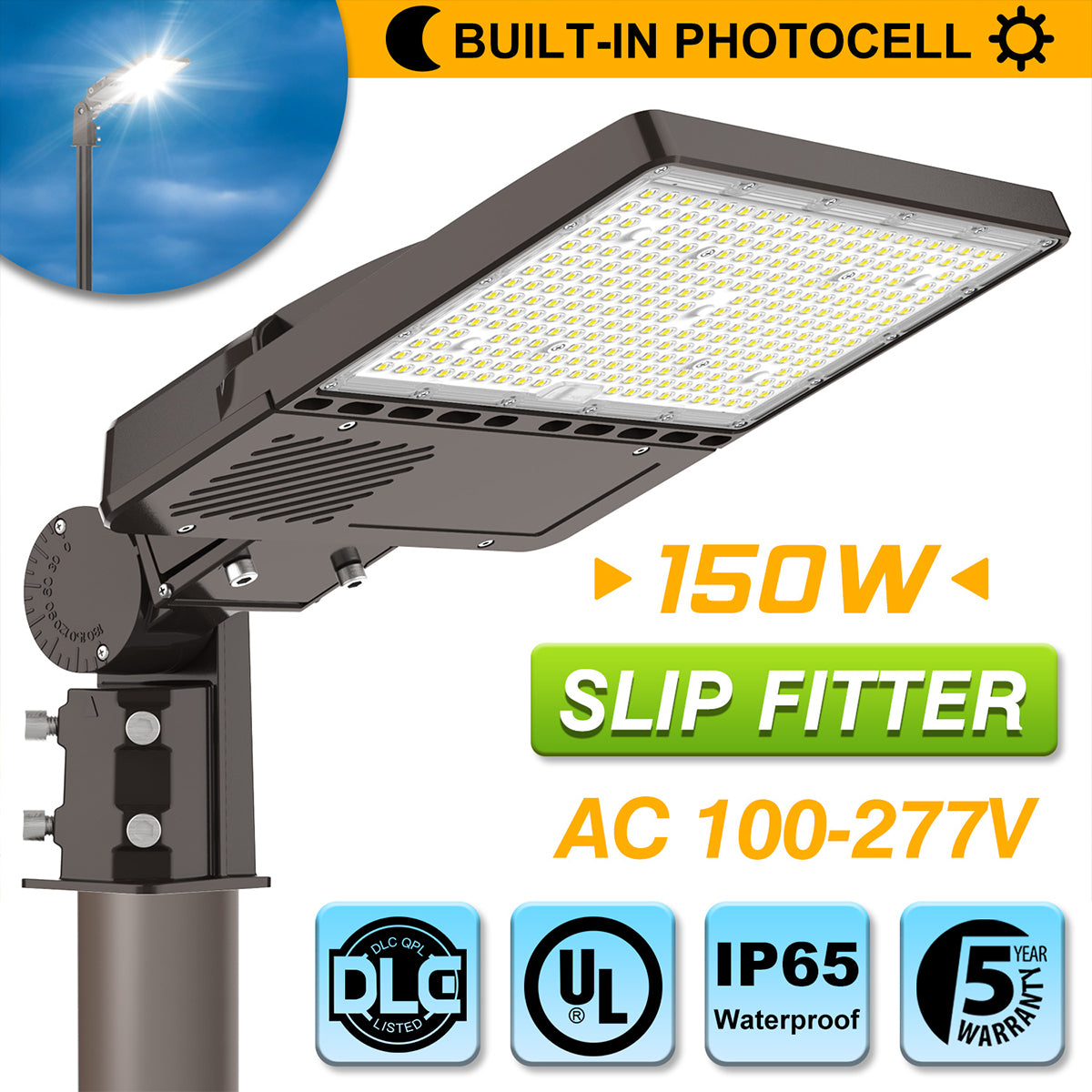

A built-in photocell supports automatic dusk-to-dawn operation, allowing the fixture to turn on after dark and switch off during daylight hours for convenient, energy-efficient site lighting.

The fixture features high-performance SMD3030 LEDs, a high-transmittance protective lens, and a rugged die-cast aluminum housing with a weather-resistant powder-coated finish. Its IP65-rated enclosure provides reliable protection against dust and water, while 6KV surge protection helps improve electrical reliability in demanding outdoor environments.

The NG-PL series supports Type II, Type III, and Type V optical distributions for different parking lot and roadway layouts. Multiple mounting configurations are available depending on the selected SKU, including no-bracket, slip-fitter, and A&N bracket versions.

Key Features

• Maximum Wattage: 150W
• Selectable Power: 60% / 80% / 100%
• Approx. Wattage Settings: 90W / 120W / 150W
• Maximum Light Output: Up to 22,500 lumens
• High Efficiency: Up to 150 lm/W
• Color Temperature: 5000K
• Input Voltage: AC100-277V
• Built-In Photocell: Automatic dusk-to-dawn operation
• LED Type: SMD3030
• CRI: >80
• Optical Distribution Options: Type II / Type III / Type V
• IP65 Rated
• 6KV Surge Protection
• Die-Cast Aluminum Housing
• Weather-Resistant Powder-Coated Finish
• 50,000-Hour Rated Life
• Operating Temperature: -40°C to 45°C
• Multiple Mounting Options Available
• Commercial Certifications: UL / cUL / DLC / ETL / cETL / CE

Applications

• Parking Lots
• Retail Centers
• Commercial Properties
• Walkways
• Schools
• Loading Areas
• Roadways
• Industrial Facilities
• Building Perimeters
• Outdoor Security Lighting

Technical Specifications
