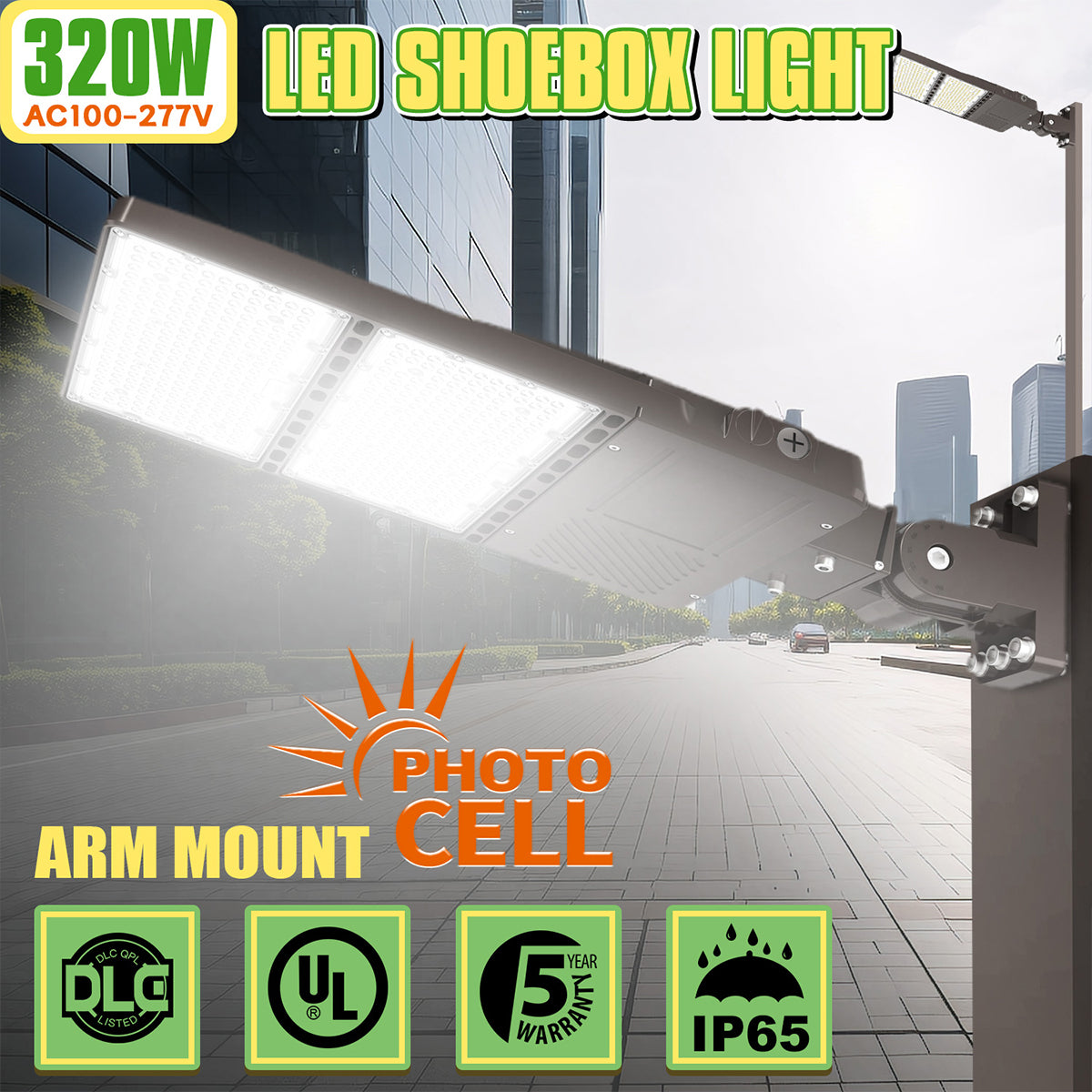

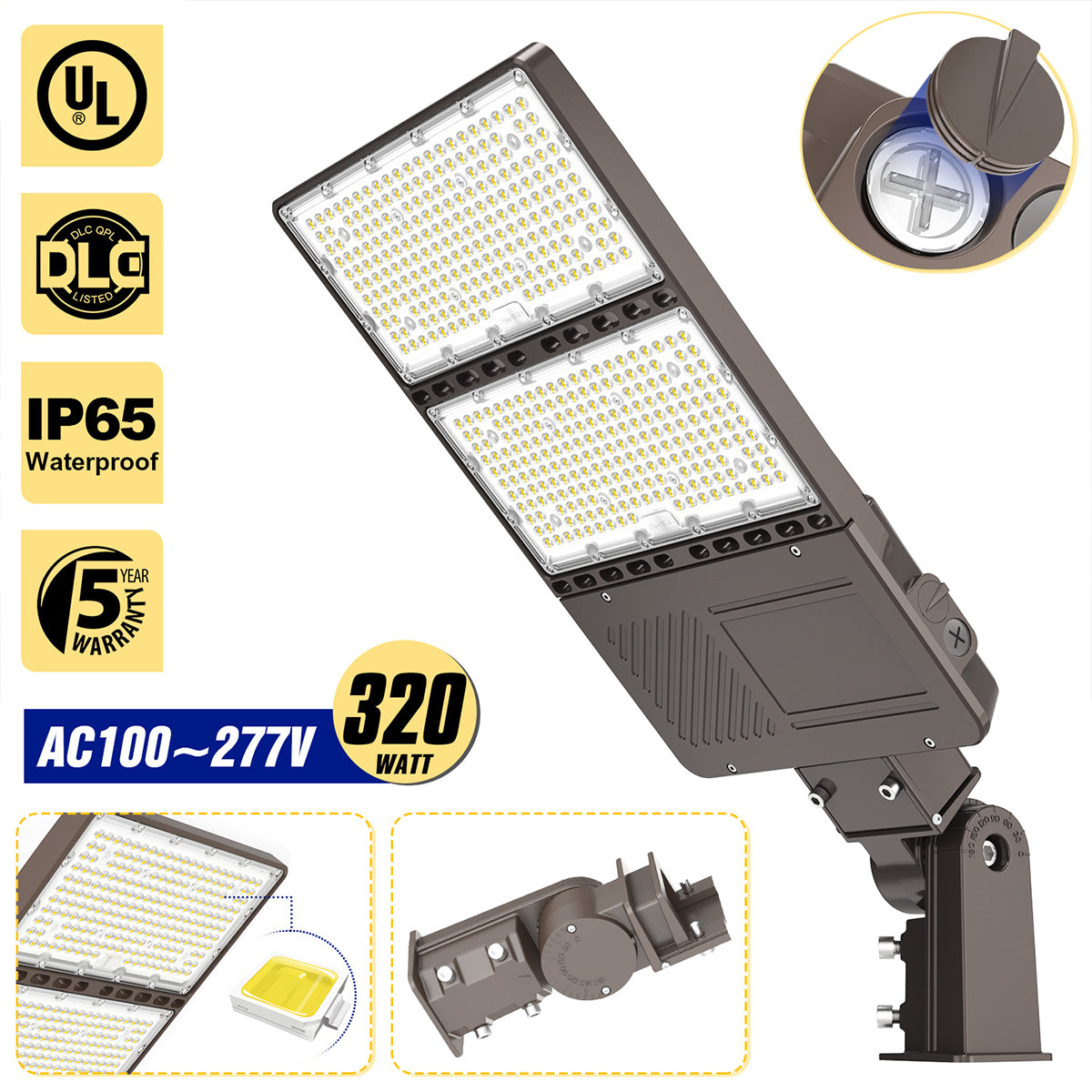

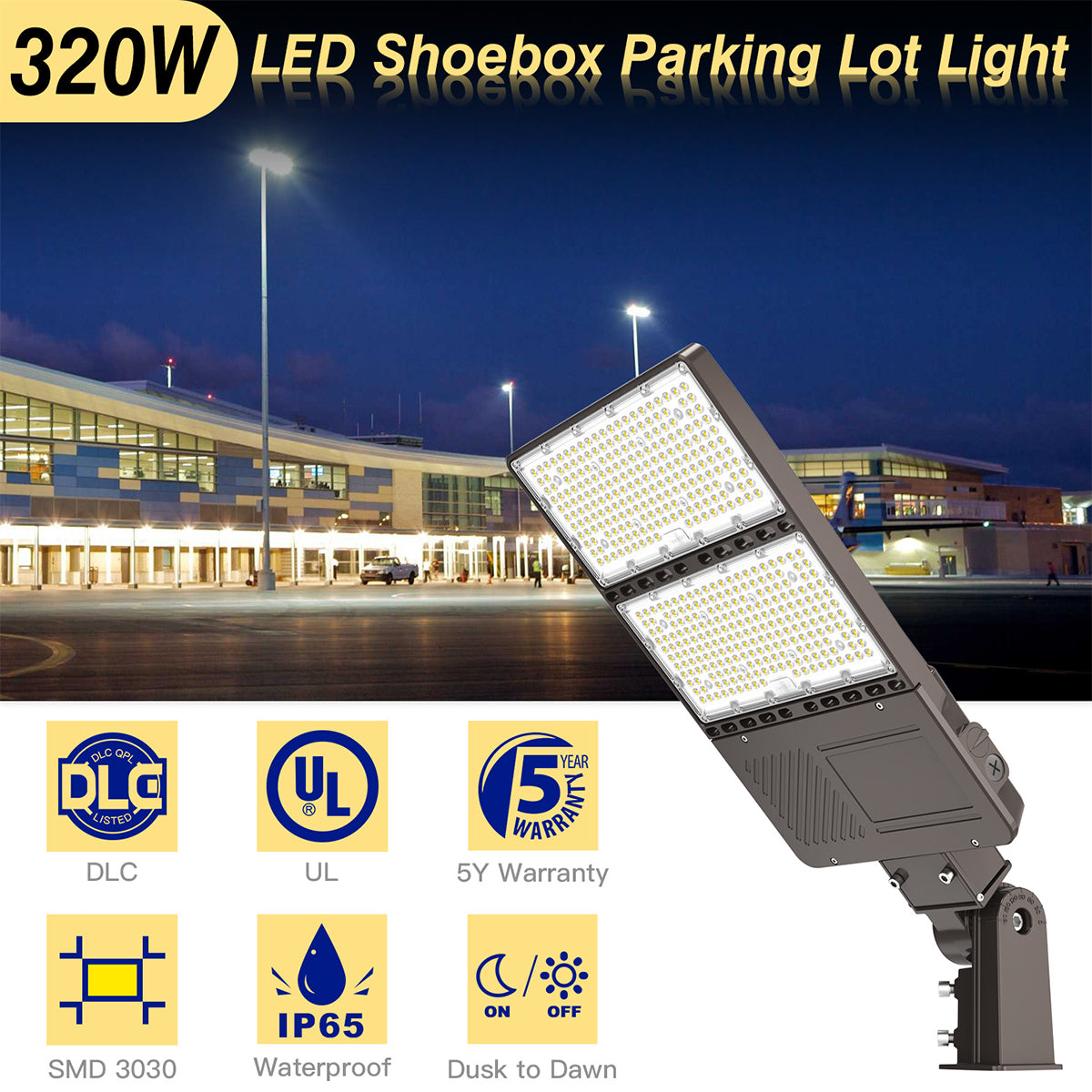

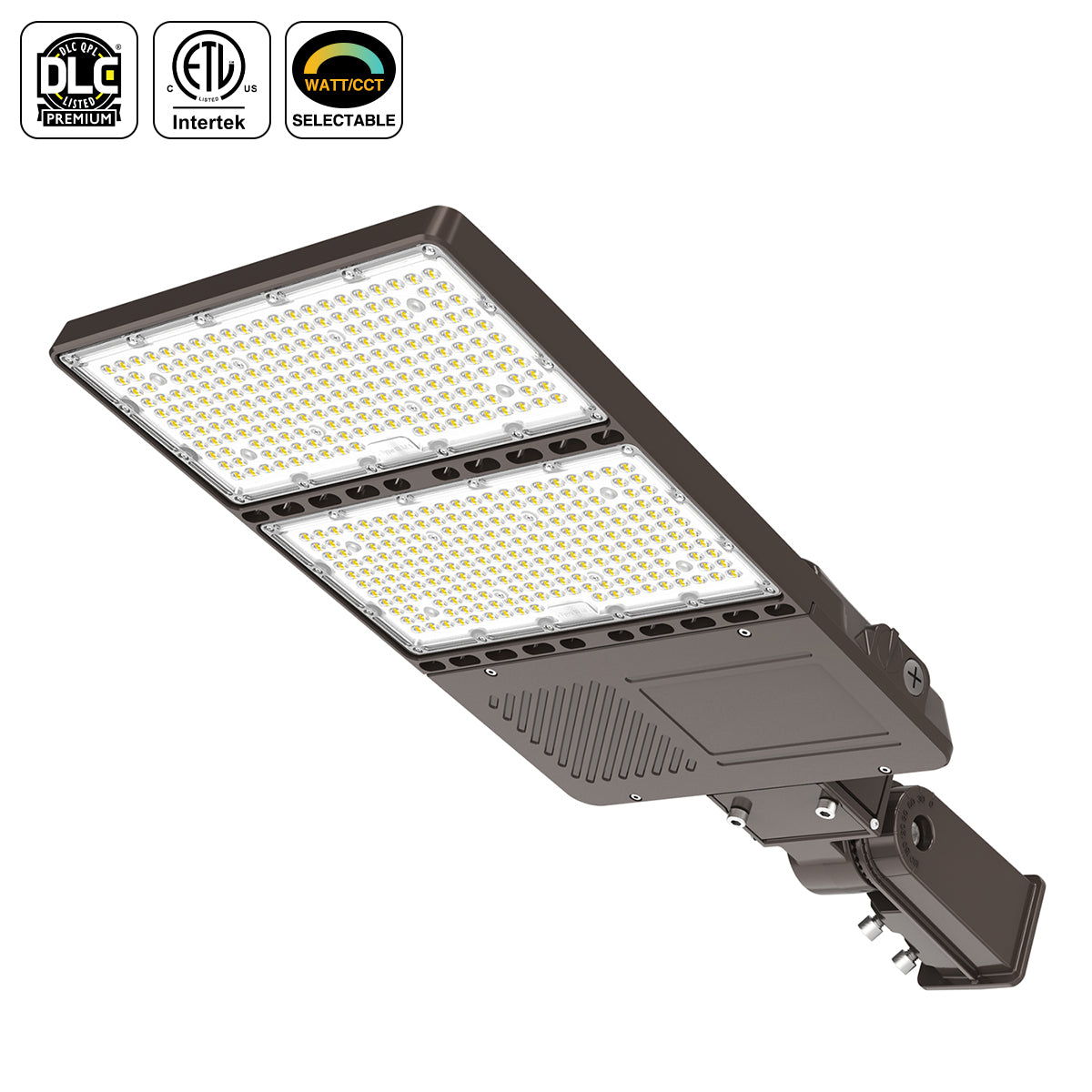

LED Parking Lot Shoebox Light 192W/256W/320W Selectable 5000K 277-480V with Photocell

The NG-PL-320WHD-508S LED Parking Lot Light is a high-output, high-voltage outdoor lighting solution designed for large commercial and industrial sites, including parking lots, auto dealerships, logistics centers, industrial yards, roadways, distribution facilities, and commercial campuses.

Designed for AC277-480V high-voltage electrical systems, this fixture is well suited for commercial and industrial facilities requiring powerful site illumination without the need for an external step-down transformer.

With a maximum power of 320W, the fixture supports field-adjustable output at 60%, 80%, and 100%, providing approximately 192W, 256W, and 320W settings. This flexibility allows installers to optimize light output according to pole height, fixture spacing, parking lot layout, and project illumination requirements.

At maximum output, the 320W configuration delivers up to approximately 48,000 lumens with luminous efficacy up to 150 lm/W, providing bright and uniform illumination across large outdoor areas while helping reduce energy consumption compared with traditional metal halide and high-pressure sodium fixtures. The manufacturer specification lists 48,000 lumens for the NG-PL-320W configuration.

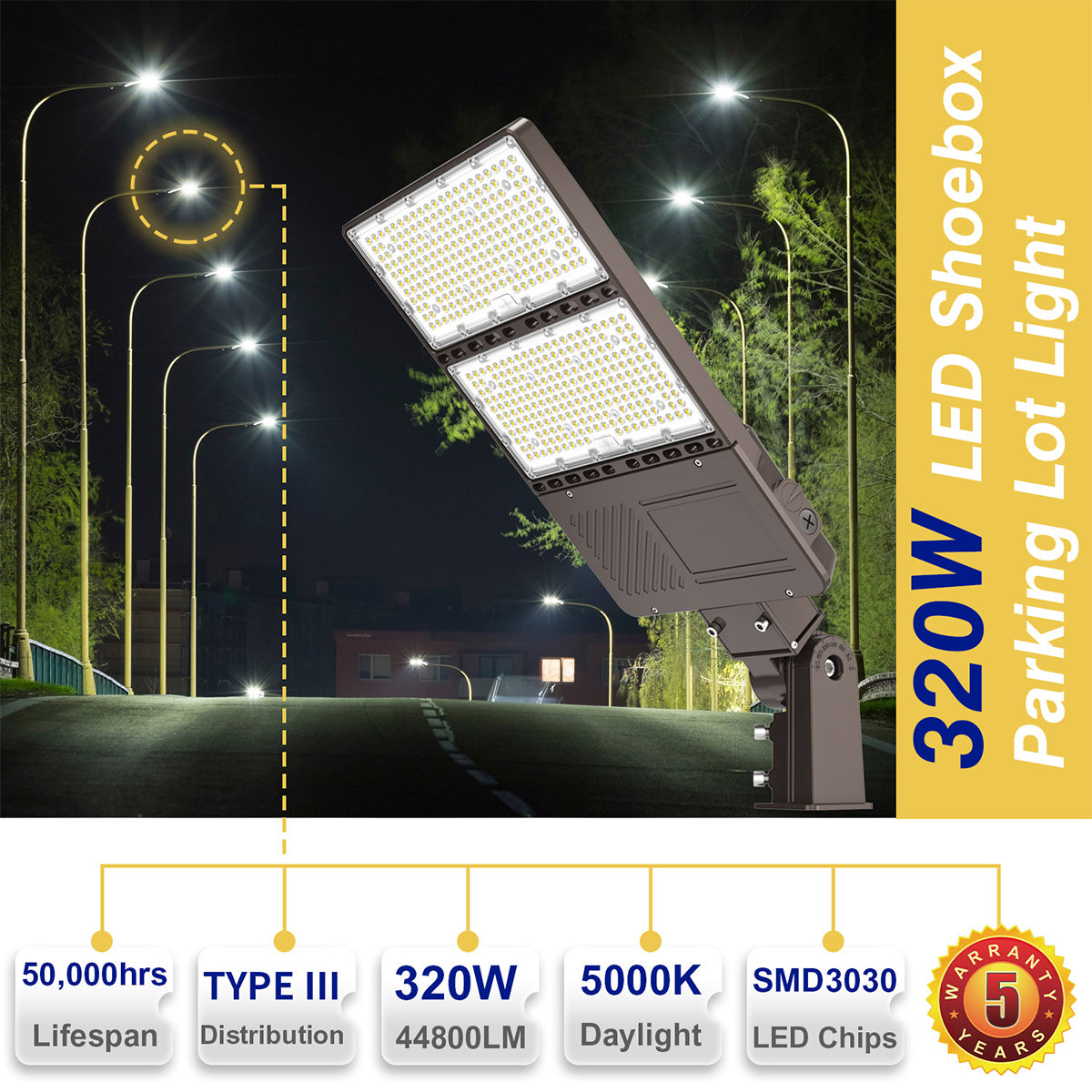

This 508S configuration is supplied in 5000K, providing crisp daylight-style illumination suitable for parking lots, security areas, roadways, industrial sites, and other exterior commercial environments.

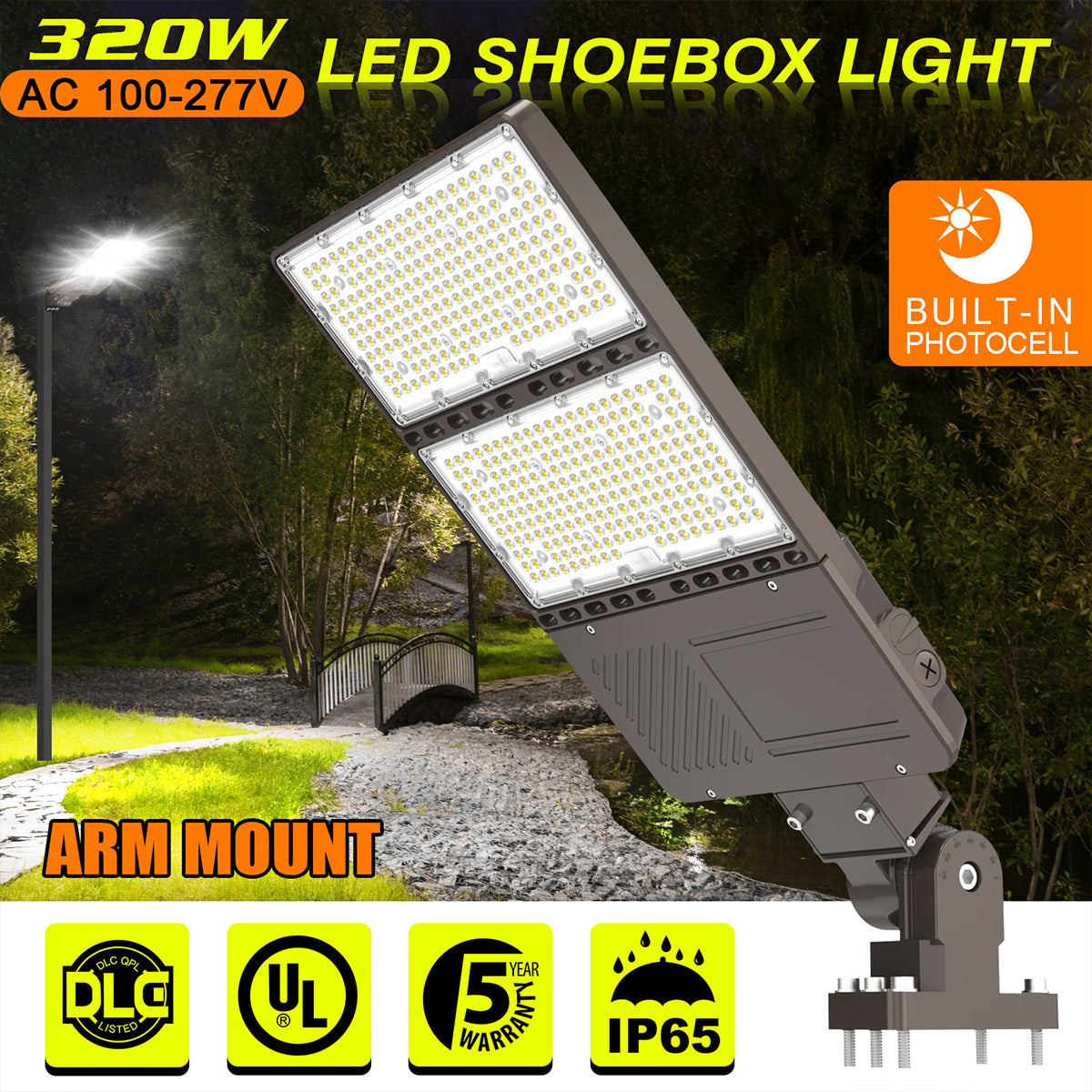

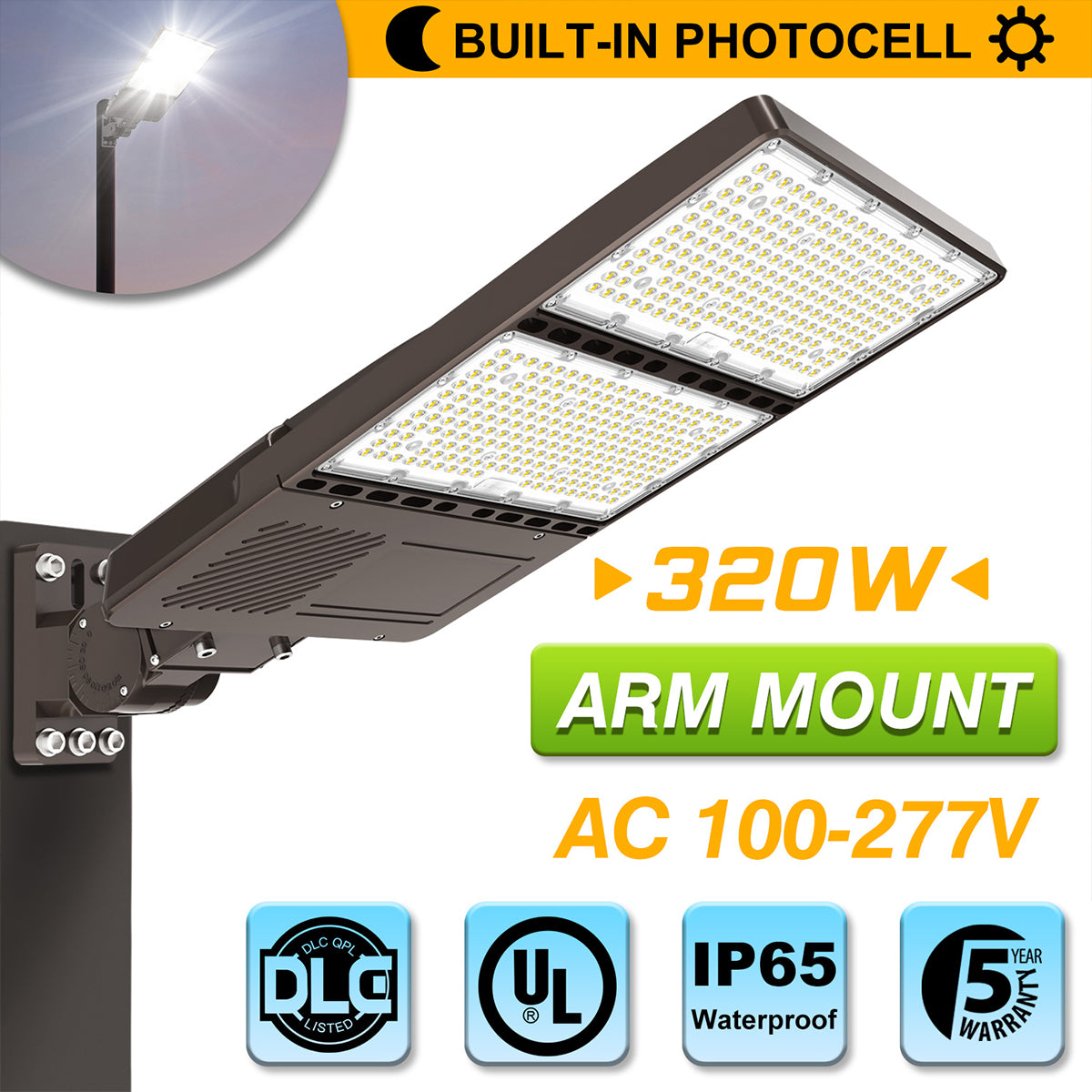

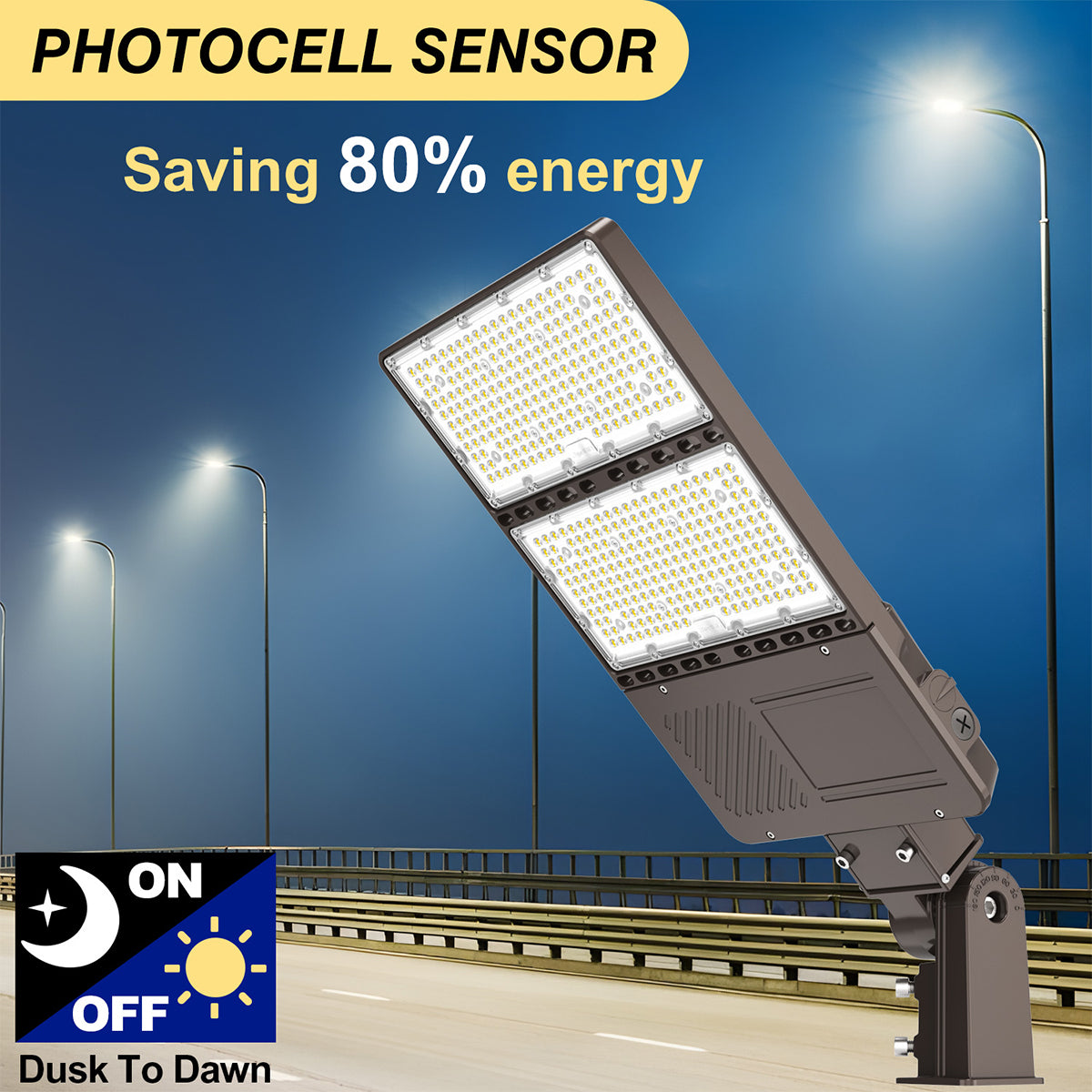

A built-in photocell provides automatic dusk-to-dawn operation, switching the fixture on at night and off during daylight hours for convenient, energy-efficient outdoor lighting control.

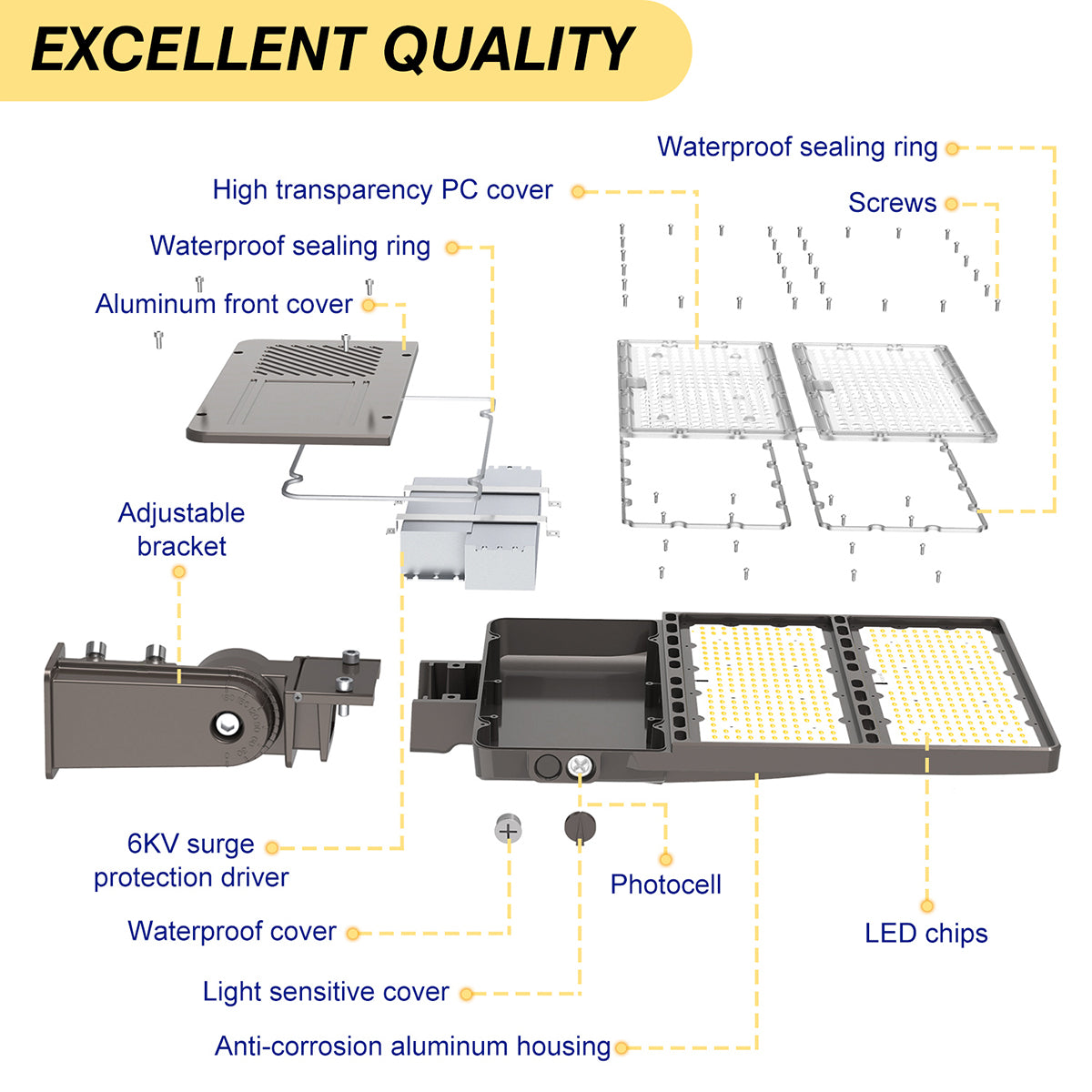

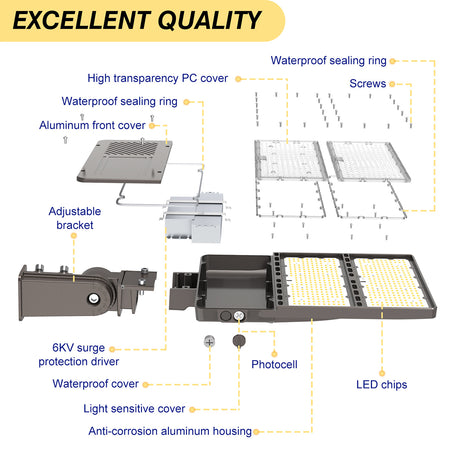

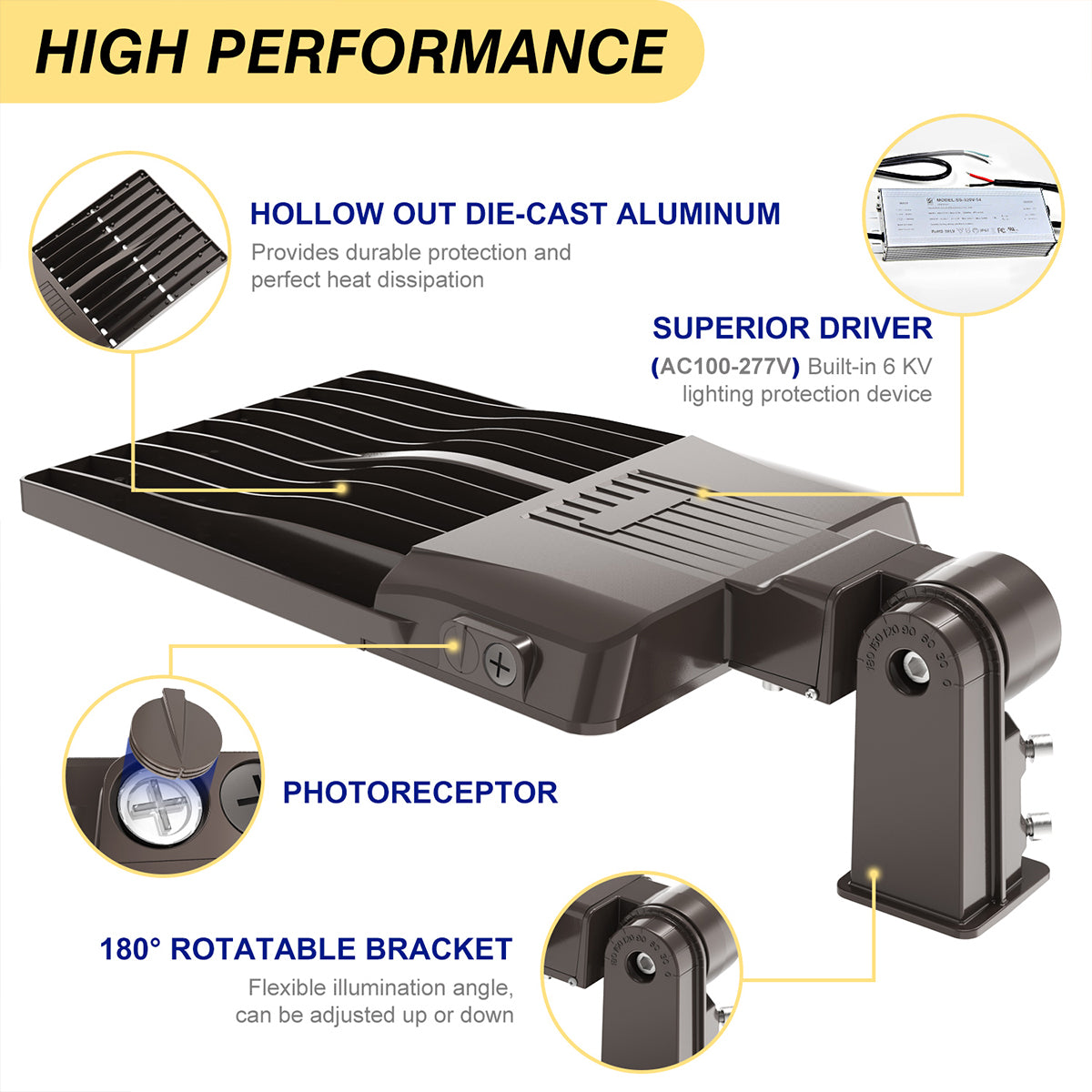

The NG-PL series uses high-performance SMD3030 LEDs with a high-transmittance protective lens. Its rugged die-cast aluminum housing and UV-resistant powder-coated finish provide excellent heat dissipation and corrosion resistance for long-term outdoor use.

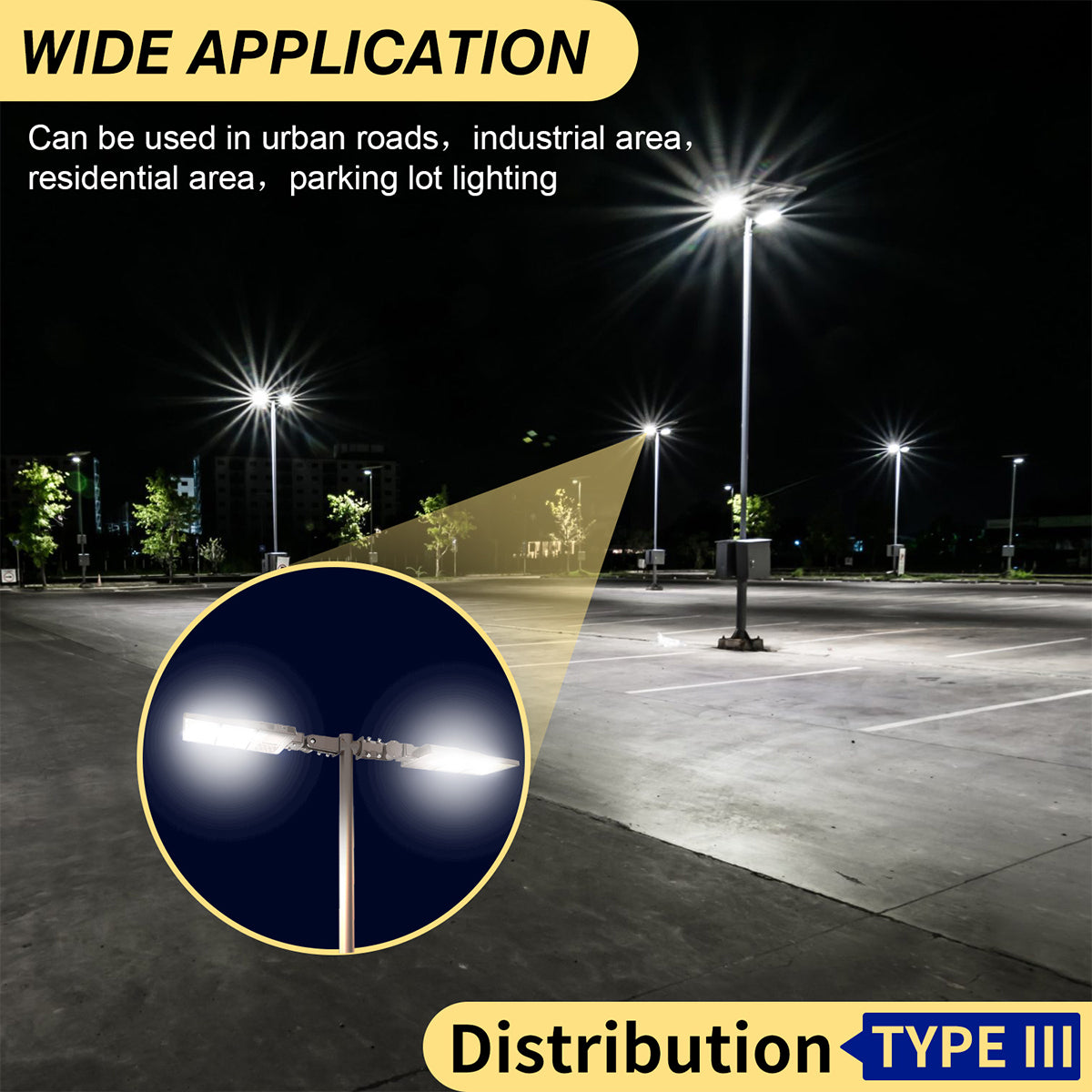

An IP65-rated enclosure protects against dust and water, while 6KV surge protection improves reliability in demanding electrical environments. Type II, Type III, and Type V optical distributions are available within the NG-PL platform for different roadway, parking lot, and area-lighting layouts.

Key Features

• Maximum Wattage: 320W
• Selectable Power: 60% / 80% / 100%
• Approx. Wattage Settings: 192W / 256W / 320W
• Maximum Light Output: Up to 48,000 lumens
• Efficacy: Up to 150 lm/W
• Color Temperature: 5000K
• Input Voltage: AC277-480V
• Built-In Photocell: Automatic dusk-to-dawn operation
• LED Type: SMD3030
• CRI: >80
• Optical Distribution: Type II / Type III / Type V
• IP Rating: IP65
• Surge Protection: 6KV
• Housing: Die-Cast Aluminum
• Finish: UV-Resistant Powder Coat
• Rated Life: 50,000 Hours
• Operating Temperature: -40°C to 45°C
• Multiple Mounting Options Available
• Certifications: UL / cUL / DLC / ETL / cETL / CE

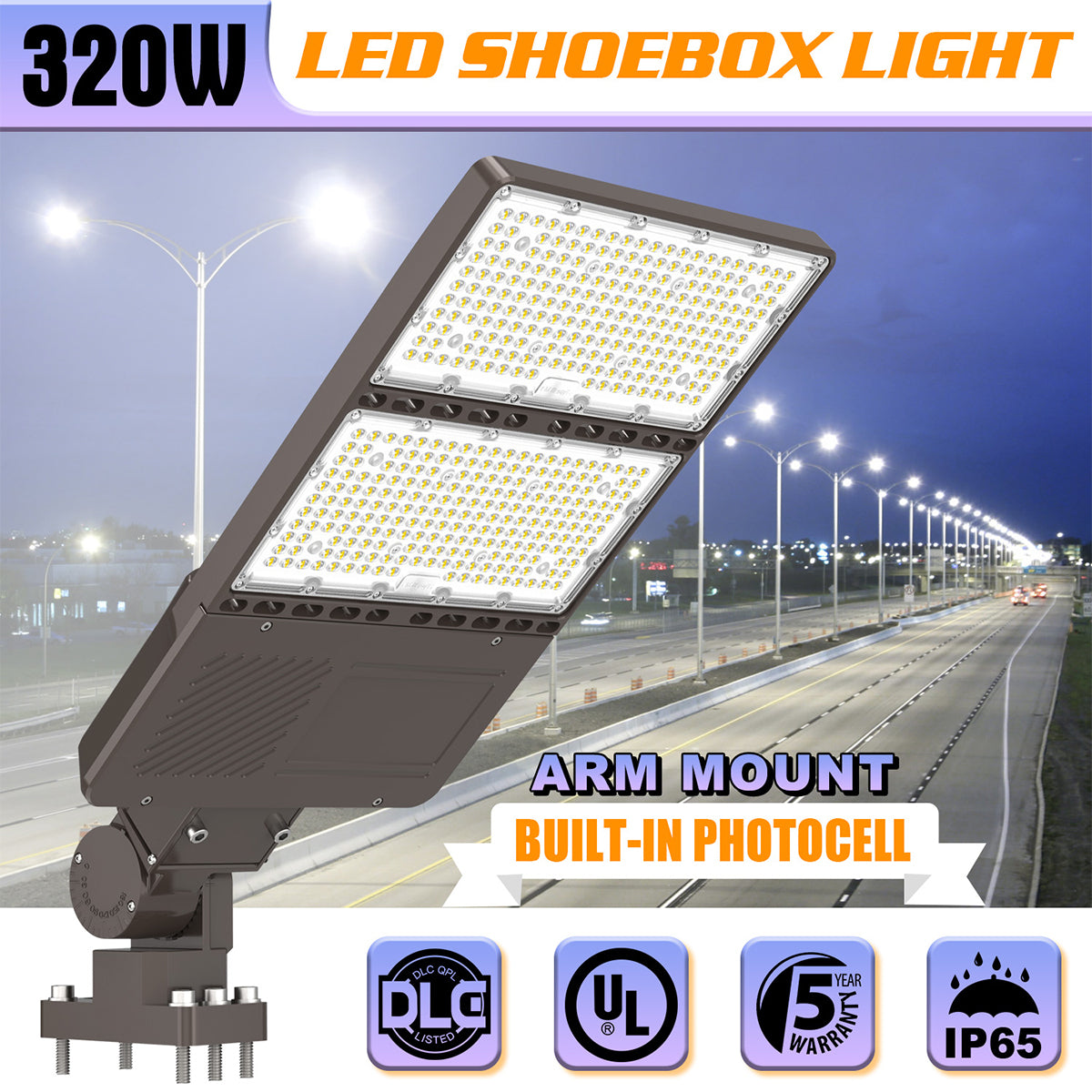

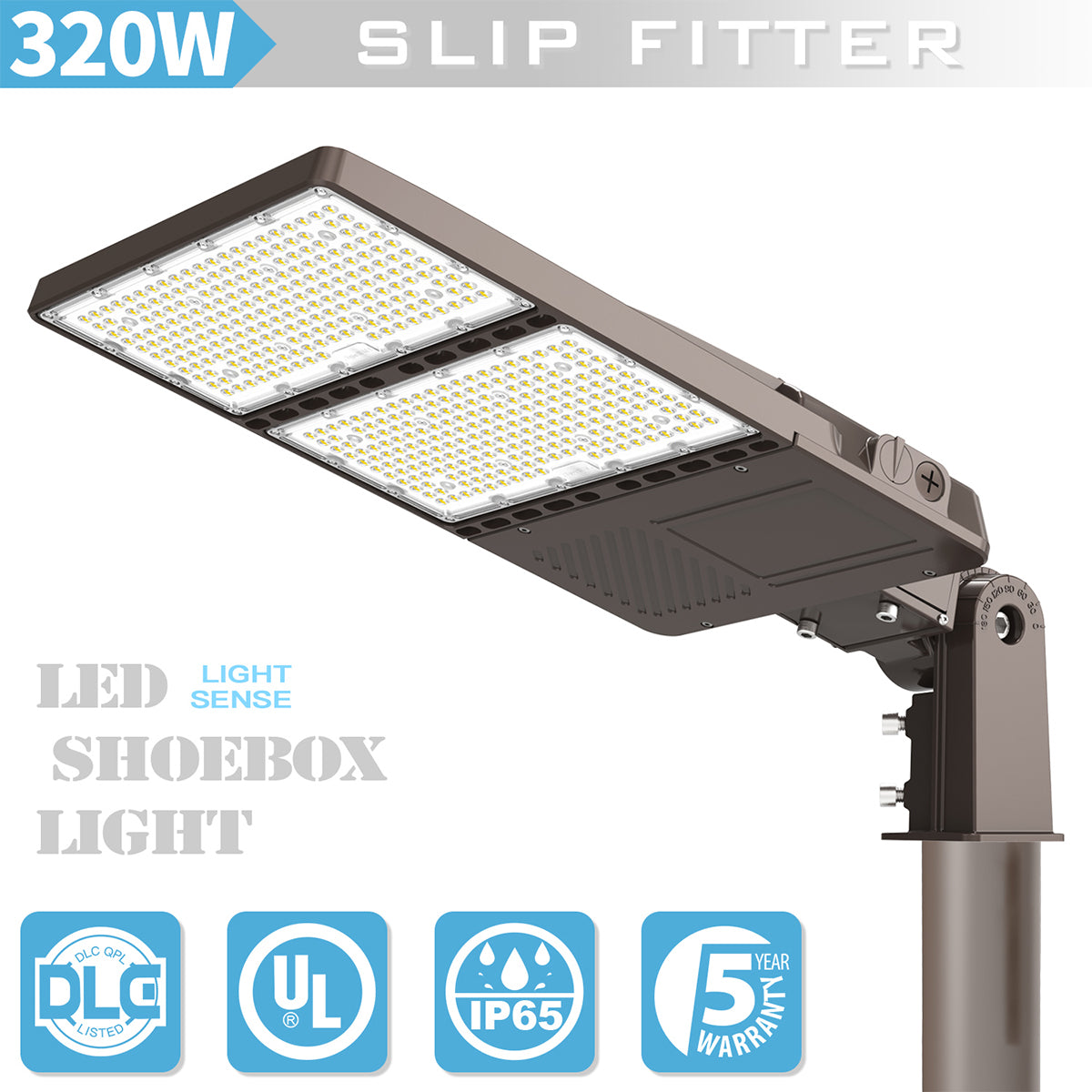

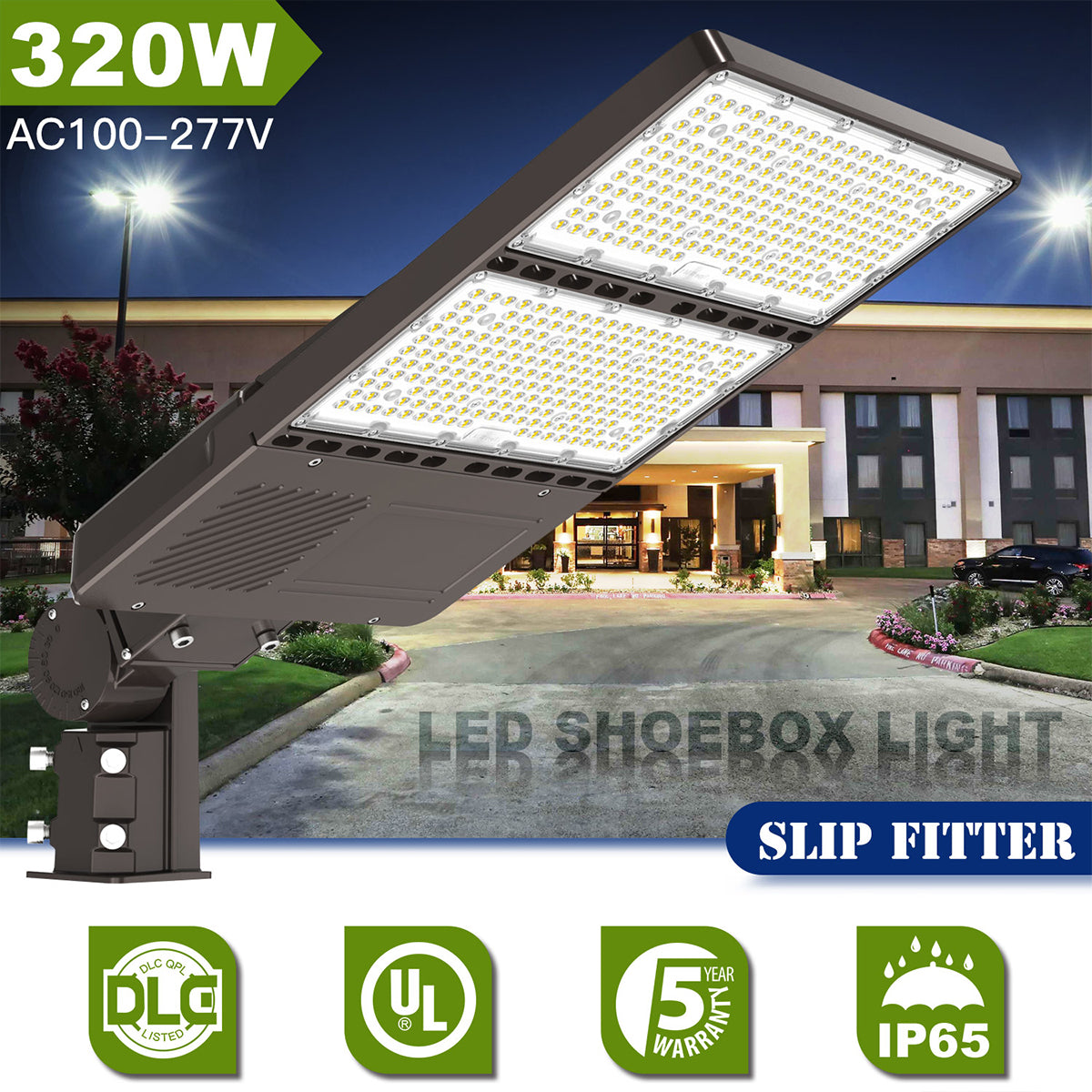

Available Mounting Variants

Applications

• Parking Lots
• Auto Dealerships
• Logistics Centers
• Industrial Yards
• Distribution Centers
• Roadways
• Commercial Campuses
• Shipping & Loading Areas
• Building Perimeters
• Outdoor Security Lighting

Technical Specifications
