HD08VR-P-1B PIR Motion Sensor for LED Troffer & Panel Lights | 2.5mm Standard

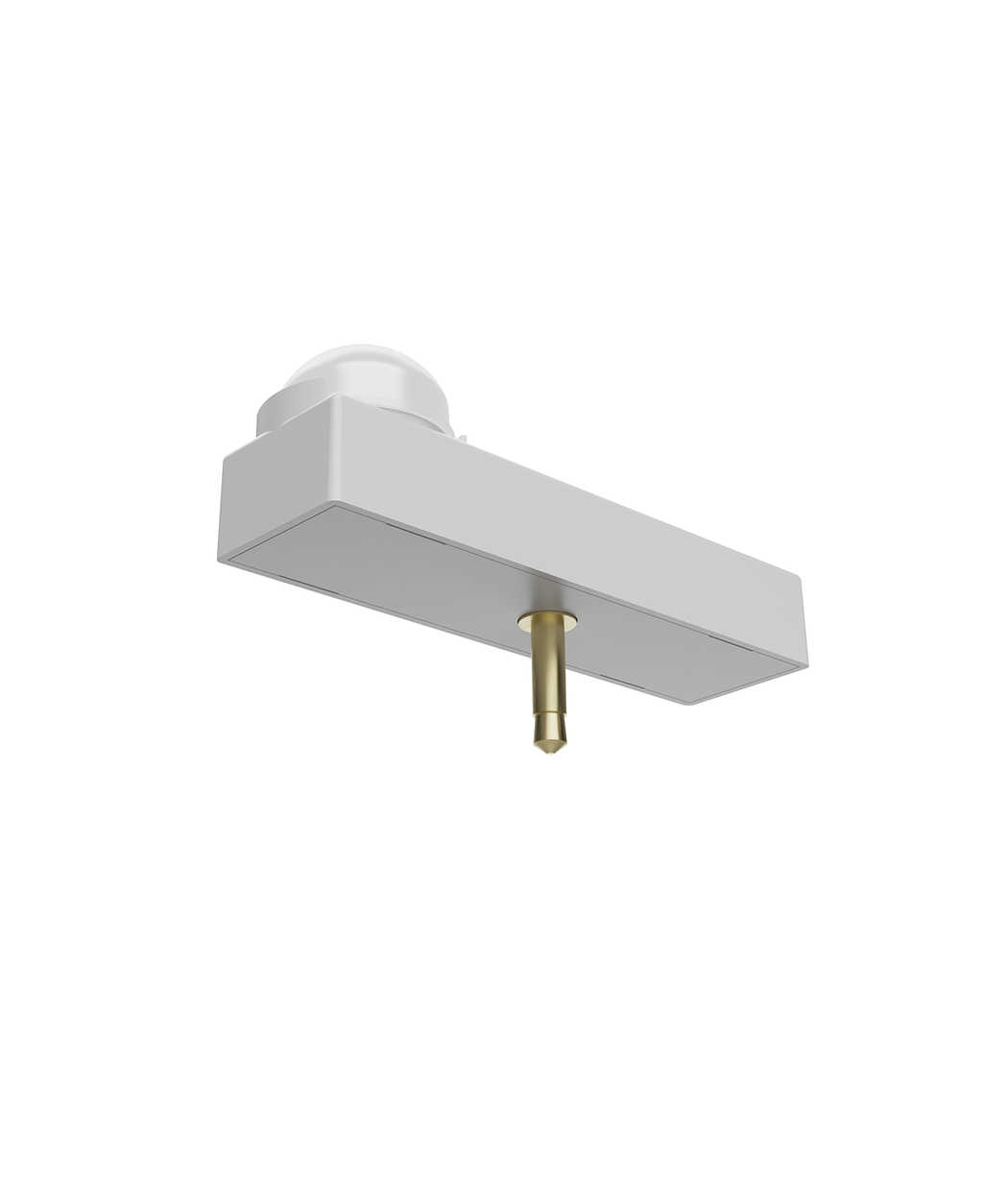

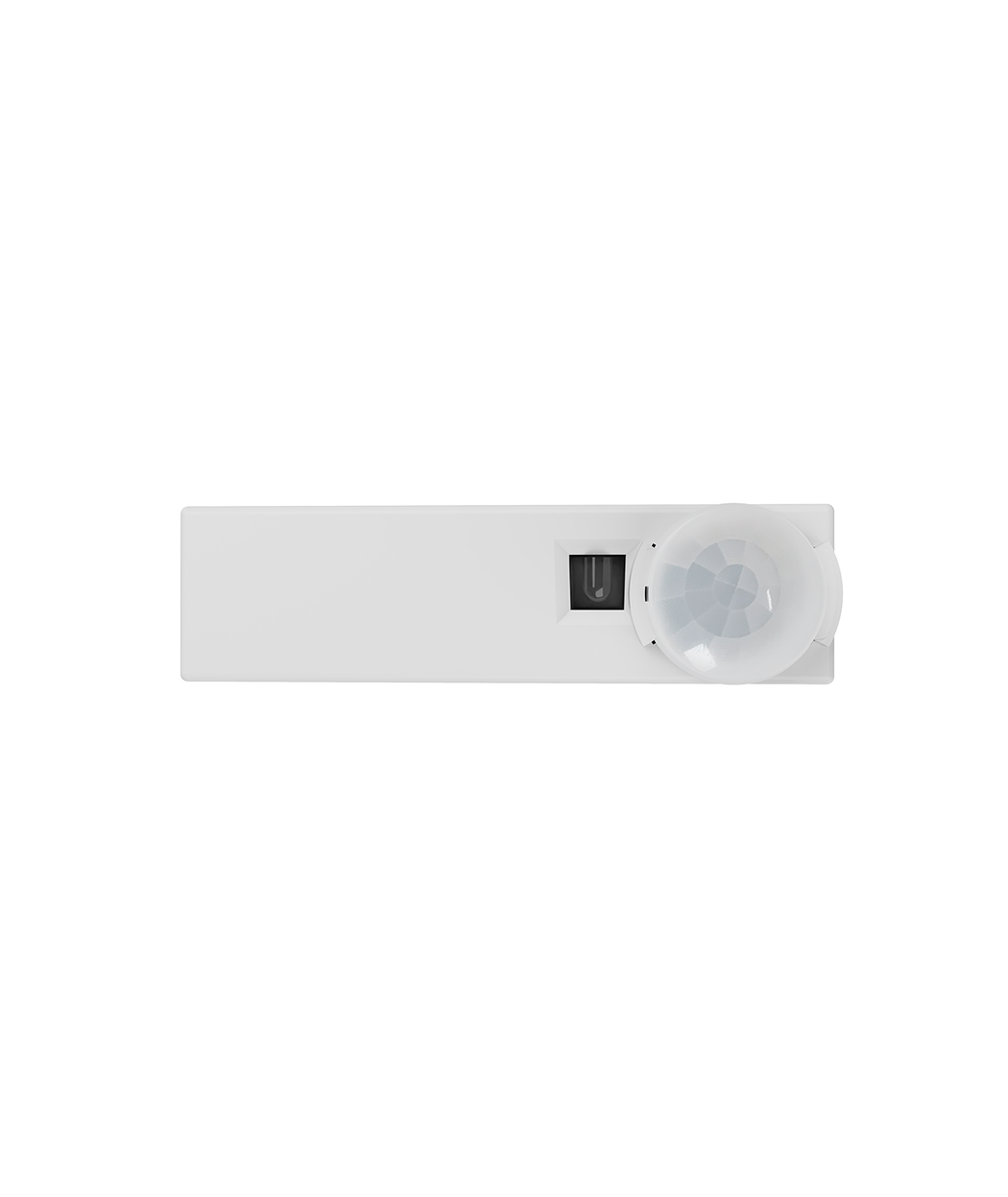

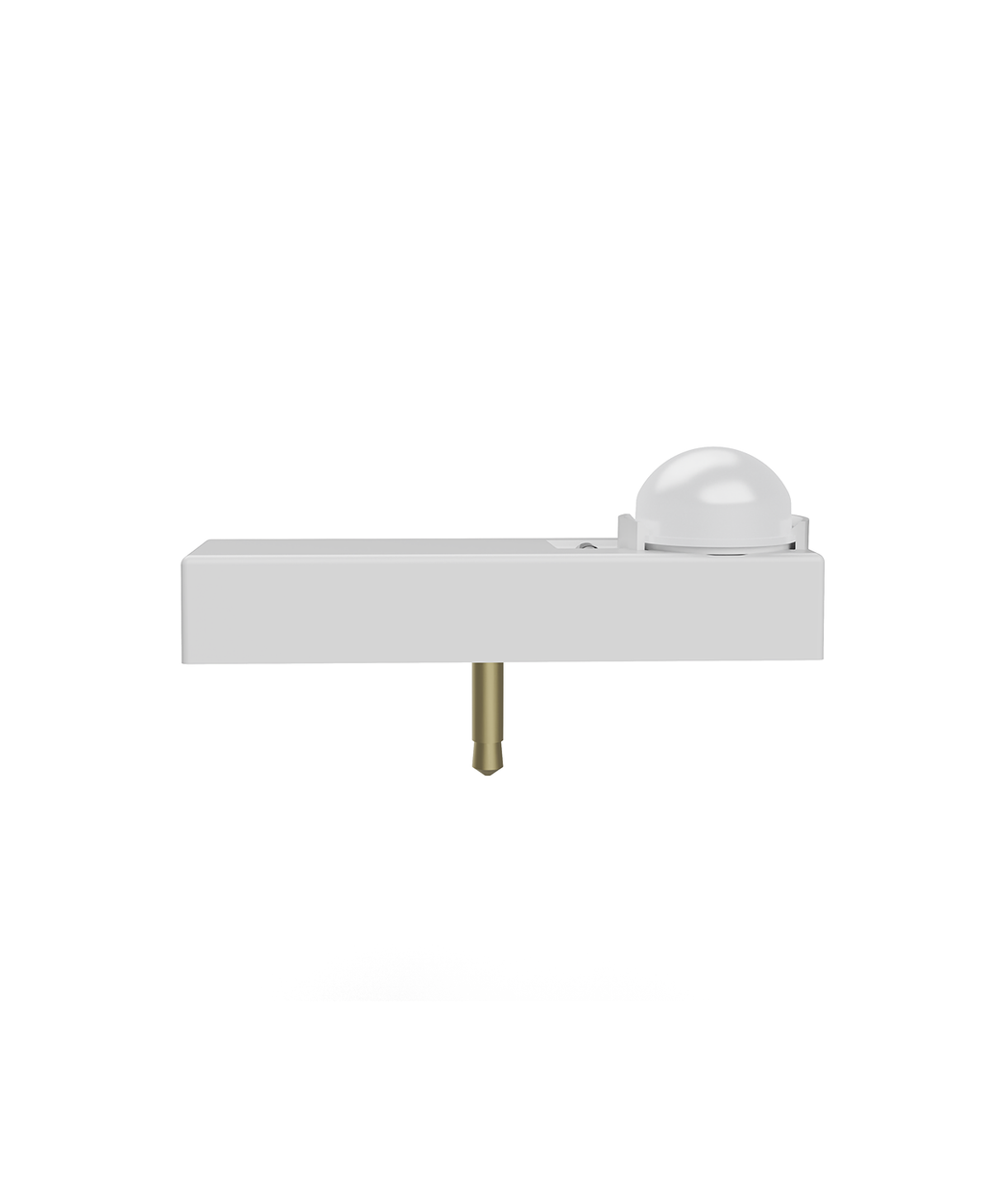

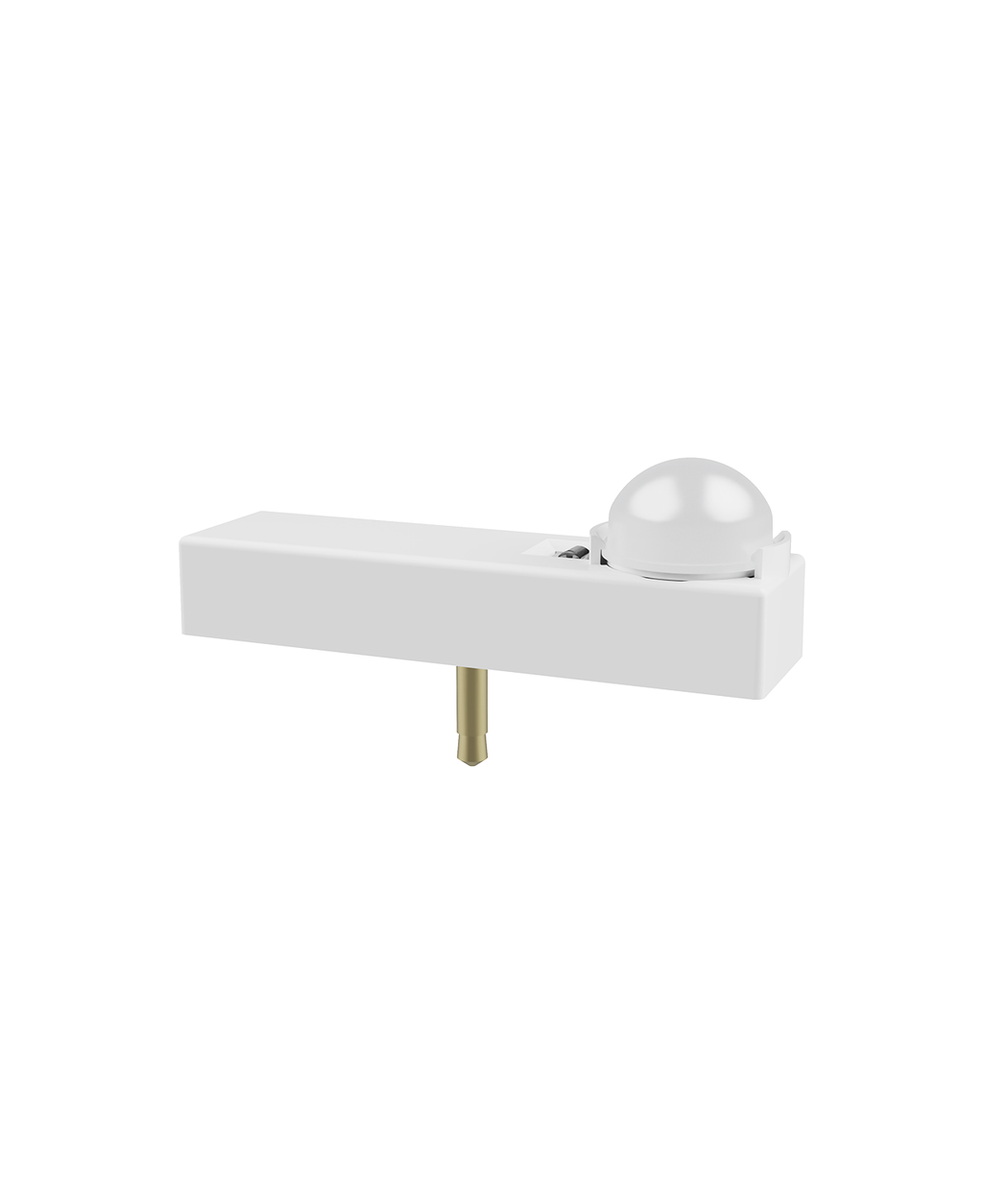

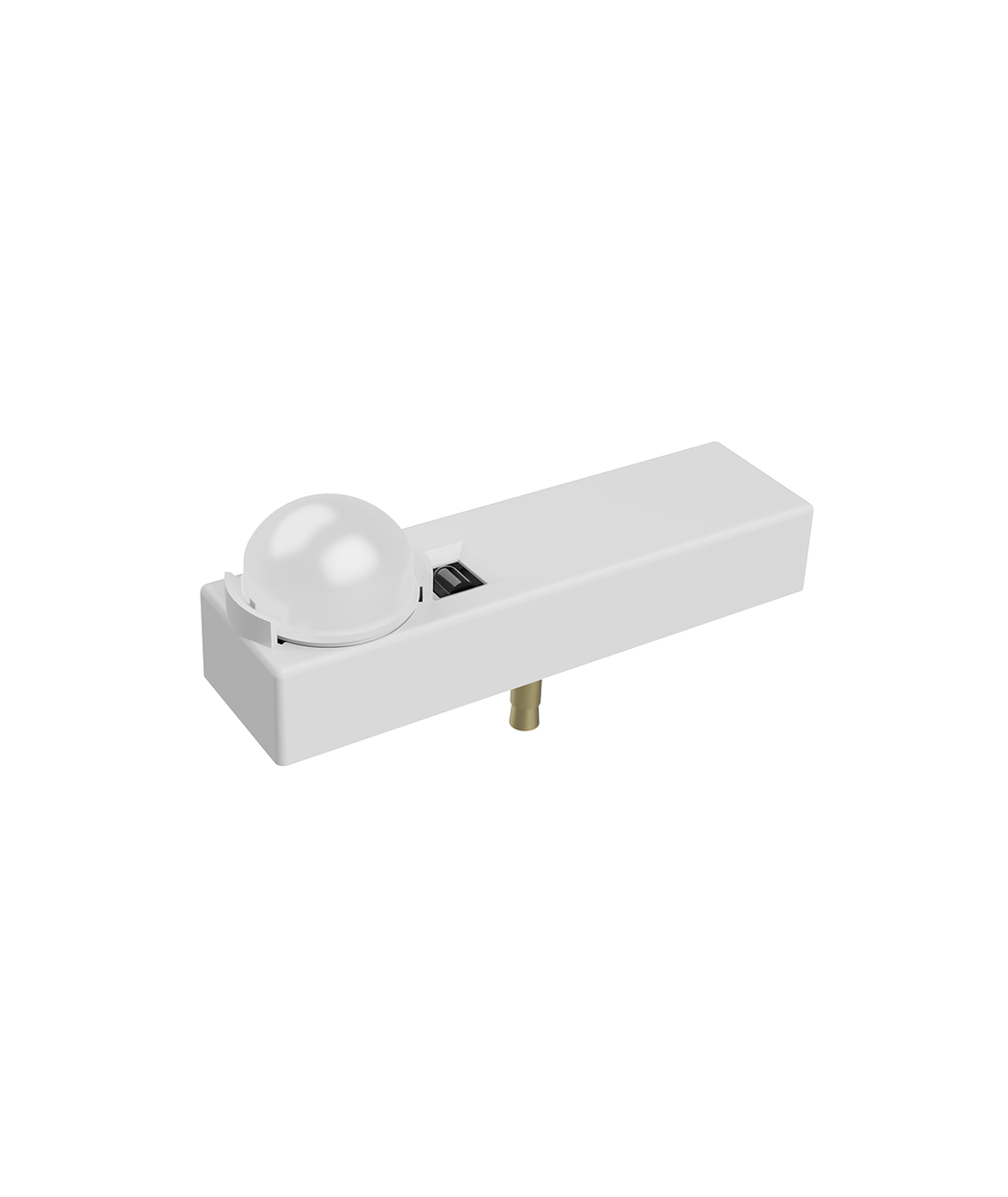

HD08VR-P-1B PIR Motion Sensor (2.5mm Audio Jack)

Engineered specifically for flat panels, troffers, and low-profile indoor commercial fixtures, the HD08VR-P-1B Passive Infrared (PIR) Motion Sensor provides discrete, automated lighting control without network complexity. Featuring a compact 2.5mm AUX audio jack connector, this ultra-slim sensor plugs directly into sensor-ready LED troffers and panel lights equipped with a matching 2.5mm center receptacle. It automatically adjusts fixture brightness based on room occupancy and surrounding ambient light, ensuring maximum energy savings in office and institutional environments.

• 2.5mm Audio Jack Receptacle Mount: Features a ultra-compact, plug-and-play 2.5mm AUX connector designed for tool-free field installation on low-profile LED panel lights and troffers.

• Passive Infrared (PIR) Occupancy Sensing: Uses thermal motion detection to trigger 100% full brightness upon occupant entry and seamlessly transitions to standby dimming or off-state when spaces are vacant.

• Integrated Ambient Daylight Photocell: Automatically monitors natural daylight levels to inhibit artificial light activation when natural sunlight is sufficient, driving down utility costs.

• Bi-Level Standby Dimming Control: Supports multi-tier brightness management—switching from full light during motion to a pre-set low-dim level during hold periods before shutting off.

• Low-Voltage Operation (12V DC): Powered directly by the LED driver's internal auxiliary 12V DC output, eliminating the need for external power supplies or high-voltage wiring.

• Low-Profile Architectural Design: Specially scaled for low ceiling height applications, providing clean, non-intrusive aesthetic integration into modern commercial ceiling grids.

• IR Remote Adjustable: Enables quick configuration of detection sensitivity, hold times, daylight thresholds, and dimming levels directly from floor level using a compatible infrared remote.

• Energy Code & Rebate Compliant: Satisfies commercial energy efficiency requirements (ASHRAE 90.1, IECC, and California Title 24) and supports DLC utility rebate qualifications.

Key Features

PIR Motion Detection
Automatically turns lights on when motion is detected and off when the area becomes vacant.

Easy Plug-and-Play Installation
Designed for fixtures with a pre-installed sensor base, allowing fast installation through the 2.5mm audio jack connector.

Energy Saving Lighting Control
Helps reduce unnecessary energy consumption by ensuring lights operate only when needed.

Reliable Commercial Performance
Designed for commercial LED lighting systems with stable and accurate motion detection.

Wide Compatibility
Compatible with JCE Lighting troffer and panel fixtures with sensor base.

Compatible Fixtures

J-T2 Series LED Troffer Light
J-T4 Series LED Troffer Light
J-B2 Series LED Backlit Panel Light
J-B14 Series LED Backlit Panel Light
J-B4 Series LED Backlit Panel Light

Product Specifications

Model: HD08VR-P-1B
Sensor Type: PIR Motion Sensor
Connector Type: 2.5mm Audio Jack
Installation: Plug-in Sensor Base
Application: Indoor Commercial Lighting Control
