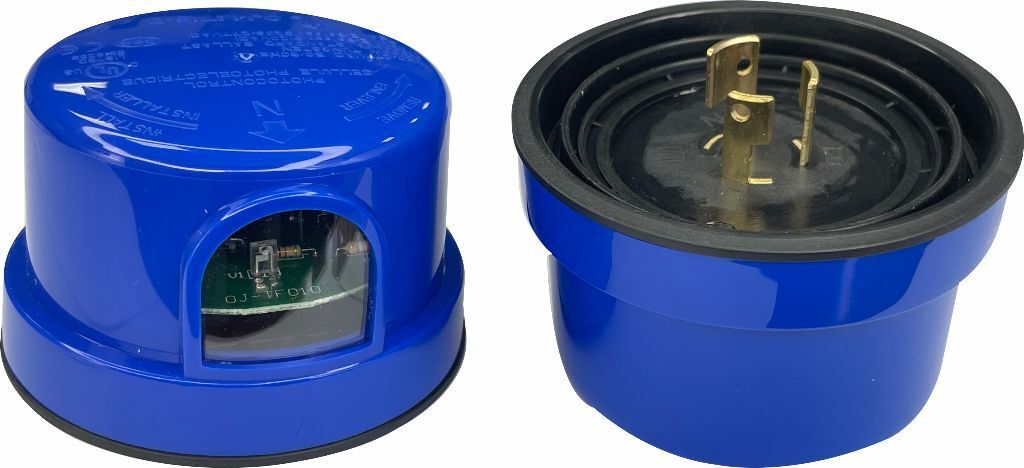

Photocell ¨C Light Control Sensor for Area Lights

Engineered for automated energy management across commercial and industrial outdoor lighting installations, this Heavy-Duty Photocell Light Control Sensor provides seamless dusk-to-dawn switching for LED area lights, shoebox fixtures, wall packs, pole lights, and canopy luminaires. By automatically sensing changes in ambient daylight, this photocell activates connected light fixtures at dusk and shuts them off at dawn, eliminating manual control, preventing daytime energy waste, and extending the operational lifespan of the fixture’s onboard LED driver.

• Automated Dusk-to-Dawn Control: Premium optical photodiode sensor accurately measures surrounding natural light levels, turning fixtures ON as twilight falls (~10–20 Lux) and OFF as daylight returns (~30–60 Lux) for hands-off perimeter security.

• Universal Commercial Compatibility: Available in standard commercial voltage configurations—including Universal AC100–277V for general commercial circuits and High-Voltage AC347–480V for industrial power grids.

• Standard Mounting Form Factors: Compatible with major commercial installation types:

  • 3-Pin NEMA Twist-Lock (ANSI C136.10): Features a turn-and-lock base for quick, tool-free mounting on top of shoebox and roadway fixture heads.

  • Button / Stem Mount (1/2" Threaded Conduit): Compact direct-wire style designed for flush side-mounting in wall packs, post tops, and junction boxes.

• Built-in Time-Delay Prevention: Features an integrated anti-nuisance time delay (5–15 seconds) to prevent accidental flickering or false shutoffs caused by passing car headlights, spotlight flashes, or lightning strikes.

• Rugged Weatherproof & UV-Resistant Housing: Enclosed in a heavy-duty, UV-stabilized polycarbonate cover rated IP65/IP67 to resist rain, snow, extreme temperature swings, and severe outdoor environment exposure.

• Energy Savings & Security Optimization: Maximizes utility cost savings by ensuring outdoor fixtures operate strictly during dark hours while keeping parking lots, walkways, building perimeters, and loading docks continuously lit at night; UL/cUL Listed and RoHS compliant.

Key Features:

? Dusk-to-Dawn Operation ¨C Automatically controls lighting based on ambient light
? NEMA Plug-in Design ¨C Easy installation with standard dimming receptacles
? Wide Voltage Compatibility ¨C Supports 120¨C277VAC applications
? IP66 Waterproof Rating ¨C Designed for outdoor and harsh weather conditions
? UV-Resistant Housing ¨C Durable polypropylene with long service life
? Sealed Construction ¨C Silicone-filled for enhanced protection

Technical Specifications:

• Model: OJ-M715
• Voltage: 120¨C277VAC
• Frequency: 50/60Hz
• Load Rating:
  • Tungsten: up to 1000W
  • Ballast: up to 1200VA
  • LED Load: up to 5¨C8A
• Operating Temperature: -40¡ãC to +70¡ãC
• IP Rating: IP66
• Housing Material: UV-stabilized polypropylene
• Certifications: ANSI C136.41 / UL773 / CSA compliant

Installation Overview:

• Align the photocell pins with the NEMA socket (match ¡°N¡± direction)
• Push down and rotate clockwise to lock into place
• Ensure proper alignment for correct electrical connection

Applications:

Perfect for automatic lighting control in:

• Street & roadway lighting
• Parking lot lighting
• Industrial and commercial outdoor lighting
• Parks, campuses, and public infrastructure

Compatibility:

• Designed for fixtures with standard NEMA receptacle
• Works with area lights, shoebox lights, and street lights
