LED Wall Pack Light | 10W&20W, 3CCT Selectable, IP65, 120-277V

LED Wall Pack Light

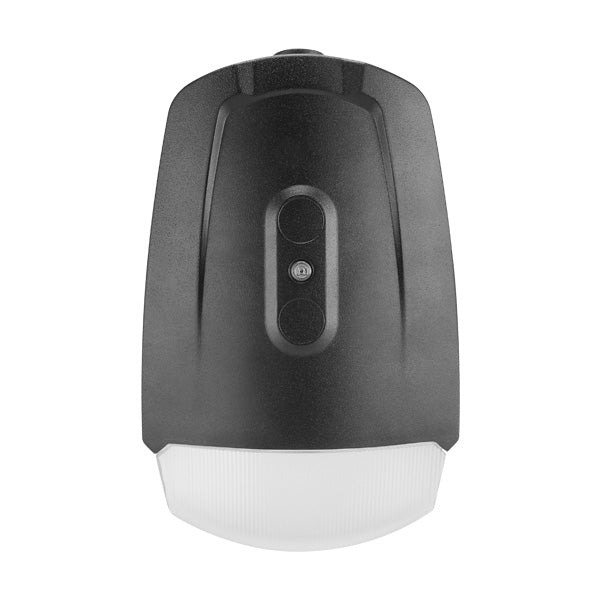

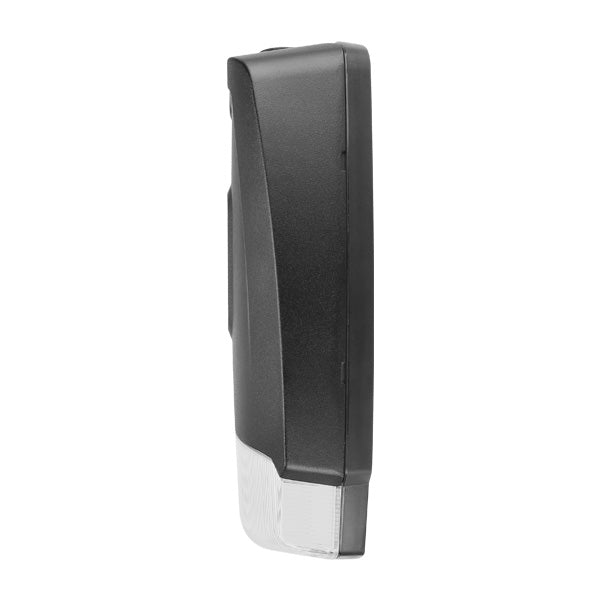

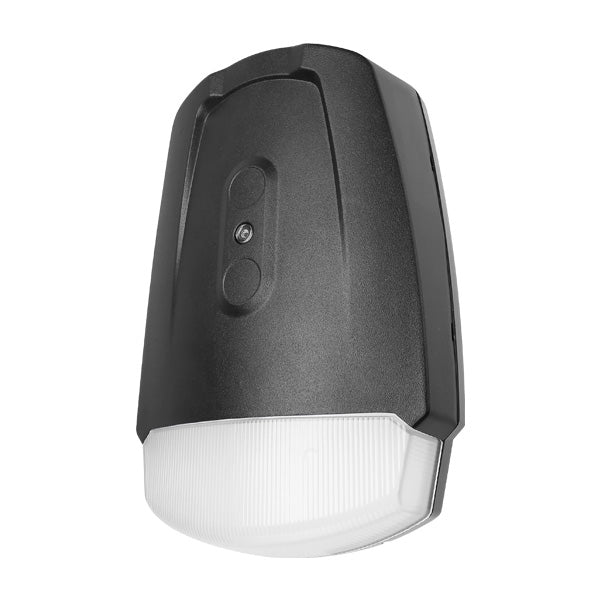

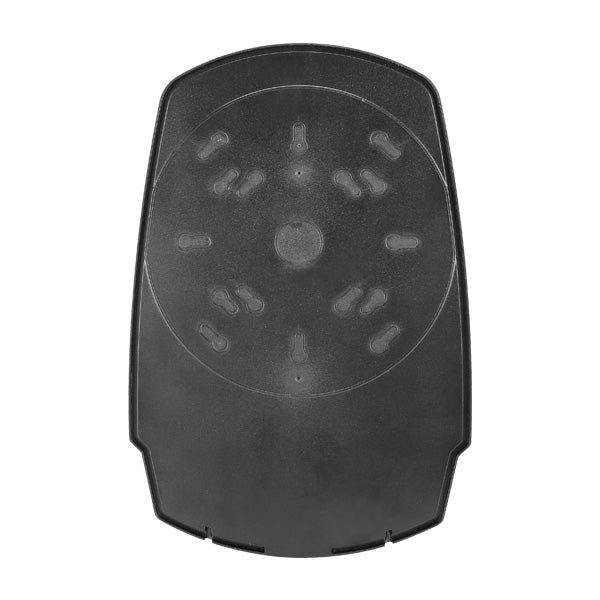

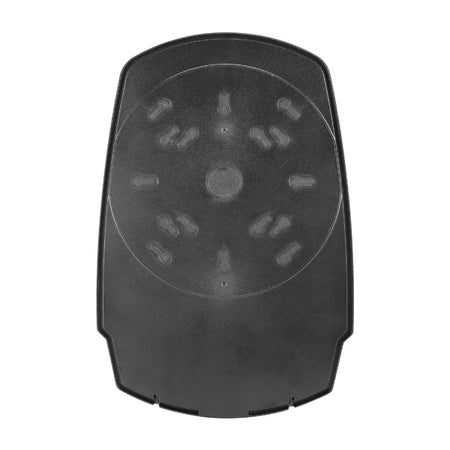

The MWM02 LED Wall Pack Light is a versatile outdoor lighting solution designed for residential and commercial wall-mounted applications. Available in 10W and 20W configurations, the MWM02 combines field-adjustable color temperature, scalable lumen output, universal 120-277V input, an integrated switching photocell, and a standard emergency battery.

With selectable 3000K, 4000K, and 5000K color temperatures and lumen packages ranging from 1300 to 2660 lumens, the MWM02 provides flexible lighting performance for different building exteriors, entrances, pathways, and security lighting applications.

Field-Adjustable 3CCT

The MWM02 features an easily accessible CCT switch inside the wall mount, allowing installers to select 3000K, 4000K, or 5000K during installation. This field-adjustable design provides flexibility for different lighting environments and project requirements.

Selectable Wattage and Scalable Light Output

The MWM02 is available in 10W and 20W models with scalable lumen packages from 1300 to 2660 lumens. This allows contractors and installers to select the appropriate configuration for different outdoor wall lighting applications.

Universal 120-277V Input

The MWM02 supports a universal 120-277V AC input, making it suitable for a wide range of residential and commercial electrical systems. Its high power factor and low THD design support efficient electrical performance.

Integrated Switching Photocell

An integrated switching photocell provides automatic lighting control based on ambient light conditions, making the MWM02 a practical solution for exterior wall lighting applications.

Standard Emergency Battery

The MWM02 includes a standard emergency battery, providing an additional emergency lighting function for applications where backup illumination is required.

Wet Location Rated

The MWM02 is designed for wet-location applications, making it suitable for outdoor wall-mounted lighting where the fixture may be exposed to moisture and changing weather conditions.

Optional Diffusers

Optional frosted or clear diffusers are available to create different lighting effects and appearance options. This provides additional flexibility when selecting the fixture for different architectural and outdoor environments.

Applications

• Residential exterior lighting
• Commercial building exteriors
• Building entrance lighting
• Pathway lighting
• Walkway lighting
• Security lighting
• Perimeter lighting
• Outdoor wall lighting
• Apartment and residential properties
• Commercial facilities

Key Features

• 10W and 20W models available
• Field-adjustable 3000K, 4000K, and 5000K CCT
• Scalable lumen output from 1300 to 2660 lumens
• Universal 120-277V AC input
• High power factor and low THD
• Integrated switching photocell
• Standard emergency battery
• Wet-location rated
• Optional frosted or clear diffusers
• UL certified
• 5-year warranty
