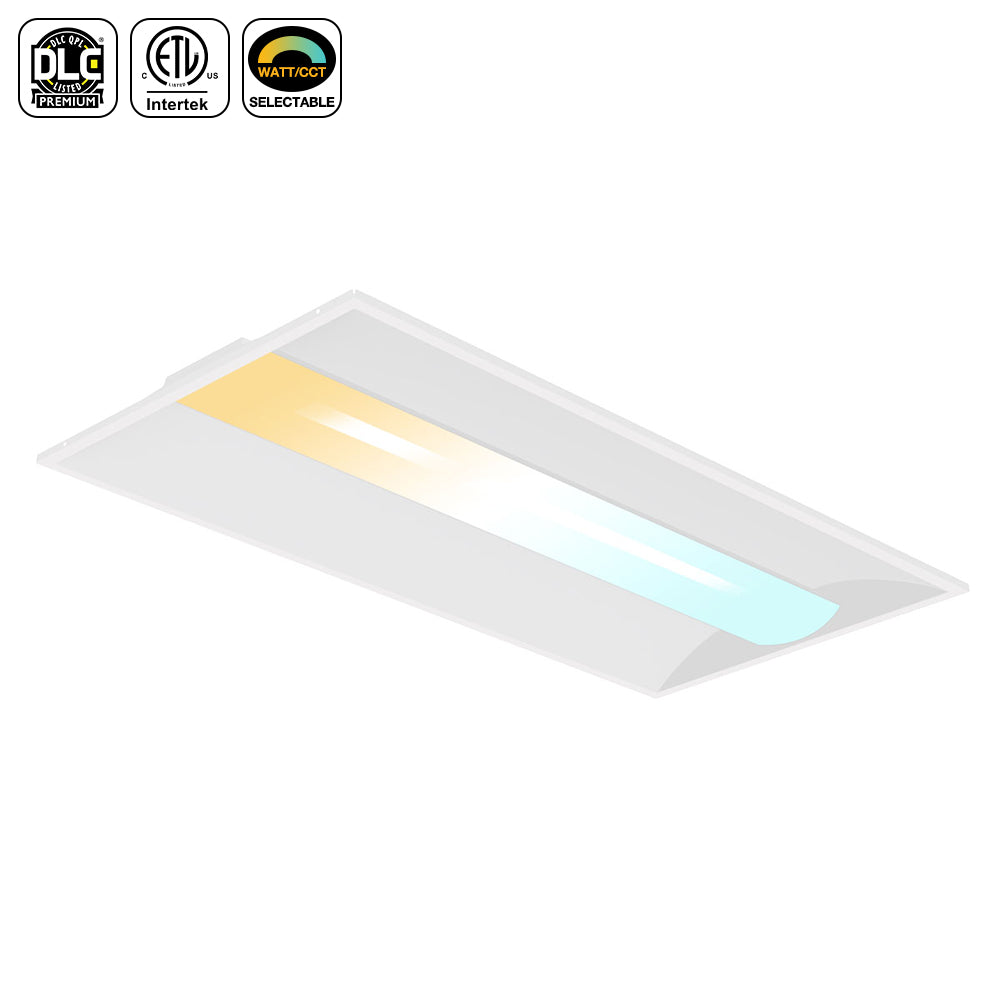

LED Troffer Light 120-277V 72W 9360 Lumens ETL DLC Premium | 2x4FT Sensor Base EM

LED Troffer Light – 2x4FT | Wattage & CCT Selectable | Sensor Base | Emergency Backup

Engineered for high-output commercial, educational, healthcare, and office environments, this 2×4FT 72W Architectural LED Troffer Light combines high-efficiency illumination with built-in emergency backup and smart control readiness. Delivering 9,360 lumens at an impressive efficacy of 130 lm/W, this center-basket recessed fixture delivers smooth, volumetric lighting to replace traditional multi-lamp fluorescent troffers. Outfitted with an integrated sensor base and a factory-installed Emergency Battery Backup (EM) driver, it meets strict commercial building codes while offering maximum energy efficiency and safety assurance.

• 9,360 Lumens High-Efficacy Output (130 lm/W): Supplies bright, glare-free volumetric lighting while drawing only 72W, significantly cutting energy consumption compared to 3- or 4-lamp fluorescent fixtures.

• Factory-Installed Emergency Backup Driver (EM): Integrated battery backup system provides minimum 90 minutes of continuous emergency lighting during utility power outages to comply with life safety codes.

• Integrated Plug-and-Play Sensor Base: Pre-wired center receptacle allows tool-free field addition of PIR, microwave, or Bluetooth smart control sensors without opening the main fixture housing.

• DLC Premium & ETL Listed: Qualified for highest-tier commercial utility rebates across North America and ETL certified to strict safety and performance standards.

• Universal Voltage Driver (AC120–277V): High-efficiency commercial driver operates smoothly across 120V, 208V, 240V, and 277V power lines.

• Smooth 0–10V Continuous Dimming: Compatible with standard 0–10V dimmers for flicker-free light level tuning down to 10%, optimizing visual comfort and energy savings.

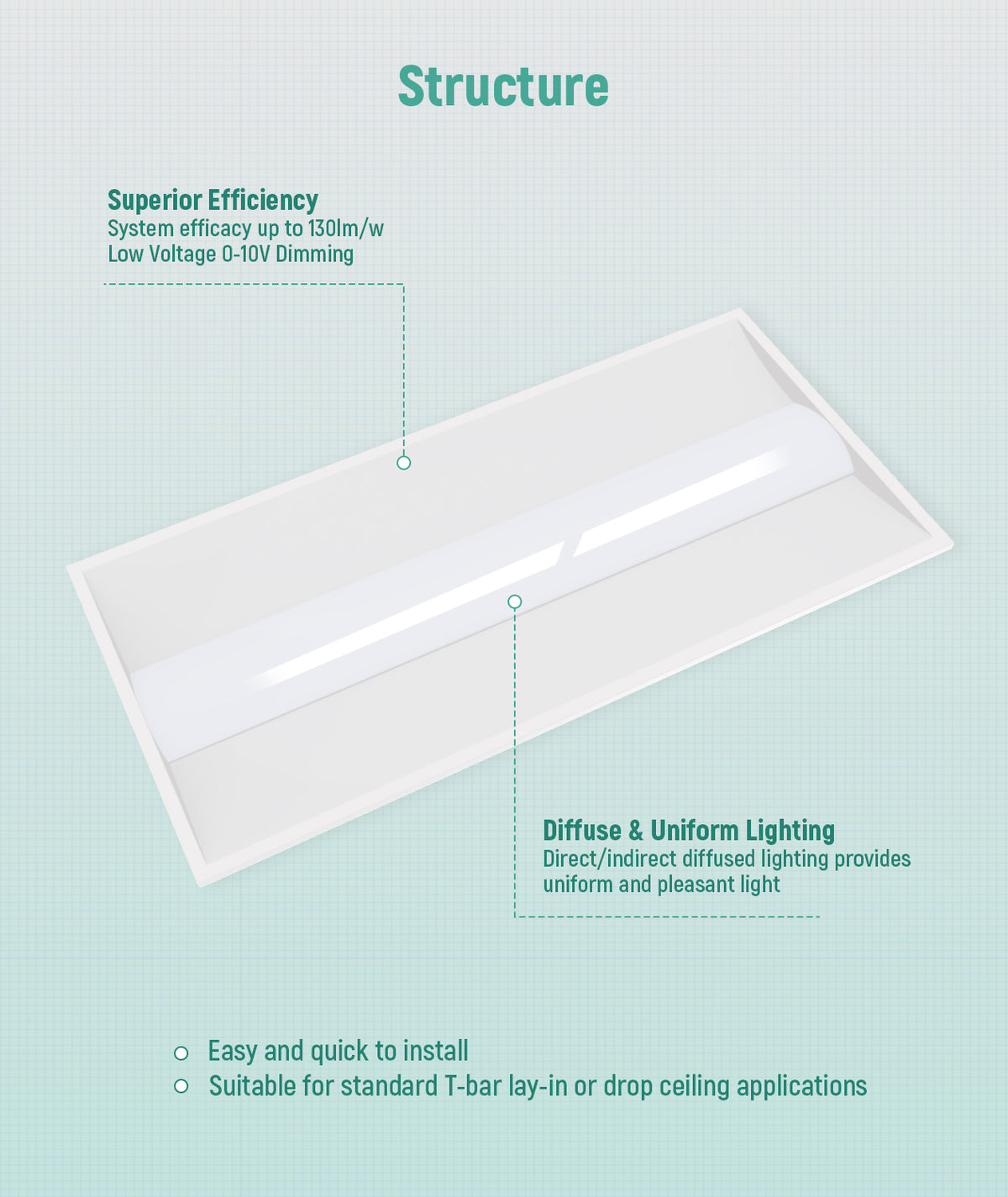

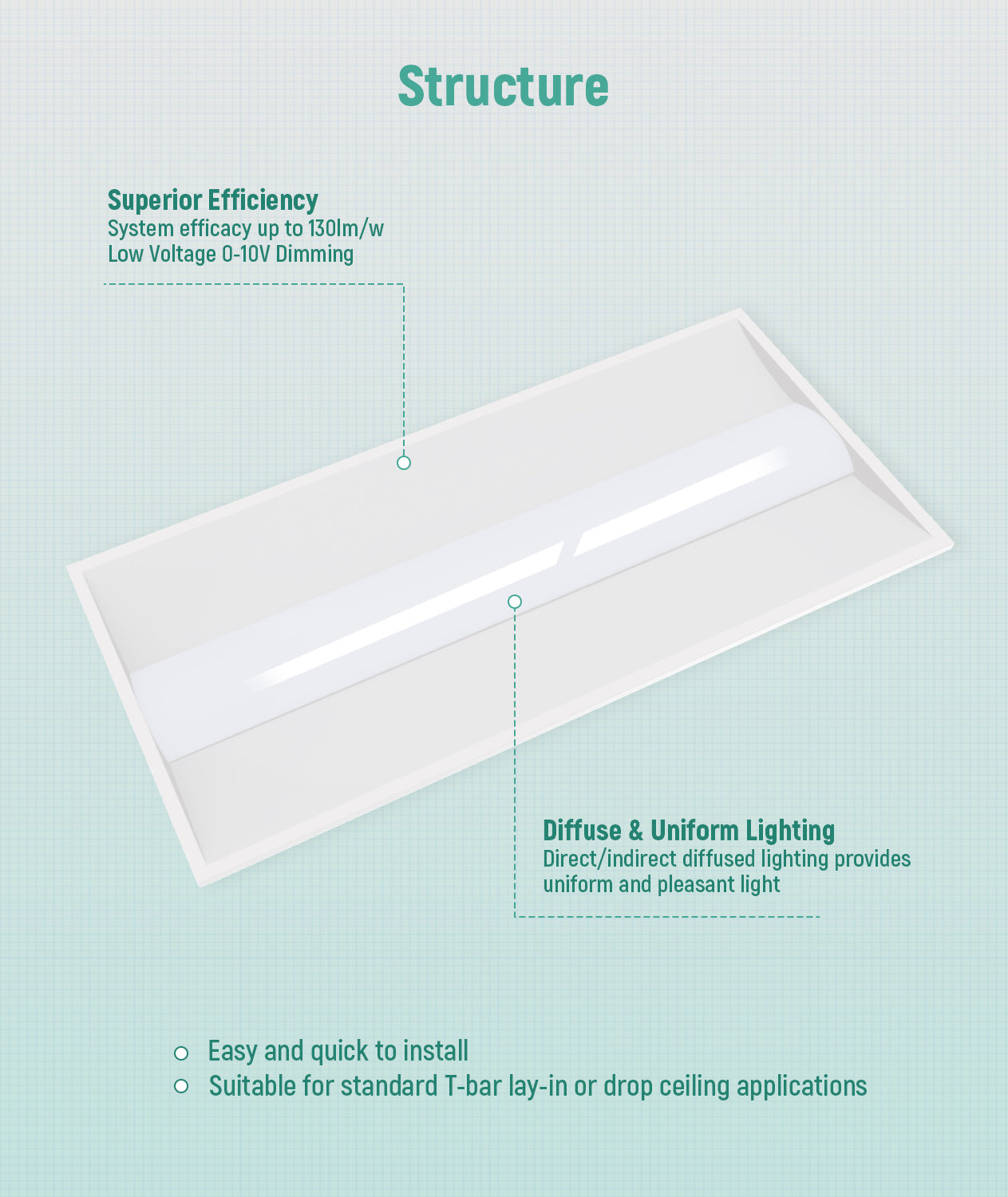

• Volumetric Center-Basket Optics: Direct/indirect frosted diffuser lens eliminates harsh glare, shadows, and visible LED hot spots, delivering even light distribution across work surfaces.

• Low-Profile Steel Construction: Heavy-gauge, powder-coated cold-rolled steel housing designed for quick, contractor-friendly drop-in installation in standard 2×4 T-bar grid ceilings with built-in safety clips.

Key Features

Selectable Wattage & CCT
Adjustable power levels and multiple color temperatures allow flexible lighting configurations during installation.

High Efficiency Performance
Delivers up to 9360 lumens with high efficacy LED technology, reducing energy consumption compared to fluorescent fixtures.

Emergency Backup Included
Integrated emergency battery ensures lighting operation during power interruptions.

3.5mm Sensor Base
Pre-installed sensor socket allows quick installation of PIR or microwave sensors.

0-10V Dimming Compatible
Supports smooth dimming for advanced lighting control systems.

Durable Commercial Construction
Precision steel housing with hemmed edges improves durability and safe installation.

Technical Specifications

Model: J-T4-S72-3565
Size: 2x4FT
Input Voltage: 120-277V AC
Wattage: 30W / 40W / 50W / 60W / 72W Selectable
Maximum Lumens: 9000 lm
Efficacy: 125-130 lm/W
CCT: 3500K / 4000K / 5000K / 5700K / 6500K Selectable
CRI: ≥80
Dimming: 0-10V Dimming
Sensor Base: 3.5mm Audio Jack
Emergency Backup: Included
Beam Angle: 120°
Operating Temperature: −20°C to 45°C
Lifespan: 50,000 Hours
Certification: ETL Listed, DLC 5.1 Premium
Warranty: 5 Years

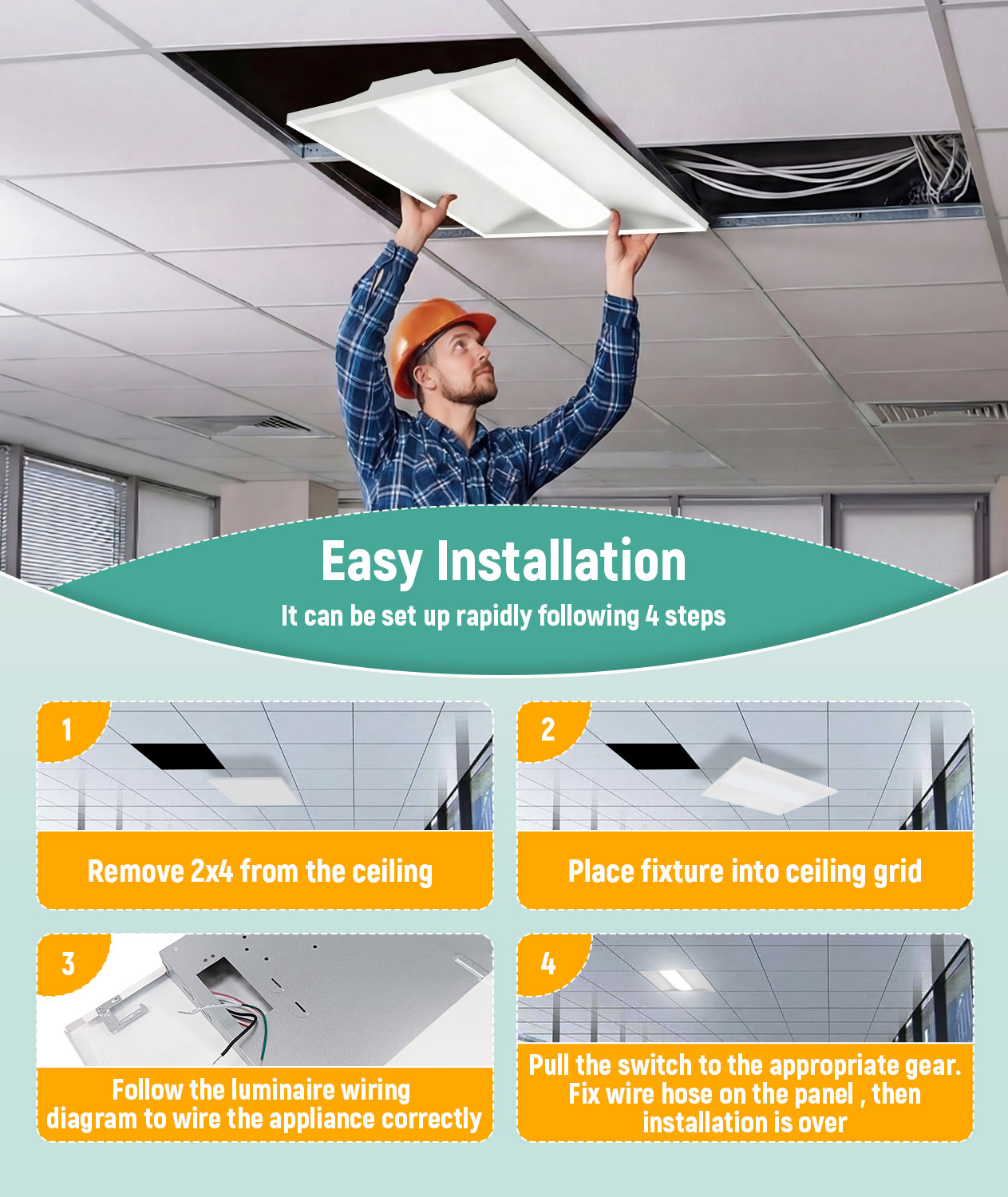

Installation

Designed for recessed installation in standard 2x4 T-bar grid ceilings, making it ideal for both new construction and retrofit projects

The fixture includes adjustable wattage and CCT switches located on the driver junction box for easy configuration during installation
