LED Mini Wall Pack Light 30W/25W/18W Power Selectable, 3CCT Tunable, Photocell Included, 100-277VAC

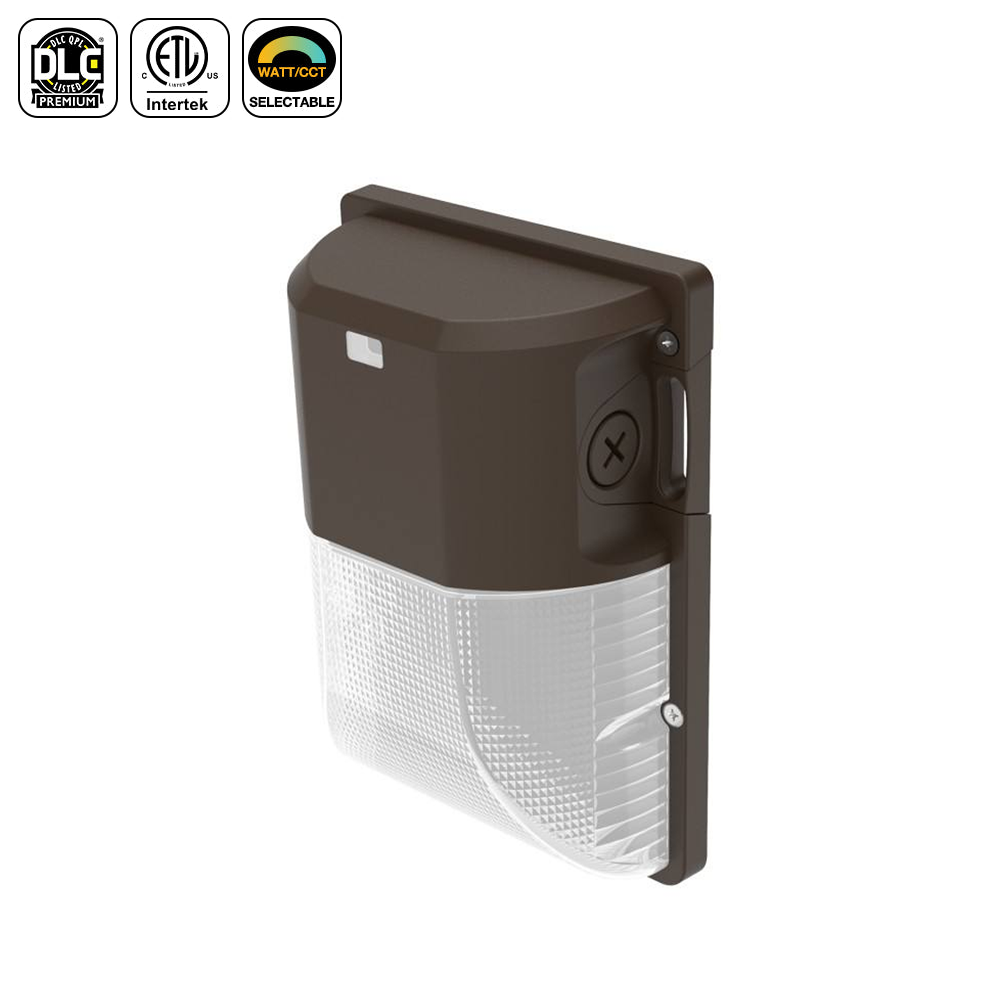

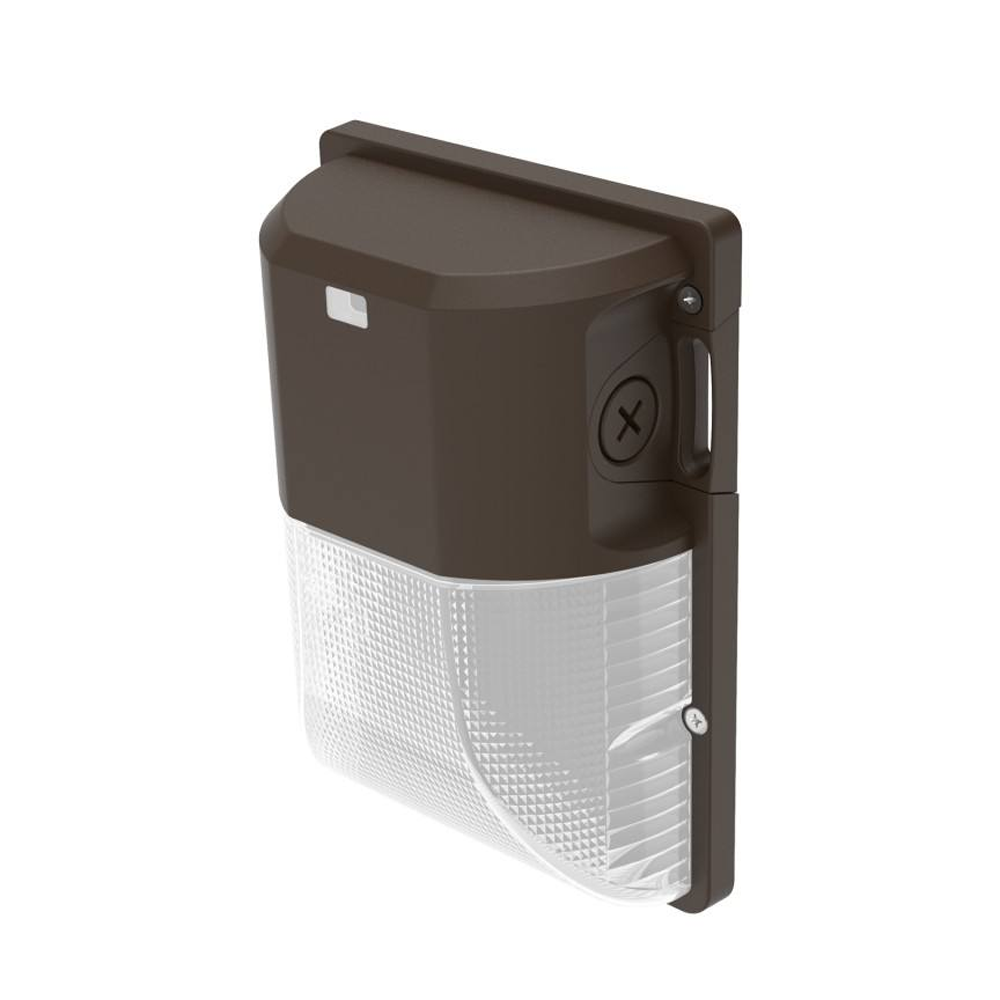

LED Mini Wall Pack Light

Engineered for compact outdoor perimeter lighting, security, and entryway illumination, this LED Mini Wall Pack delivers versatile, high-efficacy performance for commercial buildings, residential complexes, garages, doorways, pathways, and loading docks. Featuring 3-step selectable wattage (18W / 25W / 30W) and 3-CCT color temperature tuning, this fixture allows installers to customize brightness and color tone directly on-site. Equipped with a built-in twilight photocell sensor for automatic dusk-to-dawn operation, it outputs up to 3,900+ lumens (at ~130 lm/W efficacy) while replacing traditional 70W–150W metal halide or high-pressure sodium fixtures to drastically cut energy expenses.

• 3-Step Field-Selectable Wattage (18W / 25W / 30W): Onboard DIP switch enables easy power customization on-site (18W generating ~2,340 LM; 25W generating ~3,250 LM; 30W generating ~3,900 LM) to achieve ideal lighting levels for varying mounting heights and coverage areas.

• 3CCT Color Temperature Tunable: Integrated switch allows field selection between Warm White (3000K), Cool White (4000K), and Daylight White (5000K) to complement surrounding architecture and site aesthetics.

• Integrated Dusk-to-Dawn Photocell: Features a built-in photoelectric sensor that automatically turns the light ON at sunset and OFF at sunrise for maximum energy efficiency, hands-free operation, and enhanced security.

• High Energy Efficacy (Up to 130 LM/W): Advanced LED technology generates bright, uniform wide-angle illumination while reducing energy consumption by up to 80% compared to legacy outdoor fixtures.

• Weatherproof & Impact-Resistant Housing: Constructed with a durable, corrosion-resistant die-cast aluminum housing finished in a dark bronze powder coat, paired with a shatter-resistant polycarbonate lens designed to withstand harsh outdoor conditions.

• IP65 Wet-Location Rated: Sealed tight against moisture, rain, snow, and dust intrusion, ensuring reliable year-round outdoor operation.

• Commercial Grade & Certified: Operates on universal AC100–277V input; features standard junction-box surface mounting for quick, direct wall installation; UL/ETL Listed for safety compliance and DLC Qualified for utility rebate eligibility.

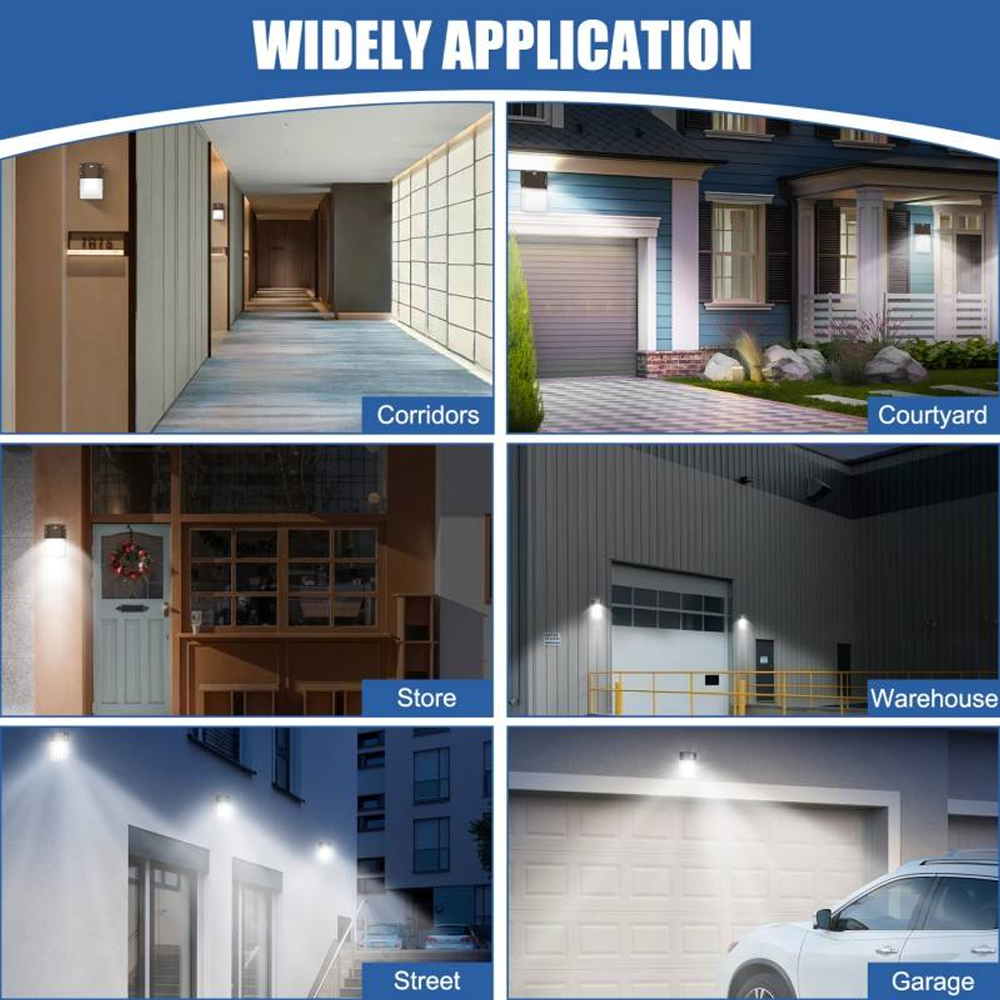

Applications

• Building Exteriors
• Commercial Facilities
• Warehouses
• Apartment Complexes
• Schools and Campuses
• Walkways and Entryways
• Loading Docks
• Parking Areas
• Security Lighting

Technical Specifications

Product Overview

This LED Mini Wall Pack is a practical replacement for traditional outdoor wall fixtures, offering improved efficiency, long service life, and dependable illumination. Its selectable wattage and color temperature make it suitable for distributors, contractors, electricians, and project-based installations.

The integrated photocell supports automatic dusk-to-dawn operation, helping customers reduce energy usage while maintaining outdoor visibility and security throughout the night.
