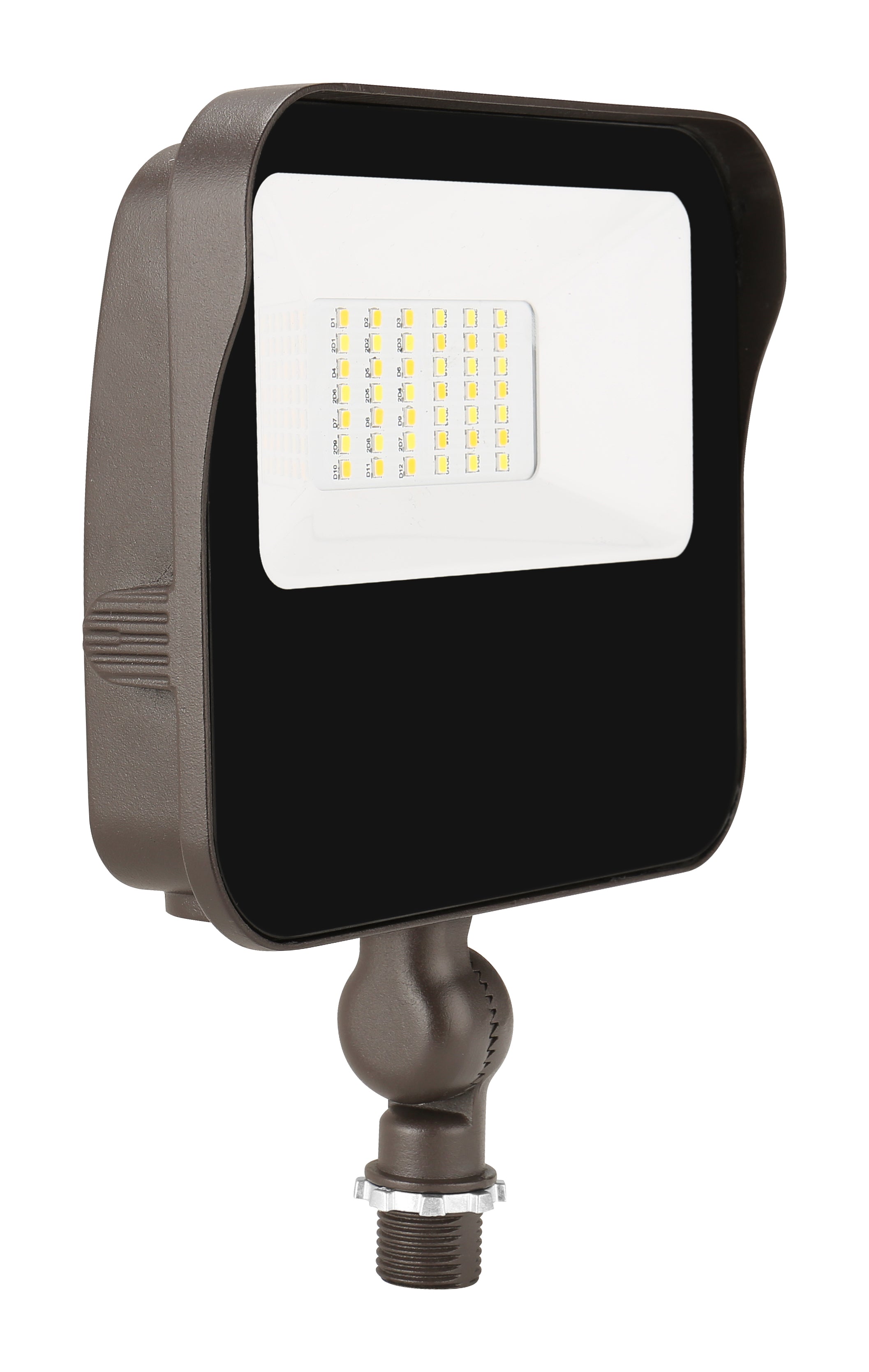

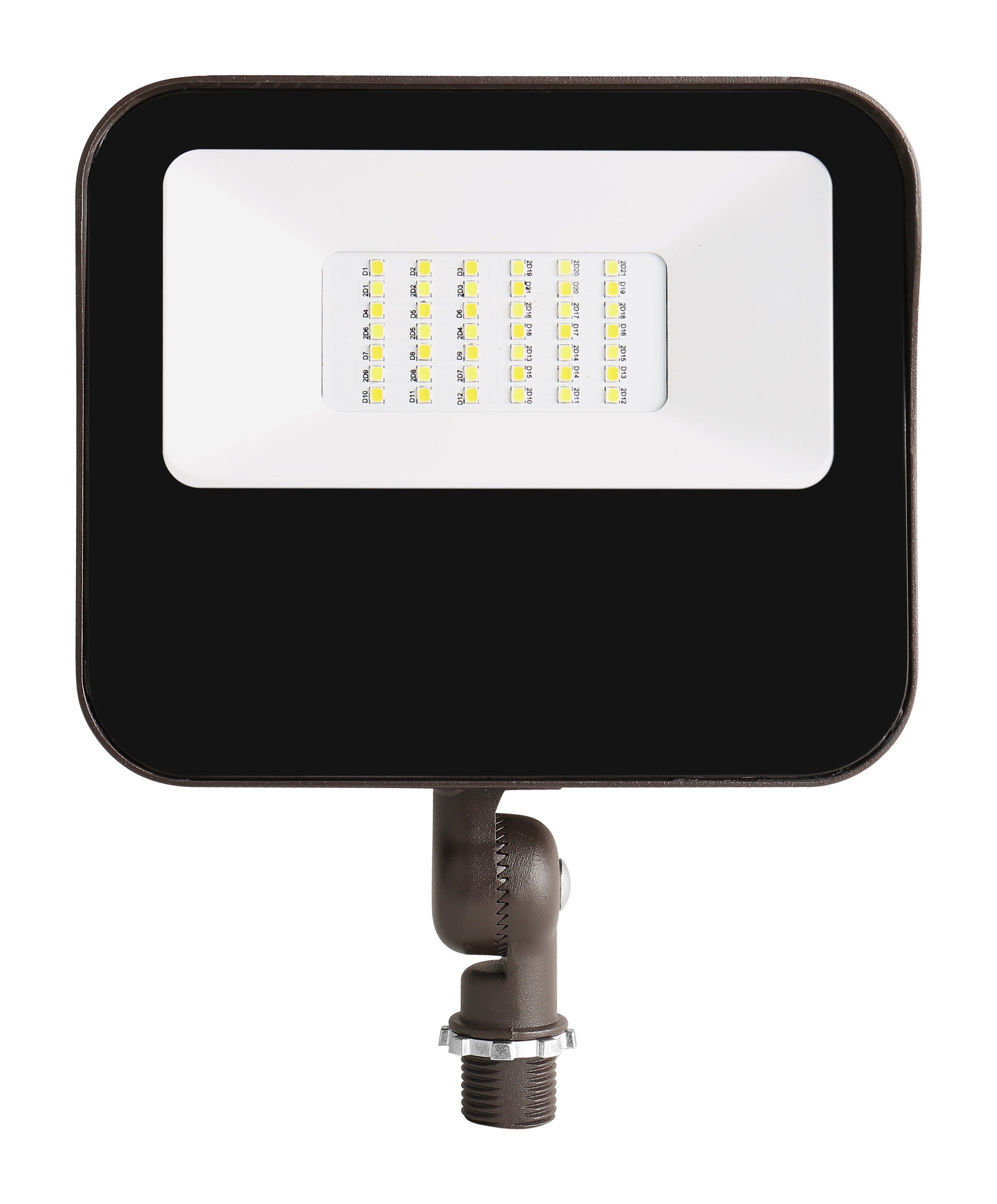

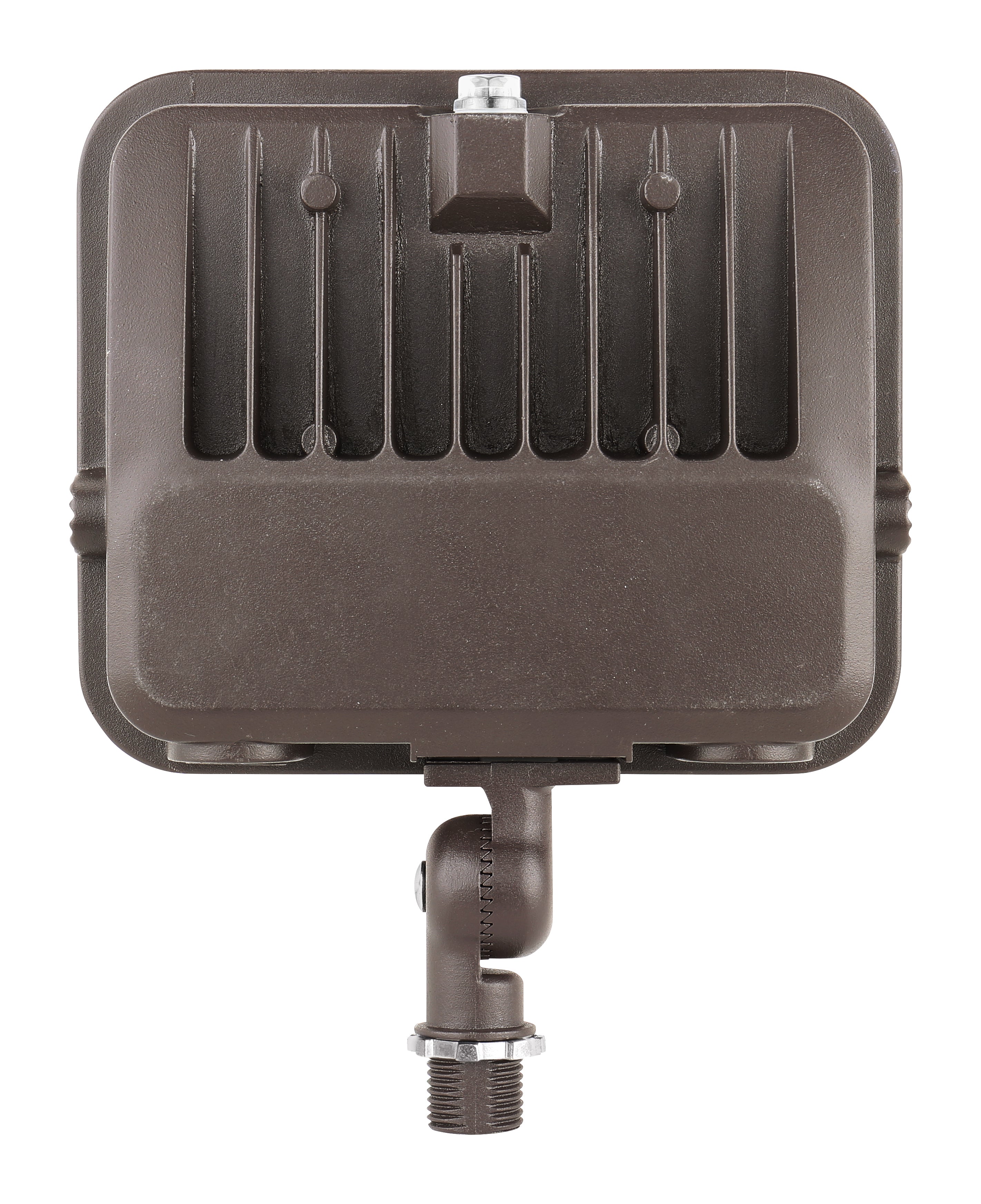

Led Flood Light 27W 22W 16w 11w Selectable 120 277V 3cct Trunnion Mount Dark Bronze With Photocell

Upgrade outdoor security and area lighting with this FD11 LED Flood Light, designed for building facades, courtyards, driveways, loading areas, signage, billboards, walkways, and general outdoor flood lighting applications. Featuring a compact low-profile design, durable dark bronze finish, and adjustable knuckle mount, this fixture provides flexible installation and reliable illumination for commercial and architectural environments.

This LED flood light features field-selectable wattage options of 65W, 52W, 39W, and 26W, allowing installers to adjust the light output based on project needs. The built-in 3CCT selectable function offers 3000K, 4000K, and 5000K color temperature options, making it suitable for warm architectural lighting, neutral outdoor lighting, or brighter security-focused applications.

With a universal 120-277VAC input and standard 0-10V dimming, this fixture supports flexible lighting control and energy-saving operation. The 7H x 7V optical distribution provides balanced horizontal and vertical illumination, making it ideal for wide-area flood lighting where uniform coverage is required.

The durable die-cast aluminum housing provides effective heat dissipation, while the fully sealed tempered glass lens helps improve durability and outdoor performance. An integrated visor design helps reduce glare and improve nighttime appearance. The fixture also includes a photocell with cap, supporting dusk-to-dawn operation for automatic lighting control.

Built for demanding exterior environments, this LED flood light is UL/cUL wet location listed, DLC Premium qualified, rated for an estimated 50,000-hour LED lifespan, and backed by a 5-year limited warranty.

Key Features:

• Selectable Wattage: 65W / 52W / 39W / 26W adjustable output
• 3CCT Selectable: 3000K / 4000K / 5000K field-selectable color temperatures
• High Output: Up to 9700 lumens at 4000K
• Universal Voltage: 120-277VAC input for commercial applications
• 0-10V Dimming: Standard dimming range from 10% to 100%
• 7H x 7V Beam Distribution: Balanced flood lighting coverage
• Photocell with Cap: Supports automatic dusk-to-dawn control
• Knuckle Mount: 1/2" NPS knuckle mount for flexible aiming and installation
• Dark Bronze Finish: Professional architectural outdoor appearance
• Durable Construction: Die-cast aluminum housing with sealed tempered glass
• Glare Reduction: Integrated visor helps reduce unwanted glare
• Wet Location Rated: Suitable for outdoor and weather-exposed applications
• DLC Premium & UL/cUL Listed: Meets commercial lighting standards
• Long Lifespan: Estimated 50,000-hour LED life
• 5-Year Limited Warranty: Reliable long-term performance

Technical Specifications:

• Model: FD11 / MFD11 Series
• Max Power: 65W
• Selectable Wattage: 65W / 52W / 39W / 26W
• Voltage: 120-277VAC
• CCT: 3000K / 4000K / 5000K selectable
• CRI: Ra70
• Beam Distribution: 7H x 7V
• Max Lumens: Up to 9700 lm
• Dimming: 0-10V dimming
• Mounting: Knuckle mount
• Finish: Dark Bronze
• Photocell: With photocell and cap
• Operating Temperature: -40°C to 40°C
• Certifications: UL/cUL Wet Location, DLC Premium
• Warranty: 5-Year Limited Warranty
