LUMENS up to 28000lm
WATTAGE40W-60W-80W-100W; 200W
VOLTAGE120-277V
CCT3000K/4000K/5000K
WARRANTY5 years Warranty
Certification Passed：

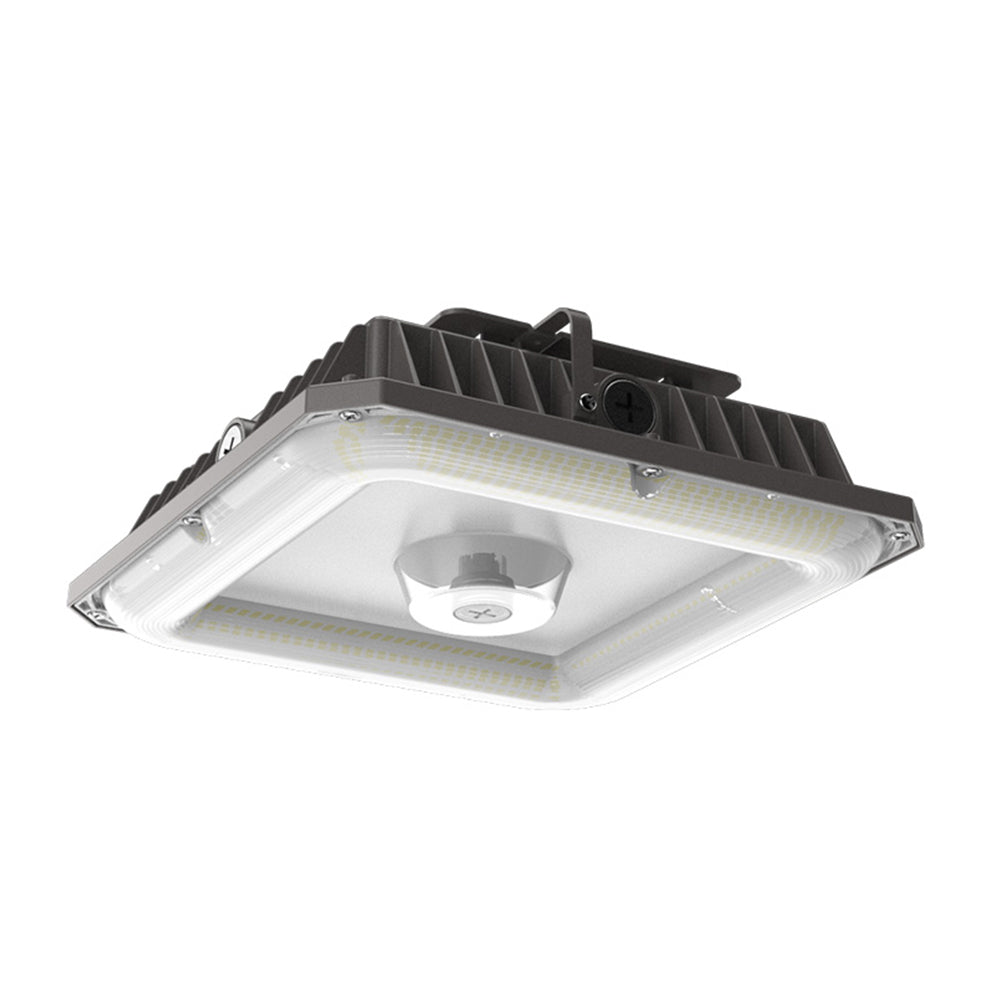

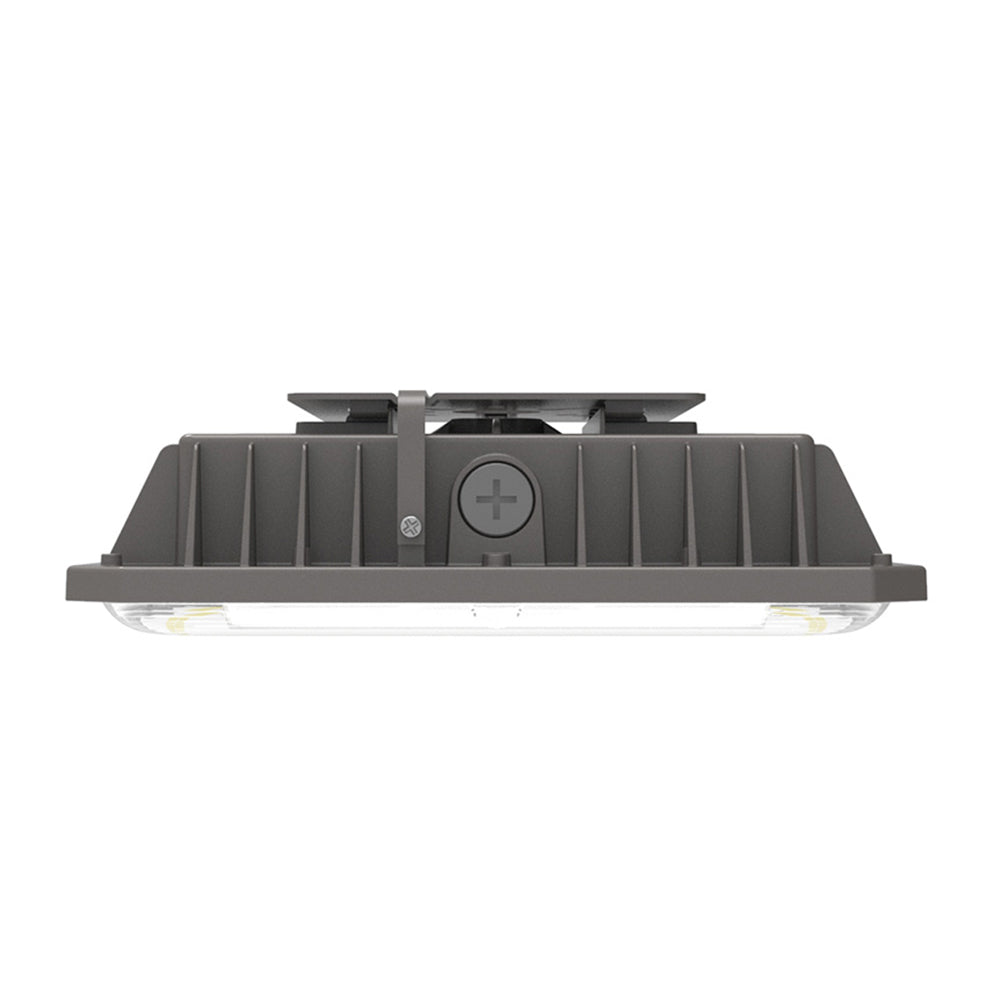

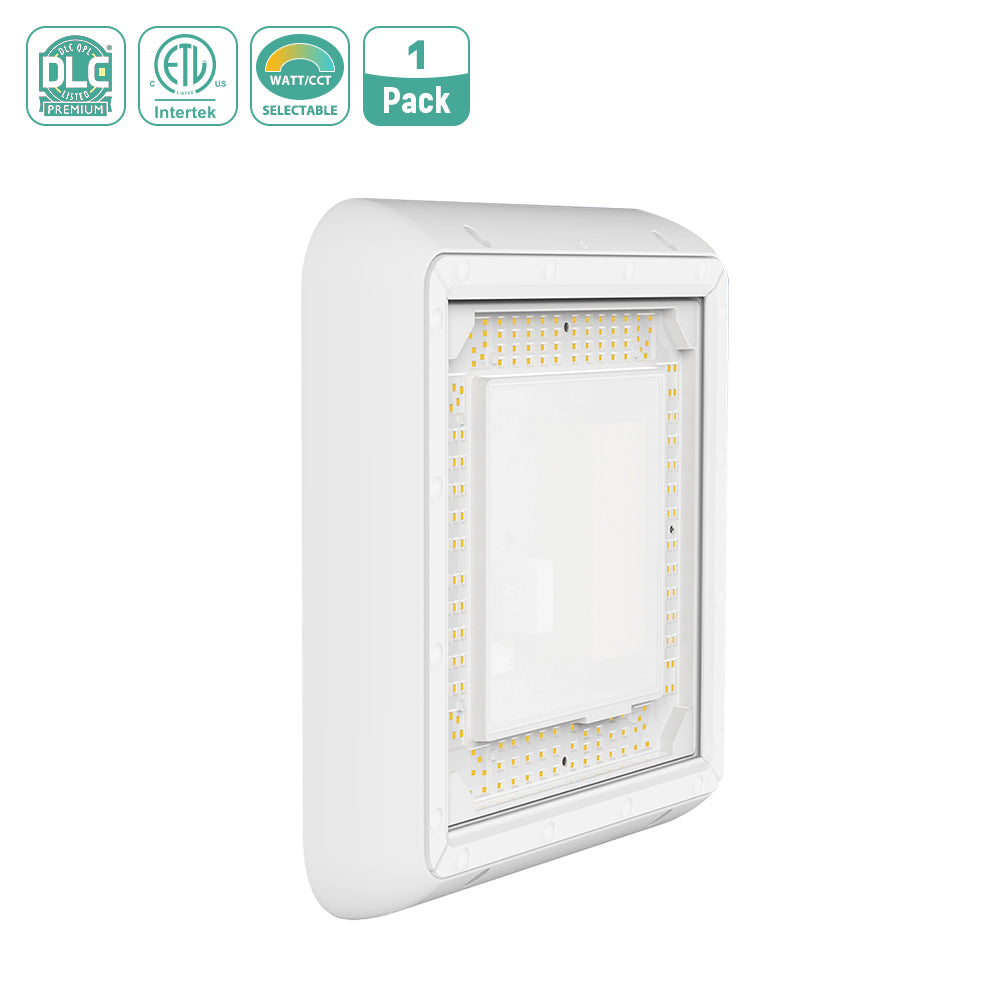

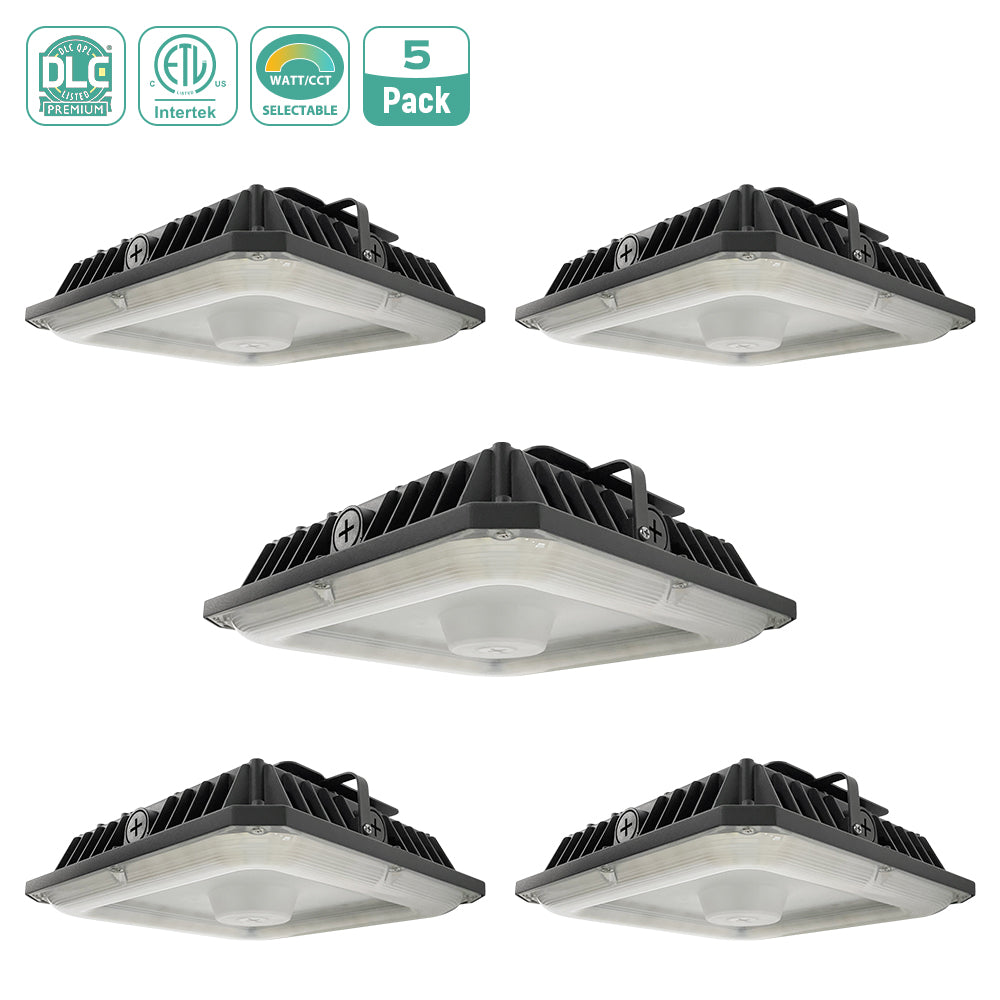

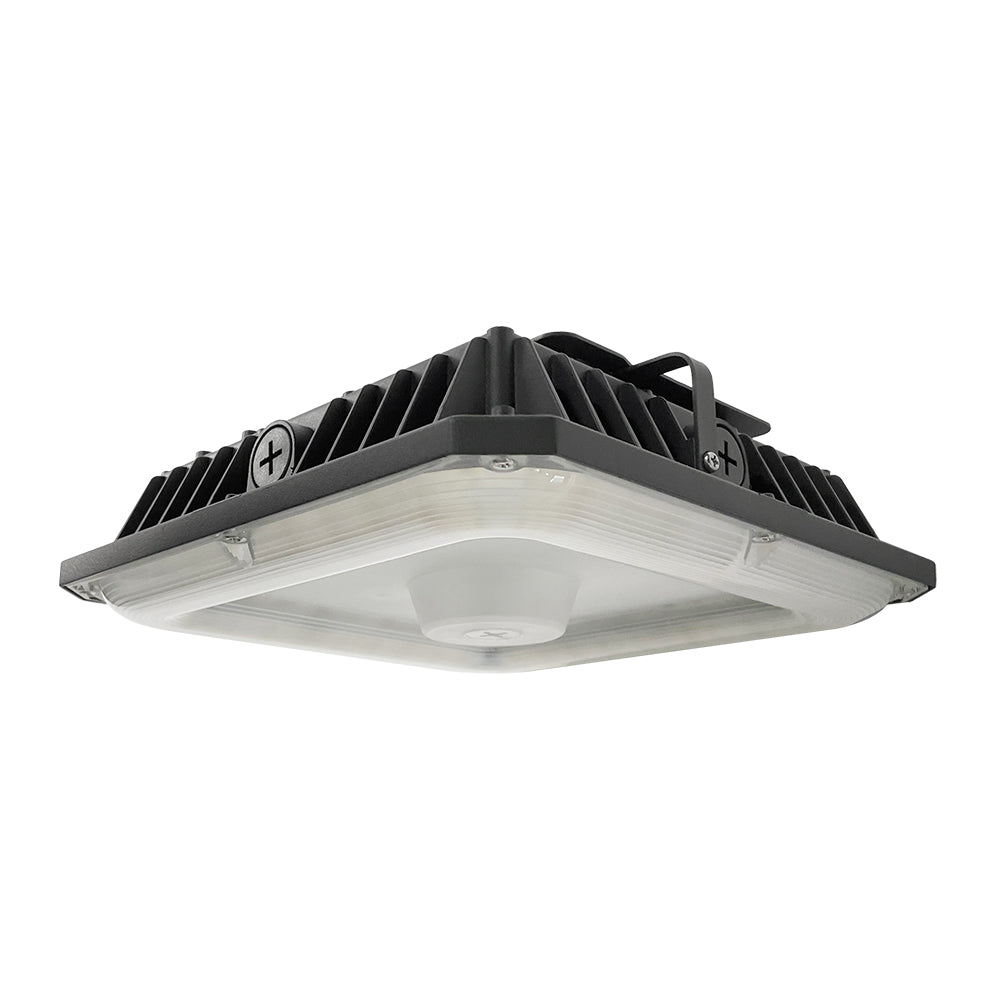

Gielight Wattage Selectable LED Canopy Light Fixture 100W-200W
DIRECT PRICE
$390.00
● Dallas, TX & LA, CA Hubs · Ships in 24h
Bulk Savings
10% at $1000+ · 12% at $2000+ · 14% at $3000+
Gielight Wattage Selectable LED Canopy Light Fixture 100W-200W
40W-60W-80W-100W / 120-277V / Brown Housing / Sensor Base
Volume Savings
Eligible order-level volume savings are calculated using your combined cart value. Final discount eligibility is confirmed at checkout.
| Spend | Save |
|---|---|
| $1000+ | 10% |
| $2000+ | 12% |
| $3000+ | 14% |
*Only qualifying items count toward eligible order savings; existing discounts and gift cards may affect eligibility.
For assistance with a large-volume order, contact our support team.
Rates and eligibility are confirmed at checkout. This window does not apply a discount by itself.
Halloween Sale Coupons
Save up to $280 on your order!
$30 OFF
On orders $300+
Code:
HALLOWEEN30
$60 OFF
On orders $500+
Code:
HALLOWEEN60
$130 OFF
On orders $1000+
Code:
HALLOWEEN130
$280 OFF
On orders $2000+
Code:
HALLOWEEN280
Coupon eligibility and any combination restrictions are determined at checkout.
Gielight Wattage Selectable LED Canopy Light Fixture 100W-200W
40W-60W-80W-100W / 120-277V / Brown Housing / Sensor Base
Product Overview
Engineered for high-output commercial and industrial covered space illumination, the Gielight Wattage Selectable LED Canopy Light Fixture delivers bright, uniform lighting for gas stations, drive-thrus, parking garages, loading docks, and exterior walkways. Built for surface or pendant mounting under open structures, this heavy-duty fixture features field-selectable power settings ranging from 100W to 200W alongside tunable color temperatures. Serving as an energy-efficient direct replacement for legacy 250W–600W metal halide fixtures, it maximizes visual clarity, enhances site safety, and drastically cuts maintenance overhead.
-
Field-Selectable Wattage (100W–200W): Onboard DIP switches allow installer customization of power levels on-site (e.g., 100W / 120W / 150W / 200W) to match specific ceiling heights and target lux levels.
-
Tunable Color Temperature (CCT Selectable): Built-in switch enables selection between crisp, high-visibility color temperatures (3000K / 4000K / 5000K) to suit site aesthetic and task requirements.
-
Glare-Free Uniform Optics: Premium shatter-resistant polycarbonate or tempered glass lens distributes light evenly with low glare, eliminating harsh shadows in covered pedestrian and vehicle areas.
-
Rugged Weatherproof Design: IP65/IP66 wet-location rated precision die-cast aluminum housing with integrated thermal heat fins and an anti-corrosion powder-coated finish.
-
Commercial Grade & Certified: Features smooth 0–10V continuous dimming; UL/ETL Listed for safety compliance and DLC Premium Qualified for top-tier utility energy rebate eligibility.
Variant Procurement Matrix
| Wattage | Input Voltage | CCT | Housing Type | Certification Category | Pack Size |
|---|---|---|---|---|---|
| 40W-60W-80W-100W | 120-277V | 3000K/4000K/5000K | Brown Housing / Sensor Base | Parking Garage Luminaires | 5pcs 51x29.5x29.5cm 10.89kg |
| 40W-60W-80W-100W | 120-277V | 3000K/4000K/5000K | White Housing / Sensor Base | Parking Garage Luminaires | 5pcs 51x29.5x29.5cm 10.89kg |
| 200W | 120-277V | 5000K | White Housing / Type 1 | Fuel Pump Canopy Luminaires 1 | 1pcs 44x44x11.5cm 5.2kg |
| 200W | 120-277V | 5000K | White Housing / Type 2 | Fuel Pump Canopy Luminaires 2 | 1pcs 44x44x14.3cm 6.1kg |
Applications & Industries
- Parking garage canopy lighting
- Fuel pump canopy lighting
- Commercial exterior canopy lighting
Specifications
| Wattage | 40W-60W-80W-100W; 200W | Efficacy per W | 150LM/W |
|---|---|---|---|
| Certifications | Parking Garage Luminaires; Fuel Pump Canopy Luminaires 1; Fuel Pump Canopy Luminaires 2 | Lifespan | 50000 hours |
| Lumens | up to 28000lm | Voltage | 120-277V |
| CRI | 80 | IP Rating | Wet location |
| Beam Angle | 120 | Color Temperature Range | 3000K/4000K/5000K |
| Size | 450*285*285mm | Applications | Parking garage canopy lighting Fuel pump canopy lighting Commercial exterior canopy lighting Distributor stocking programs by housing type |
| Dimming Details | 0-10V Dimming | Operating Temperature | -22°F to 104°F |
| Warranty | 5 years Warranty |
