1x4 High Output LED Backlit Panel Light – 65W Max, 5-Wattage & 5CCT Selectable, Sensor Ready, 4-Pack
1x4 High Output LED Backlit Panel Light – 65W Max, 5-Wattage & 5CCT Selectable, Sensor Ready, 4-Pack
Regular price
$239.99 USD
Bulk Savings
automatically applied on carts over $500 - Learn more
Discount Details
Coupon List
$20 OFF
For orders over $199
Code:
MEMBER20
Buy More, Save More >
$50 OFF
For orders over $499
Code:
MEMBER50
Buy More, Save More >
$120 OFF
For orders over $799
Code:
MEMBER120
Buy More, Save More >
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert
Light Your Project with Confidence
Our commercial lighting solutions are built for reliable performance and easy installation. Unbox, mount, and upgrade your parking lot, warehouse, or outdoor space with high-efficiency illumination.
Certification Passed

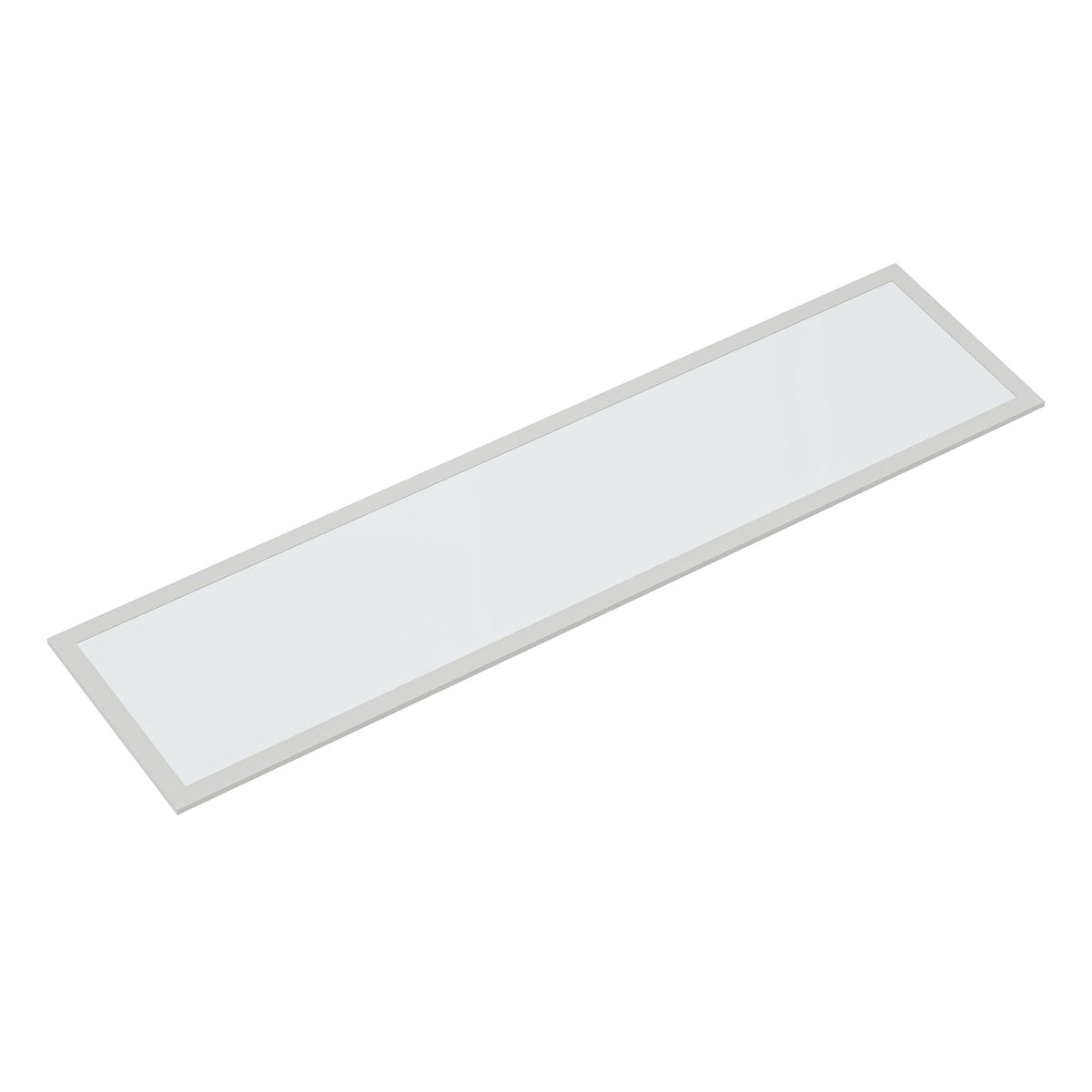

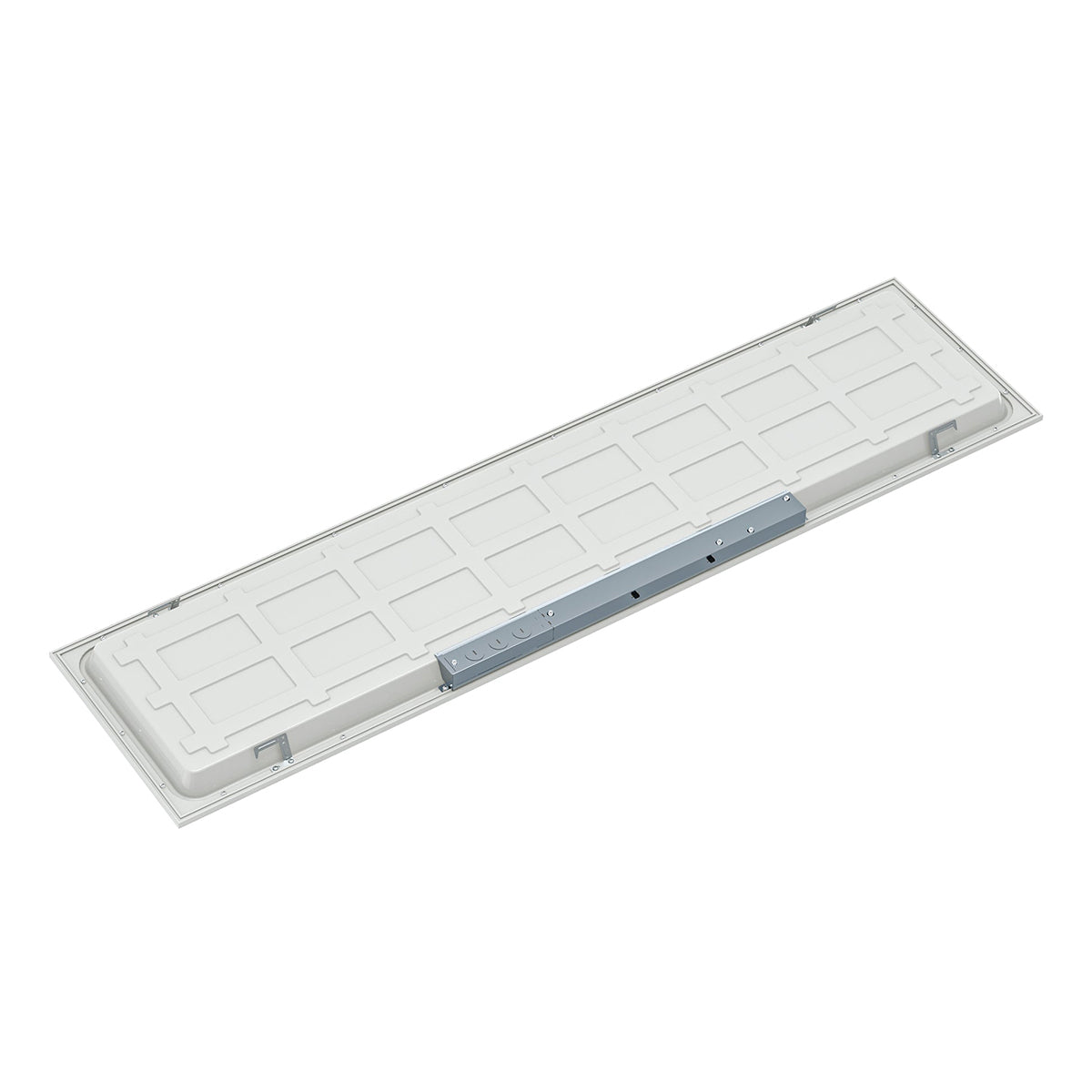

1x4 High Output LED Backlit Panel Light for Commercial Ceiling Applications
This 1x4 LED backlit panel light is designed for commercial and institutional spaces that require flexible light output from a slim, modern ceiling fixture. Delivering up to 10,000 lumens with efficacy up to 154 lm/W, it provides substantially higher output than many standard 1x4 LED panels.
Five field-selectable wattage settings allow the fixture to operate at 15W, 30W, 40W, 50W or 65W. Five selectable color temperatures — 3000K, 3500K, 4000K, 5000K and 6500K — give contractors flexibility to match different commercial environments without ordering multiple fixed-output fixtures.
Each fixture includes a sensor base for compatible sensor installation. The sensor itself is not included and is sold separately.
Case Pack: 4 fixtures per case.
This product is sold by the full case only.
Key Features
- High Output Performance: Produces up to 10,000 lumens for demanding commercial lighting applications.
- Up to 154 lm/W: High luminous efficacy helps deliver strong illumination with efficient power use.
- 5-Wattage Selectable: 15W / 30W / 40W / 50W / 65W field-selectable settings.
- 5CCT Selectable: 3000K / 3500K / 4000K / 5000K / 6500K.
- Sensor Ready: Sensor base included; compatible sensor sold separately.
- Dimmable: Supports 0–100% dimming depending on the compatible controller.
- Universal Commercial Voltage: Designed for 120–277V / 120–347V applications.
- Recessed T-Grid Installation: Designed for installation in standard commercial suspended ceilings.
- Optional Mounting Accessories: Surface-mount and suspension accessories are available separately.
- ETL Listed & DLC Premium: Designed for professional commercial lighting applications.
- 5-Year Limited Warranty: Built for long-term commercial use.
Technical Specifications
| Fixture Size | 1x4 |
| Dimensions | 47.7" × 11.9" × 1.4" |
| Selectable Wattage | 15W / 30W / 40W / 50W / 65W |
| Maximum Light Output | 10,000 Lumens |
| Luminous Efficacy | Up to 154 lm/W |
| Selectable CCT | 3000K / 3500K / 4000K / 5000K / 6500K |
| CRI | >80 |
| Input Voltage | 120–277V / 120–347V, 50/60Hz |
| Power Factor | >0.9 |
| THD | <20% |
| Dimming | 0–100% depending on controller |
| Sensor Base | Included |
| Sensor | Not Included – Sold Separately |
| Certification | ETL Listed / DLC Premium |
| Warranty | 5-Year Limited Warranty |
| Package Quantity | 4 Fixtures / Case |
Recommended Applications
- Commercial offices
- Schools and classrooms
- Healthcare facilities
- Retail stores
- Hallways and corridors
- Commercial buildings
- Utility and work areas
- Commercial retrofit projects
Field-Selectable for Easier Project Planning
Selectable wattage and color temperature allow electrical contractors, distributors and facility managers to use one fixture across a wider range of project requirements. Light output and color temperature can be selected during installation instead of purchasing multiple fixed-wattage or fixed-CCT panel configurations.
What's Included
Included: 4 LED backlit panel light fixtures with sensor bases.
Not Included: Sensor, emergency battery, remote control, surface-mount kit, suspension kit and other optional accessories unless specifically stated.
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
Specifications
| Wattage | 15W / 30W / 40W / 50W / 65W |
| LPW | 125.0 |
| Certifications | DLC / UL |
| Lifetime | 50000 hours |
| Luminous | 6,250-10,000 lm |
| Voltage | 15W / 30W / 40W / 50W / 65W |
| CRI | 80 |
| Beam Angle | 120 |
| Color Temperature Range | 3000K-6500K |
| Applications | Commercial flat panel lighting Low bay lighting where listed by SKU High bay lighting where listed by SKU Warehouse support spaces Distributor stock programs for panel fixtures |
| Efficacy per W | 125 lm/W or 10,000 lm package by SKU |
| Operating Temperature | -4'F - 104'F |
| Dimming Details | 0-10V Dimming |
| Size | 1X4 |
| Warranty | 5 years Warranty |
