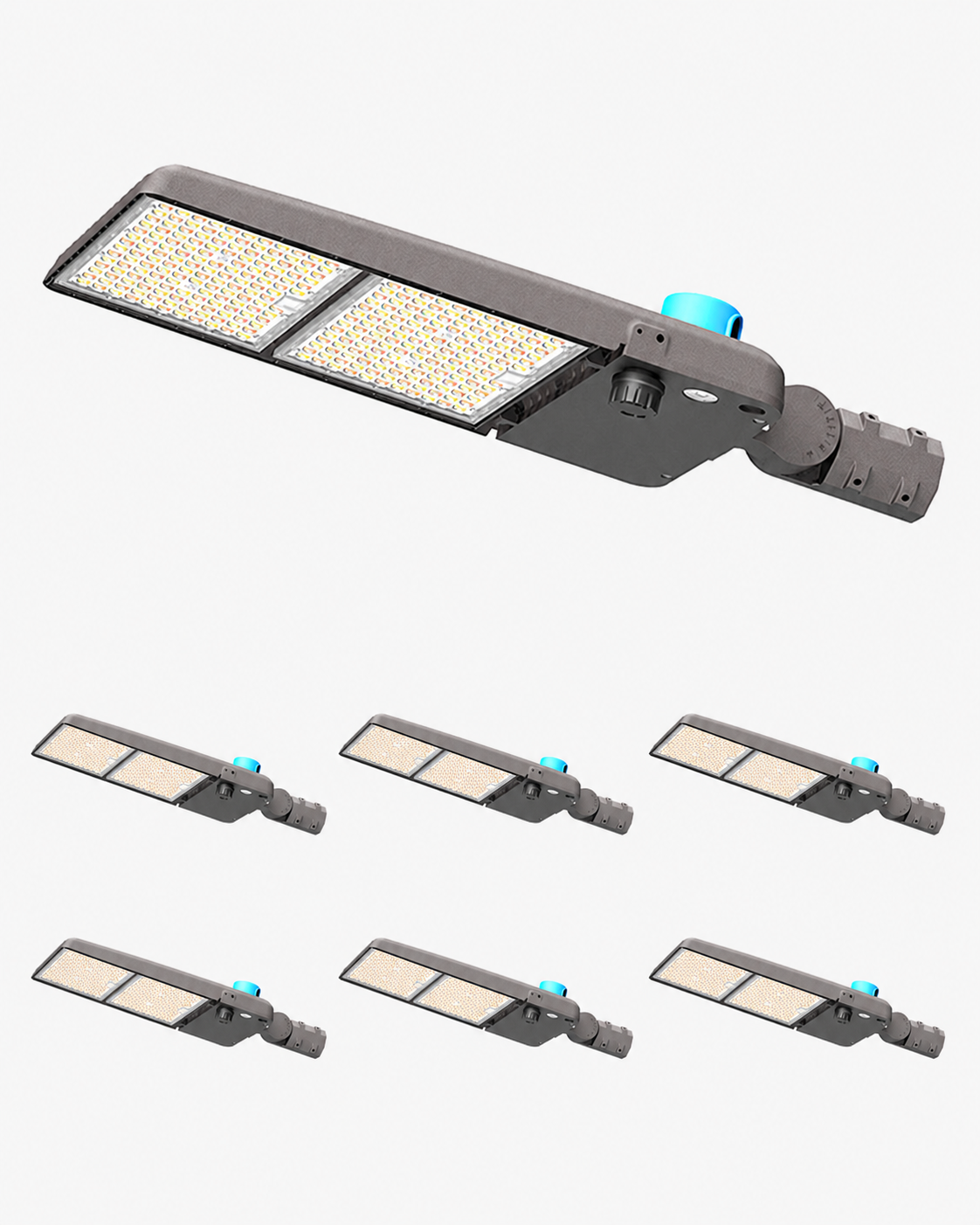

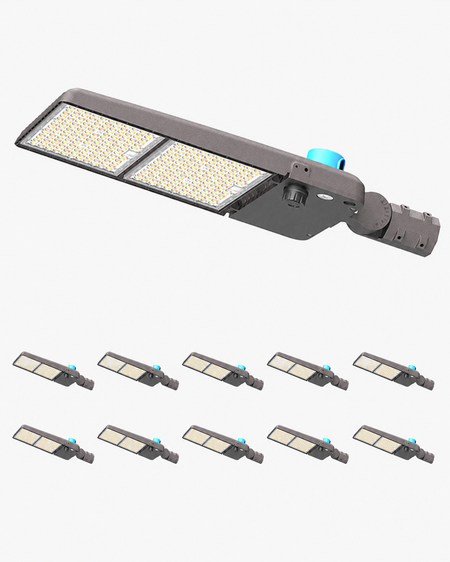

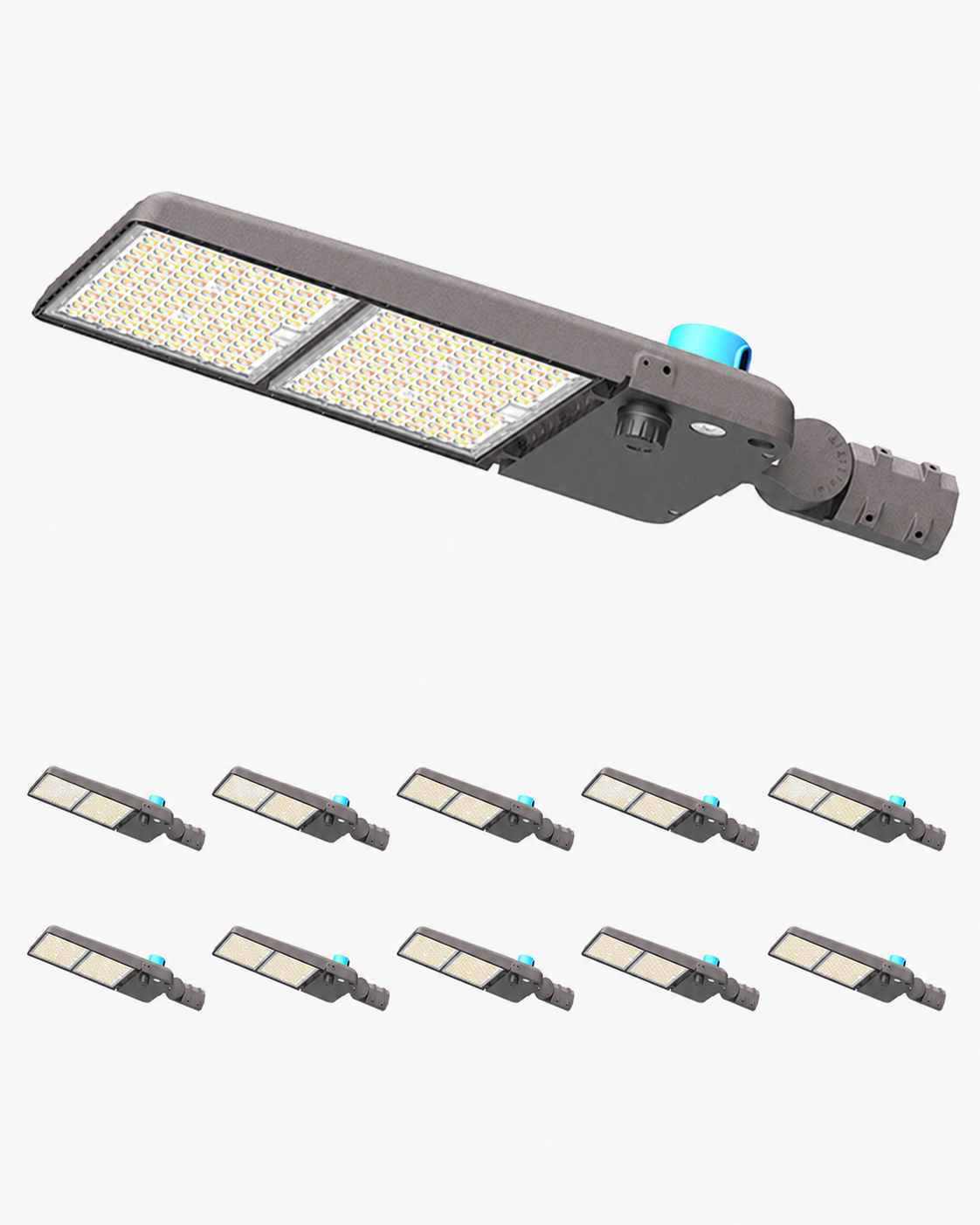

LED Shoebox Area Light 500W 80000 Lumens UL, DLC Premium | 120-277V with Photocell Base

J-AR09-500W-L-DW5C3T3

500W Wattage & 3CCT Adjustable LED Shoebox Area Light with Photocell Base

Engineered for high-mast commercial parking lots, industrial yards, auto dealerships, and perimeter security applications, this 500W LED Shoebox Area Light delivers ultra-high-output site illumination. Producing 80,000 lumens at a high efficacy of 160 lm/W, this commercial-grade luminaire serves as an energy-efficient replacement for legacy 1,500W–2,000W metal halide or high-pressure sodium (HPS) fixtures. Equipped with an integrated twist-lock photocell base (sensor included), it enables automated dusk-to-dawn operation to optimize energy usage and ensure continuous property security.

• 80,000 Lumens Ultra-High Efficacy (160 lm/W): Delivers powerful, wide-coverage illumination while drawing only 500W, cutting energy and utility overhead by up to 75% compared to HID equivalents.

• Integrated Dusk-to-Dawn Photocell Base: Features a factory‑installed twist‑lock photocell receptacle. Photocell sensor sold separately to enable automatic nighttime turn‑on and daytime shutoff functionality.

• DLC Premium & UL Listed: Qualified for top-tier commercial utility rebate incentives nationwide; UL listed for wet locations and outdoor commercial applications.

• Heavy-Duty IP65 Weatherproof Housing: Constructed from die-cast aluminum with a corrosion-resistant powder-coated finish and sealed optics to resist moisture, dust, and harsh weather.

• Precision Type III Optics: Optical-grade polycarbonate lenses deliver uniform, wide-throw light distribution ideal for parking lots, roadways, and large outdoor spaces.

• Universal Commercial Voltage (AC120–277V): Industrial driver operates seamlessly across standard 120V, 208V, 240V, and 277V systems, complete with built-in surge protection.

• Continuous 0–10V Dimming: Compatible with standard 0–10V dimmers and smart control systems for adjustable light levels and custom energy management schedules.

• Versatile Mounting Adaptability: Designed for flexible field installation using Slip Fitter, Arm Mount (for round or square poles), or Direct Wall Mount brackets.

Key Features

• 300W / 350W / 400W / 450W / 500W wattage selectable

• 3000K / 4000K / 5000K CCT selectable

• 80000 lumens max output

• 160LM/W high efficiency (500W)

• Integrated Photocell Base (Dusk to Dawn)

• AC120-277V

• 0-10V dimming

• 10KV surge protection

• Type III light distribution

• IP65 waterproof rated

• UL Listed & DLC Premium

• 5-Year Warranty

Specifications

• Input Voltage: AC120-277V

• Max Lumens: 80000lm

• CRI: >80

• Operating Temperature: -40°C to 50°C

• Housing: Die-cast aluminum

• Lens: Polycarbonate

• Mounting Options: Slip Fitter (SF), Direct Mount (DI), Trunnion Mount (TR)

• Carton Size: 27.3" x 17.7" x 5.1"

• Net Weight: 15.7 lbs

• Gross Weight: 17.6 lbs

Ideal Applications

• Commercial Parking Lots

• Roadways

• Industrial Facilities

• Large Outdoor Areas

• Municipal Projects
