LED Architectural Wall Pack 60W/90W/100W/120W Power & 3CCT Selectable, Photocell, Up & Down Lighting

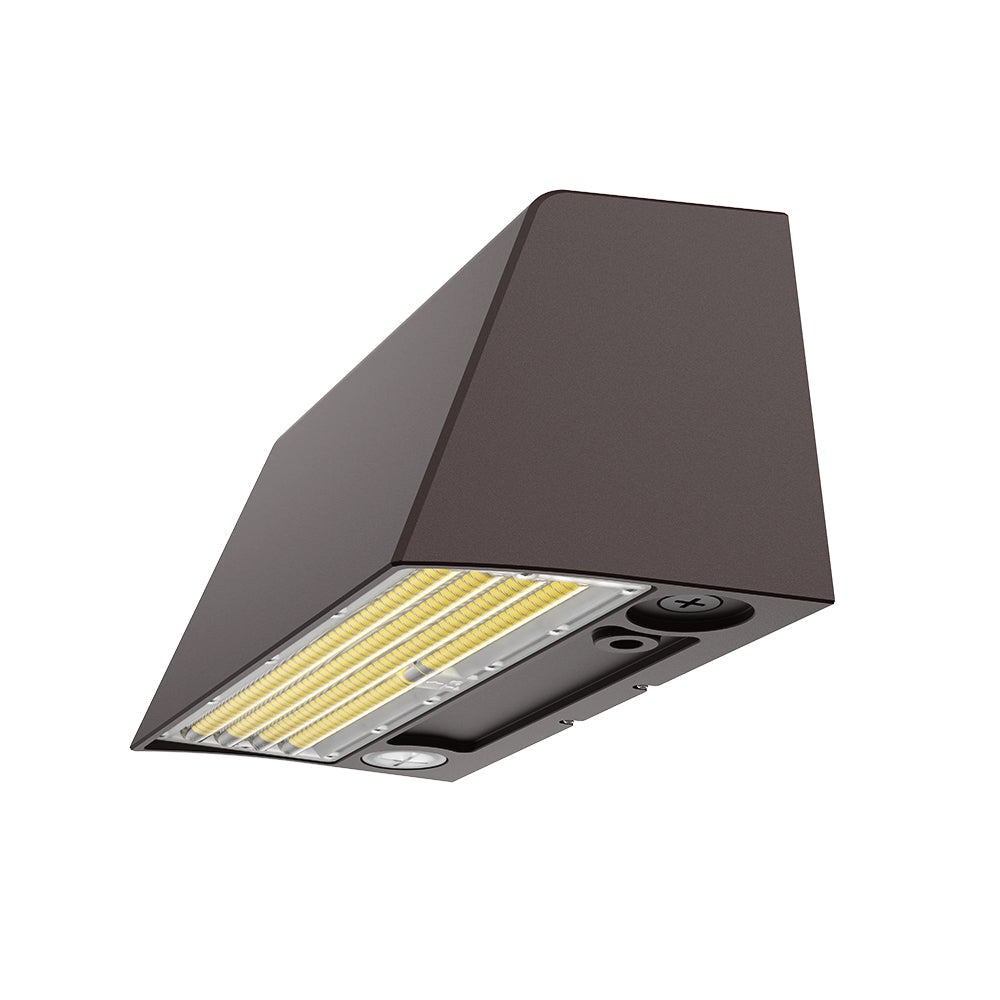

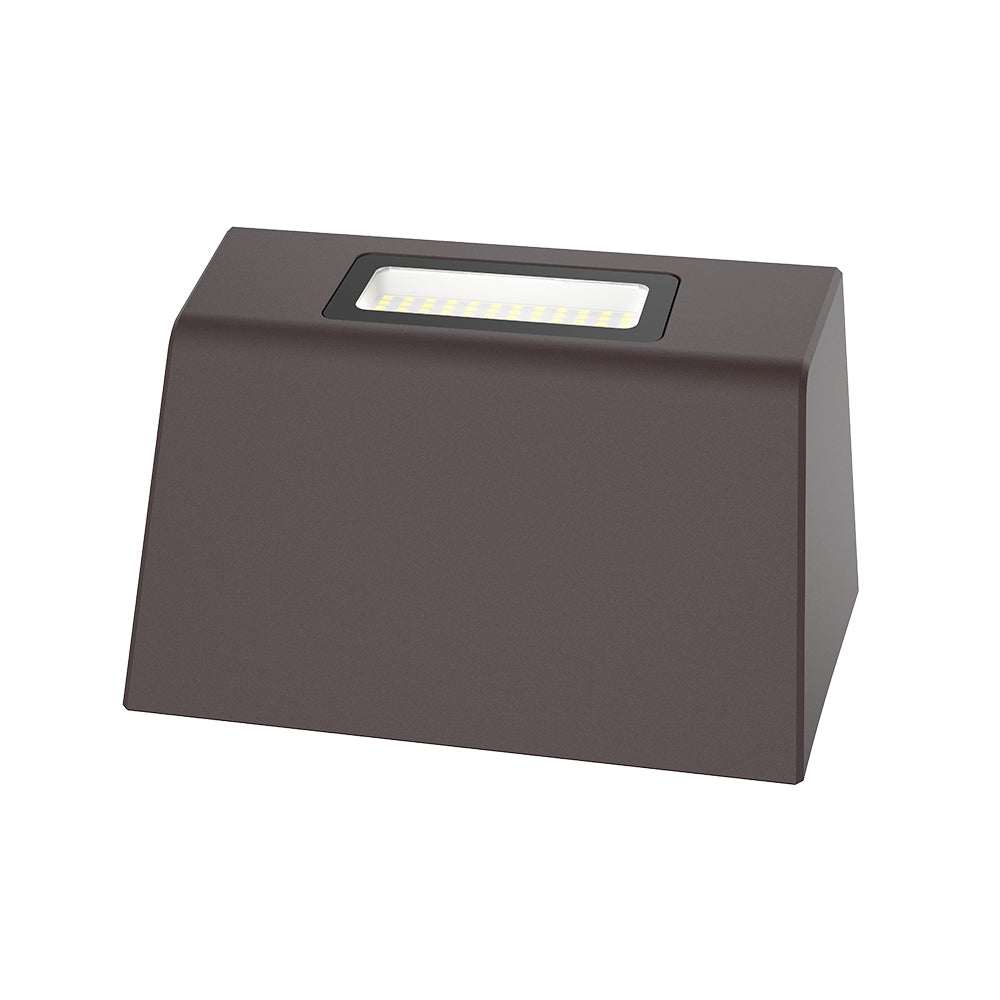

The SU-WP-120W-30/40/50K-G2 LED Architectural Wall Pack combines modern exterior styling with flexible field-adjustable lighting performance. Featuring a trapezoid housing design, selectable wattage, selectable color temperature, adjustable lighting direction, and dusk-to-dawn photocell control, this fixture is designed for commercial, hospitality, residential, and architectural outdoor lighting applications.

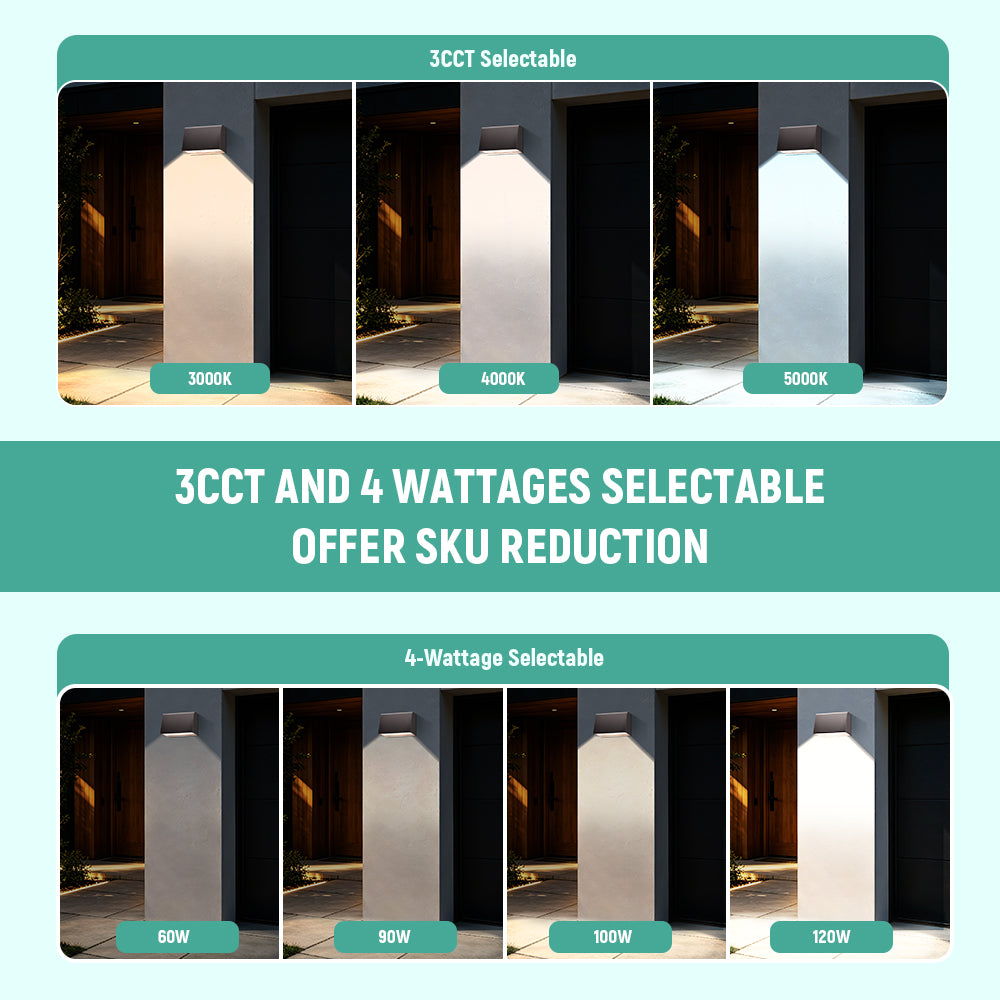

With four selectable wattage settings of 60W, 90W, 100W, and 120W, the fixture allows installers to adjust power based on project requirements without stocking multiple fixed-wattage wall packs. Three selectable color temperatures—3000K, 4000K, and 5000K—provide additional flexibility for warm, neutral, or daylight-style exterior illumination.

The fixture also features selectable lighting direction, allowing full Up & Down lighting or Down-only illumination depending on the application. An integrated photocell can be switched ON or OFF for automatic dusk-to-dawn operation, making the fixture suitable for pathways, walkways, hallways, building entrances, hospitality properties, and other exterior architectural spaces.

Designed with a durable ADC12 die-cast aluminum housing and polycarbonate lens, the SU-WP G2 provides excellent heat dissipation and long-term outdoor performance. Its IP65 rating protects against dust and water, while up to 150 lm/W efficacy helps deliver energy-efficient illumination.

Available electrical configurations include AC120-277V and AC120-347V options. The fixture supports 0-10V dimming and is also compatible with optional microwave motion sensors and emergency drivers for projects requiring advanced lighting control.

Key Features

• Power Selectable: 60W / 90W / 100W / 120W
• 3CCT Selectable: 3000K / 4000K / 5000K

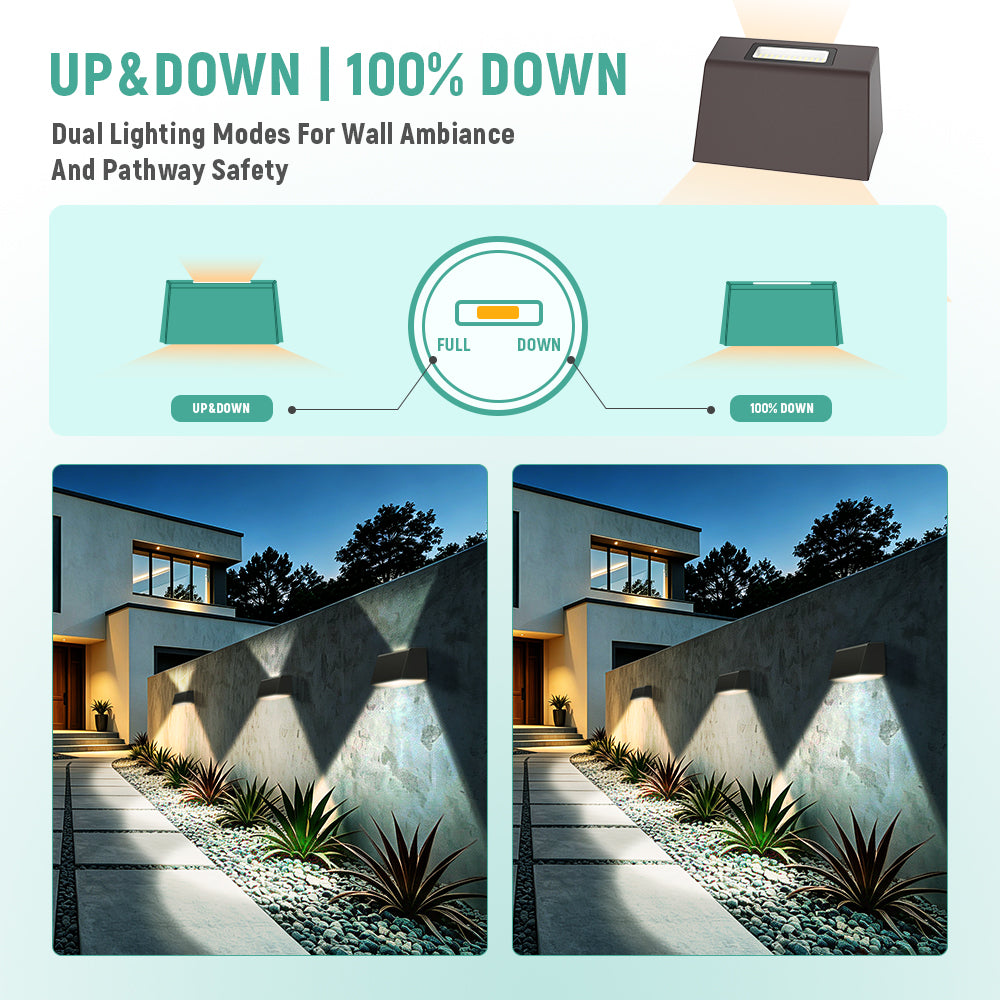

• Lighting Direction Selectable: Up & Down / Down Only
• Photocell ON/OFF: Integrated dusk-to-dawn control
• High Efficacy: Up to 150 lm/W
• Voltage Options: AC120-277V or AC120-347V
• 0-10V Dimmable
• CRI: >80
• Type III Distribution
• IP65 Rated
• Die-Cast Aluminum Housing
• Polycarbonate Lens
• Optional Microwave Motion Sensor
• Optional Emergency Driver
• Operating Temperature: -40°F to 122°F (-40°C to 50°C)
• L70 Lifetime: 50,000 hours
• UL & DLC Certified
• Wall Mount Installation

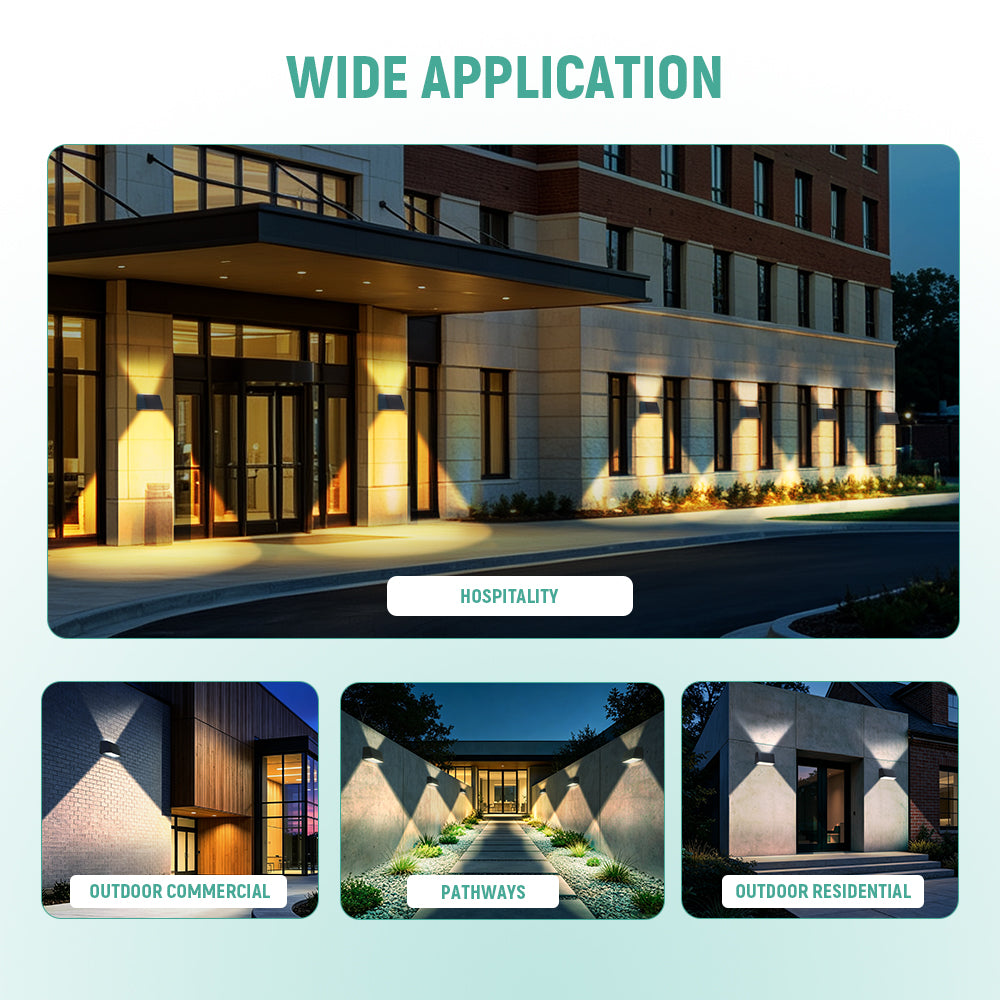

Applications

• Pathways
• Walkways
• Hallways
• Building Entrances
• Hotels and Hospitality
• Outdoor Commercial Areas
• Outdoor Residential Areas
• Apartment Complexes
• Architectural Facades
• Perimeter Lighting

Technical Specifications
