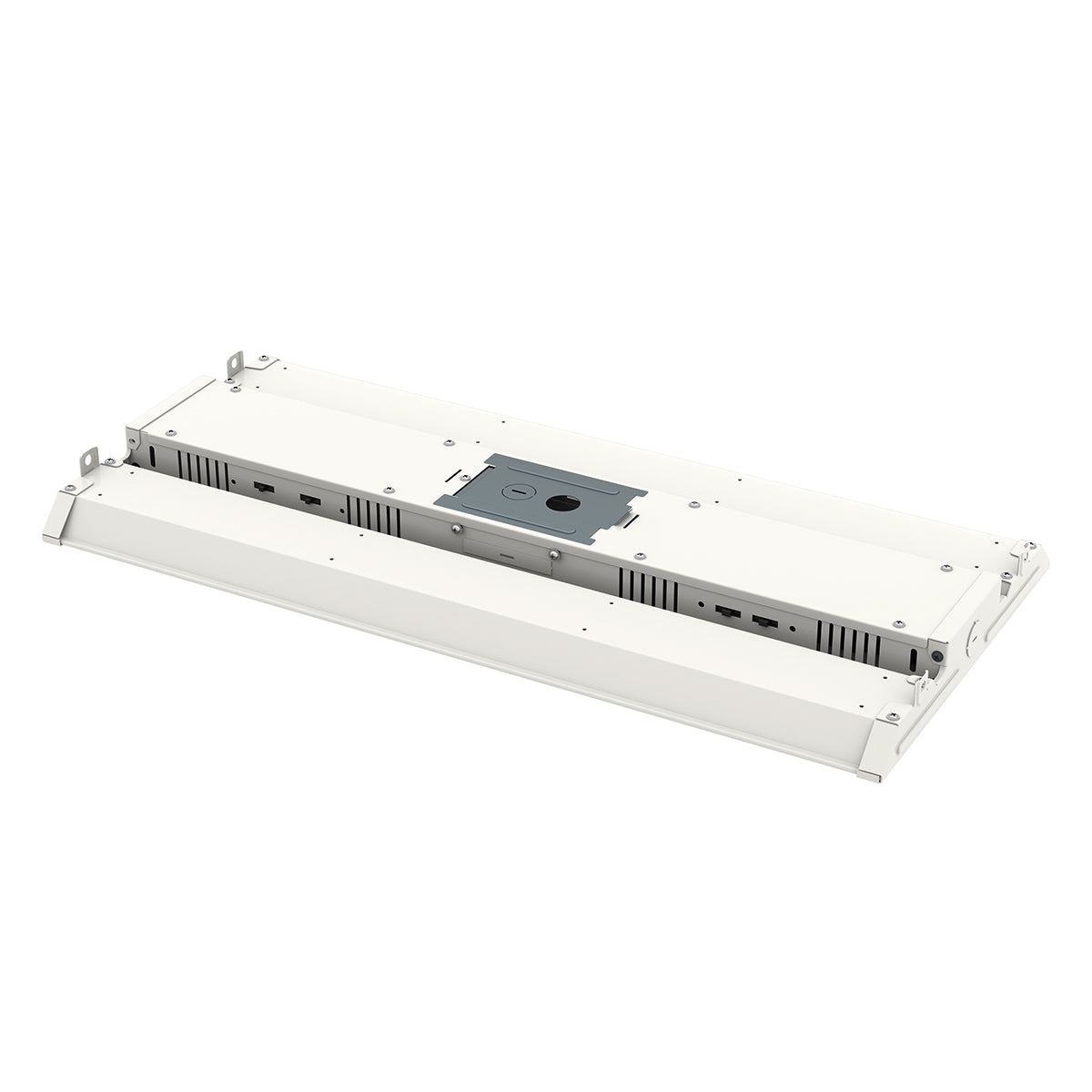

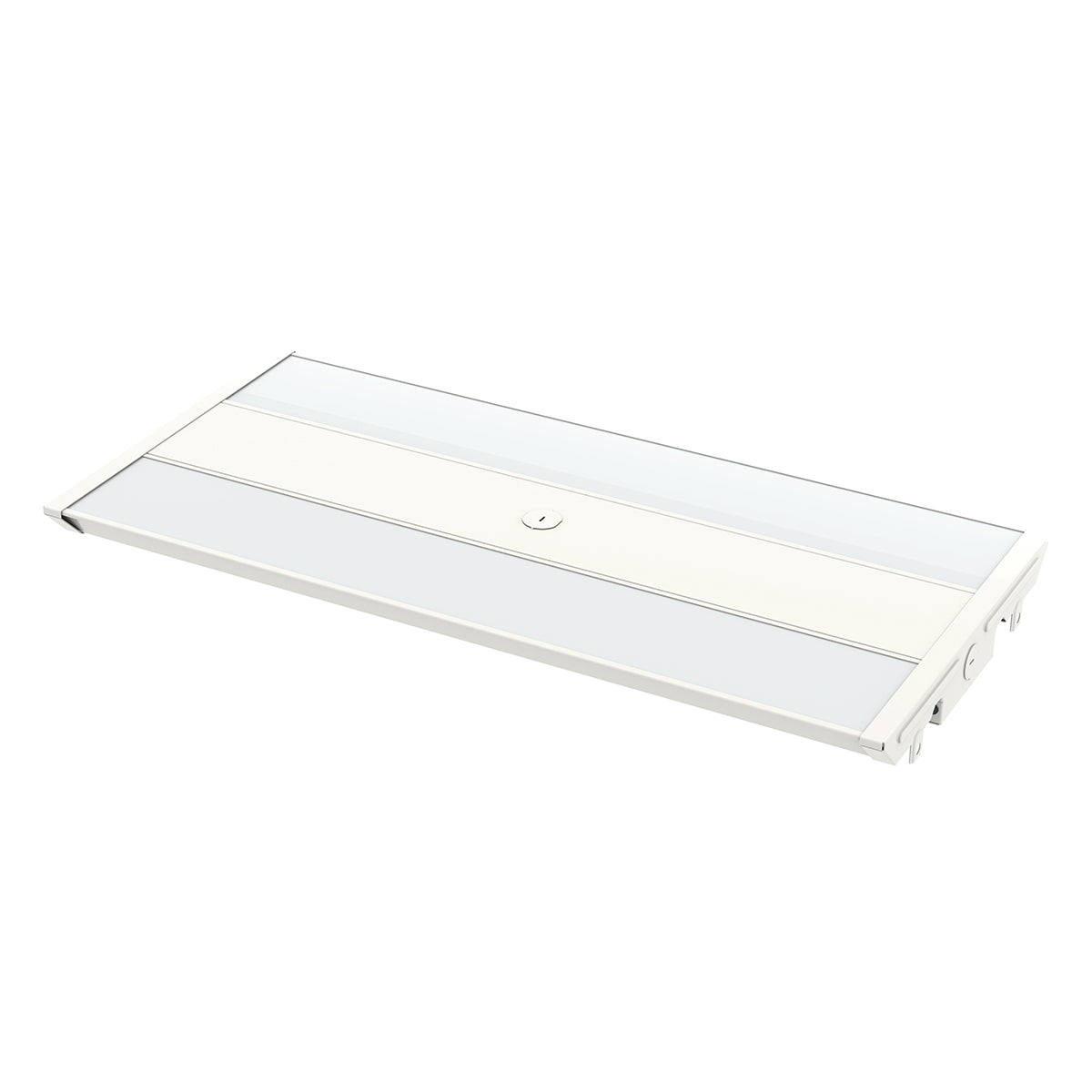

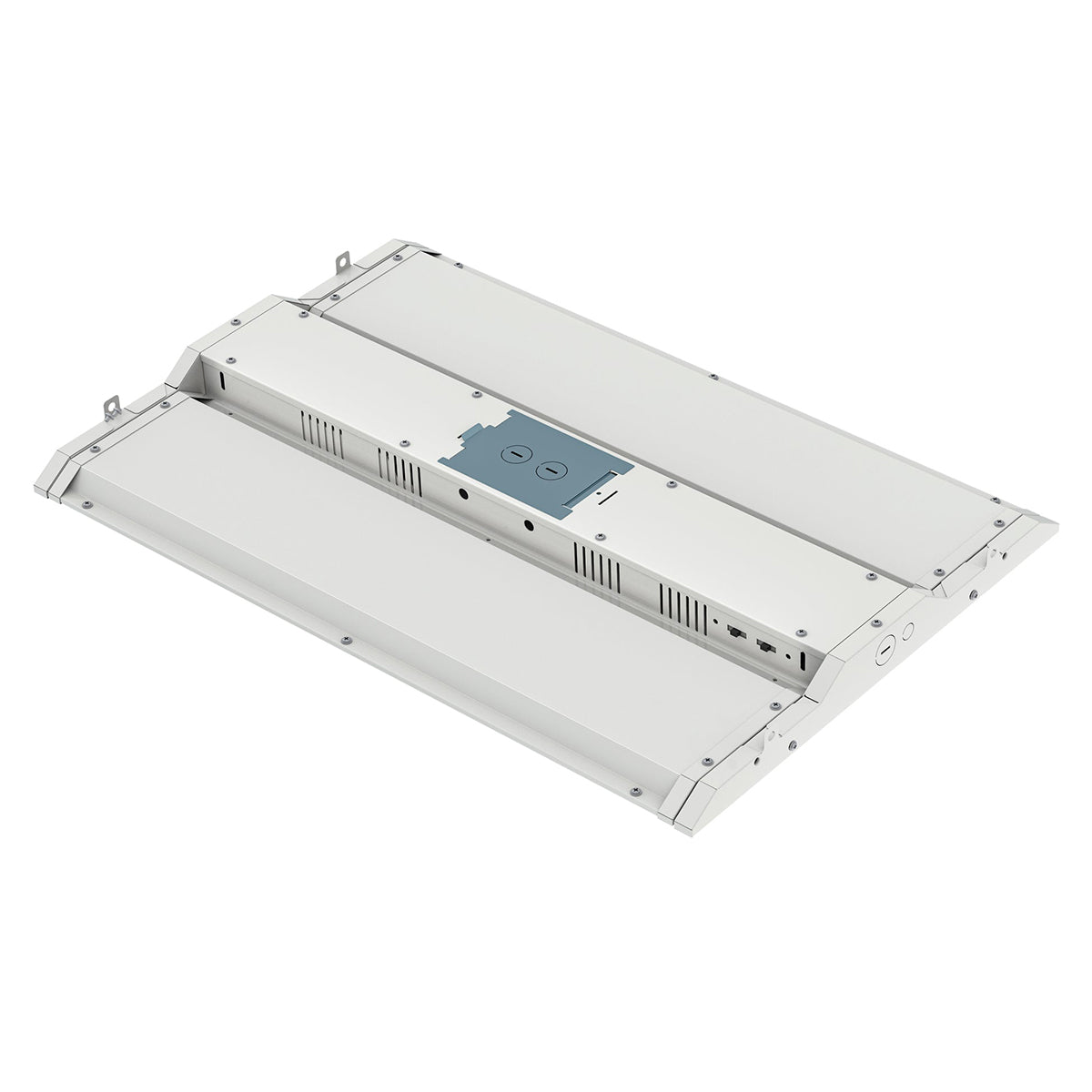

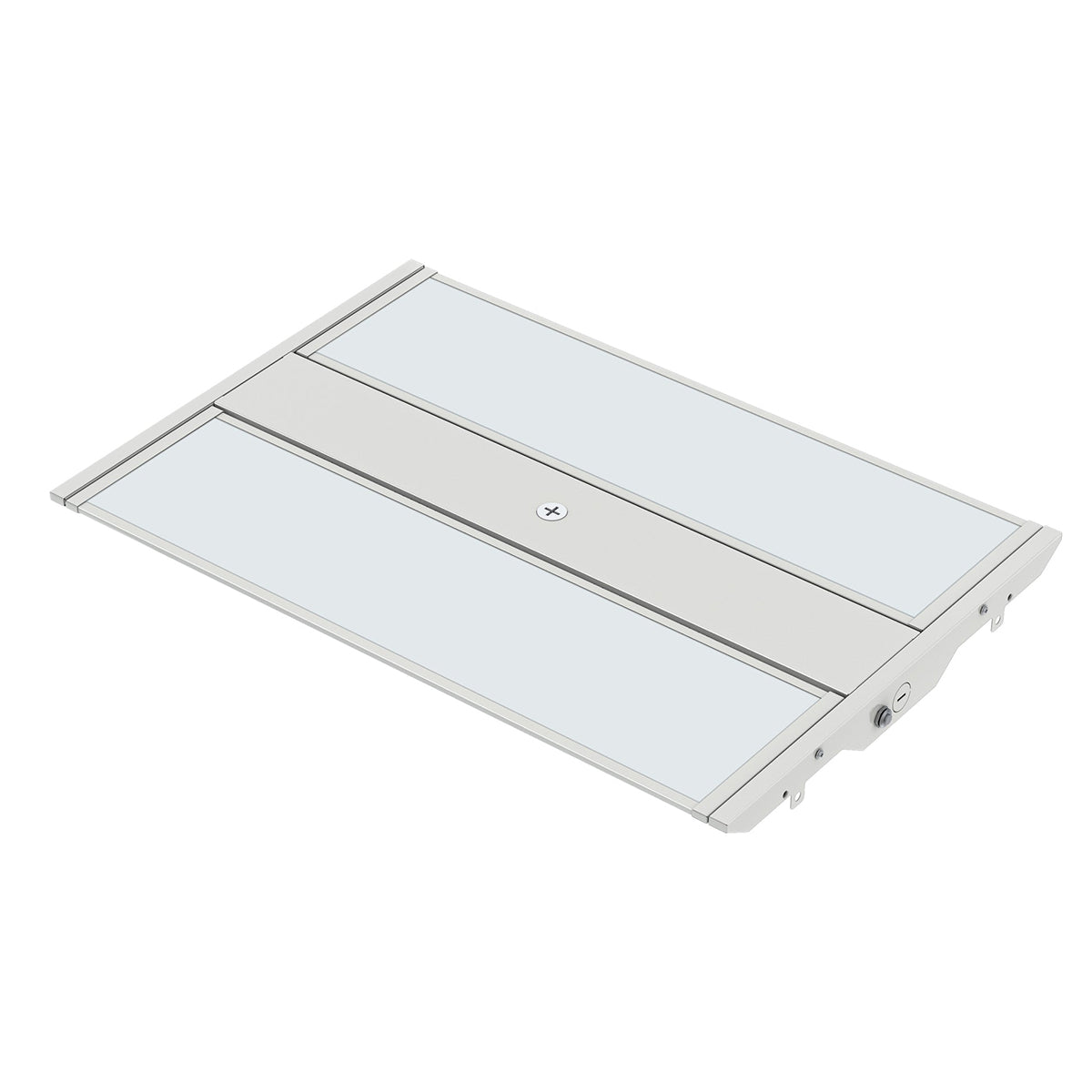

2FT/4FT LED Linear High Bay Light 80W-320W Wattage Selectable 160LM/W

Product Overview

Engineered for high-ceiling industrial, commercial, and warehouse spaces, the Selectable LED Linear High Bay Light delivers powerful, high-efficacy illumination for manufacturing facilities, distribution centers, gymnasiums, large retail spaces, and hangar environments. Available in versatile 2-foot and 4-foot housing profiles, this heavy-duty fixture features field-selectable power settings ranging from 80W up to 320W. Utilizing high-performance LED technology operating at an ultra-efficient 160 lumens per watt (up to 51,200 lumens total), it serves as an ideal energy-saving direct replacement for legacy 250W–1000W metal halide or multi-lamp T5HO/T8 fluorescent high bay fixtures.

• Broad Field-Selectable Wattage (80W–320W): Onboard DIP switches allow installers to easily adjust lumen output on-site (e.g., 80W / 110W / 160W for 2FT; 200W / 240W / 320W for 4FT) to meet specific foot-candle requirements and varying mounting heights (15ft to 45ft+).

• Ultra-High Energy Efficacy (160 LM/W): Advanced LED engine delivers up to 160 lumens per watt, generating maximum light output (up to 51,200 LM) while drastically cutting energy consumption and utility costs.

• Tunable Color Temperature (CCT Selectable): Features integrated multi-CCT field selection (3000K / 4000K / 5000K) to easily switch between warm neutral, cool white, and bright daylight tones directly at installation.

• Heavy-Duty Thermal Management: Constructed with a rugged, low-profile cold-rolled steel / aluminum chassis featuring integrated heat-dissipation venting for continuous thermal stability and extended fixture lifespan.

• Glare-Reducing Precision Optics: Includes a durable frosted PC lens diffuser that eliminates diode glare and reduces eye fatigue in high-activity industrial work zones while providing wide, uniform light distribution.

• Commercial Grade & Certified: Operates on AC120–277V universal input (or optional AC277–480V high-voltage option); includes V-hooks and hanging chains for chain/cable suspension or surface mounting; equipped with a 0–10V continuous dimming driver, UL/ETL Listed safety certification, and DLC Premium Qualification for maximum energy rebate eligibility.

Variant Procurement Matrix

Applications & Industries

• Warehouse high-bay lighting
• Distribution center aisle lighting
• Manufacturing floor lighting
• Industrial retrofit projects
• Commercial facilities using selectable wattage and CCT fixtures
