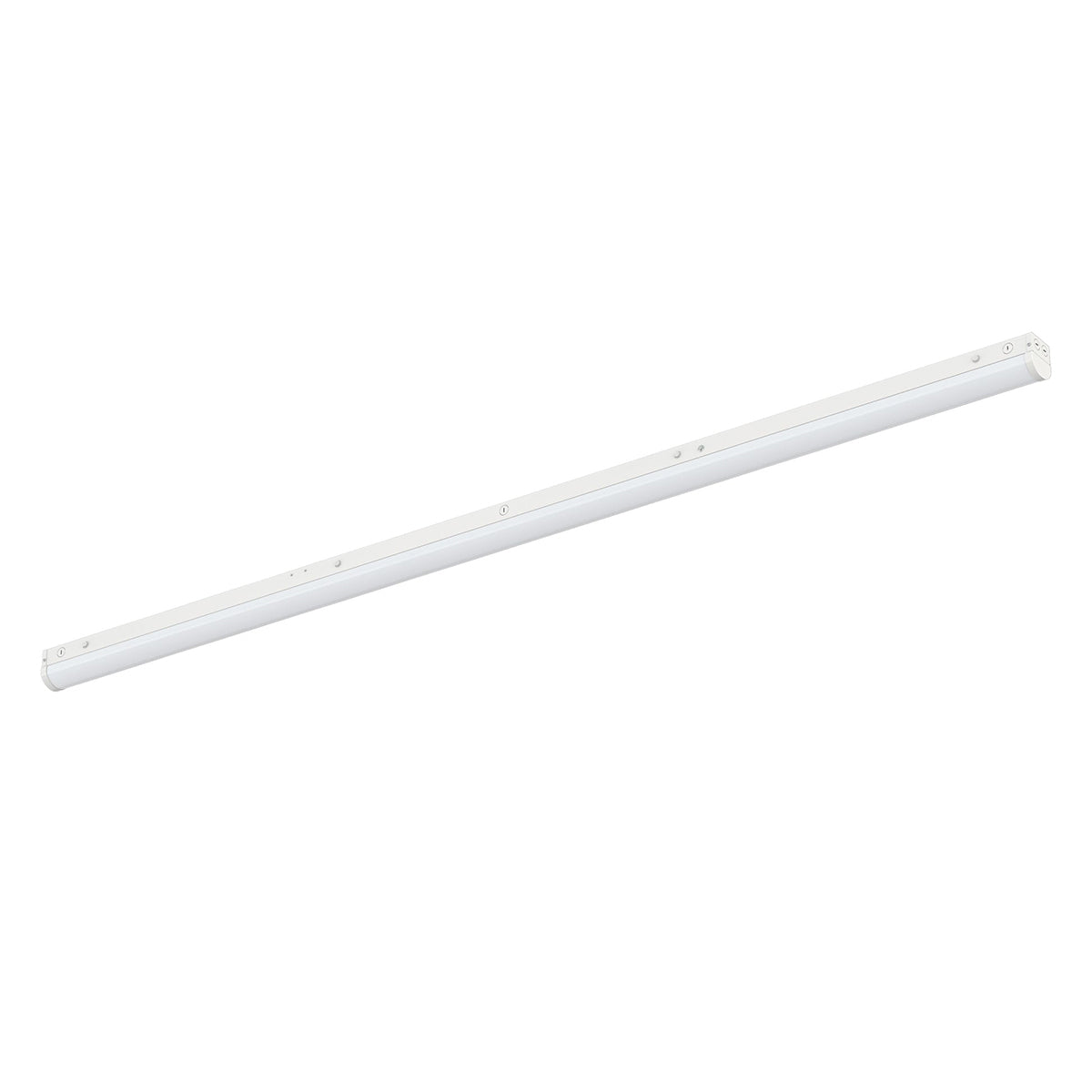

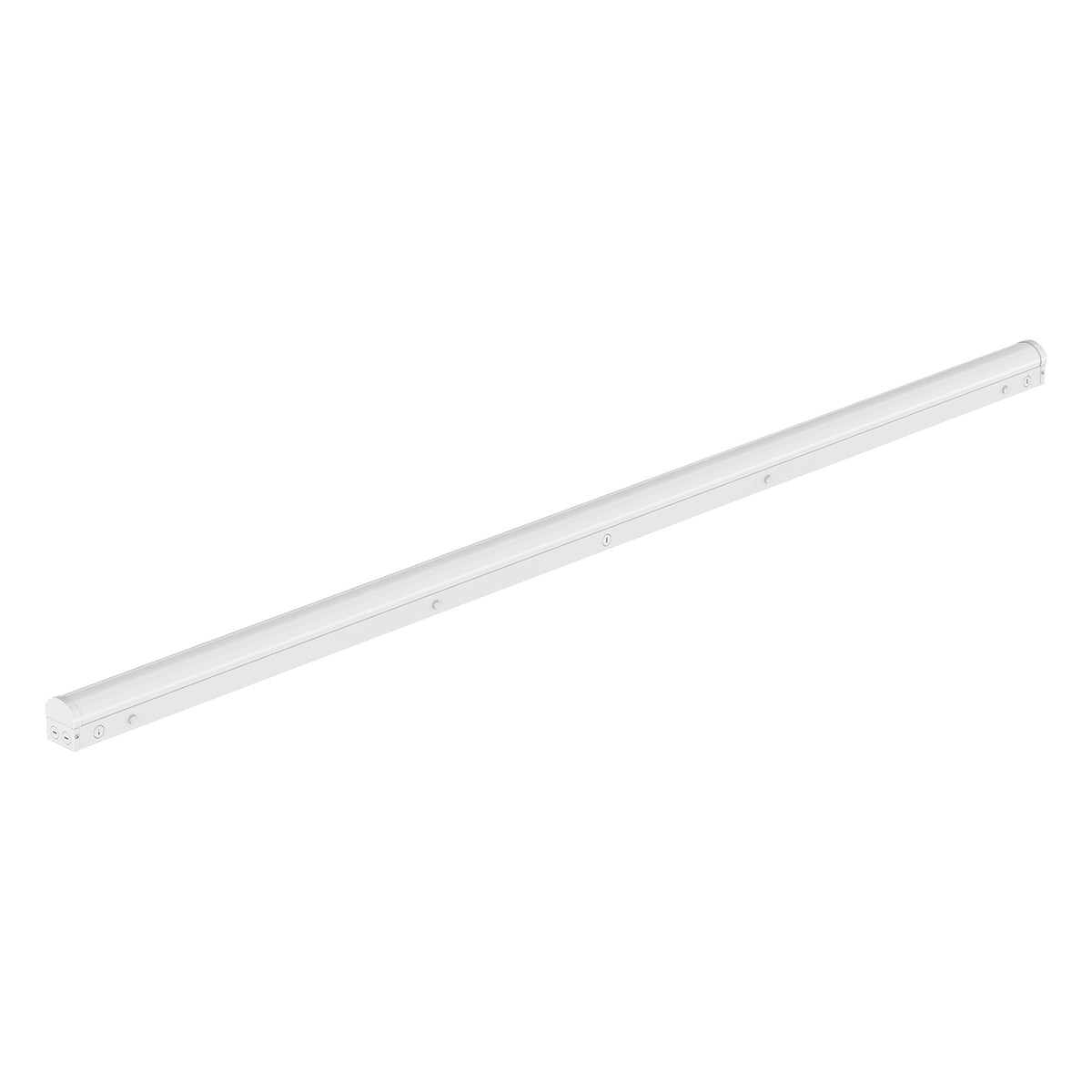

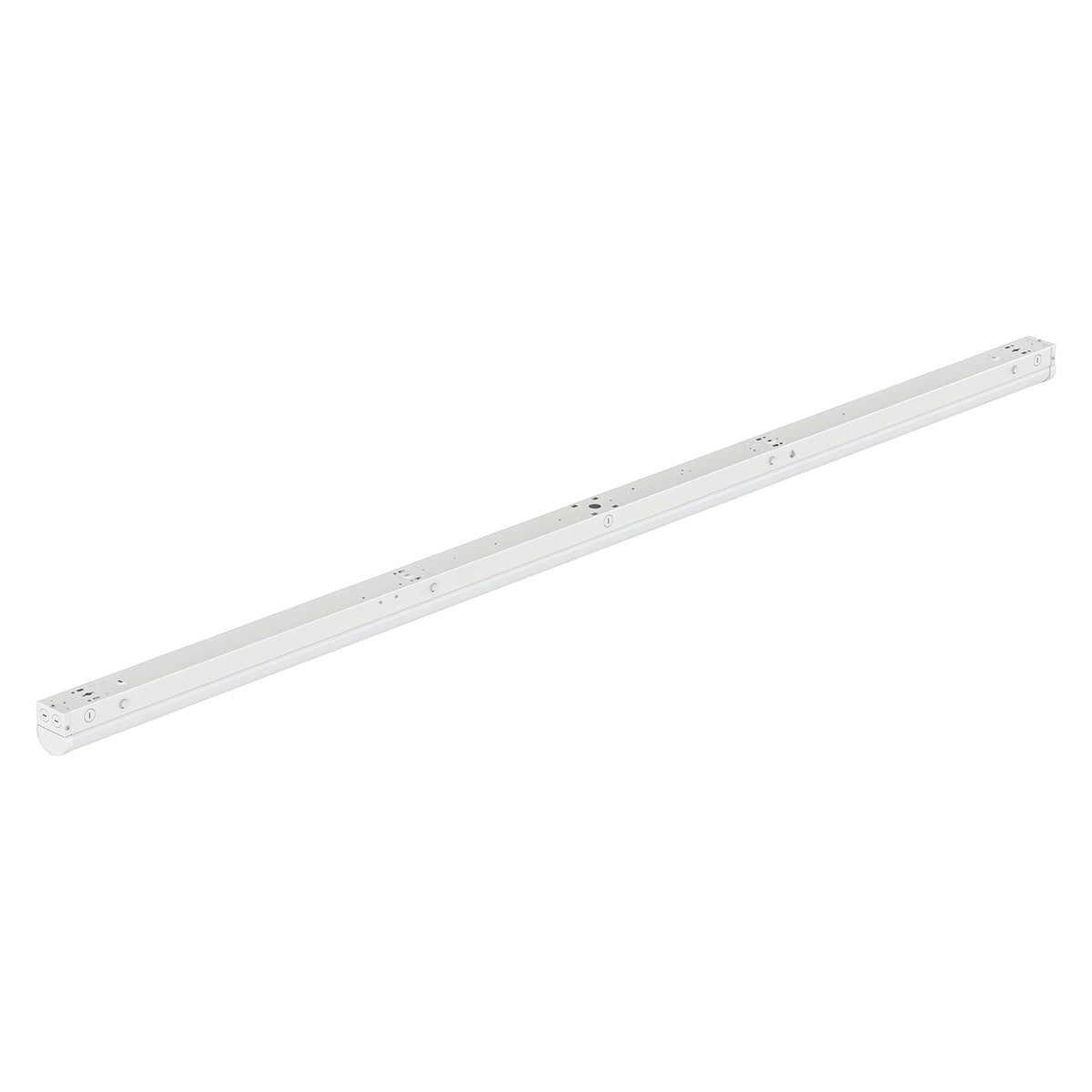

2FT & 4FT LED Linear Strip Light Fixture, 10W-70W Selectable, Up to 10,500 Lumens, DLC & UL

SKU: EDH-LS-2FT30W G4
$26.60 USD

Bulk Savings

automatically applied on carts over $500  - Learn more

  • Lumens : 5,000-10,500 lm
  • Voltage : 120-277V / 120-347V
  • Wattage : 10W-70W selectable by SKU
  • Dimming : Dimmable
  • Warranty : 5 years Warranty
Read More
In stock
Shipped within the United States, 2-5 day delivery
Size
Wattage
Configuration

Got questions?

Feel free to get in touch

Ask an expert

Chat Email WhatsApp:+8613631669378

Light Your Project with Confidence

Our commercial lighting solutions are built for reliable performance and easy installation. Unbox, mount, and upgrade your parking lot, warehouse, or outdoor space with high-efficiency illumination.

Certification Passed

Certification
Certification

LED Linear Strip Fixture G4 10W - 70W Selectable Wattage 2FT-4FT

Product Overview

J-Linear G4 Linear Strip Light is organized for internal procurement, distributor ordering, and stock review. The source data provides SKU-level size, wattage, input voltage, CCT, certification, cost, price, and US stock quantities.

This product record is not written for retail merchandising; it is structured for B2B comparison, inventory aggregation, and quote preparation.

Key Specifications

  • Product category: Linear Strip Light
  • Series: J-Linear G4
  • Material: Not provided

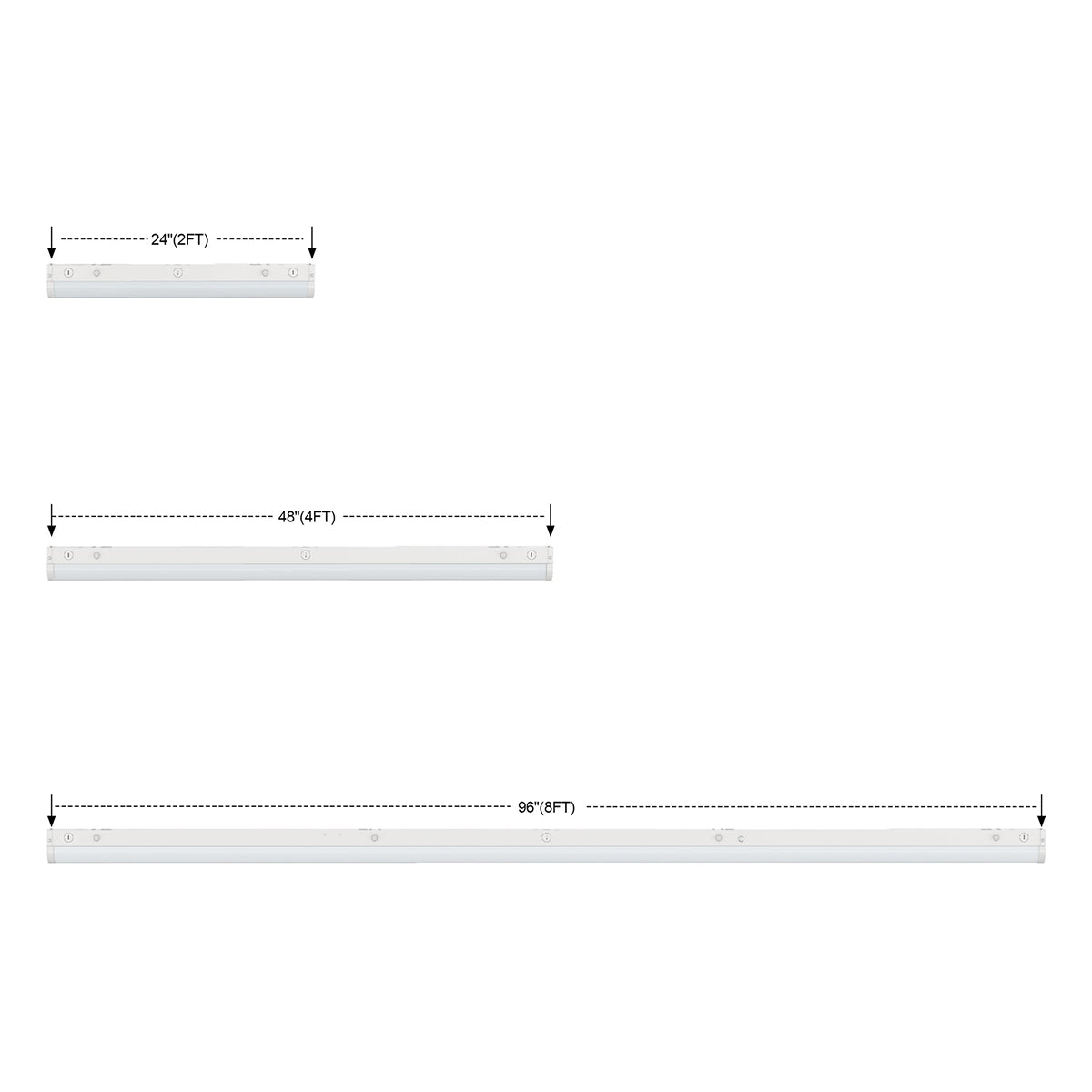

  • Dimensions: 2FT / 4FT
  • Technical standards: 10W-70W selectable by SKU; 120-277V / 120-347V; 3000K / 3500K / 4000K / 5000K / 5700K / 6500K; EDH-LS-2FT40W G4 uses 3500K / 4000K / 5000K; 5,000-10,500 lm; 150-167 lm/W
  • Certifications: DLC / UL
  • MOQ/Pack Size: Not provided
  • Total US stock in source table: 27513

Variant Procurement Matrix

SKU Size Wattage Input Voltage CCT / Configuration Lumens Efficacy US Stock Unit Price
EDH-LS-2FT30W G4 2FT 10W-15W-20W-25W-30W 120-277V/120-347V Sensor Base 5,000 lm 167 lm/W 185 $26.60
EDH-LS-2FT40W G4 2FT 20W-30W-40W 120-277V/120-347V Standard 6,000 lm 150 lm/W 1 $26.60
EDH-LS-4FT40W G4 4FT 20W-25W-30W-35W-40W 120-277V/120-347V Sensor Base 6,000 lm 150 lm/W 1600 $28.00
EDH-LS-4FT50W G4 4FT 25W-30W-35W-40W-50W 120-277V/120-347V Sensor Base 7,500 lm 150 lm/W 184 $29.40
EDH-LS-4FT60W G4 4FT 20W-30W-40W-50W-60W 120-277V/120-347V MC Sensor 10,020 lm 167 lm/W 14000 $44.80
EDH-LS-4FT60W-EM G4 4FT 20W-30W-40W-50W-60W 120-277V/120-347V 8W EM 10,500 lm 150 lm/W 400 $112.00
EDI-LS-4FT70WP G4 4FT 20W-40W-50W-60W-70W 120-277V/120-347V Sensor Base 10,500 lm 150 lm/W 11000 $44.80
EDI-LS-4FT70WP-EM G4 4FT 20W-40W-50W-60W-70W 120-277V/120-347V 15W EM 10,500 lm 150 lm/W 143 $112.00

Applications & Industries

  • Low bay lighting
  • Stairwell lighting
  • Warehouse support spaces
  • High bay and low bay utility areas
  • Commercial retrofit projects using selectable wattage strip fixtures

Supply Chain & Quality Standards

  • Certification data: DLC / UL
  • Quality control standard: Not provided
  • OEM/ODM customization: Not provided
  • Lead time: Not provided
  • Procurement data: Unit cost, unit price, and US stock are maintained by SKU in the variant matrix.

Procurement FAQ

Q: Is sample availability provided?
A: Sample availability is not provided in the uploaded source data.

Q: Can compliance documents be requested for purchasing review?
A: Certification categories are listed by SKU in the source table. Certificate file links were not provided.

Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

Specifications

Wattage 10W-70W selectable by SKU
LPW 185.0
Certifications DLC / UL
Lifetime 50000 hours
Luminous 5,000-10,500 lm
Voltage 120-277V / 120-347V
CRI 80
Beam Angle 120
Color Temperature Range 3000K-6500K
Material PC Frosted /Clear
Applications Low bay lighting Stairwell lighting Warehouse support spaces High bay and low bay utility areas Commercial retrofit projects using selectable wattage strip fixtures
Efficacy per W 150-167 lm/W
Operating Temperature -4°F -104°F
Dimming Details 0-10V Dimming
Size 2FT / 4FT
Warranty 5 years Warranty
