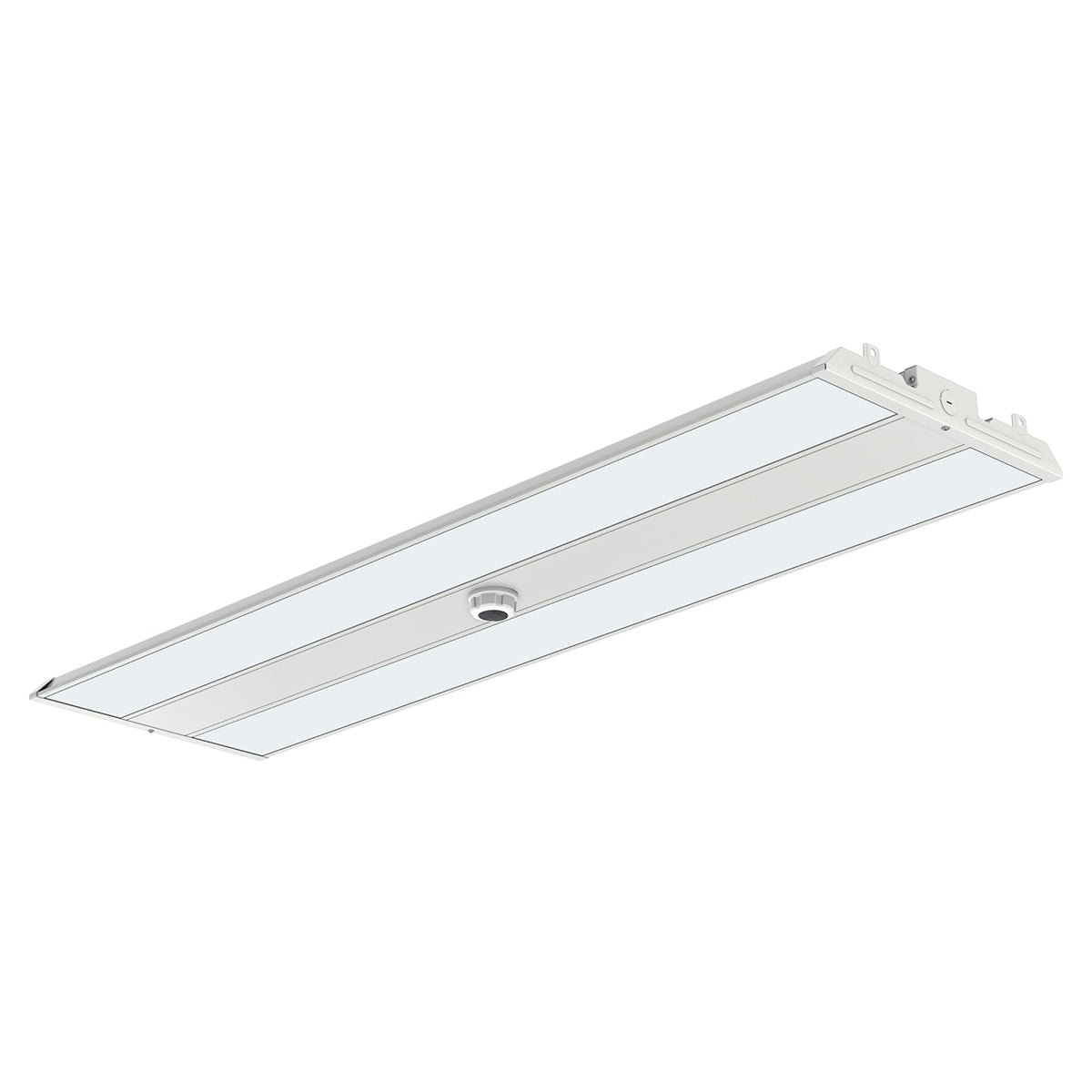

Linear High Bay Light Fixture G4 80W - 500W Selectable Wattage LED 2FT-4FT

SKU: EDI-LHB2FT-220W G4
$63.00 USD

Bulk Savings

automatically applied on carts over $500  - Learn more

  • Lumens : 35,200-80,000 lm
  • Voltage : 120-277V / 120-347V / 200-480V
  • Wattage : 80W-500W selectable by SKU
  • Dimming : Dimmable
  • Warranty : 5 years Warranty
Read More
In stock
Shipped within the United States, 2-5 day delivery
Size
Wattage
Input Voltage

Got questions?

Feel free to get in touch

Ask an expert

Chat Email WhatsApp:+8613631669378

Light Your Project with Confidence

Our commercial lighting solutions are built for reliable performance and easy installation. Unbox, mount, and upgrade your parking lot, warehouse, or outdoor space with high-efficiency illumination.

Certification Passed

Certification
Certification

Product Overview

J-Linear G4 Linear High Bay is organized for internal procurement, distributor ordering, and stock review. The source data provides SKU-level size, wattage, input voltage, CCT, certification, cost, price, and US stock quantities.

This product record is not written for retail merchandising; it is structured for B2B comparison, inventory aggregation, and quote preparation.

Key Specifications

  • Product category: Linear High Bay
  • Series: J-Linear G4
  • Material: Aluminum housing listed for EDI-LHB2FT-320W G4, EDI-LHB4FT-400W G4, and EDI-LHB4FT-500W G4; other material not provided

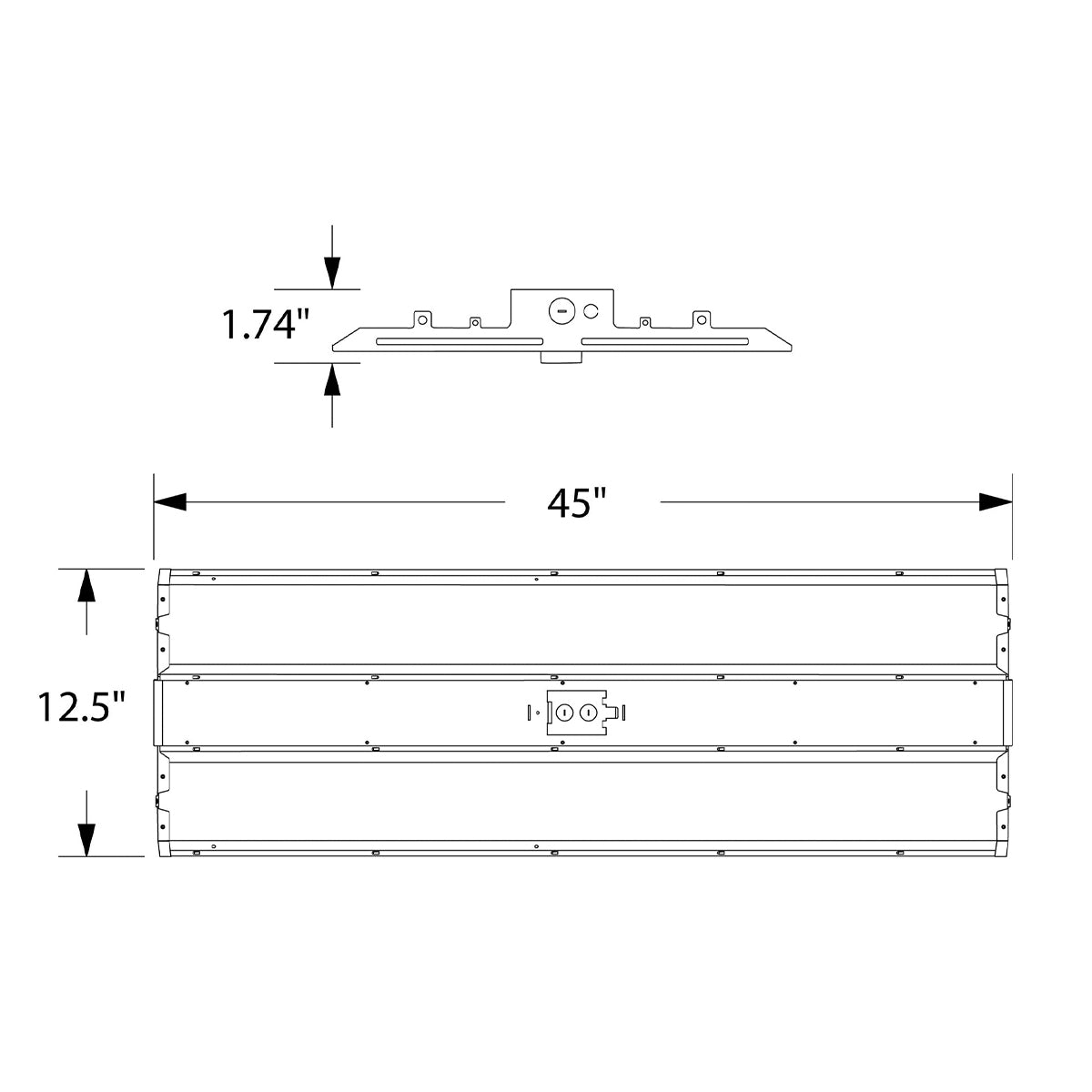

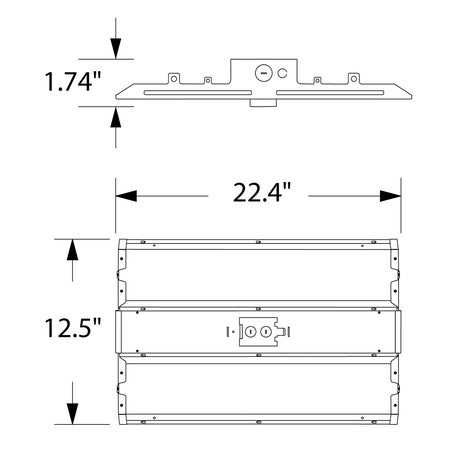

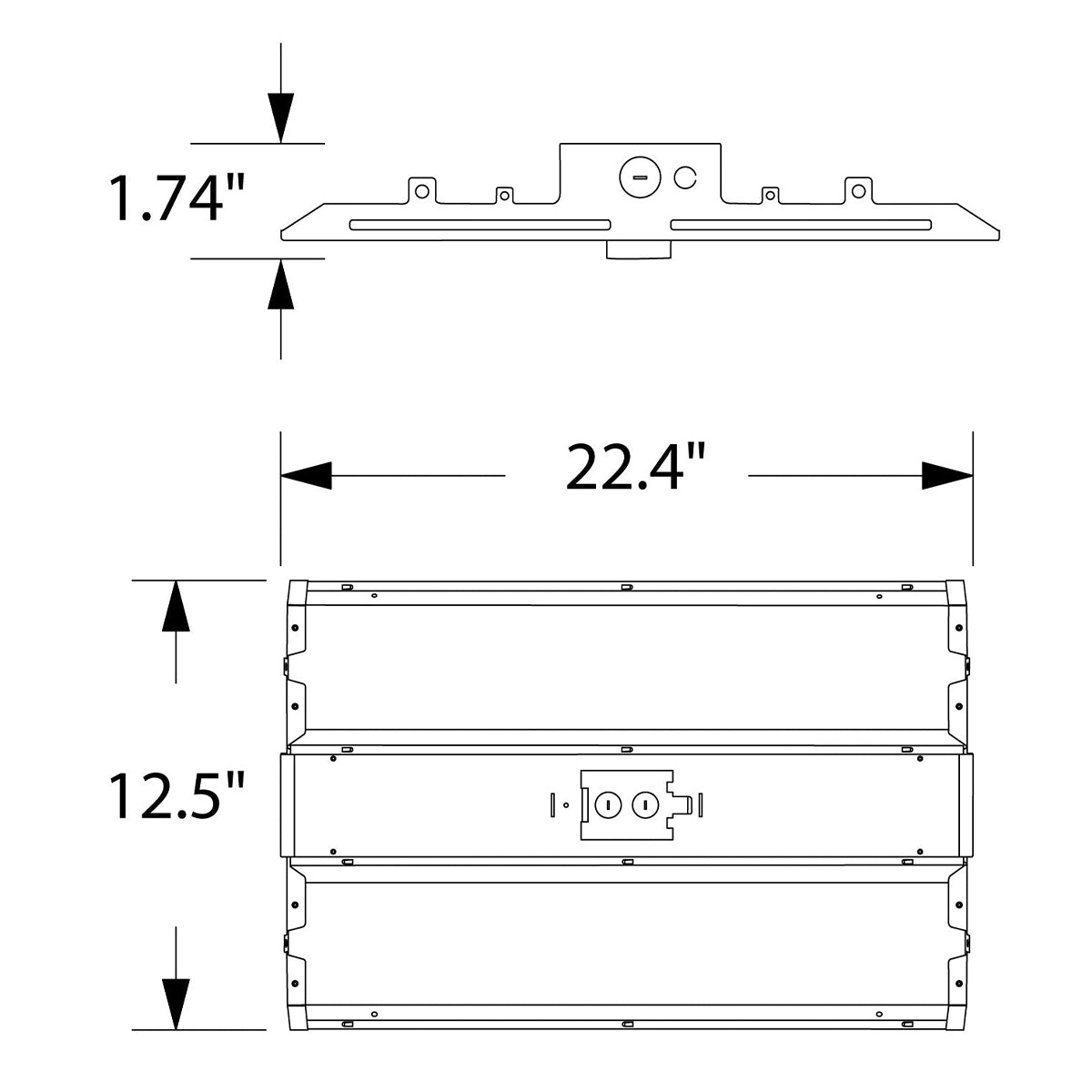

  • Dimensions: 2FT / 4FT
  • Technical standards: 80W-500W selectable by SKU; 120-277V / 120-347V / 200-480V; 3000K / 3500K / 4000K / 5000K / 5700K / 6500K; selected 4FT 400W and 500W SKUs use 3500K / 4000K / 5000K; 35,200-80,000 lm; 160 lm/W
  • Certifications: DLC / UL
  • MOQ/Pack Size: Not provided
  • Total US stock in source table: 2270

Variant Procurement Matrix

SKU Size Wattage Input Voltage CCT / Configuration Lumens Efficacy US Stock Unit Price

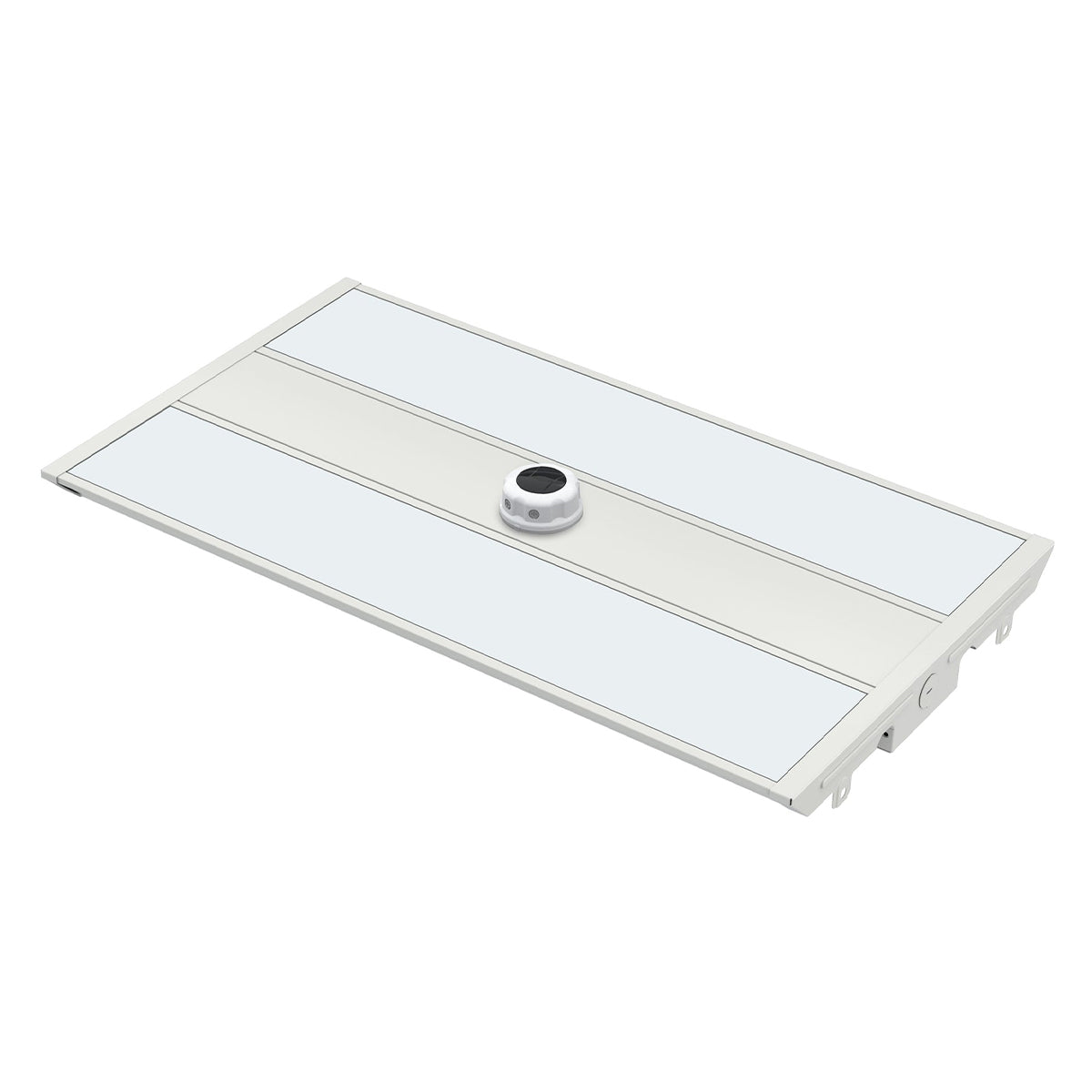

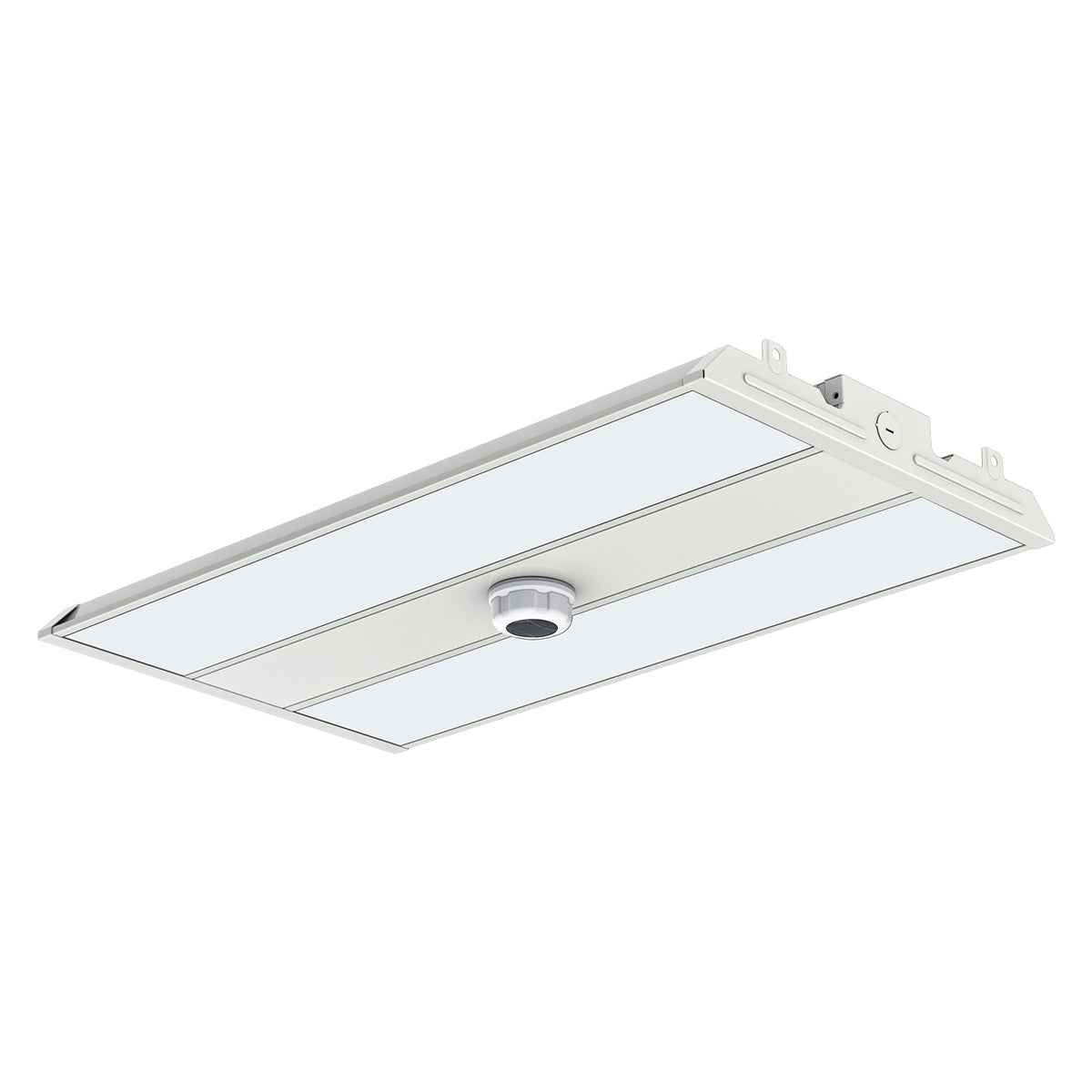

EDI-LHB2FT-220W G4 2FT 80W-100W-120W-165W-220W 120-277V/120-347V/200-480V 3Pin with AUX sensor base 35,200 lm 160 lm/W 91 $63.00
EDI-LHB2FT-320W G4 2FT 150W-180W-220W-250W-320W 120-277V/120-347V/200-480V Aluminum housing, AUX sensor base 51,200 lm 160 lm/W 1648 $105.00

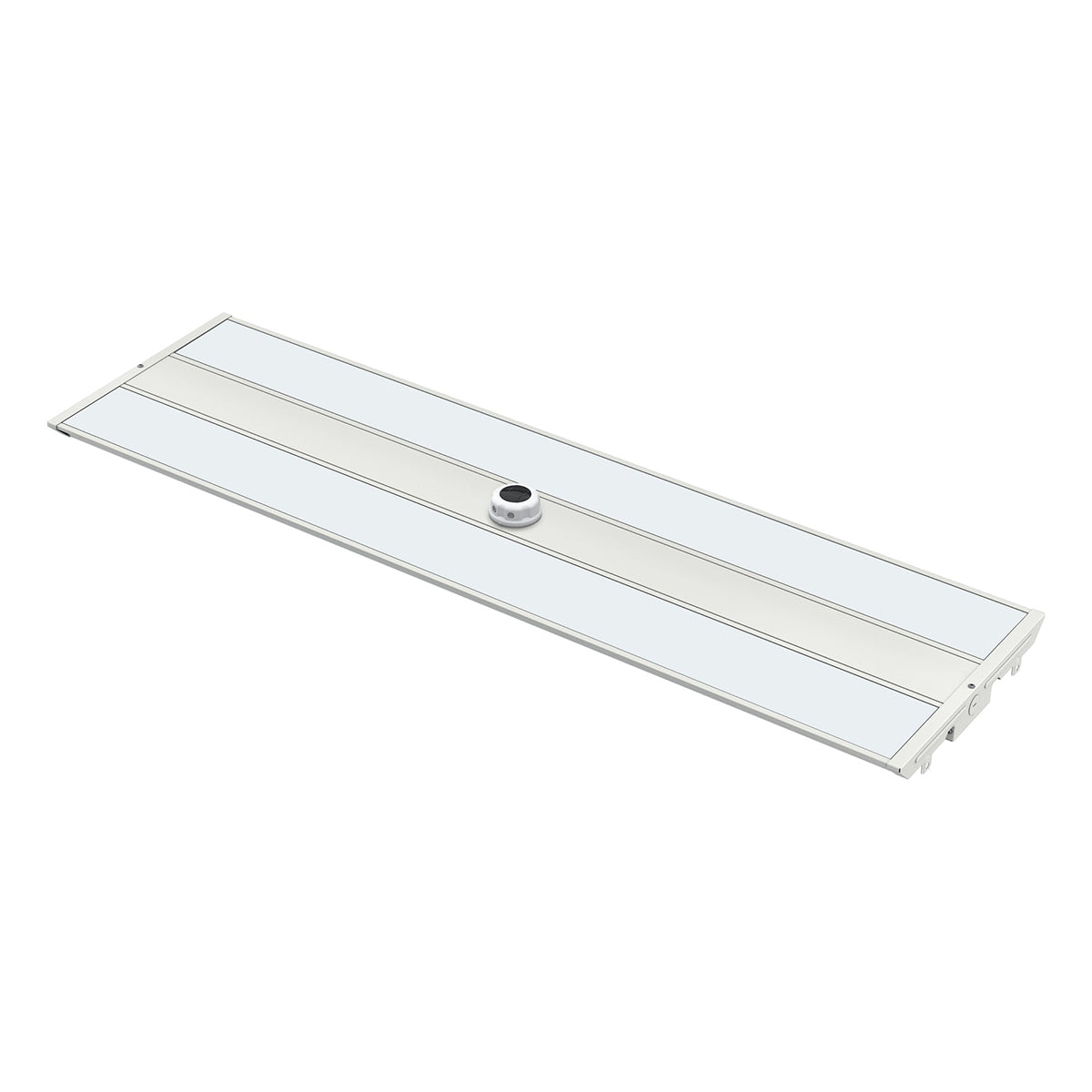

EDI-LHB4FT-320W G4 4FT 150W-180W-220W-250W-320W 120-277V/120-347V/200-480V AUX sensor base 51,200 lm 160 lm/W 275 $124.60
EDI-LHB4FT-400W G4 4FT 200W-225W-255W-300W-400W 120-277V/120-347V/200-480V Aluminum housing, AUX sensor base 64,000 lm 160 lm/W 140 $182.00
EDI-LHB4FT-500W G4 4FT 225W-255W-320W-400W-500W 120-277V/120-347V/200-480V Aluminum housing, AUX sensor base 80,000 lm 160 lm/W 116 $210.00

Applications & Industries

  • Warehouse high-bay lighting
  • Distribution center aisle lighting
  • Manufacturing floor lighting
  • Industrial retrofit projects
  • Commercial facilities using selectable wattage and CCT fixtures

Supply Chain & Quality Standards

  • Certification data: DLC / UL
  • Quality control standard: Not provided
  • OEM/ODM customization: Not provided
  • Lead time: Not provided
  • Procurement data: Unit cost, unit price, and US stock are maintained by SKU in the variant matrix.

Procurement FAQ

Q: Is sample availability provided?
A: Sample availability is not provided in the uploaded source data.

Q: Can compliance documents be requested for purchasing review?
A: Certification categories are listed by SKU in the source table. Certificate file links were not provided.

Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

Specifications

Wattage 80W-500W selectable by SKU
LPW 160.0
Certifications DLC / UL
Lifetime 50000 hours
Luminous 35,200-80,000 lm
Voltage 120-277V / 120-347V / 200-480V
Color Temperature Range 3000K-6500K
Mount type Chain Mount (included). Pendant & surface mounting is available
Applications Warehouse high-bay lighting Distribution center aisle lighting Manufacturing floor lighting Industrial retrofit projects Commercial facilities using selectable wattage and CCT fixtures
Efficacy per W 160 lm/W
Operating Temperature -4°F~122°F
Dimming Details 0-10V Dimming
Size 2FT / 4FT
Warranty 5 years Warranty
